三菱投影机-HC6800说明书.pdf

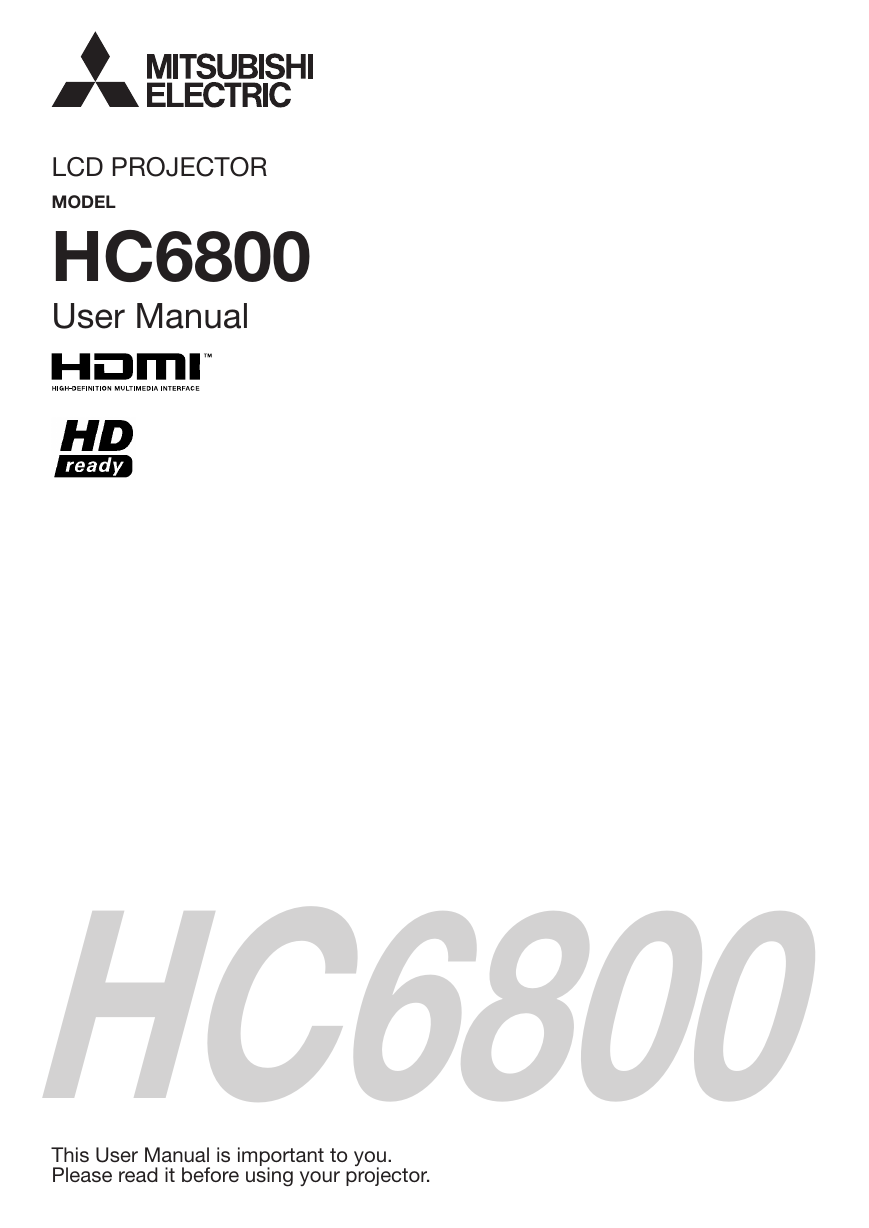

LCD PROJECTOR
MODEL
HC6800
User Manual
HC6800
This User Manual is important to you.
Please read it before using your projector.

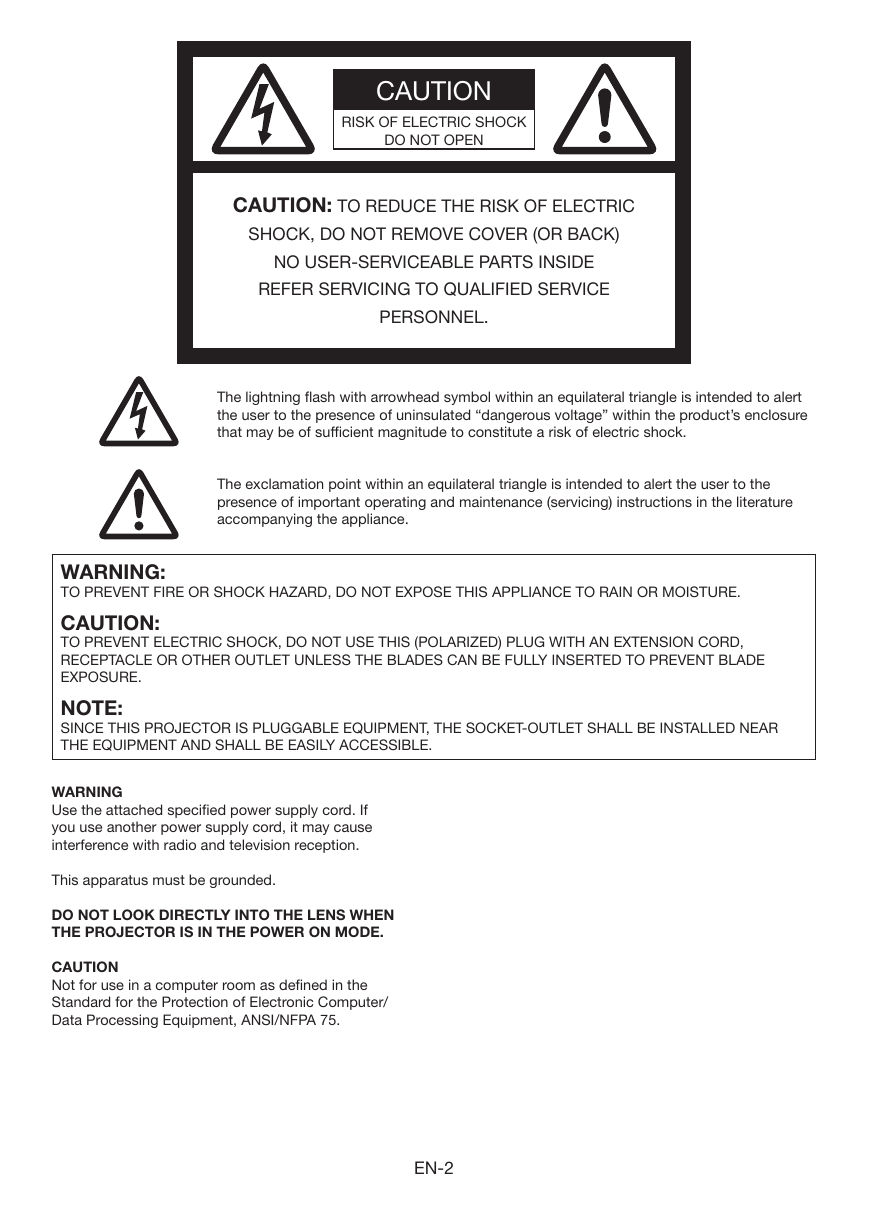

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert
the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION:
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
NOTE:
SINCE THIS PROJECTOR IS PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR
THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.
WARNING
Use the attached specified power supply cord. If
you use another power supply cord, it may cause
interference with radio and television reception.
This apparatus must be grounded.
DO NOT LOOK DIRECTLY INTO THE LENS WHEN
THE PROJECTOR IS IN THE POWER ON MODE.
CAUTION
Not for use in a computer room as defined in the
Standard for the Protection of Electronic Computer/
Data Processing Equipment, ANSI/NFPA 75.
EN-2

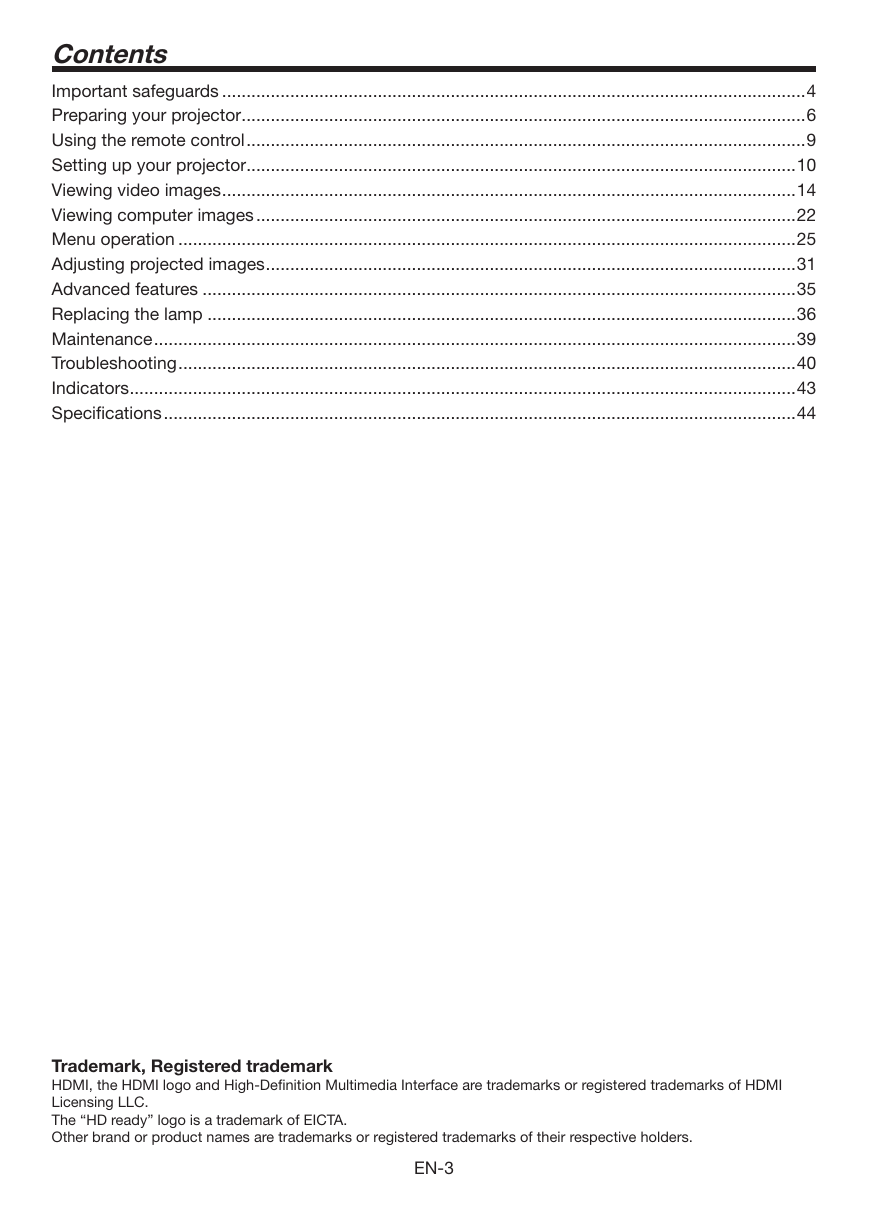

Contents
Important safeguards ........................................................................................................................4
Preparing your projector ....................................................................................................................6
Using the remote control ...................................................................................................................9
Setting up your projector .................................................................................................................10
Viewing video images ......................................................................................................................14
Viewing computer images ...............................................................................................................22
Menu operation ...............................................................................................................................25
Adjusting projected images .............................................................................................................31
Advanced features ..........................................................................................................................35
Replacing the lamp .........................................................................................................................36
Maintenance ....................................................................................................................................39
Troubleshooting ...............................................................................................................................40
Indicators .........................................................................................................................................43
Specifications ..................................................................................................................................44
Trademark, Registered trademark
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
The “HD ready” logo is a trademark of EICTA.
Other brand or product names are trademarks or registered trademarks of their respective holders.
EN-3

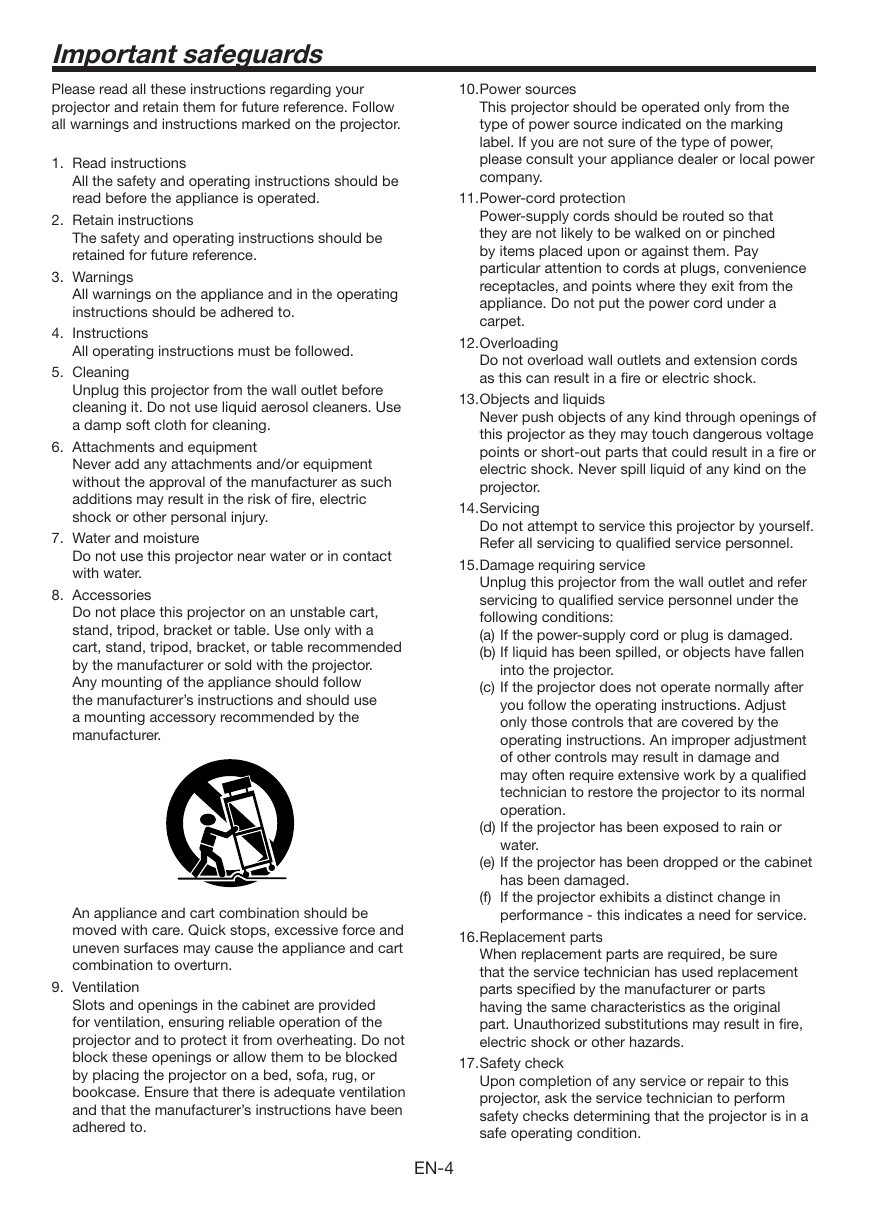

Important safeguards
Please read all these instructions regarding your
projector and retain them for future reference. Follow
all warnings and instructions marked on the projector.
1.
2.
3.
4.
5.
6.
7.
8.
Read instructions
All the safety and operating instructions should be
read before the appliance is operated.
Retain instructions
The safety and operating instructions should be
retained for future reference.
Warnings
All warnings on the appliance and in the operating
instructions should be adhered to.
Instructions
All operating instructions must be followed.
Cleaning
Unplug this projector from the wall outlet before
cleaning it. Do not use liquid aerosol cleaners. Use
a damp soft cloth for cleaning.
Attachments and equipment
Never add any attachments and/or equipment
without the approval of the manufacturer as such
additions may result in the risk of fire, electric
shock or other personal injury.
Water and moisture
Do not use this projector near water or in contact
with water.
Accessories
Do not place this projector on an unstable cart,
stand, tripod, bracket or table. Use only with a
cart, stand, tripod, bracket, or table recommended
by the manufacturer or sold with the projector.
Any mounting of the appliance should follow
the manufacturer’s instructions and should use
a mounting accessory recommended by the
manufacturer.
9.
An appliance and cart combination should be
moved with care. Quick stops, excessive force and
uneven surfaces may cause the appliance and cart
combination to overturn.
Ventilation
Slots and openings in the cabinet are provided
for ventilation, ensuring reliable operation of the
projector and to protect it from overheating. Do not
block these openings or allow them to be blocked
by placing the projector on a bed, sofa, rug, or
bookcase. Ensure that there is adequate ventilation
and that the manufacturer’s instructions have been
adhered to.
EN-4
10.
11.
12.
13.
14.
15.
Power sources
This projector should be operated only from the
type of power source indicated on the marking
label. If you are not sure of the type of power,
please consult your appliance dealer or local power
company.
Power-cord protection
Power-supply cords should be routed so that
they are not likely to be walked on or pinched
by items placed upon or against them. Pay
particular attention to cords at plugs, convenience
receptacles, and points where they exit from the
appliance. Do not put the power cord under a
carpet.
Overloading
Do not overload wall outlets and extension cords
as this can result in a fire or electric shock.
Objects and liquids
Never push objects of any kind through openings of
this projector as they may touch dangerous voltage
points or short-out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the
projector.
Servicing
Do not attempt to service this projector by yourself.
Refer all servicing to qualified service personnel.
Damage requiring service
Unplug this projector from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
(a) If the power-supply cord or plug is damaged.
(b) If liquid has been spilled, or objects have fallen
into the projector.
(c) If the projector does not operate normally after
you follow the operating instructions. Adjust
only those controls that are covered by the
operating instructions. An improper adjustment
of other controls may result in damage and
may often require extensive work by a qualified
technician to restore the projector to its normal
operation.
(d) If the projector has been exposed to rain or
water.
(e) If the projector has been dropped or the cabinet
has been damaged.
(f) If the projector exhibits a distinct change in
performance - this indicates a need for service.
16.
17.
Replacement parts
When replacement parts are required, be sure
that the service technician has used replacement
parts specified by the manufacturer or parts
having the same characteristics as the original
part. Unauthorized substitutions may result in fire,
electric shock or other hazards.
Safety check
Upon completion of any service or repair to this
projector, ask the service technician to perform
safety checks determining that the projector is in a
safe operating condition.

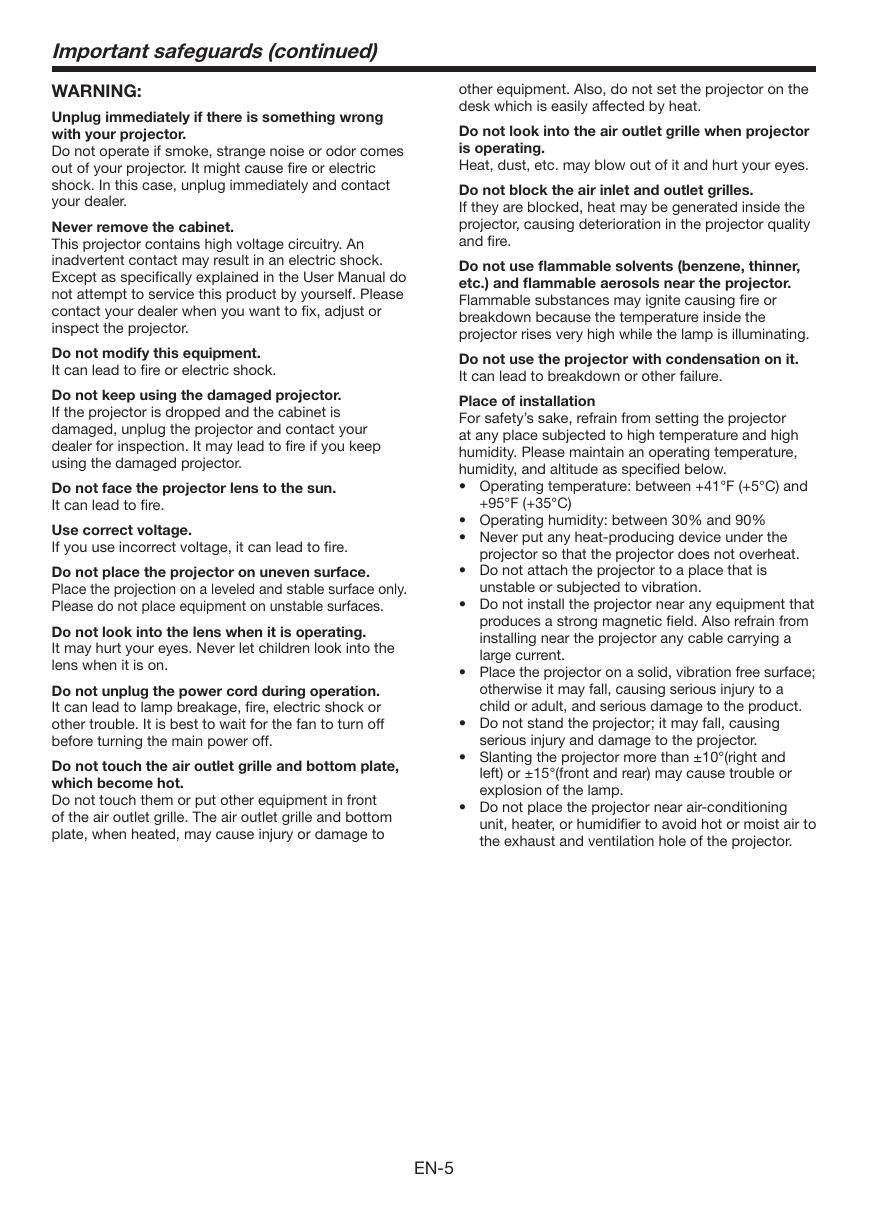

Important safeguards (continued)
WARNING:
Unplug immediately if there is something wrong
with your projector.
Do not operate if smoke, strange noise or odor comes
out of your projector. It might cause fire or electric
shock. In this case, unplug immediately and contact
your dealer.
Never remove the cabinet.
This projector contains high voltage circuitry. An
inadvertent contact may result in an electric shock.
Except as specifically explained in the User Manual do
not attempt to service this product by yourself. Please
contact your dealer when you want to fix, adjust or
inspect the projector.
Do not modify this equipment.
It can lead to fire or electric shock.
Do not keep using the damaged projector.
If the projector is dropped and the cabinet is
damaged, unplug the projector and contact your
dealer for inspection. It may lead to fire if you keep
using the damaged projector.
Do not face the projector lens to the sun.
It can lead to fire.
Use correct voltage.
If you use incorrect voltage, it can lead to fire.
Do not place the projector on uneven surface.
Place the projection on a leveled and stable surface only.
Please do not place equipment on unstable surfaces.
Do not look into the lens when it is operating.
It may hurt your eyes. Never let children look into the
lens when it is on.
Do not unplug the power cord during operation.
It can lead to lamp breakage, fire, electric shock or
other trouble. It is best to wait for the fan to turn off
before turning the main power off.
Do not touch the air outlet grille and bottom plate,
which become hot.
Do not touch them or put other equipment in front
of the air outlet grille. The air outlet grille and bottom
plate, when heated, may cause injury or damage to
other equipment. Also, do not set the projector on the
desk which is easily affected by heat.
Do not look into the air outlet grille when projector
is operating.
Heat, dust, etc. may blow out of it and hurt your eyes.
Do not block the air inlet and outlet grilles.
If they are blocked, heat may be generated inside the
projector, causing deterioration in the projector quality
and fire.
Do not use flammable solvents (benzene, thinner,
etc.) and flammable aerosols near the projector.
Flammable substances may ignite causing fire or
breakdown because the temperature inside the
projector rises very high while the lamp is illuminating.
Do not use the projector with condensation on it.
It can lead to breakdown or other failure.
Place of installation
For safety’s sake, refrain from setting the projector
at any place subjected to high temperature and high
humidity. Please maintain an operating temperature,
humidity, and altitude as specified below.
•
Operating temperature: between +41°F (+5°C) and
+95°F (+35°C)
Operating humidity: between 30% and 90%
Never put any heat-producing device under the
projector so that the projector does not overheat.
Do not attach the projector to a place that is
unstable or subjected to vibration.
Do not install the projector near any equipment that
produces a strong magnetic field. Also refrain from
installing near the projector any cable carrying a
large current.
Place the projector on a solid, vibration free surface;
otherwise it may fall, causing serious injury to a
child or adult, and serious damage to the product.
Do not stand the projector; it may fall, causing
serious injury and damage to the projector.
Slanting the projector more than ±10°(right and
left) or ±15°(front and rear) may cause trouble or
explosion of the lamp.
Do not place the projector near air-conditioning
unit, heater, or humidifier to avoid hot or moist air to
the exhaust and ventilation hole of the projector.
•
•
•
•
•
•
•
•
EN-5

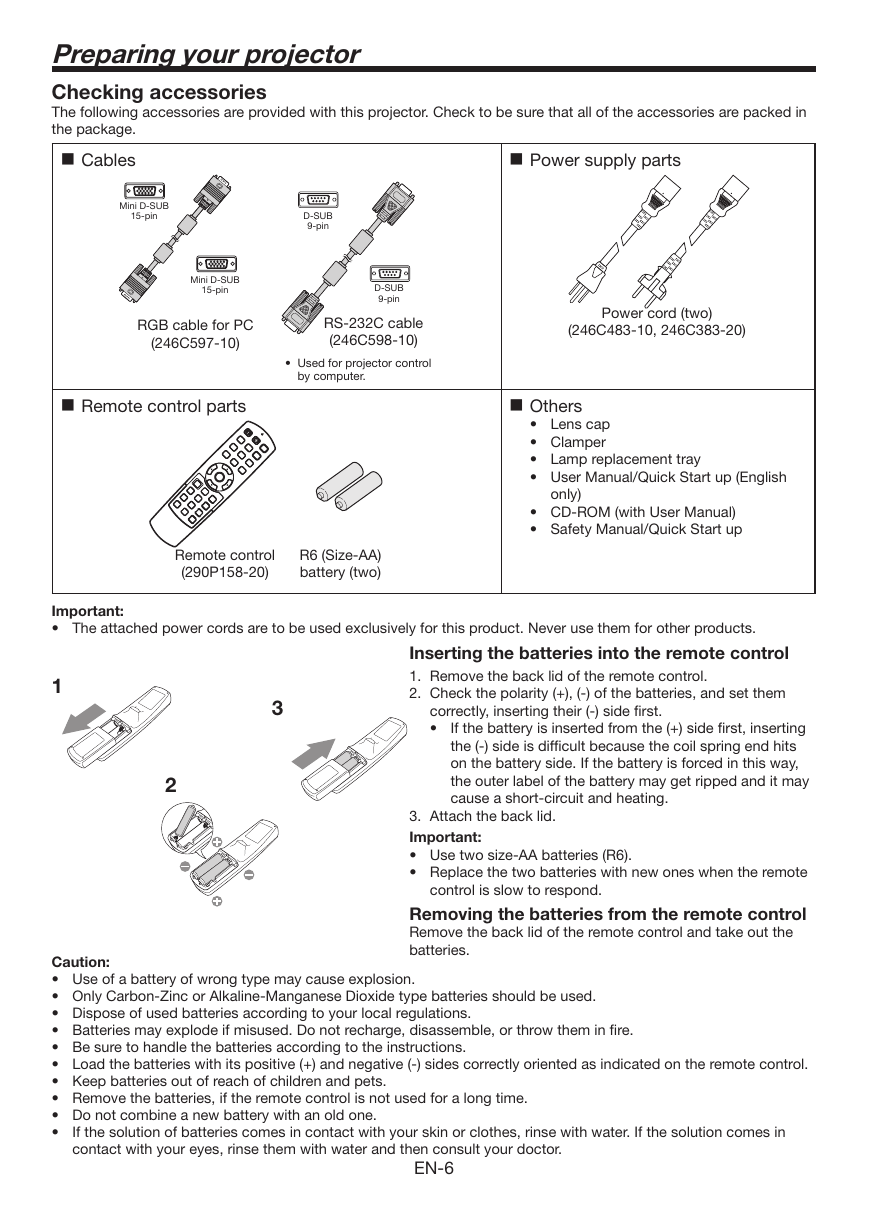

Preparing your projector
Checking accessories
The following accessories are provided with this projector. Check to be sure that all of the accessories are packed in
the package.
Power supply parts
Cables
Mini D-SUB
15-pin
D-SUB
9-pin
Mini D-SUB
15-pin
RGB cable for PC
(246C597-10)
D-SUB
9-pin
RS-232C cable
(246C598-10)
•
Used for projector control
by computer.
Remote control parts
Remote control
(290P158-20)
R6 (Size-AA)
battery (two)
•
•
Power cord (two)
(246C483-10, 246C383-20)
Others
•
•
•
•
Lens cap
Clamper
Lamp replacement tray
User Manual/Quick Start up (English
only)
CD-ROM (with User Manual)
Safety Manual/Quick Start up
Important:
•
The attached power cords are to be used exclusively for this product. Never use them for other products.
1
3
2
Inserting the batteries into the remote control
1.
2.
Remove the back lid of the remote control.
Check the polarity (+), (-) of the batteries, and set them
correctly, inserting their (-) side first.
•
If the battery is inserted from the (+) side first, inserting
the (-) side is difficult because the coil spring end hits
on the battery side. If the battery is forced in this way,
the outer label of the battery may get ripped and it may
cause a short-circuit and heating.
Attach the back lid.
3.
Important:
•
•
Use two size-AA batteries (R6).
Replace the two batteries with new ones when the remote
control is slow to respond.
Removing the batteries from the remote control
Remove the back lid of the remote control and take out the
batteries.
Caution:
•
•
•
•
•
•
•
•
•
•
Use of a battery of wrong type may cause explosion.
Only Carbon-Zinc or Alkaline-Manganese Dioxide type batteries should be used.
Dispose of used batteries according to your local regulations.
Batteries may explode if misused. Do not recharge, disassemble, or throw them in fire.
Be sure to handle the batteries according to the instructions.
Load the batteries with its positive (+) and negative (-) sides correctly oriented as indicated on the remote control.
Keep batteries out of reach of children and pets.
Remove the batteries, if the remote control is not used for a long time.
Do not combine a new battery with an old one.
If the solution of batteries comes in contact with your skin or clothes, rinse with water. If the solution comes in
contact with your eyes, rinse them with water and then consult your doctor.
EN-6
Preparing your projector (continued)
Overview
3
5
1
2
4
6
7
8
9
Indicator area
1
2
Control panel
1
2
3
4
Terminal panel
5
76
98
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
Remote control sensor (front)
Lens
Right side panel (air inlet grille/filter)
Indicator area
Control panel
Terminal panel
Kensington Security Lock Standard connector
Remote control sensor (rear)
Left side panel (air outlet grille/lamp cover)
Attaching the lens cap
�
�
To attach the supplied lens
cap, push it into the lens
section of the projector ()
and then turn it clockwise ().
(For removal, turn it
counterclockwise.)
1
2
STATUS indicator
POWER indicator
t button
p button
1
2
3
4
5
6
q7
8
9
POWER button
HDMI/COMPUTER/
AUTO POSITION/
LENS SHIFT button
MENU button
ENTER button
button
ZOOM/FOCUS button
VIDEO/
u button
1
2
3
4
5
6
7
VIDEO IN and S-VIDEO IN terminals
COMPONENT VIDEO IN terminals
COMPUTER IN/COMPONENT VIDEO IN terminal (mini
D-SUB 15-pin)
HDMI IN-1 terminal (HDMI 19-pin)
HDMI IN-2 terminal (HDMI 19-pin)
SERIAL terminal (D-SUB 9-pin)
•
Used for projector control by computer. Contact your
dealer for details.
TRIGGER terminal
•
Main power switch
Used for the optional electric screen.
8
O: OFF
9
EN-7
Power jack
I: ON
Preparing your projector (continued)
Bottom side
1
1
Adjustment feet
Remote control
1
2
3
4
5
6
7
8
9
10
11
24
23
22
21
20
19
18
17
16
15
14
13
12
ON ( I ) button
HDMI2 button
HDMI1 button
COMPONENT button
AV MEMORY buttons
ENTER button
MENU button
CONTRAST button*
BRIGHTNESS button*
GAMMA button*
ZOOM/FOCUS button
LENS SHIFT button
NOISE REDUCTION button*
COLOR button*
SHARPNESS button*
COLOR TEMP. button*
ASPECT button
AUTO IRIS button
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
p19
20
21
22
23
24
* : See below for the picture quality adjusting buttons.
, q, t, u buttons
VIDEO button
S-VIDEO button
COMPUTER button
AUTO POSITION button
OFF (
) button
Important:
When you press any button on the remote control, the buttons on the remote control are lit. Wait approx. 6 seconds
after releasing the button to turn them off.
Using the picture quality adjusting buttons
When you press any of the picture quality adjusting buttons, the screen for adjusting the picture quality appears.
Adjust the picture quality by pressing the t and u buttons. The picture quality adjustment can be made alternatively
in the IMAGE menu. (See page 26.) Items in the menus are shown in parentheses below.
CONTRAST (CONTRAST) ................ Adjusts the contrast of the projected image.
BRIGHTNESS (BRIGHTNESS) ......... Adjusts the brightness of the projected image.
COLOR TEMP. (COLOR TEMP.) ....... Selects one of the preset color temperatures. Adjustment of USER mode is also
available. (See page 32.)
GAMMA (GAMMA MODE) ................ Selects one of the preset gamma mode. Adjustment of USER mode is also
SHARPNESS (SHARPNESS) ............ Adjusts the sharpness of the projected image.
COLOR (COLOR) .............................. Adjusts the color thickness of the projected image.
NOISE REDUCTION (TRNR, MNR, BAR) ... Adjusts the TRNR, MNR and BAR of the projected image. (See page 33.)
available. (See page 33.)
EN-8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
