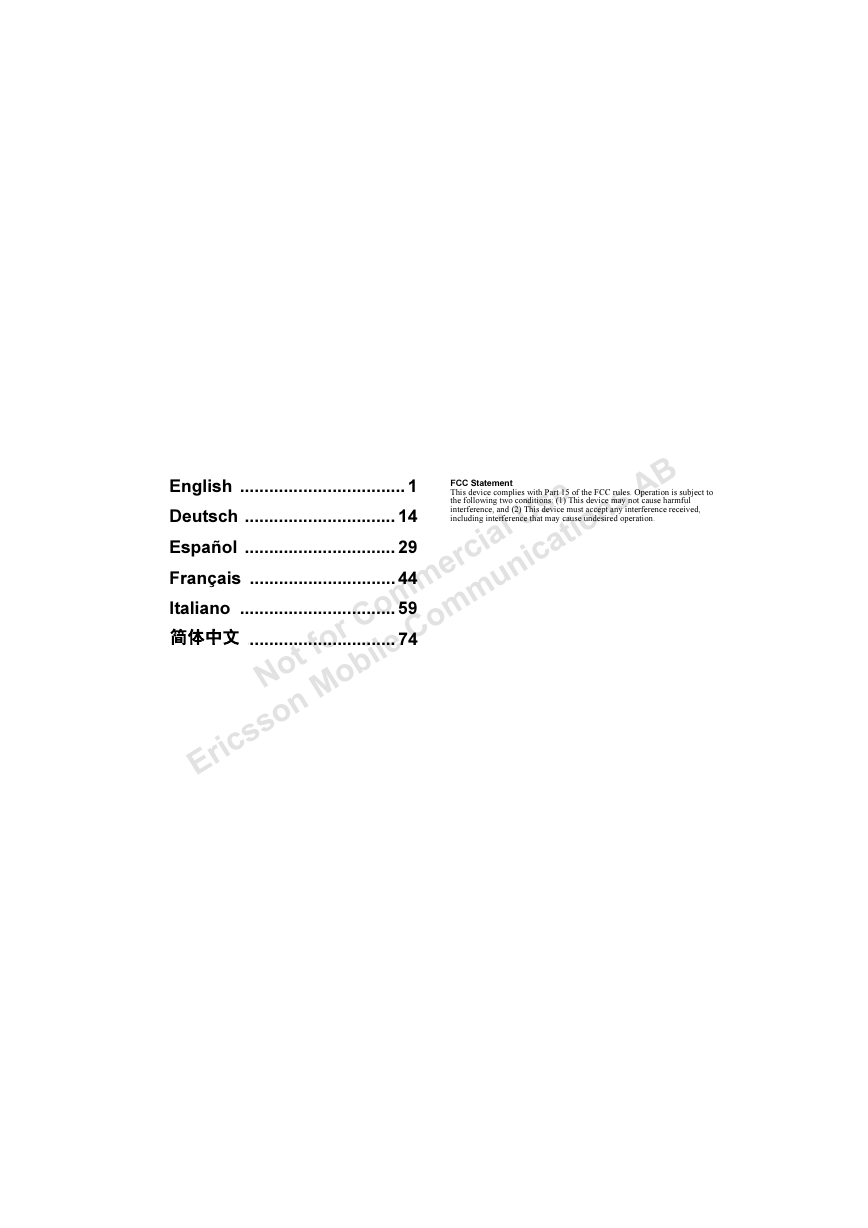

English .................................. 1 Deutsch ............................... 14 Español ............................... 29 Français .............................. 44 Italiano ................................ 59 .............................................. 74 r c i a l U s n i c r C o m m e b i l e C o m m u o t f n M o FCC Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. n s A B e a t i o N o o s s E r i c

s A B e a n t i o r c i a l U s n i c r C o m m e b i l e C o m m u o t f n M o N o o s s E r i c

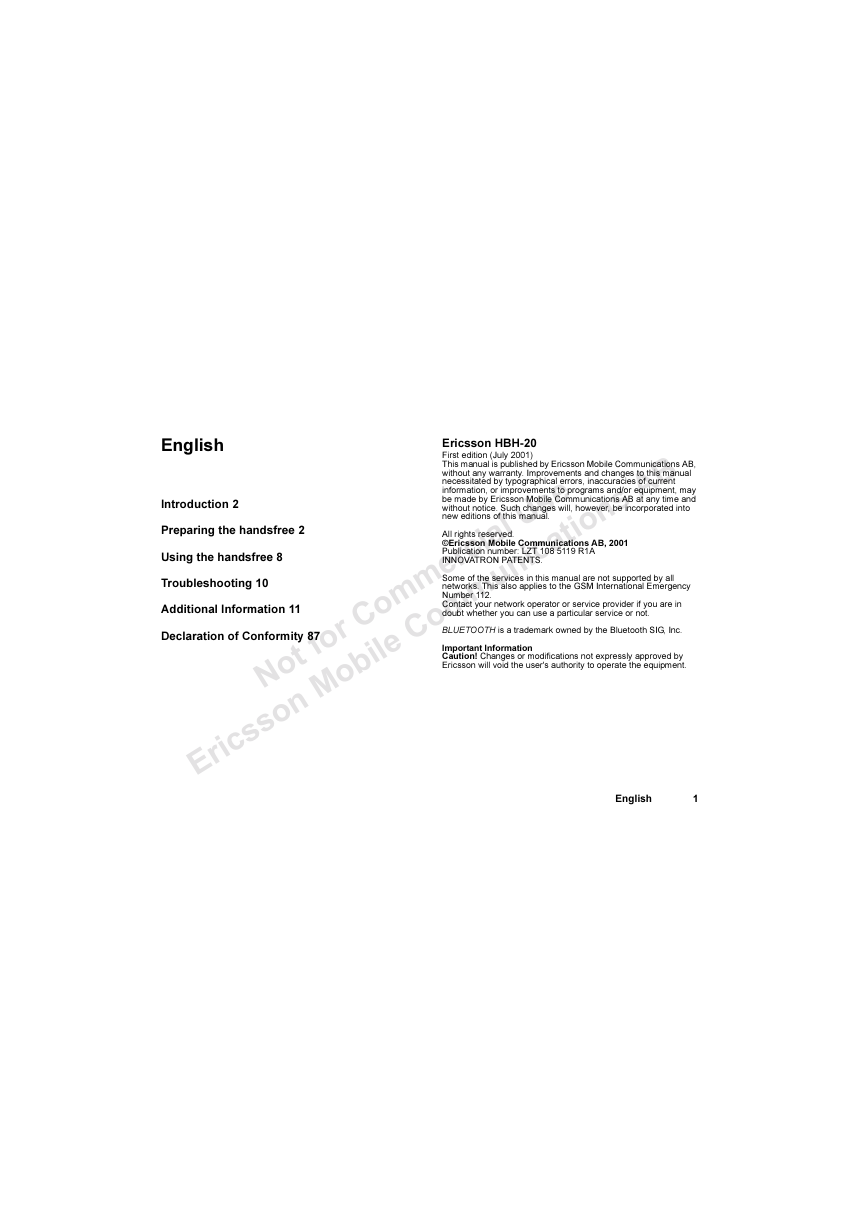

Ericsson HBH-20 First edition (July 2001) This manual is published by Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this manual. s A B e n t i o a All rights reserved. ©Ericsson Mobile Communications AB, 2001 Publication number: LZT 108 5119 R1A INNOVATRON PATENTS. Some of the services in this manual are not supported by all networks. This also applies to the GSM International Emergency Number 112. Contact your network operator or service provider if you are in doubt whether you can use a particular service or not. BLUETOOTH is a trademark owned by the Bluetooth SIG, Inc. Important Information Caution! Changes or modifications not expressly approved by Ericsson will void the user's authority to operate the equipment. r c i a l U s n i c r C o m m e b i l e C o m m u o t f n M o English Introduction 2 Preparing the handsfree 2 Using the handsfree 8 Troubleshooting 10 Additional Information 11 Declaration of Conformity 87 N o o s s E r i c English 1

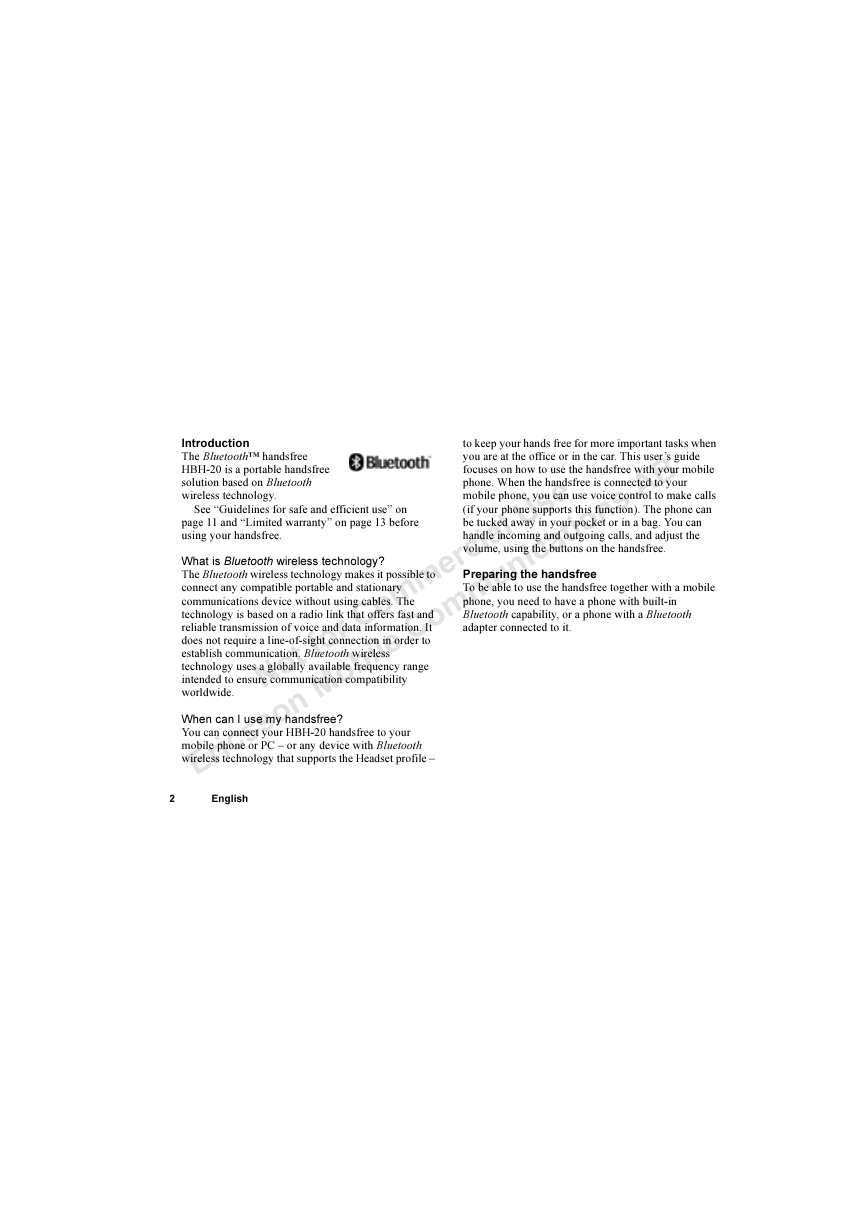

Introduction The Bluetooth™ handsfree HBH-20 is a portable handsfree solution based on Bluetooth wireless technology. r See “Guidelines for safe and efficient use” on page 11 and “Limited warranty” on page 13 before using your handsfree. c i a l U s n i c r C o m m e b i l e C o m m u o t f n M o What is Bluetooth wireless technology? The Bluetooth wireless technology makes it possible to connect any compatible portable and stationary communications device without using cables. The technology is based on a radio link that offers fast and reliable transmission of voice and data information. It does not require a line-of-sight connection in order to establish communication. Bluetooth wireless technology uses a globally available frequency range intended to ensure communication compatibility worldwide. N o o s to keep your hands free for more important tasks when you are at the office or in the car. This user’s guide focuses on how to use the handsfree with your mobile phone. When the handsfree is connected to your mobile phone, you can use voice control to make calls (if your phone supports this function). The phone can be tucked away in your pocket or in a bag. You can handle incoming and outgoing calls, and adjust the volume, using the buttons on the handsfree. s A B t i o n a e Preparing the handsfree To be able to use the handsfree together with a mobile phone, you need to have a phone with built-in Bluetooth capability, or a phone with a Bluetooth adapter connected to it. When can I use my handsfree? You can connect your HBH-20 handsfree to your mobile phone or PC – or any device with Bluetooth wireless technology that supports the Headset profile – s E r i c 2 English

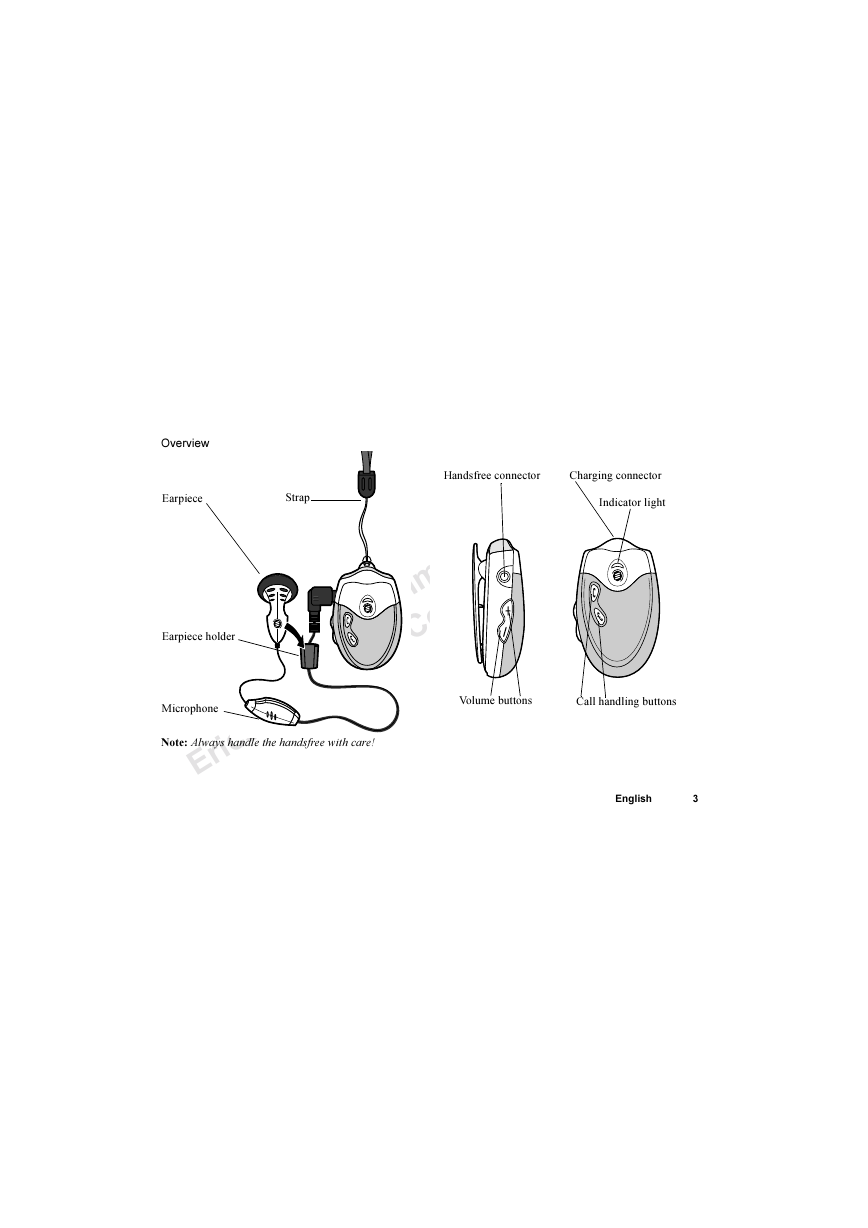

Overview Earpiece Earpiece holder Microphone s E r i c Strap r c i a l U s n i c r C o m m e b i l e C o m m u o t f n M o Volume buttons N o o s Note: Always handle the handsfree with care! Handsfree connector Charging connector s A B Indicator light n e a t i o Call handling buttons English 3

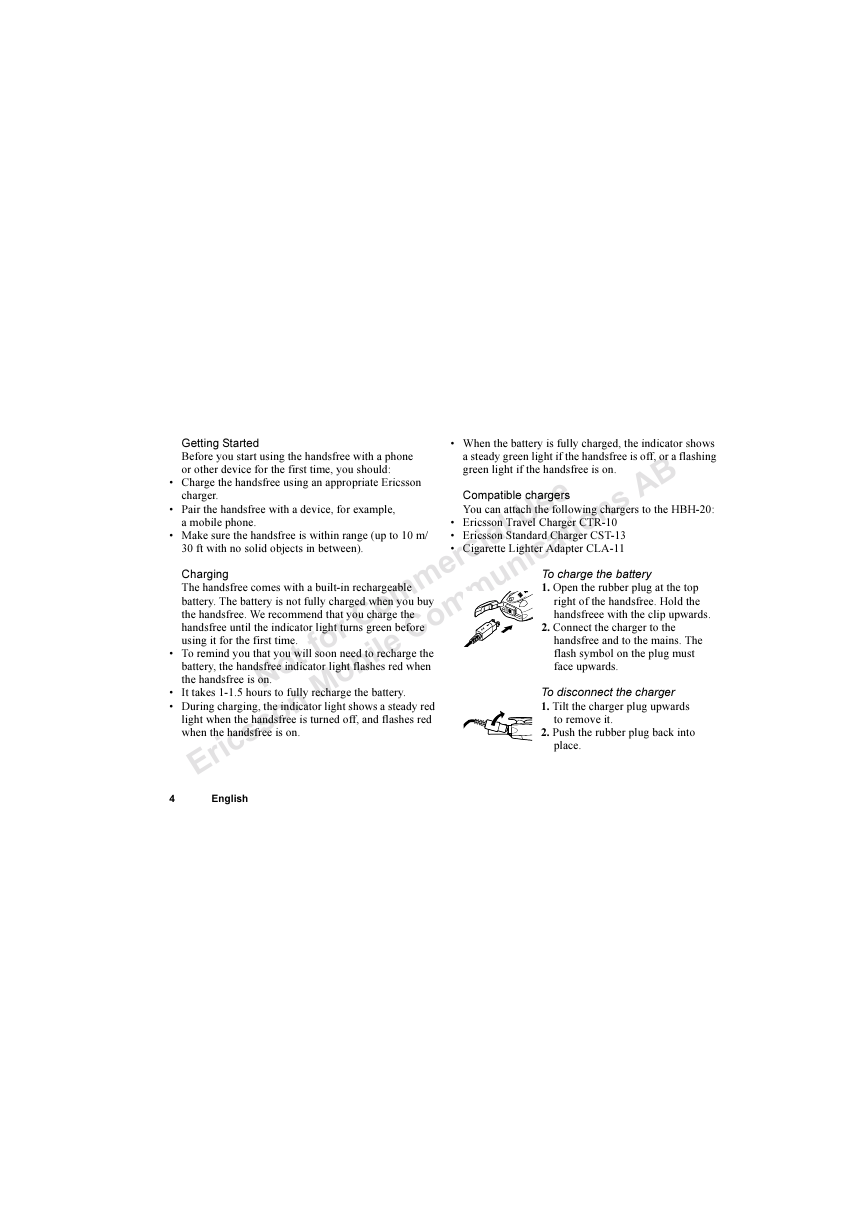

• When the battery is fully charged, the indicator shows a steady green light if the handsfree is off, or a flashing green light if the handsfree is on. s A B e n t i o Compatible chargers You can attach the following chargers to the HBH-20: • Ericsson Travel Charger CTR-10 • Ericsson Standard Charger CST-13 • Cigarette Lighter Adapter CLA-11 a Getting Started Before you start using the handsfree with a phone or other device for the first time, you should: • Charge the handsfree using an appropriate Ericsson charger. a mobile phone. • Make sure the handsfree is within range (up to 10 m/ 30 ft with no solid objects in between). • Pair the handsfree with a device, for example, r c i a l U s n i c r C o m m e b i l e C o m m u o t f n M o Charging The handsfree comes with a built-in rechargeable battery. The battery is not fully charged when you buy the handsfree. We recommend that you charge the handsfree until the indicator light turns green before using it for the first time. • To remind you that you will soon need to recharge the battery, the handsfree indicator light flashes red when the handsfree is on. It takes 1-1.5 hours to fully recharge the battery. • • During charging, the indicator light shows a steady red light when the handsfree is turned off, and flashes red when the handsfree is on. N o o s s E r i c 4 English To charge the battery 1. Open the rubber plug at the top right of the handsfree. Hold the handsfreee with the clip upwards. 2. Connect the charger to the handsfree and to the mains. The flash symbol on the plug must face upwards. To disconnect the charger 1. Tilt the charger plug upwards to remove it. 2. Push the rubber plug back into place.

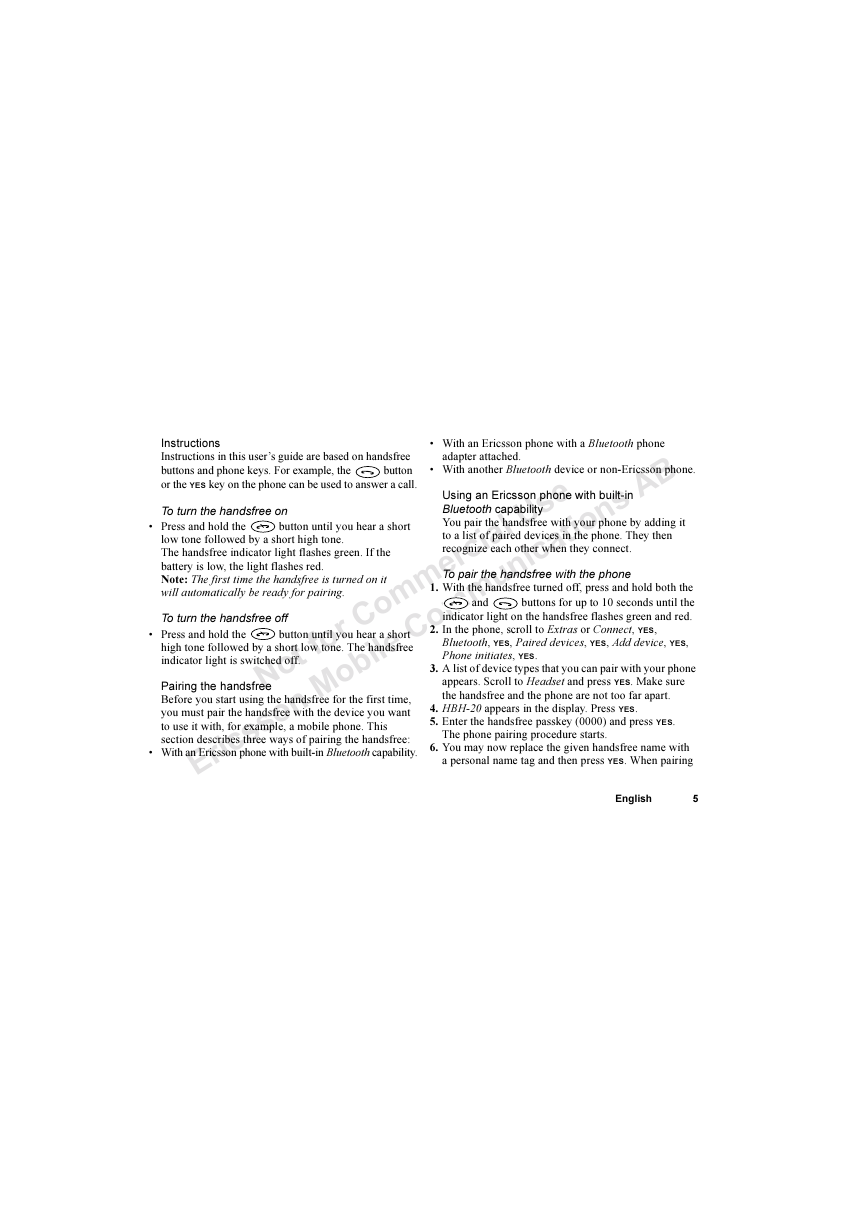

Instructions Instructions in this user’s guide are based on handsfree buttons and phone keys. For example, the button or the YES key on the phone can be used to answer a call. • With an Ericsson phone with a Bluetooth phone adapter attached. • With another Bluetooth device or non-Ericsson phone. e s A B Using an Ericsson phone with built-in Bluetooth capability You pair the handsfree with your phone by adding it to a list of paired devices in the phone. They then recognize each other when they connect. t i o n a To pair the handsfree with the phone 1. With the handsfree turned off, press and hold both the buttons for up to 10 seconds until the indicator light on the handsfree flashes green and red. 2. In the phone, scroll to Extras or Connect, YES, Bluetooth, YES, Paired devices, YES, Add device, YES, Phone initiates, YES. 3. A list of device types that you can pair with your phone appears. Scroll to Headset and press YES. Make sure the handsfree and the phone are not too far apart. 4. HBH-20 appears in the display. Press YES. 5. Enter the handsfree passkey (0000) and press YES. The phone pairing procedure starts. 6. You may now replace the given handsfree name with a personal name tag and then press YES. When pairing English 5 r c i a l U s n i c r C o m m e b i l e C o m m u o t f n M o and To turn the handsfree on • Press and hold the button until you hear a short low tone followed by a short high tone. The handsfree indicator light flashes green. If the battery is low, the light flashes red. Note: The first time the handsfree is turned on it will automatically be ready for pairing. To turn the handsfree off • Press and hold the button until you hear a short high tone followed by a short low tone. The handsfree indicator light is switched off. Pairing the handsfree Before you start using the handsfree for the first time, you must pair the handsfree with the device you want to use it with, for example, a mobile phone. This section describes three ways of pairing the handsfree: s • With an Ericsson phone with built-in Bluetooth capability. E r i c N o o s

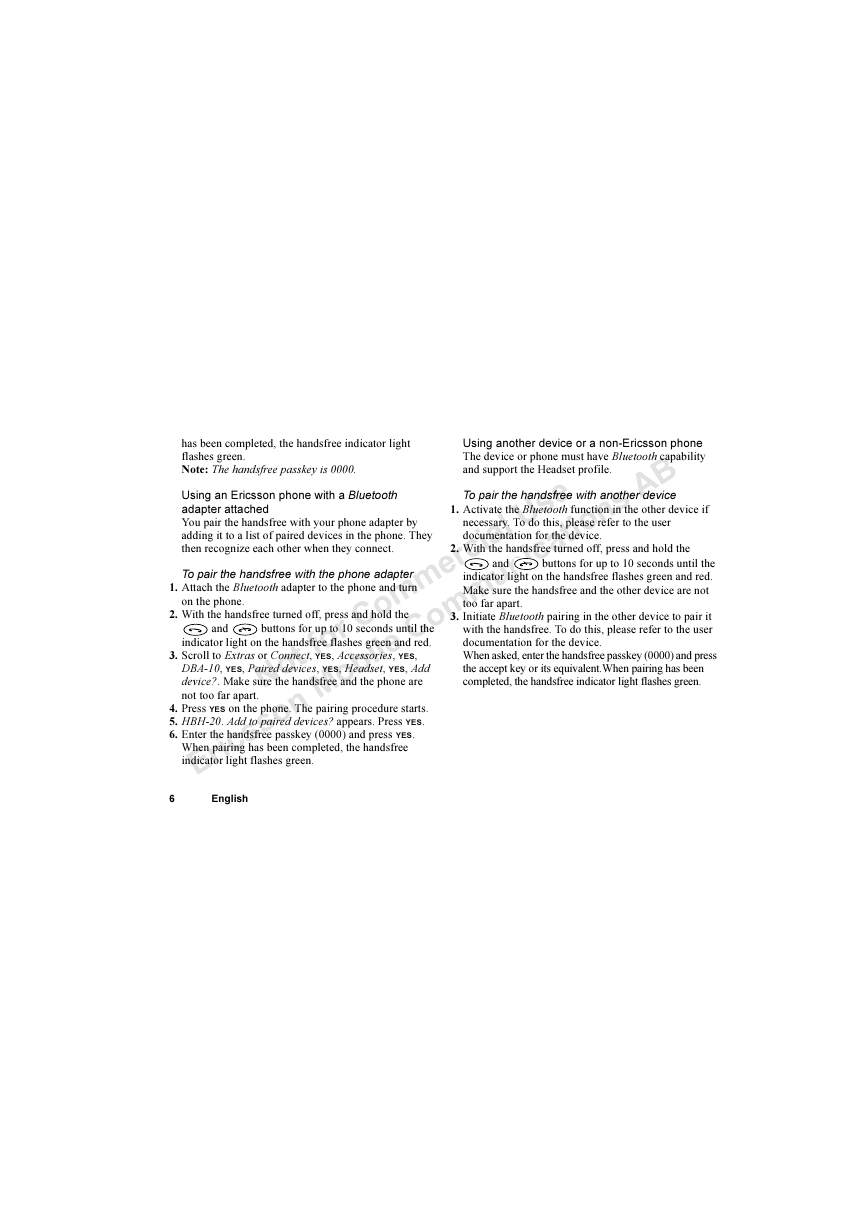

has been completed, the handsfree indicator light flashes green. Note: The handsfree passkey is 0000. Using another device or a non-Ericsson phone The device or phone must have Bluetooth capability and support the Headset profile. Using an Ericsson phone with a Bluetooth adapter attached You pair the handsfree with your phone adapter by adding it to a list of paired devices in the phone. They then recognize each other when they connect. s A B e a n t i o necessary. To do this, please refer to the user documentation for the device. To pair the handsfree with another device 1. Activate the Bluetooth function in the other device if r and c i a l U s n i c r C o m m e b i l e C o m m u o t f n M o 2. With the handsfree turned off, press and hold the buttons for up to 10 seconds until the indicator light on the handsfree flashes green and red. Make sure the handsfree and the other device are not too far apart. 3. Initiate Bluetooth pairing in the other device to pair it with the handsfree. To do this, please refer to the user documentation for the device. When asked, enter the handsfree passkey (0000) and press the accept key or its equivalent.When pairing has been completed, the handsfree indicator light flashes green. To pair the handsfree with the phone adapter 1. Attach the Bluetooth adapter to the phone and turn on the phone. 2. With the handsfree turned off, press and hold the and buttons for up to 10 seconds until the indicator light on the handsfree flashes green and red. 3. Scroll to Extras or Connect, YES, Accessories, YES, DBA-10, YES, Paired devices, YES, Headset, YES, Add device?. Make sure the handsfree and the phone are not too far apart. 4. Press YES on the phone. The pairing procedure starts. 5. HBH-20. Add to paired devices? appears. Press YES. 6. Enter the handsfree passkey (0000) and press YES. When pairing has been completed, the handsfree indicator light flashes green. s E r i c N o o s 6 English
