GTV-580 User Manual Version 1.1

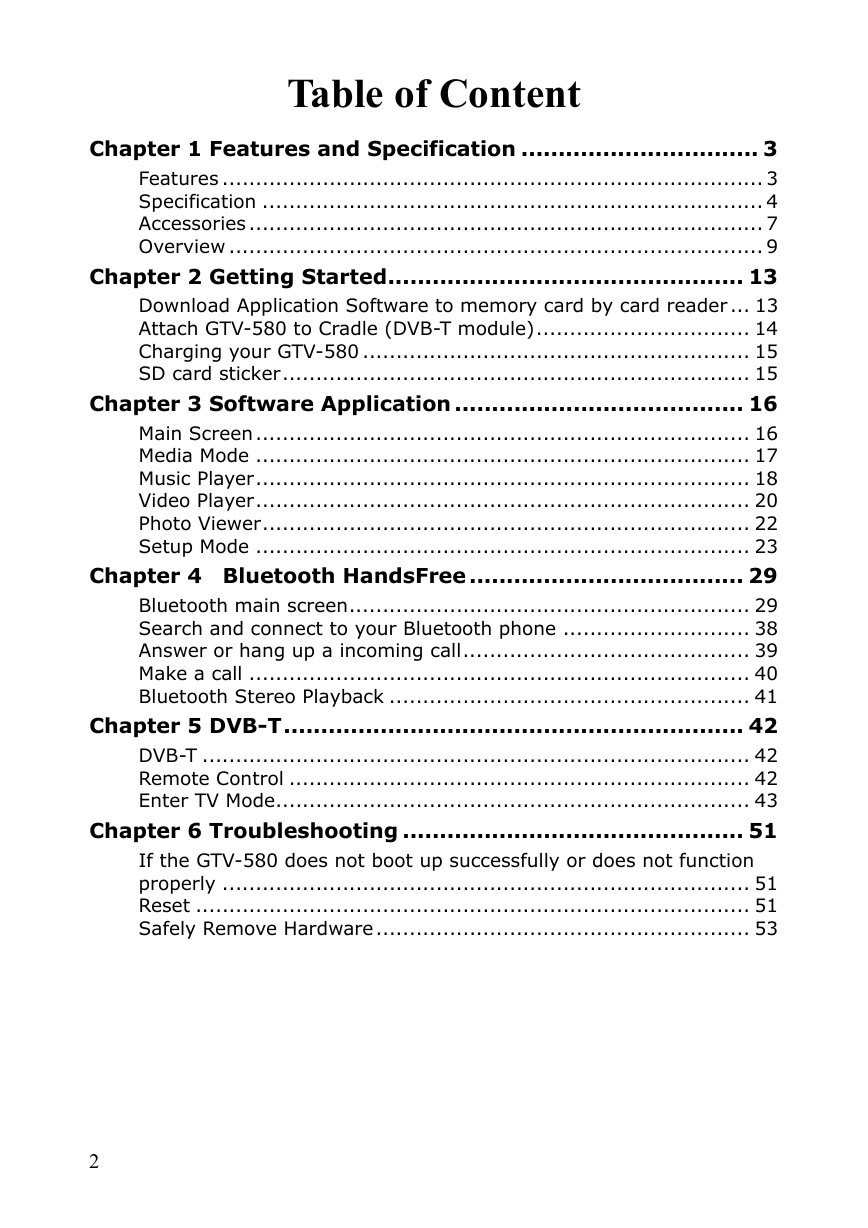

Table of Content Chapter 1 Features and Specification ................................ 3 Features ................................................................................. 3 Specification ........................................................................... 4 Accessories ............................................................................. 7 Overview ................................................................................ 9 Chapter 2 Getting Started................................................ 13 Download Application Software to memory card by card reader ... 13 Attach GTV-580 to Cradle (DVB-T module)................................ 14 Charging your GTV-580 .......................................................... 15 SD card sticker...................................................................... 15 Chapter 3 Software Application ....................................... 16 Main Screen .......................................................................... 16 Media Mode .......................................................................... 17 Music Player.......................................................................... 18 Video Player.......................................................................... 20 Photo Viewer......................................................................... 22 Setup Mode .......................................................................... 23 Chapter 4 Bluetooth HandsFree ..................................... 29 Bluetooth main screen............................................................ 29 Search and connect to your Bluetooth phone ............................ 38 Answer or hang up a incoming call........................................... 39 Make a call ........................................................................... 40 Bluetooth Stereo Playback ...................................................... 41 Chapter 5 DVB-T.............................................................. 42 DVB-T .................................................................................. 42 Remote Control ..................................................................... 42 Enter TV Mode....................................................................... 43 Chapter 6 Troubleshooting .............................................. 51 If the GTV-580 does not boot up successfully or does not function properly ............................................................................... 51 Reset ................................................................................... 51 Safely Remove Hardware........................................................ 53 2

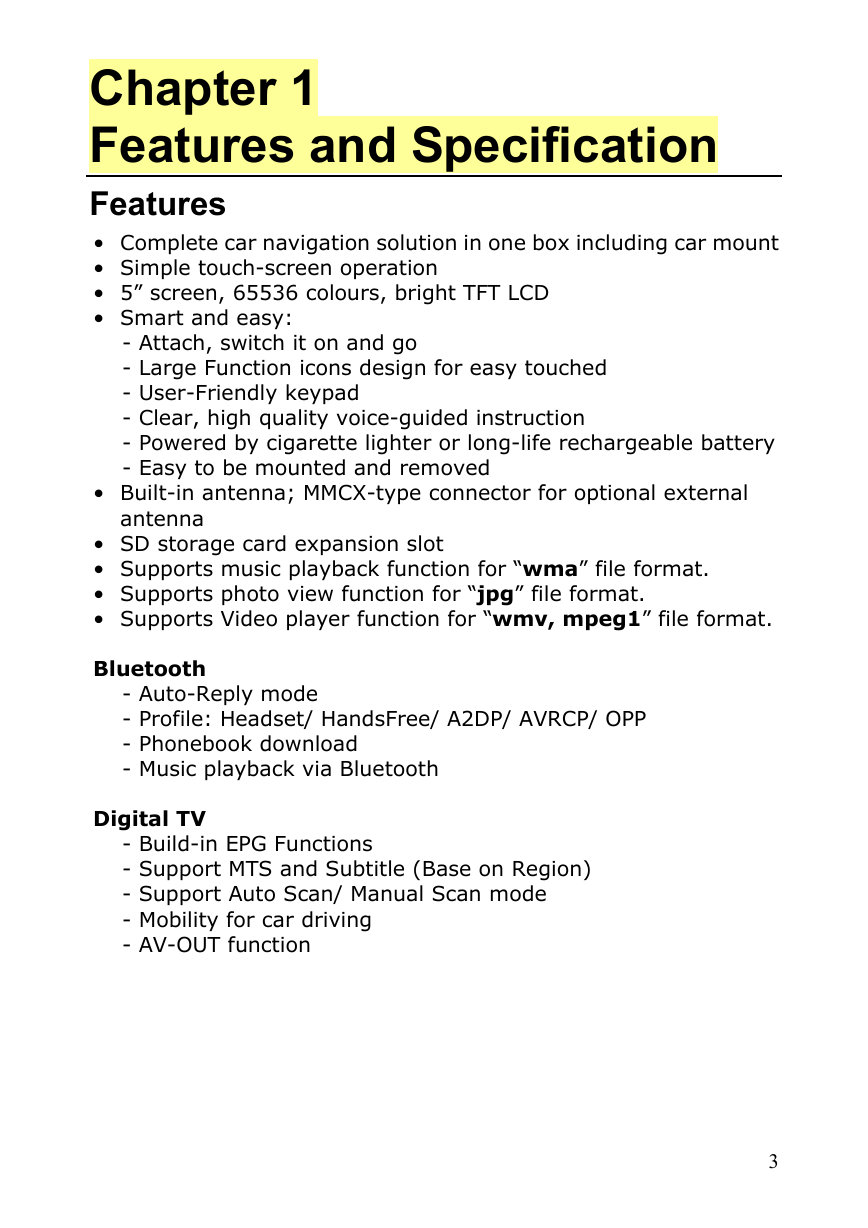

Chapter 1 Features and Specification Features • Complete car navigation solution in one box including car mount • Simple touch-screen operation • 5” screen, 65536 colours, bright TFT LCD • Smart and easy: - Attach, switch it on and go - Large Function icons design for easy touched - User-Friendly keypad - Clear, high quality voice-guided instruction - Powered by cigarette lighter or long-life rechargeable battery - Easy to be mounted and removed • Built-in antenna; MMCX-type connector for optional external antenna • SD storage card expansion slot • Supports music playback function for “wma” file format. • Supports photo view function for “jpg” file format. • Supports Video player function for “wmv, mpeg1” file format. Bluetooth - Auto-Reply mode - Profile: Headset/ HandsFree/ A2DP/ AVRCP/ OPP - Phonebook download - Music playback via Bluetooth Digital TV - Build-in EPG Functions - Support MTS and Subtitle (Base on Region) - Support Auto Scan/ Manual Scan mode - Mobility for car driving - AV-OUT function 3

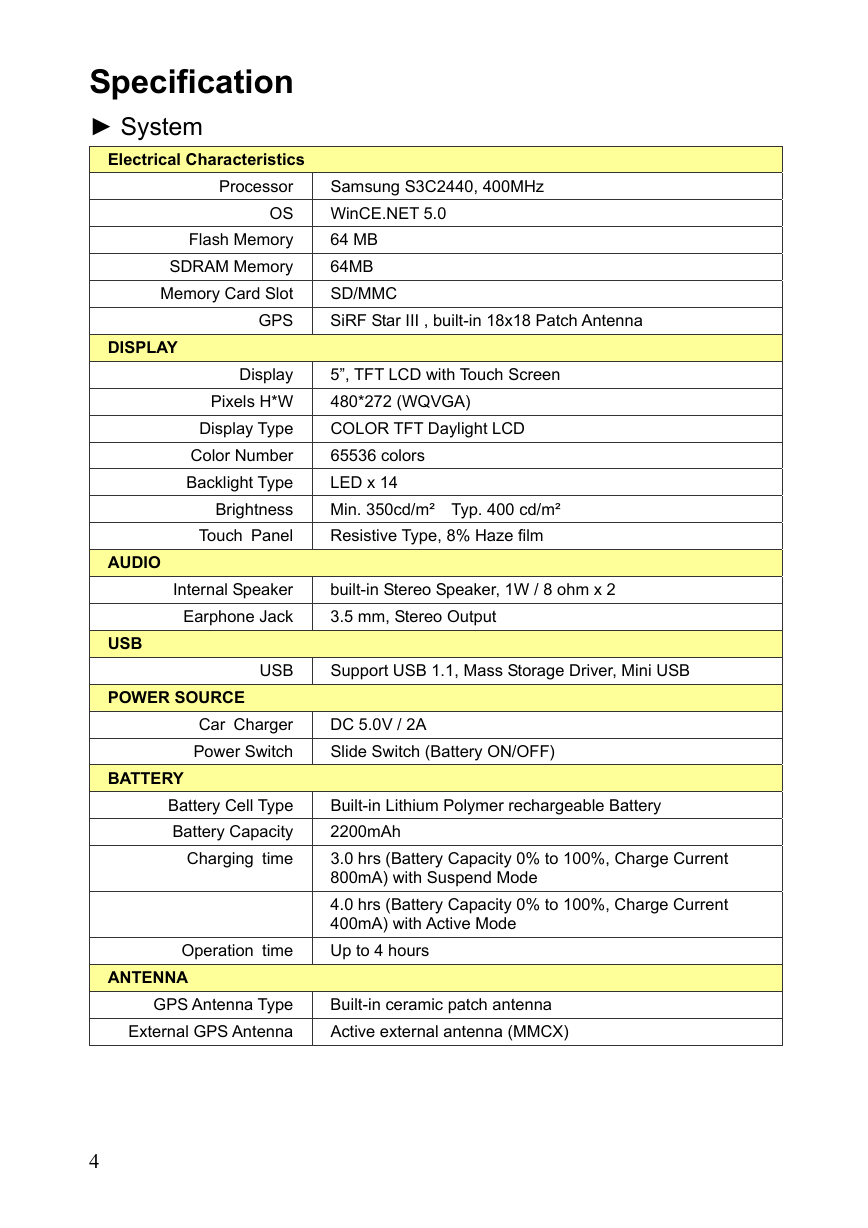

Specification ► System Electrical Characteristics Processor OS Flash Memory SDRAM Memory Memory Card Slot GPS Samsung S3C2440, 400MHz WinCE.NET 5.0 64 MB 64MB SD/MMC SiRF Star III , built-in 18x18 Patch Antenna DISPLAY Display Pixels H*W Display Type Color Number Backlight Type Brightness Touch Panel 5”, TFT LCD with Touch Screen 480*272 (WQVGA) COLOR TFT Daylight LCD 65536 colors LED x 14 Min. 350cd/m² Typ. 400 cd/m² Resistive Type, 8% Haze film AUDIO USB Internal Speaker Earphone Jack built-in Stereo Speaker, 1W / 8 ohm x 2 3.5 mm, Stereo Output USB Support USB 1.1, Mass Storage Driver, Mini USB POWER SOURCE Car Charger Power Switch DC 5.0V / 2A Slide Switch (Battery ON/OFF) BATTERY Battery Cell Type Battery Capacity Charging time Operation time ANTENNA Built-in Lithium Polymer rechargeable Battery 2200mAh 3.0 hrs (Battery Capacity 0% to 100%, Charge Current 800mA) with Suspend Mode 4.0 hrs (Battery Capacity 0% to 100%, Charge Current 400mA) with Active Mode Up to 4 hours GPS Antenna Type External GPS Antenna Built-in ceramic patch antenna Active external antenna (MMCX) 4

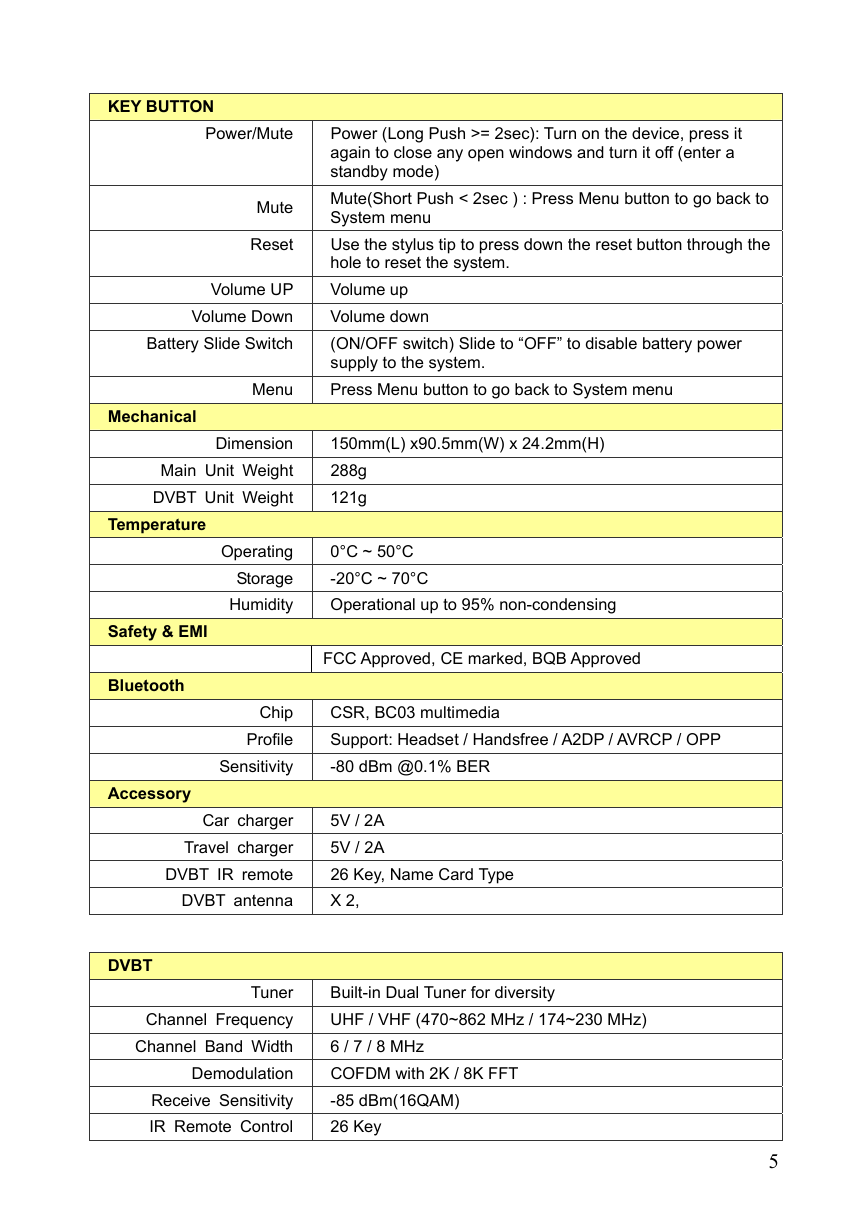

KEY BUTTON Power/Mute Mute Reset Volume UP Volume Down Battery Slide Switch Menu Mechanical Power (Long Push >= 2sec): Turn on the device, press it again to close any open windows and turn it off (enter a standby mode) Mute(Short Push < 2sec ) : Press Menu button to go back to System menu Use the stylus tip to press down the reset button through the hole to reset the system. Volume up Volume down (ON/OFF switch) Slide to “OFF” to disable battery power supply to the system. Press Menu button to go back to System menu Dimension Main Unit Weight DVBT Unit Weight 150mm(L) x90.5mm(W) x 24.2mm(H) 288g 121g Temperature Safety & EMI Bluetooth Accessory Operating Storage Humidity 0°C ~ 50°C -20°C ~ 70°C Operational up to 95% non-condensing FCC Approved, CE marked, BQB Approved Chip Profile Sensitivity CSR, BC03 multimedia Support: Headset / Handsfree / A2DP / AVRCP / OPP -80 dBm @0.1% BER Car charger Travel charger DVBT IR remote DVBT antenna 5V / 2A 5V / 2A 26 Key, Name Card Type X 2, DVBT Tuner Channel Frequency Channel Band Width Demodulation Receive Sensitivity IR Remote Control Built-in Dual Tuner for diversity UHF / VHF (470~862 MHz / 174~230 MHz) 6 / 7 / 8 MHz COFDM with 2K / 8K FFT -85 dBm(16QAM) 26 Key 5

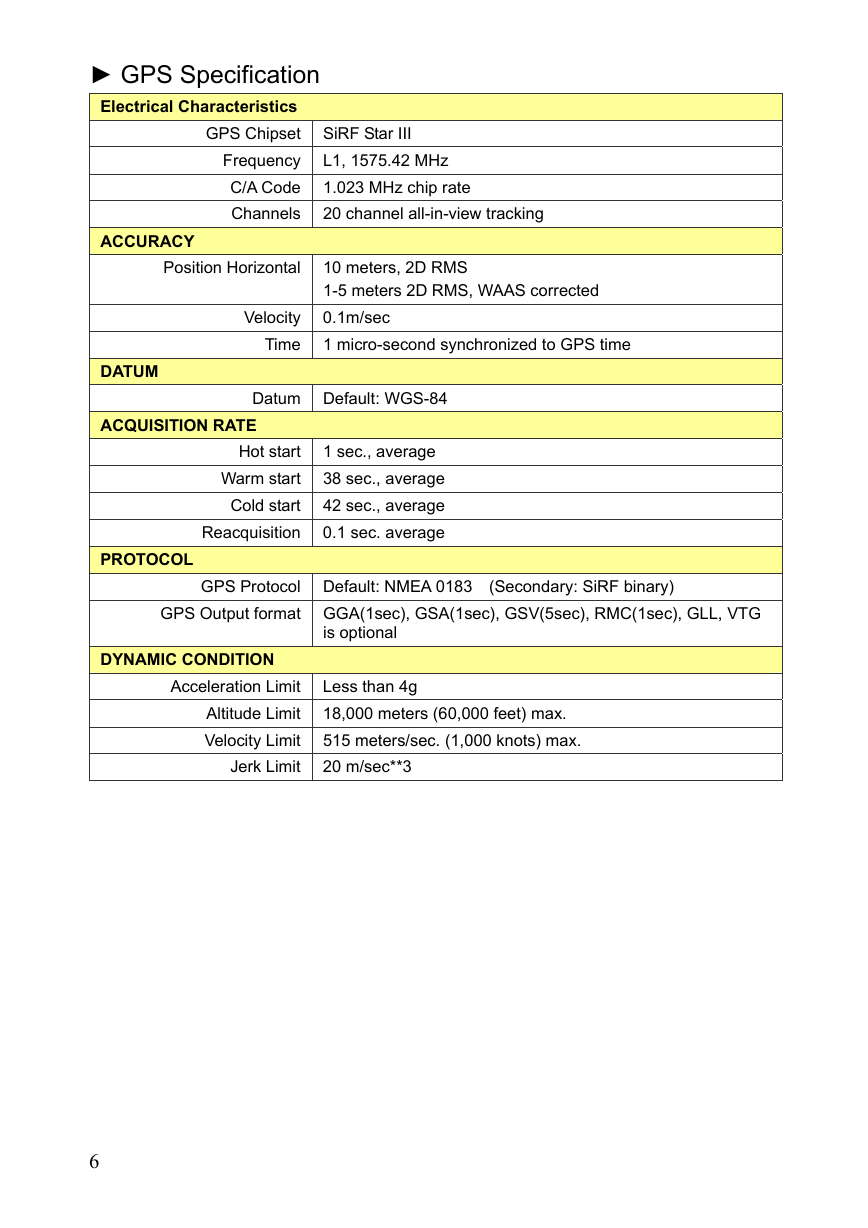

► GPS Specification Electrical Characteristics GPS Chipset SiRF Star III Frequency L1, 1575.42 MHz C/A Code 1.023 MHz chip rate Channels 20 channel all-in-view tracking ACCURACY Position Horizontal 10 meters, 2D RMS 1-5 meters 2D RMS, WAAS corrected Velocity 0.1m/sec Time 1 micro-second synchronized to GPS time DATUM Datum Default: WGS-84 ACQUISITION RATE Hot start 1 sec., average Warm start 38 sec., average Cold start 42 sec., average Reacquisition 0.1 sec. average PROTOCOL GPS Protocol Default: NMEA 0183 (Secondary: SiRF binary) GPS Output format GGA(1sec), GSA(1sec), GSV(5sec), RMC(1sec), GLL, VTG is optional DYNAMIC CONDITION Acceleration Limit Less than 4g Altitude Limit 18,000 meters (60,000 feet) max. Velocity Limit 515 meters/sec. (1,000 knots) max. Jerk Limit 20 m/sec**3 6

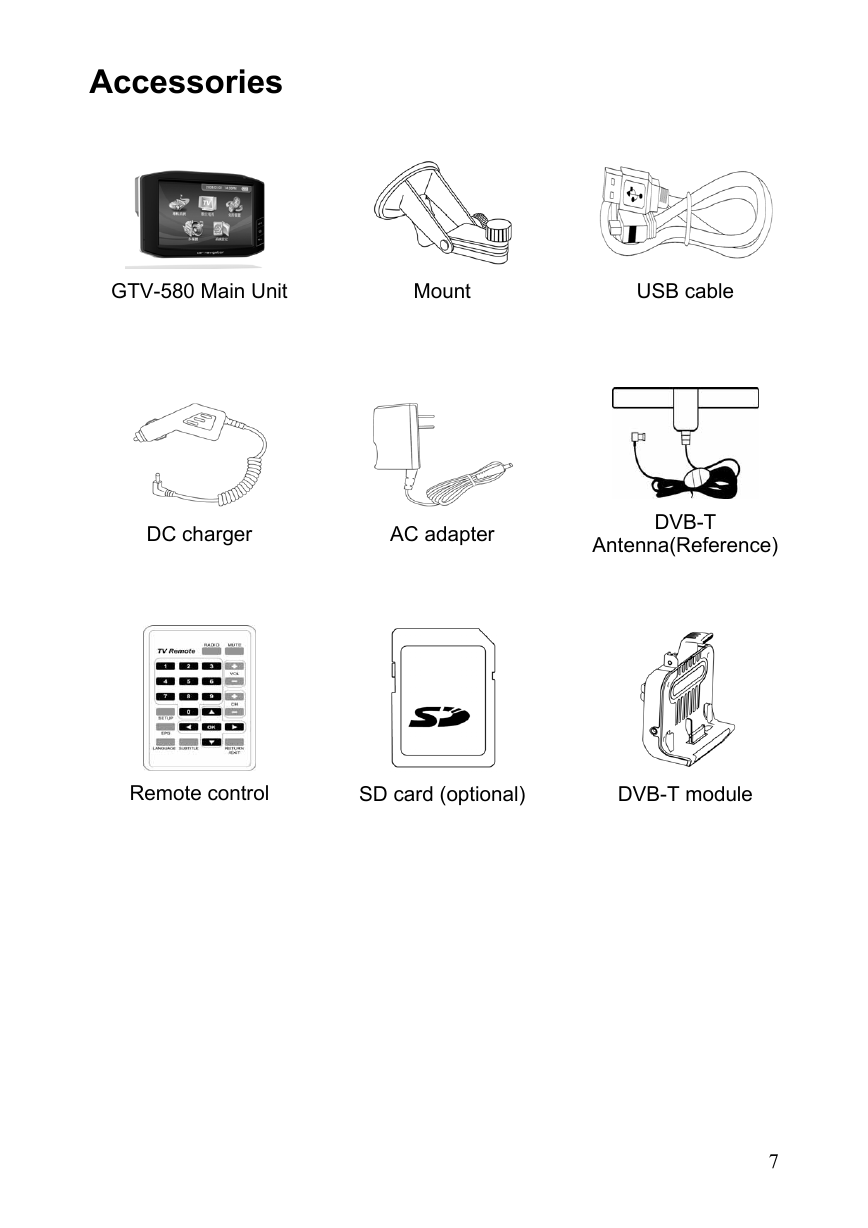

Accessories GTV-580 Main Unit Mount DC charger AC adapter USB cable DVB-T Antenna(Reference) Remote control SD card (optional) DVB-T module 7

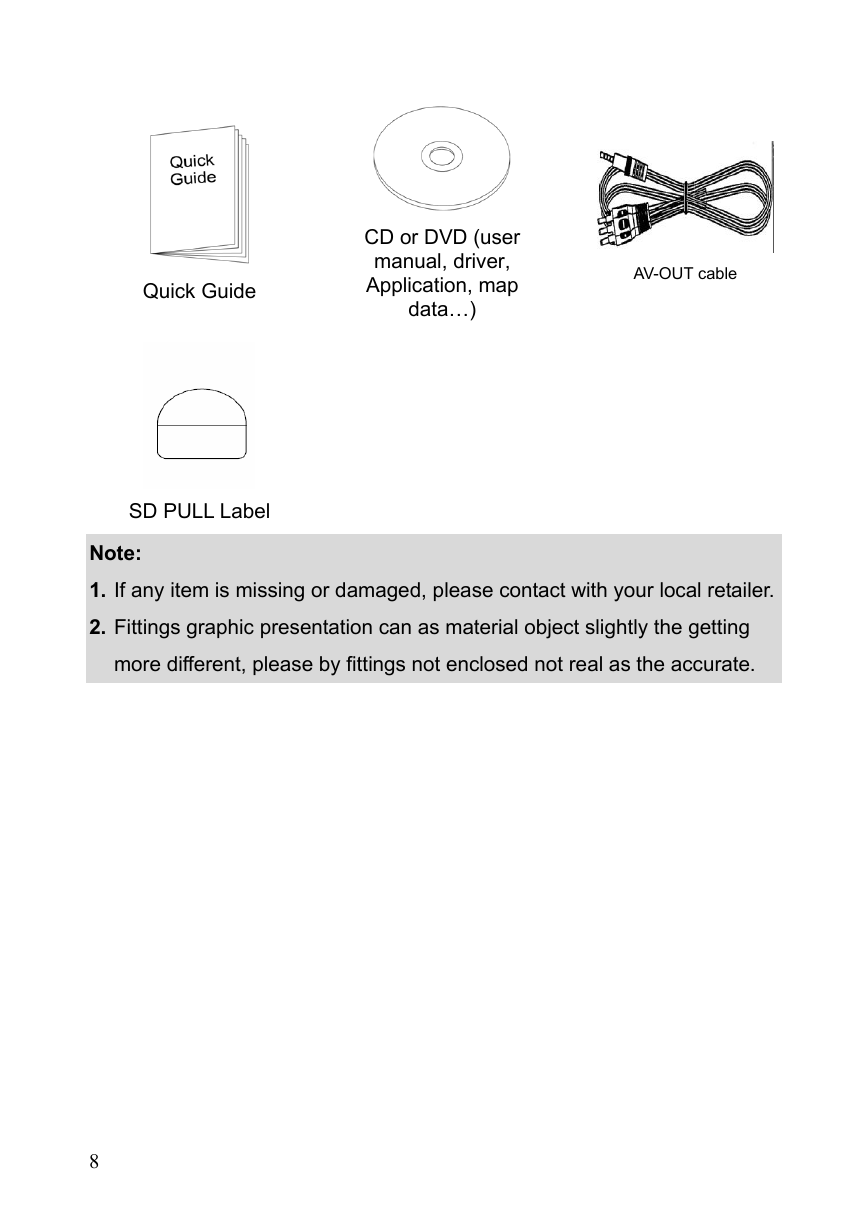

Quick Guide CD or DVD (user manual, driver, Application, map data…) AV-OUT cable SD PULL Label Note: 1. If any item is missing or damaged, please contact with your local retailer. 2. Fittings graphic presentation can as material object slightly the getting more different, please by fittings not enclosed not real as the accurate. 8
