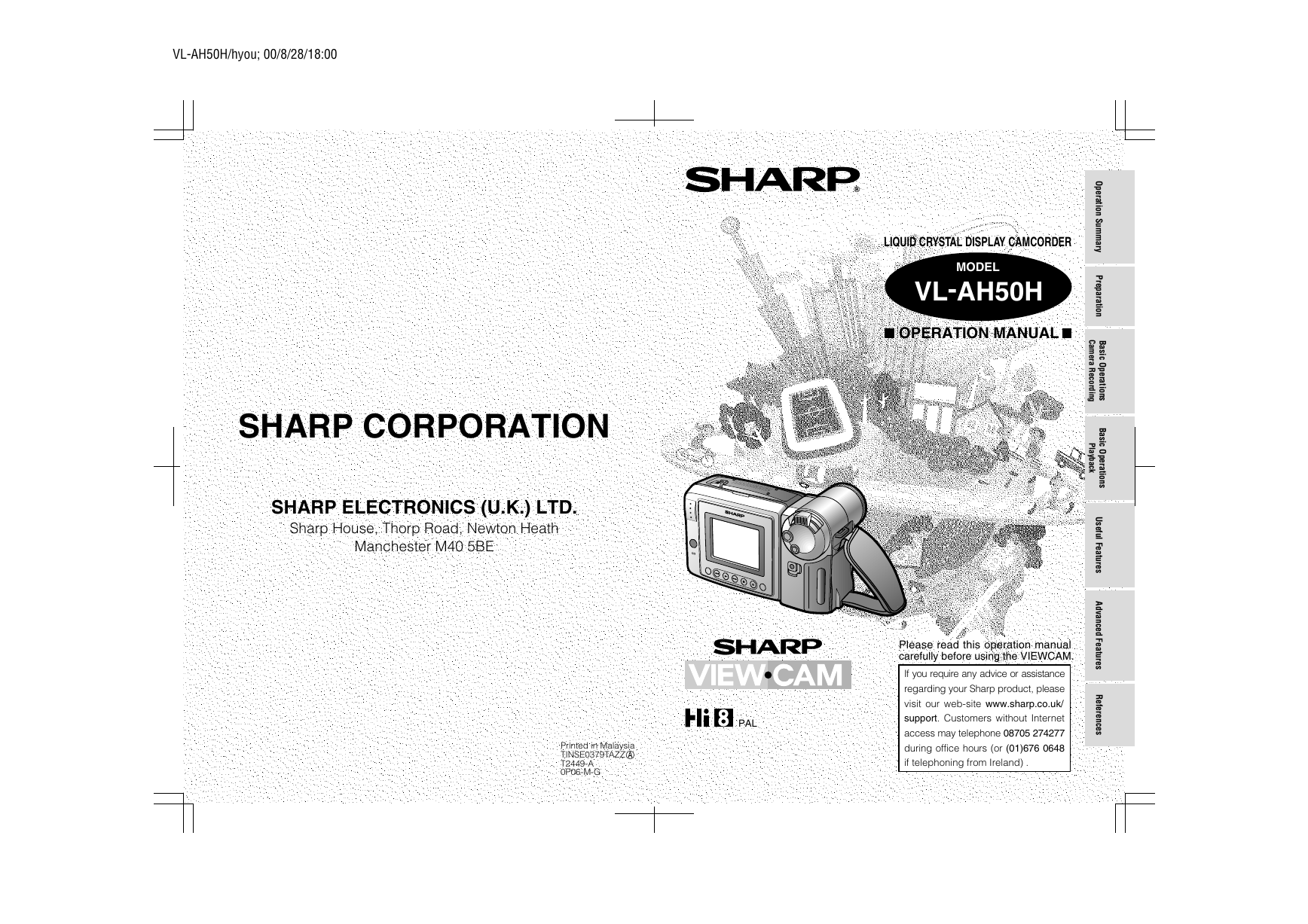

VL-AH50H/hyou; 00/8/28/18:00 SHARP CORPORATION SHARP ELECTRONICS (U.K.) LTD. Sharp House, Thorp Road, Newton Heath Manchester M40 5BE LIQUID CRYSTAL DISPLAY CAMCORDER MODEL VL-AH50H OPERATION MANUAL PAL Printed in Malaysia TINSE0379TAZZ T2449-A 0P06-M-G Please read this operation manual carefully before using the VIEWCAM. If you require any advice or assistance regarding your Sharp product, please visit our web-site www.sharp.co.uk/ support. Customers without Internet access may telephone 08705 274277 during office hours (or (01)676 0648 if telephoning from Ireland) . O p e r a t i o n S u m m a r y P r e p a r a t i o n C a m e r a R e c o r d i n g B a s i c O p e r a t i o n s P l a y b a c k B a s i c O p e r a t i o n s U s e f u l F e a t u r e s A d v a n c e d F e a t u r e s R e f e r e n c e s

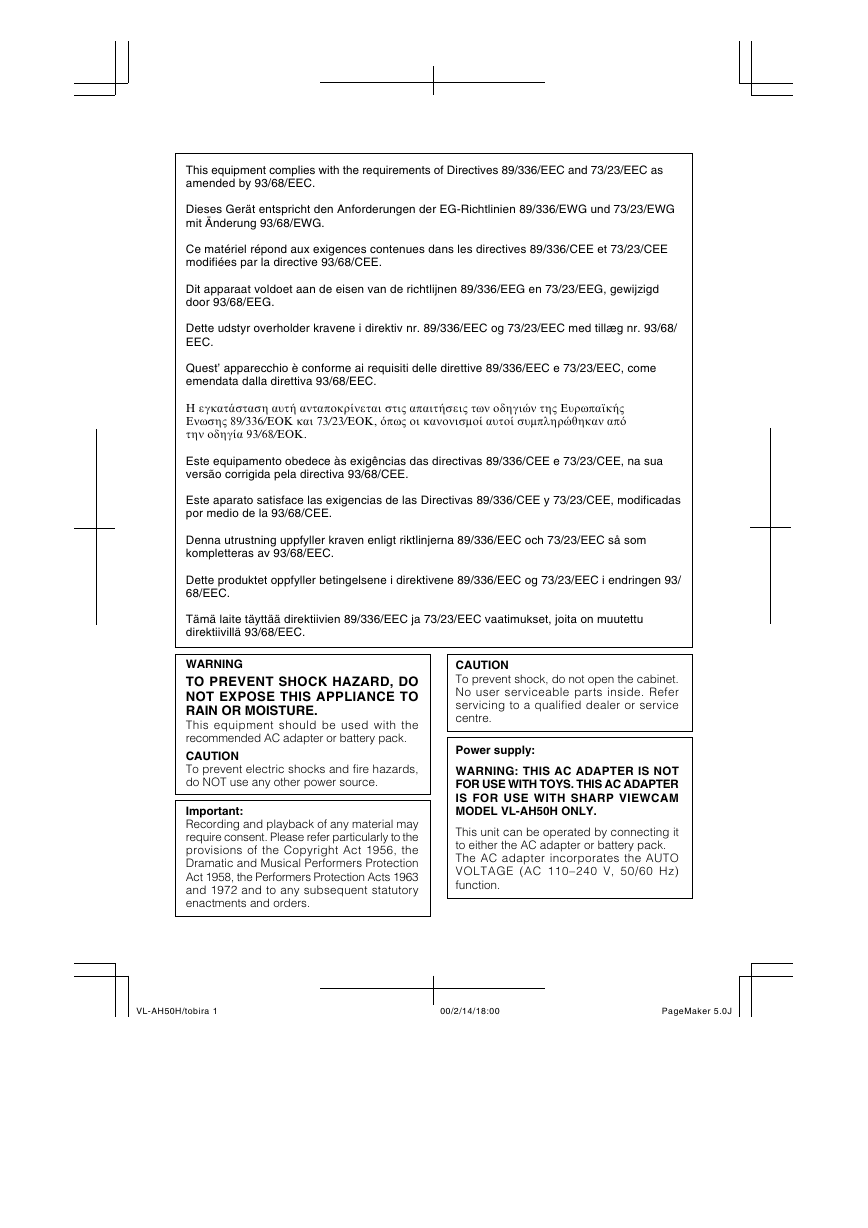

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC. Dieses Gerät entspricht den Anforderungen der EG-Richtlinien 89/336/EWG und 73/23/EWG mit Änderung 93/68/EWG. Ce matériel répond aux exigences contenues dans les directives 89/336/CEE et 73/23/CEE modifiées par la directive 93/68/CEE. Dit apparaat voldoet aan de eisen van de richtlijnen 89/336/EEG en 73/23/EEG, gewijzigd door 93/68/EEG. Dette udstyr overholder kravene i direktiv nr. 89/336/EEC og 73/23/EEC med tillæg nr. 93/68/ EEC. Quest’ apparecchio è conforme ai requisiti delle direttive 89/336/EEC e 73/23/EEC, come emendata dalla direttiva 93/68/EEC. « Â„Í·Ù‹ÛÙ·ÛÁ ·ıÙﬁ ·ÌÙ·ÔÍÒﬂÌÂÙ·È ÛÙÈÚ ··ÈÙﬁÛÂÈÚ Ù˘Ì Ô‰Á„È˛Ì ÙÁÚ EıÒ˘·˙ÍﬁÚ EÌ˘ÛÁÚ 89/336/EOK Í·È 73/23/EOK, ¸˘Ú ÔÈ Í·ÌÔÌÈÛÏÔﬂ ·ıÙÔﬂ ÛıÏÎÁÒ˛ËÁÍ·Ì ·¸ ÙÁÌ Ô‰Á„ﬂ· 93/68/EOK. Este equipamento obedece às exigências das directivas 89/336/CEE e 73/23/CEE, na sua versão corrigida pela directiva 93/68/CEE. Este aparato satisface las exigencias de las Directivas 89/336/CEE y 73/23/CEE, modificadas por medio de la 93/68/CEE. Denna utrustning uppfyller kraven enligt riktlinjerna 89/336/EEC och 73/23/EEC så som kompletteras av 93/68/EEC. Dette produktet oppfyller betingelsene i direktivene 89/336/EEC og 73/23/EEC i endringen 93/ 68/EEC. Tämä laite täyttää direktiivien 89/336/EEC ja 73/23/EEC vaatimukset, joita on muutettu direktiivillä 93/68/EEC. WARNING TO PREVENT SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. This equipment should be used with the recommended AC adapter or battery pack. CAUTION To prevent electric shocks and fire hazards, do NOT use any other power source. Important: Recording and playback of any material may require consent. Please refer particularly to the provisions of the Copyright Act 1956, the Dramatic and Musical Performers Protection Act 1958, the Performers Protection Acts 1963 and 1972 and to any subsequent statutory enactments and orders. CAUTION To prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to a qualified dealer or service centre. Power supply: WARNING: THIS AC ADAPTER IS NOT FOR USE WITH TOYS. THIS AC ADAPTER IS FOR USE WITH SHARP VIEWCAM MODEL VL-AH50H ONLY. This unit can be operated by connecting it to either the AC adapter or battery pack. The AC adapter incorporates the AUTO VOLTAGE (AC 110–240 V, 50/60 Hz) function. VL-AH50H/tobira 1 00/2/14/18:00 PageMaker 5.0J

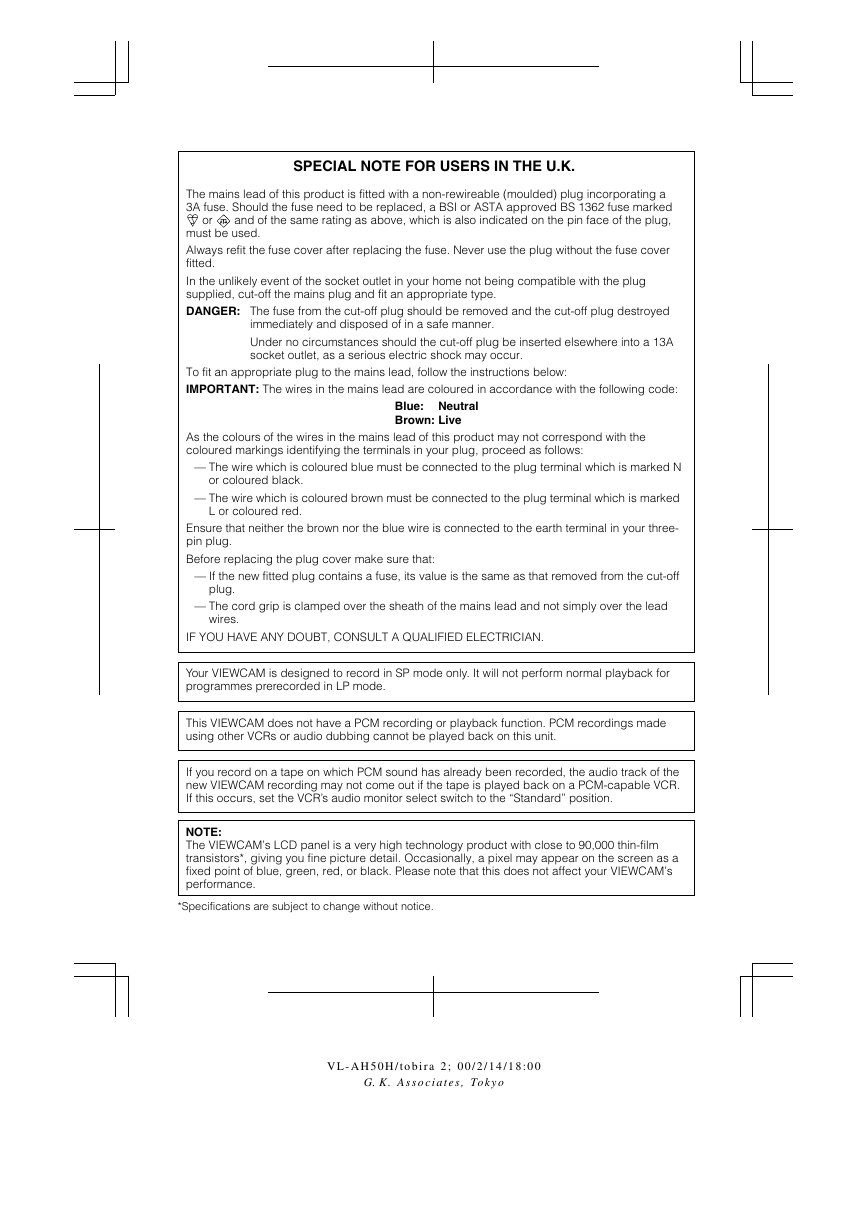

SPECIAL NOTE FOR USERS IN THE U.K. The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 3A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked and of the same rating as above, which is also indicated on the pin face of the plug, or must be used. Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted. In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut-off the mains plug and fit an appropriate type. DANGER: The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner. Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket outlet, as a serious electric shock may occur. To fit an appropriate plug to the mains lead, follow the instructions below: IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue: Neutral Brown: Live As the colours of the wires in the mains lead of this product may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: — The wire which is coloured blue must be connected to the plug terminal which is marked N or coloured black. — The wire which is coloured brown must be connected to the plug terminal which is marked L or coloured red. Ensure that neither the brown nor the blue wire is connected to the earth terminal in your three- pin plug. Before replacing the plug cover make sure that: — If the new fitted plug contains a fuse, its value is the same as that removed from the cut-off plug. — The cord grip is clamped over the sheath of the mains lead and not simply over the lead wires. IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN. Your VIEWCAM is designed to record in SP mode only. It will not perform normal playback for programmes prerecorded in LP mode. This VIEWCAM does not have a PCM recording or playback function. PCM recordings made using other VCRs or audio dubbing cannot be played back on this unit. If you record on a tape on which PCM sound has already been recorded, the audio track of the new VIEWCAM recording may not come out if the tape is played back on a PCM-capable VCR. If this occurs, set the VCR’s audio monitor select switch to the “Standard” position. NOTE: The VIEWCAM’s LCD panel is a very high technology product with close to 90,000 thin-film transistors*, giving you fine picture detail. Occasionally, a pixel may appear on the screen as a fixed point of blue, green, red, or black. Please note that this does not affect your VIEWCAM’s performance. *Specifications are subject to change without notice. V L - A H 5 0 H / t o b i r a 2 ; 0 0 / 2 / 1 4 / 1 8 : 0 0 G. K . A s s o c i a t e s , To k y o

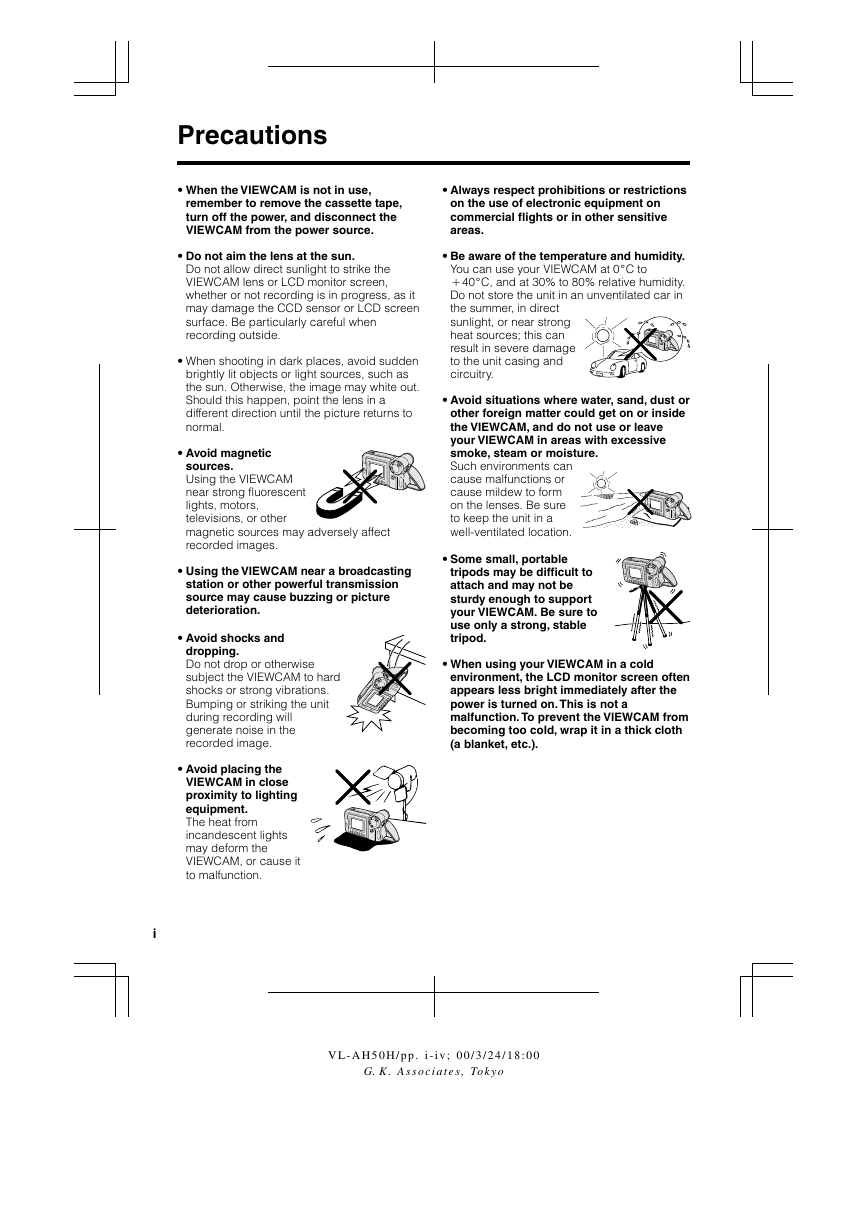

Precautions • When the VIEWCAM is not in use, remember to remove the cassette tape, turn off the power, and disconnect the VIEWCAM from the power source. • Always respect prohibitions or restrictions on the use of electronic equipment on commercial flights or in other sensitive areas. • Be aware of the temperature and humidity. You can use your VIEWCAM at 0 ⬚C to Ⳮ40 ⬚C, and at 30% to 80% relative humidity. Do not store the unit in an unventilated car in the summer, in direct sunlight, or near strong heat sources; this can result in severe damage to the unit casing and circuitry. • Avoid situations where water, sand, dust or other foreign matter could get on or inside the VIEWCAM, and do not use or leave your VIEWCAM in areas with excessive smoke, steam or moisture. Such environments can cause malfunctions or cause mildew to form on the lenses. Be sure to keep the unit in a well-ventilated location. • Some small, portable tripods may be difficult to attach and may not be sturdy enough to support your VIEWCAM. Be sure to use only a strong, stable tripod. • When using your VIEWCAM in a cold environment, the LCD monitor screen often appears less bright immediately after the power is turned on. This is not a malfunction. To prevent the VIEWCAM from becoming too cold, wrap it in a thick cloth (a blanket, etc.). • Do not aim the lens at the sun. Do not allow direct sunlight to strike the VIEWCAM lens or LCD monitor screen, whether or not recording is in progress, as it may damage the CCD sensor or LCD screen surface. Be particularly careful when recording outside. • When shooting in dark places, avoid sudden brightly lit objects or light sources, such as the sun. Otherwise, the image may white out. Should this happen, point the lens in a different direction until the picture returns to normal. • Avoid magnetic sources. Using the VIEWCAM near strong fluorescent lights, motors, televisions, or other magnetic sources may adversely affect recorded images. • Using the VIEWCAM near a broadcasting station or other powerful transmission source may cause buzzing or picture deterioration. • Avoid shocks and dropping. Do not drop or otherwise subject the VIEWCAM to hard shocks or strong vibrations. Bumping or striking the unit during recording will generate noise in the recorded image. • Avoid placing the VIEWCAM in close proximity to lighting equipment. The heat from incandescent lights may deform the VIEWCAM, or cause it to malfunction. i V L - A H 5 0 H / p p . i - i v ; 0 0 / 3 / 2 4 / 1 8 : 0 0 G. K . A s s o c i a t e s , To k y o

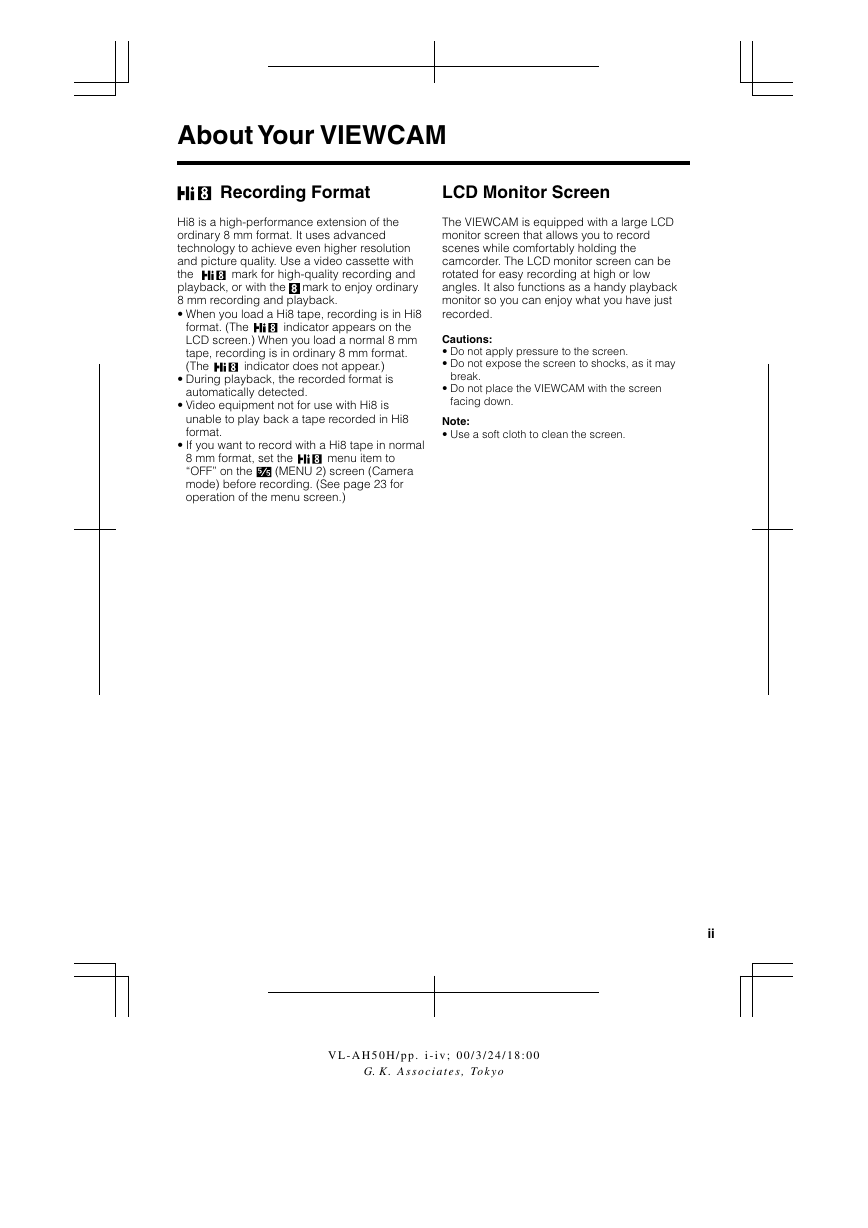

About Your VIEWCAM Recording Format LCD Monitor Screen Hi8 is a high-performance extension of the ordinary 8 mm format. It uses advanced technology to achieve even higher resolution and picture quality. Use a video cassette with mark for high-quality recording and the playback, or with the mark to enjoy ordinary 8 mm recording and playback. • When you load a Hi8 tape, recording is in Hi8 format. (The indicator appears on the LCD screen.) When you load a normal 8 mm tape, recording is in ordinary 8 mm format. (The indicator does not appear.) • During playback, the recorded format is automatically detected. • Video equipment not for use with Hi8 is unable to play back a tape recorded in Hi8 format. • If you want to record with a Hi8 tape in normal 8 mm format, set the “OFF” on the mode) before recording. (See page 23 for operation of the menu screen.) (MENU 2) screen (Camera menu item to The VIEWCAM is equipped with a large LCD monitor screen that allows you to record scenes while comfortably holding the camcorder. The LCD monitor screen can be rotated for easy recording at high or low angles. It also functions as a handy playback monitor so you can enjoy what you have just recorded. Cautions: • Do not apply pressure to the screen. • Do not expose the screen to shocks, as it may • Do not place the VIEWCAM with the screen break. facing down. Note: • Use a soft cloth to clean the screen. ii V L - A H 5 0 H / p p . i - i v ; 0 0 / 3 / 2 4 / 1 8 : 0 0 G. K . A s s o c i a t e s , To k y o

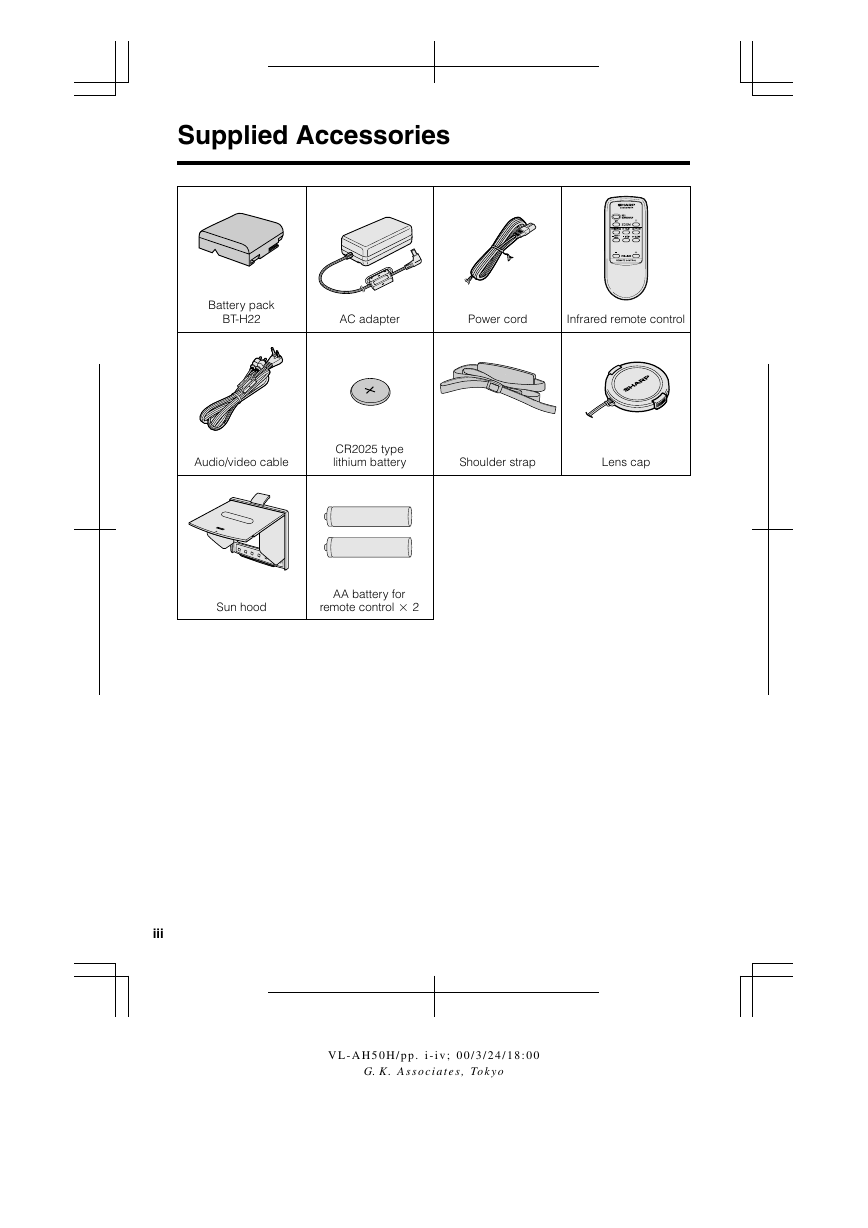

Supplied Accessories Battery pack BT-H22 AC adapter Power cord Infrared remote control Audio/video cable CR2025 type lithium battery Shoulder strap Lens cap Sun hood AA battery for remote control ⳯ 2 iii V L - A H 5 0 H / p p . i - i v ; 0 0 / 3 / 2 4 / 1 8 : 0 0 G. K . A s s o c i a t e s , To k y o

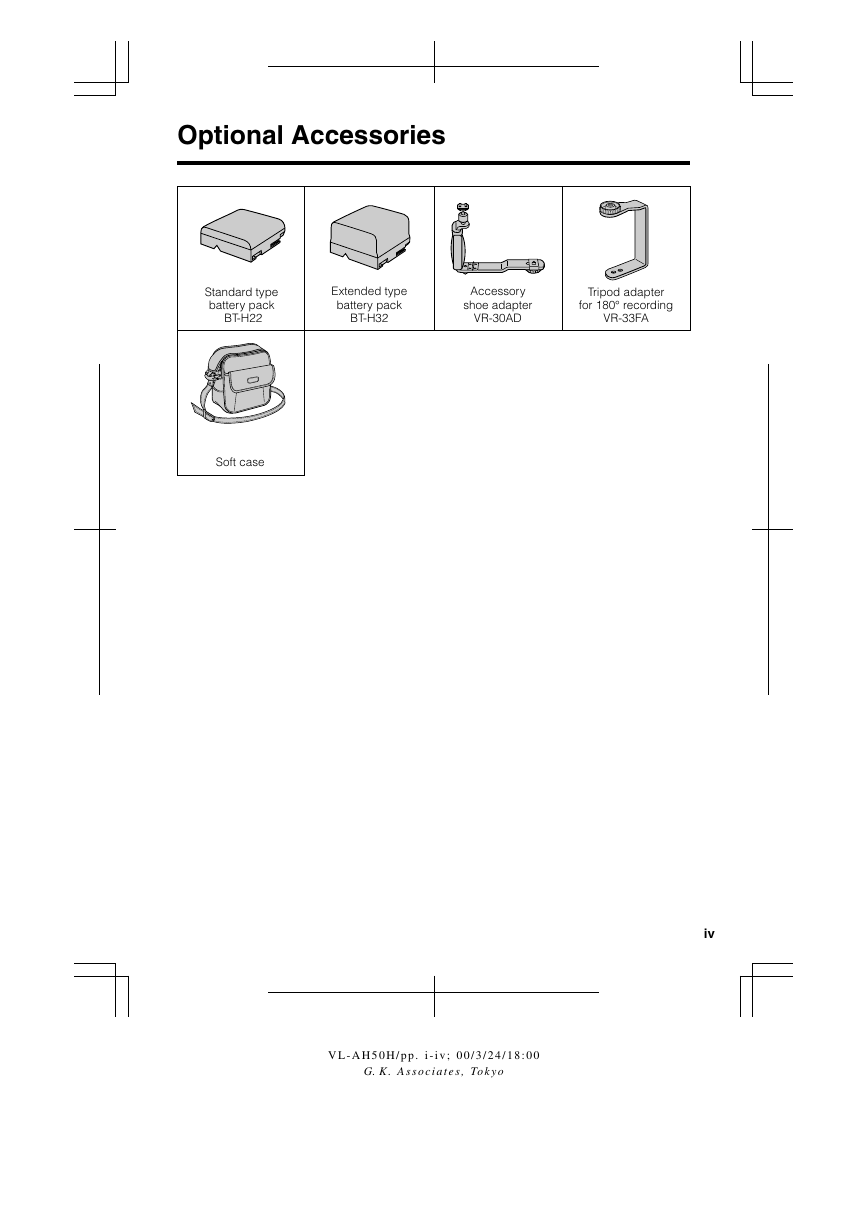

Optional Accessories Standard type battery pack BT-H22 Extended type battery pack BT-H32 Soft case Accessory shoe adapter VR-30AD Tripod adapter for 180° recording VR-33FA iv V L - A H 5 0 H / p p . i - i v ; 0 0 / 3 / 2 4 / 1 8 : 0 0 G. K . A s s o c i a t e s , To k y o

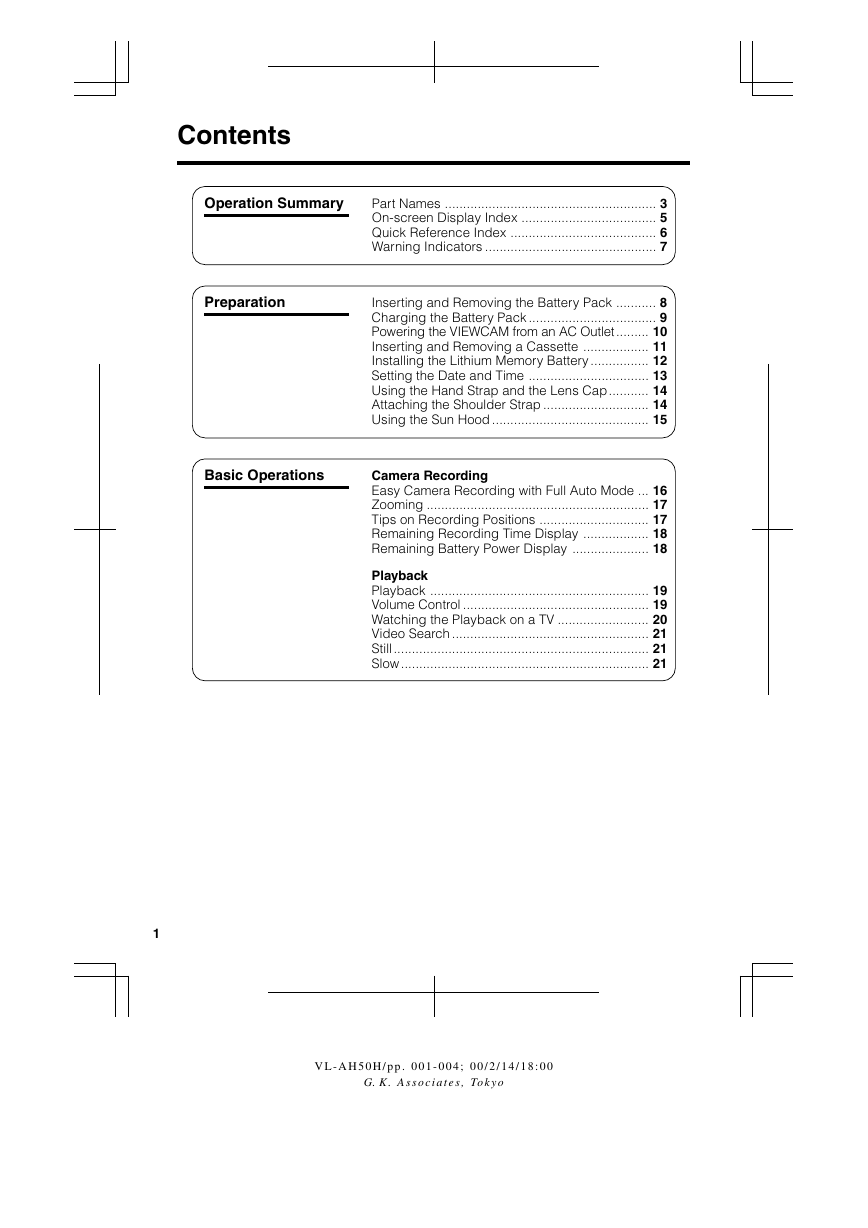

Contents Operation Summary Part Names .......................................................... 3 On-screen Display Index ..................................... 5 Quick Reference Index ........................................ 6 Warning Indicators ............................................... 7 Preparation Basic Operations Inserting and Removing the Battery Pack ........... 8 Charging the Battery Pack ................................... 9 Powering the VIEWCAM from an AC Outlet......... 10 Inserting and Removing a Cassette .................. 11 Installing the Lithium Memory Battery ................ 12 Setting the Date and Time ................................. 13 Using the Hand Strap and the Lens Cap........... 14 Attaching the Shoulder Strap ............................. 14 Using the Sun Hood ........................................... 15 Camera Recording Easy Camera Recording with Full Auto Mode ... 16 Zooming ............................................................. 17 Tips on Recording Positions .............................. 17 Remaining Recording Time Display .................. 18 Remaining Battery Power Display ..................... 18 Playback Playback ............................................................ 19 Volume Control ................................................... 19 Watching the Playback on a TV ......................... 20 Video Search ...................................................... 21 Still...................................................................... 21 Slow.................................................................... 21 1 V L - A H 5 0 H / p p . 0 0 1 - 0 0 4 ; 0 0 / 2 / 1 4 / 1 8 : 0 0 G. K . A s s o c i a t e s , To k y o
