Instant Digital Camera with ZINK® Zero Ink® Printing Technology Z340 USER MANUAL Questions? Need some help? This guide will help you enjoy your new product or visit www.polaroid.com For more information consult the user manual on the included CD-ROM ENGLISH

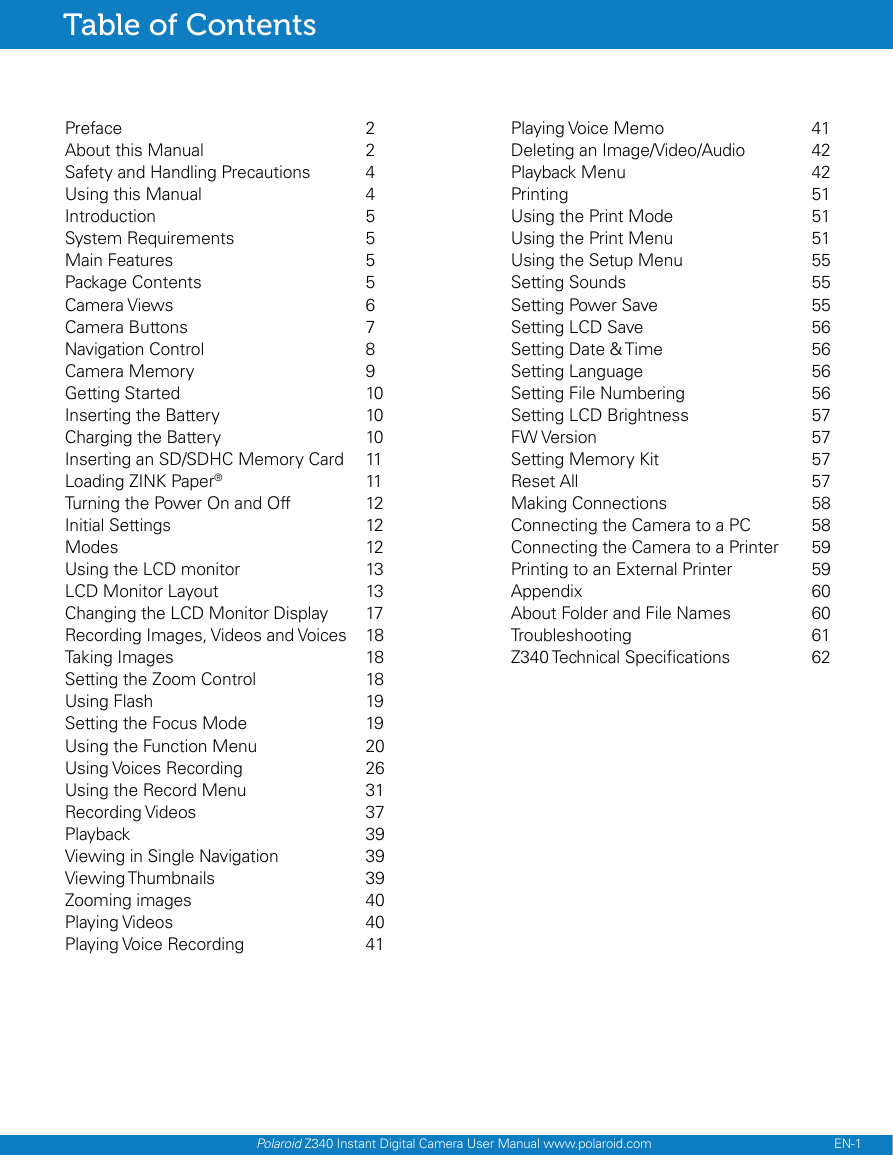

Table of Contents 2 Preface 2 About this Manual 4 Safety and Handling Precautions 4 Using this Manual 5 Introduction 5 System Requirements 5 Main Features 5 Package Contents 6 Camera Views 7 Camera Buttons 8 Navigation Control 9 Camera Memory 10 Getting Started 10 Inserting the Battery Charging the Battery 10 Inserting an SD/SDHC Memory Card 11 Loading ZINK Paper® 11 12 Turning the Power On and Off 12 Initial Settings Modes 12 13 Using the LCD monitor 13 LCD Monitor Layout Changing the LCD Monitor Display 17 Recording Images, Videos and Voices 18 18 Taking Images 18 Setting the Zoom Control Using Flash 19 19 Setting the Focus Mode 20 Using the Function Menu Using Voices Recording 26 31 Using the Record Menu 37 Recording Videos Playback 39 39 Viewing in Single Navigation 39 Viewing Thumbnails 40 Zooming images Playing Videos 40 41 Playing Voice Recording Playing Voice Memo Deleting an Image/Video/Audio Playback Menu Printing Using the Print Mode Using the Print Menu Using the Setup Menu Setting Sounds Setting Power Save Setting LCD Save Setting Date & Time Setting Language Setting File Numbering Setting LCD Brightness FW Version Setting Memory Kit Reset All Making Connections Connecting the Camera to a PC Connecting the Camera to a Printer Printing to an External Printer Appendix About Folder and File Names Troubleshooting Z340 Technical Specifications 41 42 42 51 51 51 55 55 55 56 56 56 56 57 57 57 57 58 58 59 59 60 60 61 62 EN-11 Polaroid Z340 Instant Digital Camera User Manual www.polaroid.com EN-1

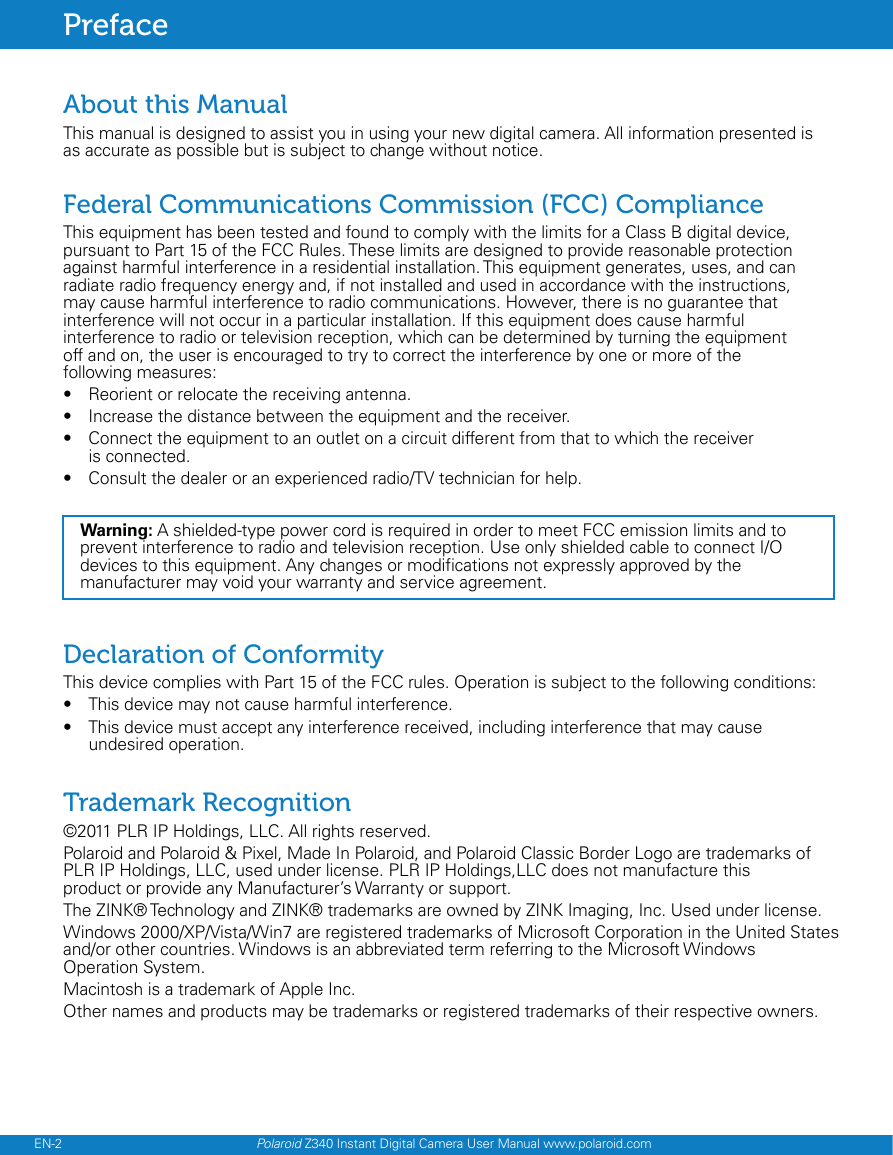

Preface About this Manual This manual is designed to assist you in using your new digital camera. All information presented is as accurate as possible but is subject to change without notice. Federal Communications Commission (FCC) Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • • Connect the equipment to an outlet on a circuit different from that to which the receiver • Consult the dealer or an experienced radio/TV technician for help. Increase the distance between the equipment and the receiver. is connected. Warning: A shielded-type power cord is required in order to meet FCC emission limits and to prevent interference to radio and television reception. Use only shielded cable to connect I/O devices to this equipment. Any changes or modifications not expressly approved by the manufacturer may void your warranty and service agreement. Declaration of Conformity This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. EN-11 Trademark Recognition ©2011 PLR IP Holdings, LLC. All rights reserved. Polaroid and Polaroid & Pixel, Made In Polaroid, and Polaroid Classic Border Logo are trademarks of PLR IP Holdings, LLC, used under license. PLR IP Holdings,LLC does not manufacture this product or provide any Manufacturer’s Warranty or support. The ZINK® Technology and ZINK® trademarks are owned by ZINK Imaging, Inc. Used under license. Windows 2000/XP/Vista/Win7 are registered trademarks of Microsoft Corporation in the United States and/or other countries. Windows is an abbreviated term referring to the Microsoft Windows Operation System. Macintosh is a trademark of Apple Inc. Other names and products may be trademarks or registered trademarks of their respective owners. EN-2 Polaroid Z340 Instant Digital Camera User Manual www.polaroid.com

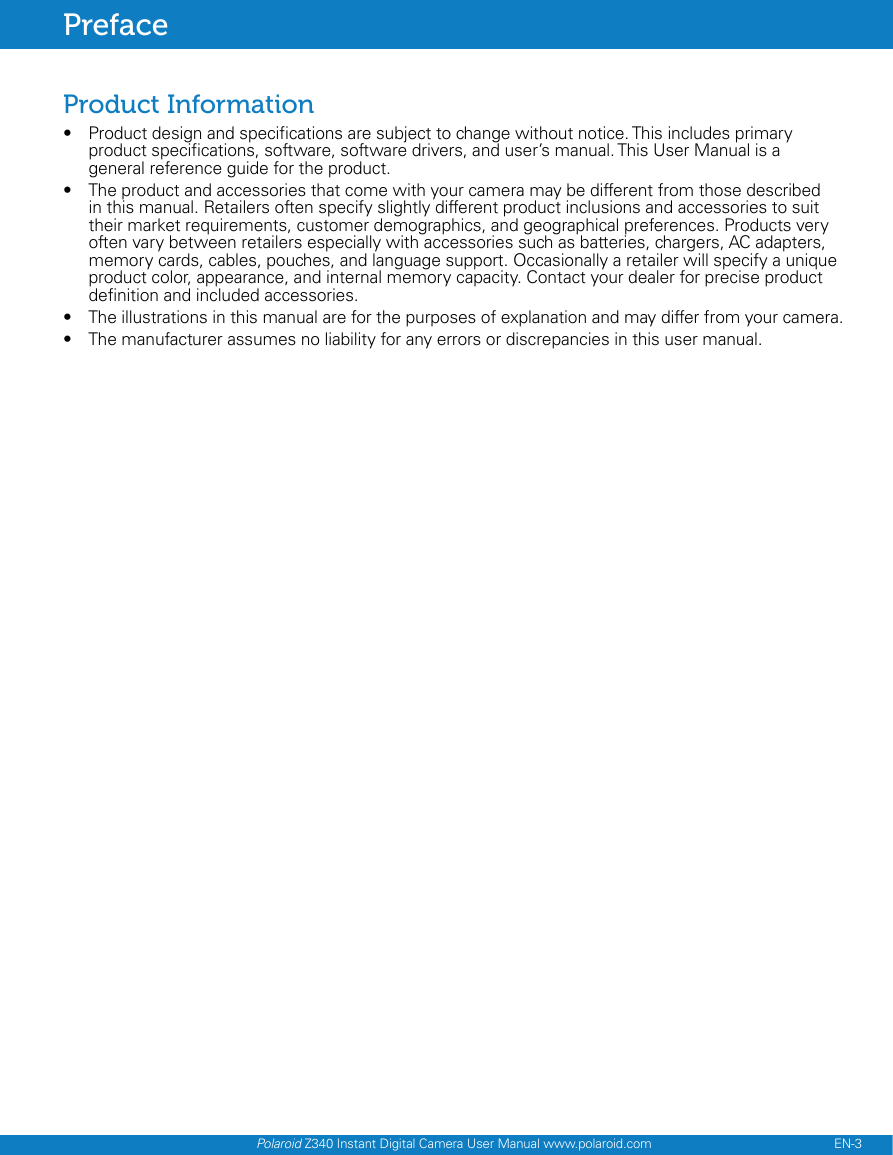

Preface product specifications, software, software drivers, and user’s manual. This User Manual is a general reference guide for the product. Product Information • Product design and specifications are subject to change without notice. This includes primary • The product and accessories that come with your camera may be different from those described in this manual. Retailers often specify slightly different product inclusions and accessories to suit their market requirements, customer demographics, and geographical preferences. Products very often vary between retailers especially with accessories such as batteries, chargers, AC adapters, memory cards, cables, pouches, and language support. Occasionally a retailer will specify a unique • The illustrations in this manual are for the purposes of explanation and may differ from your camera. • The manufacturer assumes no liability for any errors or discrepancies in this user manual. product color, appearance, and internal memory capacity. Contact your dealer for precise product definition and included accessories. EN-11 Polaroid Z340 Instant Digital Camera User Manual www.polaroid.com EN-3

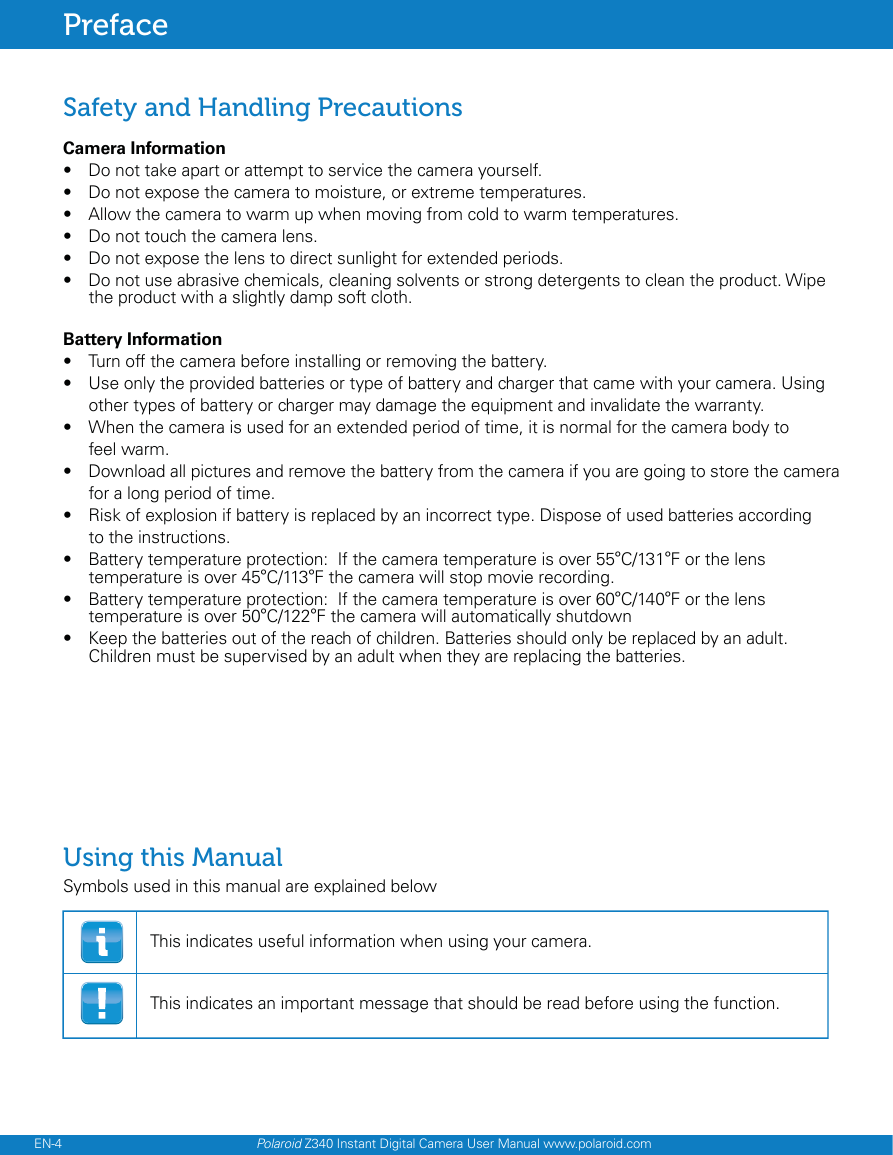

Preface Safety and Handling Precautions Camera Information • Do not take apart or attempt to service the camera yourself. • Do not expose the camera to moisture, or extreme temperatures. • Allow the camera to warm up when moving from cold to warm temperatures. • Do not touch the camera lens. • Do not expose the lens to direct sunlight for extended periods. • Do not use abrasive chemicals, cleaning solvents or strong detergents to clean the product. Wipe the product with a slightly damp soft cloth. feel warm. for a long period of time. to the instructions. other types of battery or charger may damage the equipment and invalidate the warranty. Battery Information • Turn off the camera before installing or removing the battery. • Use only the provided batteries or type of battery and charger that came with your camera. Using • When the camera is used for an extended period of time, it is normal for the camera body to • Download all pictures and remove the battery from the camera if you are going to store the camera • Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according • Battery temperature protection: If the camera temperature is over 55C/131F or the lens • Battery temperature protection: If the camera temperature is over 60C/140F or the lens • Keep the batteries out of the reach of children. Batteries should only be replaced by an adult. Children must be supervised by an adult when they are replacing the batteries. temperature is over 50C/122F the camera will automatically shutdown temperature is over 45C/113F the camera will stop movie recording. EN-11 Using this Manual Symbols used in this manual are explained below This indicates useful information when using your camera. This indicates an important message that should be read before using the function. EN-4 Polaroid Z340 Instant Digital Camera User Manual www.polaroid.com

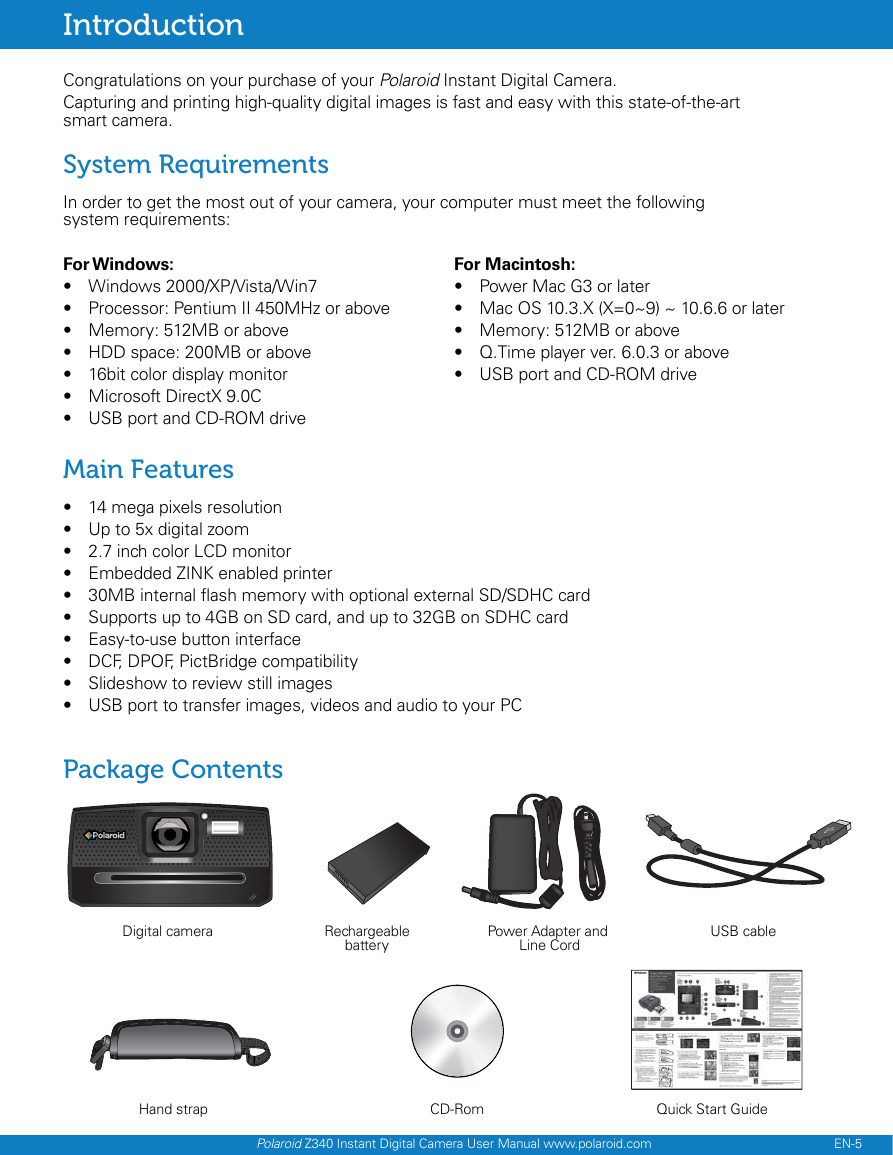

Introduction Congratulations on your purchase of your Polaroid Instant Digital Camera. Capturing and printing high-quality digital images is fast and easy with this state-of-the-art smart camera. System Requirements In order to get the most out of your camera, your computer must meet the following system requirements: For Windows: • Windows 2000/XP/Vista/Win7 • Processor: Pentium II 450MHz or above • Memory: 512MB or above • HDD space: 200MB or above • 16bit color display monitor • Microsoft DirectX 9.0C • USB port and CD-ROM drive For Macintosh: • Power Mac G3 or later • Mac OS 10.3.X (X=0~9) ~ 10.6.6 or later • Memory: 512MB or above • Q.Time player ver. 6.0.3 or above • USB port and CD-ROM drive Main Features • 14 mega pixels resolution • Up to 5x digital zoom • 2.7 inch color LCD monitor • Embedded ZINK enabled printer • 30MB internal flash memory with optional external SD/SDHC card • Supports up to 4GB on SD card, and up to 32GB on SDHC card • Easy-to-use button interface • DCF, DPOF, PictBridge compatibility • Slideshow to review still images • USB port to transfer images, videos and audio to your PC Package Contents EN-11 Digital camera Rechargeable battery Power Adapter and Line Cord USB cable Hand strap CD-Rom Quick Start Guide Polaroid Z340 Instant Digital Camera User Manual www.polaroid.com EN-5

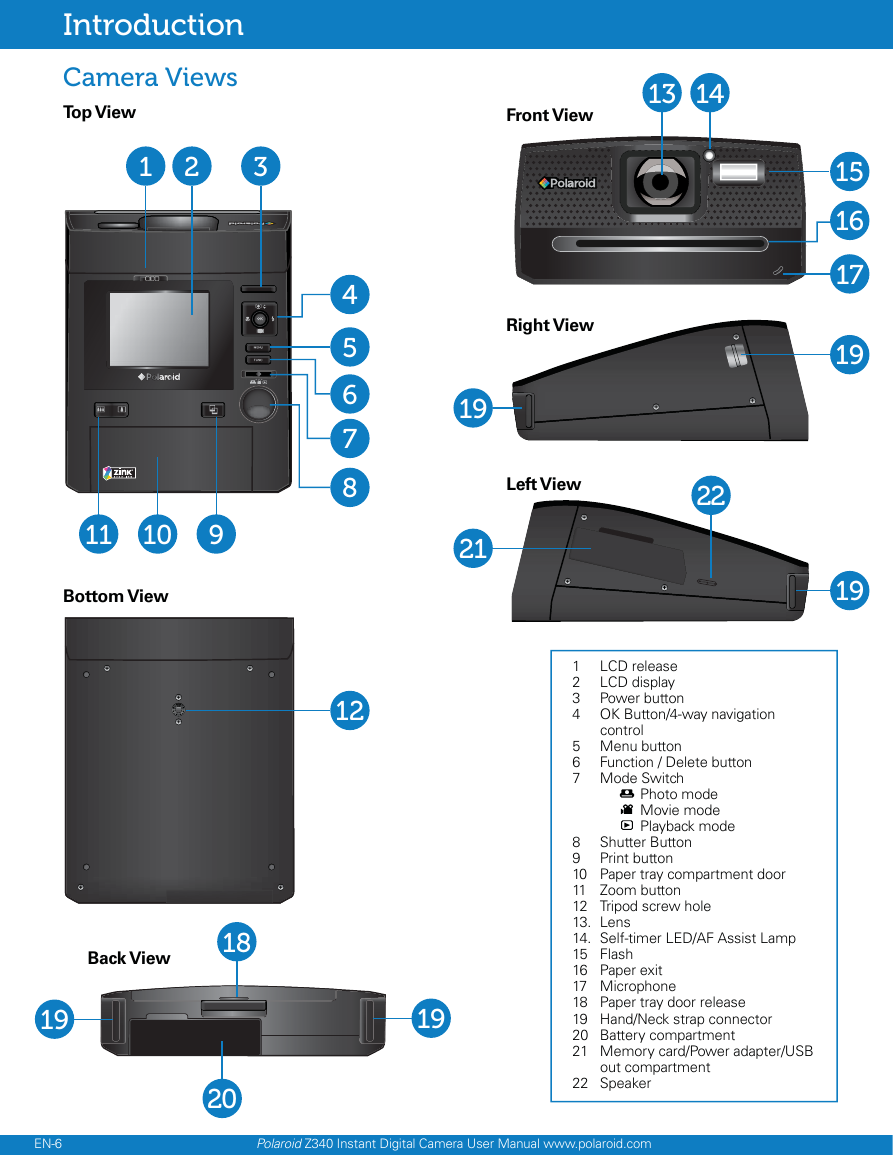

Introduction Camera Views Top View 1 2 3 11 10 9 Bottom View 4 5 6 7 8 12 Back View 18 19 19 20 Front View 13 14 Right View 19 21 Left View 22 15 16 17 19 19 control Photo mode Movie mode Playback mode 1 LCD release 2 LCD display 3 Power button 4 OK Button/4-way navigation 5 Menu button 6 Function / Delete button 7 Mode Switch 8 Shutter Button 9 Print button 10 Paper tray compartment door 11 Zoom button 12 Tripod screw hole 13. Lens 14. Self-timer LED/AF Assist Lamp 15 Flash 16 Paper exit 17 Microphone 18 Paper tray door release 19 Hand/Neck strap connector 20 Battery compartment 21 Memory card/Power adapter/USB 22 Speaker out compartment EN-6 Polaroid Z340 Instant Digital Camera User Manual www.polaroid.com

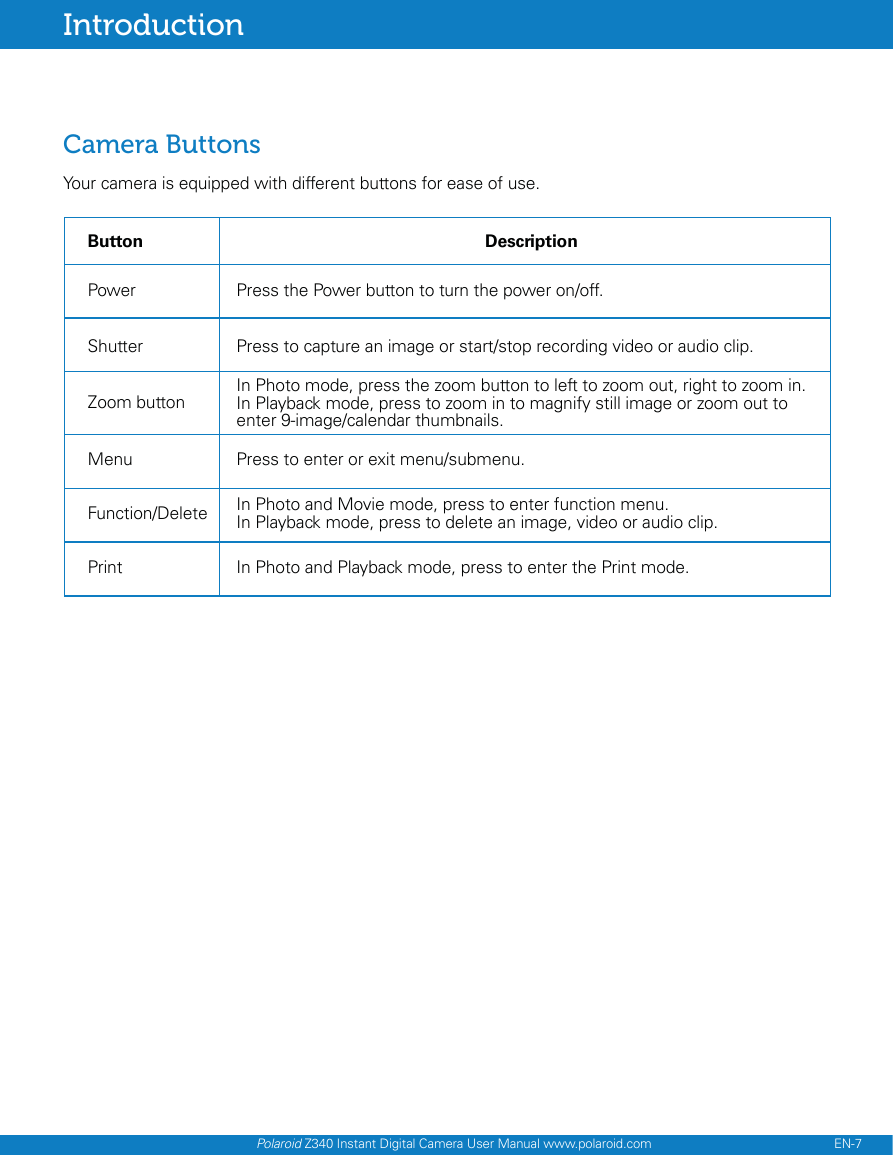

Introduction Camera Buttons Your camera is equipped with different buttons for ease of use. Button Power Shutter Description Press the Power button to turn the power on/off. Press to capture an image or start/stop recording video or audio clip. Zoom button In Photo mode, press the zoom button to left to zoom out, right to zoom in. In Playback mode, press to zoom in to magnify still image or zoom out to enter 9-image/calendar thumbnails. Menu Press to enter or exit menu/submenu. Function/Delete In Photo and Movie mode, press to enter function menu. In Playback mode, press to delete an image, video or audio clip. Print In Photo and Playback mode, press to enter the Print mode. EN-11 Polaroid Z340 Instant Digital Camera User Manual www.polaroid.com EN-7
