    TM August 2011 Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, t he Energy Efficient Solutions logo, mobileGT, PowerQUICC, QorIQ, StarCore and Symphony are trademarks of Freescale Semiconductor, Inc., Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, ColdFire+, CoreNet, Flexis, Kinetis, MXC, Platform in a Package, Processor Expert, QorIQ Qonverge, Qorivva, QUICC Engine, SMARTMOS, TurboLink, VortiQa and Xtrinsic are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2011 Freescale Semiconductor, Inc.
    • DPAA • BMAN Enablement • FMAN Enablement • QMAN Enablement • SEC Enablement • PME Enablement • RMAN Enablement • RE Enablement • Conclusion Freescale on Kaixin Tag yourself in photos and upload your own! Weibo? Please use hashtag #FTF2011# TM 2 Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, the Energy Efficient Solutions logo, mobileGT, PowerQUICC, QorIQ, StarCore and Symphony are trademarks of Freescale Semiconductor, Inc., Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, ColdFire+, CoreNet, Flexis, Kinetis, MXC, Platform in a Package, Processor Expert, QorIQ Qonverge, Qorivva, QUICC Engine, SMARTMOS, TurboLink, VortiQa and Xtrinsic are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2011 Freescale Semiconductor, Inc.

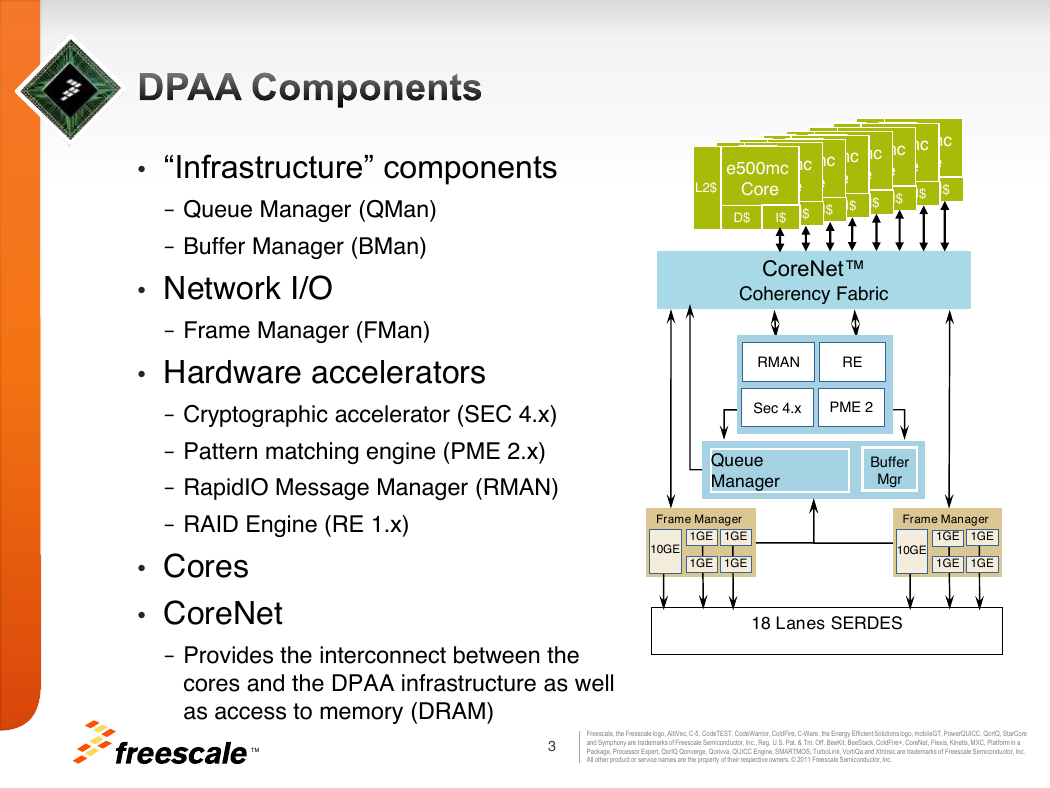

    • “Infrastructure” components − Queue Manager (QMan) − Buffer Manager (BMan) • Network I/O − Frame Manager (FMan) • Hardware accelerators − Cryptographic accelerator (SEC 4.x) − Pattern matching engine (PME 2.x) − RapidIO Message Manager (RMAN) − RAID Engine (RE 1.x) • Cores • CoreNet − Provides the interconnect between the cores and the DPAA infrastructure as well as access to memory (DRAM) D$ I$ D$ I$ D$ e500mc I$ D$ e500mc I$ D$ e500mc I$ D$ e500mc I$ D$ e500mc I$ D$ I$ e500mc Core I$ L2$ D$ e500mc Core I$ L2$ D$ e500mc Core I$ L2$ D$ Core I$ L2$ D$ Core I$ L2$ D$ Core I$ L2$ D$ Core I$ L2$ D$ Core I$ D$ I$ L2$ D$ D$ D$ I$ D$ I$ D$ I$ D$ I$ D$ I$ D$ I$ I$ CoreNet™ Coherency Fabric RMAN RE Sec 4.x PME 2 Queue Manager Buffer Mgr Frame Manager 10GE 1GE 1GE 1GE 1GE Frame Manager 10GE 1GE 1GE 1GE 1GE 18 Lanes SERDES TM 3 Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, the Energy Efficient Solutions logo, mobileGT, PowerQUICC, QorIQ, StarCore and Symphony are trademarks of Freescale Semiconductor, Inc., Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, ColdFire+, CoreNet, Flexis, Kinetis, MXC, Platform in a Package, Processor Expert, QorIQ Qonverge, Qorivva, QUICC Engine, SMARTMOS, TurboLink, VortiQa and Xtrinsic are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2011 Freescale Semiconductor, Inc.
    • Buffer: Unit of contiguous memory, allocated by software. • Frame: Buffer(s) that hold a data element (generally a packet) − Frames can be single buffers or multiple buffers (scatter/gather lists)  A “simple frame” has one delimited data element  A “multi buffer frame” has two or more data elements. − A “Compound frame” consists of multiple related delineated units • Frame Descriptor (FD): Proxy structure used to represent frames. • Frame Queue: − FIFO of related Frames Descriptor.(e.g. TCP session) − The basic queuing structure supported by QMan • Frame Queue Descriptor (FQD): Structure used to manage Frame Queues FD FD FD FD … Buffer Buffer Buffer Buffer FQD FD FD Ethernet Frame Pre- amble Dest addr Src addr Type Data CRC TM 4 Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, the Energy Efficient Solutions logo, mobileGT, PowerQUICC, QorIQ, StarCore and Symphony are trademarks of Freescale Semiconductor, Inc., Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, ColdFire+, CoreNet, Flexis, Kinetis, MXC, Platform in a Package, Processor Expert, QorIQ Qonverge, Qorivva, QUICC Engine, SMARTMOS, TurboLink, VortiQa and Xtrinsic are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2011 Freescale Semiconductor, Inc.

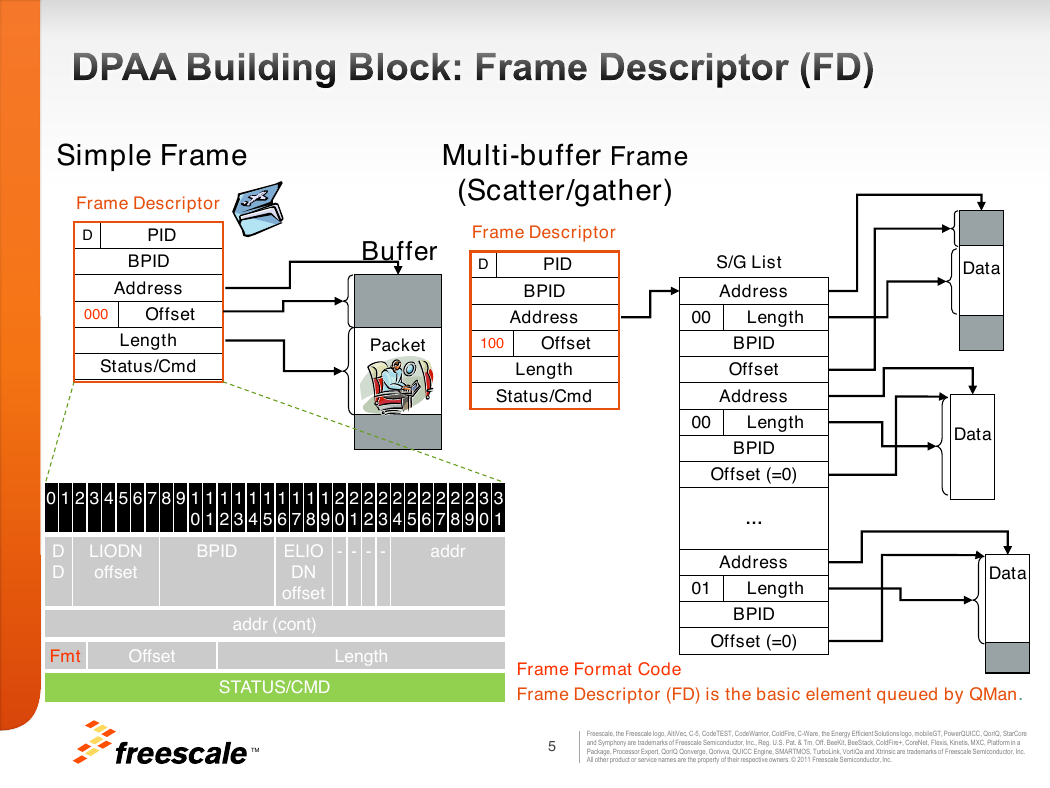

    Simple Frame Frame Descriptor D PID BPID Address 000 Offset Length Status/Cmd Multi-buffer Frame (Scatter/gather) Buffer Frame Descriptor D PID BPID Address Packet 100 Offset Length Status/Cmd 0 1 2 3 4 5 6 7 8 9 1 0 1 1 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 2 1 2 2 2 3 2 4 2 5 2 6 2 7 2 8 2 9 3 0 3 1 D D LIODN offset BPID - - - - addr ELIO DN offset addr (cont) Fmt Offset Length STATUS/CMD TM S/G List Address 00 Length BPID Offset Address 00 Length BPID Offset (=0) … Address 01 Length BPID Offset (=0) Data Data Data Frame Format Code Frame Descriptor (FD) is the basic element queued by QMan. 5 Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, the Energy Efficient Solutions logo, mobileGT, PowerQUICC, QorIQ, StarCore and Symphony are trademarks of Freescale Semiconductor, Inc., Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, ColdFire+, CoreNet, Flexis, Kinetis, MXC, Platform in a Package, Processor Expert, QorIQ Qonverge, Qorivva, QUICC Engine, SMARTMOS, TurboLink, VortiQa and Xtrinsic are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2011 Freescale Semiconductor, Inc.
    Compound frames describe multiple simple frames Variation of the S/G list is used as the “top level” of a compound frame Compound Frame Descriptor D PID BPID Address 001 CongWght Status/Cmd Compound Frame S/G List Address 10 Length BPID Offset Address 01 Length BPID Offset Frame Format Code CongWght = Congestion Weight Data Data Data Output: SGL (or Buffer) Address 00 Length BPID Offset Address 00 Length BPID Offset (=0) …… Address 01 Length BPID Offset (=0) Input: Buffer (or SGT) Data TM 6 Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, the Energy Efficient Solutions logo, mobileGT, PowerQUICC, QorIQ, StarCore and Symphony are trademarks of Freescale Semiconductor, Inc., Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, ColdFire+, CoreNet, Flexis, Kinetis, MXC, Platform in a Package, Processor Expert, QorIQ Qonverge, Qorivva, QUICC Engine, SMARTMOS, TurboLink, VortiQa and Xtrinsic are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2011 Freescale Semiconductor, Inc.

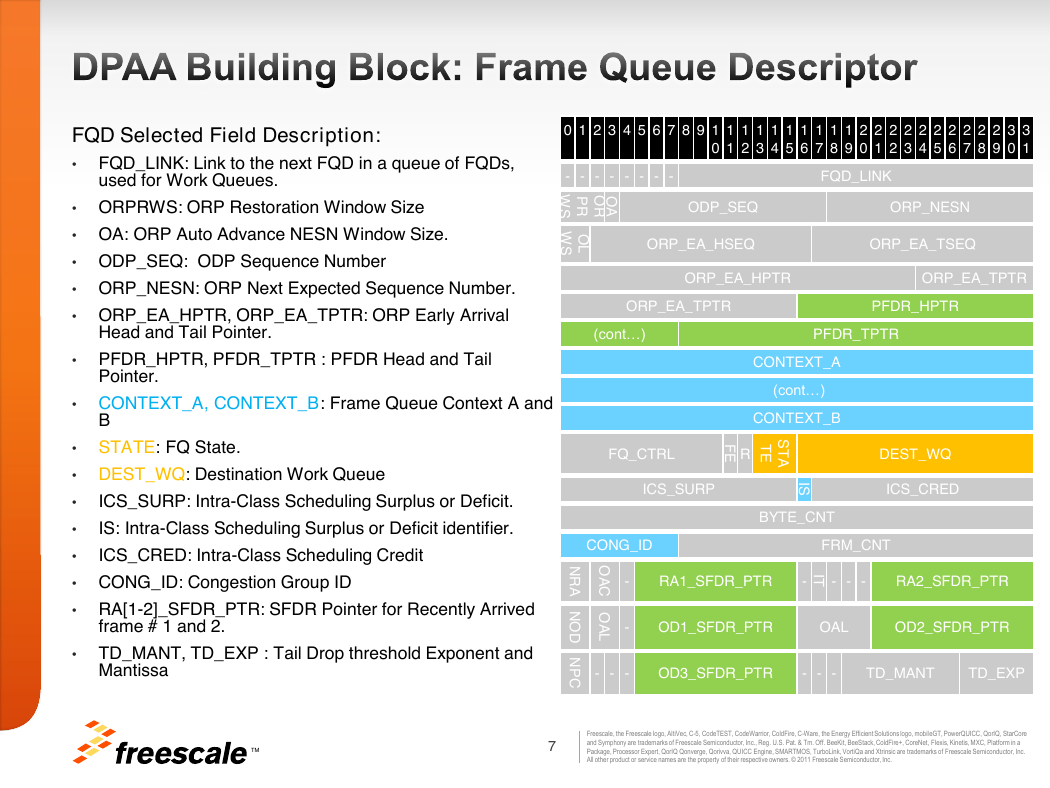

    FQD Selected Field Description: • FQD_LINK: Link to the next FQD in a queue of FQDs, used for Work Queues. • ORPRWS: ORP Restoration Window Size • OA: ORP Auto Advance NESN Window Size. • ODP_SEQ: ODP Sequence Number • ORP_NESN: ORP Next Expected Sequence Number. • ORP_EA_HPTR, ORP_EA_TPTR: ORP Early Arrival Head and Tail Pointer. • PFDR_HPTR, PFDR_TPTR : PFDR Head and Tail Pointer. • CONTEXT_A, CONTEXT_B: Frame Queue Context A and B • STATE: FQ State. • DEST_WQ: Destination Work Queue • • • ICS_SURP: Intra-Class Scheduling Surplus or Deficit. IS: Intra-Class Scheduling Surplus or Deficit identifier. ICS_CRED: Intra-Class Scheduling Credit • CONG_ID: Congestion Group ID • RA[1-2]_SFDR_PTR: SFDR Pointer for Recently Arrived frame # 1 and 2. • TD_MANT, TD_EXP : Tail Drop threshold Exponent and Mantissa N R A N O D N P C 0 1 2 3 4 5 6 7 8 9 1 0 1 1 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 2 1 2 2 2 3 2 4 2 5 2 6 2 7 2 8 2 9 3 0 3 1 - - - - - - - - FQD_LINK W S P R O R O A W S O L ODP_SEQ ORP_NESN ORP_EA_HSEQ ORP_EA_TSEQ ORP_EA_HPTR ORP_EA_TPTR ORP_EA_TPTR PFDR_HPTR (cont…) PFDR_TPTR CONTEXT_A (cont…) CONTEXT_B FQ_CTRL F E R T E S T A DEST_WQ ICS_SURP I S ICS_CRED CONG_ID FRM_CNT BYTE_CNT O A C O A L - - RA1_SFDR_PTR - I T - - - RA2_SFDR_PTR OD1_SFDR_PTR OAL OD2_SFDR_PTR - - - OD3_SFDR_PTR - - - TD_MANT TD_EXP TM 7 Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, the Energy Efficient Solutions logo, mobileGT, PowerQUICC, QorIQ, StarCore and Symphony are trademarks of Freescale Semiconductor, Inc., Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, ColdFire+, CoreNet, Flexis, Kinetis, MXC, Platform in a Package, Processor Expert, QorIQ Qonverge, Qorivva, QUICC Engine, SMARTMOS, TurboLink, VortiQa and Xtrinsic are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2011 Freescale Semiconductor, Inc.
    • FMAN receives packets − allocates internal buffers − retrieves data from MAC • BMI − acquires a buffer from BMan − uses DMA to store data in it • Parse+classify+keygen select a queue and policer profile • Policer “colors” and optionally discards frame • QMan applies active queue management and enqueues frame • Frame is enqueued to one of a pool of cores DDR L2 Cache L2 Cache L2 Cache Power Architecture™ L2 Cache Power Architecture™ Core DEQ Power Architecture™ Core D-Cache I-Cache Power Architecture™ Core D-Cache I-Cache Core D-Cache I-Cache PKT DDR D-Cache I-Cache DMA Frame Manager To (FMan) Memory QMI Keygen Policer Memory (Distribution) Classifier Parser BMI 10GE GE GE GE GE ENQ FD Return Buf Ptr Request Buffer PKT Queue Manager Dequeue WQ7 WQ6 WQ5 WQ4 WQ3 WQ2 WQ1 WQ0 D D D Enqueue WRED QMI Policer Keygen Buffer Manager Classifier Parser BMI MAC TM 8 Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, the Energy Efficient Solutions logo, mobileGT, PowerQUICC, QorIQ, StarCore and Symphony are trademarks of Freescale Semiconductor, Inc., Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, ColdFire+, CoreNet, Flexis, Kinetis, MXC, Platform in a Package, Processor Expert, QorIQ Qonverge, Qorivva, QUICC Engine, SMARTMOS, TurboLink, VortiQa and Xtrinsic are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2011 Freescale Semiconductor, Inc.
