Pub. 988-0154-561 Using LowranceNET  NMEA 2000 Devices with LMS-334,  LMS-339 & GlobalMap 3600. The instructions in this document address the operation of a LowranceNET NMEA 2000 network with the LMS-334, LMS-339 and GlobalMap 3600. The following topics are covered in this document. NMEA 2000 Menu • On the GPS and Sonar menus (the GlobalMap 3600 only has a GPS menu), the NMEA 2000 entry allows you to configure, calibrate and monitor devices in a LowranceNET NMEA 2000 network. It also provides access to the Buss Setup, Fuel Management and NMEA 2000 Alarm menus. NMEA 2000 alarms are addressed in your unit's manual. Buss Setup • From the Buss Setup configuration menu, you can modify the configu- ration, calibration and advanced option settings of items on the LowranceNET. Internal GPS Receiver • The internal GPS receiver in your unit is a non-network device. That means GPS data you receive from the unit will not be transmitted across the network to other network devices. The only way to trans- mit GPS data across the network is to switch the active antenna set- ting to read data from an LGC-2000 on the LowranceNET. Fuel Management • The Fuel Management menu allows you to maintain and configure fuel flow and fuel consumption. NMEA 2000 Menu The NMEA 2000 menu, located on the GPS and Sonar menus in your unit contains three items: Buss Setup, Fuel Management and NMEA 2000 Alarms. NMEA 2000 Alarms are addressed in your unit's manual. To access the NMEA 2000 menu, press MENU, select NMEA 2000 and press ENT. 1

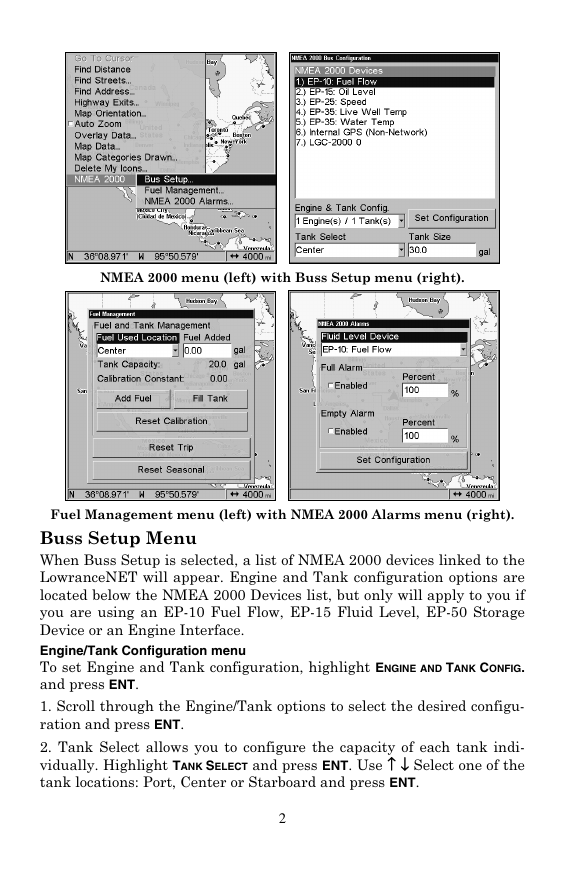

NMEA 2000 menu (left) with Buss Setup menu (right). Fuel Management menu (left) with NMEA 2000 Alarms menu (right). Buss Setup Menu When Buss Setup is selected, a list of NMEA 2000 devices linked to the LowranceNET will appear. Engine and Tank configuration options are located below the NMEA 2000 Devices list, but only will apply to you if you are using an EP-10 Fuel Flow, EP-15 Fluid Level, EP-50 Storage Device or an Engine Interface. Engine/Tank Configuration menu To set Engine and Tank configuration, highlight ENGINE AND TANK CONFIG. and press ENT. 1. Scroll through the Engine/Tank options to select the desired configu- ration and press ENT. 2. Tank Select allows you to configure the capacity of each tank indi- vidually. Highlight TANK SELECT and press ENT. Use ↑ ↓ Select one of the tank locations: Port, Center or Starboard and press ENT. 2

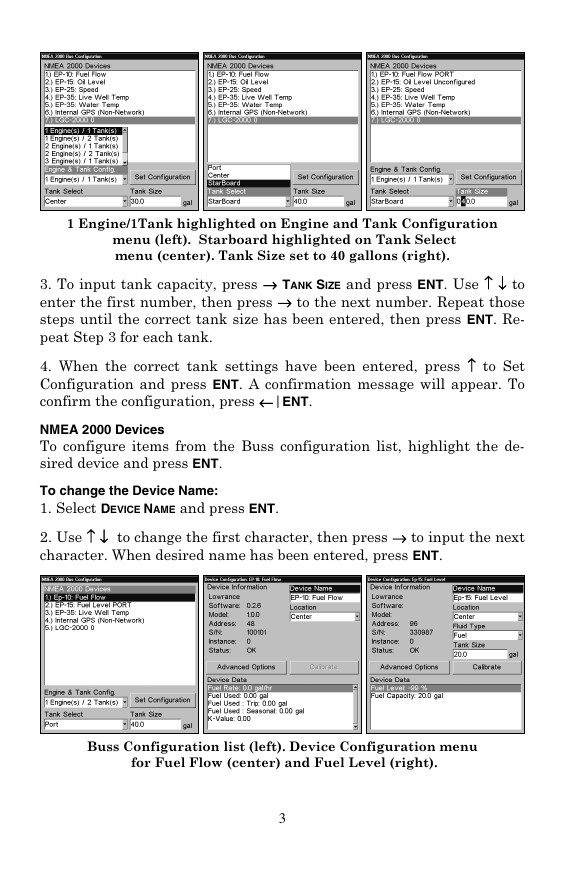

1 Engine/1Tank highlighted on Engine and Tank Configuration menu (left). Starboard highlighted on Tank Select menu (center). Tank Size set to 40 gallons (right). 3. To input tank capacity, press → TANK SIZE and press ENT. Use ↑ ↓ to enter the first number, then press → to the next number. Repeat those steps until the correct tank size has been entered, then press ENT. Re- peat Step 3 for each tank. 4. When the correct tank settings have been entered, press ↑ to Set Configuration and press ENT. A confirmation message will appear. To confirm the configuration, press ←|ENT. NMEA 2000 Devices To configure items from the Buss configuration list, highlight the de- sired device and press ENT. To change the Device Name: 1. Select DEVICE NAME and press ENT. 2. Use ↑ ↓ to change the first character, then press → to input the next character. When desired name has been entered, press ENT. Buss Configuration list (left). Device Configuration menu for Fuel Flow (center) and Fuel Level (right). 3

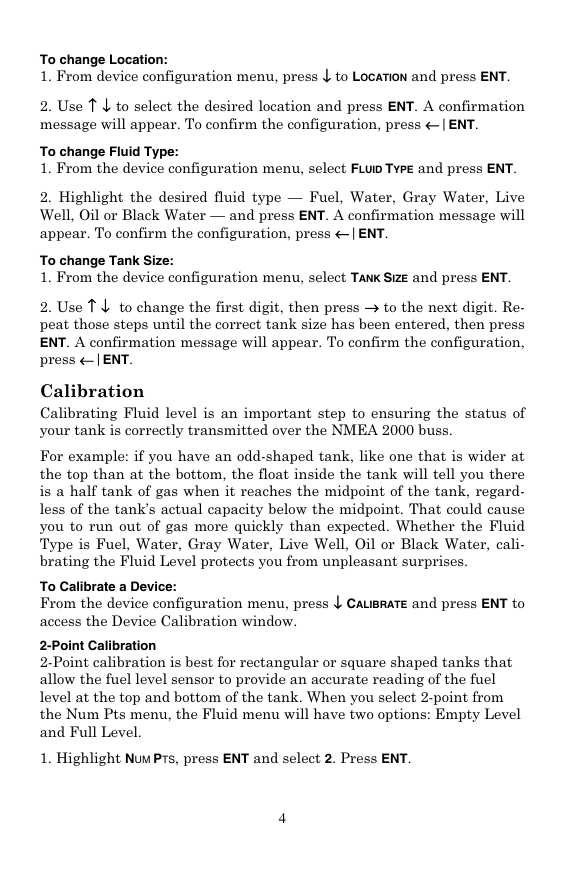

To change Location: 1. From device configuration menu, press ↓ to LOCATION and press ENT. 2. Use ↑ ↓ to select the desired location and press ENT. A confirmation message will appear. To confirm the configuration, press ←|ENT. To change Fluid Type: 1. From the device configuration menu, select FLUID TYPE and press ENT. 2. Highlight the desired fluid type — Fuel, Water, Gray Water, Live Well, Oil or Black Water — and press ENT. A confirmation message will appear. To confirm the configuration, press ←|ENT. To change Tank Size: 1. From the device configuration menu, select TANK SIZE and press ENT. 2. Use ↑ ↓ to change the first digit, then press → to the next digit. Re- peat those steps until the correct tank size has been entered, then press ENT. A confirmation message will appear. To confirm the configuration, press ←|ENT. Calibration Calibrating Fluid level is an important step to ensuring the status of your tank is correctly transmitted over the NMEA 2000 buss. For example: if you have an odd-shaped tank, like one that is wider at the top than at the bottom, the float inside the tank will tell you there is a half tank of gas when it reaches the midpoint of the tank, regard- less of the tank’s actual capacity below the midpoint. That could cause you to run out of gas more quickly than expected. Whether the Fluid Type is Fuel, Water, Gray Water, Live Well, Oil or Black Water, cali- brating the Fluid Level protects you from unpleasant surprises. To Calibrate a Device: From the device configuration menu, press ↓ CALIBRATE and press ENT to access the Device Calibration window. 2-Point Calibration 2-Point calibration is best for rectangular or square shaped tanks that allow the fuel level sensor to provide an accurate reading of the fuel level at the top and bottom of the tank. When you select 2-point from the Num Pts menu, the Fluid menu will have two options: Empty Level and Full Level. 1. Highlight NUM PTS, press ENT and select 2. Press ENT. 4

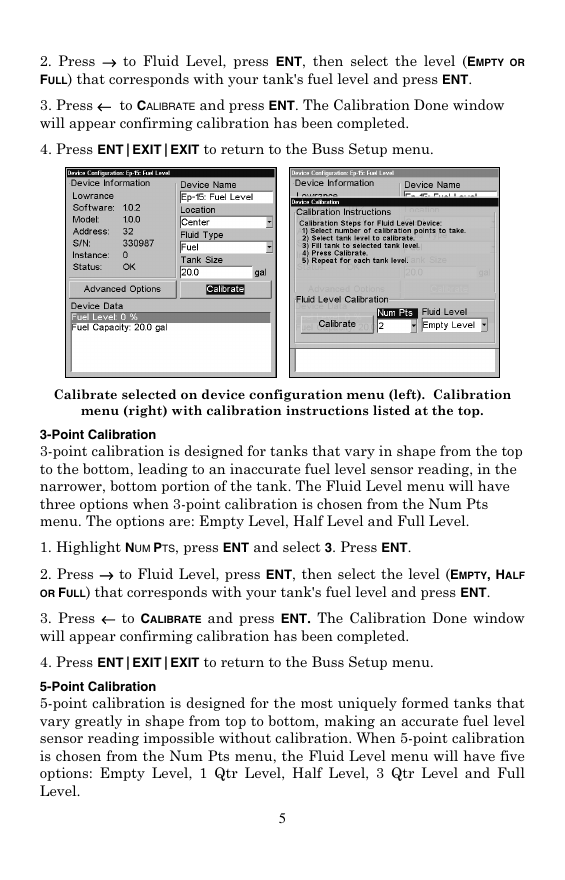

2. Press → to Fluid Level, press ENT, then select the level (EMPTY OR FULL) that corresponds with your tank's fuel level and press ENT. 3. Press ← to CALIBRATE and press ENT. The Calibration Done window will appear confirming calibration has been completed. 4. Press ENT|EXIT|EXIT to return to the Buss Setup menu. Calibrate selected on device configuration menu (left). Calibration menu (right) with calibration instructions listed at the top. 3-Point Calibration 3-point calibration is designed for tanks that vary in shape from the top to the bottom, leading to an inaccurate fuel level sensor reading, in the narrower, bottom portion of the tank. The Fluid Level menu will have three options when 3-point calibration is chosen from the Num Pts menu. The options are: Empty Level, Half Level and Full Level. 1. Highlight NUM PTS, press ENT and select 3. Press ENT. 2. Press → to Fluid Level, press ENT, then select the level (EMPTY, HALF OR FULL) that corresponds with your tank's fuel level and press ENT. 3. Press ← to CALIBRATE and press ENT. The Calibration Done window will appear confirming calibration has been completed. 4. Press ENT|EXIT|EXIT to return to the Buss Setup menu. 5-Point Calibration 5-point calibration is designed for the most uniquely formed tanks that vary greatly in shape from top to bottom, making an accurate fuel level sensor reading impossible without calibration. When 5-point calibration is chosen from the Num Pts menu, the Fluid Level menu will have five options: Empty Level, 1 Qtr Level, Half Level, 3 Qtr Level and Full Level. 5

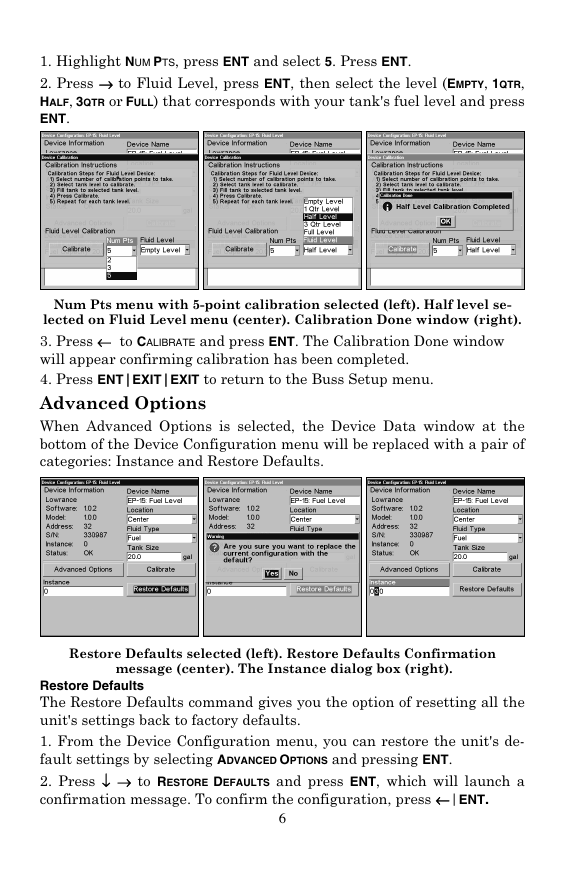

1. Highlight NUM PTS, press ENT and select 5. Press ENT. 2. Press → to Fluid Level, press ENT, then select the level (EMPTY, 1QTR, HALF, 3QTR or FULL) that corresponds with your tank's fuel level and press ENT. Num Pts menu with 5-point calibration selected (left). Half level se- lected on Fluid Level menu (center). Calibration Done window (right). 3. Press ← to CALIBRATE and press ENT. The Calibration Done window will appear confirming calibration has been completed. 4. Press ENT|EXIT|EXIT to return to the Buss Setup menu. Advanced Options When Advanced Options is selected, the Device Data window at the bottom of the Device Configuration menu will be replaced with a pair of categories: Instance and Restore Defaults. Restore Defaults selected (left). Restore Defaults Confirmation message (center). The Instance dialog box (right). Restore Defaults The Restore Defaults command gives you the option of resetting all the unit's settings back to factory defaults. 1. From the Device Configuration menu, you can restore the unit's de- fault settings by selecting ADVANCED OPTIONS and pressing ENT. 2. Press ↓ → to RESTORE DEFAULTS and press ENT, which will launch a confirmation message. To confirm the configuration, press ←|ENT. 6

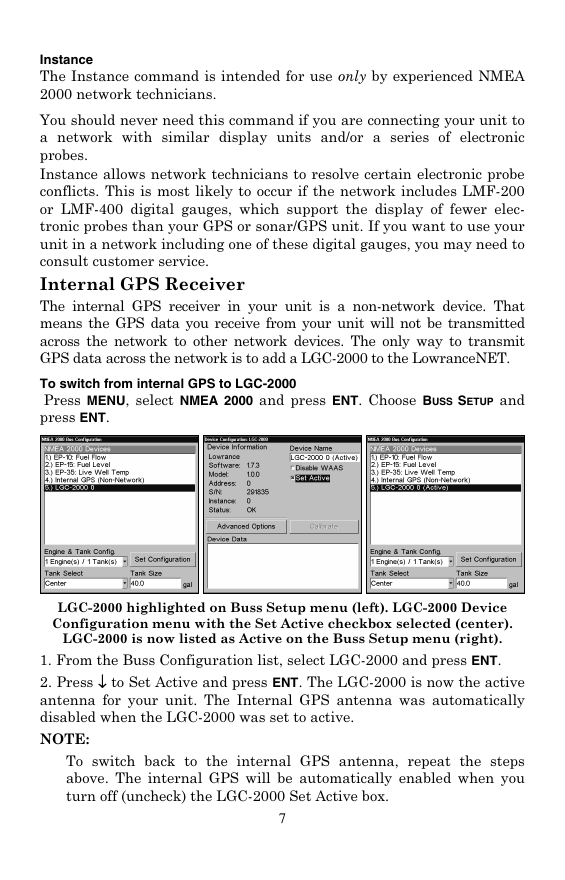

Instance The Instance command is intended for use only by experienced NMEA 2000 network technicians. You should never need this command if you are connecting your unit to a network with similar display units and/or a series of electronic probes. Instance allows network technicians to resolve certain electronic probe conflicts. This is most likely to occur if the network includes LMF-200 or LMF-400 digital gauges, which support the display of fewer elec- tronic probes than your GPS or sonar/GPS unit. If you want to use your unit in a network including one of these digital gauges, you may need to consult customer service. Internal GPS Receiver The internal GPS receiver in your unit is a non-network device. That means the GPS data you receive from your unit will not be transmitted across the network to other network devices. The only way to transmit GPS data across the network is to add a LGC-2000 to the LowranceNET. To switch from internal GPS to LGC-2000 Press MENU, select NMEA 2000 and press ENT. Choose BUSS SETUP and press ENT. LGC-2000 highlighted on Buss Setup menu (left). LGC-2000 Device Configuration menu with the Set Active checkbox selected (center). LGC-2000 is now listed as Active on the Buss Setup menu (right). 1. From the Buss Configuration list, select LGC-2000 and press ENT. 2. Press ↓ to Set Active and press ENT. The LGC-2000 is now the active antenna for your unit. The Internal GPS antenna was automatically disabled when the LGC-2000 was set to active. NOTE: To switch back to the internal GPS antenna, repeat the steps above. The internal GPS will be automatically enabled when you turn off (uncheck) the LGC-2000 Set Active box. 7

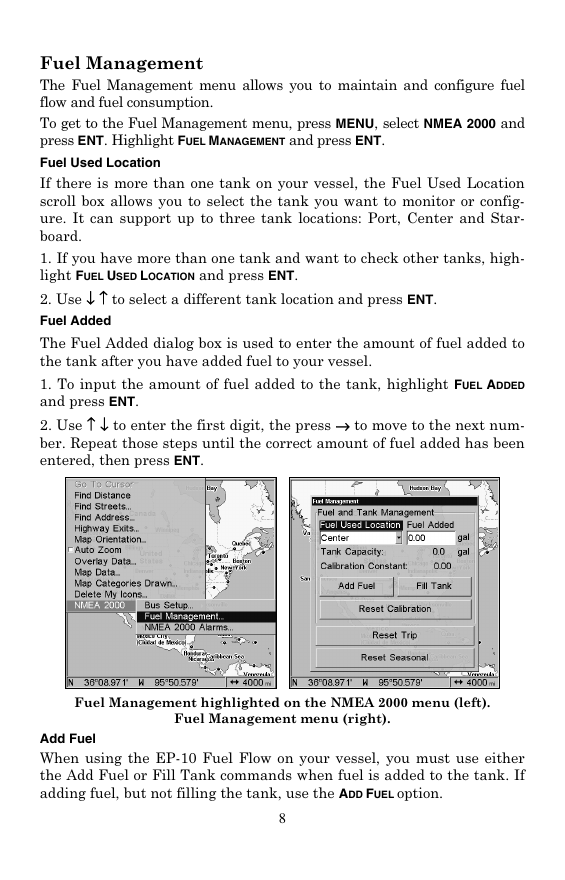

Fuel Management The Fuel Management menu allows you to maintain and configure fuel flow and fuel consumption. To get to the Fuel Management menu, press MENU, select NMEA 2000 and press ENT. Highlight FUEL MANAGEMENT and press ENT. Fuel Used Location If there is more than one tank on your vessel, the Fuel Used Location scroll box allows you to select the tank you want to monitor or config- ure. It can support up to three tank locations: Port, Center and Star- board. 1. If you have more than one tank and want to check other tanks, high- light FUEL USED LOCATION and press ENT. 2. Use ↓ ↑ to select a different tank location and press ENT. Fuel Added The Fuel Added dialog box is used to enter the amount of fuel added to the tank after you have added fuel to your vessel. 1. To input the amount of fuel added to the tank, highlight FUEL ADDED and press ENT. 2. Use ↑ ↓ to enter the first digit, the press → to move to the next num- ber. Repeat those steps until the correct amount of fuel added has been entered, then press ENT. Fuel Management highlighted on the NMEA 2000 menu (left). Fuel Management menu (right). Add Fuel When using the EP-10 Fuel Flow on your vessel, you must use either the Add Fuel or Fill Tank commands when fuel is added to the tank. If adding fuel, but not filling the tank, use the ADD FUEL option. 8
