Mobile Device SM-C5010 Common CONTENTS 1. Safety Precautions 2. Specification 3. Product Function 4. Exploded View and Parts list 5. MAIN Electrical Parts List 6. Level 1 Repair 7. Level 2 Repair 8. Level 3 Repair 9. Reference data Notice: All functionality, features, specifications, and other product information provided in this document, including but not limited to, benefits, design, pricing, components, performance, availability, and capabiliti-es of the product are subject to change without notice. Samsung reserves the right to alter this doc-ument or the product described herein at anytime, without obligation to provide notification of such changes.

This Service Manual is a property of Samsung Electronics Co.,Ltd. Any unauthorized use of Manual can be punished under applicable International and/or domestic law. ⓒ Samsung Electronics Co.,Ltd 2017. 02. Rev 1.0

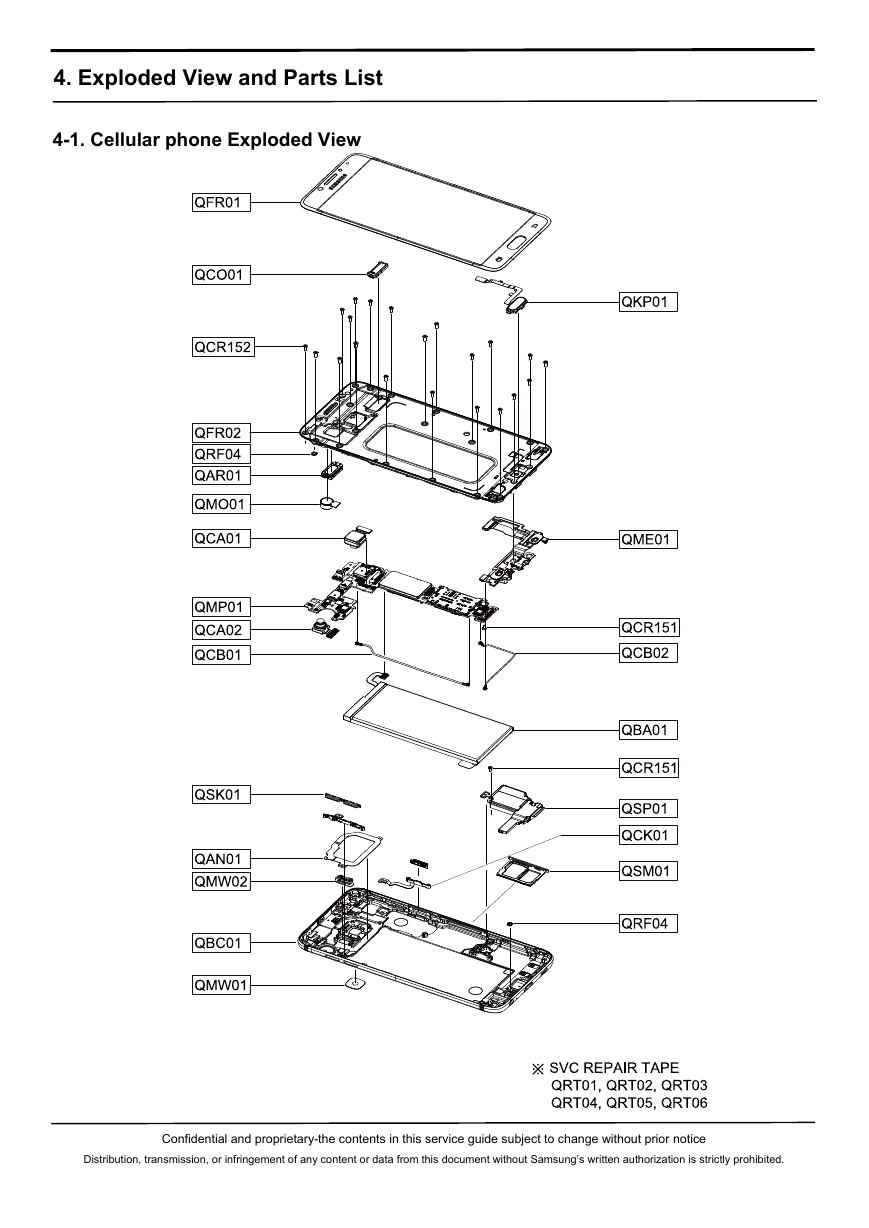

4. Exploded View and Parts List 4-1. Cellular phone Exploded View Confidential and proprietary-the contents in this service guide subject to change without prior notice Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

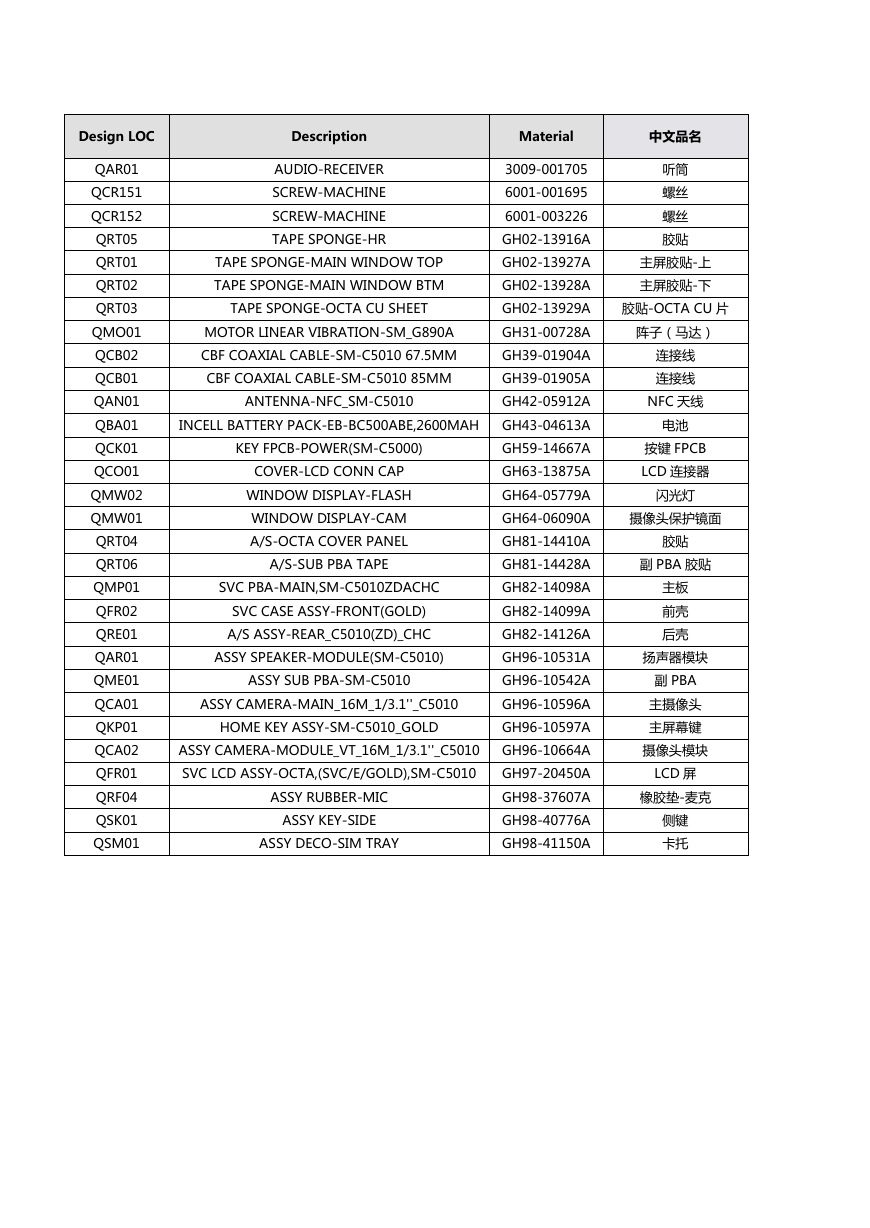

Design LOC Description Material 中文品名 QAR01 QCR151 QCR152 QRT05 QRT01 QRT02 QRT03 AUDIO-RECEIVER SCREW-MACHINE SCREW-MACHINE TAPE SPONGE-HR 3009-001705 6001-001695 6001-003226 GH02-13916A 听筒螺丝螺丝胶贴 TAPE SPONGE-MAIN WINDOW TOP GH02-13927A 主屏胶贴-上 TAPE SPONGE-MAIN WINDOW BTM GH02-13928A 主屏胶贴-下 TAPE SPONGE-OCTA CU SHEET GH02-13929A 胶贴-OCTA CU 片 QMO01 MOTOR LINEAR VIBRATION-SM_G890A GH31-00728A 阵子（马达） QCB02 QCB01 QAN01 QBA01 QCK01 QCO01 QMW02 QMW01 QRT04 QRT06 QMP01 QFR02 QRE01 QAR01 QME01 QCA01 QKP01 QCA02 QFR01 QRF04 QSK01 QSM01 CBF COAXIAL CABLE-SM-C5010 67.5MM GH39-01904A CBF COAXIAL CABLE-SM-C5010 85MM GH39-01905A 连接线连接线 ANTENNA-NFC_SM-C5010 GH42-05912A NFC 天线 INCELL BATTERY PACK-EB-BC500ABE,2600MAH GH43-04613A 电池 KEY FPCB-POWER(SM-C5000) GH59-14667A 按键 FPCB COVER-LCD CONN CAP GH63-13875A LCD 连接器 WINDOW DISPLAY-FLASH GH64-05779A 闪光灯 WINDOW DISPLAY-CAM GH64-06090A 摄像头保护镜面 A/S-OCTA COVER PANEL GH81-14410A 胶贴 A/S-SUB PBA TAPE GH81-14428A 副 PBA 胶贴 SVC PBA-MAIN,SM-C5010ZDACHC GH82-14098A SVC CASE ASSY-FRONT(GOLD) A/S ASSY-REAR_C5010(ZD)_CHC GH82-14099A GH82-14126A 主板前壳后壳 ASSY SPEAKER-MODULE(SM-C5010) GH96-10531A 扬声器模块 ASSY SUB PBA-SM-C5010 GH96-10542A ASSY CAMERA-MAIN_16M_1/3.1''_C5010 GH96-10596A HOME KEY ASSY-SM-C5010_GOLD GH96-10597A 副 PBA 主摄像头主屏幕键 ASSY CAMERA-MODULE_VT_16M_1/3.1''_C5010 GH96-10664A 摄像头模块 SVC LCD ASSY-OCTA,(SVC/E/GOLD),SM-C5010 GH97-20450A LCD 屏 ASSY RUBBER-MIC ASSY KEY-SIDE ASSY DECO-SIM TRAY GH98-37607A 橡胶垫-麦克 GH98-40776A GH98-41150A 侧键卡托

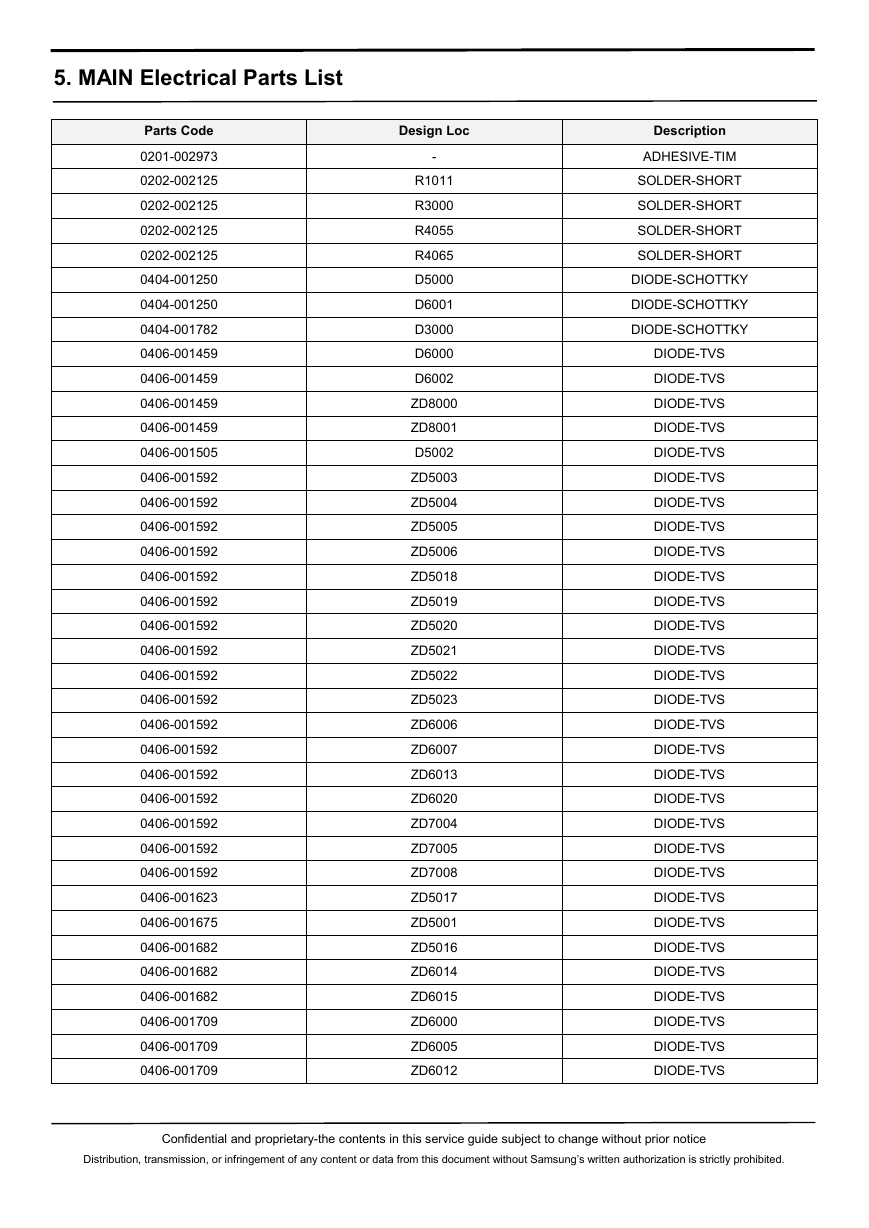

5. MAIN Electrical Parts List Parts Code 0201-002973 0202-002125 0202-002125 0202-002125 0202-002125 0404-001250 0404-001250 0404-001782 0406-001459 0406-001459 0406-001459 0406-001459 0406-001505 0406-001592 0406-001592 0406-001592 0406-001592 0406-001592 0406-001592 0406-001592 0406-001592 0406-001592 0406-001592 0406-001592 0406-001592 0406-001592 0406-001592 0406-001592 0406-001592 0406-001592 0406-001623 0406-001675 0406-001682 0406-001682 0406-001682 0406-001709 0406-001709 0406-001709 Design Loc - R1011 R3000 R4055 R4065 D5000 D6001 D3000 D6000 D6002 ZD8000 ZD8001 D5002 ZD5003 ZD5004 ZD5005 ZD5006 ZD5018 ZD5019 ZD5020 ZD5021 ZD5022 ZD5023 ZD6006 ZD6007 ZD6013 ZD6020 ZD7004 ZD7005 ZD7008 ZD5017 ZD5001 ZD5016 ZD6014 ZD6015 ZD6000 ZD6005 ZD6012 Description ADHESIVE-TIM SOLDER-SHORT SOLDER-SHORT SOLDER-SHORT SOLDER-SHORT DIODE-SCHOTTKY DIODE-SCHOTTKY DIODE-SCHOTTKY DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS Confidential and proprietary-the contents in this service guide subject to change without prior notice Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

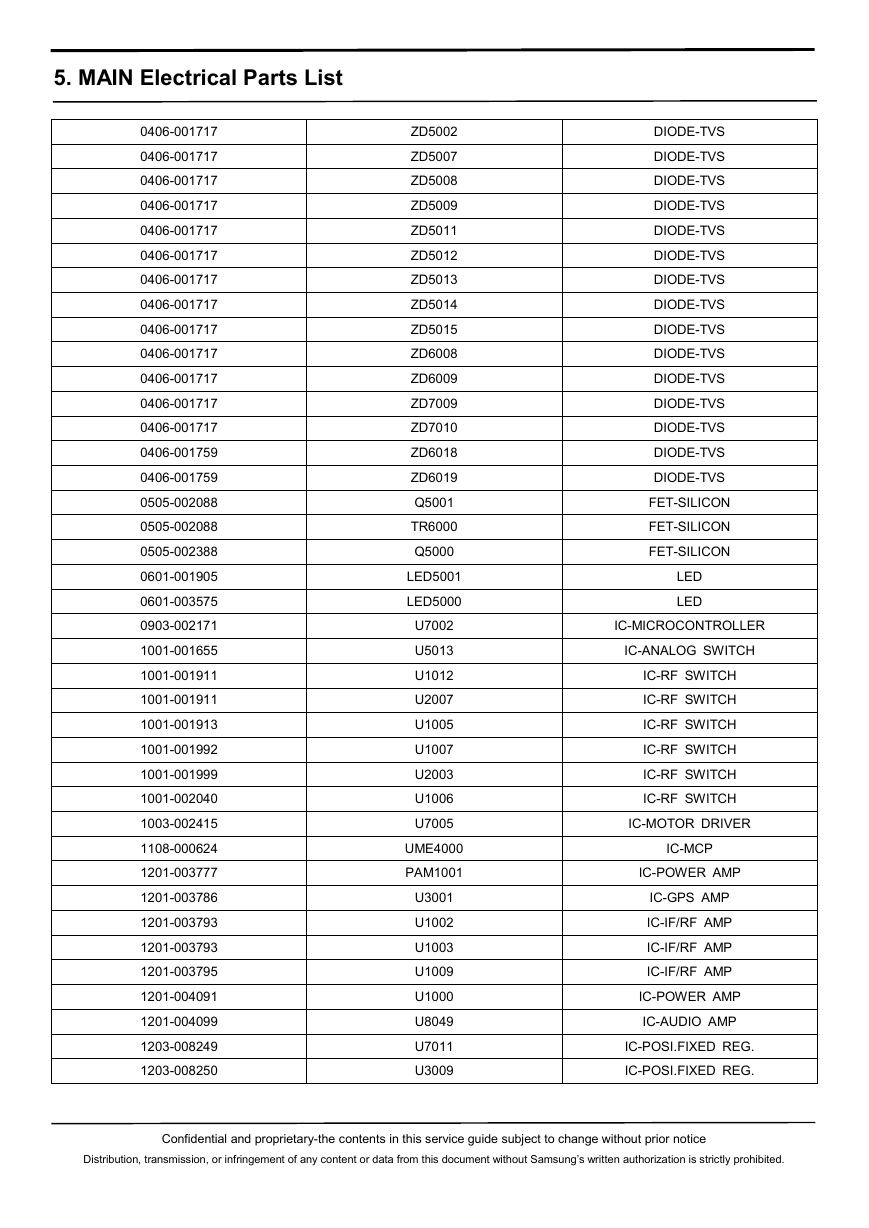

5. MAIN Electrical Parts List 0406-001717 0406-001717 0406-001717 0406-001717 0406-001717 0406-001717 0406-001717 0406-001717 0406-001717 0406-001717 0406-001717 0406-001717 0406-001717 0406-001759 0406-001759 0505-002088 0505-002088 0505-002388 0601-001905 0601-003575 0903-002171 1001-001655 1001-001911 1001-001911 1001-001913 1001-001992 1001-001999 1001-002040 1003-002415 1108-000624 1201-003777 1201-003786 1201-003793 1201-003793 1201-003795 1201-004091 1201-004099 1203-008249 1203-008250 ZD5002 ZD5007 ZD5008 ZD5009 ZD5011 ZD5012 ZD5013 ZD5014 ZD5015 ZD6008 ZD6009 ZD7009 ZD7010 ZD6018 ZD6019 Q5001 TR6000 Q5000 LED5001 LED5000 U7002 U5013 U1012 U2007 U1005 U1007 U2003 U1006 U7005 UME4000 PAM1001 U3001 U1002 U1003 U1009 U1000 U8049 U7011 U3009 DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS DIODE-TVS FET-SILICON FET-SILICON FET-SILICON LED LED IC-MICROCONTROLLER IC-ANALOG SWITCH IC-RF SWITCH IC-RF SWITCH IC-RF SWITCH IC-RF SWITCH IC-RF SWITCH IC-RF SWITCH IC-MOTOR DRIVER IC-MCP IC-POWER AMP IC-GPS AMP IC-IF/RF AMP IC-IF/RF AMP IC-IF/RF AMP IC-POWER AMP IC-AUDIO AMP IC-POSI.FIXED REG. IC-POSI.FIXED REG. Confidential and proprietary-the contents in this service guide subject to change without prior notice Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

5. MAIN Electrical Parts List 1203-008250 1203-008250 1203-008250 1203-008251 1203-008251 1203-008251 1203-008251 1203-008326 1203-008379 1203-008395 1203-008603 1203-008698 1203-008717 1203-008791 1203-008819 1203-008830 1203-008864 1203-008864 1205-005037 1205-005106 1205-005142 1205-005228 1205-005652 1205-005680 1205-005714 1205-005750 1209-002344 1209-002401 1209-002474 1404-001664 1404-001664 1404-001724 1405-001395 1405-001395 1405-001395 1405-001395 1405-001403 1405-001403 1405-001403 U3010 U7001 U7007 U6005 U7004 U7016 U8000 U7003 U2013 U6009 U5006 U5001 U7014 U5008 U5000 U6003 U7000 U7013 U6007 U5012 U3004 U1011 U6002 U3011 UCP4000 U8047 U7008 U7006 U7009 TH4000 TH5001 TH2000 V1000 V1001 V1002 V3000 V2000 V2001 V2007 IC-POSI.FIXED REG. IC-POSI.FIXED REG. IC-POSI.FIXED REG. IC-POSI.FIXED REG. IC-POSI.FIXED REG. IC-POSI.FIXED REG. IC-POSI.FIXED REG. IC-POSI.FIXED REG. IC-POWER SUPERVISOR IC-POSI.FIXED REG. IC-MULTI REG. IC-BATTERY IC-DC/DC CONVERTER IC-POWER SUPERVISOR IC-POWER SUPERVISOR IC-VOL. DETECTOR IC-POSI.FIXED REG. IC-POSI.FIXED REG. IC-COMM. CONTROLLER IC-SWITCH IC-WIFI IC-TRANSCEIVER IC-POWER DRIVER IC-NFC/RFID IC-MODEM IC-CODEC IC-ACCEL./GYRO SENSOR IC-MAGNETIC SENSOR IC-OPTICS SENSOR THERMISTOR-NTC THERMISTOR-NTC THERMISTOR-NTC VARISTOR VARISTOR VARISTOR VARISTOR VARISTOR VARISTOR VARISTOR Confidential and proprietary-the contents in this service guide subject to change without prior notice Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

5. MAIN Electrical Parts List 1405-001403 1405-001403 1405-001403 1405-001420 1405-001420 2007-001284 2007-001284 2007-003015 2007-003015 2007-007107 2007-007107 2007-007136 2007-007741 2007-007741 2007-007741 2007-007741 2007-007741 2007-007741 2007-007741 2007-007741 2007-007741 2007-007741 2007-007741 2007-007741 2007-008047 2007-008047 2007-008420 2007-008420 2007-008420 2007-008420 2007-008486 2007-008531 2007-008531 2007-008766 2007-008774 2007-008774 2007-008774 2007-009111 2007-009155 V2008 V7001 V7002 V3001 V3002 R6001 R6008 R6050 R6051 R2000 R4036 R3014 R4047 R4048 R4069 R4095 R5010 R5017 R5026 R5027 R5028 R5035 R6025 R7015 R1001 R1002 R4010 R4064 R5069 R5098 R5000 R6047 R6048 R4003 R5070 R5071 R5072 R7020 R5002 VARISTOR VARISTOR VARISTOR VARISTOR VARISTOR R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP R-CHIP Confidential and proprietary-the contents in this service guide subject to change without prior notice Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
