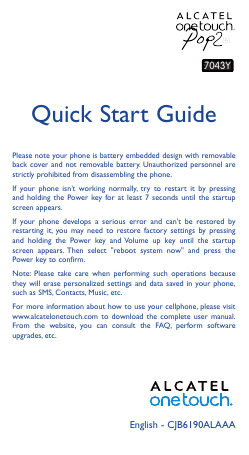

7043Y Quick Start Guide Please note your phone is battery embedded design with removable back cover and not removable battery. Unauthorized personnel are strictly prohibited from disassembling the phone. If your phone isn’t working normally, try to restart it by pressing and holding the Power key for at least 7 seconds until the startup screen appears. If your phone develops a serious error and can’t be restored by restarting it, you may need to restore factory settings by pressing and holding the Power key and Volume up key until the startup screen appears. Then select "reboot system now" and press the Power key to confirm. Note: Please take care when performing such operations because they will erase personalized settings and data saved in your phone, such as SMS, Contacts, Music, etc. For more information about how to use your cellphone, please visit www.alcatelonetouch.com to download the complete user manual. From the website, you can consult the FAQ, perform software upgrades, etc. English - CJB6190ALAAA

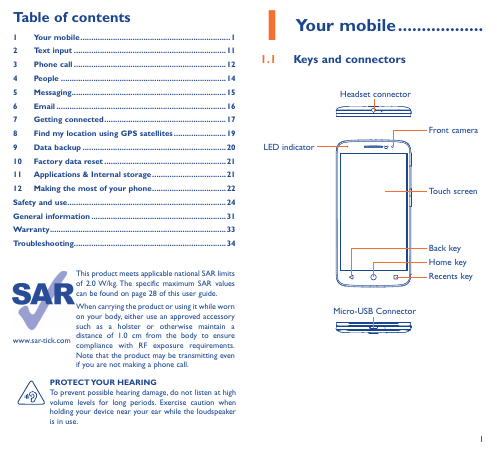

Table of contents Your mobile ��1 1 Text input ��11 2 Phone call ��12 3 People ��14 4 5 Messaging��15 Email ��16 6 Getting connected ��17 7 Find my location using GPS satellites ��19 8 9 Data backup ��20 10 Factory data reset ��21 Applications & Internal storage ��21 11 12 Making the most of your phone ��22 Safety and use ��24 General information ��31 Warranty ��33 Troubleshooting��34 This product meets applicable national SAR limits of 2.0 W/kg. The specific maximum SAR values can be found on page 28 of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 1.0 cm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. www.sar-tick.com PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. 1 Your mobile �� 1�1 Keys and connectors Headset connector LED indicator Micro-USB Connector Front camera Touch screen Back key Home key Recents key 1

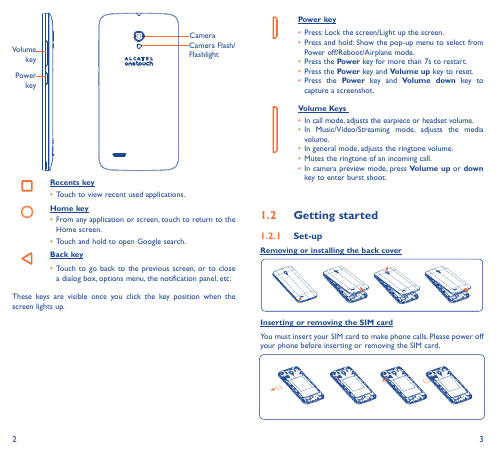

Volume key Power key Camera Camera Flash/ Flashlight Recents key • Touch to view recent used applications. Home key • From any application or screen, touch to return to the Home screen. • Touch and hold to open Google search. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. These keys are visible once you click the key position when the screen lights up. Power key • Press: Lock the screen/Light up the screen. • Press and hold: Show the pop-up menu to select from Power off/Reboot/Airplane mode. • Press the Power key for more than 7s to restart. • Press the Power key and Volume up key to reset. • Press the Power key and Volume down key to capture a screenshot. Volume Keys • In call mode, adjusts the earpiece or headset volume. • In Music/Video/Streaming mode, adjusts the media volume. • In general mode, adjusts the ringtone volume. • Mutes the ringtone of an incoming call. • In camera preview mode, press Volume up or down key to enter burst shoot. 1�2 Getting started 1�2�1 Set-up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. 2 3

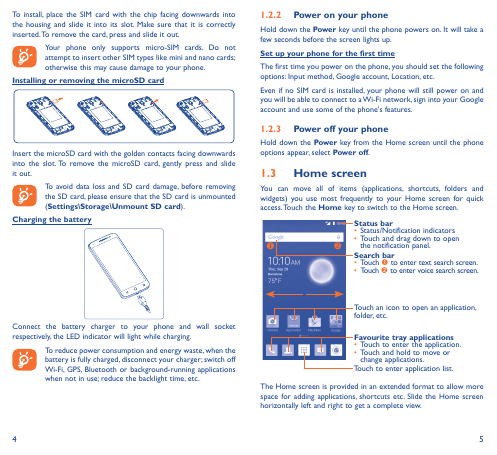

To install, place the SIM card with the chip facing downwards into the housing and slide it into its slot. Make sure that it is correctly inserted. To remove the card, press and slide it out. Your phone only supports micro-SIM cards. Do not attempt to insert other SIM types like mini and nano cards; otherwise this may cause damage to your phone. Installing or removing the microSD card Insert the microSD card with the golden contacts facing downwards into the slot. To remove the microSD card, gently press and slide it out. To avoid data loss and SD card damage, before removing the SD card, please ensure that the SD card is unmounted (Settings\Storage\Unmount SD card). Charging the battery Connect the battery charger to your phone and wall socket respectively, the LED indicator will light while charging. To reduce power consumption and energy waste, when the battery is fully charged, disconnect your charger; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. 1�2�2 Power on your phone Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: Input method, Google account, Location, etc. Even if no SIM card is installed, your phone will still power on and you will be able to connect to a Wi-Fi network, sign into your Google account and use some of the phone's features. 1�2�3 Power off your phone Hold down the Power key from the Home screen until the phone options appear, select Power off. 1�3 Home screen You can move all of items (applications, shortcuts, folders and widgets) you use most frequently to your Home screen for quick access. Touch the Home key to switch to the Home screen. Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Search bar • Touch  to enter text search screen. • Touch  to enter voice search screen. Touch an icon to open an application, folder, etc. Favourite tray applications • Touch to enter the application. • Touch and hold to move or change applications. Touch to enter application list. The Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view. 4 5

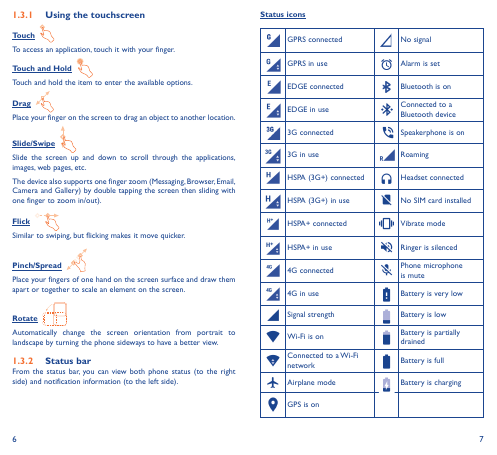

1�3�1 Using the touchscreen Status icons Touch To access an application, touch it with your finger. Touch and Hold Touch and hold the item to enter the available options. Drag Place your finger on the screen to drag an object to another location. Slide/Swipe Slide the screen up and down to scroll through the applications, images, web pages, etc. The device also supports one finger zoom (Messaging, Browser, Email, Camera and Gallery) by double tapping the screen then sliding with one finger to zoom in/out). Flick Similar to swiping, but flicking makes it move quicker. Pinch/Spread Place your fingers of one hand on the screen surface and draw them apart or together to scale an element on the screen. Rotate Automatically change the screen orientation from portrait to landscape by turning the phone sideways to have a better view. 1�3�2 Status bar From the status bar, you can view both phone status (to the right side) and notification information (to the left side). GPRS connected No signal GPRS in use Alarm is set EDGE connected Bluetooth is on EDGE in use 3G connected 3G in use Connected to a Bluetooth device Speakerphone is on Roaming HSPA (3G+) connected Headset connected HSPA (3G+) in use No SIM card installed HSPA+ connected Vibrate mode HSPA+ in use Ringer is silenced 4G connected 4G in use Phone microphone is mute Battery is very low Signal strength Battery is low Wi-Fi is on Connected to a Wi-Fi network Battery is partially drained Battery is full Airplane mode Battery is charging GPS is on 6 7

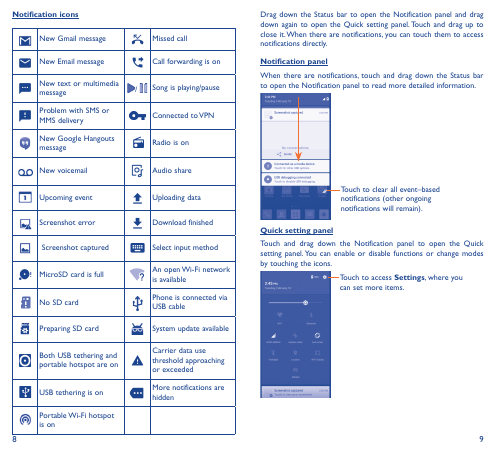

Notification icons New Gmail message Missed call New Email message Call forwarding is on New text or multimedia message Problem with SMS or MMS delivery New Google Hangouts message / Song is playing/pause Connected to VPN Radio is on New voicemail Audio share Upcoming event Uploading data Screenshot error Download finished Screenshot captured Select input method MicroSD card is full No SD card An open Wi-Fi network is available Phone is connected via USB cable Preparing SD card System update available Carrier data use threshold approaching or exceeded More notifications are hidden Both USB tethering and portable hotspot are on USB tethering is on Portable Wi-Fi hotspot is on 8 Drag down the Status bar to open the Notification panel and drag down again to open the Quick setting panel. Touch and drag up to close it. When there are notifications, you can touch them to access notifications directly. Notification panel When there are notifications, touch and drag down the Status bar to open the Notification panel to read more detailed information. Touch to clear all event–based notifications (other ongoing notifications will remain). Quick setting panel Touch and drag down the Notification panel to open the Quick setting panel. You can enable or disable functions or change modes by touching the icons. Touch to access Settings, where you can set more items. 9

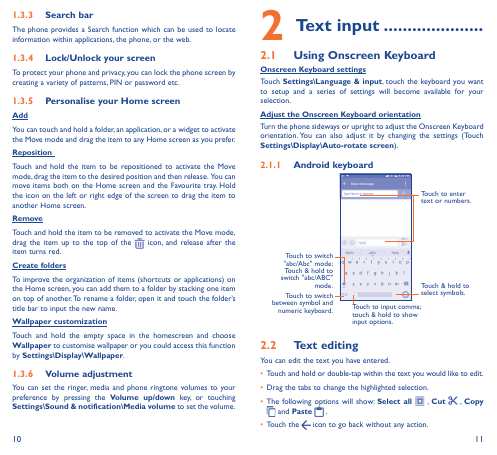

1�3�3 Search bar The phone provides a Search function which can be used to locate information within applications, the phone, or the web. 1�3�4 Lock/Unlock your screen To protect your phone and privacy, you can lock the phone screen by creating a variety of patterns, PIN or password etc. 1�3�5 Personalise your Home screen Add You can touch and hold a folder, an application, or a widget to activate the Move mode and drag the item to any Home screen as you prefer. Reposition Touch and hold the item to be repositioned to activate the Move mode, drag the item to the desired position and then release. You can move items both on the Home screen and the Favourite tray. Hold the icon on the left or right edge of the screen to drag the item to another Home screen. Remove Touch and hold the item to be removed to activate the Move mode, drag the item up to the top of the icon, and release after the item turns red. Create folders To improve the organization of items (shortcuts or applications) on the Home screen, you can add them to a folder by stacking one item on top of another. To rename a folder, open it and touch the folder’s title bar to input the new name. Wallpaper customization Touch and hold the empty space in the homescreen and choose Wallpaper to customise wallpaper or you could access this function by Settings\Display\Wallpaper. 1�3�6 Volume adjustment You can set the ringer, media and phone ringtone volumes to your preference by pressing the Volume up/down key, or touching Settings\Sound & notification\Media volume to set the volume. 10 2 Text input �� 2�1 Using Onscreen Keyboard Onscreen Keyboard settings Touch Settings\Language & input, touch the keyboard you want to setup and a series of settings will become available for your selection. Adjust the Onscreen Keyboard orientation Turn the phone sideways or upright to adjust the Onscreen Keyboard orientation. You can also adjust it by changing the settings (Touch Settings\Display\Auto-rotate screen). 2�1�1 Android keyboard Touch to enter text or numbers. Touch to switch "abc/Abc" mode; Touch & hold to switch "abc/ABC" mode. Touch to switch between symbol and numeric keyboard. Touch & hold to select symbols. Touch to input comma; touch & hold to show input options. 2�2 Text editing You can edit the text you have entered. • Touch and hold or double-tap within the text you would like to edit. • Drag the tabs to change the highlighted selection. • The following options will show: Select all , Cut , Copy and Paste . • Touch the icon to go back without any action. 11

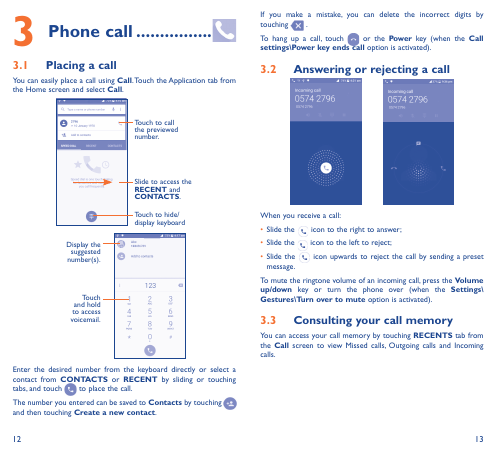

3 Phone call �� 3�1 Placing a call You can easily place a call using Call. Touch the Application tab from the Home screen and select Call. Touch to call the previewed number. Slide to access the RECENT and CONTACTS. Touch to hide/ display keyboard Display the suggested number(s). Touch and hold to access voicemail. If you make a mistake, you can delete the incorrect digits by touching To hang up a call, touch settings\Power key ends call option is activated). or the Power key (when the Call . 3�2 Answering or rejecting a call When you receive a call: • Slide the • Slide the • Slide the message. icon to the right to answer; icon to the left to reject; icon upwards to reject the call by sending a preset To mute the ringtone volume of an incoming call, press the Volume up/down key or turn the phone over (when the Settings\ Gestures\Turn over to mute option is activated). 3�3 Consulting your call memory You can access your call memory by touching RECENTS tab from the Call screen to view Missed calls, Outgoing calls and Incoming calls. Enter the desired number from the keyboard directly or select a contact from CONTACTS or RECENT by sliding or touching tabs, and touch The number you entered can be saved to Contacts by touching and then touching Create a new contact. to place the call. 12 13
