sensor 500-X, sensor 505-X,
sensor 510-X
User manual
Thank you for purchasing this AgfaPhoto digital camera. Please read these operating instructions
carefully in order to use the digital camera correctly. Keep the instructions in a safe place after
reading so that you can refer to them later.
Notice: this User's Manual has been written for the following camera models:
AgfaPhoto sensor 500-X, AgfaPhoto sensor 505-X and AgfaPhoto sensor 510-X.

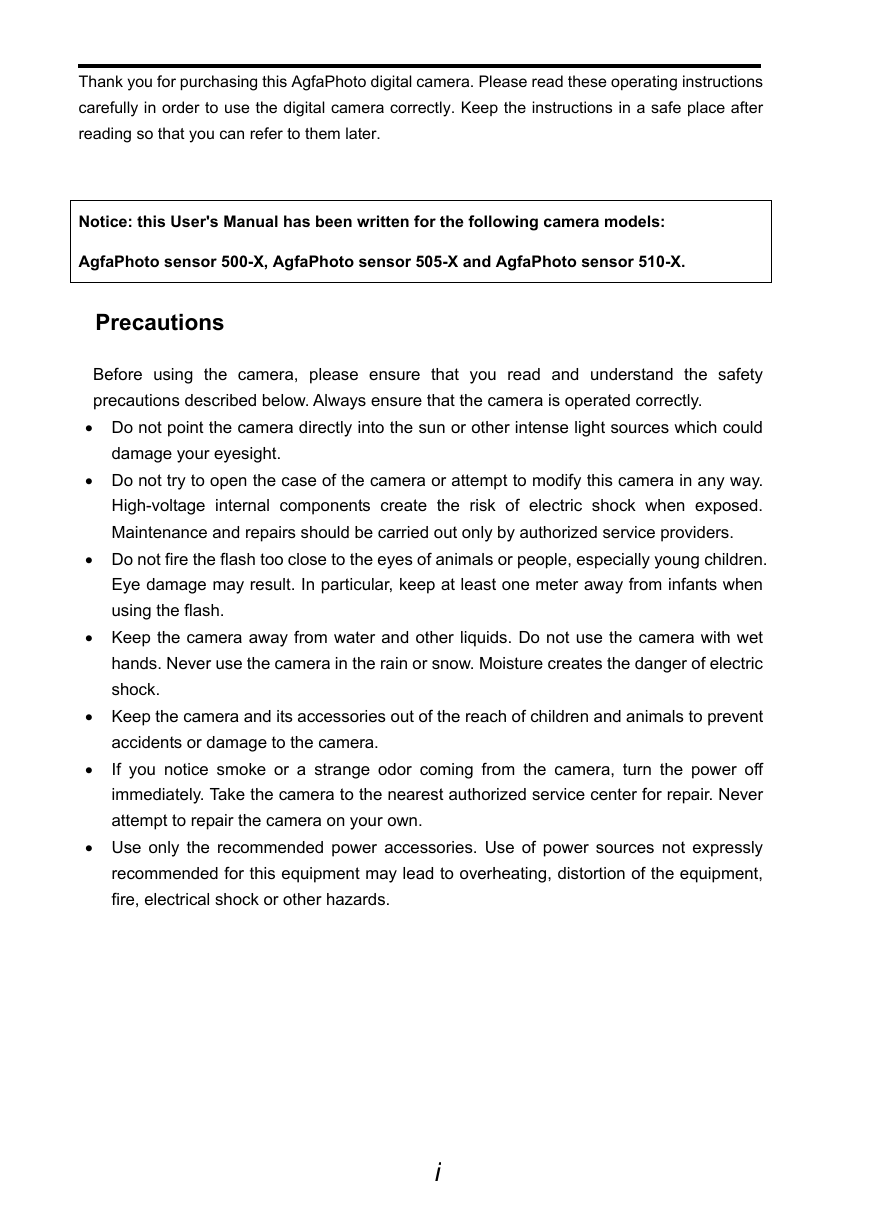

Precautions
Before using the camera, please ensure that you read and understand the safety
precautions described below. Always ensure that the camera is operated correctly.
• Do not point the camera directly into the sun or other intense light sources which could
damage your eyesight.
• Do not try to open the case of the camera or attempt to modify this camera in any way.
High-voltage internal components create the risk of electric shock when exposed.
Maintenance and repairs should be carried out only by authorized service providers.
• Do not fire the flash too close to the eyes of animals or people, especially young children.
Eye damage may result. In particular, keep at least one meter away from infants when
using the flash.
• Keep the camera away from water and other liquids. Do not use the camera with wet
hands. Never use the camera in the rain or snow. Moisture creates the danger of electric
shock.
• Keep the camera and its accessories out of the reach of children and animals to prevent
•
accidents or damage to the camera.
If you notice smoke or a strange odor coming from the camera, turn the power off
immediately. Take the camera to the nearest authorized service center for repair. Never
attempt to repair the camera on your own.
• Use only the recommended power accessories. Use of power sources not expressly
recommended for this equipment may lead to overheating, distortion of the equipment,
fire, electrical shock or other hazards.
i

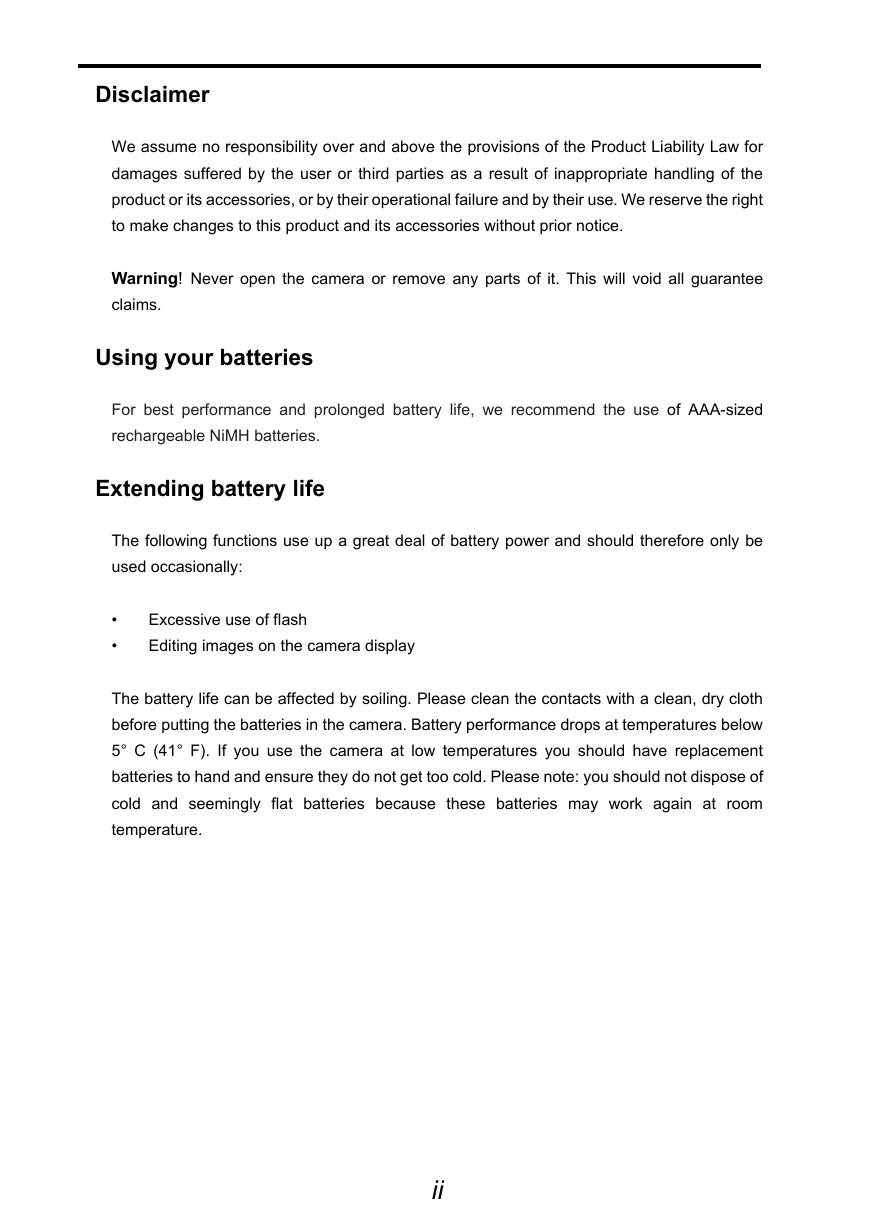

Disclaimer
We assume no responsibility over and above the provisions of the Product Liability Law for
damages suffered by the user or third parties as a result of inappropriate handling of the
product or its accessories, or by their operational failure and by their use. We reserve the right
to make changes to this product and its accessories without prior notice.
Warning! Never open the camera or remove any parts of it. This will void all guarantee
claims.
Using your batteries
For best performance and prolonged battery life, we recommend the use of AAA-sized
rechargeable NiMH batteries.
Extending battery life
Excessive use of flash
Editing images on the camera display
The following functions use up a great deal of battery power and should therefore only be
used occasionally:
•
•
The battery life can be affected by soiling. Please clean the contacts with a clean, dry cloth
before putting the batteries in the camera. Battery performance drops at temperatures below
5° C (41° F). If you use the camera at low temperatures you should have replacement
batteries to hand and ensure they do not get too cold. Please note: you should not dispose of
cold and seemingly flat batteries because these batteries may work again at room
temperature.
ii
Contents
PRECAUTIONS
DISCLAIMER
USING YOUR BATTERIES
EXTENDING BATTERY LIFE
I
II
II
II
VIDEO MENU LIST
SETUP MENU
16
17
BASIC RECORDING_________________ 19
CONTENTS ________________________ III
GETTING STARTED __________________ 1
1
USING THIS MANUAL
2
PACKAGE CONTENTS
3
PARTS OF THE CAMERA
5
ATTACHING THE STRAP
5
INSERTING THE BATTERIES
6
LOW BATTERY INDICATOR
6
INSERTING A MEMORY CARD
7
ABOUT CAMERA MEMORY
7
TURNING POWER ON & OFF
7
POWER SAVING FUNCTION
SETTING THE DISPLAY LANGUAGE / DATE &
8
TIME
8
SETTING DISPLAY LANGUAGE
9
SETTING DATE & TIME
9
USING THE LCD MONITOR
10
CAPTURE MODE
11
VIDEO MODE
12
PLAYBACK MODE
BASIC OPERATION _________________ 13
13
13
TURNING POWER ON & OFF
CHANGING THE MODE
SWITCHING BETWEEN REC AND PLAYBACK
MODE
SELECTING THE REC MODE
USING THE MENU IN REC MODE
CAPTURE MENU LIST
13
14
15
16
19
RECORDING STILL IMAGES
SELECTING THE RESOLUTION AND QUALITY
USING THE ZOOM FUNCTION
USING THE FLASH
USING THE SELFTIMER
USING THE BURST-SNAPSHOT
RECORDING MOVIE CLIPS
SETTING THE MOVIE SIZE
RECORDING AUDIO
PLAYING BACK AUDIO
20
21
22
23
24
25
25
26
26
OTHER RECORDING FUNCTIONS _____ 27
SETTING THE WHITE BALANCE
SETTING THE COLOR EFFECT
SETTING THE EXPOSURE
SETTING DATE STAMP
27
28
28
29
PLAYBACK ________________________ 30
PLAYING BACK IMAGES
PLAYING BACK MOVIE CLIPS
USING THE MENU IN PLAYBACK MODE
USING THE MENU IN PLAYBACK MODE
VIEWING THUMBNAILS
PLAYING A SLIDE SHOW
DELETING FILES
DELETING A SINGLE FILE
DELETING ALL FILES
FORMATTING THE SD CARD OR INTERNAL
MEMORY
30
30
31
31
32
32
33
33
34
34
iii
PROTECTING FILES
CHOOSING A STARTUP IMAGE
SETTING THE LOGO
EDITING IMAGES
ROTATING STILL IMAGES
PRINTING
35
36
36
37
37
38
MAKING CONNECTIONS_____________ 39
39
CONNECTING THE CAMERA TO A TV
40
CONNECTING THE CAMERA TO A PC
USING A CARD READER (NOT INCLUDED) 40
CONNECTING THE CAMERA TO A PC WITH
THE USB CABLE
40
SYSTEM REQUIREMENTS ___________ 41
APPENDIX_________________________ 42
42
ABOUT THE FOLDER & FILE NAMES
42
FOLDER STRUCTURE
42
NAMING FILES
43
TROUBLESHOOTING
44
SPECIFICATIONS
46
CUSTOMER CARE
DISPOSAL OF WASTE EQUIPMENT BY USERS
IN PRIVATE HOUSEHOLDS IN THE EUROPEAN
47
UNION
47
FCC COMPLIANCE AND ADVISORY
iv
Getting Started
Using This Manual
Getting Started
This section contains information you should know prior to using this camera.
Basic Operation
This section explains all recording features of the camera.
Basic Recording
This section explains how to record still images, movies and audio files.
Other Recording Functions
This section explains common operations when recording images.
Playback
This section explains playback, delete and edit functions of still images, movies and
audio files.
Making Connections
This section explains how to connect the camera to a computer or TV.
Appendix
This section provides troubleshooting and the camera specifications.
The meanings of the symbols used in this user's manual are explained below:
This indicates warnings that should be read before using these
functions.
This indicates useful information for the use of this camera.
This indicates the reference page.
1
Package Contents
AgfaPhoto sensor
USB / AV cable
2 x AAA batteries
Pouch
Quick guide
Strap
Software Installation
CD-ROM
2
Parts of the Camera

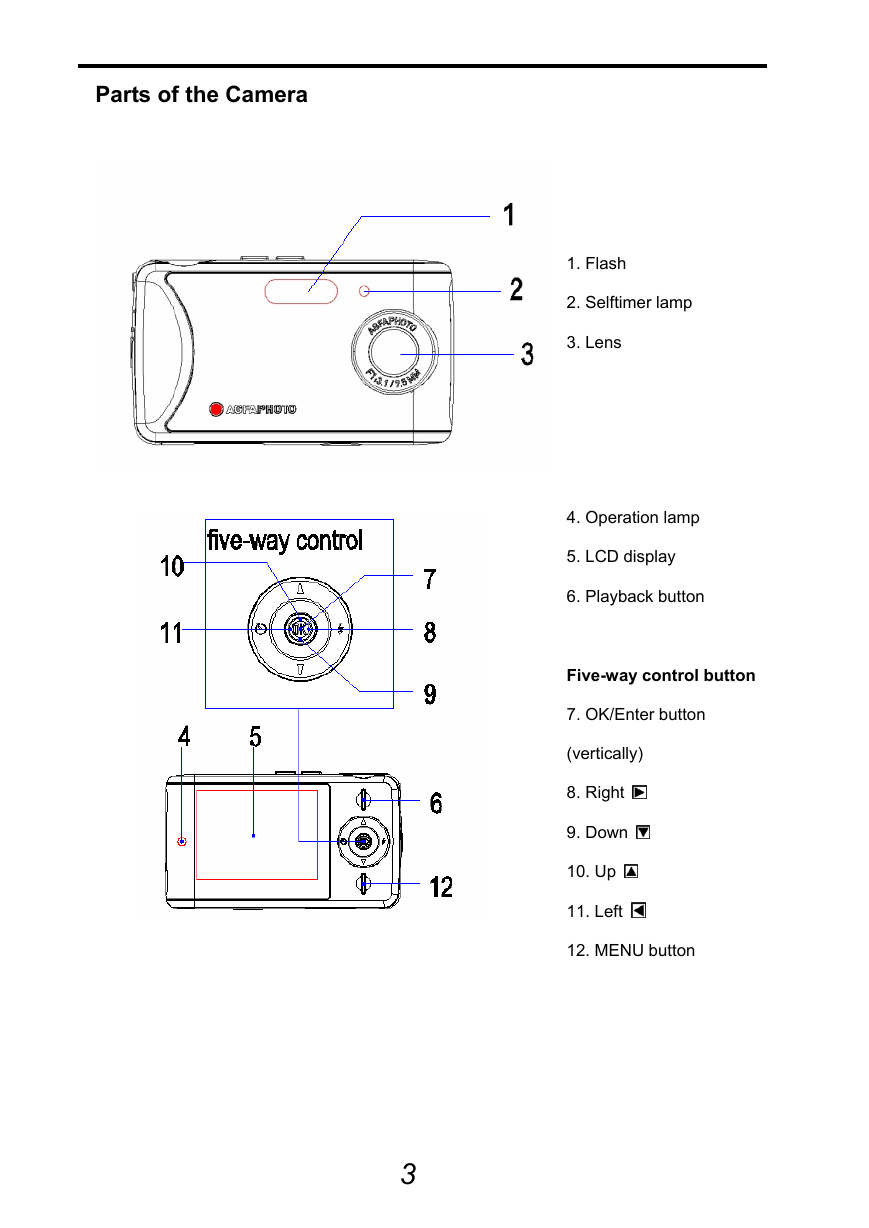

1. Flash
2. Selftimer lamp
3. Lens
4. Operation lamp
5. LCD display
6. Playback button
Five-way control button
7. OK/Enter button
(vertically)
8. Right
9. Down
10. Up
11. Left
12. MENU button
