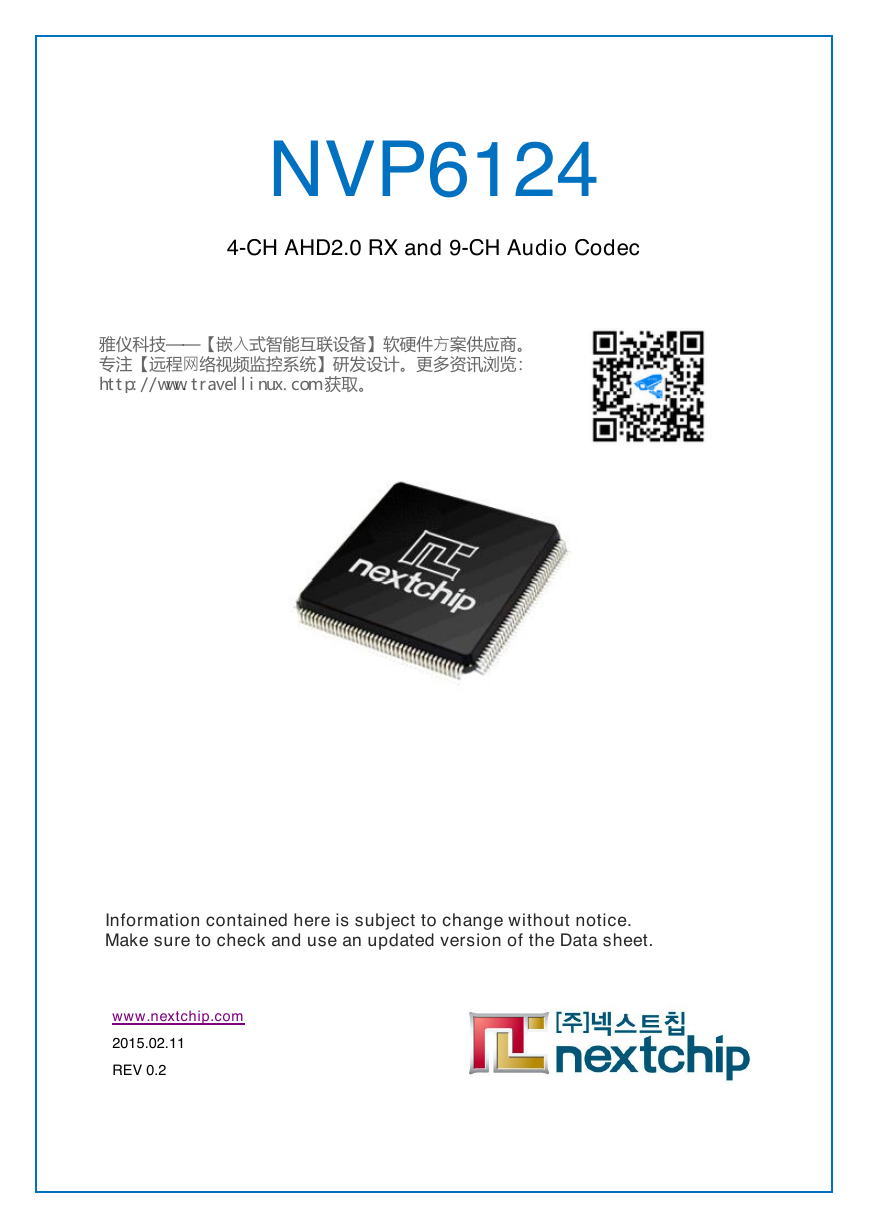

NVP6124 4-CH AHD2.0 RX and 9-CH Audio Codec Information contained here is subject to change without notice. Make sure to check and use an updated version of the Data sheet. www.nextchip.com 2015.02.11 REV 0.2 雅仪科技——【嵌入式智能互联设备】软硬件方案供应商。专注【远程网络视频监控系统】研发设计。更多资讯浏览： http://www.travellinux.com 获取。

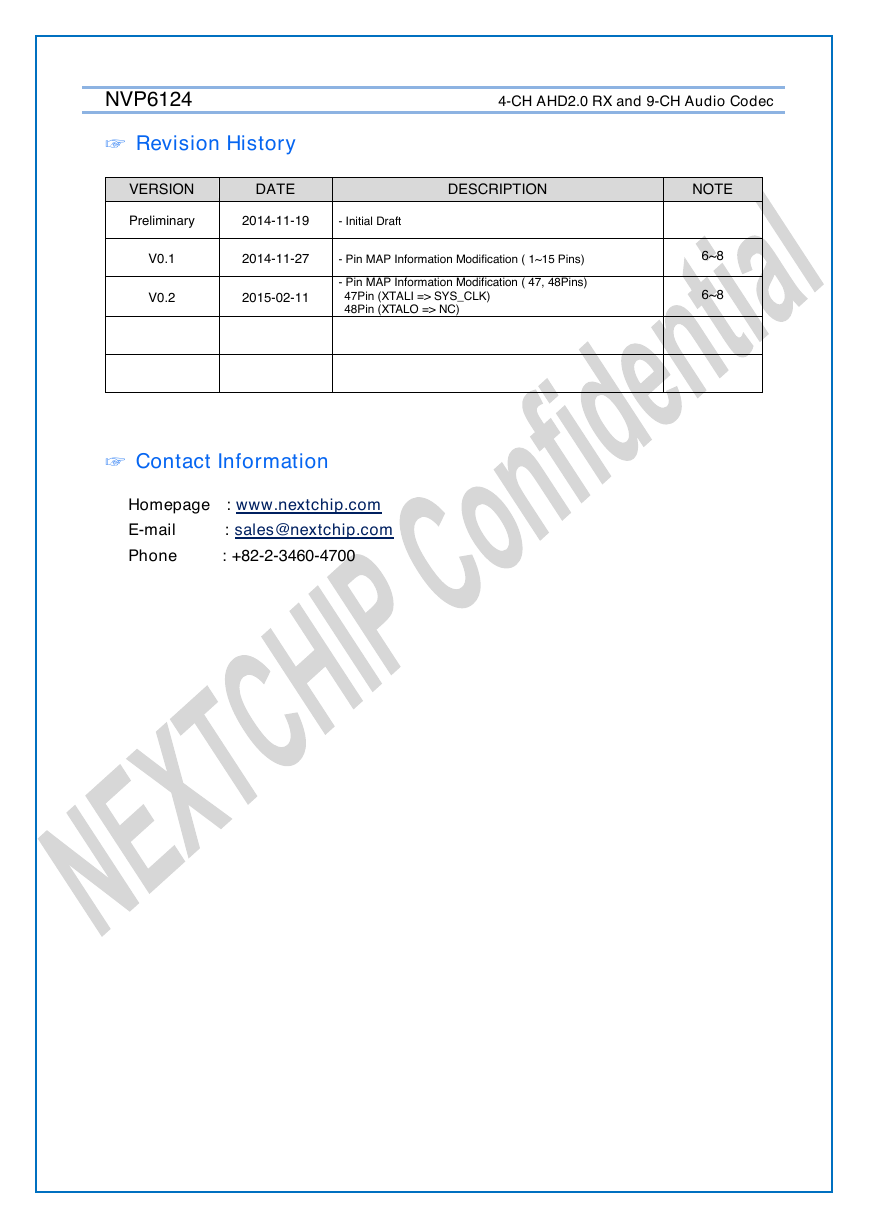

NVP6124 ☞ Revision History 4-CH AHD2.0 RX and 9-CH Audio Codec VERSION DATE DESCRIPTION NOTE 6~8 6~8 Preliminary 2014-11-19 - Initial Draft V0.1 2014-11-27 - Pin MAP Information Modification ( 1~15 Pins) V0.2 2015-02-11 47Pin (XTALI => SYS_CLK) 48Pin (XTALO => NC) - Pin MAP Information Modification ( 47, 48Pins) ☞ Contact Information Homepage : www.nextchip.com E-mail : sales@nextchip.com Phone : +82-2-3460-4700

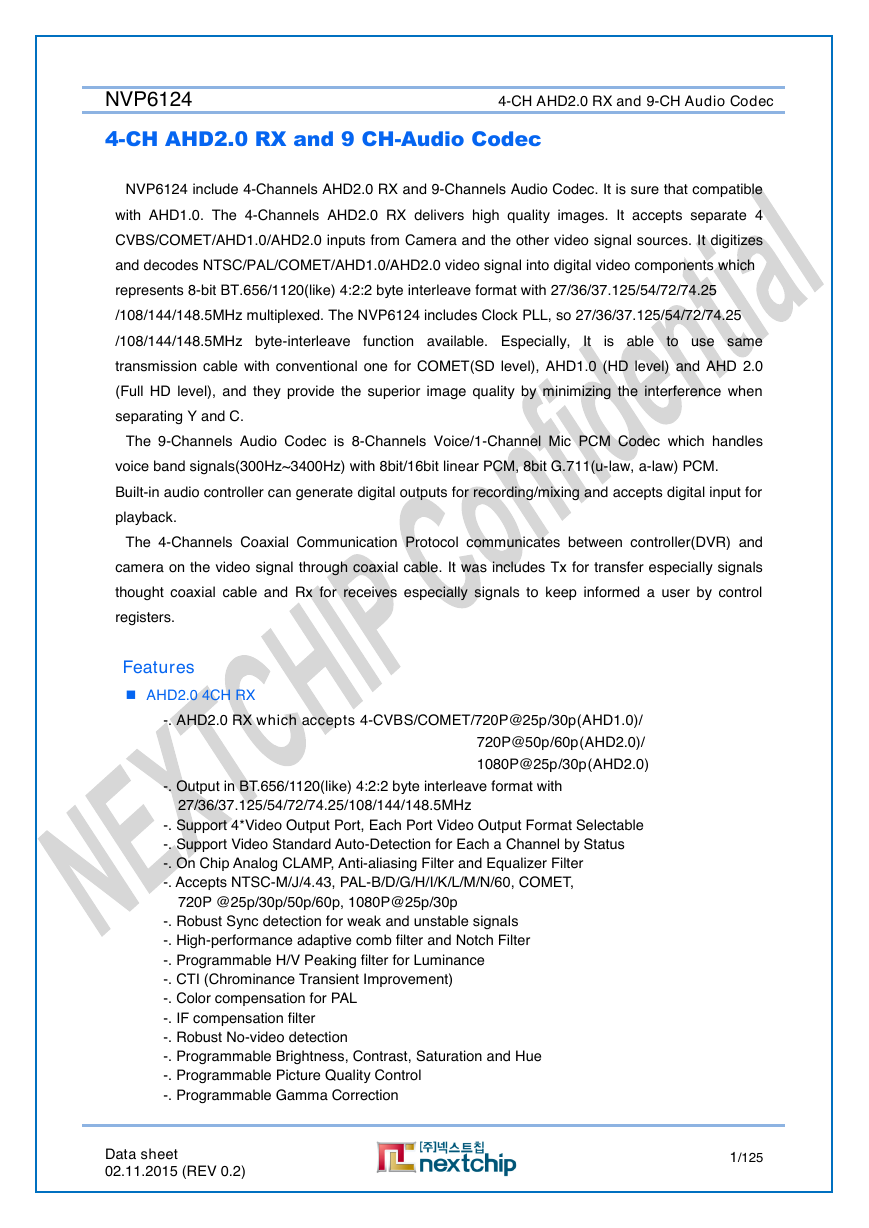

NVP6124 4-CH AHD2.0 RX and 9-CH Audio Codec 4-CH AHD2.0 RX and 9 CH-Audio Codec NVP6124 include 4-Channels AHD2.0 RX and 9-Channels Audio Codec. It is sure that compatible with AHD1.0. The 4-Channels AHD2.0 RX delivers high quality images. It accepts separate 4 CVBS/COMET/AHD1.0/AHD2.0 inputs from Camera and the other video signal sources. It digitizes and decodes NTSC/PAL/COMET/AHD1.0/AHD2.0 video signal into digital video components which represents 8-bit BT.656/1120(like) 4:2:2 byte interleave format with 27/36/37.125/54/72/74.25 /108/144/148.5MHz multiplexed. The NVP6124 includes Clock PLL, so 27/36/37.125/54/72/74.25 /108/144/148.5MHz byte-interleave function available. Especially, It is able to use same transmission cable with conventional one for COMET(SD level), AHD1.0 (HD level) and AHD 2.0 (Full HD level), and they provide the superior image quality by minimizing the interference when separating Y and C. The 9-Channels Audio Codec is 8-Channels Voice/1-Channel Mic PCM Codec which handles voice band signals(300Hz~3400Hz) with 8bit/16bit linear PCM, 8bit G.711(u-law, a-law) PCM. Built-in audio controller can generate digital outputs for recording/mixing and accepts digital input for playback. The 4-Channels Coaxial Communication Protocol communicates between controller(DVR) and camera on the video signal through coaxial cable. It was includes Tx for transfer especially signals thought coaxial cable and Rx for receives especially signals to keep informed a user by control registers. Features  AHD2.0 4CH RX -. AHD2.0 RX which accepts 4-CVBS/COMET/720P@25p/30p(AHD1.0)/ 720P@50p/60p(AHD2.0)/ 1080P@25p/30p(AHD2.0) -. Output in BT.656/1120(like) 4:2:2 byte interleave format with 27/36/37.125/54/72/74.25/108/144/148.5MHz -. Support 4*Video Output Port, Each Port Video Output Format Selectable -. Support Video Standard Auto-Detection for Each a Channel by Status -. On Chip Analog CLAMP, Anti-aliasing Filter and Equalizer Filter -. Accepts NTSC-M/J/4.43, PAL-B/D/G/H/I/K/L/M/N/60, COMET, 720P @25p/30p/50p/60p, 1080P@25p/30p -. Robust Sync detection for weak and unstable signals -. High-performance adaptive comb filter and Notch Filter -. Programmable H/V Peaking filter for Luminance -. CTI (Chrominance Transient Improvement) -. Color compensation for PAL -. IF compensation filter -. Robust No-video detection -. Programmable Brightness, Contrast, Saturation and Hue -. Programmable Picture Quality Control -. Programmable Gamma Correction Data sheet 02.11.2015 (REV 0.2) 1/125

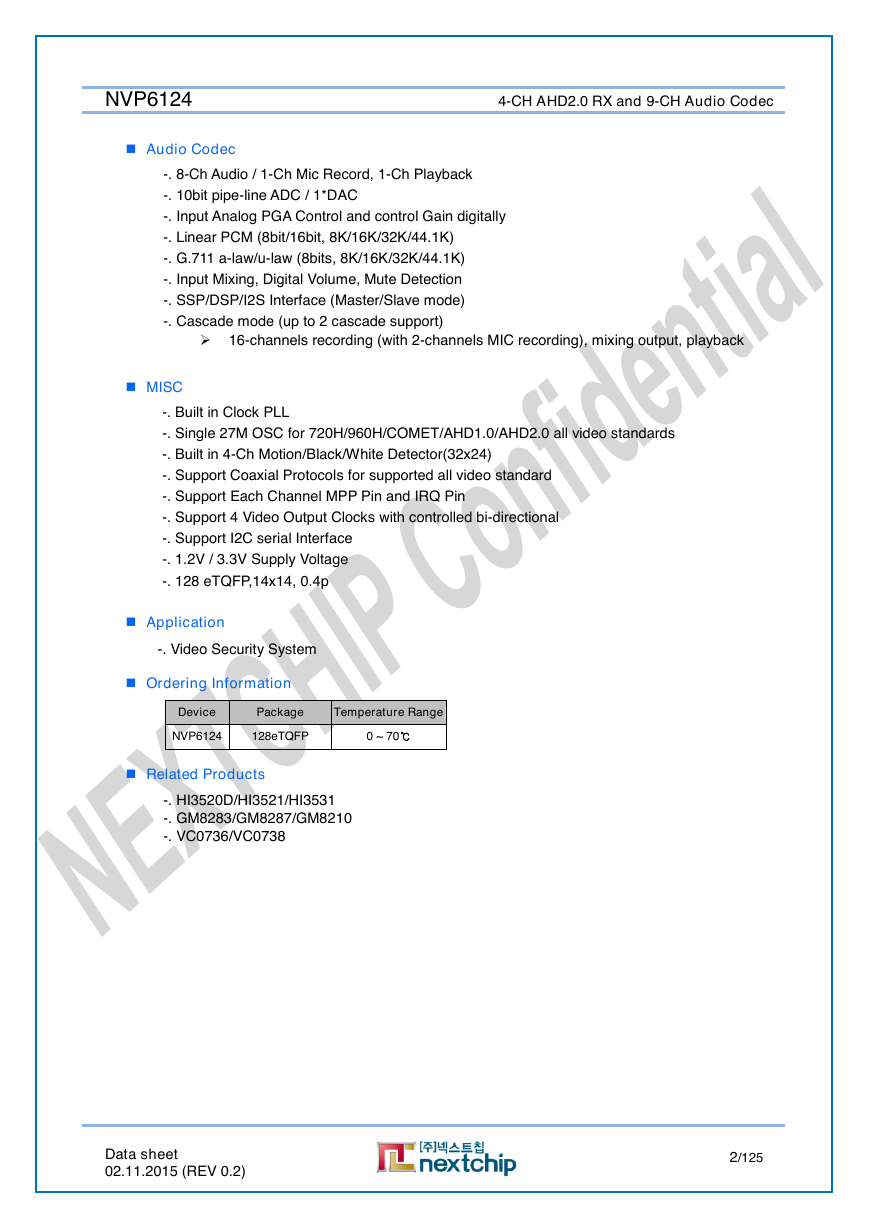

NVP6124  Audio Codec 4-CH AHD2.0 RX and 9-CH Audio Codec -. 8-Ch Audio / 1-Ch Mic Record, 1-Ch Playback -. 10bit pipe-line ADC / 1*DAC -. Input Analog PGA Control and control Gain digitally -. Linear PCM (8bit/16bit, 8K/16K/32K/44.1K) -. G.711 a-law/u-law (8bits, 8K/16K/32K/44.1K) -. Input Mixing, Digital Volume, Mute Detection -. SSP/DSP/I2S Interface (Master/Slave mode) -. Cascade mode (up to 2 cascade support)  16-channels recording (with 2-channels MIC recording), mixing output, playback  MISC -. Built in Clock PLL -. Single 27M OSC for 720H/960H/COMET/AHD1.0/AHD2.0 all video standards -. Built in 4-Ch Motion/Black/White Detector(32x24) -. Support Coaxial Protocols for supported all video standard -. Support Each Channel MPP Pin and IRQ Pin -. Support 4 Video Output Clocks with controlled bi-directional -. Support I2C serial Interface -. 1.2V / 3.3V Supply Voltage -. 128 eTQFP,14x14, 0.4p  Application -. Video Security System  Ordering Information Device Package Temperature Range NVP6124 128eTQFP 0 ~ 70℃  Related Products -. HI3520D/HI3521/HI3531 -. GM8283/GM8287/GM8210 -. VC0736/VC0738 Data sheet 02.11.2015 (REV 0.2) 2/125

NVP6124 Functional Block Diagram 4-CH AHD2.0 RX and 9-CH Audio Codec Data sheet 02.11.2015 (REV 0.2) 3/125 Coaxial CommunicatorTimeMultiplexerCOAX 1~4VDO1[7:0]VIN 1-4(CVBS/COMET/AHD1.0/AHD2.0)ADCI2C InterfaceAFEDFEYCSLuma ProcessingChroma ProcessingOutputFormatterMotionDetectorVDO2[7:0]Interpolation FilterDACFormatterCompander / ExpanderAIN 1~8MicIN1AOUTADATA_PB (SSP/DSP/I2S)ADATA_REC(SSP/DSP/I2S)ACLK_PBASYNC_PBACLK_RECASYNC_RECADCAFEAFEDecimation FilterCoaxial CommunicatorCoaxial CommunicatorCoaxial CommunicatorVDO3[7:0]VDO4[7:0]MPP1~4

NVP6124 4-CH AHD2.0 RX and 9-CH Audio Codec Contents 1. Pin Information .............................................................................................................. 6 1.1 Pin Assignments ........................................................................................................ 6 1.2 Pin Description ........................................................................................................... 7 2. AHD1.0 RX ..................................................................................................................... 9 2.1. Functional Overview ................................................................................................. 9 2.2. Video Input Formats................................................................................................ 10 2.3. Analog Front End (CLAMP, PGA, Anti-aliasing Filter) .............................................. 10 2.4. Genlock (Robust Sync Detection, Robust No-Video Detection) .............................. 11 2.5. YCS (Y/C separation) ............................................................................................. 12 2.6. Luma Processing .................................................................................................... 13 2.7. Chroma Processing ................................................................................................ 14 2.8. Data Output Order & Direction Control .................................................................... 15 2.9. Output Format ......................................................................................................... 16 2.9.1. ITU-R BT.656/1120(like) Format ....................................................................... 19 2.9.2. Video Output Timing Information ...................................................................... 19 2.10. Output Mode ......................................................................................................... 19 2.10.1. Single Output Mode ........................................................................................ 19 2.10.2. 2-Multiplex Output Mode ................................................................................ 20 2.10.3. 4-Multiplex Output Mode ................................................................................ 21 2.10.4. 148.5MHz 2-Ch CIF Data Output Mode .......................................................... 24 2.11. Video Frame Control ............................................................................................. 25 2.12. Motion Detector .................................................................................................... 25 3. Audio Codec ................................................................................................................ 26 3.1. Description .............................................................................................................. 27 3.2. Record Output ........................................................................................................ 27 3.2.1 Data Output Interface ........................................................................................ 28 3.2.2. 2/4/8/16-Channel Data Output(256 fs) .............................................................. 30 3.2.3. 2/4/8/16-Channel Audio Data Output with 4-Channel Mic Data(320 fs) ............. 31 3.2.4. ADATA_SP Output ............................................................................................ 32 3.3. Playback Output ..................................................................................................... 33 3.4. Audio Detection ....................................................................................................... 33 3.5. Cascade Operation ................................................................................................. 34 4. Coaxial Protocol .......................................................................................................... 35 5. I2C Interface ................................................................................................................. 37 6. Register Description ................................................................................................... 38 Data sheet 02.11.2015 (REV 0.2) 4/125

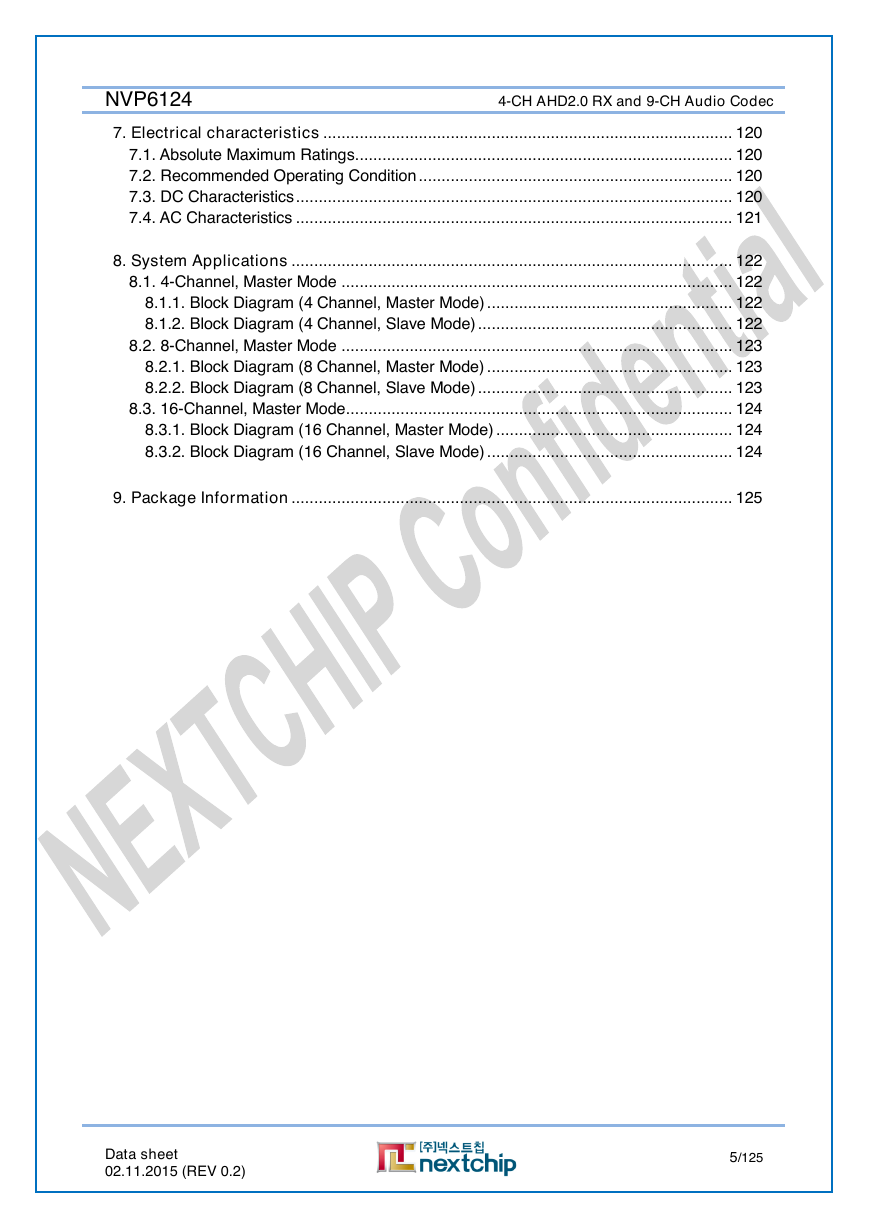

NVP6124 4-CH AHD2.0 RX and 9-CH Audio Codec 7. Electrical characteristics .......................................................................................... 120 7.1. Absolute Maximum Ratings ................................................................................... 120 7.2. Recommended Operating Condition ..................................................................... 120 7.3. DC Characteristics ................................................................................................ 120 7.4. AC Characteristics ................................................................................................ 121 8. System Applications ................................................................................................. 122 8.1. 4-Channel, Master Mode ...................................................................................... 122 8.1.1. Block Diagram (4 Channel, Master Mode) ...................................................... 122 8.1.2. Block Diagram (4 Channel, Slave Mode) ........................................................ 122 8.2. 8-Channel, Master Mode ...................................................................................... 123 8.2.1. Block Diagram (8 Channel, Master Mode) ...................................................... 123 8.2.2. Block Diagram (8 Channel, Slave Mode) ........................................................ 123 8.3. 16-Channel, Master Mode..................................................................................... 124 8.3.1. Block Diagram (16 Channel, Master Mode) .................................................... 124 8.3.2. Block Diagram (16 Channel, Slave Mode) ...................................................... 124 9. Package Information ................................................................................................. 125 Data sheet 02.11.2015 (REV 0.2) 5/125

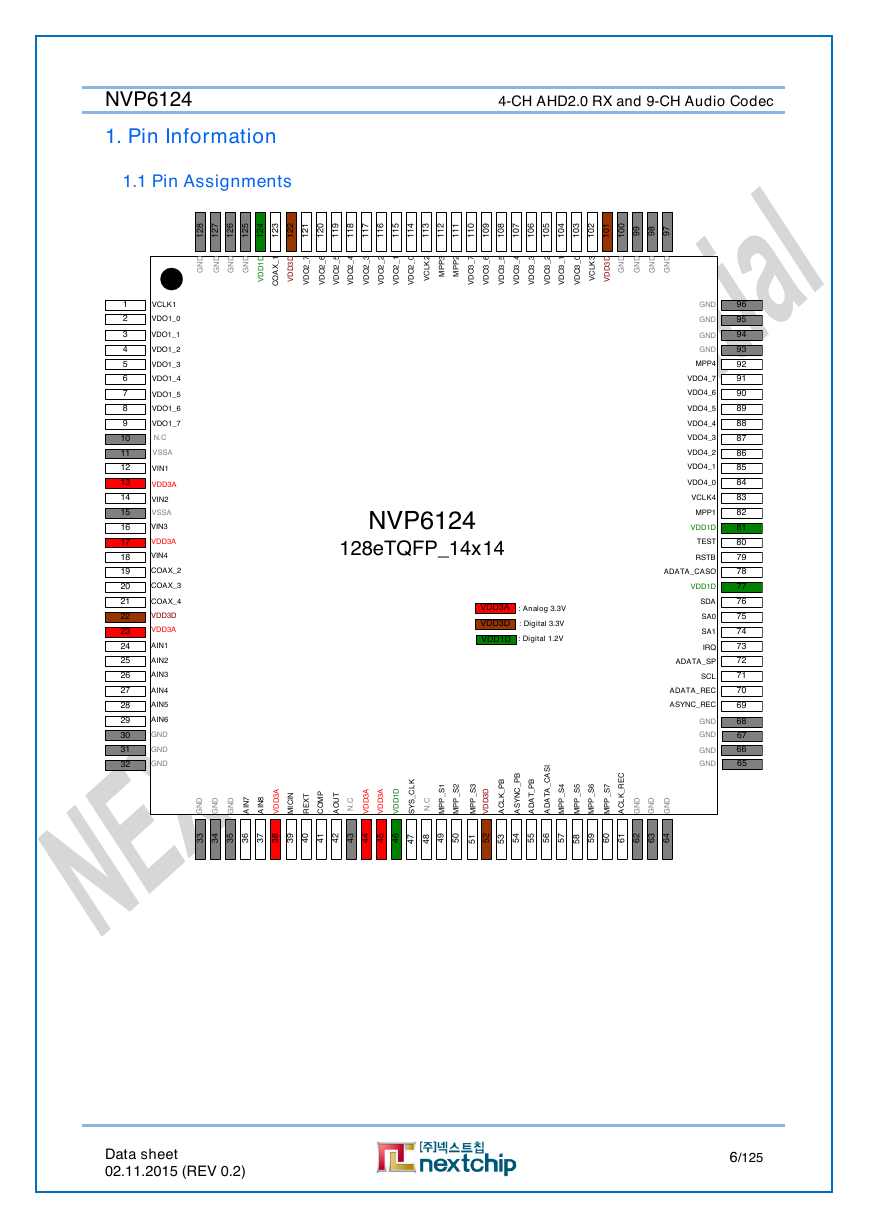

NVP6124 1. Pin Information 1.1 Pin Assignments 4-CH AHD2.0 RX and 9-CH Audio Codec Data sheet 02.11.2015 (REV 0.2) 6/125 1261251241231221211201191281271181171161151141131121111101061051041031021011009910810798971099493929190898887969586858483828180797874737271706967687675656677345678910121112131415161718192324252627282930212231322035363738394041423334434445465348495058555657515960616254636452NVP6124128eTQFP_14x1447VDD3AVIN4COAX_2COAX_3COAX_4VDD3AVIN3AIN1AIN2AIN3AIN4AIN5AIN6VDD3DGNDGNDGNDASYNC_PBMPP_S3VDD3DMPP_S2COMPREXTVDD3AVDD1DVDD3AVDD3AAIN7AIN8MICINMPP_S1AOUTACLK_PBSYS_CLKMPP_S7MPP_S4MPP_S5ADATA_CASIADAT_PBMPP_S6ACLK_RECGNDGNDGNDGNDGNDGNDSDAVDD1DVDO4_4MPP4VDO4_7VDO4_2MPP1VDO4_6VDO4_5SA0SA1VDO4_1RSTBTESTVDO4_0VDD1DVCLK4ADATA_CASOVDO4_3ADATA_RECASYNC_RECIRQSCLADATA_SPGNDGNDGNDGNDGNDGNDGNDGNDVCLK2VDD1DVDO2_7VDO2_6VDO2_5VDO2_4VDO2_3VDO2_2VDO2_1VDO2_0VDO3_7VDO3_6VDO3_3VDO3_5VDO3_4VDD3DMPP3MPP2COAX_1VDO3_1VDO3_0VDD3DVCLK3VDO3_2GNDGNDGNDGNDGNDGNDGNDGNDN.CVDD3A: Analog 3.3VVDD3D: Digital 3.3VVDD1D: Digital 1.2VVIN1VIN2N.CVSSAVSSAVDD3AVDO1_7VDO1_4VDO1_6VDO1_5VDO1_2VDO1_3VDO1_1VDO1_0VCLK1N.C
