python实现人机五子棋
实现人机五子棋
本文实例为大家分享了python实现人机五子棋的具体代码，供大家参考，具体内容如下
图形界面引用PyQt5，还有socket通信。可以局域网对战，可以人机对战，应该存在一些小的bug，但是还没有找出来。希望
读者可以找到

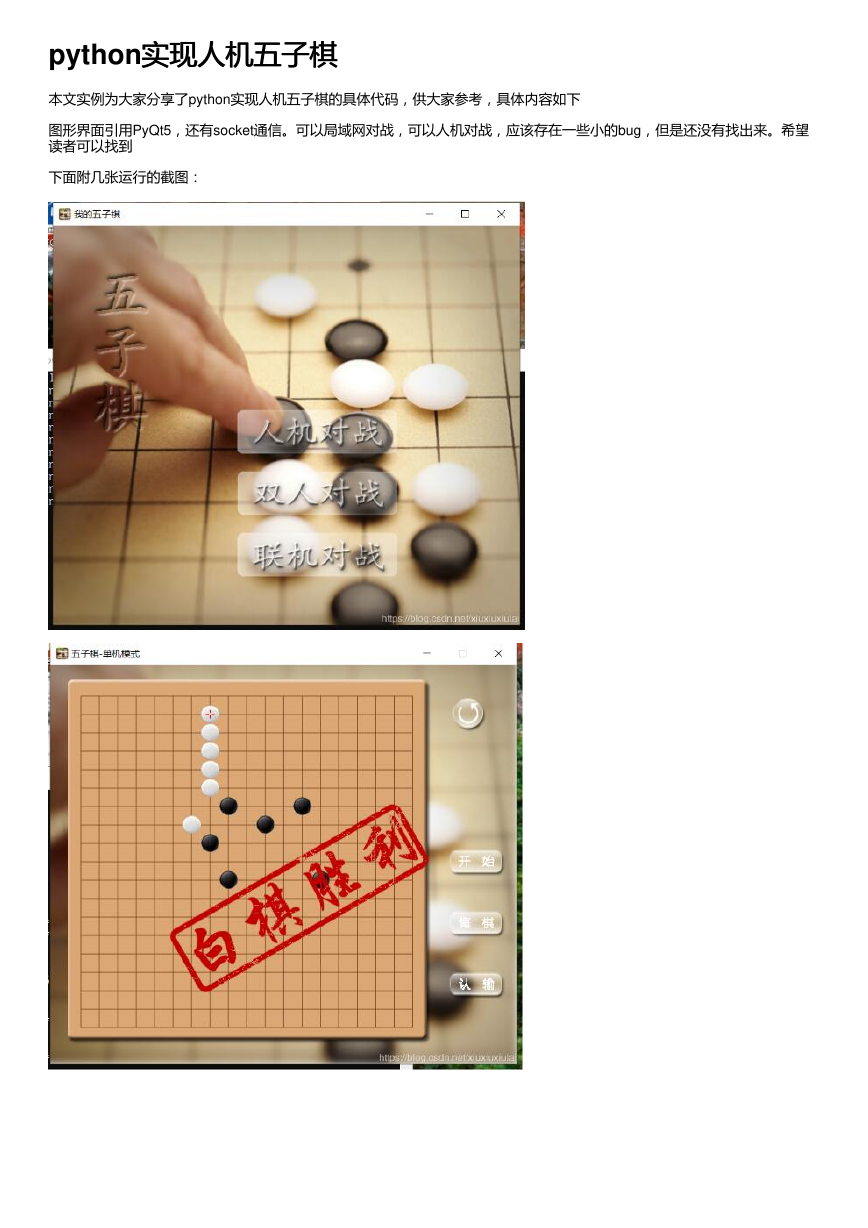

下面附几张运行的截图：

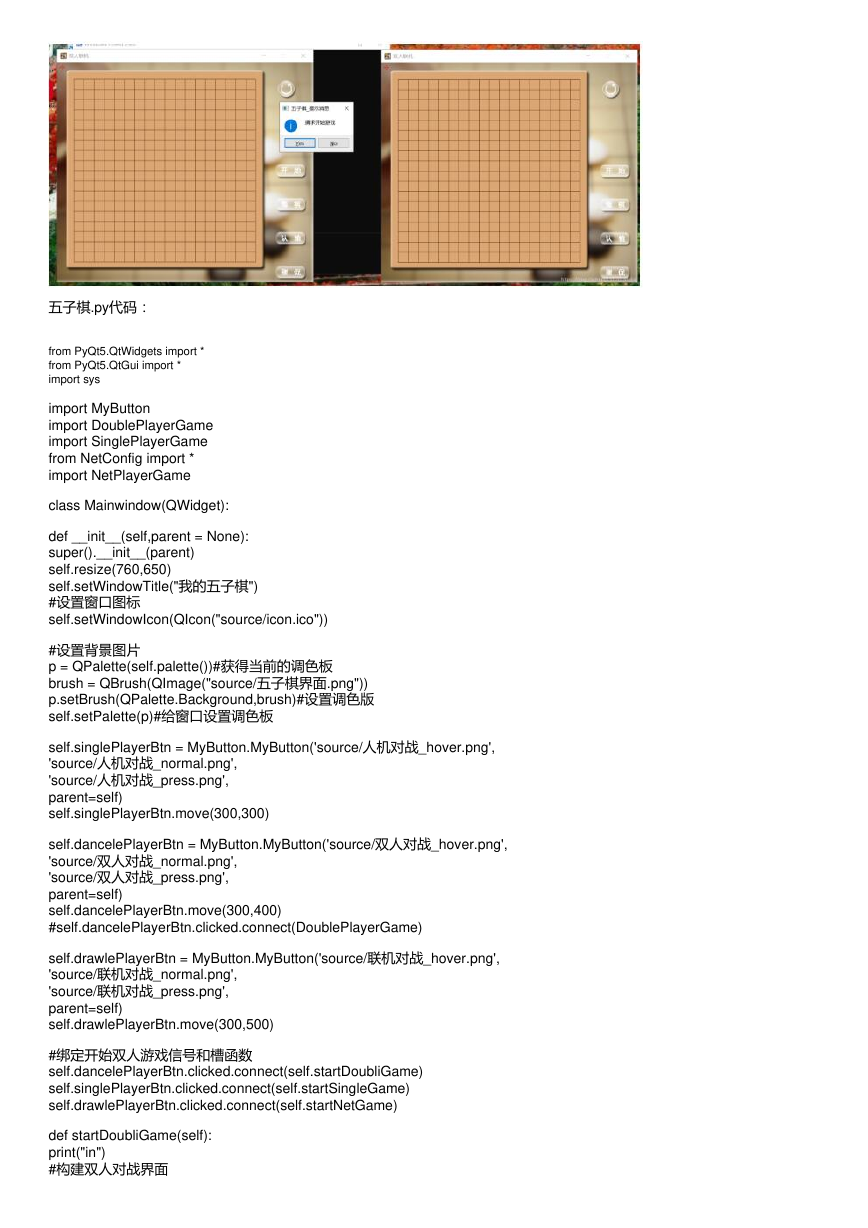

五子棋.py代码：
from PyQt5.QtWidgets import *
from PyQt5.QtGui import *
import sys
import MyButton
import DoublePlayerGame
import SinglePlayerGame
from NetConfig import *
import NetPlayerGame
class Mainwindow(QWidget):
def __init__(self,parent = None):
super().__init__(parent)
self.resize(760,650)
self.setWindowTitle("我的五子棋")
#设置窗口图标
self.setWindowIcon(QIcon("source/icon.ico"))
#设置背景图片
p = QPalette(self.palette())#获得当前的调色板
brush = QBrush(QImage("source/五子棋界面.png"))
p.setBrush(QPalette.Background,brush)#设置调色版
self.setPalette(p)#给窗口设置调色板
self.singlePlayerBtn = MyButton.MyButton('source/人机对战_hover.png',
'source/人机对战_normal.png',
'source/人机对战_press.png',
parent=self)
self.singlePlayerBtn.move(300,300)
self.dancelePlayerBtn = MyButton.MyButton('source/双人对战_hover.png',
'source/双人对战_normal.png',
'source/双人对战_press.png',
parent=self)
self.dancelePlayerBtn.move(300,400)
#self.dancelePlayerBtn.clicked.connect(DoublePlayerGame)
self.drawlePlayerBtn = MyButton.MyButton('source/联机对战_hover.png',
'source/联机对战_normal.png',
'source/联机对战_press.png',
parent=self)
self.drawlePlayerBtn.move(300,500)
#绑定开始双人游戏信号和槽函数
self.dancelePlayerBtn.clicked.connect(self.startDoubliGame)
self.singlePlayerBtn.clicked.connect(self.startSingleGame)
self.drawlePlayerBtn.clicked.connect(self.startNetGame)
def startDoubliGame(self):
print("in")
#构建双人对战界面

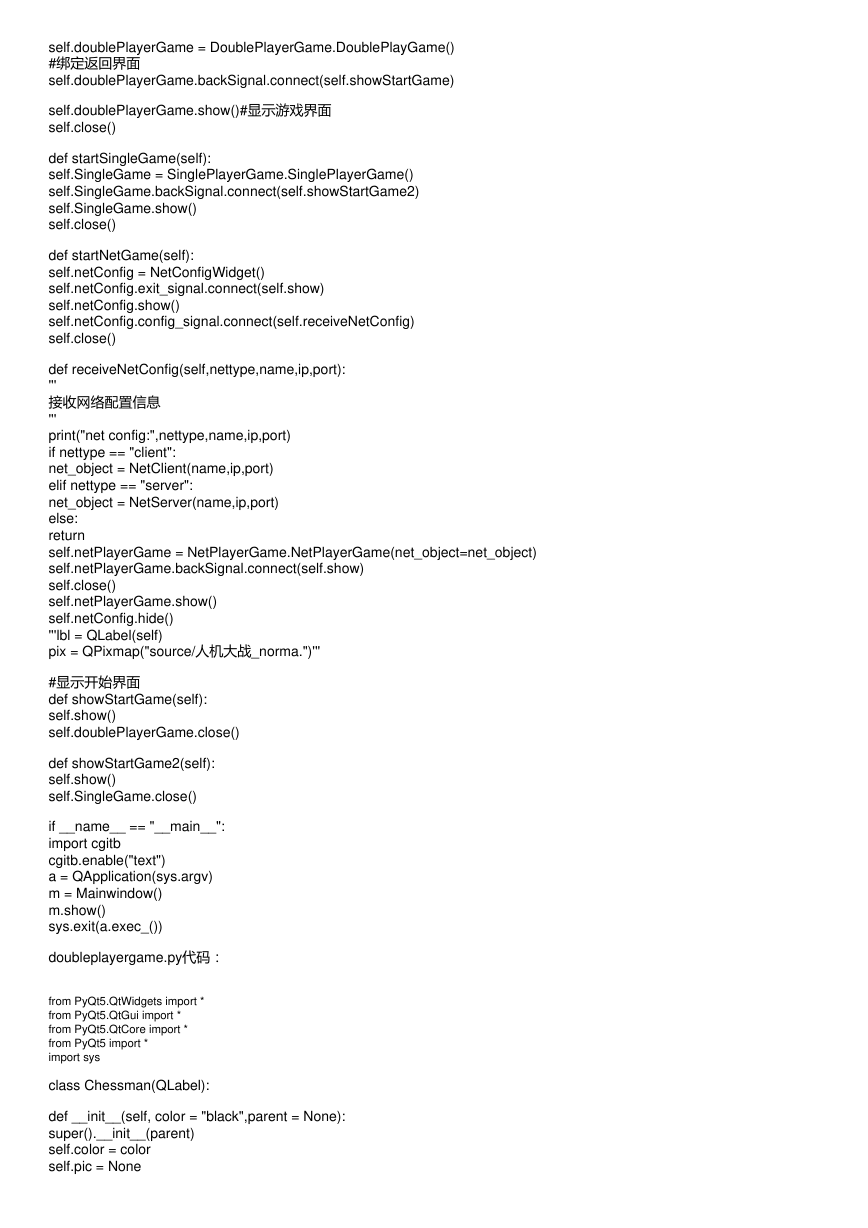

self.doublePlayerGame = DoublePlayerGame.DoublePlayGame()
#绑定返回界面
self.doublePlayerGame.backSignal.connect(self.showStartGame)
self.doublePlayerGame.show()#显示游戏界面
self.close()
def startSingleGame(self):
self.SingleGame = SinglePlayerGame.SinglePlayerGame()
self.SingleGame.backSignal.connect(self.showStartGame2)
self.SingleGame.show()
self.close()
def startNetGame(self):
self.netConfig = NetConfigWidget()
self.netConfig.exit_signal.connect(self.show)
self.netConfig.show()
self.netConfig.config_signal.connect(self.receiveNetConfig)
self.close()
def receiveNetConfig(self,nettype,name,ip,port):
'''
接收网络配置信息
'''
print("net config:",nettype,name,ip,port)
if nettype == "client":
net_object = NetClient(name,ip,port)
elif nettype == "server":
net_object = NetServer(name,ip,port)
else:
return
self.netPlayerGame = NetPlayerGame.NetPlayerGame(net_object=net_object)
self.netPlayerGame.backSignal.connect(self.show)
self.close()
self.netPlayerGame.show()
self.netConfig.hide()
'''lbl = QLabel(self)
pix = QPixmap("source/人机大战_norma.")'''
#显示开始界面
def showStartGame(self):
self.show()
self.doublePlayerGame.close()
def showStartGame2(self):
self.show()
self.SingleGame.close()
if __name__ == "__main__":
import cgitb
cgitb.enable("text")
a = QApplication(sys.argv)
m = Mainwindow()
m.show()
sys.exit(a.exec_())
doubleplayergame.py代码：
from PyQt5.QtWidgets import *
from PyQt5.QtGui import *
from PyQt5.QtCore import *
from PyQt5 import *
import sys
class Chessman(QLabel):
def __init__(self, color = "black",parent = None):
super().__init__(parent)
self.color = color
self.pic = None

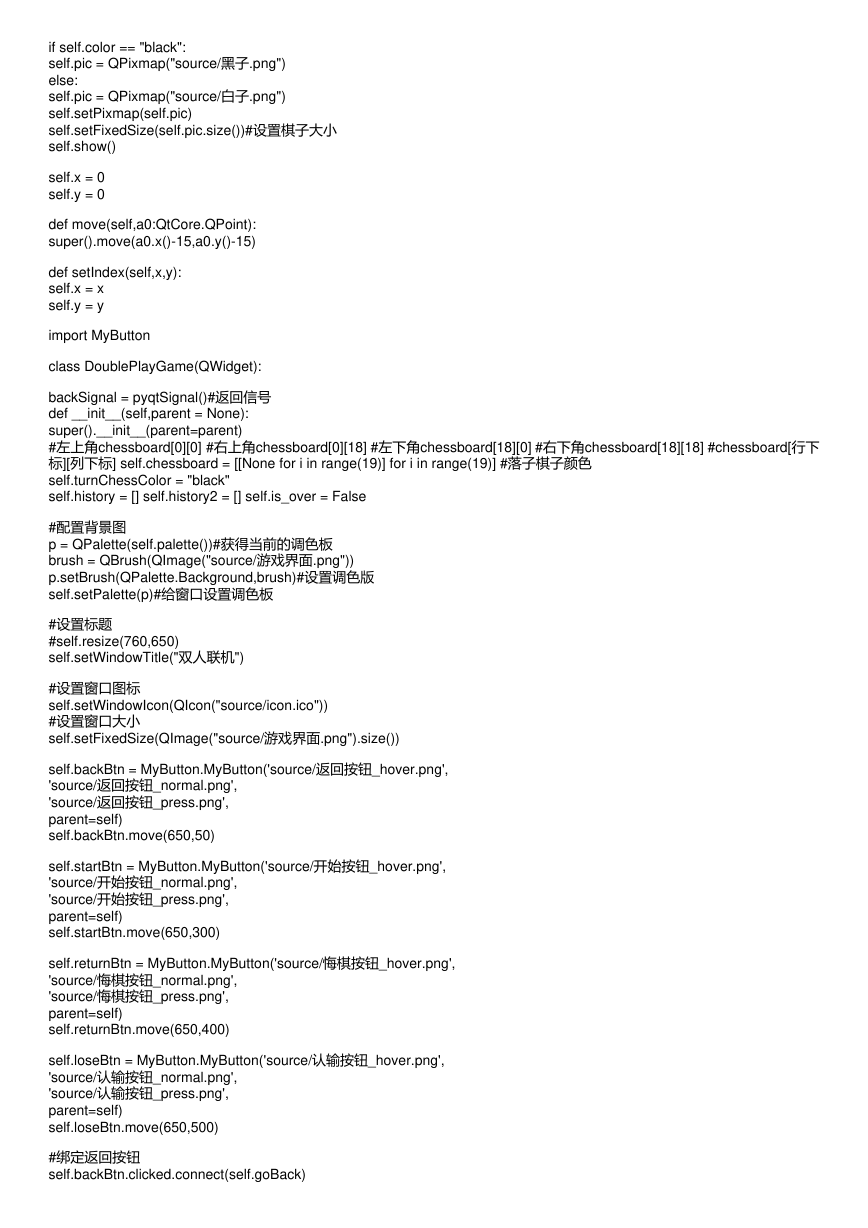

if self.color == "black":
self.pic = QPixmap("source/黑子.png")
else:
self.pic = QPixmap("source/白子.png")
self.setPixmap(self.pic)
self.setFixedSize(self.pic.size())#设置棋子大小
self.show()
self.x = 0
self.y = 0
def move(self,a0:QtCore.QPoint):
super().move(a0.x()-15,a0.y()-15)
def setIndex(self,x,y):
self.x = x
self.y = y
import MyButton
class DoublePlayGame(QWidget):
backSignal = pyqtSignal()#返回信号
def __init__(self,parent = None):
super().__init__(parent=parent)
#左上角chessboard[0][0] #右上角chessboard[0][18] #左下角chessboard[18][0] #右下角chessboard[18][18] #chessboard[行下
标][列下标] self.chessboard = [[None for i in range(19)] for i in range(19)] #落子棋子颜色
self.turnChessColor = "black"
self.history = [] self.history2 = [] self.is_over = False
#配置背景图
p = QPalette(self.palette())#获得当前的调色板
brush = QBrush(QImage("source/游戏界面.png"))
p.setBrush(QPalette.Background,brush)#设置调色版
self.setPalette(p)#给窗口设置调色板
#设置标题
#self.resize(760,650)
self.setWindowTitle("双人联机")
#设置窗口图标
self.setWindowIcon(QIcon("source/icon.ico"))
#设置窗口大小
self.setFixedSize(QImage("source/游戏界面.png").size())
self.backBtn = MyButton.MyButton('source/返回按钮_hover.png',
'source/返回按钮_normal.png',
'source/返回按钮_press.png',
parent=self)
self.backBtn.move(650,50)
self.startBtn = MyButton.MyButton('source/开始按钮_hover.png',
'source/开始按钮_normal.png',
'source/开始按钮_press.png',
parent=self)
self.startBtn.move(650,300)
self.returnBtn = MyButton.MyButton('source/悔棋按钮_hover.png',
'source/悔棋按钮_normal.png',
'source/悔棋按钮_press.png',
parent=self)
self.returnBtn.move(650,400)
self.loseBtn = MyButton.MyButton('source/认输按钮_hover.png',
'source/认输按钮_normal.png',
'source/认输按钮_press.png',
parent=self)
self.loseBtn.move(650,500)
#绑定返回按钮

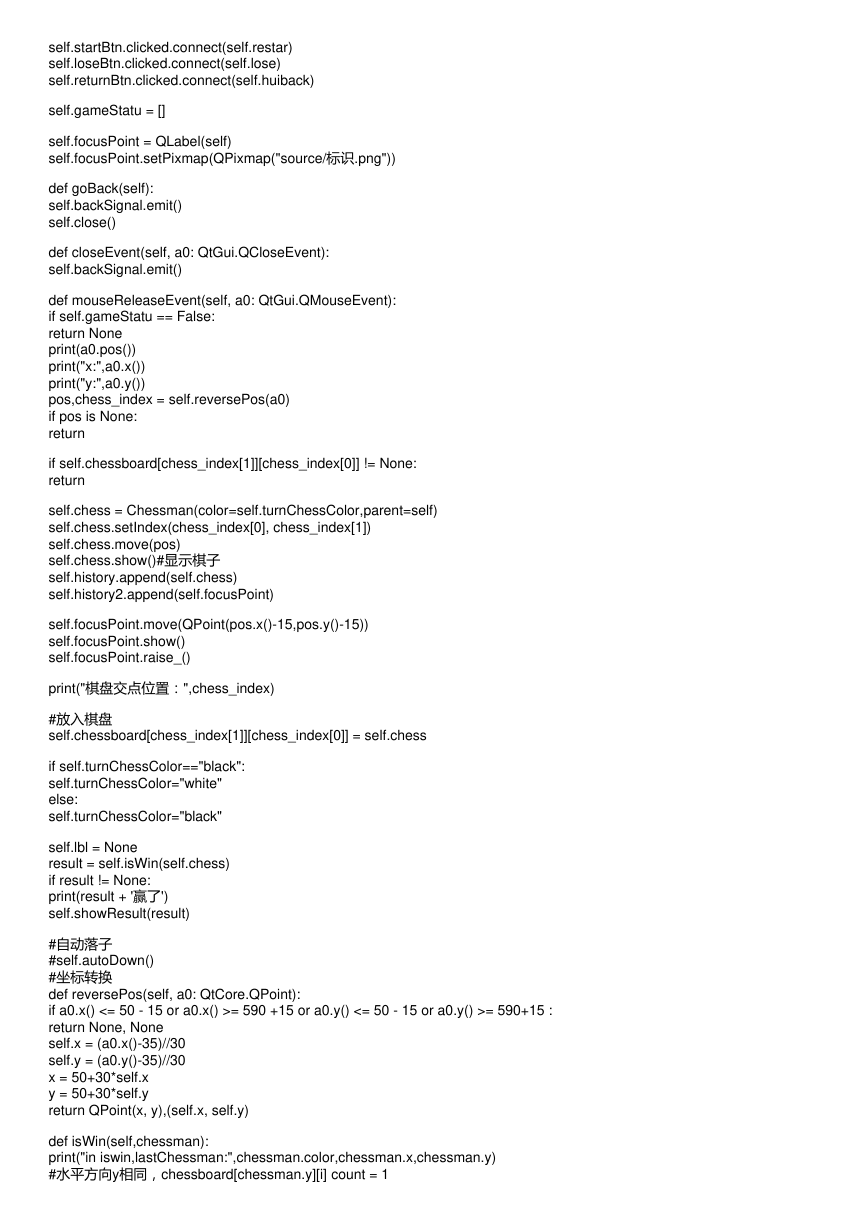

self.backBtn.clicked.connect(self.goBack)
self.startBtn.clicked.connect(self.restar)
self.loseBtn.clicked.connect(self.lose)
self.returnBtn.clicked.connect(self.huiback)
self.gameStatu = []
self.focusPoint = QLabel(self)
self.focusPoint.setPixmap(QPixmap("source/标识.png"))
def goBack(self):
self.backSignal.emit()
self.close()
def closeEvent(self, a0: QtGui.QCloseEvent):
self.backSignal.emit()
def mouseReleaseEvent(self, a0: QtGui.QMouseEvent):
if self.gameStatu == False:
return None
print(a0.pos())
print("x:",a0.x())
print("y:",a0.y())
pos,chess_index = self.reversePos(a0)
if pos is None:
return
if self.chessboard[chess_index[1]][chess_index[0]] != None:
return
self.chess = Chessman(color=self.turnChessColor,parent=self)
self.chess.setIndex(chess_index[0], chess_index[1])
self.chess.move(pos)
self.chess.show()#显示棋子
self.history.append(self.chess)
self.history2.append(self.focusPoint)
self.focusPoint.move(QPoint(pos.x()-15,pos.y()-15))
self.focusPoint.show()
self.focusPoint.raise_()
print("棋盘交点位置：",chess_index)
#放入棋盘
self.chessboard[chess_index[1]][chess_index[0]] = self.chess
if self.turnChessColor=="black":
self.turnChessColor="white"
else:
self.turnChessColor="black"
self.lbl = None
result = self.isWin(self.chess)
if result != None:
print(result + '赢了')
self.showResult(result)
#自动落子
#self.autoDown()
#坐标转换
def reversePos(self, a0: QtCore.QPoint):
if a0.x() <= 50 - 15 or a0.x() >= 590 +15 or a0.y() <= 50 - 15 or a0.y() >= 590+15 :
return None, None
self.x = (a0.x()-35)//30
self.y = (a0.y()-35)//30
x = 50+30*self.x
y = 50+30*self.y
return QPoint(x, y),(self.x, self.y)
def isWin(self,chessman):
print("in iswin,lastChessman:",chessman.color,chessman.x,chessman.y)
#水平方向y相同，chessboard[chessman.y][i] count = 1
#左边
i = chessman.x - 1
while i>=0:
if self.chessboard[chessman.y][i] == None or self.chessboard[chessman.y][i].color != chessman.color:
break
count += 1
i -= 1
#右边
i = chessman.x + 1
while i<=18:
if self.chessboard[chessman.y][i] == None or self.chessboard[chessman.y][i].color != chessman.color:
break
count += 1
i += 1
if count >=5:
return chessman.color
count = 1
j = chessman.y - 1
while j >= 0:
if self.chessboard[j][chessman.x] == None or self.chessboard[j][chessman.x].color != chessman.color:
break
count += 1
j -= 1
j = chessman.y + 1
while j <= 18:
if self.chessboard[j][chessman.x] == None or self.chessboard[j][chessman.x].color != chessman.color:
break
count += 1
j += 1
if count >=5:
return chessman.color
count = 1
j,i = chessman.y - 1,chessman.x + 1
while j >= 0 and i <= 18:
if self.chessboard[j][i] == None or self.chessboard[j][i].color != chessman.color:
break
count += 1
j -= 1
i += 1
j,i = chessman.y + 1,chessman.x - 1
while i >= 0 and j <= 18:
if self.chessboard[j][i] == None or self.chessboard[j][i].color != chessman.color:
break
count += 1
i -= 1
j += 1
if count >=5:
return chessman.color
count = 1
j,i = chessman.y-1,chessman.x-1
while j>=0 and i>=0:
if self.chessboard[j][i] == None or self.chessboard[j][i].color != chessman.color:
break
count += 1
j -= 1
i -= 1
j,i = chessman.y+1,chessman.x+1
while j<=18 and i<=18:
if self.chessboard[j][i] == None or self.chessboard[j][i].color != chessman.color:
break
count += 1
j += 1
i += 1
if count >=5:
return chessman.color
return None

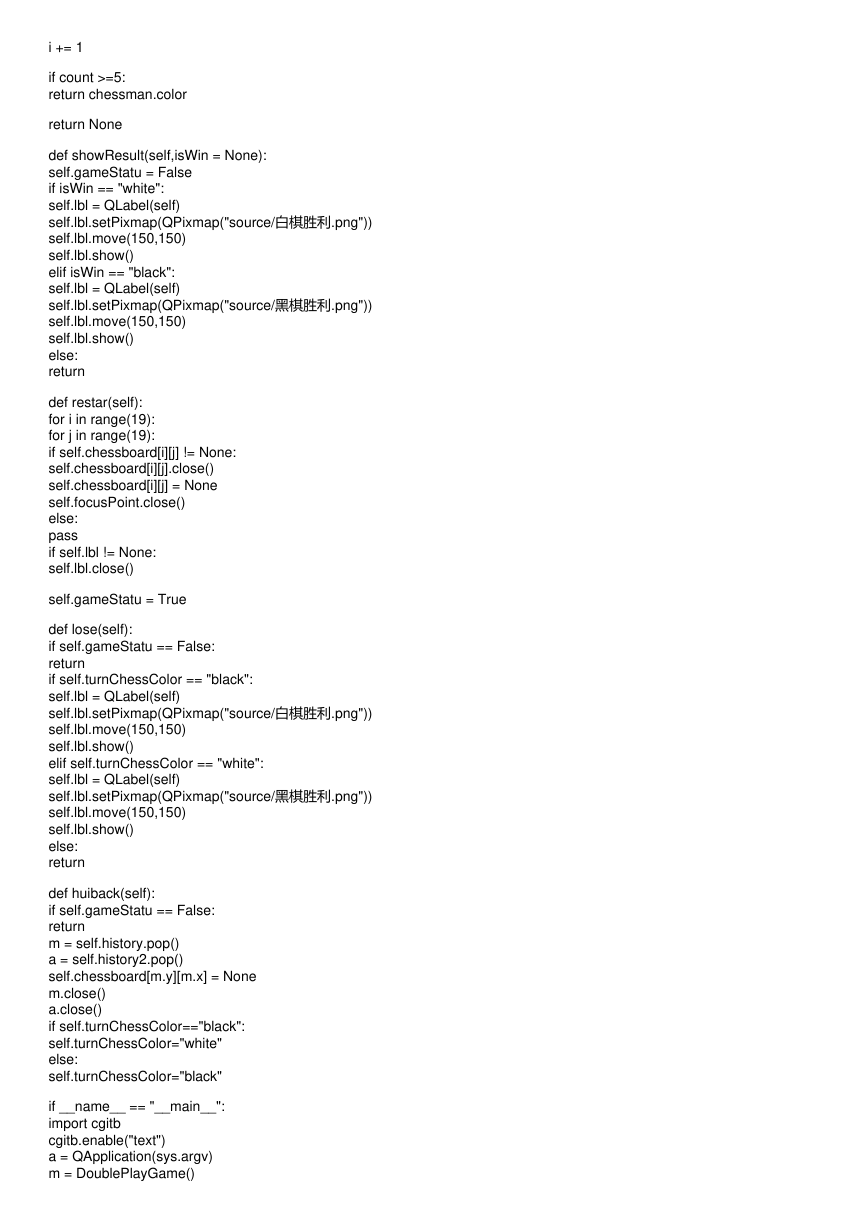

def showResult(self,isWin = None):
self.gameStatu = False
if isWin == "white":
self.lbl = QLabel(self)
self.lbl.setPixmap(QPixmap("source/白棋胜利.png"))
self.lbl.move(150,150)
self.lbl.show()
elif isWin == "black":
self.lbl = QLabel(self)
self.lbl.setPixmap(QPixmap("source/黑棋胜利.png"))
self.lbl.move(150,150)
self.lbl.show()
else:
return
def restar(self):
for i in range(19):
for j in range(19):
if self.chessboard[i][j] != None:
self.chessboard[i][j].close()
self.chessboard[i][j] = None
self.focusPoint.close()
else:
pass
if self.lbl != None:
self.lbl.close()
self.gameStatu = True
def lose(self):
if self.gameStatu == False:
return
if self.turnChessColor == "black":
self.lbl = QLabel(self)
self.lbl.setPixmap(QPixmap("source/白棋胜利.png"))
self.lbl.move(150,150)
self.lbl.show()
elif self.turnChessColor == "white":
self.lbl = QLabel(self)
self.lbl.setPixmap(QPixmap("source/黑棋胜利.png"))
self.lbl.move(150,150)
self.lbl.show()
else:
return
def huiback(self):
if self.gameStatu == False:
return
m = self.history.pop()
a = self.history2.pop()
self.chessboard[m.y][m.x] = None
m.close()
a.close()
if self.turnChessColor=="black":
self.turnChessColor="white"
else:
self.turnChessColor="black"
if __name__ == "__main__":
import cgitb
cgitb.enable("text")
a = QApplication(sys.argv)
m = DoublePlayGame()
m.show()
sys.exit(a.exec_())
pass

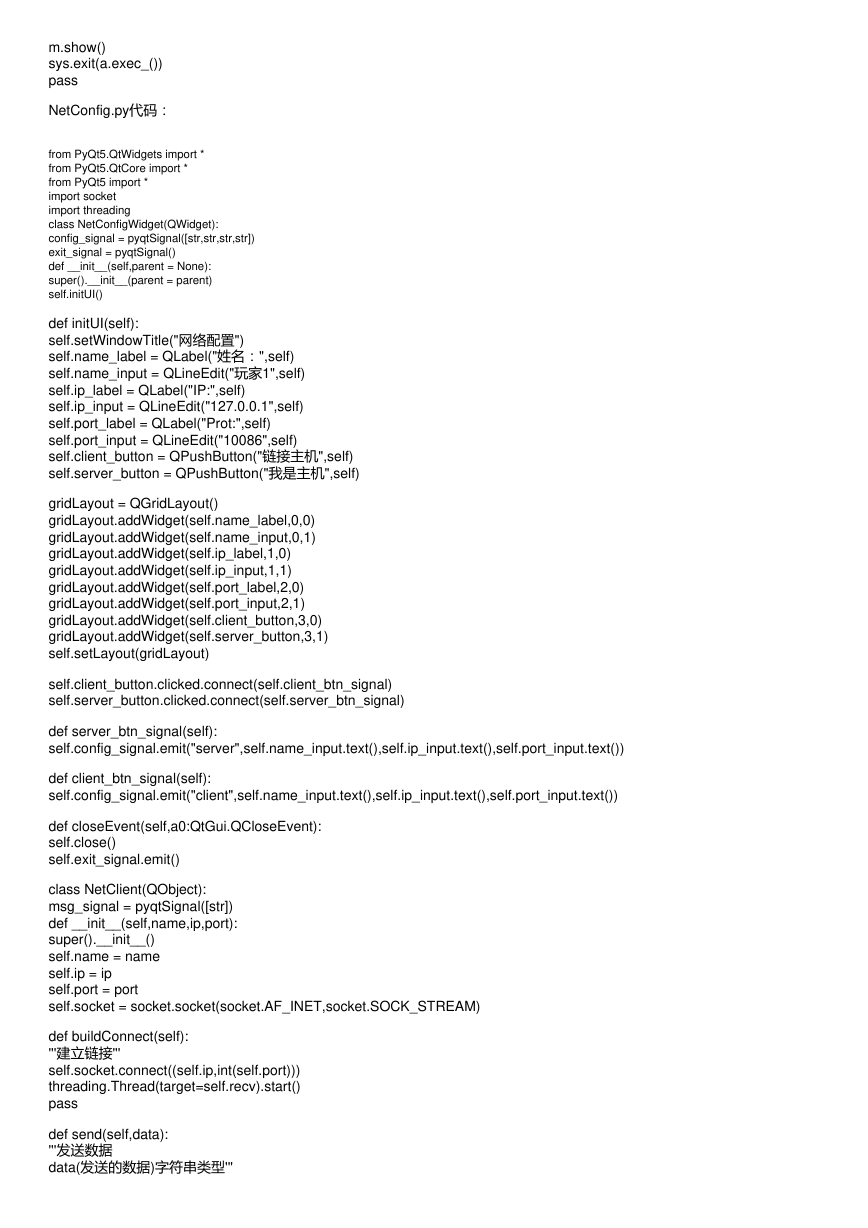

NetConfig.py代码：
from PyQt5.QtWidgets import *
from PyQt5.QtCore import *
from PyQt5 import *
import socket
import threading
class NetConfigWidget(QWidget):
config_signal = pyqtSignal([str,str,str,str])
exit_signal = pyqtSignal()
def __init__(self,parent = None):
super().__init__(parent = parent)
self.initUI()
def initUI(self):
self.setWindowTitle("网络配置")
self.name_label = QLabel("姓名：",self)
self.name_input = QLineEdit("玩家1",self)
self.ip_label = QLabel("IP:",self)
self.ip_input = QLineEdit("127.0.0.1",self)
self.port_label = QLabel("Prot:",self)
self.port_input = QLineEdit("10086",self)
self.client_button = QPushButton("链接主机",self)
self.server_button = QPushButton("我是主机",self)
gridLayout = QGridLayout()
gridLayout.addWidget(self.name_label,0,0)
gridLayout.addWidget(self.name_input,0,1)
gridLayout.addWidget(self.ip_label,1,0)
gridLayout.addWidget(self.ip_input,1,1)
gridLayout.addWidget(self.port_label,2,0)
gridLayout.addWidget(self.port_input,2,1)
gridLayout.addWidget(self.client_button,3,0)
gridLayout.addWidget(self.server_button,3,1)
self.setLayout(gridLayout)
self.client_button.clicked.connect(self.client_btn_signal)
self.server_button.clicked.connect(self.server_btn_signal)
def server_btn_signal(self):
self.config_signal.emit("server",self.name_input.text(),self.ip_input.text(),self.port_input.text())
def client_btn_signal(self):
self.config_signal.emit("client",self.name_input.text(),self.ip_input.text(),self.port_input.text())
def closeEvent(self,a0:QtGui.QCloseEvent):
self.close()
self.exit_signal.emit()
class NetClient(QObject):
msg_signal = pyqtSignal([str])
def __init__(self,name,ip,port):
super().__init__()
self.name = name
self.ip = ip
self.port = port
self.socket = socket.socket(socket.AF_INET,socket.SOCK_STREAM)
def buildConnect(self):
'''建立链接'''
self.socket.connect((self.ip,int(self.port)))
threading.Thread(target=self.recv).start()
pass
def send(self,data):
'''发送数据
data(发送的数据)字符串类型'''
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
