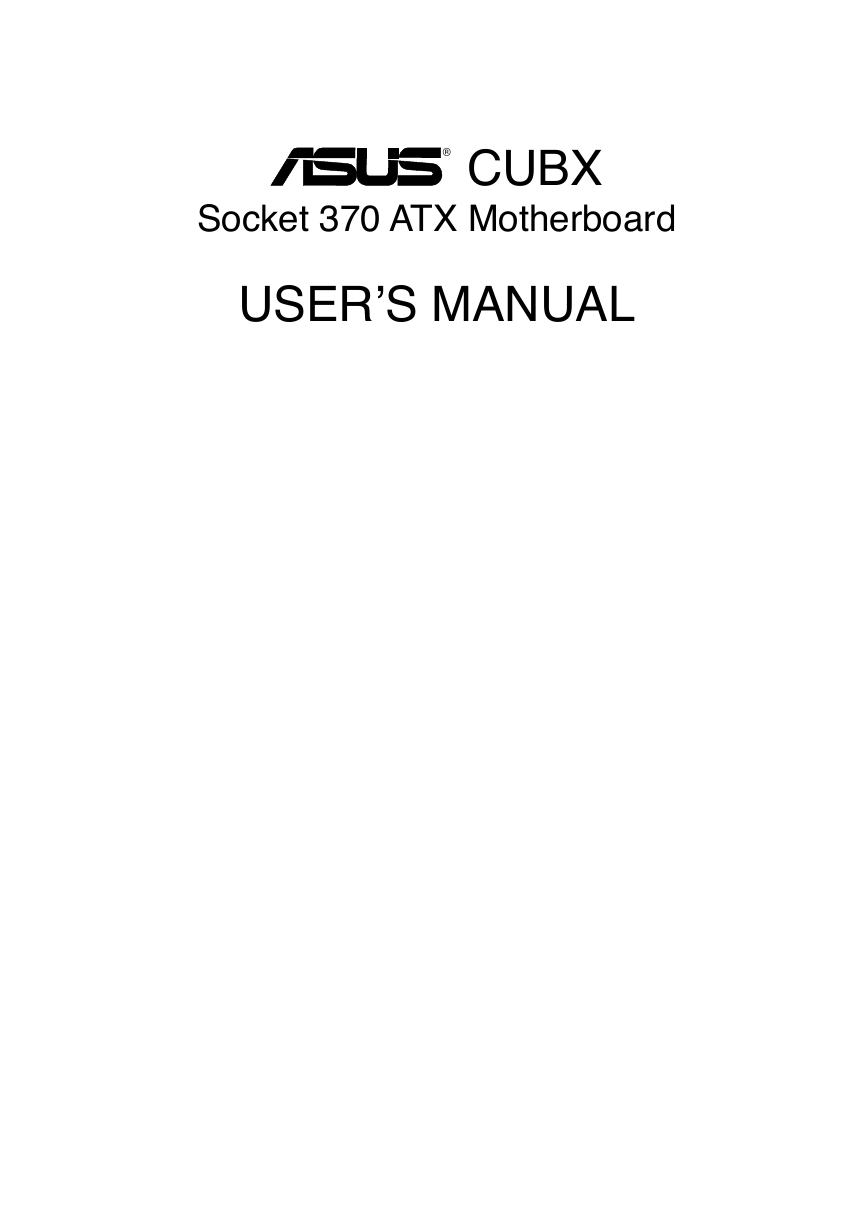

® CUBX Socket 370 ATX Motherboard USER’S MANUAL

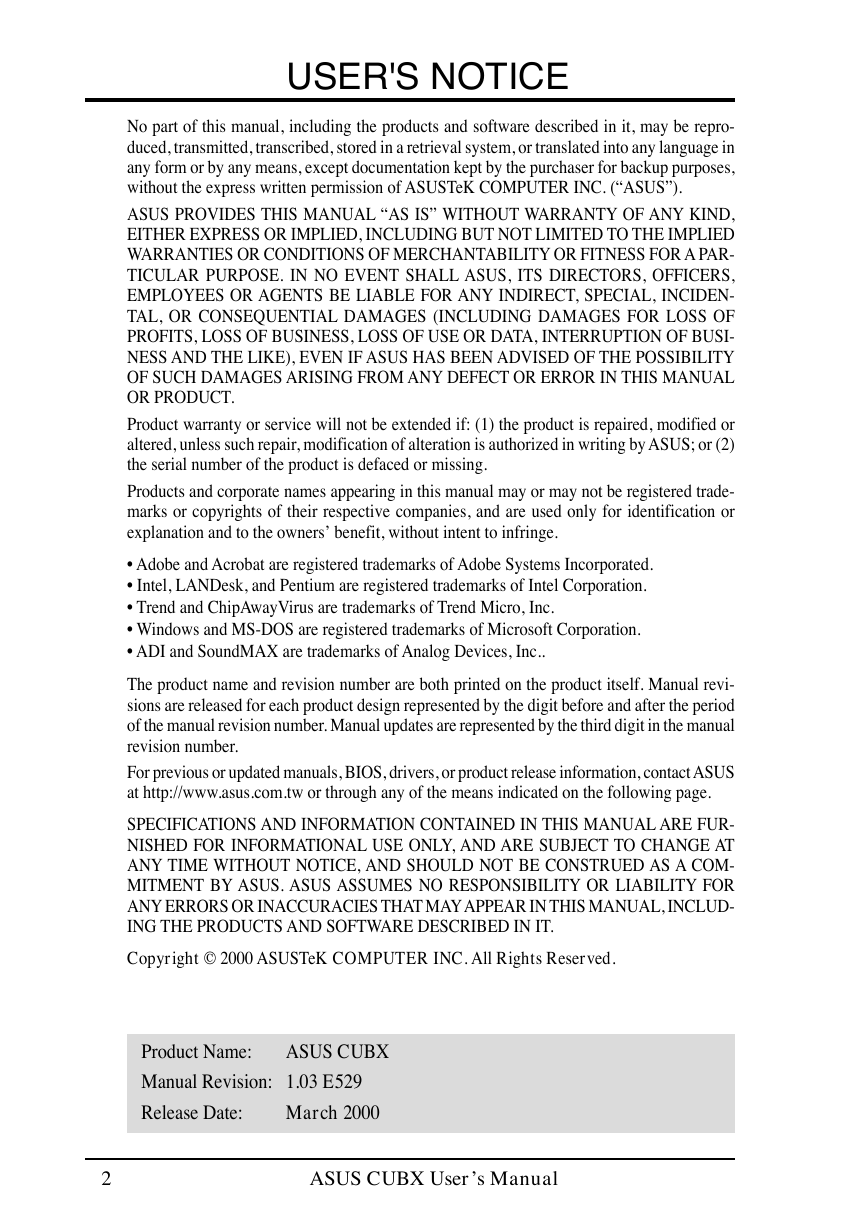

USER'S NOTICE No part of this manual, including the products and software described in it, may be repro- duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PAR- TICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDEN- TAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSI- NESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. Products and corporate names appearing in this manual may or may not be registered trade- marks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. • Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated. • Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation. • Trend and ChipAwayVirus are trademarks of Trend Micro, Inc. • Windows and MS-DOS are registered trademarks of Microsoft Corporation. • ADI and SoundMAX are trademarks of Analog Devices, Inc.. The product name and revision number are both printed on the product itself. Manual revi- sions are released for each product design represented by the digit before and after the period of the manual revision number. Manual updates are represented by the third digit in the manual revision number. For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS at http://www.asus.com.tw or through any of the means indicated on the following page. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR- NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM- MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUD- ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 2000 ASUSTeK COMPUTER INC. All Rights Reserved. ASUS CUBX Product Name: Manual Revision: 1.03 E529 Release Date: March 2000 2 ASUS CUBX User’s Manual

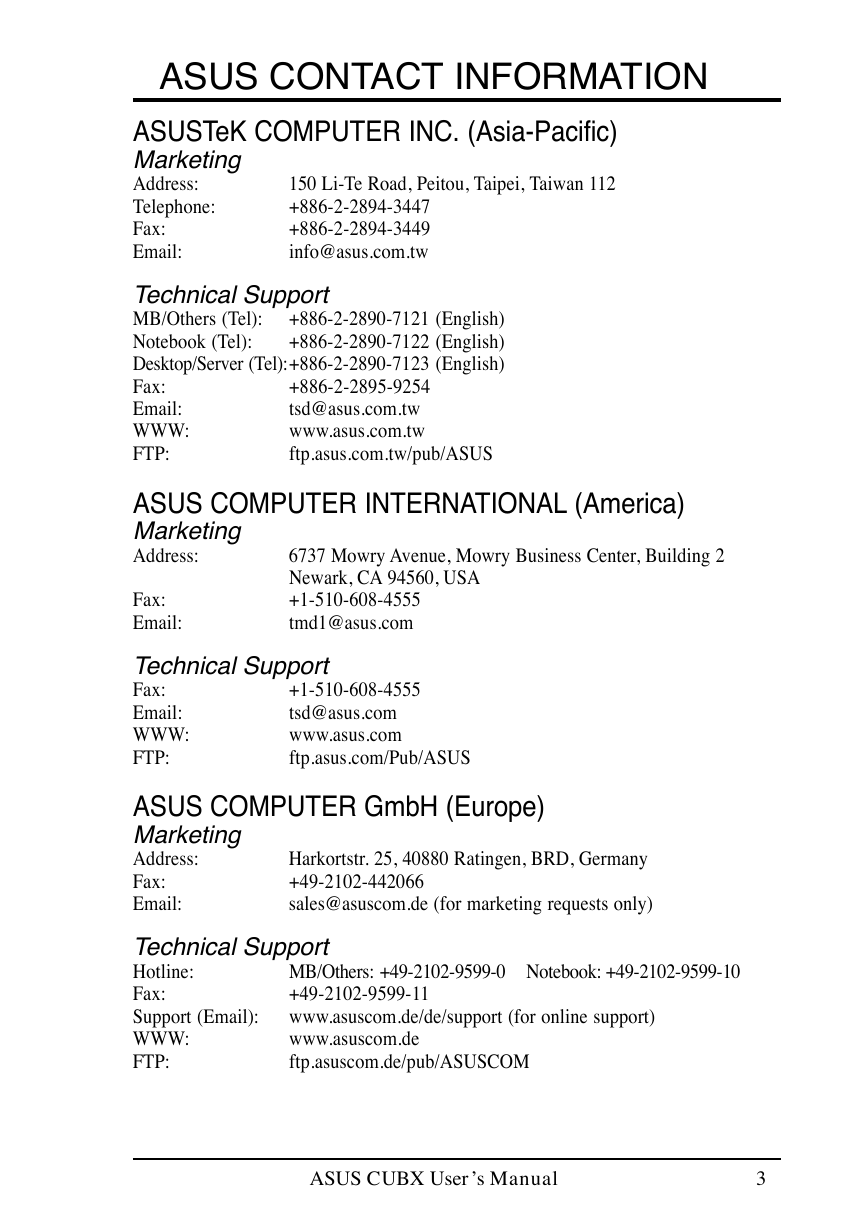

ASUS CONTACT INFORMATION ASUSTeK COMPUTER INC. (Asia-Pacific) Marketing Address: Telephone: Fax: Email: 150 Li-Te Road, Peitou, Taipei, Taiwan 112 +886-2-2894-3447 +886-2-2894-3449 info@asus.com.tw Technical Support MB/Others (Tel): +886-2-2890-7121 (English) Notebook (Tel): +886-2-2890-7122 (English) Desktop/Server (Tel):+886-2-2890-7123 (English) Fax: Email: WWW: FTP: +886-2-2895-9254 tsd@asus.com.tw www.asus.com.tw ftp.asus.com.tw/pub/ASUS ASUS COMPUTER INTERNATIONAL (America) Marketing Address: 6737 Mowry Avenue, Mowry Business Center, Building 2 Newark, CA 94560, USA +1-510-608-4555 tmd1@asus.com Fax: Email: Technical Support Fax: Email: WWW: FTP: +1-510-608-4555 tsd@asus.com www.asus.com ftp.asus.com/Pub/ASUS ASUS COMPUTER GmbH (Europe) Marketing Address: Fax: Email: Harkortstr. 25, 40880 Ratingen, BRD, Germany +49-2102-442066 sales@asuscom.de (for marketing requests only) Technical Support Hotline: Fax: Support (Email): WWW: FTP: MB/Others: +49-2102-9599-0 Notebook: +49-2102-9599-10 +49-2102-9599-11 www.asuscom.de/de/support (for online support) www.asuscom.de ftp.asuscom.de/pub/ASUSCOM ASUS CUBX User’s Manual 3

CONTENTS 1. INTRODUCTION .............................................................................. 7 1.1 How This Manual Is Organized .................................................. 7 1.2 Item Checklist ............................................................................. 7 2. FEATURES ......................................................................................... 8 2.1 The ASUS CUBX Motherboard ................................................. 8 2.1.1 Specifications .................................................................. 8 2.1.2 Special Features ............................................................. 10 2.1.3 Performance Features .................................................... 10 2.1.4 Intelligence .................................................................... 11 2.2 CUBX Motherboard Components ............................................ 12 2.2.1 Component Locations .................................................... 13 3. HARDWARE SETUP ...................................................................... 14 3.1 CUBX Motherboard Layout ..................................................... 14 3.2 Layout Contents ........................................................................ 15 3.3 Hardware Setup Procedure ....................................................... 17 3.4 Motherboard Settings ................................................................ 17 3.5 System Memory (DIMM) ......................................................... 22 3.5.1 General DIMM Notes .................................................... 22 3.5.2 Memory Installation ...................................................... 23 3.6 Central Processing Unit (CPU) ................................................. 25 3.7 Expansion Cards ....................................................................... 26 3.7.1 Expansion Card Installation Procedure ......................... 26 3.7.2 Assigning IRQs for Expansion Cards ............................ 27 3.7.3 Accelerated Graphics Port (AGP) ................................. 29 3.8 Connectors ................................................................................ 30 3.9 Starting Up the First Time ........................................................ 41 4. BIOS SETUP .................................................................................... 42 4.1 Managing and Updating Your BIOS ......................................... 42 4.1.1 Upon First Use of the Computer System ....................... 42 4.1.2 Updating BIOS Procedures (only when necessary) ...... 43 4.2 BIOS Setup Program ................................................................ 45 4.2.1 BIOS Menu Bar ............................................................. 46 4.2.2 Legend Bar .................................................................... 46 4.3 Main Menu ................................................................................ 48 4.3.1 Primary & Secondary Master/Slave .............................. 49 4.3.2 Keyboard Features ......................................................... 52 4 ASUS CUBX User’s Manual

CONTENTS 4.4 Advanced Menu ........................................................................ 54 4.4.1 Chip Configuration ........................................................ 58 4.4.2 I/O Device Configuration .............................................. 60 4.4.3 PCI Configuration ......................................................... 62 4.4.4 Shadow Configuration ................................................... 65 4.5 Power Menu .............................................................................. 66 4.5.1 Power Up Control .......................................................... 68 4.5.2 Hardware Monitor ......................................................... 70 4.6 Boot Menu ................................................................................ 71 4.7 Exit Menu ................................................................................. 73 5. SOFTWARE SETUP ....................................................................... 75 5.1 Install Operating System ........................................................... 75 5.2 Start Windows ........................................................................... 75 5.3 BX Series Motherboard Support CD ........................................ 76 5.4 Intel LDCM Administrator Setup ............................................. 79 5.5 Intel LDCM Client Setup .......................................................... 81 5.6 ASUS BIOS Flash Utility for LDCM ....................................... 82 5.7 Install ASUS PC Probe Vx.xx .................................................. 83 5.8 Install ASUS Update Vx.xx ...................................................... 84 5.9 Install PC-Cillin 98 Vx.xx ........................................................ 85 5.10 Install Adobe Acrobat Reader Vx.x .......................................... 86 5.11 Uninstalling Programs .............................................................. 87 6. SOFTWARE REFERENCE ........................................................... 89 6.1 ASUS PC Probe ........................................................................ 89 6.2 ASUS Update ............................................................................ 94 7. APPENDIX ........................................................................................ 95 7.1 PCI-L101 Fast Ethernet Card ................................................... 95 7.2 ASUS CIDB Intrusion Detection Module ................................ 97 7.3 Glossary .................................................................................... 99 INDEX ................................................................................................. 103 ASUS CUBX User’s Manual 5

FCC & DOC COMPLIANCE Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interfer- ence by one or more of the following measures: • Re-orient or relocate the receiving antenna. • • Connect the equipment to an outlet on a circuit different from that to which the Increase the separation between the equipment and receiver. receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING! Any changes or modifications to this product not expressly ap- proved by the manufacturer could void any assurances of safety or performance and could result in violation of Part 15 of the FCC Rules. Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal Register, National Archives and Records Administration, U.S. Government Printing Office. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 6 ASUS CUBX User’s Manual

I N O T C U D O R T N I . 1 t s i l k c e h C / l a u n a M 1. INTRODUCTION 1.1 How This Manual Is Organized This manual is divided into the following sections: Manual information and checklist Production information and specifications Intructions on setting up the motherboard. Intructions on setting up the BIOS Intructions on setting up the included software Reference material for the included software Optional items and general reference 1. INTRODUCTION 2. FEATURES 3. HARDWARE SETUP 4. BIOS SETUP 5. SOFTWARE SETUP 6. SOFTWARE REFERENCE 7. APPENDIX 1.2 Item Checklist Please check that your package is complete. If you discover damaged or missing items, please contact your retailer. Optional Items ASUS CIDB chassis intrusion de- tection module ASUS IrDA-compliant infrared module ASUS PCI-L101 Wake-On-LAN 10/100 Ethernet Card Package Contents (1) ASUS Motherboard (1) 40-pin 80-conductor ribbon cable for internal UltraDMA/66 or UltraDMA/33 IDE drives (1) Ribbon cable for internal UltraDMA/33 IDE drives (1) Ribbon cable for one 5.25” and two 3.5” floppy disk drives (1) ASUS 3-port USB connector set with bracket (1) Bag of spare jumper caps (1) ASUS Support CD with drivers and utilities (1) This Motherboard User’s Manual ASUS CUBX User’s Manual 7

S p e c i f i c a t i o n s 2 . F E A T U R E S 2. FEATURES 2.1 The ASUS CUBX Motherboard The ASUS CUBX is carefully designed for the demanding PC user who wants ad- vanced features processed by the fastest CPU. 2.1.1 Specifications • Latest Intel Processor Support Intel Pentium® III Intel Celeron™ 100MHz FSB Coppermine core 66MHz FSB Mendocino FC-PGA PPGA • • Intel AGPset: Features Intel’s 440BX AGPset with I/O subsystems and front-side bus (FSB) platform, which boosts the traditional 66MHz external bus speed to 100MHz. JumperFree™ Mode: Allows processor settings and easy overclocking of fre- quency and Vcore voltage all through BIOS setup when JumperFree™ mode is enabled. Easy-to-use DIP switches instead of jumpers are included to allow manual adjustment of the processor’s external frequency. • Anti-Boot Virus BIOS: Features a programmable BIOS, offering enhanced Advanced Configuration Power Interface (ACPI) support for Windows 98 com- patibility, built-in firmware-based virus protection through Trend ChipAway Virus codes, and autodetection of most devices for virtually automatic setup. • • • PC100 Memory Support: Equipped with four DIMM sockets to support Intel PC100-compliant SDRAMs (8, 16, 32, 64, 128, or 256MB) up to 1 GB. These new SDRAMs are necessary to meet the critical enhanced 100MHz bus speed requirement. Peripheral Wake Up: Supports modem, PS/2 keyboard, PS/2 mouse, and LAN card wake up functions from sleep or soft-off mode. PC Health Monitoring: Provides an easier way to examine and manage system status information, such as CPU and system voltages, temperatures, and fan status through the onboard hardware ASIC and the bundled LDCM by Intel or PC Probe from ASUS. • AGP Slot: Supports an Accelerated Graphics Port card for high performance, component level interconnect targeted at 3D graphical display applications us- ing a 1X or 2X mode bus. • PCI/ISA Expansion Slots: Provides options of six 32-bit PCI (rev 2.2) expansion slots with one ISA or six PCI with no ISA, depending on territory. PCI supports up to 133MB/s maximum throughput. • Multi-I/O: Provides two high-speed UART compatible serial ports and one paral- lel port with EPP and ECP capabilities. 8 ASUS CUBX User’s Manual
