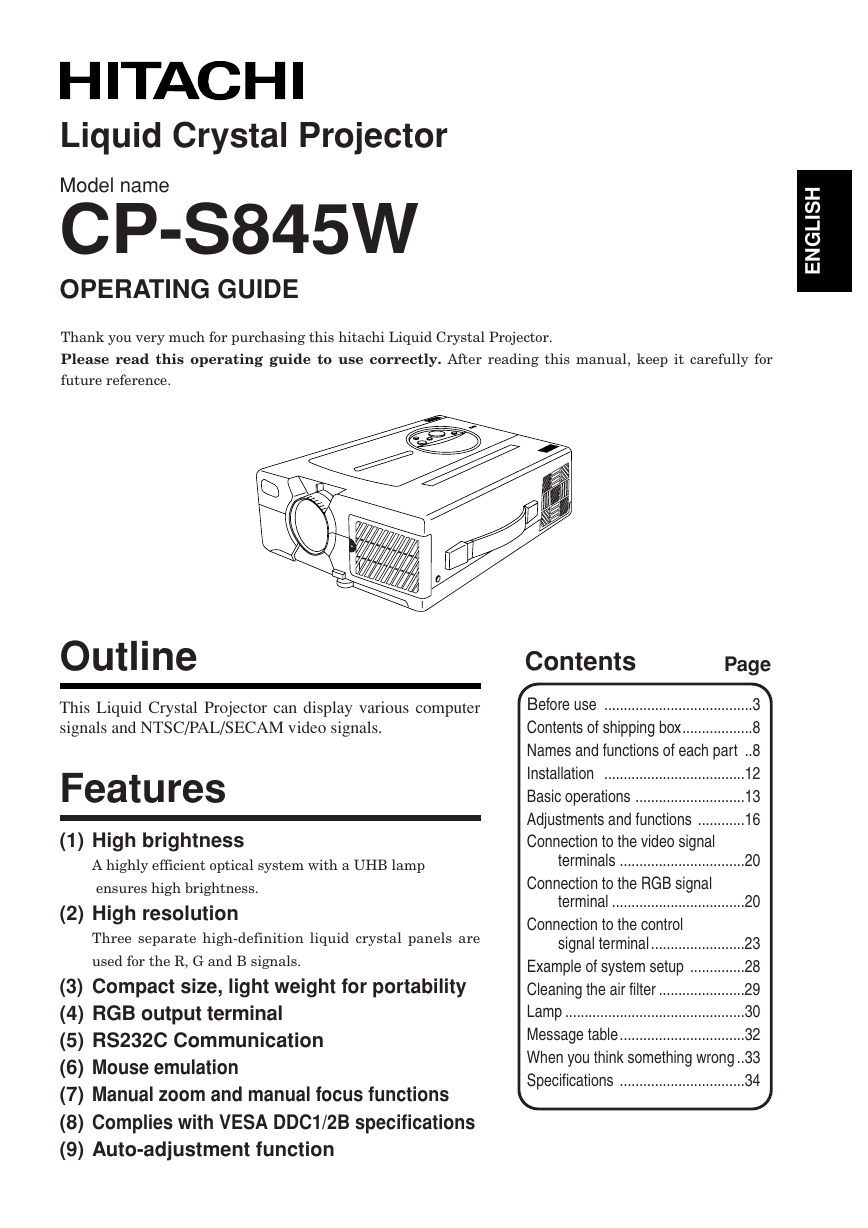

日立投影机-CP-S845W说明书.pdf
Liquid Crystal Projector
Model name
CP-S845W
OPERATING GUIDE
I
H
S
L
G
N
E
Thank you very much for purchasing this hitachi Liquid Crystal Projector.
Please read this operating guide to use correctly. After reading this manual, keep it carefully for
future reference.
Outline
This Liquid Crystal Projector can display various computer
signals and NTSC/PAL/SECAM video signals.
Features
(1) High brightness
A highly efficient optical system with a UHB lamp
ensures high brightness.
(2) High resolution
Three separate high-definition liquid crystal panels are
used for the R, G and B signals.
(3) Compact size, light weight for portability
(4) RGB output terminal
(5) RS232C Communication
(6) Mouse emulation
(7) Manual zoom and manual focus functions
(8) Complies with VESA DDC1/2B specifications
(9) Auto-adjustment function
Contents
Page
Before use ......................................3
Contents of shipping box..................8
Names and functions of each part ..8
Installation ....................................12
Basic operations ............................13
Adjustments and functions ............16
Connection to the video signal
terminals ................................20
Connection to the RGB signal
terminal ..................................20
Connection to the control
signal terminal........................23
Example of system setup ..............28
Cleaning the air filter ......................29
Lamp ..............................................30
Message table................................32
When you think something wrong ..33
Specifications ................................34

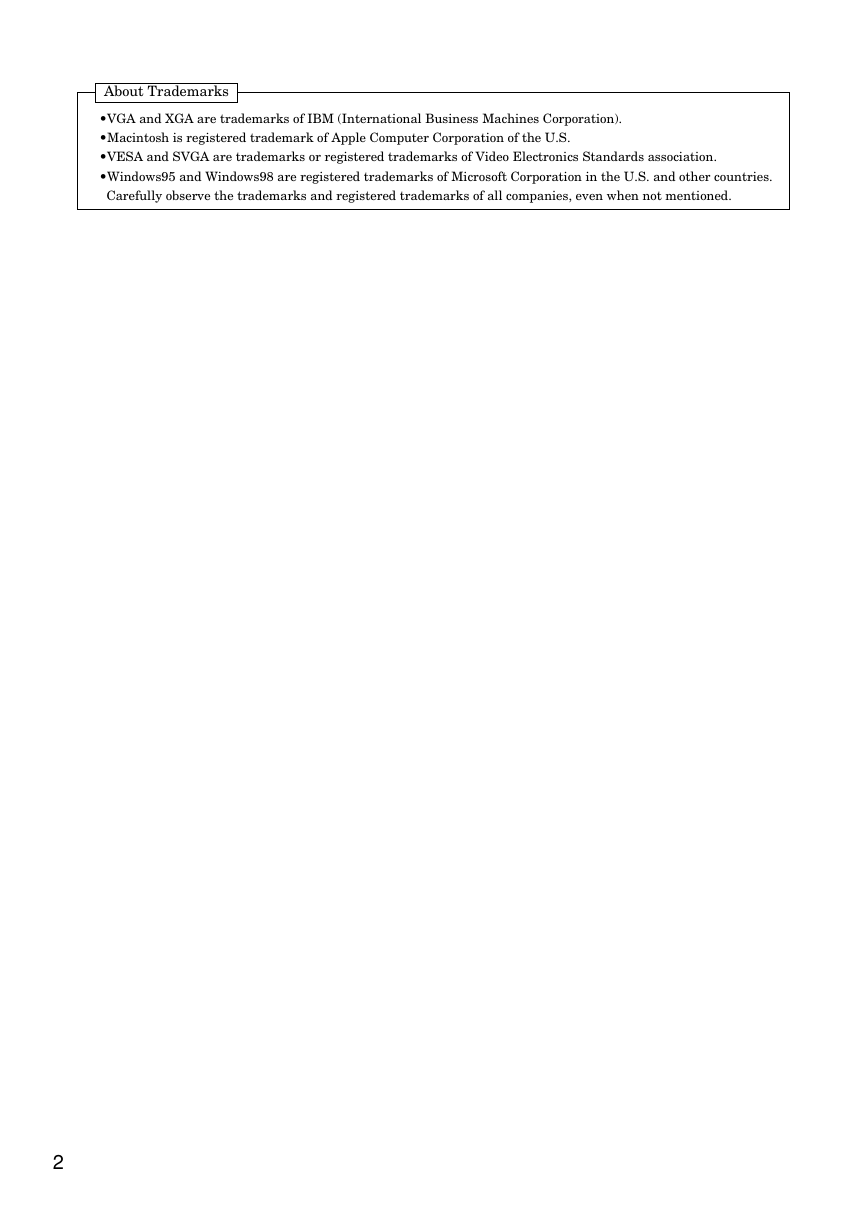

About Trademarks
•VGA and XGA are trademarks of IBM (International Business Machines Corporation).
•Macintosh is registered trademark of Apple Computer Corporation of the U.S.
•VESA and SVGA are trademarks or registered trademarks of Video Electronics Standards association.
•Windows95 and Windows98 are registered trademarks of Microsoft Corporation in the U.S. and other countries.
Carefully observe the trademarks and registered trademarks of all companies, even when not mentioned.
2

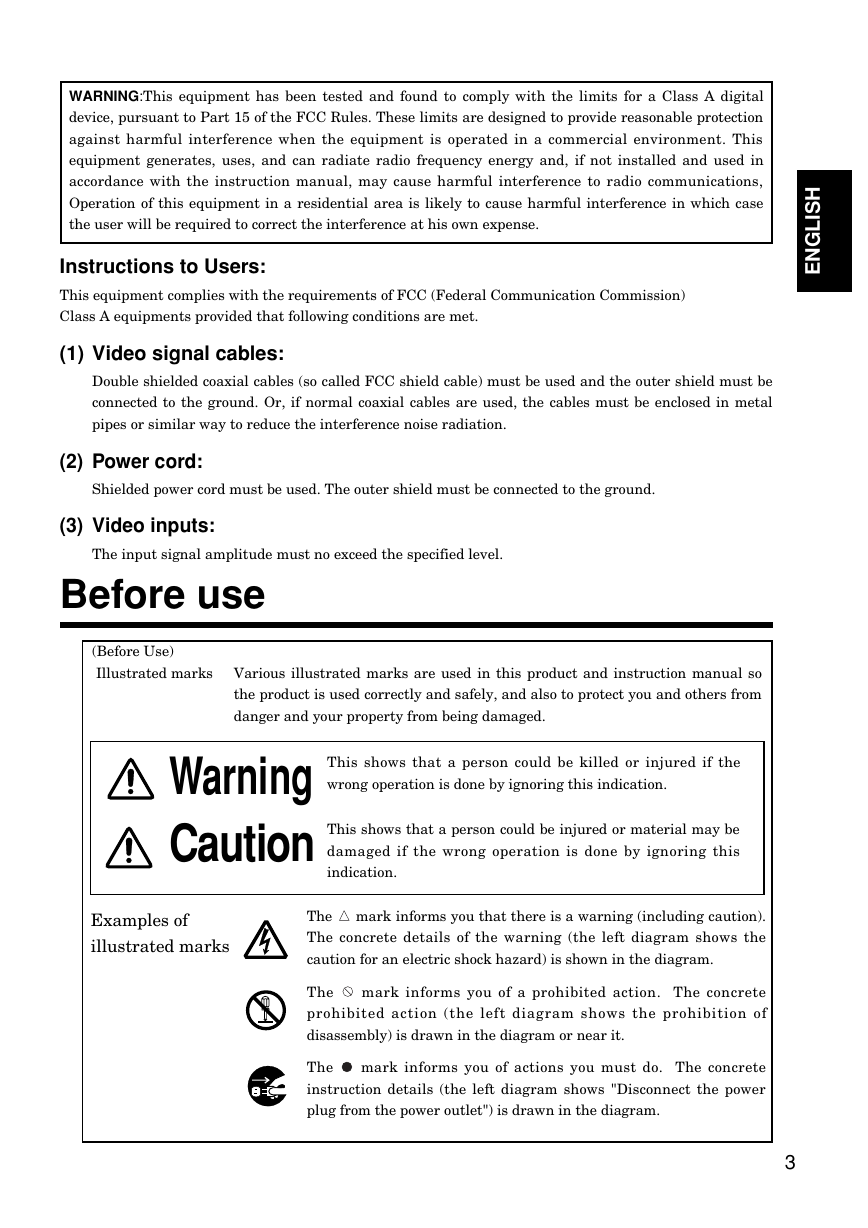

WARNING:This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications,
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Instructions to Users:
This equipment complies with the requirements of FCC (Federal Communication Commission)
Class A equipments provided that following conditions are met.
(1) Video signal cables:
Double shielded coaxial cables (so called FCC shield cable) must be used and the outer shield must be
connected to the ground. Or, if normal coaxial cables are used, the cables must be enclosed in metal
pipes or similar way to reduce the interference noise radiation.
(2) Power cord:
Shielded power cord must be used. The outer shield must be connected to the ground.
I
H
S
L
G
N
E
(3) Video inputs:
The input signal amplitude must no exceed the specified level.
Before use
(Before Use)
Illustrated marks
Various illustrated marks are used in this product and instruction manual so
the product is used correctly and safely, and also to protect you and others from
danger and your property from being damaged.
Warning
Caution
This shows that a person could be killed or injured if the
wrong operation is done by ignoring this indication.
This shows that a person could be injured or material may be
damaged if the wrong operation is done by ignoring this
indication.
Examples of
illustrated marks
The mark informs you that there is a warning (including caution).
The concrete details of the warning (the left diagram shows the
caution for an electric shock hazard) is shown in the diagram.
The mark informs you of a prohibited action. The concrete
prohibited action (the left diagram shows the prohibition of
disassembly) is drawn in the diagram or near it.
The mark informs you of actions you must do. The concrete
instruction details (the left diagram shows "Disconnect the power
plug from the power outlet") is drawn in the diagram.
3

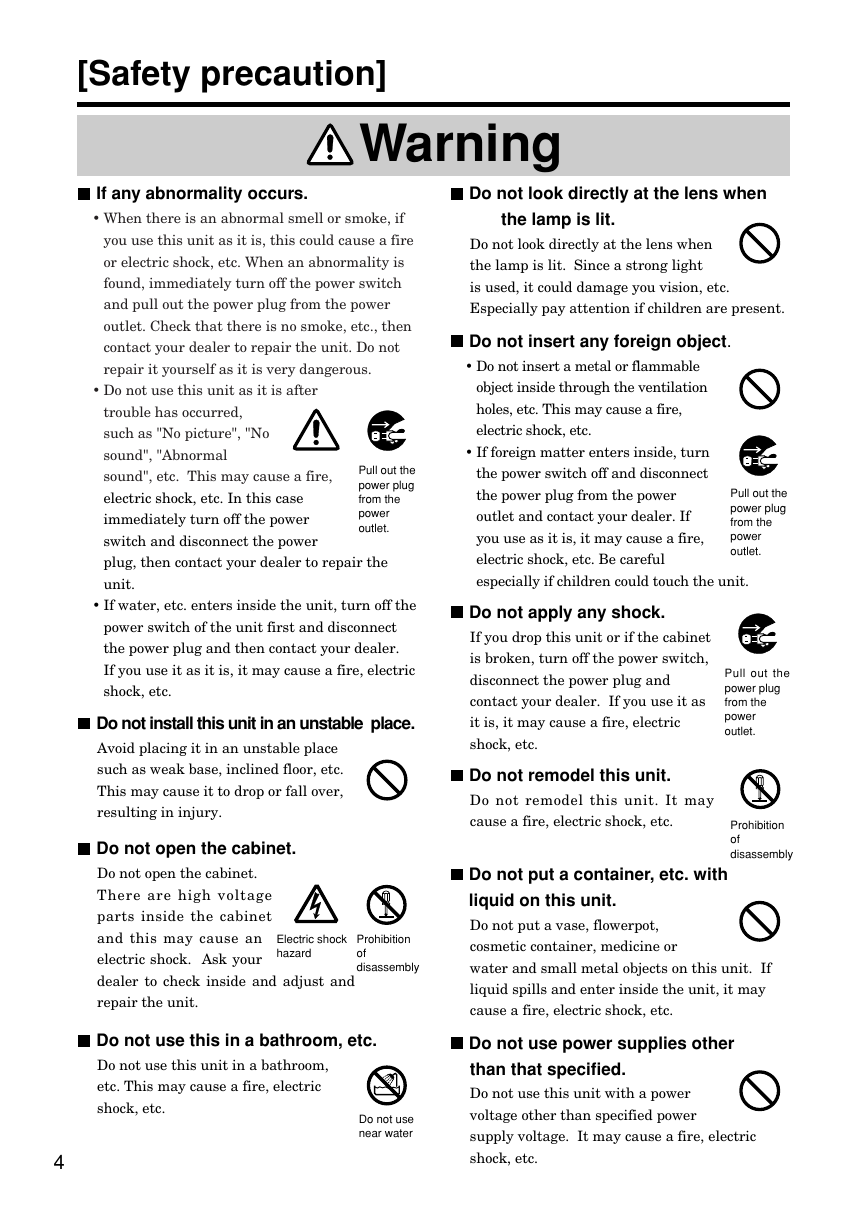

[Safety precaution]
Warning
If any abnormality occurs.
• When there is an abnormal smell or smoke, if
you use this unit as it is, this could cause a fire
or electric shock, etc. When an abnormality is
found, immediately turn off the power switch
and pull out the power plug from the power
outlet. Check that there is no smoke, etc., then
contact your dealer to repair the unit. Do not
repair it yourself as it is very dangerous.
• Do not use this unit as it is after
trouble has occurred,
such as "No picture", "No
sound", "Abnormal
sound", etc. This may cause a fire,
• electric shock, etc. In this case
immediately turn off the power
switch and disconnect the power
plug, then contact your dealer to repair the
unit.
Pull out the
power plug
from the
power
outlet.
• If water, etc. enters inside the unit, turn off the
power switch of the unit first and disconnect
the power plug and then contact your dealer.
If you use it as it is, it may cause a fire, electric
shock, etc.
Do not install this unit in an unstable place.
Avoid placing it in an unstable place
such as weak base, inclined floor, etc.
This may cause it to drop or fall over,
resulting in injury.
Do not open the cabinet.
Do not open the cabinet.
There are high voltage
parts inside the cabinet
and this may cause an
electric shock. Ask your
dealer to check inside and adjust and
repair the unit.
Electric shock
hazard
Prohibition
of
disassembly
Do not use this in a bathroom, etc.
Do not use this unit in a bathroom,
etc. This may cause a fire, electric
shock, etc.
Do not use
near water
4
Do not look directly at the lens when
the lamp is lit.
Do not look directly at the lens when
the lamp is lit. Since a strong light
is used, it could damage you vision, etc.
Especially pay attention if children are present.
Do not insert any foreign object.
• Do not insert a metal or flammable
object inside through the ventilation
holes, etc. This may cause a fire,
electric shock, etc.
• If foreign matter enters inside, turn
the power switch off and disconnect
the power plug from the power
outlet and contact your dealer. If
you use as it is, it may cause a fire,
electric shock, etc. Be careful
especially if children could touch the unit.
Pull out the
power plug
from the
power
outlet.
Do not apply any shock.
If you drop this unit or if the cabinet
is broken, turn off the power switch,
disconnect the power plug and
contact your dealer. If you use it as
it is, it may cause a fire, electric
shock, etc.
Do not remodel this unit.
Do not remodel this unit. It may
cause a fire, electric shock, etc.
Pull out the
power plug
from the
power
outlet.
Prohibition
of
disassembly
Do not put a container, etc. with
liquid on this unit.
Do not put a vase, flowerpot,
cosmetic container, medicine or
water and small metal objects on this unit. If
liquid spills and enter inside the unit, it may
cause a fire, electric shock, etc.
Do not use power supplies other
than that specified.
Do not use this unit with a power
voltage other than specified power
supply voltage. It may cause a fire, electric
shock, etc.
Warning
High temperatures are generated
when the lamp is lit, so do not place
objects in front of the lens.
Be careful in handling the power cord.
• Do not scratch, damage or process the power
cord. Do not bend it forcibly. Also do not put a
heavy object on it, do not heat it and do not pull
it. If you do, the power cord may be damaged and
it may cause a fire, electric shock, etc.
⋅ Do not pull the cord.
⋅ Do not put a heavy object on it.
⋅ Do not damage the cord.
⋅ Do not put it near a heating
device.
• Be careful that this unit is not placed
on the power cord. The power cord may be
damaged and it may cause a fire, electric shock,
etc. If the cord is covered with a carpet, etc. a
heavy object may be put on it without your
realizing it.
• If the cord is damaged (core wire is
exposed, disconnected, etc.), ask
your dealer to replace it. It may
cause a fire, electric shock, etc.
• Check that no dirt adheres to the
power plug and fully insert without any play. If
dirt adheres or the connection is incomplete, it
may cause a fire, electric shock, etc.
• The outer shield of power cord must be
connected to ground.
If you do not, it may cause a
electric shock.

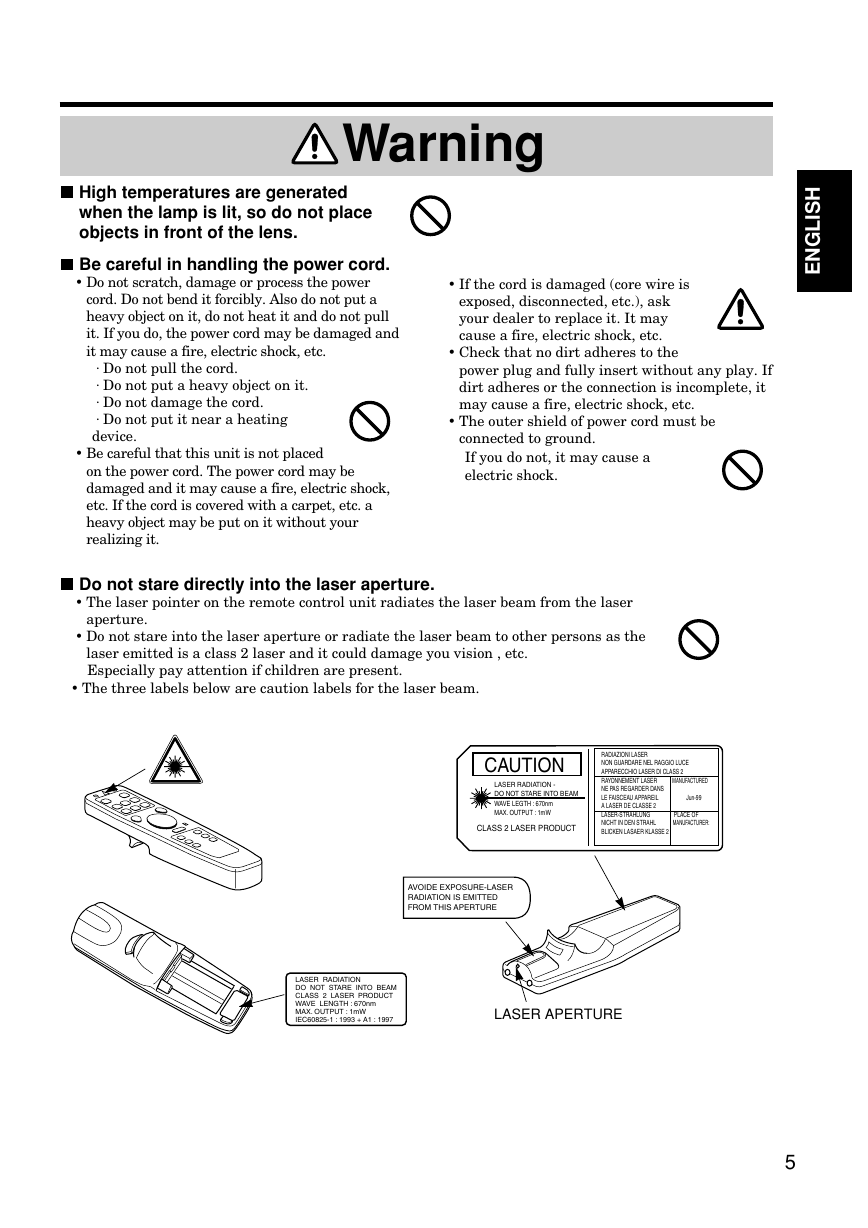

Do not stare directly into the laser aperture.
• The laser pointer on the remote control unit radiates the laser beam from the laser
aperture.
• Do not stare into the laser aperture or radiate the laser beam to other persons as the
laser emitted is a class 2 laser and it could damage you vision , etc.
Especially pay attention if children are present.
• The three labels below are caution labels for the laser beam.
CAUTION
LASER RADIATION -
DO NOT STARE INTO BEAM
WAVE LEGTH : 670nm
MAX. OUTPUT : 1mW
CLASS 2 LASER PRODUCT
RADIAZIONI LASER
NON GUARDARE NEL RAGGIO LUCE
APPARECCHIO LASER DI CLASS 2
RAYONNEMENT LASER MANUFACTURED
NE PAS REGARDER DANS
LE FAISCEAU APPAREIL Jun-99
A LASER DE CLASSE 2
LASER-STRAHLUNG PLACE OF
NICHT IN DEN STRAHL MANUFACTURER:
BLICKEN LASAER KLASSE 2
AVOIDE EXPOSURE-LASER
RADIATION IS EMITTED
FROM THIS APERTURE
LASER RADIATION
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
WAVE LENGTH : 670nm
MAX. OUTPUT : 1mW
IEC60825-1 : 1993 + A1 : 1997
LASER APERTURE
I
H
S
L
G
N
E
5

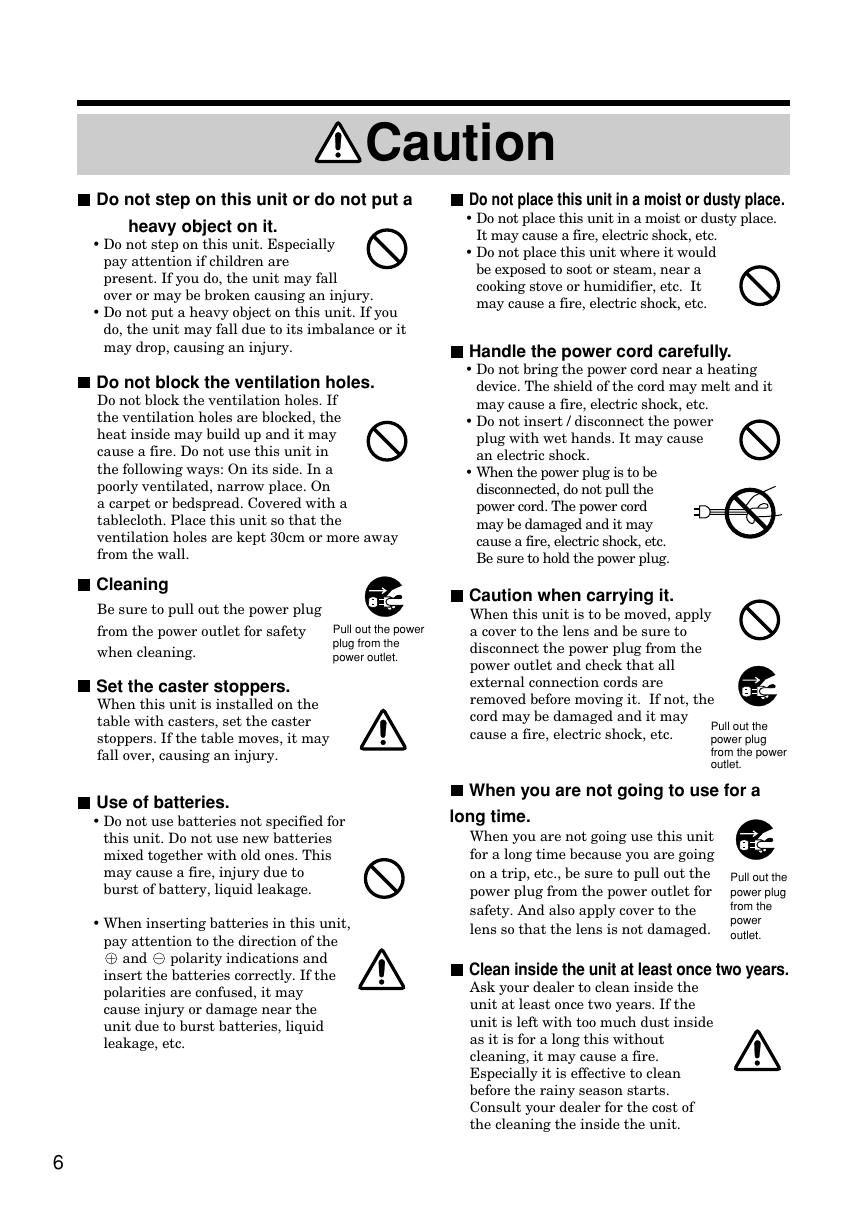

Caution
Do not step on this unit or do not put a
heavy object on it.
• Do not step on this unit. Especially
pay attention if children are
present. If you do, the unit may fall
over or may be broken causing an injury.
• Do not put a heavy object on this unit. If you
do, the unit may fall due to its imbalance or it
may drop, causing an injury.
Do not block the ventilation holes.
Do not block the ventilation holes. If
the ventilation holes are blocked, the
heat inside may build up and it may
cause a fire. Do not use this unit in
the following ways: On its side. In a
poorly ventilated, narrow place. On
a carpet or bedspread. Covered with a
tablecloth. Place this unit so that the
ventilation holes are kept 30cm or more away
from the wall.
Cleaning
Be sure to pull out the power plug
from the power outlet for safety
when cleaning.
Set the caster stoppers.
When this unit is installed on the
table with casters, set the caster
stoppers. If the table moves, it may
fall over, causing an injury.
Pull out the power
plug from the
power outlet.
Use of batteries.
• Do not use batteries not specified for
this unit. Do not use new batteries
mixed together with old ones. This
may cause a fire, injury due to
burst of battery, liquid leakage.
• When inserting batteries in this unit,
pay attention to the direction of the
and
polarity indications and
insert the batteries correctly. If the
polarities are confused, it may
cause injury or damage near the
unit due to burst batteries, liquid
leakage, etc.
6
Do not place this unit in a moist or dusty place.
• Do not place this unit in a moist or dusty place.
It may cause a fire, electric shock, etc.
• Do not place this unit where it would
be exposed to soot or steam, near a
cooking stove or humidifier, etc. It
may cause a fire, electric shock, etc.
Handle the power cord carefully.
• Do not bring the power cord near a heating
device. The shield of the cord may melt and it
may cause a fire, electric shock, etc.
• Do not insert / disconnect the power
plug with wet hands. It may cause
an electric shock.
• When the power plug is to be
disconnected, do not pull the
power cord. The power cord
may be damaged and it may
cause a fire, electric shock, etc.
Be sure to hold the power plug.
Caution when carrying it.
When this unit is to be moved, apply
a cover to the lens and be sure to
disconnect the power plug from the
power outlet and check that all
external connection cords are
removed before moving it. If not, the
cord may be damaged and it may
cause a fire, electric shock, etc.
Pull out the
power plug
from the power
outlet.
When you are not going to use for a
long time.
When you are not going use this unit
for a long time because you are going
on a trip, etc., be sure to pull out the
power plug from the power outlet for
safety. And also apply cover to the
lens so that the lens is not damaged.
Pull out the
power plug
from the
power
outlet.
Clean inside the unit at least once two years.
Ask your dealer to clean inside the
unit at least once two years. If the
unit is left with too much dust inside
as it is for a long this without
cleaning, it may cause a fire.
Especially it is effective to clean
before the rainy season starts.
Consult your dealer for the cost of
the cleaning the inside the unit.

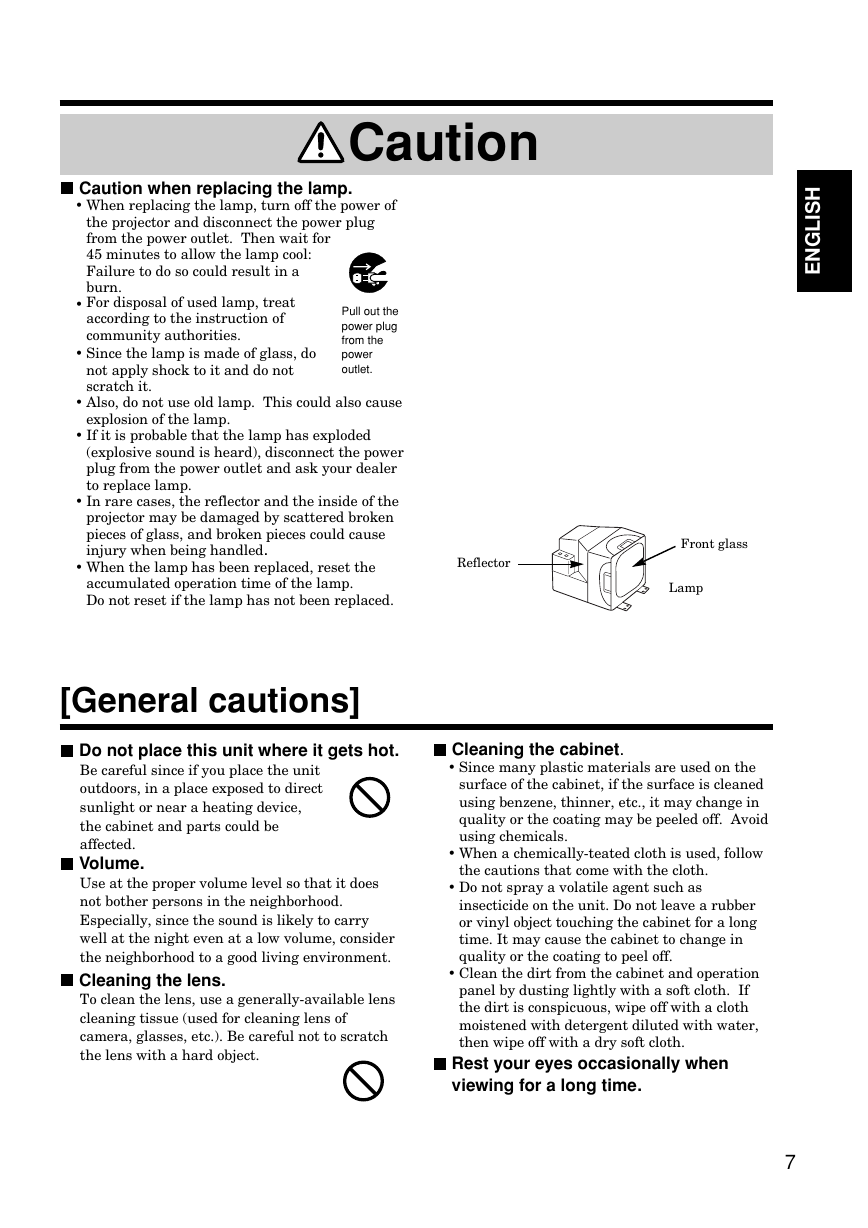

Caution
Caution when replacing the lamp.
• When replacing the lamp, turn off the power of
the projector and disconnect the power plug
from the power outlet. Then wait for
45 minutes to allow the lamp cool:
Failure to do so could result in a
burn.
• For disposal of used lamp, treat
according to the instruction of
community authorities.
• Since the lamp is made of glass, do
not apply shock to it and do not
scratch it.
Pull out the
power plug
from the
power
outlet.
• Also, do not use old lamp. This could also cause
explosion of the lamp.
• If it is probable that the lamp has exploded
(explosive sound is heard), disconnect the power
plug from the power outlet and ask your dealer
to replace lamp.
• In rare cases, the reflector and the inside of the
projector may be damaged by scattered broken
pieces of glass, and broken pieces could cause
injury when being handled.
• When the lamp has been replaced, reset the
accumulated operation time of the lamp.
• Do not reset if the lamp has not been replaced.
[General cautions]
Do not place this unit where it gets hot.
Be careful since if you place the unit
outdoors, in a place exposed to direct
sunlight or near a heating device,
the cabinet and parts could be
affected.
Volume.
Use at the proper volume level so that it does
not bother persons in the neighborhood.
Especially, since the sound is likely to carry
well at the night even at a low volume, consider
the neighborhood to a good living environment.
Cleaning the lens.
To clean the lens, use a generally-available lens
cleaning tissue (used for cleaning lens of
camera, glasses, etc.). Be careful not to scratch
the lens with a hard object.
I
H
S
L
G
N
E
7
Reflector
Front glass
Lamp
Cleaning the cabinet.
• Since many plastic materials are used on the
surface of the cabinet, if the surface is cleaned
using benzene, thinner, etc., it may change in
quality or the coating may be peeled off. Avoid
using chemicals.
• When a chemically-teated cloth is used, follow
the cautions that come with the cloth.
• Do not spray a volatile agent such as
insecticide on the unit. Do not leave a rubber
or vinyl object touching the cabinet for a long
time. It may cause the cabinet to change in
quality or the coating to peel off.
• Clean the dirt from the cabinet and operation
panel by dusting lightly with a soft cloth. If
the dirt is conspicuous, wipe off with a cloth
moistened with detergent diluted with water,
then wipe off with a dry soft cloth.
Rest your eyes occasionally when
viewing for a long time.

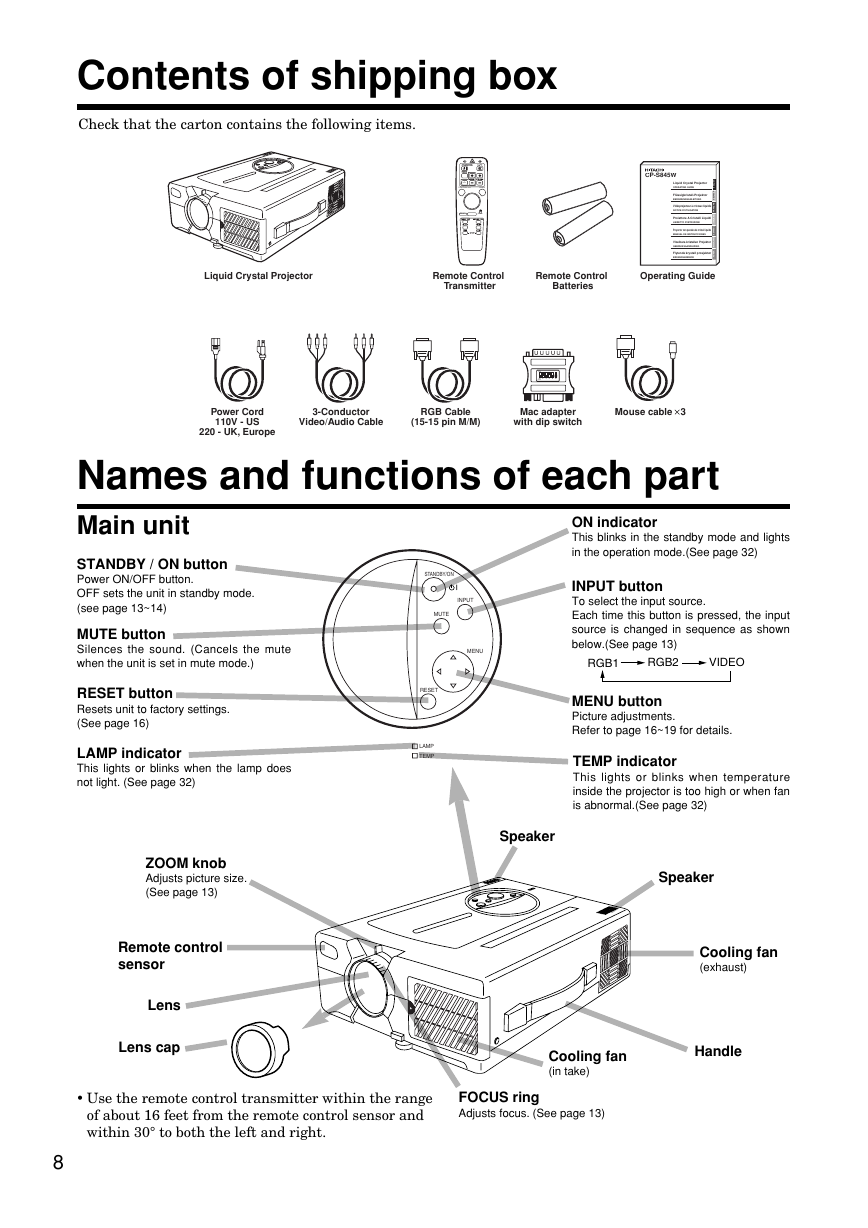

Contents of shipping box
Check that the carton contains the following items.
OFF
POSITION ON
LASER
RESET
RIGHT
CP-S845W
Liquid Crystal Projector
OPERATING GUIDE
Flüssigkristall-Projektor
BEDIENUNGSANLEITUNG
Vidéoprojecteur à cristaux liquidis
NOTICE D'UTILISATION
Proiettore A Cristalli Liquidi
LIBRETTO D'ISTRUZIONI
Proyector con paneles de cristal líquido
MANUAL DE INSTRUCCIONES
Vloeibare-kristallen Projektor
GEBRUIKSAANWIJZING
Flytende krystall prosjektør
BRUKERHÅNDBOK
I
H
S
L
G
N
E
H
C
S
T
U
E
D
I
S
A
Ç
N
A
R
F
O
N
A
L
A
T
I
I
L
O
Ñ
A
P
S
E
S
D
N
A
L
R
E
D
E
N
K
S
R
O
N
Liquid Crystal Projector
Remote Control
Transmitter
Remote Control
Batteries
Operating Guide
Power Cord
110V - US
220 - UK, Europe
3-Conductor
Video/Audio Cable
RGB Cable
(15-15 pin M/M)
Mac adapter
with dip switch
Mouse cable 3
ON
1 2 3 4 5 6
OFF
Names and functions of each part
Main unit
STANDBY / ON button
Power ON/OFF button.
OFF sets the unit in standby mode.
(see page 13~14)
STANDBY/ON
INPUT
MUTE
MUTE button
Silences the sound. (Cancels the mute
when the unit is set in mute mode.)
RESET button
Resets unit to factory settings.
(See page 16)
LAMP indicator
This lights or blinks when the lamp does
not light. (See page 32)
MENU
RESET
LAMP
TEMP
ZOOM knob
Adjusts picture size.
(See page 13)
Remote control
sensor
Lens
Lens cap
ON indicator
This blinks in the standby mode and lights
in the operation mode.(See page 32)
INPUT button
To select the input source.
Each time this button is pressed, the input
source is changed in sequence as shown
below.(See page 13)
RGB2
VIDEO
RGB1
MENU button
Picture adjustments.
Refer to page 16~19 for details.
TEMP indicator
This lights or blinks when temperature
inside the projector is too high or when fan
is abnormal.(See page 32)
Speaker
Speaker
Cooling fan
(exhaust)
Cooling fan
(in take)
Handle
• Use the remote control transmitter within the range
of about 16 feet from the remote control sensor and
within 30° to both the left and right.
FOCUS ring
Adjusts focus. (See page 13)
8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
