SK hynix UFS2 1 Product Family_ Datasheet

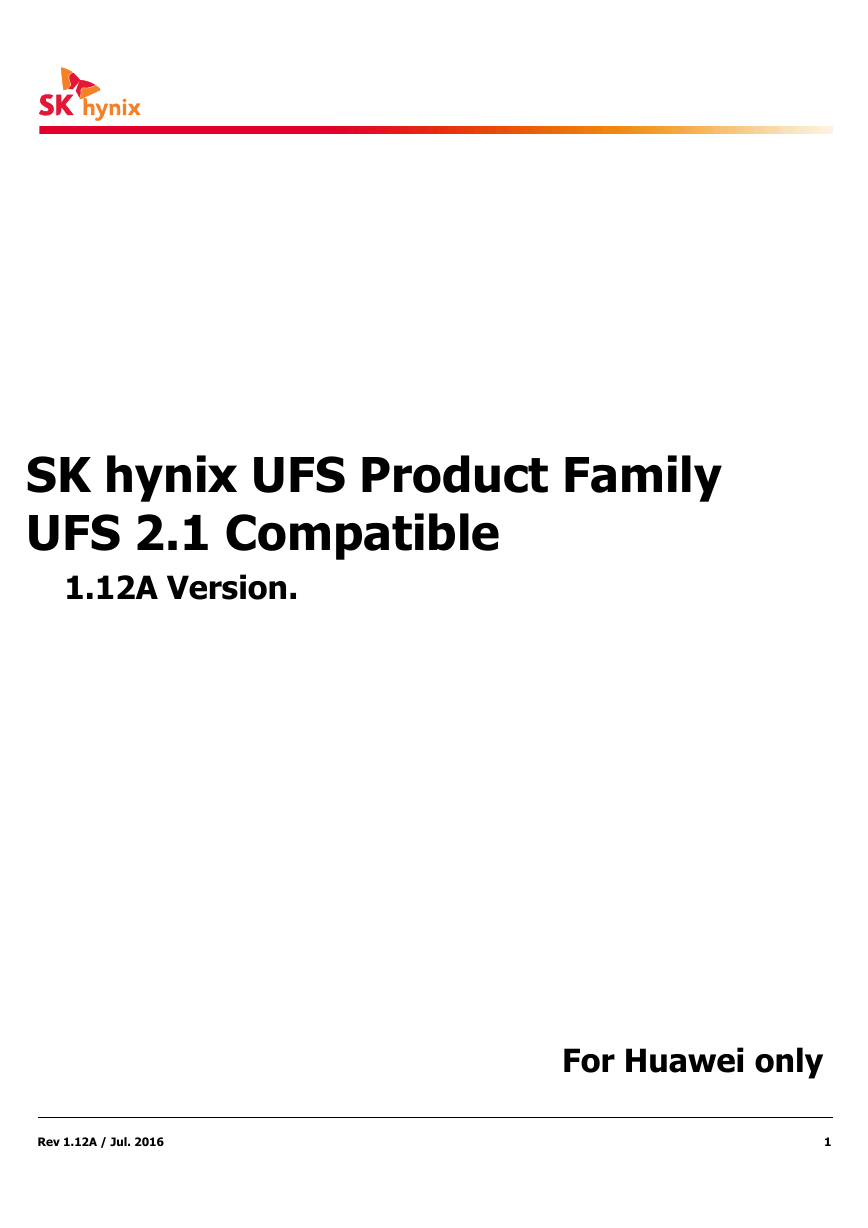

SK hynix UFS Product Family UFS 2.1 Compatible 1.12A Version. Rev 1.12A / Jul. 2016 1 For Huawei only

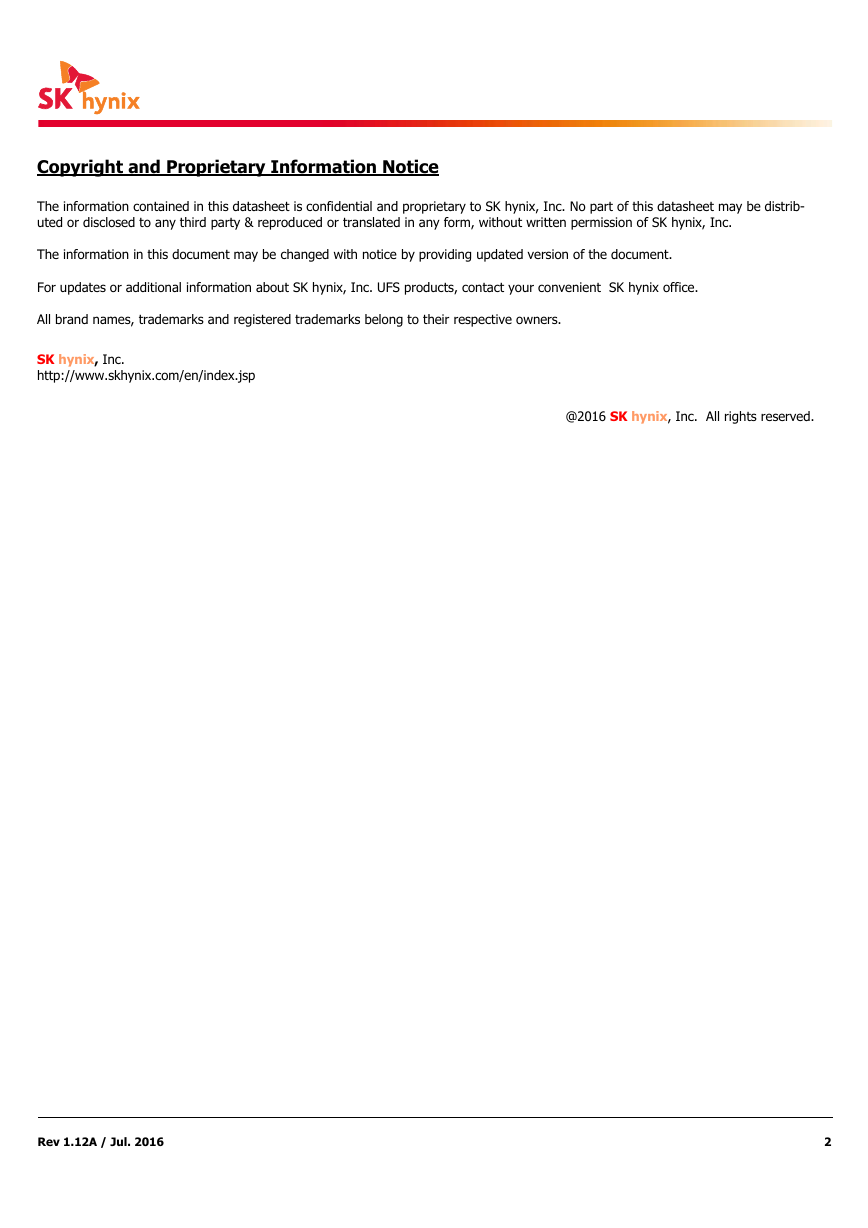

Copyright and Proprietary Information Notice The information contained in this datasheet is confidential and proprietary to SK hynix, Inc. No part of this datasheet may be distrib- uted or disclosed to any third party & reproduced or translated in any form, without written permission of SK hynix, Inc. The information in this document may be changed with notice by providing updated version of the document. For updates or additional information about SK hynix, Inc. UFS products, contact your convenient SK hynix office. All brand names, trademarks and registered trademarks belong to their respective owners. SK hynix, Inc. http://www.skhynix.com/en/index.jsp @2016 SK hynix, Inc. All rights reserved. Rev 1.12A / Jul. 2016 2

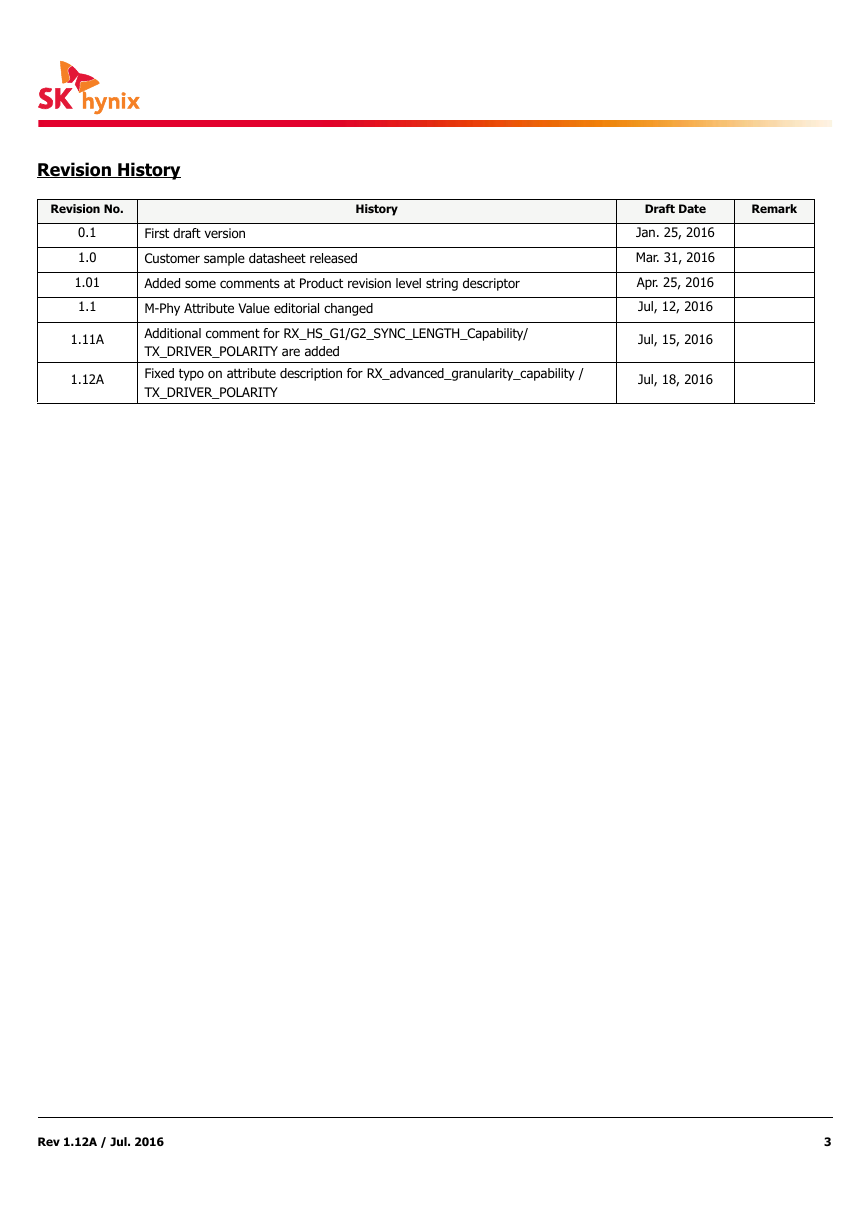

Revision History Revision No. History Draft Date Remark 0.1 1.0 1.01 1.1 1.11A 1.12A First draft version Customer sample datasheet released Added some comments at Product revision level string descriptor M-Phy Attribute Value editorial changed Additional comment for RX_HS_G1/G2_SYNC_LENGTH_Capability/ TX_DRIVER_POLARITY are added Fixed typo on attribute description for RX_advanced_granularity_capability / TX_DRIVER_POLARITY Jan. 25, 2016 Mar. 31, 2016 Apr. 25, 2016 Jul, 12, 2016 Jul, 15, 2016 Jul, 18, 2016 Rev 1.12A / Jul. 2016 3

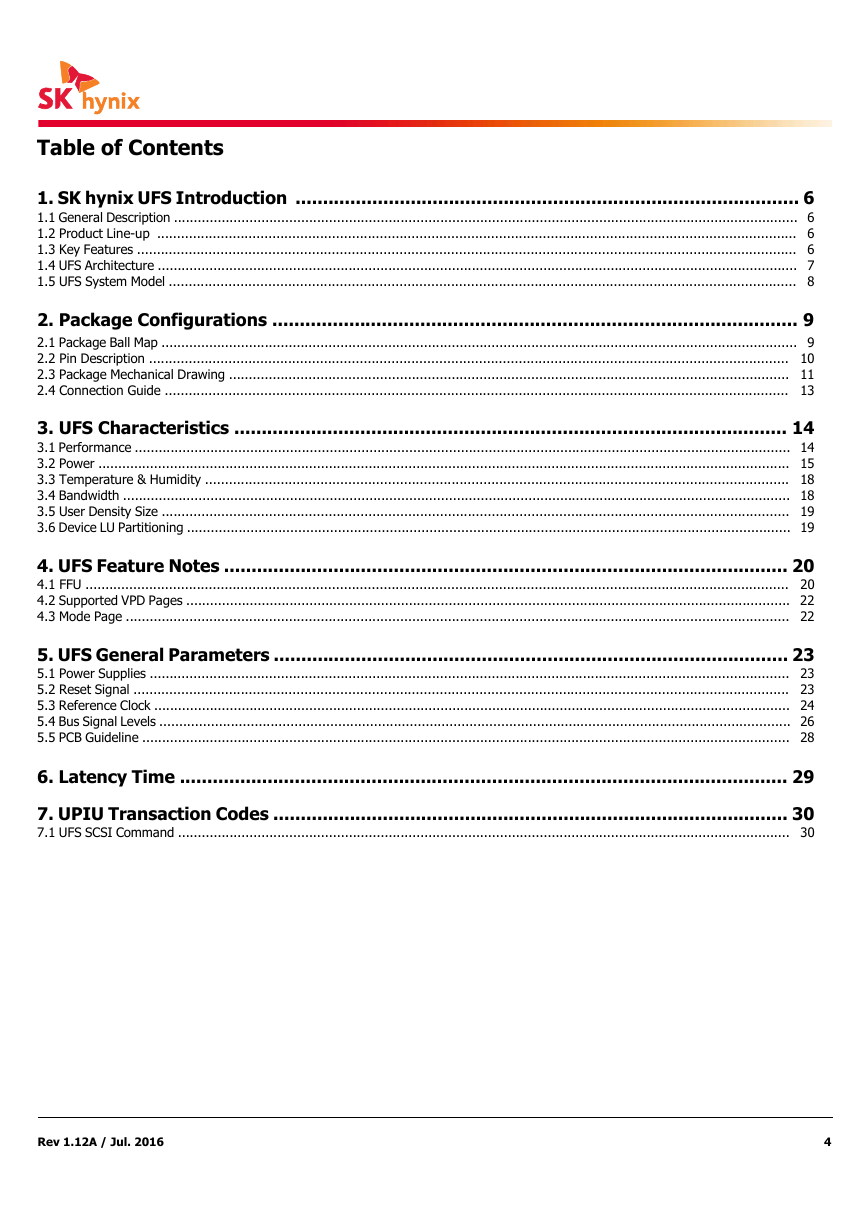

Table of Contents 1. SK hynix UFS Introduction ............................................................................................ 6 1.1 General Description ............................................................................................................................................................. 6 1.2 Product Line-up ................................................................................................................................................................. 6 1.3 Key Features ...................................................................................................................................................................... 6 1.4 UFS Architecture ................................................................................................................................................................. 7 1.5 UFS System Model .............................................................................................................................................................. 8 2. Package Configurations ................................................................................................ 9 2.1 Package Ball Map ................................................................................................................................................................ 9 2.2 Pin Description ................................................................................................................................................................. 10 2.3 Package Mechanical Drawing ............................................................................................................................................. 11 2.4 Connection Guide ............................................................................................................................................................. 13 3. UFS Characteristics ..................................................................................................... 14 3.1 Performance ..................................................................................................................................................................... 14 3.2 Power .............................................................................................................................................................................. 15 3.3 Temperature & Humidity ................................................................................................................................................... 18 3.4 Bandwidth ........................................................................................................................................................................ 18 3.5 User Density Size .............................................................................................................................................................. 19 3.6 Device LU Partitioning ........................................................................................................................................................ 19 4. UFS Feature Notes ....................................................................................................... 20 4.1 FFU ................................................................................................................................................................................. 20 4.2 Supported VPD Pages ........................................................................................................................................................ 22 4.3 Mode Page ....................................................................................................................................................................... 22 5. UFS General Parameters .............................................................................................. 23 5.1 Power Supplies ................................................................................................................................................................. 23 5.2 Reset Signal ..................................................................................................................................................................... 23 5.3 Reference Clock ................................................................................................................................................................ 24 5.4 Bus Signal Levels ............................................................................................................................................................... 26 5.5 PCB Guideline ................................................................................................................................................................... 28 6. Latency Time ............................................................................................................... 29 7. UPIU Transaction Codes .............................................................................................. 30 7.1 UFS SCSI Command .......................................................................................................................................................... 30 Rev 1.12A / Jul. 2016 4

8. UFS Descriptors, Flags, Attributes ............................................................................... 31 8.1 Device Descriptor .............................................................................................................................................................. 32 8.2 Geometry Descriptor ......................................................................................................................................................... 34 8.3 Unit Descriptor ........................................,,,,,,,,,,,,,,,,,,,,,,,,,................................................................................................. 37 8.4 Power Parameters Descriptor ............................................................................................................................................. 40 8.5 Interconnect Descriptor ..................................................................................................................................................... 42 8.6 Manufacturer Name String Descriptor ................................................................................................................................ 42 8.7 Product Name String Descriptor ......................................................................................................................................... 43 8.8 OEM ID String Descriptor .................................................................................................................................................. 43 8.9 Serial Number String Descriptor ......................................................................................................................................... 43 8.10 Product Revision Level String Descriptor ........................................................................................................................... 44 8.11 Device Health Descriptor ................................................................................................................................................. 44 8.12 UFS Flags ...................................................................................................................................................................... 46 8.13 UFS Attributes ................................................................................................................................................................ 48 9. M-PHY & UniPro Attributes .......................................................................................... 52 9.1 M-TX Capacity Attributes .................................................................................................................................................... 52 9.2 M-RX Capacity Attributes ................................................................................................................................................... 56 9.3 M-TX Configuration Attributes ............................................................................................................................................ 60 9.4 M-RX Configuration Attributes ............................................................................................................................................ 64 9.5 M-TX & M-RX Status Attributes ........................................................................................................................................... 65 9.6 UniPro L1.5 Attributes ........................................................................................................................................................ 66 9.7 UniPro L2 Attributes .......................................................................................................................................................... 71 9.8 UniPro L3 Attributes .......................................................................................................................................................... 71 9.9 UniPro L4 Attributes .......................................................................................................................................................... 72 9.10 UniPro DME DDB L1 Attributes .......................................................................................................................................... 73 9.11 UniPro TstSrc/TstDst Attributes ........................................................................................................................................ 74 Rev 1.12A / Jul. 2016 5

1. SK hynix UFS Introduction 1.1 General Description SK hynix UFS product consists of NAND flash and UFS controller. UFS has the built-in intelligent controller which manages interface protocols, wear leveling, bad block management, garbage collection, and ECC. UFS protects data contents from sudden power off. The first UFS of SK hynix is compatible with JEDEC standard UFS2.1 specification and supports UniPro v1.6 and M-PHY v3.0 (HS-G1/G2/G3 Rate A/B, PWM-G1/G2/G3/G4/G5, Dual-lane) 1.2 Product Line-up Density 32GB 64GB 128GB Part Number H28U62301AMR H28U74301AMR H28U88301AMR NAND Stack 128Gb x 2 128Gb x 4 128Gb x 8 PKG size (mm) 11.5 x 13 x 1.0 11.5 x 13 x 1.0 11.5 x 13 x 1.0 Package Type 153FBGA 1.3 Key Features • UFS2.1 compatible - backward compatibility with UFS2.0 • Operating Voltage Range - Vcc (NAND) : 2.7V - 3.6V - Vccq (CTRL) : Not Used - Vccq2 (CTRL) : 1.7V - 1.95V • Temperature - Operation Temperature (-25℃ ~ +85℃) - Storage Temperature (-40℃ ~ +85℃) • Reference - JEDEC UFS Specification V2.1 - MIPI UniPro Specification V1.6 - MIPI M-PHY Specification V3.0 • Supported Features - Erase / Discard / Purge / Wipe - PWM G1~G5 / HS-G1~G3 - HS-G3 1L/2L - Command Queuing / Cache - RPMB / BOOT LU - Power-on/HW/EndPoint/LU Reset - BKOP - High Priority LU - Reliable Write Operation - Write Protect - Task Management operations - Context ID, Data Tag - Secure Removal Type - Power Management operations - MAX 8LU supported - Device Health Descriptor - Field Firmware Update Rev 1.12A / Jul. 2016 6

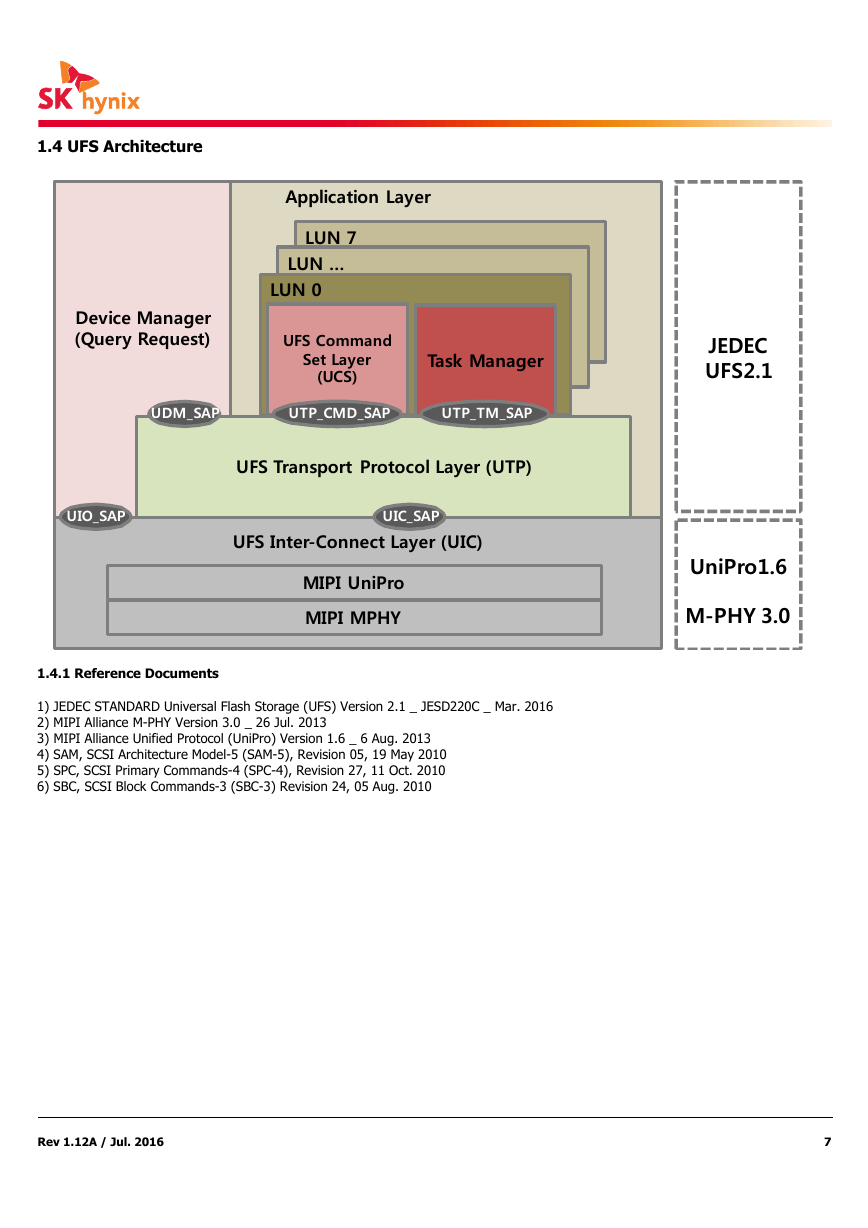

1.4 UFS Architecture Application Layer LUN 7 LUN … LUN 0 Device Manager (Query Request) UFS Command Set Layer (UCS) Task Manager JEDEC UFS2.1 UDM_SAP UTP_CMD_SAP UTP_TM_SAP UFS Transport Protocol Layer (UTP) UIO_SAP UIC_SAP UFS Inter-Connect Layer (UIC) MIPI UniPro MIPI MPHY UniPro1.6 M-PHY 3.0 1.4.1 Reference Documents 1) JEDEC STANDARD Universal Flash Storage (UFS) Version 2.1 _ JESD220C _ Mar. 2016 2) MIPI Alliance M-PHY Version 3.0 _ 26 Jul. 2013 3) MIPI Alliance Unified Protocol (UniPro) Version 1.6 _ 6 Aug. 2013 4) SAM, SCSI Architecture Model-5 (SAM-5), Revision 05, 19 May 2010 5) SPC, SCSI Primary Commands-4 (SPC-4), Revision 27, 11 Oct. 2010 6) SBC, SCSI Block Commands-3 (SBC-3) Revision 24, 05 Aug. 2010 Rev 1.12A / Jul. 2016 7

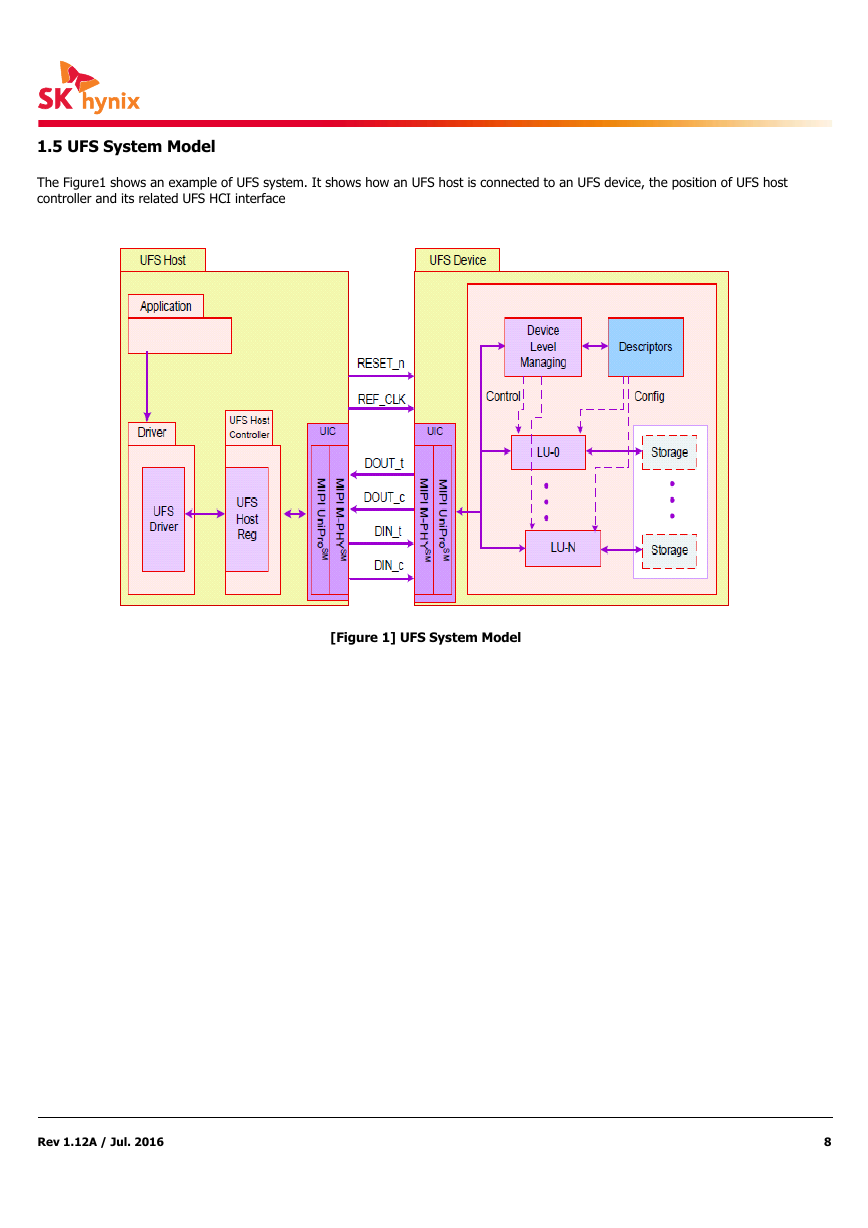

1.5 UFS System Model The Figure1 shows an example of UFS system. It shows how an UFS host is connected to an UFS device, the position of UFS host controller and its related UFS HCI interface [Figure 1] UFS System Model Rev 1.12A / Jul. 2016 8
