update on 230.qxd 1/12/00 11:22 AM Page 1 OWNER’S MANUAL AND REFERENCE ZOOM GPSMAP 230 ®

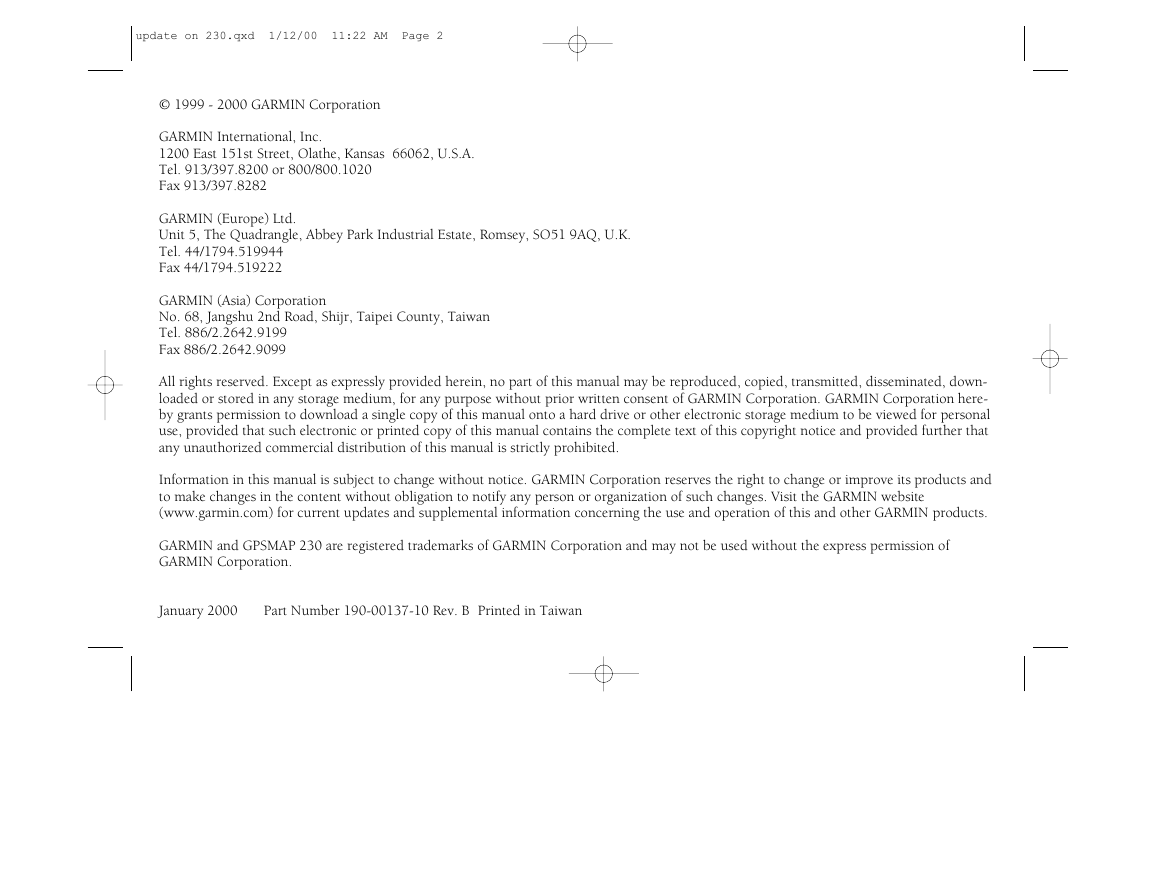

update on 230.qxd 1/12/00 11:22 AM Page 2 © 1999 - 2000 GARMIN Corporation GARMIN International, Inc. 1200 East 151st Street, Olathe, Kansas 66062, U.S.A. Tel. 913/397.8200 or 800/800.1020 Fax 913/397.8282 GARMIN (Europe) Ltd. Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9AQ, U.K. Tel. 44/1794.519944 Fax 44/1794.519222 GARMIN (Asia) Corporation No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax 886/2.2642.9099 All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, down- loaded or stored in any storage medium, for any purpose without prior written consent of GARMIN Corporation. GARMIN Corporation here- by grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed for personal use, provided that such electronic or printed copy of this manual contains the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual is strictly prohibited. Information in this manual is subject to change without notice. GARMIN Corporation reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes. Visit the GARMIN website (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other GARMIN products. GARMIN and GPSMAP 230 are registered trademarks of GARMIN Corporation and may not be used without the express permission of GARMIN Corporation. January 2000 Part Number 190-00137-10 Rev. B Printed in Taiwan

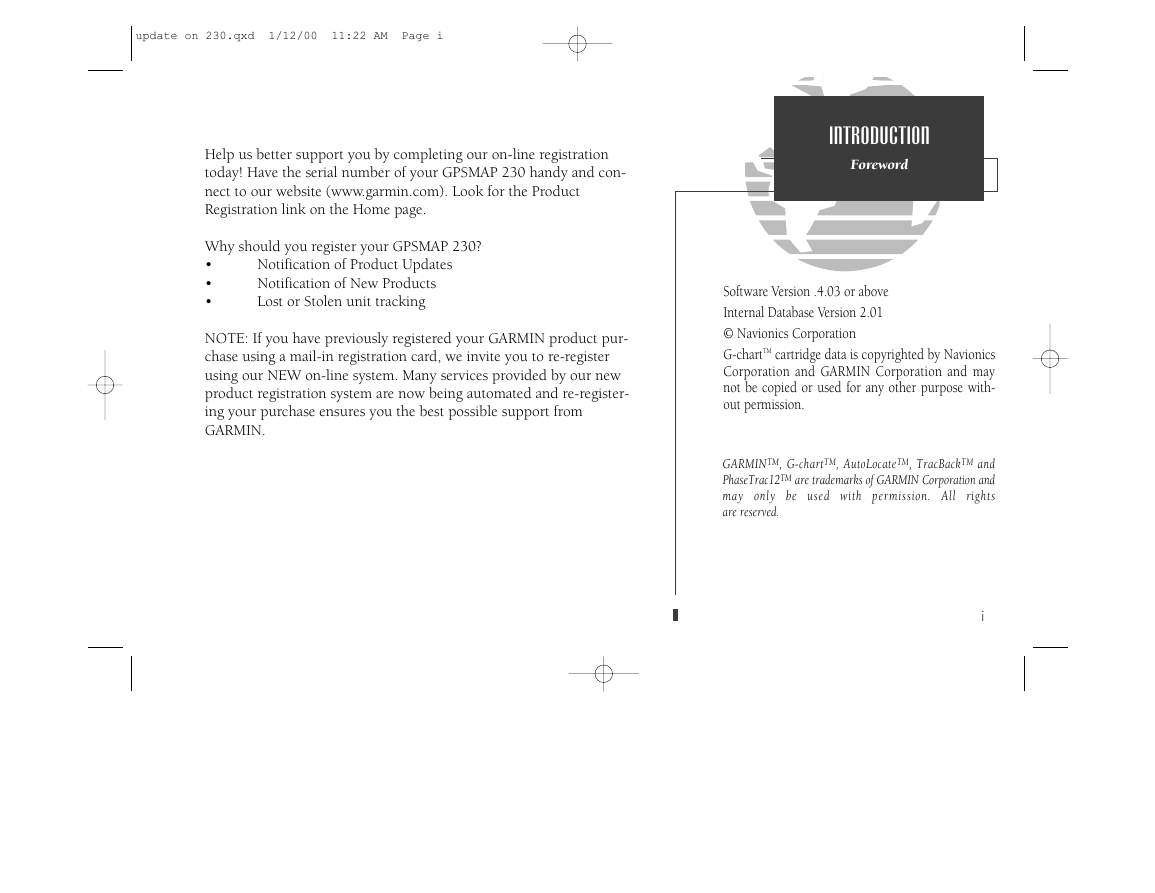

update on 230.qxd 1/12/00 11:22 AM Page i Help us better support you by completing our on-line registration today! Have the serial number of your GPSMAP 230 handy and con- nect to our website (www.garmin.com). Look for the Product Registration link on the Home page. Why should you register your GPSMAP 230? • • • Notification of Product Updates Notification of New Products Lost or Stolen unit tracking NOTE: If you have previously registered your GARMIN product pur- chase using a mail-in registration card, we invite you to re-register using our NEW on-line system. Many services provided by our new product registration system are now being automated and re-register- ing your purchase ensures you the best possible support from GARMIN. INTRODUCTION Foreword Software Version .4.03 or above Internal Database Version 2.01 © Navionics Corporation G-chartTM cartridge data is copyrighted by Navionics Corporation and GARMIN Corporation and may not be copied or used for any other purpose with- out permission. GARMINTM, G-chartTM, AutoLocateTM, TracBackTM and PhaseTrac12TM are trademarks of GARMIN Corporation and may only be used with permission. All rights are reserved. i

update on 230.qxd 1/12/00 11:22 AM Page ii INTRODUCTION Cautions CAUTION! The GARMIN GPSMAP 230 has no user-ser- viceable parts. Should you ever encounter a problem with your unit, please take it to an authorized GARMIN dealer for repairs. ii CAUTION The GPS system is operated by the United States government, which is solely responsible for its accuracy and maintenance. The system is subject to changes which could affect the accuracy and performance of all GPS equipment. Although the GARMIN GPSMAP 230 is a precision electronic NAVigation AID (NAVAID), any NAVAID can be misused or misinterpreted and, therefore, become unsafe. Use the GPSMAP 230 at your own risk. To reduce the risk of unsafe operation, carefully review and understand all aspects of this Owner’s Manual—and thoroughly practice operation using the simulator mode prior to actual use. When in actual use, carefully compare indications from the GPSMAP 230 to all available navigation sources, including the information from other NAVAIDs, visual sightings, charts, etc. For safety, always resolve any discrepancies before continuing navigation. NOTE: This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation. If this equipment does cause harmful interference, the user is encouraged to try to correct the interference by relocating the equipment or connecting the equipment to a different circuit. Consult an autho- rized dealer or other qualified technician for additional help if these remedies do not correct the problem. This device complies with Part 15 of the FCC limits for class B digital devices for home or office use. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The GPSMAP 230 contains no user-serviceable parts. Repairs should only be made by an authorized service center. Unauthorized repairs or modifications could void your warranty and your authority to operate this device under Part 15 regulations.

update on 230.qxd 1/12/00 11:22 AM Page iii Designed for detailed electronic charting and simple operation, the GARMIN GPSMAP 230 is a powerful navigation device that can help guide you in water- ways around the world: Precision Performance • 7” High-contrast 4-level gray LCD screen • PhaseTrac12TM receiver tracks and uses up to 12 satellites simultaneously for fast, accurate positioning • Differential-Ready— just add the optional GBR 21 beacon receiver for better than 10-meter accuracy • Gasketed case for use in exposed locations Advanced Navigating and Plotting • 250 alphanumeric waypoints with selectable icons and comments • Built-in worldwide database usable from 4096 to 64 nm scales • 20 reversible routes with up to 30 waypoints each • G-chartTM electronic charting with inland and offshore coverage • On-screen point-to-point distance and bearing calculations • TracBackTM route feature which allows you to quickly retrace your track log to a starting position • Built-in simulator mode INTRODUCTION Capabilities iii

update on 230.qxd 1/12/00 11:22 AM Page iv INTRODUCTION Warranty iv LIMITED WARRANTY GARMIN Corporation warrants this product to be free from defects in materials and manufacture for one year from the date of purchase. GARMIN will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor. The cus- tomer is, however, responsible for any transportation costs. This warranty does not cover failures due to abuse, misuse, accident or unauthorized alteration or repairs. THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED OR STATU- TORY, INCLUDING ANY LIABILITY ARISING UNDER ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE. IN NO EVENT SHALL GARMIN BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT OR FROM DEFECTS IN THE PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. To obtain warranty service, call the GARMIN Customer Service department (913- 397-8200) for a returned merchandise tracking number. The unit should be securely packaged with the tracking number clearly marked on the outside of the package and sent freight prepaid and insured to a GARMIN warranty service station. A copy of the original sales receipt is required as the proof of purchase for warranty repairs. GARMIN retains the exclusive right to repair or replace the unit or software or offer a full refund of the purchase price at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WAR- RANTY.

update on 230.qxd 1/12/00 11:22 AM Page v PREFACE INTRODUCTION Preface Congratulations on choosing one of the most advanced marine navigation sys- tems available! The GARMIN GPSMAP 230 combines the proven performance of GARMIN GPS with powerful G-Chart electronic charting for detailed cartography and plotting wherever you cruise. To get the most out of your new navigation system, take the time to go through this operator’s manual and learn the operating procedures for your unit. This man- ual is broken down into two sections for your convenience. Getting Started introduces you to the GPSMAP 230 and provides a tutorial that will help you become more familiar with the unit. This part will provide you with a basic working knowledge necessary to use the unit to it’s fullest potential. The Reference portion is divided into sections that provide detailed instruc- tions on the advanced features and operations of the GPSMAP 230. This allows you to concentrate on a specific topic quickly, without reading through entire por- tions of text that you may not need. An Appendix section concludes the manual with specific information needed for custom setup, trouble shooting, and indexing. WARNING! The electronic chart is an aid to navigation and is designed to facilitate the use of authorized govern- ment charts, not replace them. Only official gov- ernment charts and notices to mariners contain all information needed for the safety of naviga- tion–and, as always, the user is responsible for their prudent use. v

update on 230.qxd 1/12/00 11:22 AM Page vi INTRODUCTION Packing List vi Before installing and getting started with your unit, please check to see that your package includes the following items. If any parts are missing, please see your GARMIN dealer immediately. Standard Package: • GPSMAP 230 Unit • External Antenna and 30’ cable • Power/Data Cable • Mounting Bracket and Knobs • Owner’s Manual • Quick Reference Card Optional Accessories: • G-chart Electronic Chart Cartridges • PC Kit
