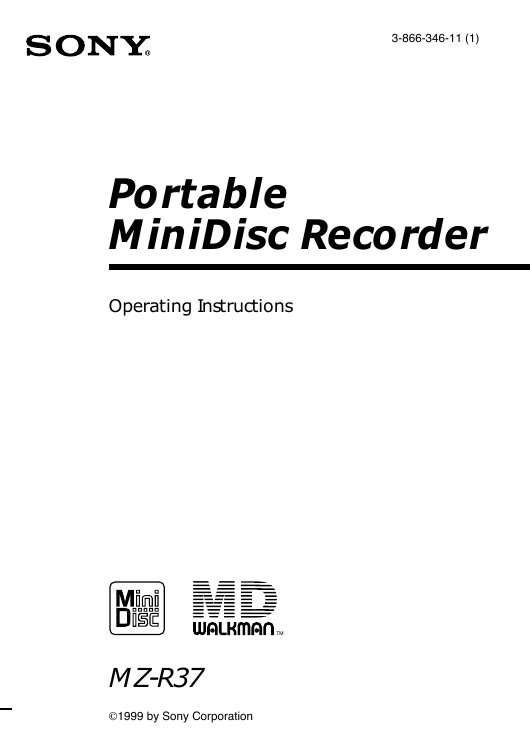

3-866-346-11 (1) Portable MiniDisc Recorder Operating Instructions TM MZ-R37 ª 1999 by Sony Corporation

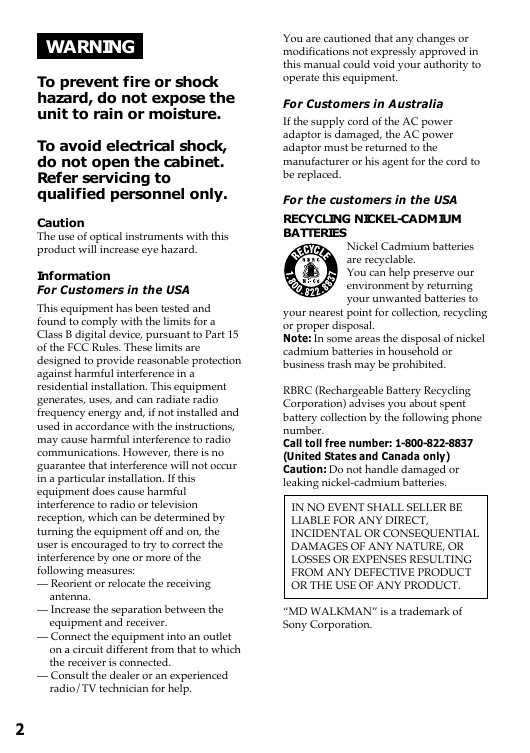

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. For Customers in Australia If the supply cord of the AC power adaptor is damaged, the AC power adaptor must be returned to the manufacturer or his agent for the cord to be replaced. For the customers in the USA RECYCLING NICKEL-CADMIUM BATTERIES Nickel Cadmium batteries are recyclable. You can help preserve our environment by returning your unwanted batteries to your nearest point for collection, recycling or proper disposal. Note: In some areas the disposal of nickel cadmium batteries in household or business trash may be prohibited. RBRC (Rechargeable Battery Recycling Corporation) advises you about spent battery collection by the following phone number. Call toll free number: 1-800-822-8837 (United States and Canada only) Caution: Do not handle damaged or leaking nickel-cadmium batteries. IN NO EVENT SHALL SELLER BE LIABLE FOR ANY DIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT. “MD WALKMAN” is a trademark of Sony Corporation. WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Caution The use of optical instruments with this product will increase eye hazard. Information For Customers in the USA This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. 2

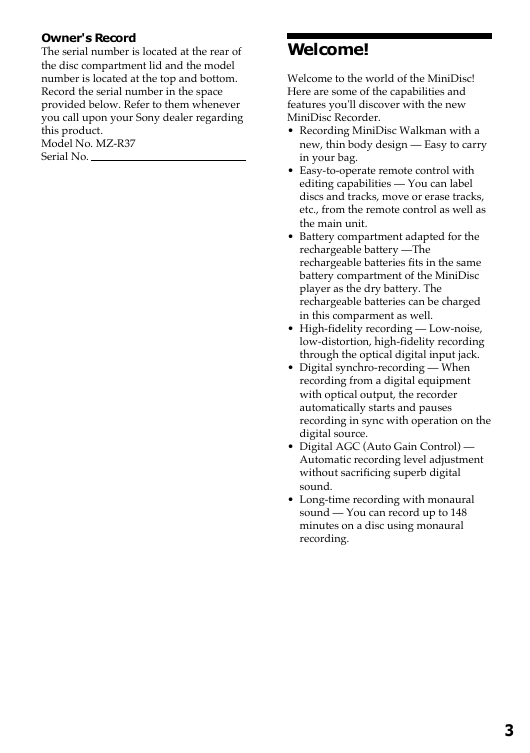

Owner's Record The serial number is located at the rear of the disc compartment lid and the model number is located at the top and bottom. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. MZ-R37 Serial No. Welcome! Welcome to the world of the MiniDisc! Here are some of the capabilities and features you'll discover with the new MiniDisc Recorder. • Recording MiniDisc Walkman with a new, thin body design — Easy to carry in your bag. • Easy-to-operate remote control with editing capabilities — You can label discs and tracks, move or erase tracks, etc., from the remote control as well as the main unit. • Battery compartment adapted for the rechargeable battery —The rechargeable batteries fits in the same battery compartment of the MiniDisc player as the dry battery. The rechargeable batteries can be charged in this comparment as well. • High-fidelity recording — Low-noise, low-distortion, high-fidelity recording through the optical digital input jack. • Digital synchro-recording — When recording from a digital equipment with optical output, the recorder automatically starts and pauses recording in sync with operation on the digital source. • Digital AGC (Auto Gain Control) — Automatic recording level adjustment without sacrificing superb digital sound. • Long-time recording with monaural sound — You can record up to 148 minutes on a disc using monaural recording. 3

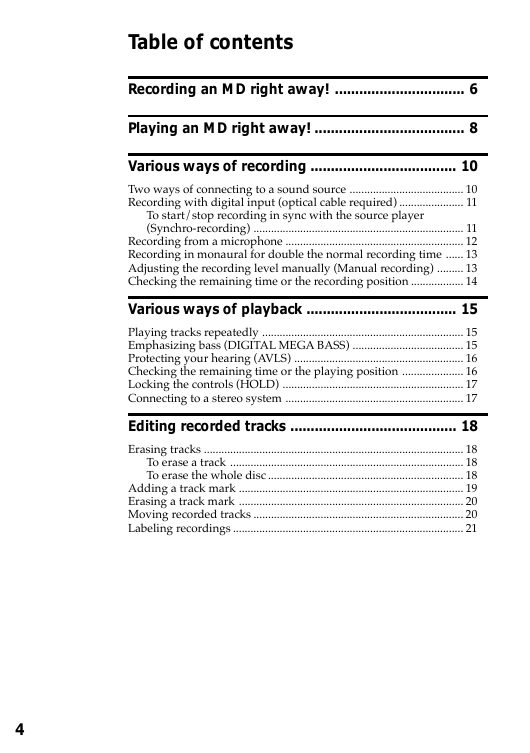

Table of contents Recording an MD right away! ................................ 6 Playing an MD right away! ..................................... 8 Various ways of recording .................................... 10 Two ways of connecting to a sound source ....................................... 10 Recording with digital input (optical cable required) ...................... 11 To start/stop recording in sync with the source player (Synchro-recording) ........................................................................ 11 Recording from a microphone ............................................................. 12 Recording in monaural for double the normal recording time ...... 13 Adjusting the recording level manually (Manual recording) ......... 13 Checking the remaining time or the recording position .................. 14 Various ways of playback ..................................... 15 Playing tracks repeatedly ..................................................................... 15 Emphasizing bass (DIGITAL MEGA BASS) ...................................... 15 Protecting your hearing (AVLS) .......................................................... 16 Checking the remaining time or the playing position ..................... 16 Locking the controls (HOLD) .............................................................. 17 Connecting to a stereo system ............................................................. 17 Editing recorded tracks ......................................... 18 Erasing tracks ......................................................................................... 18 To erase a track ................................................................................ 18 To erase the whole disc ................................................................... 18 Adding a track mark ............................................................................. 19 Erasing a track mark ............................................................................. 20 Moving recorded tracks ........................................................................ 20 Labeling recordings ............................................................................... 21 4

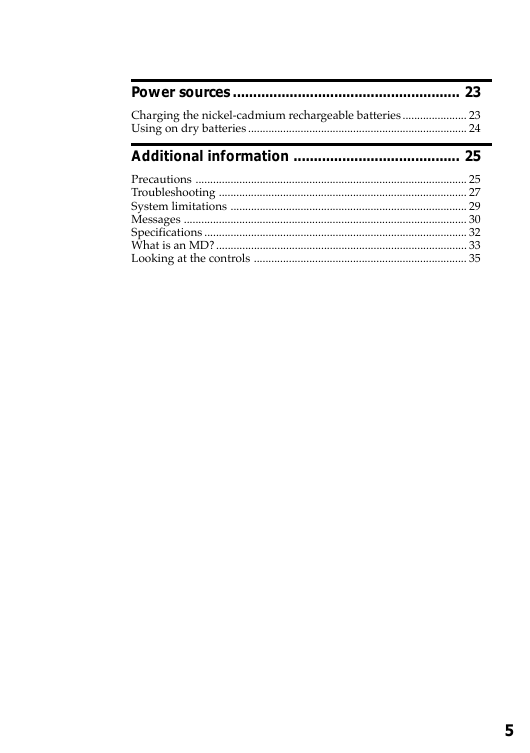

Power sources ........................................................ 23 Charging the nickel-cadmium rechargeable batteries ...................... 23 Using on dry batteries ........................................................................... 24 Additional information ......................................... 25 Precautions ............................................................................................. 25 Troubleshooting ..................................................................................... 27 System limitations ................................................................................. 29 Messages ................................................................................................. 30 Specifications .......................................................................................... 32 What is an MD? ...................................................................................... 33 Looking at the controls ......................................................................... 35 5

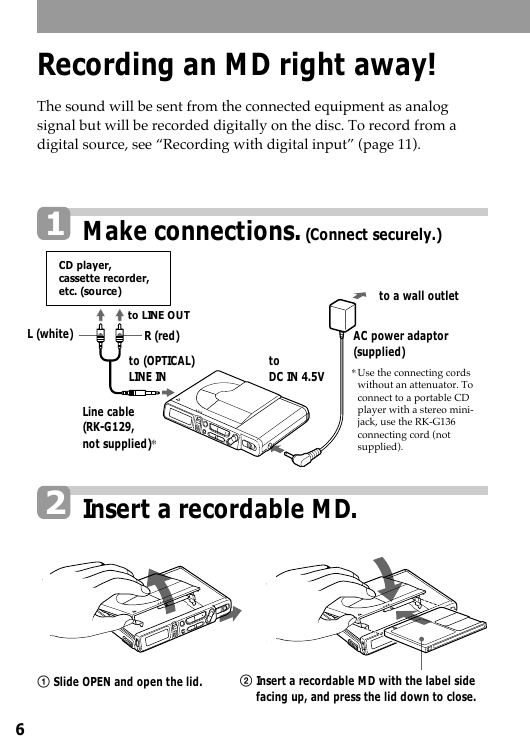

Recording an MD right away! The sound will be sent from the connected equipment as analog signal but will be recorded digitally on the disc. To record from a digital source, see “Recording with digital input” (page 11). 1 Make connections. (Connect securely.) CD player, cassette recorder, etc. (source) L (white) to LINE OUT R (red) to (OPTICAL) LINE IN Line cable (RK-G129, not supplied)* to DC IN 4.5V to a wall outlet AC power adaptor (supplied) *Use the connecting cords without an attenuator. To connect to a portable CD player with a stereo mini- jack, use the RK-G136 connecting cord (not supplied). 2 Insert a recordable MD. 1 Slide OPEN and open the lid. 2 Insert a recordable MD with the label side facing up, and press the lid down to close. 6

3 Record an MD. REC 1 Press and slide REC upward. p•CHARGE “REC” lights up and recording starts. 2 Play the CD or tape you want to record. CD player, cassette recorder, etc. (source) To Pause To stop recording, press p. “EDIT” flashes while data of the recording (the track’s start and end points, etc.) is being recorded. Do not move or jog the recorder or disconnect the power source while the indication is flashing in the display. Press P1) Press P again to resume recording. END SEARCH and slide REC upward. Record from the end of the previous recording Record partway through the previous recording (, + or = to find the start point of recording and press p to stop. Then slide REC upward. p and slide OPEN to open the lid.2) Remove the MD 1) A track mark is added at the point where you press P; thus the remainder of the track will be counted as a new track. 2) Once you open the lid, the point to start recording will change to the beginning of the first track. Check the point to start recording on the display. If the recording does not start •Make sure the recorder is not locked (page 17). •Make sure the MD is not record-protected (page 26). •Premastered MDs cannot be recorded over. Note If the power supply is disrupted (i.e. the battery is removed or becomes exhausted or the AC power adaptor is disconnected) when the recorder is operating, the lid will not open until the power is restored. z •The level of the recorded sound is adjusted automatically. •You can monitor the sound during recording. Connect the supplied headphones with remote control to PHONES/REMOTE and adjust the volume by pressing VOL +/–. This does not affect the recording level. 7

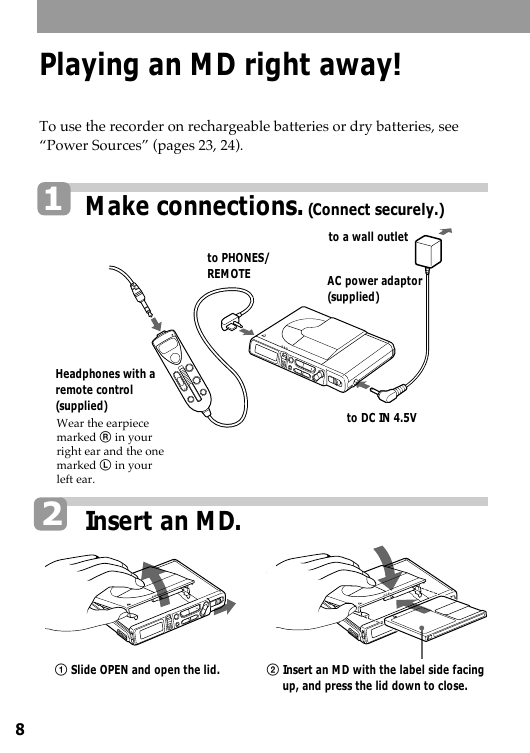

Playing an MD right away! To use the recorder on rechargeable batteries or dry batteries, see “Power Sources” (pages 23, 24). 1 Make connections. (Connect securely.) to PHONES/ REMOTE to a wall outlet AC power adaptor (supplied) Headphones with a remote control (supplied) Wear the earpiece marked R in your right ear and the one marked L in your left ear. 2 Insert an MD. to DC IN 4.5V 1 Slide OPEN and open the lid. 2 Insert an MD with the label side facing up, and press the lid down to close. 8
