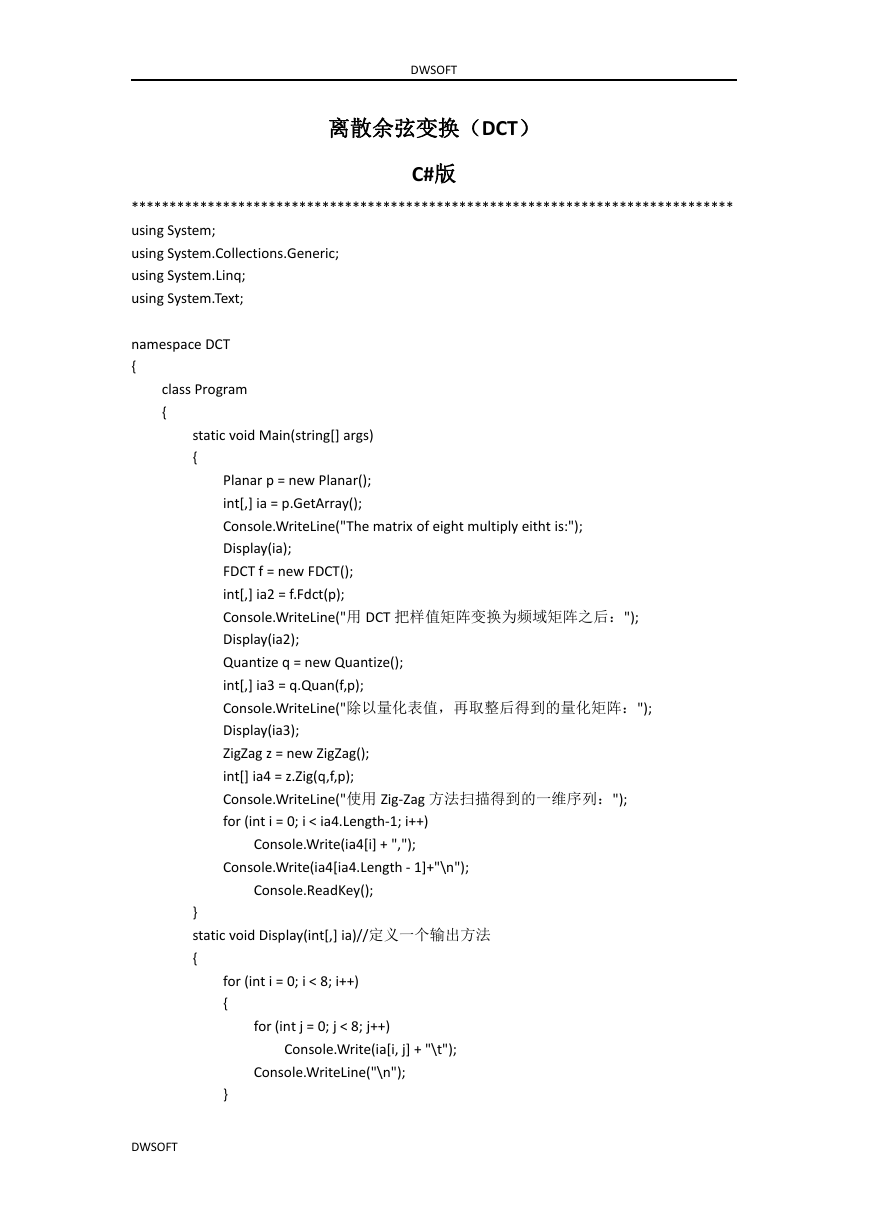

DWSOFT 离散余弦变换（DCT） C#版 ******************************************************************************* using System; using System.Collections.Generic; using System.Linq; using System.Text; namespace DCT { class Program { static void Main(string[] args) { Planar p = new Planar(); int[,] ia = p.GetArray(); Console.WriteLine("The matrix of eight multiply eitht is:"); Display(ia); FDCT f = new FDCT(); int[,] ia2 = f.Fdct(p); Console.WriteLine("用 DCT 把样值矩阵变换为频域矩阵之后："); Display(ia2); Quantize q = new Quantize(); int[,] ia3 = q.Quan(f,p); Console.WriteLine("除以量化表值，再取整后得到的量化矩阵："); Display(ia3); ZigZag z = new ZigZag(); int[] ia4 = z.Zig(q,f,p); Console.WriteLine("使用 Zig-Zag 方法扫描得到的一维序列："); for (int i = 0; i < ia4.Length-1; i++) Console.Write(ia4[i] + ","); Console.Write(ia4[ia4.Length - 1]+"\n"); Console.ReadKey(); } static void Display(int[,] ia)//定义一个输出方法 { for (int i = 0; i < 8; i++) { for (int j = 0; j < 8; j++) Console.Write(ia[i, j] + "\t"); Console.WriteLine("\n"); } DWSOFT 

DWSOFT } public class FDCT//正向 DCT 变换类 } { public int UArray { get; set; } public int VArray { get; set; } public int[,] Fdct(Planar p) { int[,] ia=new int[8,8]; int[,] ia2=p.GetArray(); double k;//此值为原公式中的 C(u)C(v)/4 if (UArray == 0 && VArray == 0) k = Math.Sqrt(2) / 8; else k = 0.25; for(int i=0;i<8;i++) for(int j=0;j<8;j++) { //由于 UArray=XArray=i;VArray=YArray=j;故直接用 i，j 代替 double d1=Math.Cos((2*i+1)*i*Math.PI/16); double d2=Math.Cos((2*j+1)*j*Math.PI/16); ia[i, j] = (int)(k * ia2[i, j] * d1 * d2); } return ia; } } public class Planar//样值空间类 { public int XArray { get; set; } public int YArray { get; set; } ///

/// 得到 8*8 的 int 二维数组 ///

/// public int[,] GetArray() { Random r = new Random(); int[,] ia = new int[8, 8]; for (XArray = 0; XArray < 8; XArray++) { for (YArray = 0; YArray < 8; YArray++) { DWSOFT 

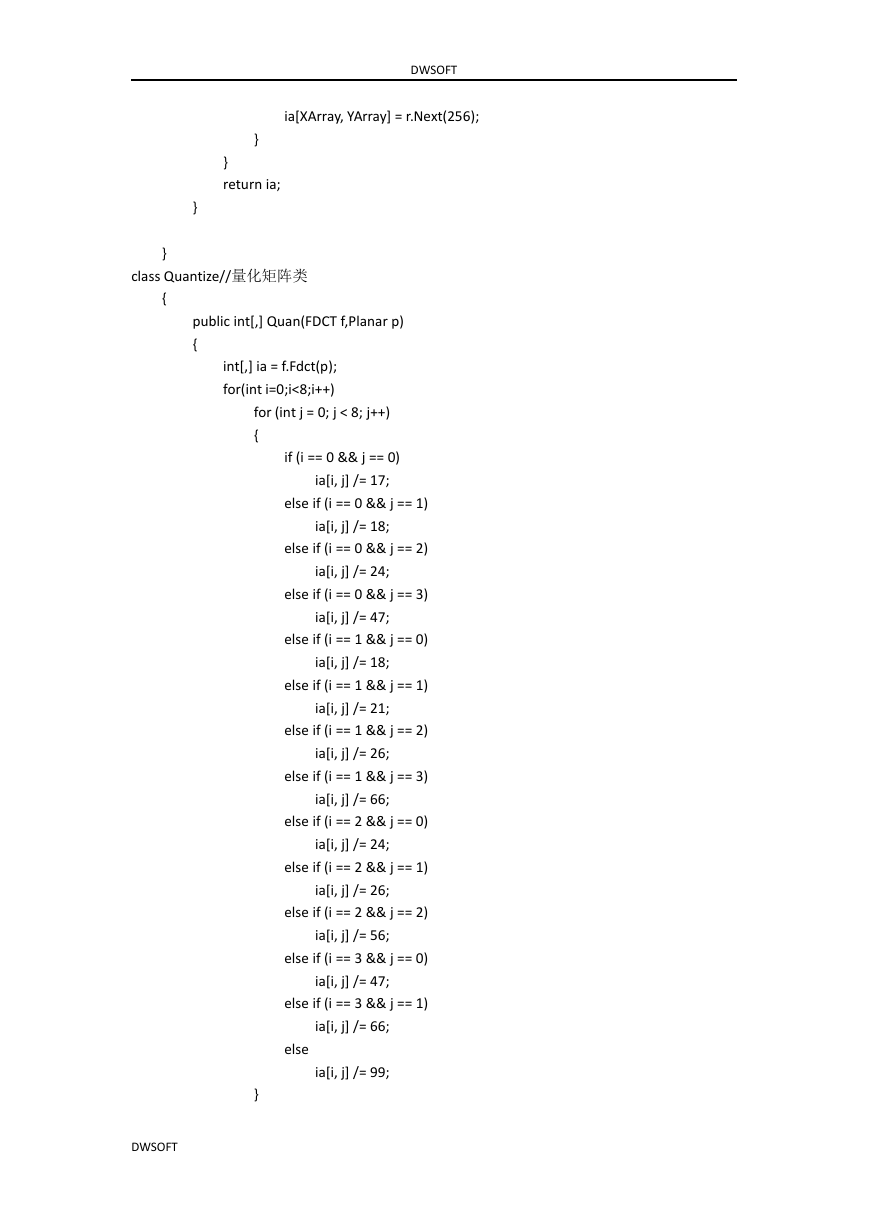

DWSOFT ia[XArray, YArray] = r.Next(256); } } return ia; } } class Quantize//量化矩阵类 { public int[,] Quan(FDCT f,Planar p) { int[,] ia = f.Fdct(p); for(int i=0;i<8;i++) for (int j = 0; j < 8; j++) { if (i == 0 && j == 0) ia[i, j] /= 17; else if (i == 0 && j == 1) ia[i, j] /= 18; else if (i == 0 && j == 2) ia[i, j] /= 24; else if (i == 0 && j == 3) ia[i, j] /= 47; else if (i == 1 && j == 0) ia[i, j] /= 18; else if (i == 1 && j == 1) ia[i, j] /= 21; else if (i == 1 && j == 2) ia[i, j] /= 26; else if (i == 1 && j == 3) ia[i, j] /= 66; else if (i == 2 && j == 0) ia[i, j] /= 24; else if (i == 2 && j == 1) ia[i, j] /= 26; else if (i == 2 && j == 2) ia[i, j] /= 56; else if (i == 3 && j == 0) ia[i, j] /= 47; else if (i == 3 && j == 1) ia[i, j] /= 66; else ia[i, j] /= 99; } DWSOFT 

DWSOFT return ia; } } class ZigZag//Zig-Zag 扫描类 { public int[] Zig(Quantize q,FDCT f,Planar p) { int[,] ia = q.Quan(f,p); int[] ia1=new int[64]; int m=0; for (int k = 0; k <= 14; k++) { for (int i = 0; i < 8; i++) for (int j = 0; j < 8; j++) if (i + j == k) ia1[m++] = ia[i, j]; } return ia1; } } } DWSOFT
