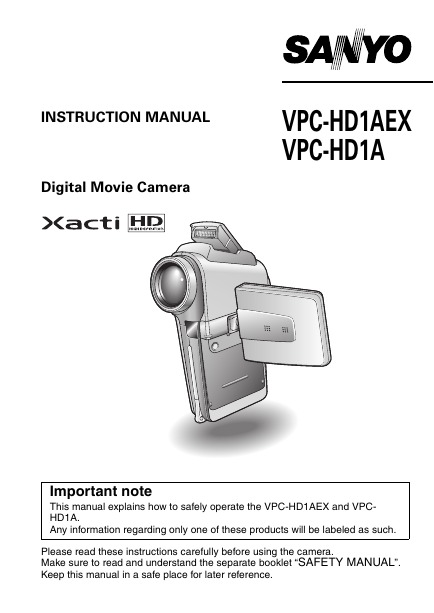

INSTRUCTION MANUAL Digital Movie Camera VPC-HD1AEX VPC-HD1A Important note This manual explains how to safely operate the VPC-HD1AEX and VPC- HD1A. Any information regarding only one of these products will be labeled as such. Please read these instructions carefully before using the camera. Make sure to read and understand the separate booklet “SAFETY MANUAL”. Keep this manual in a safe place for later reference.

Warning TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE FOR AMERICAN USERS The following advisory is included in accordance with the laws of the State of California (USA): WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling. i This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: h Reorient or relocate the receiving antenna. h Increase the separation between the equipment and receiver. h Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. h Consult the dealer or an experienced radio/TV technician for help. i Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Declaration of Conformity Model number: VPC-HD1A Trade Name: SANYO Responsible party: SANYO FISHER COMPANY Address: 21605 Plummer Street, Chatsworth, California 91311 Telephone No.: (818) 998-7322 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interfer- ence that may cause undesired operation. i English

FOR CANADIAN USERS i This Class B digital apparatus complies with Canadian ICES-003. FOR EU USERS Note: iThis symbol mark and recycle system apply only to EU countries and do not apply to countries in other areas of the world. Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. Please dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic products. Please help us to conserve the environment we live in! Symbols used in this manual HINT Points giving some extended instructions or special points to pay attention to. CAUTION Points that require special attention. (page xx) Refer to the page indicated for detailed information. You may find the answers to questions or problems concerning camera operation in the sections “COMMONLY ASKED QUESTIONS” (page 165) and “TROUBLESHOOTING” (page 173). English ii

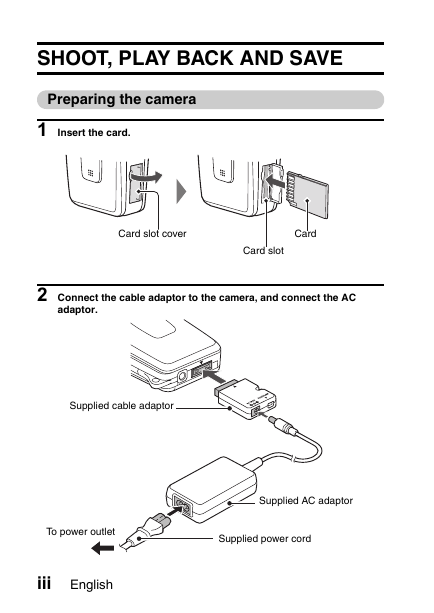

SHOOT, PLAY BACK AND SAVE Preparing the camera 1 Insert the card. Card slot cover Card Card slot 2 Connect the cable adaptor to the camera, and connect the AC adaptor. Supplied cable adaptor Supplied AC adaptor Supplied power cord To power outlet iii English

Shooting kVideo clip recording 1 Open the monitor unit, and press the ON/OFF button for at least 1 second to turn the camera on. Video clip recording ] button [ Still image shooting ] button [ 2 Set the main switch to REC. 3 Press the video clip ]. recording button [ h Recording begins. h To stop recording, press the video clip recording button again. kStill image photography 1 Open the monitor unit, and press the ON/OFF button for at least 1 second to turn the camera on. 2 Set the main switch to REC. 3 Press the still image shooting button [ ]. h The image is captured. ON/OFF button Main switch 297 00:20:39 297 00:20:39 297 00:20:39 F3.5 F3.5F3.5 1/30 1/301/30 English iv

Playback kVideo clip playback 1 Set the main switch to PLAY. h The display switches to the Playback Screen. h Toggle the SET button to the left or right to display the video clip you wish to play back. h Video clips are indicated by a video clip pattern along the top and bottom of the screen. 2 Press the SET button. h Playback of the selected video clip begins. h When the main switch is moved to REC, the display changes to the Shooting Screen. kStill image playback 1 Set the main switch to PLAY. h The display switches to the Playback Screen. h To view other images, toggle the SET button to the left or right. h When the main switch is moved to REC, the display changes to the Shooting Screen. Main switch SET button Video clip pattern When you are finished using the camera... Press the ON/OFF button for at least 1 second to turn the camera off. v English

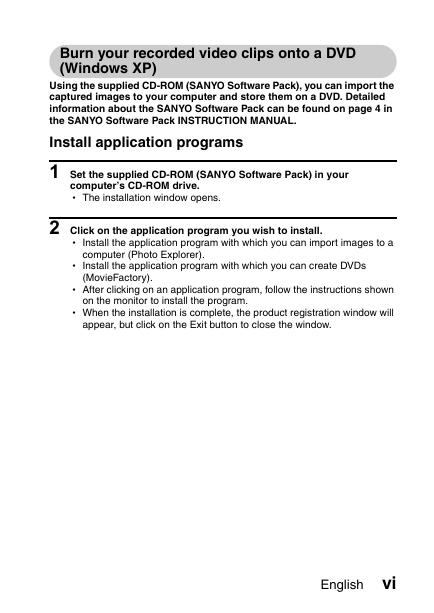

Burn your recorded video clips onto a DVD (Windows XP) Using the supplied CD-ROM (SANYO Software Pack), you can import the captured images to your computer and store them on a DVD. Detailed information about the SANYO Software Pack can be found on page 4 in the SANYO Software Pack INSTRUCTION MANUAL. Install application programs 1 Set the supplied CD-ROM (SANYO Software Pack) in your computer’s CD-ROM drive. h The installation window opens. 2 Click on the application program you wish to install. h Install the application program with which you can import images to a h Install the application program with which you can create DVDs computer (Photo Explorer). (MovieFactory). h After clicking on an application program, follow the instructions shown on the monitor to install the program. h When the installation is complete, the product registration window will appear, but click on the Exit button to close the window. English vi

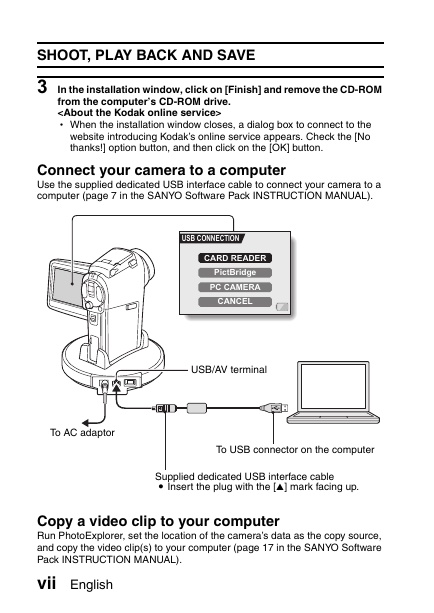

SHOOT, PLAY BACK AND SAVE 3 In the installation window, click on [Finish] and remove the CD-ROM from the computer’s CD-ROM drive. h When the installation window closes, a dialog box to connect to the website introducing Kodak’s online service appears. Check the [No thanks!] option button, and then click on the [OK] button. Connect your camera to a computer Use the supplied dedicated USB interface cable to connect your camera to a computer (page 7 in the SANYO Software Pack INSTRUCTION MANUAL). USB CONNECTION CARD READER PictBridge PC CAMERA CANCEL USB/AV terminal To AC adaptor To USB connector on the computer Supplied dedicated USB interface cable i Insert the plug with the [n] mark facing up. Copy a video clip to your computer Run PhotoExplorer, set the location of the camera’s data as the copy source, and copy the video clip(s) to your computer (page 17 in the SANYO Software Pack INSTRUCTION MANUAL). vii English
