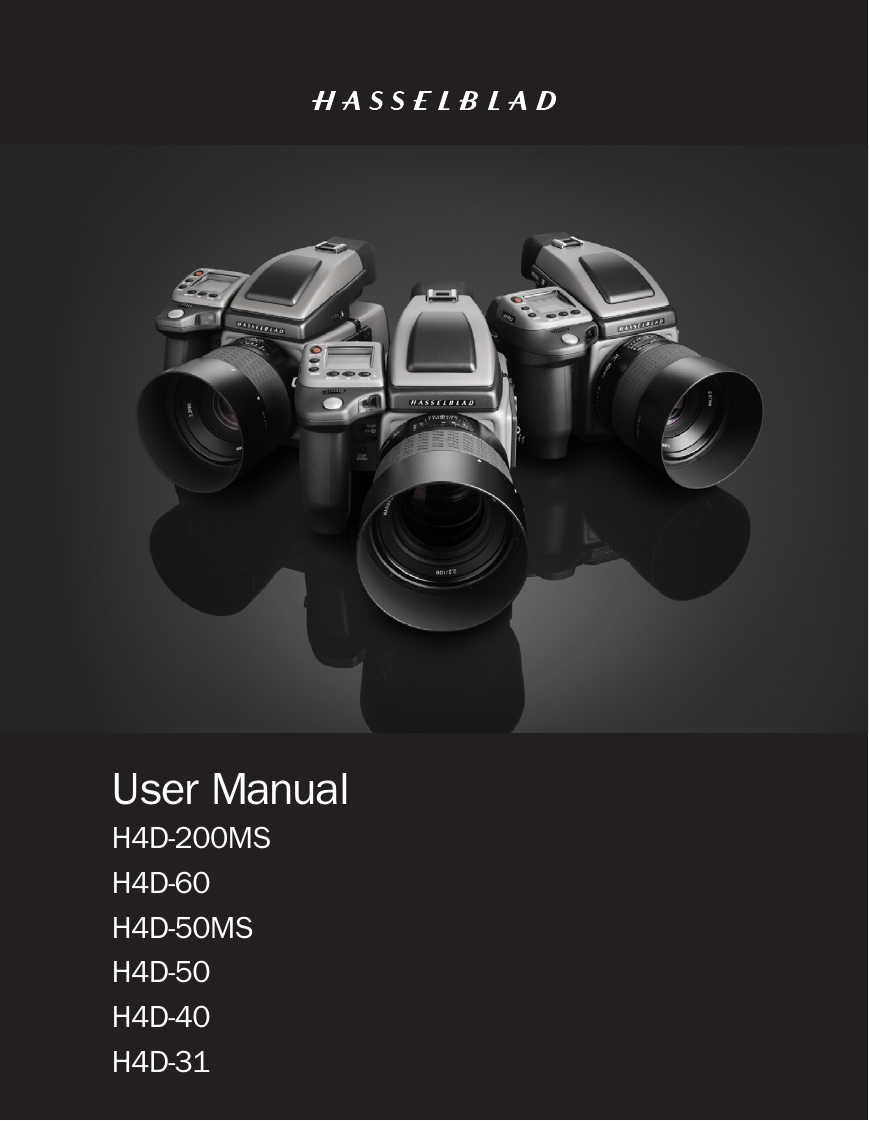

H4D User Manual H4D-200MS H4D-60 H4D-50MS H4D-50 H4D-40 H4D-31

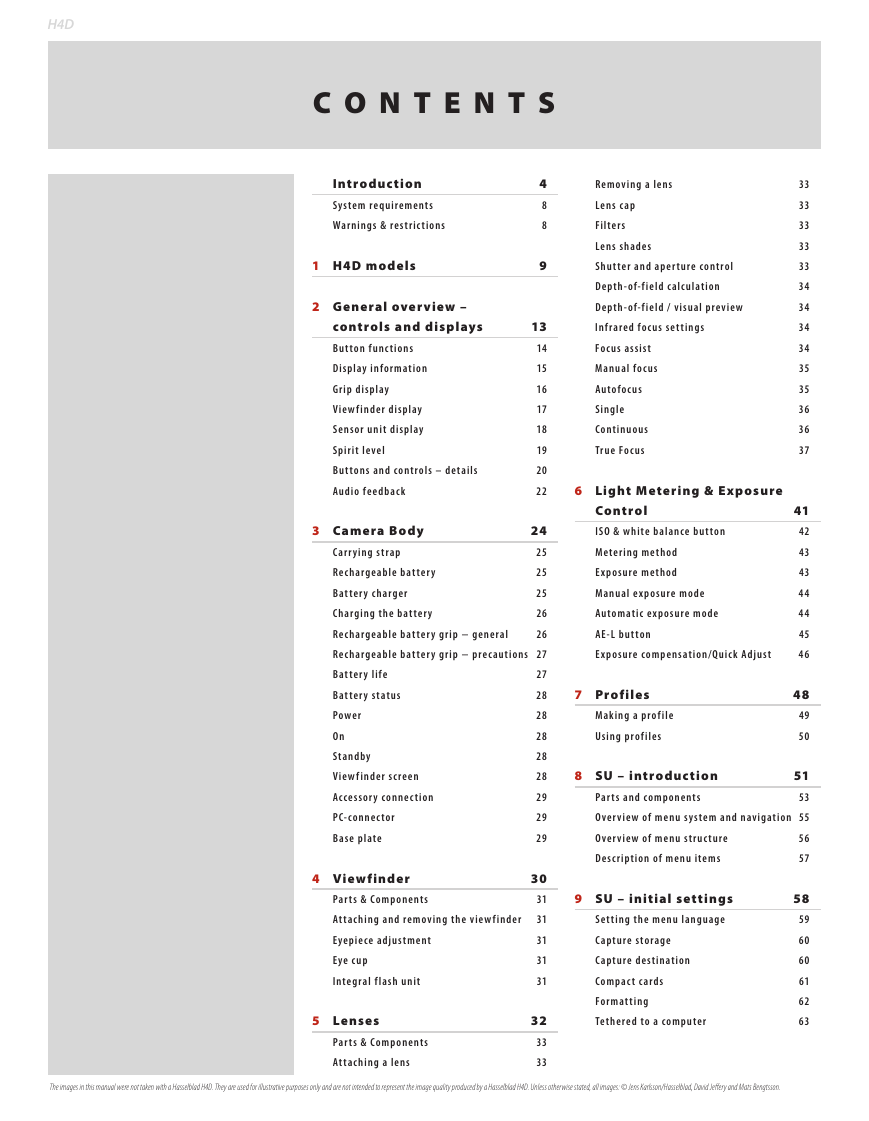

H4D C O N T E N T S Introduction System requirements Warnings & restrictions 1 H4D models 2 General overview – controls and displays Button functions Display information Grip display Viewfinder display Sensor unit display Spirit level Buttons and controls – details Audio feedback 3 Camera Body Carrying strap Rechargeable battery Battery charger Charging the battery Rechargeable battery grip − general 4 8 8 9 13 14 15 16 17 18 19 20 22 24 25 25 25 26 26 Removing a lens Lens cap Filters Lens shades Shutter and aperture control Depth-of-field calculation Depth-of-field / visual preview Infrared focus settings Focus assist Manual focus Autofocus Single Continuous True Focus 6 Light Metering & Exposure Control ISO & white balance button Metering method Exposure method Manual exposure mode Automatic exposure mode AE-L button Rechargeable battery grip − precautions 27 Exposure compensation/Quick Adjust 33 33 33 33 33 34 34 34 34 35 35 36 36 37 41 42 43 43 44 44 45 46 48 49 50 51 53 Battery life Battery status Power On Standby Viewfinder screen Accessory connection PC-connector Base plate 4 Viewfinder Parts & Components Attaching and removing the viewfinder Eyepiece adjustment Eye cup Integral flash unit 5 Lenses Parts & Components Attaching a lens 27 28 28 28 28 28 29 29 29 30 31 31 31 31 31 32 33 33 7 Profiles Making a profile Using profiles 8 SU – introduction Parts and components Overview of menu system and navigation 55 Overview of menu structure Description of menu items 9 SU – initial settings Setting the menu language Capture storage Capture destination Compact cards Formatting Tethered to a computer 56 57 58 59 60 60 61 62 63 The images in this manual were not taken with a Hasselblad H4D. They are used for illustrative purposes only and are not intended to represent the image quality produced by a Hasselblad H4D. Unless otherwise stated, all images: © Jens Karlsson/Hasselblad, David Jeffery and Mats Bengtsson.

H4D 10 SU – getting started Settings check White Balance / Grey balance Media 11 Browsing images Basic image browsing Zooming in and out Zooming in for more detail Thumbnail views 12 Preview modes Preview modes Histogram mode Full-details mode Battery-saver mode Full-screen mode Overexposure indicator 13 IAA -Instant Approval Architecture Using IAA Default approval status Browsing by approval status Deleting by approval status 14 File storage Organizing work with batches Creating a new batch Navigating batches 15 Deleting images Delete Deleting several images from a batch Deleting several images from a medium Transferring images Interval Settings Custom Options Image Info Text setting Date & Time System status Drive 19 Flash /strobe General Integral flash Flash measure 20 Multi shot 21 Optional accessories 22 Appendix True Exposure P & Pv modes Light metering sensitivity Technical specifications Default settings Care, sensor unit Problems, Equipment care and service Quick index 107 108 109 114 114 115 116 117 118 119 120 121 122 124 129 130 131 131 132 135 136 138 139 64 65 65 67 68 69 69 69 70 71 72 73 74 74 74 74 75 76 78 79 80 81 83 83 84 85 87 88 88 89 90 91 93 93 93 94 95 16 Settings User Inter face Camera About Default Custom Options 17 SU – view cameras 18 Custom settings General overview of camera menu Self Timer Bracketing 3 100 101 103 105

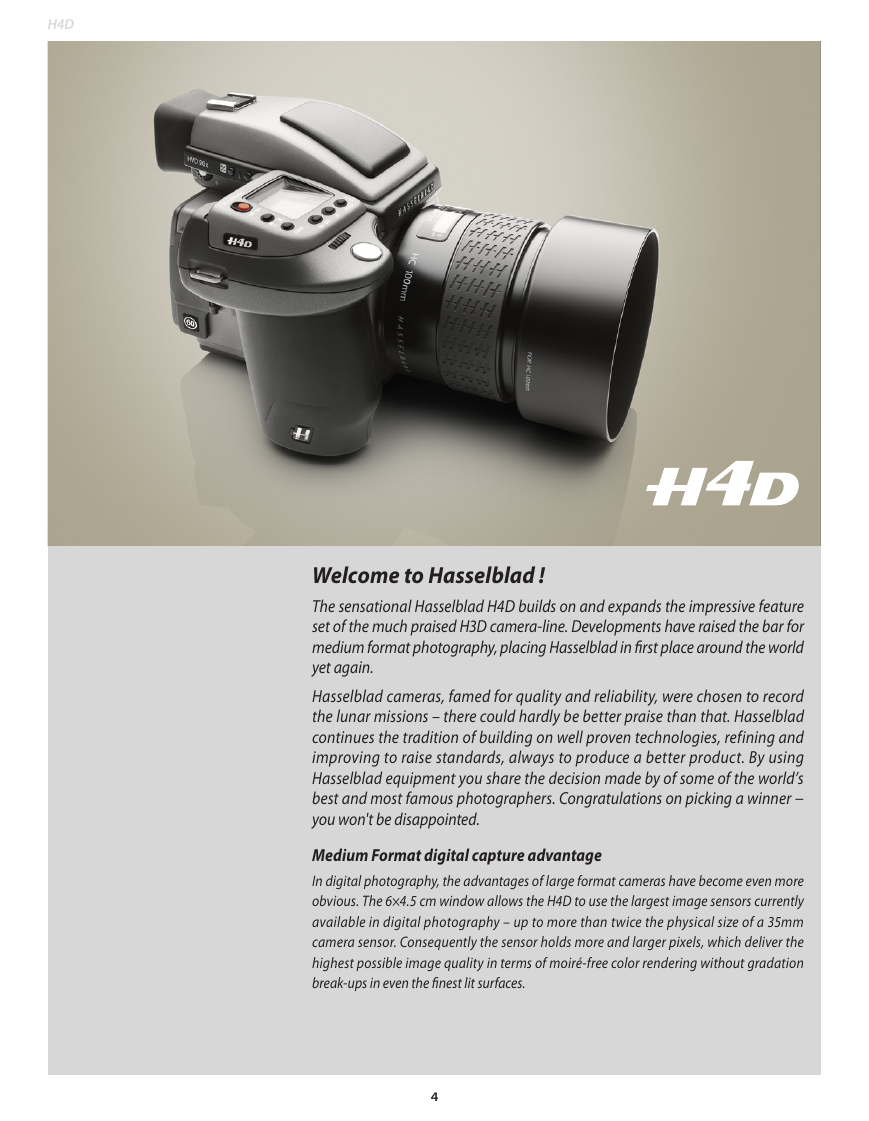

H4D Welcome to Hasselblad ! The sensational Hasselblad H4D builds on and expands the impressive feature set of the much praised H3D camera-line. Developments have raised the bar for medium format photography, placing Hasselblad in first place around the world yet again. Hasselblad cameras, famed for quality and reliability, were chosen to record the lunar missions – there could hardly be better praise than that. Hasselblad con tinues the tradition of building on well proven technologies, refining and im proving to raise standards, always to produce a better product. By using Hasselblad equipment you share the decision made by of some of the world’s best and most famous photographers. Congratulations on picking a winner − you won't be disappointed. Medium Format digital capture advantage In digital photography, the advantages of large format cameras have become even more obvious. The 6×4.5 cm window allows the H4D to use the largest image sensors currently available in digital photography – up to more than twice the physical size of a 35mm camera sensor. Consequently the sensor holds more and larger pixels, which deliver the highest possible image quality in terms of moiré-free color rendering without gradation break-ups in even the finest lit surfaces. 4

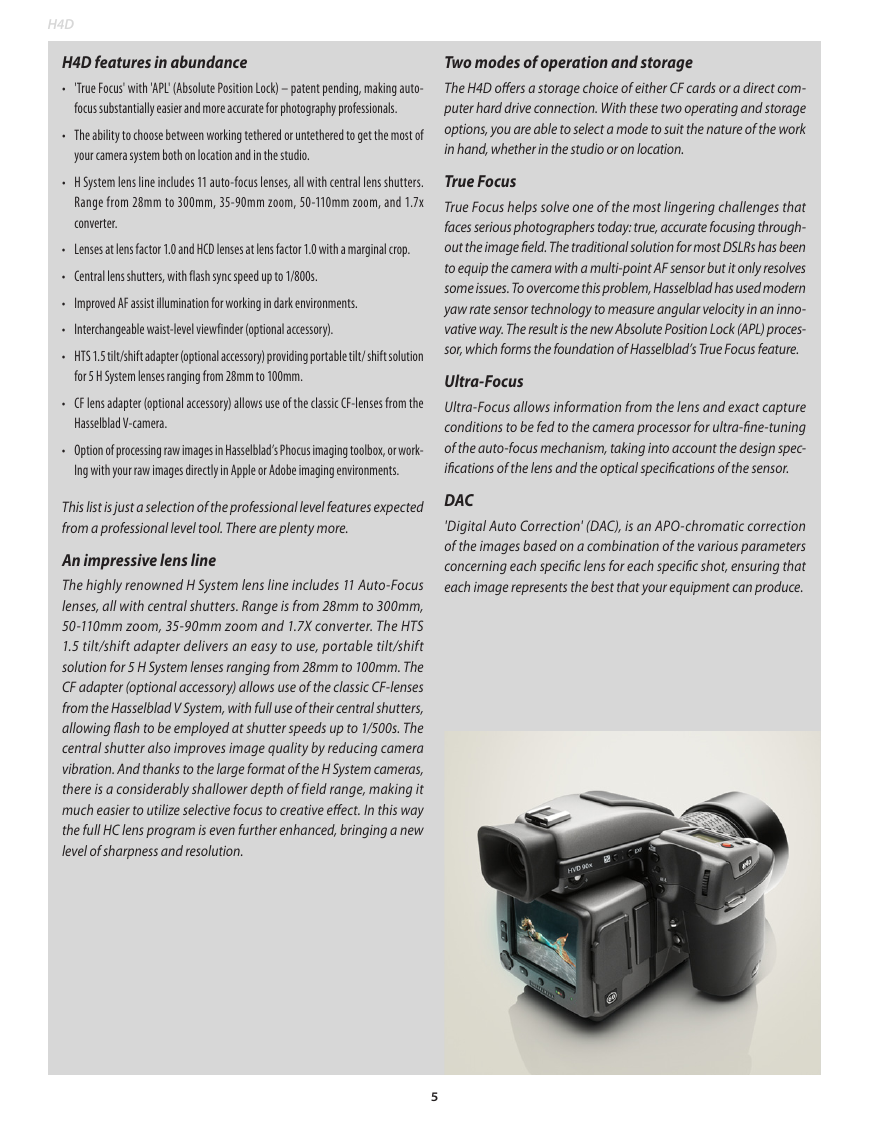

Two modes of operation and storage The H4D offers a storage choice of either CF cards or a direct com- puter hard drive connection. With these two operating and storage options, you are able to select a mode to suit the nature of the work in hand, whether in the studio or on location. True Focus True Focus helps solve one of the most lingering challenges that faces serious photographers today: true, accurate focusing through- out the image field. The traditional solution for most DSLRs has been to equip the camera with a multi-point AF sensor but it only resolves some issues. To overcome this problem, Hasselblad has used modern yaw rate sensor technology to measure angular velocity in an inno- vative way. The result is the new Absolute Position Lock (APL) proces- sor, which forms the foundation of Hasselblad’s True Focus feature. Ultra-Focus Ultra-Focus allows information from the lens and exact capture conditions to be fed to the camera processor for ultra-fine-tuning of the auto-focus mechanism, taking into account the design spec- ifications of the lens and the optical specifications of the sensor. DAC 'Digital Auto Correction' (DAC), is an APO-chromatic correction of the images based on a combination of the various parameters concerning each specific lens for each specific shot, ensuring that each image represents the best that your equipment can produce. H4D H4D features in abundance • 'True Focus' with 'APL' (Absolute Position Lock) – patent pending, making auto- focus substantially easier and more accurate for photography professionals. • The ability to choose between working tethered or untethered to get the most of your camera system both on location and in the studio. • H System lens line includes 11 auto-focus lenses, all with central lens shutters. Range from 28mm to 300mm, 35-90mm zoom, 50-110mm zoom, and 1.7x converter. • Lenses at lens factor 1.0 and HCD lenses at lens factor 1.0 with a marginal crop. • Central lens shutters, with flash sync speed up to 1/800s. • • • HTS 1.5 tilt/shift adapter (optional accessory) providing portable tilt/ shift solution Improved AF assist illumination for working in dark environments. Interchangeable waist-level viewfinder (optional accessory). for 5 H System lenses ranging from 28mm to 100mm. • CF lens adapter (optional accessory) allows use of the classic CF-lenses from the Hasselblad V-camera. • Option of processing raw images in Hasselblad’s Phocus imaging toolbox, or work- Ing with your raw images directly in Apple or Adobe imaging environments. This list is just a selection of the professional level features expected from a professional level tool. There are plenty more. An impressive lens line The highly renowned H System lens line includes 11 Auto-Focus lenses, all with central shutters. Range is from 28mm to 300mm, 50-110mm zoom, 35-90mm zoom and 1.7X converter. The HTS 1.5 tilt/shift adapter delivers an easy to use, portable tilt/shift solution for 5 H System lenses ranging from 28mm to 100mm. The CF adapter (optional accessory) allows use of the classic CF-lenses from the Hasselblad V System, with full use of their central shutters, allowing flash to be employed at shutter speeds up to 1/500s. The central shutter also improves image quality by reducing camera vibration. And thanks to the large format of the H System cameras, there is a considerably shallower depth of field range, making it much easier to utilize selective focus to creative effect. In this way the full HC lens program is even further enhanced, bringing a new level of sharpness and resolution. 5

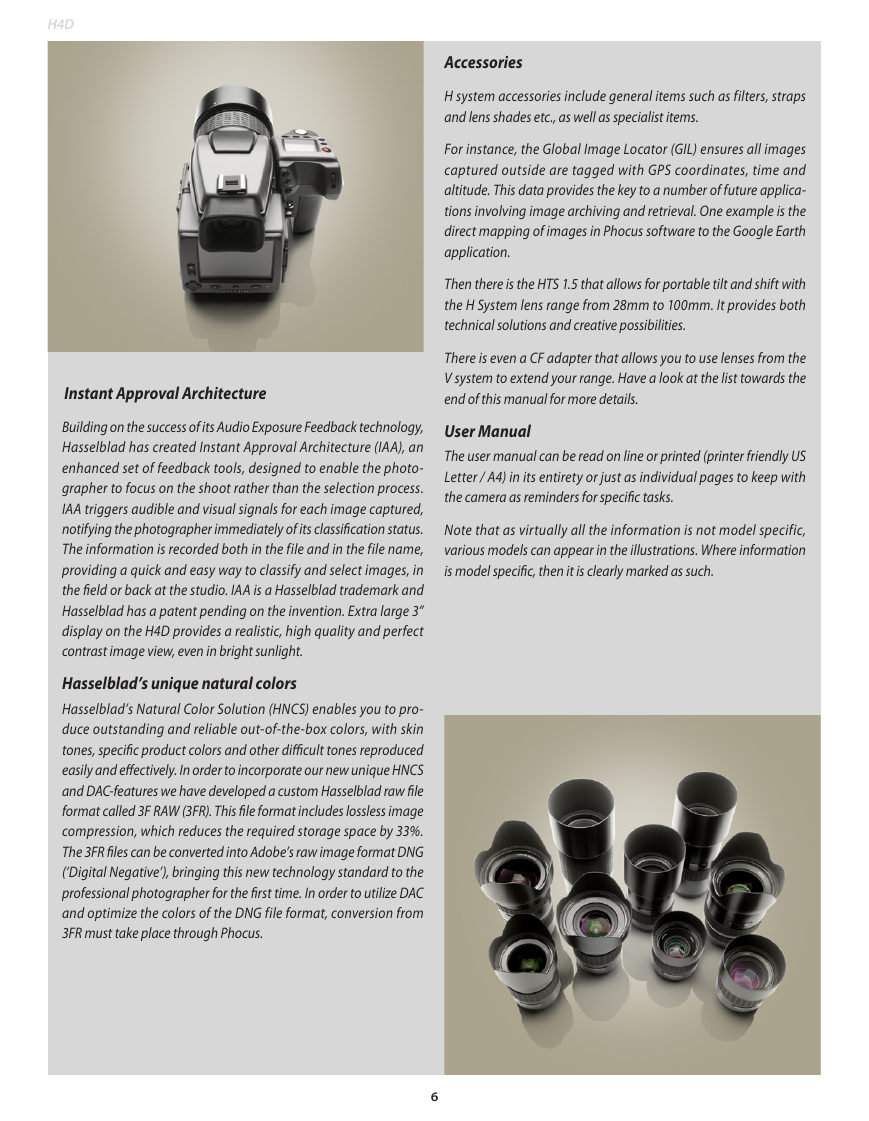

Accessories H system accessories include general items such as filters, straps and lens shades etc., as well as specialist items. For instance, the Global Image Locator (GIL) ensures all images captured outside are tagged with GPS coordinates, time and altitude. This data provides the key to a number of future applica- tions involving image archiving and retrieval. One example is the direct mapping of images in Phocus software to the Google Earth application. Then there is the HTS 1.5 that allows for portable tilt and shift with the H System lens range from 28mm to 100mm. It provides both technical solutions and creative possibilities. There is even a CF adapter that allows you to use lenses from the V system to extend your range. Have a look at the list towards the end of this manual for more details. User Manual The user manual can be read on line or printed (printer friendly US Letter / A4) in its entirety or just as individual pages to keep with the camera as reminders for specific tasks. Note that as virtually all the information is not model specific, various models can appear in the illustrations. Where information is model specific, then it is clearly marked as such. H4D Instant Approval Architecture Building on the success of its Audio Exposure Feedback tech nology, Hasselblad has created Instant Approval Architecture (IAA), an enhanced set of feedback tools, designed to enable the photo- grapher to focus on the shoot rather than the selection process. IAA triggers audible and visual signals for each image captured, notifying the photographer immediately of its classification status. The information is recorded both in the file and in the file name, providing a quick and easy way to classify and select images, in the field or back at the studio. IAA is a Hasselblad trademark and Hasselblad has a patent pending on the invention. Extra large 3” display on the H4D provides a realistic, high quality and perfect contrast image view, even in bright sunlight. Hasselblad’s unique natural colors Hasselblad’s Natural Color Solution (HNCS) enables you to pro- duce outstanding and reliable out-of-the-box colors, with skin tones, specific product colors and other difficult tones reproduced easily and effectively. In order to incorporate our new unique HNCS and DAC-features we have developed a custom Hasselblad raw file format called 3F RAW (3FR). This file format includes lossless image compression, which reduces the required storage space by 33%. The 3FR files can be converted into Adobe’s raw image format DNG (‘Digital Negative’), bringing this new technology standard to the professional photographer for the first time. In order to utilize DAC and optimize the colors of the DNG file format, conversion from 3FR must take place through Phocus. 6

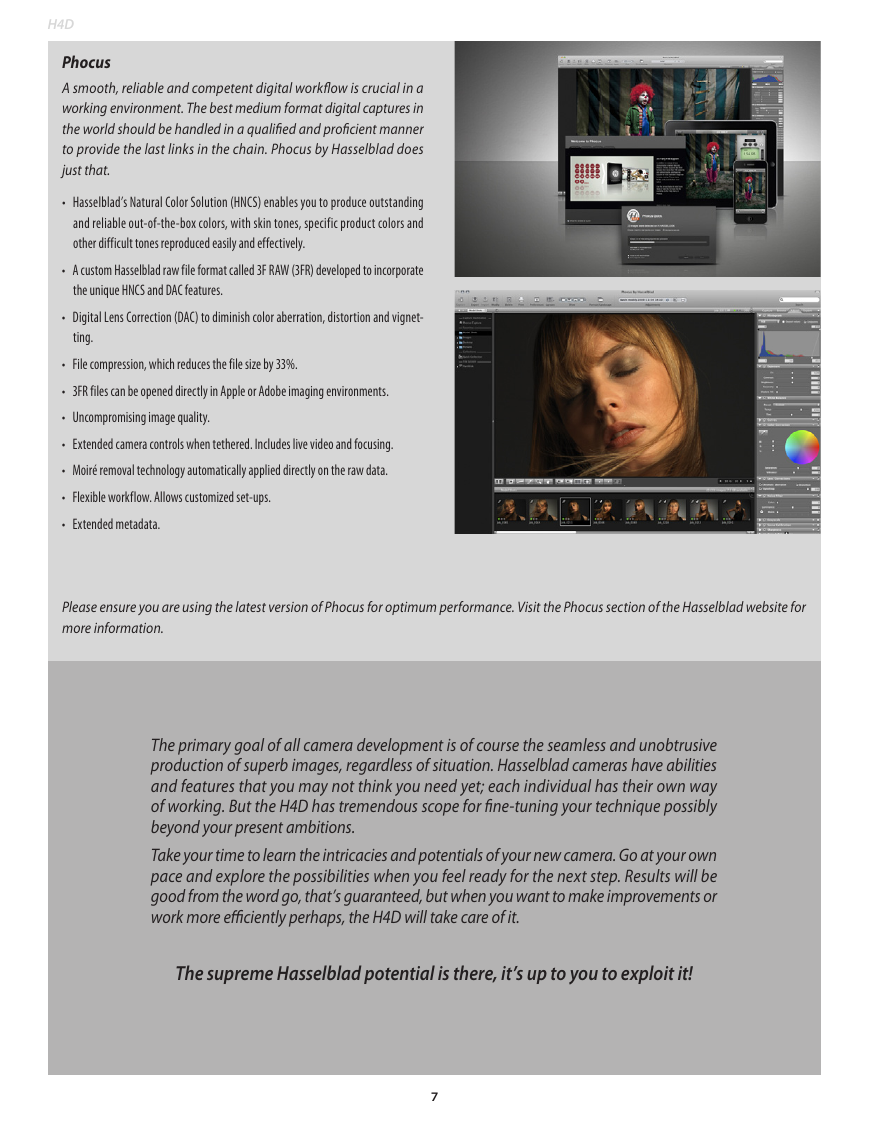

H4D Phocus A smooth, reliable and competent digital workflow is crucial in a working environment. The best medium format digital captures in the world should be handled in a qualified and proficient manner to provide the last links in the chain. Phocus by Hasselblad does just that. • Hasselblad’s Natural Color Solution (HNCS) enables you to produce outstanding and reliable out-of-the-box colors, with skin tones, specific product colors and other difficult tones reproduced easily and effectively. • A custom Hasselblad raw file format called 3F RAW (3FR) developed to incorporate the unique HNCS and DAC features. • Digital Lens Correction (DAC) to diminish color aberration, distortion and vignet - ting. • File compression, which reduces the file size by 33%. • 3FR files can be opened directly in Apple or Adobe imaging environments. • Uncompromising image quality. • Extended camera controls when tethered. Includes live video and focusing. • Moiré removal technology automatically applied directly on the raw data. • Flexible workflow. Allows customized set-ups. • Extended metadata. Please ensure you are using the latest version of Phocus for optimum performance. Visit the Phocus section of the Hasselblad website for more information. The primary goal of all camera development is of course the seamless and unobtrusive production of superb images, regardless of situation. Hasselblad cameras have abilities and features that you may not think you need yet; each individual has their own way of working. But the H4D has tremendous scope for fine-tuning your technique possibly beyond your present ambitions. Take your time to learn the intricacies and potentials of your new camera. Go at your own pace and explore the possibilities when you feel ready for the next step. Results will be good from the word go, that’s guaranteed, but when you want to make improvements or work more efficiently perhaps, the H4D will take care of it. The supreme Hasselblad potential is there, it’s up to you to exploit it! 7

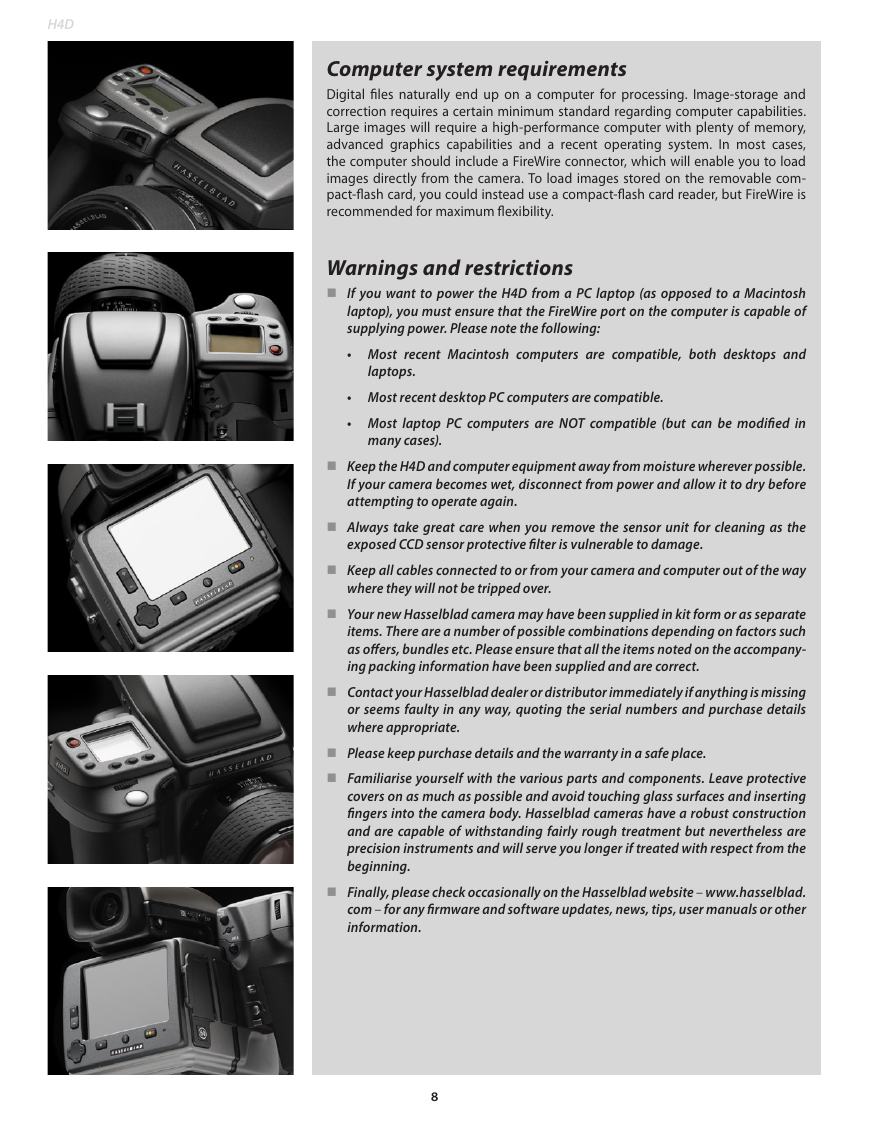

H4D Computer system requirements Digital files naturally end up on a computer for processing. Image-storage and correction requires a certain minimum standard regarding computer capabilities. Large images will require a high-performance computer with plenty of memory, advanced graphics capabilities and a recent operating system. In most cases, the computer should include a FireWire connector, which will enable you to load images directly from the camera. To load images stored on the removable com- pact-flash card, you could instead use a compact-flash card reader, but FireWire is recommended for maximum flexibility. Warnings and restrictions  If you want to power the H4D from a PC laptop (as opposed to a Macintosh laptop), you must ensure that the FireWire port on the computer is capable of supplying power. Please note the following: • Most recent Macintosh computers are compatible, both desktops and laptops. • Most recent desktop PC computers are compatible. • Most laptop PC computers are NOT compatible (but can be modified in many cases).  Keep the H4D and computer equipment away from moisture wherever possible. If your camera becomes wet, disconnect from power and allow it to dry before attempting to operate again.  Always take great care when you remove the sensor unit for cleaning as the exposed CCD sensor protective filter is vulnerable to damage.  Keep all cables connected to or from your camera and computer out of the way where they will not be tripped over.  Your new Hasselblad camera may have been supplied in kit form or as separate items. There are a number of possible combinations depending on factors such as offers, bundles etc. Please ensure that all the items noted on the accompany- ing packing information have been supplied and are correct.  Contact your Hasselblad dealer or distributor immediately if anything is missing or seems faulty in any way, quoting the serial numbers and purchase details where appropriate.  Please keep purchase details and the warranty in a safe place.  Familiarise yourself with the various parts and components. Leave protective covers on as much as possible and avoid touching glass surfaces and inserting fingers into the camera body. Hasselblad cameras have a robust construction and are capable of withstanding fairly rough treatment but nevertheless are precision instruments and will serve you longer if treated with respect from the beginning.  Finally, please check occasionally on the Hasselblad website – www.hasselblad. com – for any firmware and software updates, news, tips, user manuals or other information. 8
