TABLE OF CONTENTS

Before Use

Information for Your Safety

Quick Guide

Standard Accessories

Names of the Components

Preparation

Charging the Battery

About the Battery (charging/number of recordable pictures)

Inserting and Removing the Card (optional)/the Battery

About the Built-in Memory/the Card

Setting Date/Time (Clock Set)

Setting the Menu

About the Setup Menu

Selecting the [REC] Mode

Basic

Taking pictures using the automaticfunction (ñ: Intelligent Auto Mode)

Taking pictures with your favorite settings (·: Normal picture mode)

Taking Pictures with the Zoom

Playing back Pictures ([NORMAL PLAY])

Deleting Pictures

Advanced (Recording pictures)

About the LCD Monitor

Taking Pictures using the Built-in Flash

Taking Close-up Pictures

Taking Pictures with the Self-timer

Compensating the Exposure

Taking Pictures using Auto Bracket

Taking pictures that match the scenebeing recorded (½¾: Scene mode).......

Motion Picture Mode

Useful Functions at TravelDestinations

Using the [REC] Mode Menu

Advanced (Playback)

Playing Back Pictures in Sequence (Slide Show)

Selecting Pictures and Playing them Back ([CATEGORY PLAY]/[FAVORITE PLAY])

Playing Back Motion Pictures

Using the [PLAYBACK] mode menu.......

Connecting to other equipment

Connecting to a PC

Printing the Pictures

Playing Back Pictures on a TV Screen

Others

Screen Display

Cautions for Use

Message Display

Functions that cannot be set or will not work under some conditions

Troubleshooting

Number of Recordable Pictures and Available Recording Time

Specifications

Digital Camera Accessory System

Digital Camera Accessory Order Form (For USA Customers)

Request for Service Notice (For USA Only)

Limited Warranty (For USA Only)

Customer Services Directory (For USA Only)

Précautions à prendre(pour le Canada)

Index

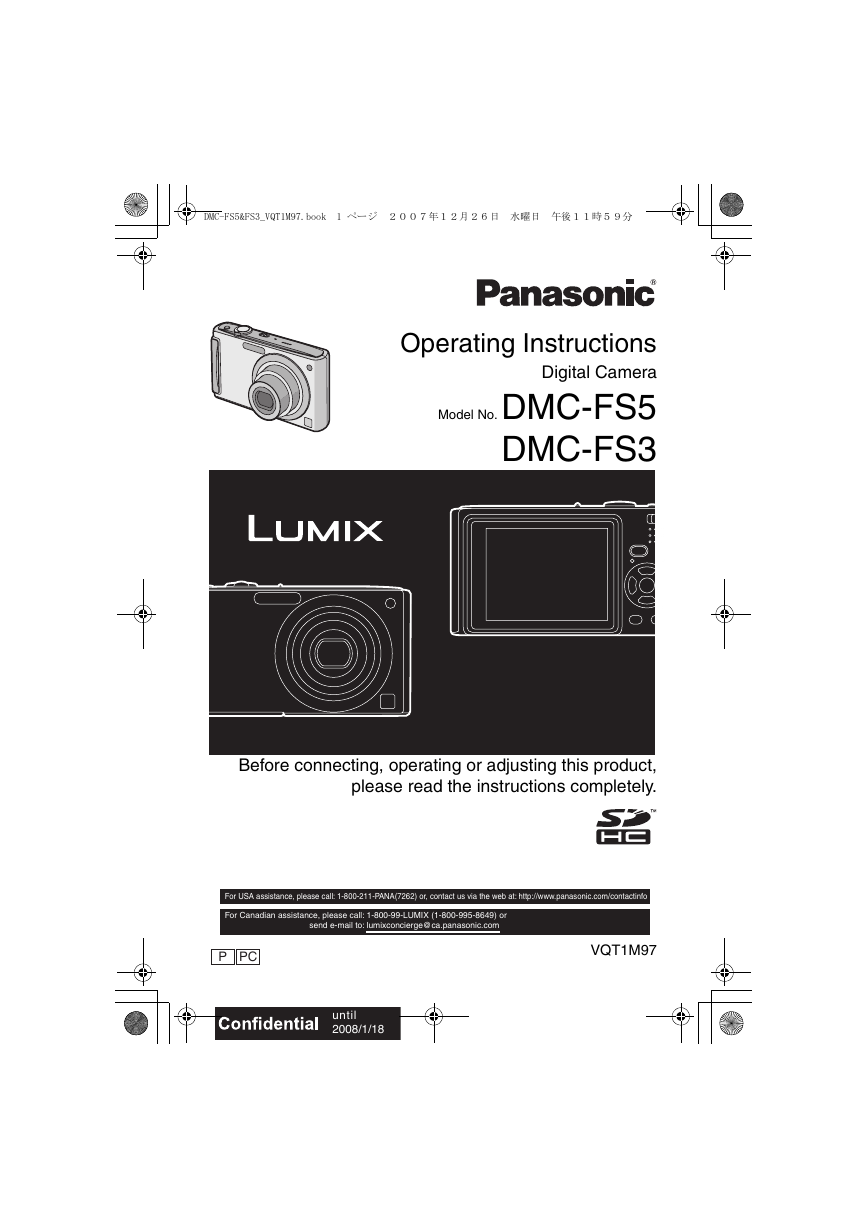

DMC-FS5&FS3_VQT1M97.book 1 ページ２００７年１２月２６日　水曜日　午後１１時５９分 Operating Instructions Digital Camera Model No. DMC-FS5 DMC-FS3 Before connecting, operating or adjusting this product, please read the instructions completely. For USA assistance, please call: 1-800-211-PANA(7262) or, contact us via the web at: http://www.panasonic.com/contactinfo For Canadian assistance, please call: 1-800-99-LUMIX (1-800-995-8649) or send e-mail to: lumixconcierge@ca.panasonic.com P PC VQT1M97 until 2008/1/18

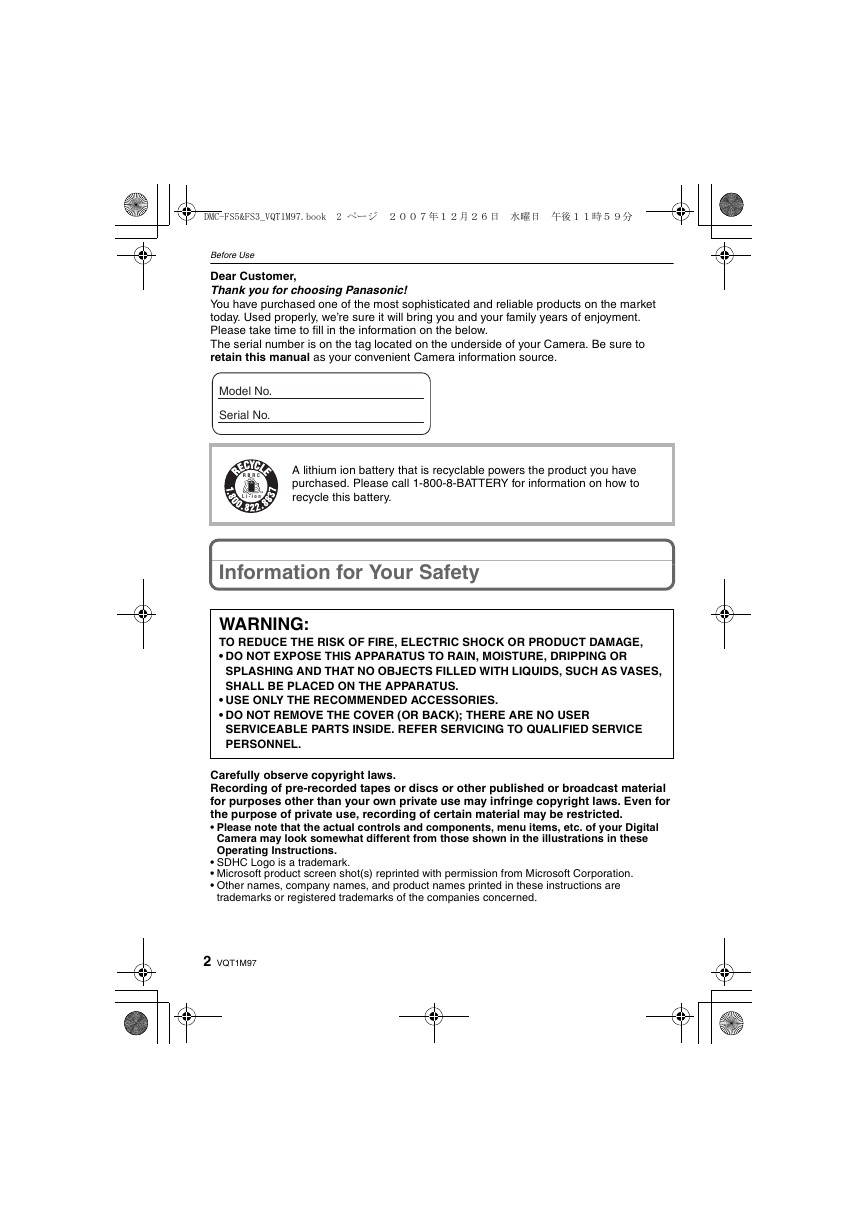

DMC-FS5&FS3_VQT1M97.book 2 ページ２００７年１２月２６日　水曜日　午後１１時５９分 Before Use Before Use Dear Customer, Thank you for choosing Panasonic! You have purchased one of the most sophisticated and reliable products on the market today. Used properly, we’re sure it will bring you and your family years of enjoyment. Please take time to fill in the information on the below. The serial number is on the tag located on the underside of your Camera. Be sure to retain this manual as your convenient Camera information source. Model No. Serial No. R B R C T M L i - i o n A lithium ion battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY for information on how to recycle this battery. Information for Your Safety WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, • DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. USE ONLY THE RECOMMENDED ACCESSORIES. DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Carefully observe copyright laws. Recording of pre-recorded tapes or discs or other published or broadcast material for purposes other than your own private use may infringe copyright laws. Even for the purpose of private use, recording of certain material may be restricted. Please note that the actual controls and components, menu items, etc. of your Digital Camera may look somewhat different from those shown in the illustrations in these Operating Instructions. SDHC Logo is a trademark. Microsoft product screen shot(s) reprinted with permission from Microsoft Corporation. Other names, company names, and product names printed in these instructions are trademarks or registered trademarks of the companies concerned. 2 VQT1M97

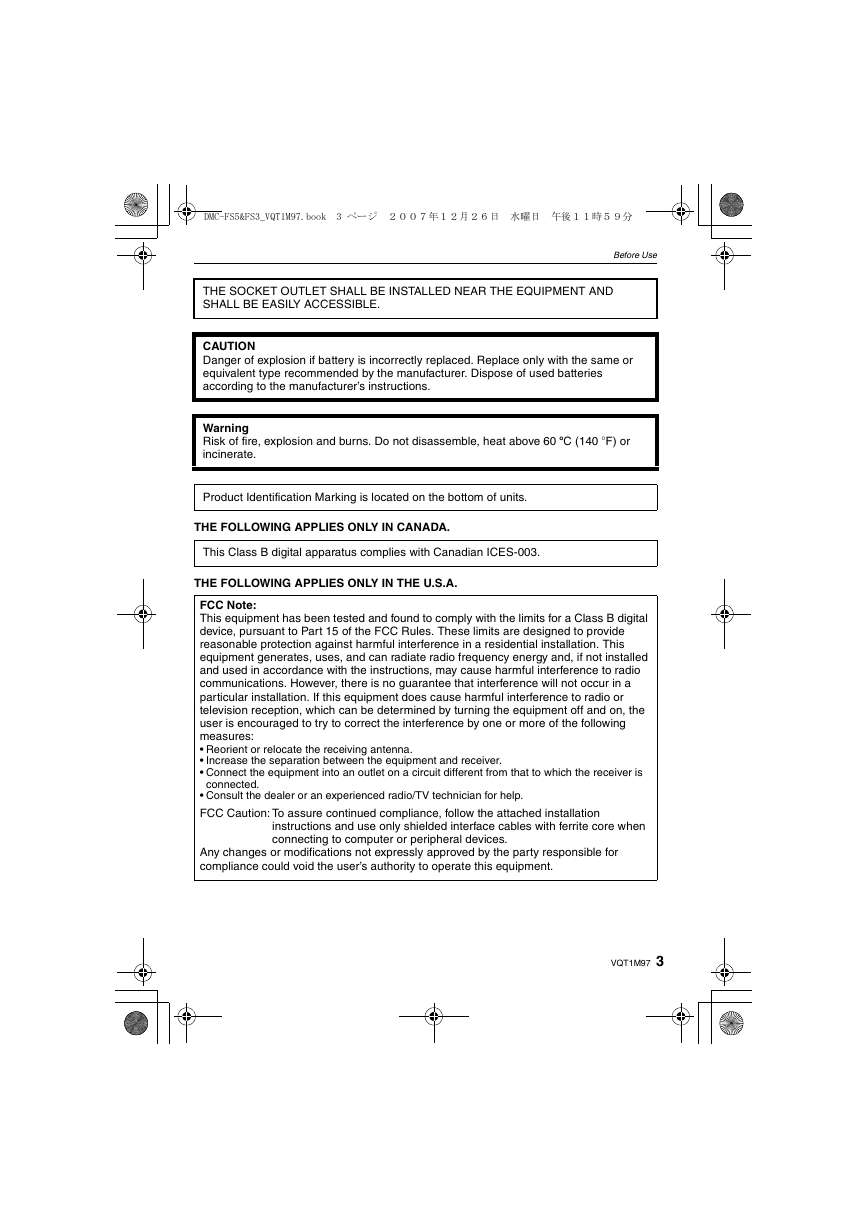

DMC-FS5&FS3_VQT1M97.book 3 ページ２００７年１２月２６日　水曜日　午後１１時５９分 Before Use THE SOCKET OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. Warning Risk of fire, explosion and burns. Do not disassemble, heat above 60 xC (140 oF) or incinerate. Product Identification Marking is located on the bottom of units. THE FOLLOWING APPLIES ONLY IN CANADA. This Class B digital apparatus complies with Canadian ICES-003. THE FOLLOWING APPLIES ONLY IN THE U.S.A. FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables with ferrite core when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. VQT1M97 3

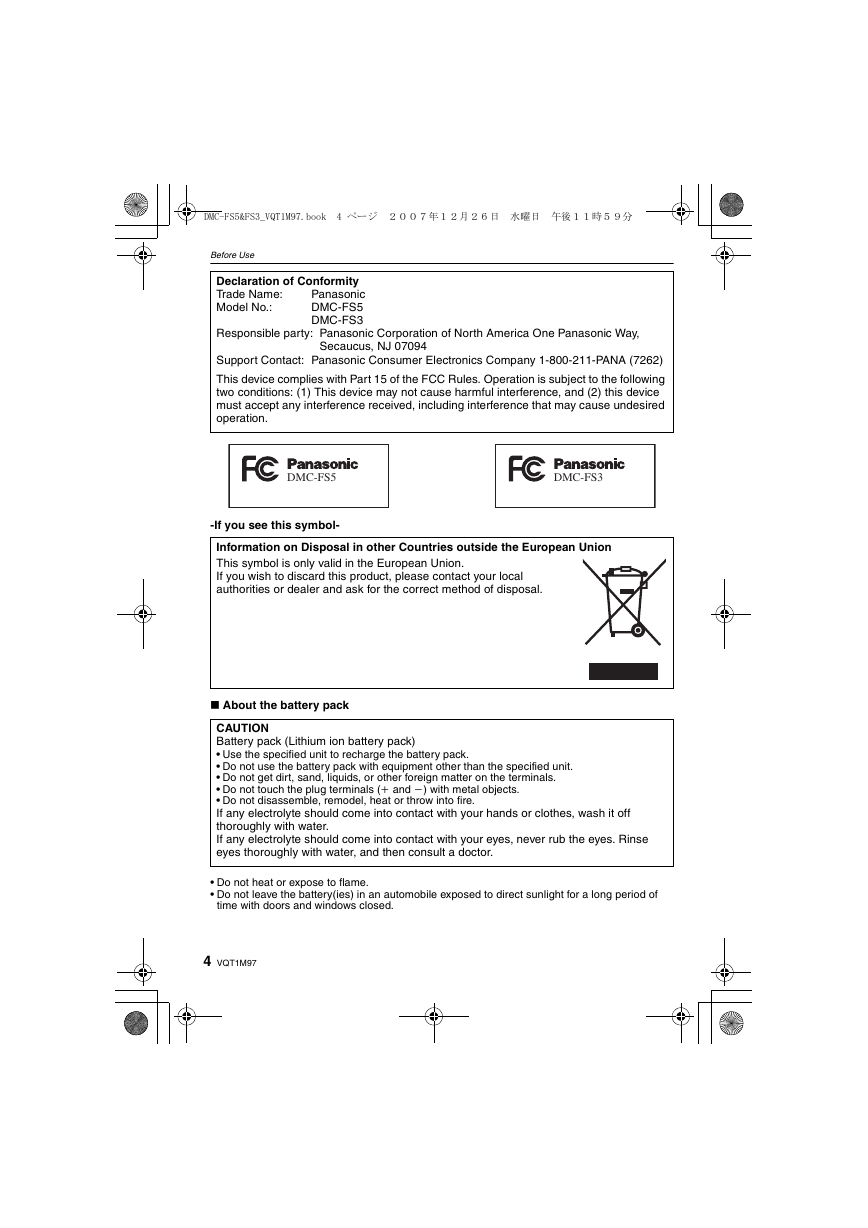

DMC-FS5&FS3_VQT1M97.book 4 ページ２００７年１２月２６日　水曜日　午後１１時５９分 Before Use Declaration of Conformity Panasonic Trade Name: DMC-FS5 Model No.: DMC-FS3 Responsible party: Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 Support Contact: Panasonic Consumer Electronics Company 1-800-211-PANA (7262) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DMC-FS5 DMC-FS3 -If you see this symbol- Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. ∫ About the battery pack CAUTION Battery pack (Lithium ion battery pack) Use the specified unit to recharge the battery pack. Do not use the battery pack with equipment other than the specified unit. Do not get dirt, sand, liquids, or other foreign matter on the terminals. Do not touch the plug terminals (i and j) with metal objects. Do not disassemble, remodel, heat or throw into fire. If any electrolyte should come into contact with your hands or clothes, wash it off thoroughly with water. If any electrolyte should come into contact with your eyes, never rub the eyes. Rinse eyes thoroughly with water, and then consult a doctor. Do not heat or expose to flame. Do not leave the battery(ies) in an automobile exposed to direct sunlight for a long period of time with doors and windows closed. 4 VQT1M97

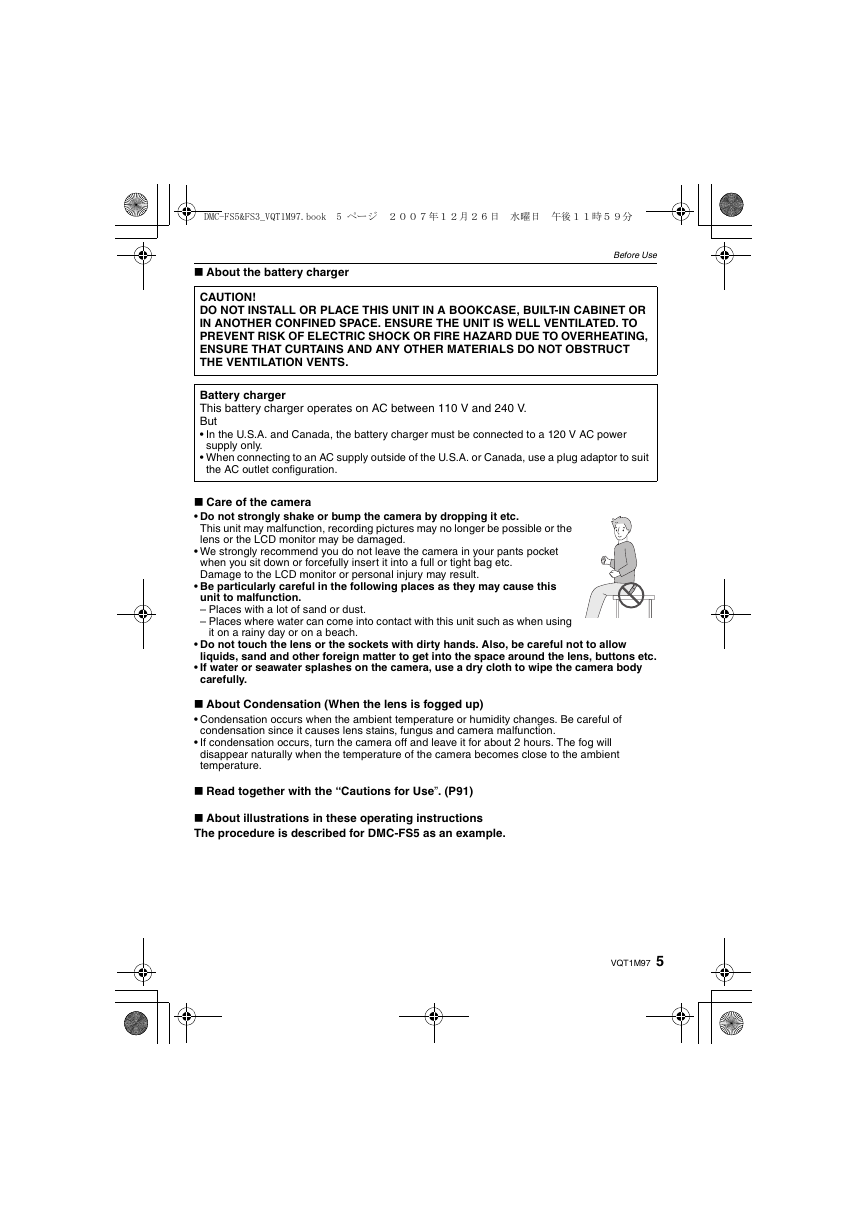

DMC-FS5&FS3_VQT1M97.book 5 ページ２００７年１２月２６日　水曜日　午後１１時５９分 ∫ About the battery charger CAUTION! DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS. Before Use Battery charger This battery charger operates on AC between 110 V and 240 V. But In the U.S.A. and Canada, the battery charger must be connected to a 120 V AC power When connecting to an AC supply outside of the U.S.A. or Canada, use a plug adaptor to suit supply only. the AC outlet configuration. ∫ Care of the camera Do not strongly shake or bump the camera by dropping it etc. This unit may malfunction, recording pictures may no longer be possible or the lens or the LCD monitor may be damaged. We strongly recommend you do not leave the camera in your pants pocket when you sit down or forcefully insert it into a full or tight bag etc. Damage to the LCD monitor or personal injury may result. Be particularly careful in the following places as they may cause this unit to malfunction. – Places with a lot of sand or dust. – Places where water can come into contact with this unit such as when using it on a rainy day or on a beach. Do not touch the lens or the sockets with dirty hands. Also, be careful not to allow liquids, sand and other foreign matter to get into the space around the lens, buttons etc. If water or seawater splashes on the camera, use a dry cloth to wipe the camera body carefully. ∫ About Condensation (When the lens is fogged up) Condensation occurs when the ambient temperature or humidity changes. Be careful of condensation since it causes lens stains, fungus and camera malfunction. If condensation occurs, turn the camera off and leave it for about 2 hours. The fog will disappear naturally when the temperature of the camera becomes close to the ambient temperature. ∫ Read together with the “Cautions for Use”. (P91) ∫ About illustrations in these operating instructions The procedure is described for DMC-FS5 as an example. VQT1M97 5

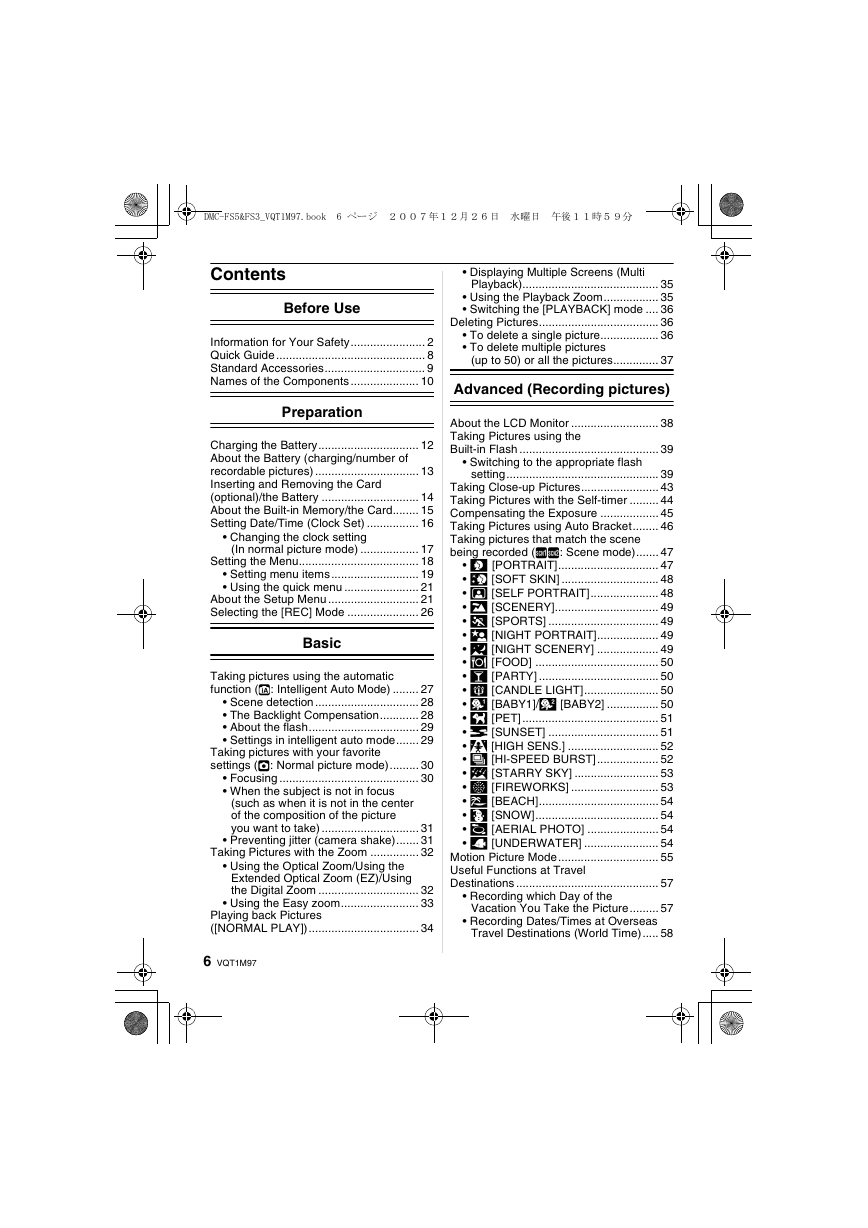

DMC-FS5&FS3_VQT1M97.book 6 ページ２００７年１２月２６日　水曜日　午後１１時５９分 Contents Before Use Information for Your Safety....................... 2 Quick Guide .............................................. 8 Standard Accessories............................... 9 Names of the Components ..................... 10 Preparation Charging the Battery............................... 12 About the Battery (charging/number of recordable pictures) ................................ 13 Inserting and Removing the Card (optional)/the Battery .............................. 14 About the Built-in Memory/the Card........ 15 Setting Date/Time (Clock Set) ................ 16 Changing the clock setting (In normal picture mode) .................. 17 Setting the Menu..................................... 18 Setting menu items........................... 19 Using the quick menu ....................... 21 About the Setup Menu ............................ 21 Selecting the [REC] Mode ...................... 26 Basic Taking pictures using the automatic function (ñ: Intelligent Auto Mode) ........ 27 Scene detection ................................ 28 The Backlight Compensation............ 28 About the flash.................................. 29 Settings in intelligent auto mode....... 29 Taking pictures with your favorite settings (·: Normal picture mode)......... 30 Focusing ........................................... 30 When the subject is not in focus (such as when it is not in the center of the composition of the picture you want to take) .............................. 31 Preventing jitter (camera shake)....... 31 Taking Pictures with the Zoom ............... 32 Using the Optical Zoom/Using the Extended Optical Zoom (EZ)/Using the Digital Zoom ............................... 32 Using the Easy zoom........................ 33 Playing back Pictures ([NORMAL PLAY]).................................. 34 6 VQT1M97 Displaying Multiple Screens (Multi Playback).......................................... 35 Using the Playback Zoom................. 35 Switching the [PLAYBACK] mode .... 36 Deleting Pictures..................................... 36 To delete a single picture.................. 36 To delete multiple pictures (up to 50) or all the pictures.............. 37 Advanced (Recording pictures) About the LCD Monitor ........................... 38 Taking Pictures using the Built-in Flash ........................................... 39 Switching to the appropriate flash setting............................................... 39 Taking Close-up Pictures........................ 43 Taking Pictures with the Self-timer ......... 44 Compensating the Exposure .................. 45 Taking Pictures using Auto Bracket........ 46 Taking pictures that match the scene being recorded (½¾: Scene mode)....... 47 * [PORTRAIT]............................... 47 + [SOFT SKIN] .............................. 48 0 [SELF PORTRAIT]..................... 48 , [SCENERY]................................ 49 - [SPORTS] .................................. 49 . [NIGHT PORTRAIT]................... 49 / [NIGHT SCENERY] ................... 49 1 [FOOD] ...................................... 50 2 [PARTY] ..................................... 50 3 [CANDLE LIGHT]....................... 50 : [BABY1]/; [BABY2] ................ 50 í [PET] .......................................... 51 ï [SUNSET] .................................. 51 9 [HIGH SENS.] ............................ 52 ô [HI-SPEED BURST]................... 52 5 [STARRY SKY] .......................... 53 4 [FIREWORKS] ........................... 53 6 [BEACH]..................................... 54 8 [SNOW]...................................... 54 7 [AERIAL PHOTO] ...................... 54 < [UNDERWATER] ....................... 54 Motion Picture Mode............................... 55 Useful Functions at Travel Destinations ............................................ 57 Recording which Day of the Vacation You Take the Picture......... 57 Recording Dates/Times at Overseas Travel Destinations (World Time)..... 58

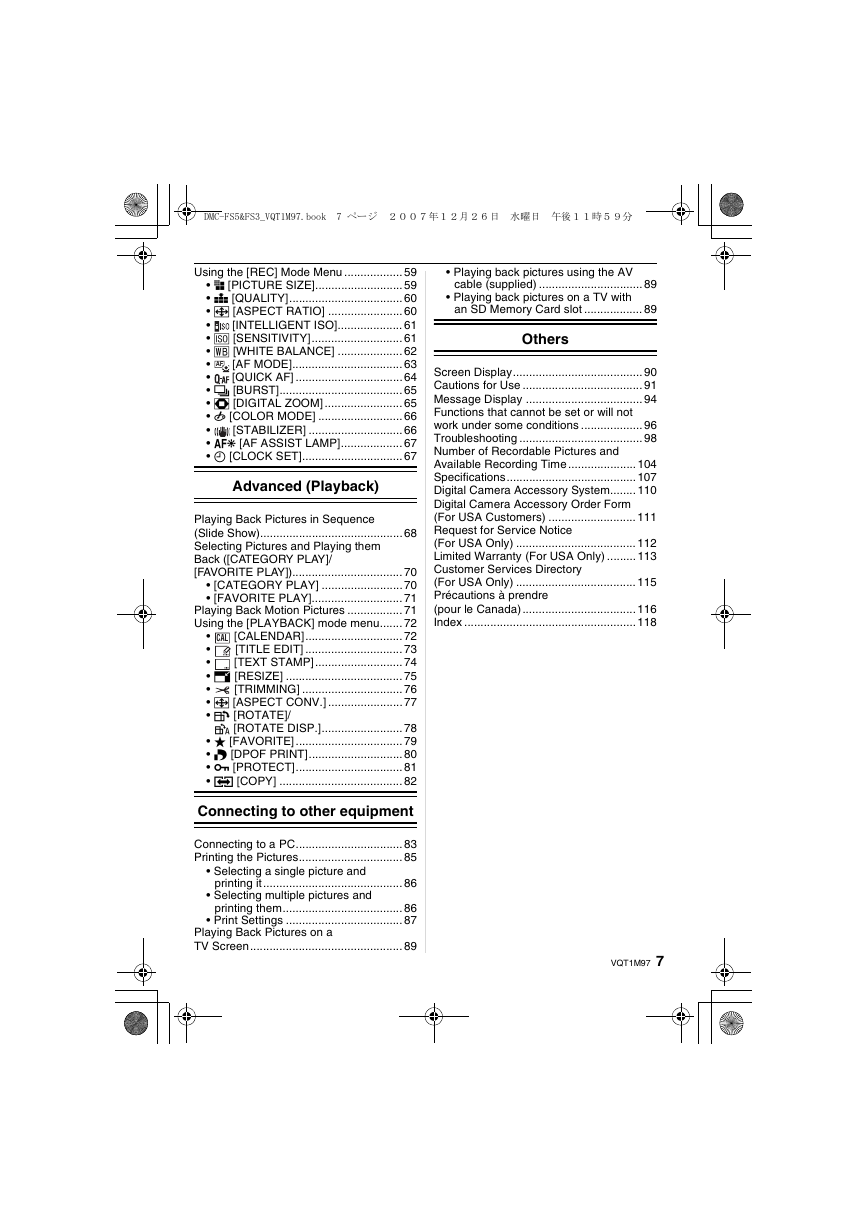

DMC-FS5&FS3_VQT1M97.book 7 ページ２００７年１２月２６日　水曜日　午後１１時５９分 Using the [REC] Mode Menu .................. 59 @ [PICTURE SIZE]........................... 59 A [QUALITY]................................... 60 ? [ASPECT RATIO] ....................... 60 [INTELLIGENT ISO].................... 61 > [SENSITIVITY]............................ 61 = [WHITE BALANCE] .................... 62 [AF MODE].................................. 63 [QUICK AF] ................................. 64 ˜ [BURST]...................................... 65 ) [DIGITAL ZOOM] ........................ 65 H [COLOR MODE] .......................... 66 [STABILIZER] ............................. 66 F [AF ASSIST LAMP]................... 67 U [CLOCK SET]............................... 67 AF Advanced (Playback) Playing Back Pictures in Sequence (Slide Show)............................................ 68 Selecting Pictures and Playing them Back ([CATEGORY PLAY]/ [FAVORITE PLAY]).................................. 70 [CATEGORY PLAY] ......................... 70 [FAVORITE PLAY]............................ 71 Playing Back Motion Pictures ................. 71 Using the [PLAYBACK] mode menu....... 72 [CALENDAR].............................. 72 [TITLE EDIT] .............................. 73 [TEXT STAMP]........................... 74 Q [RESIZE] .................................... 75 [TRIMMING] ............................... 76 ? [ASPECT CONV.] ....................... 77 N [ROTATE]/ CAL M [ROTATE DISP.]......................... 78 Ü [FAVORITE] ................................. 79 O [DPOF PRINT]............................. 80 P [PROTECT]................................. 81 S [COPY] ...................................... 82 Connecting to other equipment Connecting to a PC................................. 83 Printing the Pictures................................ 85 Selecting a single picture and printing it ........................................... 86 Selecting multiple pictures and printing them..................................... 86 Print Settings .................................... 87 Playing Back Pictures on a TV Screen............................................... 89 Playing back pictures using the AV cable (supplied) ................................ 89 Playing back pictures on a TV with an SD Memory Card slot .................. 89 Others Screen Display........................................ 90 Cautions for Use ..................................... 91 Message Display .................................... 94 Functions that cannot be set or will not work under some conditions ................... 96 Troubleshooting ...................................... 98 Number of Recordable Pictures and Available Recording Time ..................... 104 Specifications........................................ 107 Digital Camera Accessory System........ 110 Digital Camera Accessory Order Form (For USA Customers) ........................... 111 Request for Service Notice (For USA Only) ..................................... 112 Limited Warranty (For USA Only) ......... 113 Customer Services Directory (For USA Only) ..................................... 115 Précautions à prendre (pour le Canada) ................................... 116 Index ..................................................... 118 VQT1M97 7

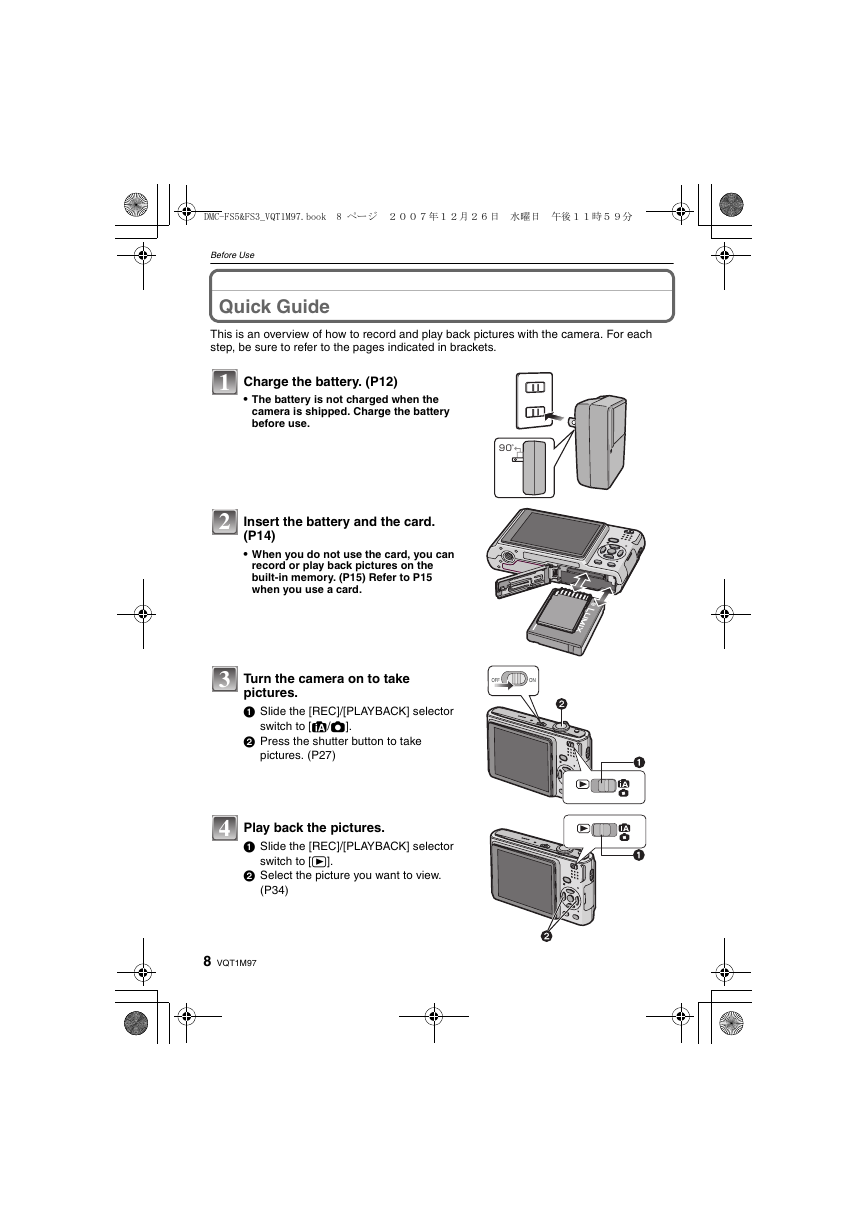

DMC-FS5&FS3_VQT1M97.book 8 ページ２００７年１２月２６日　水曜日　午後１１時５９分 Before Use Before UseQuick Guide This is an overview of how to record and play back pictures with the camera. For each step, be sure to refer to the pages indicated in brackets. 1 2 3 4 Charge the battery. (P12) The battery is not charged when the camera is shipped. Charge the battery before use. ９０° Insert the battery and the card. (P14) When you do not use the card, you can record or play back pictures on the built-in memory. (P15) Refer to P15 when you use a card. Turn the camera on to take pictures. 1 Slide the [REC]/[PLAYBACK] selector switch to [¦/!]. 2 Press the shutter button to take pictures. (P27) OFF ON Play back the pictures. 1 Slide the [REC]/[PLAYBACK] selector switch to [(]. 2 Select the picture you want to view. (P34) 8 VQT1M97
