Genesis-10.05说明档.pdf
Release Notes Version 10.5
Chapter 1 Overview
Introduction
Identification
Intended Readers
Organization of this Manual
Read More
Chapter 2 Highlights
Graphic Editor
New Option Added to Measure Popup
Validate Result Added to Contourization Popup
Wheel Tool Editor
Multiple Wheels Permitted Inside a Single Wheel File
System
New Layer Type wire_bonding
Genesis Tested and Validated on Windows 10 Anniversary Edition
DFM Actions
Convert Special Symbols to Standard Symbols
I/O
Improvements to RS274-X
RS274-X Reinput: Arcs with Special Apertures
RS274-X ReadIn: Change in Highlight Color if Reinput File Changes
RS274-X Input: Arc Input with Different Start and End Coordinates Can be Drawn as a Line or Full Circle Arc
Improvements to IPC-2581 Input
Genesis Reads All Step Profile Data from IPC-2581 Input Files
Chapter 3 Major Enhancements
Graphic Editor
Measure Angle Between Lines Added to Measure Popup
Enhancements to Contourization
Validate Result Added to Contourization Popup
Rasterization within Contourization Now Permitted for Any Number of Features
Improvements to Fill Surface
Engineering Toolkit
New Option for Export ODB++ Job - Analyze Surfaces
Wheel Tool Editor
Multiple Wheels Permitted Inside a Single Wheel File
Tips for writing the wheel template extraction script
Tips for developing the splitting script
Batch Process Report
I/O
Enhancements to RS274-X
RS274-X Input: Arc Input with Different Start and End Coordinates Can be Drawn as a Line or Full Circle Arc
RS274-X Reinput: Arcs with Special Apertures
RS274-X ReadIn: Change in Highlight Color if Reinput File Changes
Enhancements to IPC-2581 Input
Genesis Reads All Step Profile Data from IPC-2581 Input Files
Enhancements to Excellon2 Input
Treatment of Optional Drills
System
Genesis Supports ODB++ wire_bonding Layer Type
Genesis on Linux Platform Uses System Unzip Utility
Genesis Tested and Validated on Windows 10 Anniversary Edition
Chapter 4 Revised Analysis and DFM Actions
Analysis Actions
Power & Ground Checks
Allow Separating Same Net PTH/Via to Copper in Different Category
Categories
pth2c_sn
via2c_sn
DFM Actions
New DFM Action: Convert Special Symbol to Standard
Introduction
Screen Parameters
Categories
Converted
Not Converted
Datum is not in the center
Galvanic Etch Compensation
Consider Embedded OSP Pads for Gold/Cu Ratio Calculation
New ERF Variable
Chapter 5 Parameters, Attributes, and Commands
New Configuration Parameters
edt_cont_validate_result
edt_cont_rasterize_any_number_of_features
iol_274x_arc_full_start_end_center_on_xory
Revised Configuration Parameters
New Line Mode Commands
Revised Line Mode Commands
export_job
sel_contourize
New or Revised ERF Variables
New ERF Variable v_ignore_embedded_pad
Chapter 6 Case List
RELEASE NOTES VERSION 10.5
Software Version 10.5
Document 091050917
Published September 2017
© 2017 Frontline PCB Solutions LP
All rights reserved.
This document contains proprietary information belonging to
Frontline PCB Solutions LP. This information is not for publication
and is issued on condition that it will not be copied, printed or
disclosed to a third party, without the written consent of
Frontline PCB Solutions.
This document is subject to change without notice.
Frontline PCB Solutions
2 Oppenheimer Street Third Floor
Rehovot 76701 Israel
Tel: (972)-8-9322183
Fax: (972)-8-9322186
http://www.frontline-pcb.com
email: info@frontline-pcb.com
Table of Contents
Chapter 1 Overview
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Intended Readers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Organization of this Manual . . . . . . . . . . . . . . . . . . . . . 5
Read More . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Chapter 2 Highlights
Graphic Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
New Option Added to Measure Popup . . . . . . . . . . . . . . . . . 6
Validate Result Added to Contourization Popup . . . . . . . . . . 6
Wheel Tool Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Multiple Wheels Permitted Inside a Single Wheel File . . . . . 6
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
New Layer Type wire_bonding . . . . . . . . . . . . . . . . . . . . . . . 6
Genesis Tested and Validated on Windows 10
Anniversary Edition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
DFM Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Convert Special Symbols to Standard Symbols . . . . . . . . . . 7
I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Improvements to RS274-X . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Improvements to IPC-2581 Input . . . . . . . . . . . . . . . . . . . . . 8
Chapter 3 Major Enhancements
Graphic Editor . . . . . . . . . . . . . . . . . . . . . 9
Measure Angle Between Lines Added to Measure Popup 9
Enhancements to Contourization . . . . . . . . . . . . . . . . 10
Validate Result Added to Contourization Popup . . . . . . . . . 10
Rasterization within Contourization Now Permitted for
Any Number of Features . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Improvements to Fill Surface . . . . . . . . . . . . . . . . . . . 11
Engineering Toolkit . . . . . . . . . . . . . . . . 12
New Option for Export ODB++ Job – Analyze Surfaces 12
Wheel Tool Editor . . . . . . . . . . . . . . . . . . 13
Multiple Wheels Permitted Inside a Single Wheel File 13
I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
091050917
Release Notes Version 10.5 2
Enhancements to RS274-X . . . . . . . . . . . . . . . . . . . . . 17
RS274-X Input: Arc Input with Different Start and End
Coordinates Can be Drawn as a Line or Full Circle Arc . . . 17
RS274-X Reinput: Arcs with Special Apertures . . . . . . . . . 17
RS274-X ReadIn: Change in Highlight Color if
Reinput File Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Enhancements to IPC-2581 Input . . . . . . . . . . . . . . . . 18
Genesis Reads All Step Profile Data from IPC-2581 Input Files 18
Enhancements to Excellon2 Input . . . . . . . . . . . . . . . 18
Treatment of Optional Drills . . . . . . . . . . . . . . . . . . . . . . . . 18
System . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Genesis Supports ODB++ wire_bonding Layer Type 19
Genesis on Linux Platform Uses System Unzip Utility 19
Genesis Tested and Validated on Windows 10
Anniversary Edition . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Chapter 4 Revised Analysis and DFM Actions
Analysis Actions . . . . . . . . . . . . . . . . . . . 20
Power & Ground Checks . . . . . . . . . . . . . . . . . . . . . . 20
Allow Separating Same Net PTH/Via to Copper in
Different Category . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Categories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
DFM Actions . . . . . . . . . . . . . . . . . . . . . . 22
New DFM Action: Convert Special Symbol
to Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Screen Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Categories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Galvanic Etch Compensation . . . . . . . . . . . . . . . . . . . 26
Consider Embedded OSP Pads for Gold/Cu Ratio Calculation 26
New ERF Variable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Chapter 5 Parameters, Attributes, and Commands
New Configuration Parameters . . . . . . . . . . . . . . . . . 27
edt_cont_validate_result . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
edt_cont_rasterize_any_number_of_features . . . . . . . . . . . 27
iol_274x_arc_full_start_end_center_on_xory . . . . . . . . . . . 28
Revised Configuration Parameters . . . . . . . . . . . . . . . 28
New Line Mode Commands . . . . . . . . . . . . . . . . . . . . 29
Revised Line Mode Commands . . . . . . . . . . . . . . . . . 29
export_job . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
sel_contourize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
091050917
Release Notes Version 10.5 3
New or Revised ERF Variables . . . . . . . . . . . . . . . . . 30
New ERF Variable v_ignore_embedded_pad . . . . . . . . . . . 30
Chapter 6 Case List
Release Notes Version 10.5
Release Notes Version 10.5
091050917
Release Notes Version 10.5 4

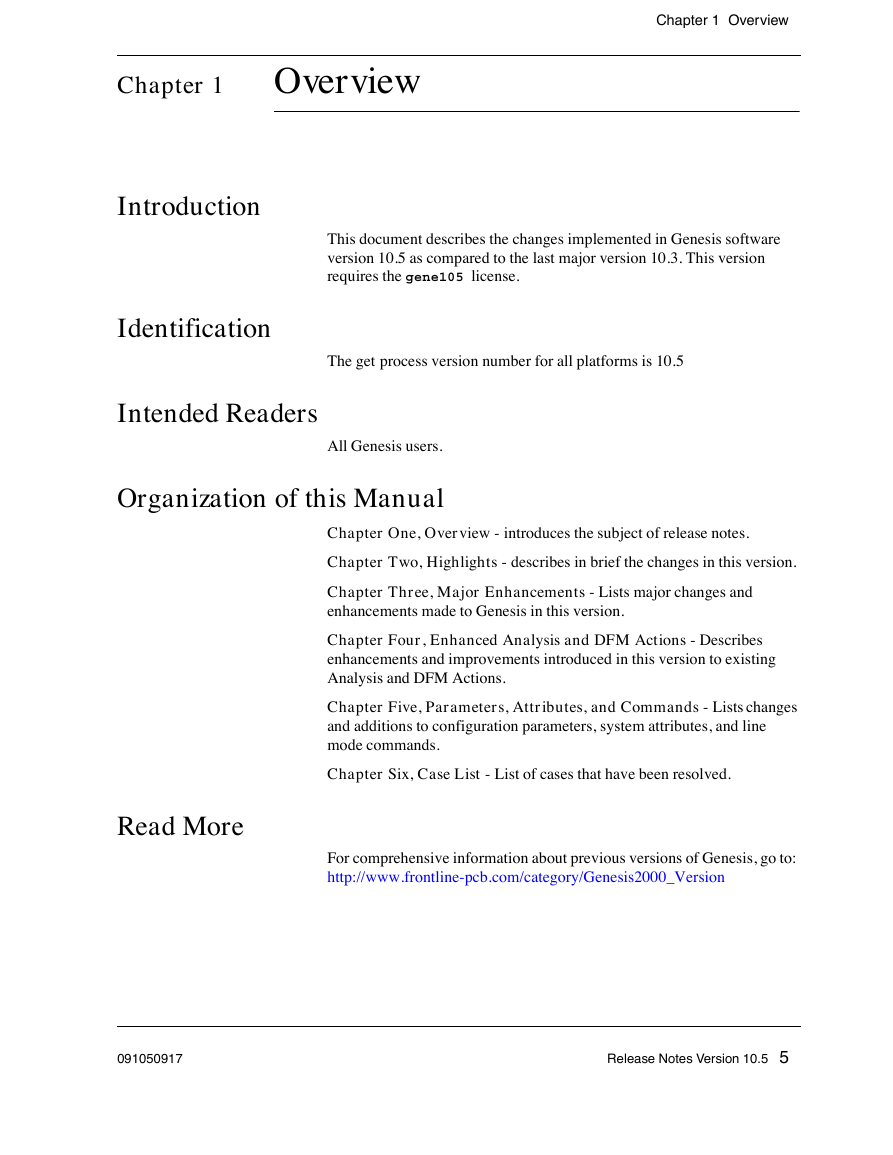

Chapter 1 Overview
Chapter 1 Overview
Introduction
Identification
This document describes the changes implemented in Genesis software
version 10.5 as compared to the last major version 10.3. This version
requires the gene105 license.
The get process version number for all platforms is 10.5
Intended Readers
All Genesis users.
Organization of this Manual
Chapter One, Overview - introduces the subject of release notes.
Chapter Two, Highlights - describes in brief the changes in this version.
Chapter Three, Major Enhancements - Lists major changes and
enhancements made to Genesis in this version.
Chapter Four, Enhanced Analysis and DFM Actions - Describes
enhancements and improvements introduced in this version to existing
Analysis and DFM Actions.
Chapter Five, Parameters, Attributes, and Commands - Lists changes
and additions to configuration parameters, system attributes, and line
mode commands.
Chapter Six, Case List - List of cases that have been resolved.
Read More
For comprehensive information about previous versions of Genesis, go to:
http://www.frontline-pcb.com/category/Genesis2000_Version
091050917
Release Notes Version 10.5 5

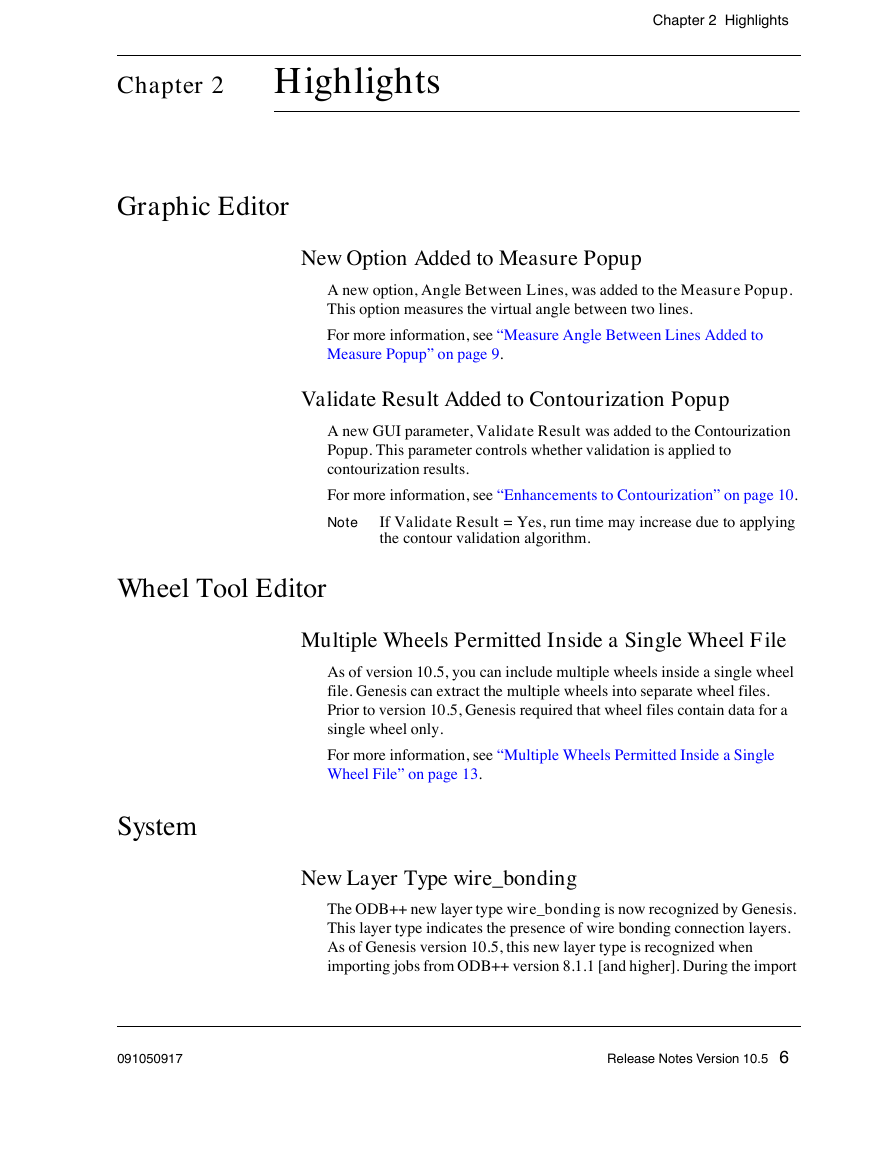

Chapter 2 Highlights
Chapter 2 Highlights
Graphic Editor
New Option Added to Measure Popup
A new option, Angle Between Lines, was added to the Measure Popup.
This option measures the virtual angle between two lines.
For more information, see “Measure Angle Between Lines Added to
Measure Popup” on page 9.
Validate Result Added to Contourization Popup
A new GUI parameter, Validate Result was added to the Contourization
Popup. This parameter controls whether validation is applied to
contourization results.
For more information, see “Enhancements to Contourization” on page 10.
If Validate Result = Yes, run time may increase due to applying
the contour validation algorithm.
Note
Wheel Tool Editor
System
Multiple Wheels Permitted Inside a Single Wheel File
As of version 10.5, you can include multiple wheels inside a single wheel
file. Genesis can extract the multiple wheels into separate wheel files.
Prior to version 10.5, Genesis required that wheel files contain data for a
single wheel only.
For more information, see “Multiple Wheels Permitted Inside a Single
Wheel File” on page 13.
New Layer Type wire_bonding
The ODB++ new layer type wire_bonding is now recognized by Genesis.
This layer type indicates the presence of wire bonding connection layers.
As of Genesis version 10.5, this new layer type is recognized when
importing jobs from ODB++ version 8.1.1 [and higher]. During the import
091050917
Release Notes Version 10.5 6
DFM Actions
I/O
Chapter 2 Highlights
process the wire_bonding layer type is converted to the DOCUMENT
layer type.
For more information, see “Genesis Supports ODB++ wire_bonding
Layer Type” on page 19.
Genesis Tested and Validated on Windows 10
Anniversary Edition
Genesis 10.5 was tested and validated on Windows 10 anniversary O/S.
Convert Special Symbols to Standard Symbols
A new DFM action, Convert Special Symbol to Standard, was added to
Genesis. The action detects features with attributes .construct or .i274x,
and then converts those features into standard or semi-standard symbols.
For more information, see “New DFM Action: Convert Special Symbol to
Standard” on page 22.

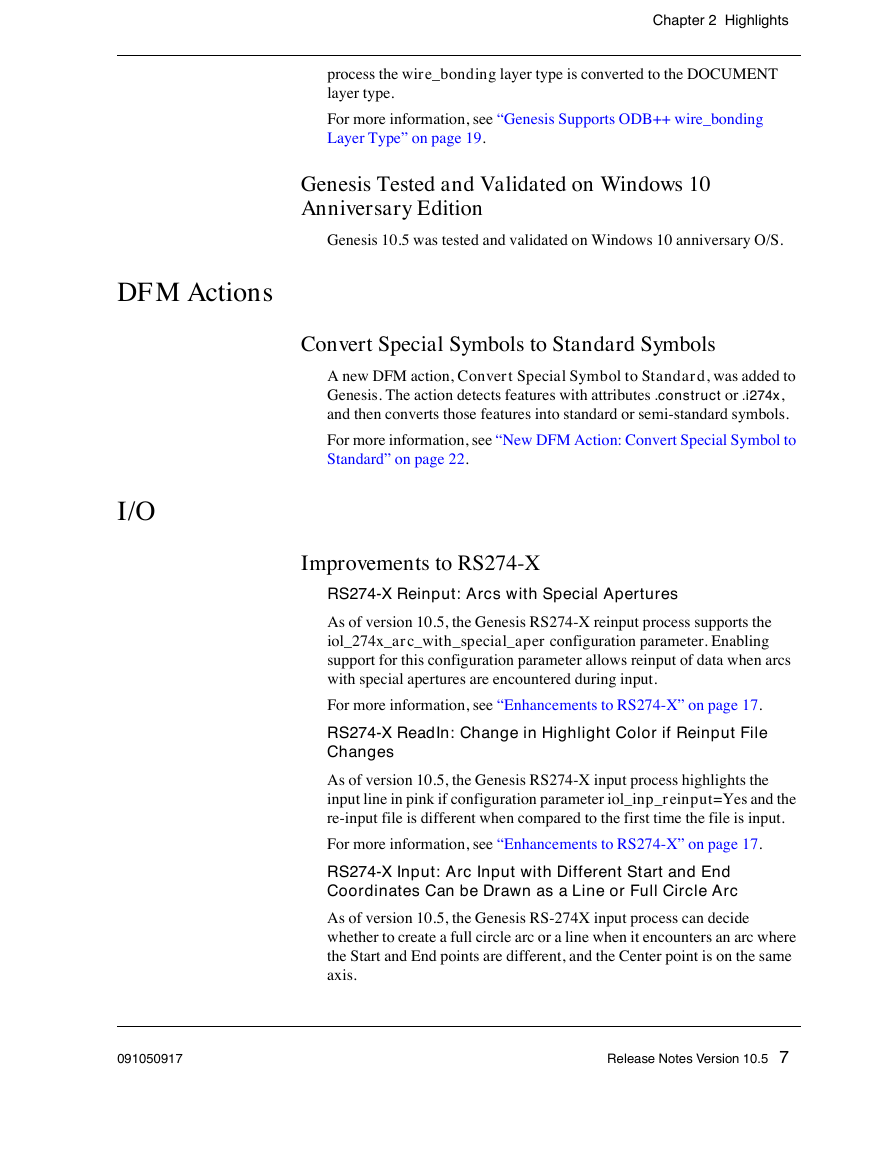

Improvements to RS274-X
RS274-X Reinput: Arcs with Special Apertures
As of version 10.5, the Genesis RS274-X reinput process supports the
iol_274x_arc_with_special_aper configuration parameter. Enabling
support for this configuration parameter allows reinput of data when arcs
with special apertures are encountered during input.
For more information, see “Enhancements to RS274-X” on page 17.
RS274-X ReadIn: Change in Highlight Color if Reinput File
Changes
As of version 10.5, the Genesis RS274-X input process highlights the
input line in pink if configuration parameter iol_inp_reinput=Yes and the
re-input file is different when compared to the first time the file is input.
For more information, see “Enhancements to RS274-X” on page 17.
RS274-X Input: Arc Input with Different Start and End
Coordinates Can be Drawn as a Line or Full Circle Arc
As of version 10.5, the Genesis RS-274X input process can decide
whether to create a full circle arc or a line when it encounters an arc where
the Start and End points are different, and the Center point is on the same
axis.
091050917
Release Notes Version 10.5 7
Chapter 2 Highlights
For more information, see “RS274-X Input: Arc Input with Different Start
and End Coordinates Can be Drawn as a Line or Full Circle Arc” on
page 17.

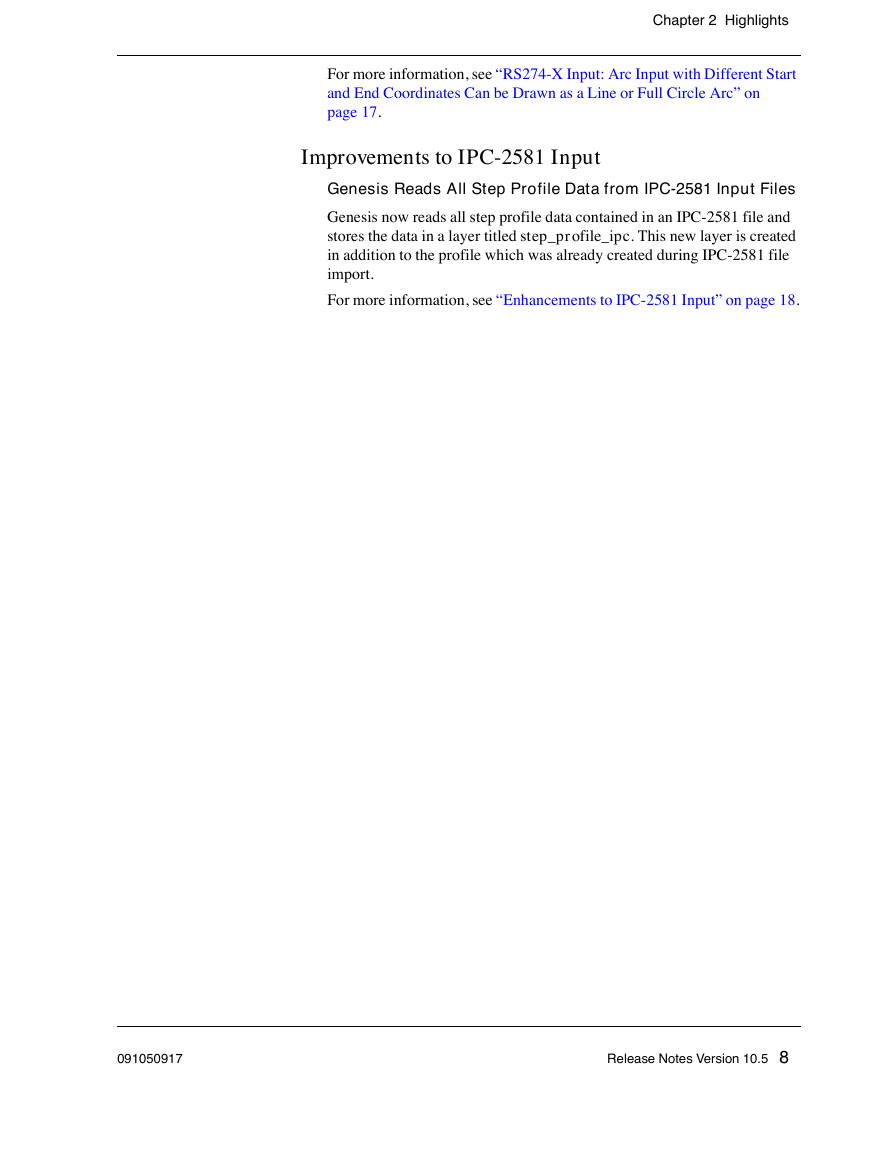

Improvements to IPC-2581 Input
Genesis Reads All Step Profile Data from IPC-2581 Input Files
Genesis now reads all step profile data contained in an IPC-2581 file and
stores the data in a layer titled step_profile_ipc. This new layer is created
in addition to the profile which was already created during IPC-2581 file
import.
For more information, see “Enhancements to IPC-2581 Input” on page 18.
091050917
Release Notes Version 10.5 8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
