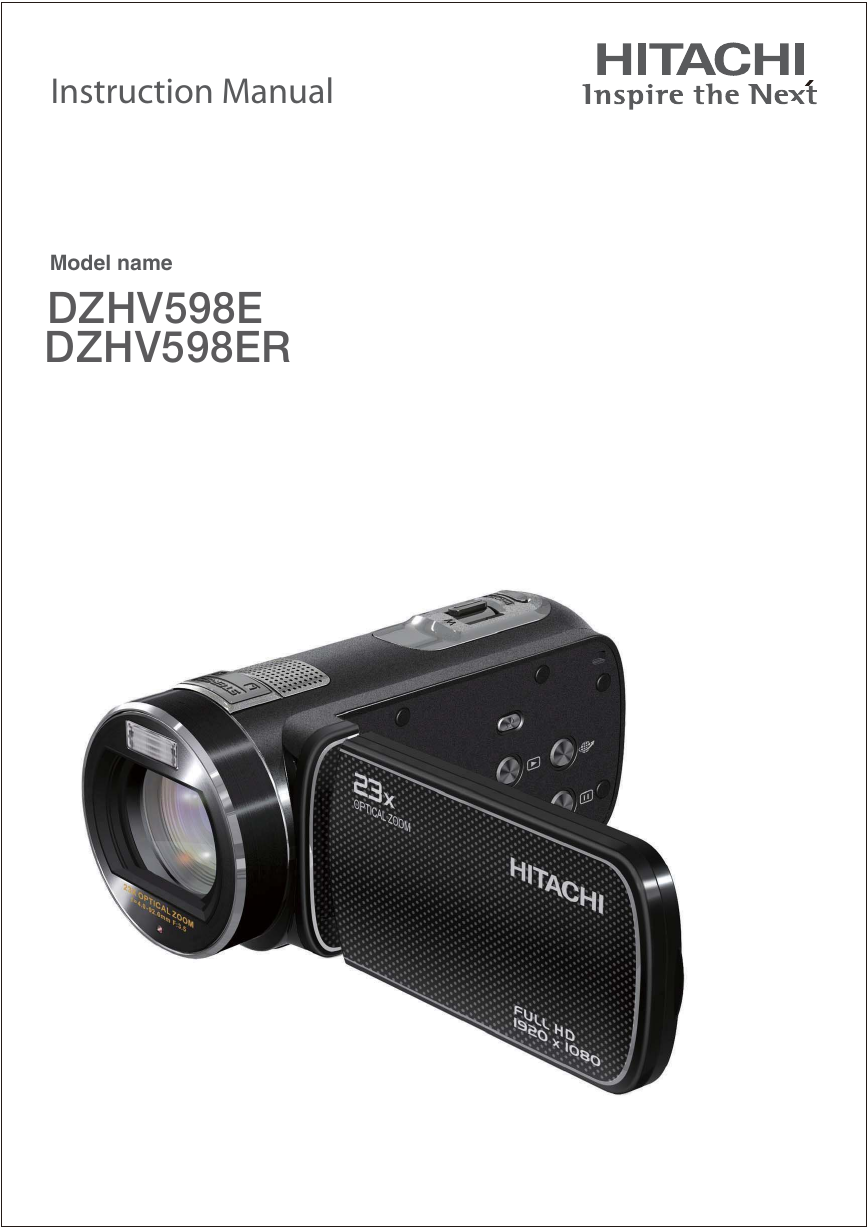

Instruction Manual Model name DZHV598E DZHV598ER

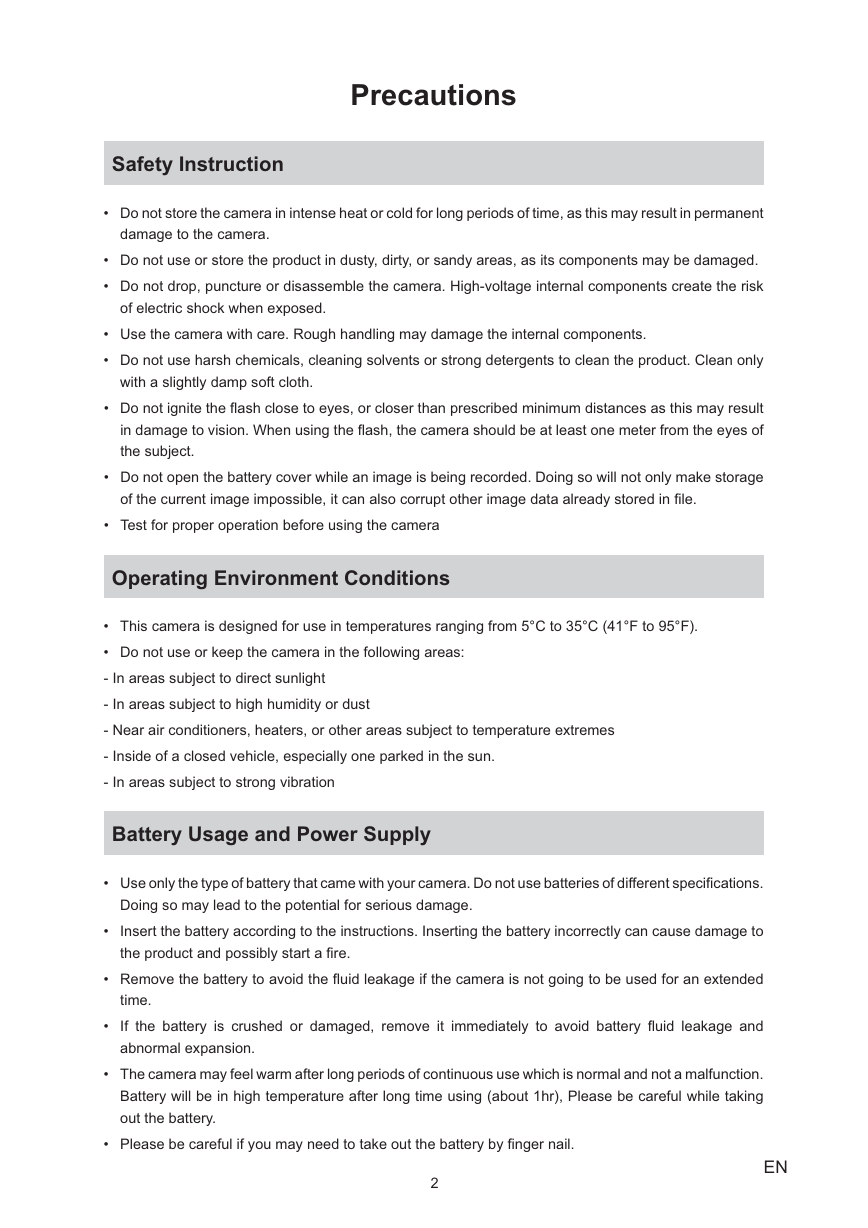

Precautions Safety Instruction • • • • • • • • Do not store the camera in intense heat or cold for long periods of time, as this may result in permanent damage to the camera. Do not use or store the product in dusty, dirty, or sandy areas, as its components may be damaged. Do not drop, puncture or disassemble the camera. High-voltage internal components create the risk of electric shock when exposed. Use the camera with care. Rough handling may damage the internal components. Do not use harsh chemicals, cleaning solvents or strong detergents to clean the product. Clean only with a slightly damp soft cloth. Do not ignite the ﬂash close to eyes, or closer than prescribed minimum distances as this may result in damage to vision. When using the ﬂash, the camera should be at least one meter from the eyes of the subject. Do not open the battery cover while an image is being recorded. Doing so will not only make storage of the current image impossible, it can also corrupt other image data already stored in ﬁle. Test for proper operation before using the camera Operating Environment Conditions This camera is designed for use in temperatures ranging from 5°C to 35°C (41°F to 95°F). Do not use or keep the camera in the following areas: • • - In areas subject to direct sunlight - In areas subject to high humidity or dust - Near air conditioners, heaters, or other areas subject to temperature extremes - Inside of a closed vehicle, especially one parked in the sun. - In areas subject to strong vibration Battery Usage and Power Supply • • • • • • Use only the type of battery that came with your camera. Do not use batteries of different speciﬁcations. Doing so may lead to the potential for serious damage. Insert the battery according to the instructions. Inserting the battery incorrectly can cause damage to the product and possibly start a ﬁre. Remove the battery to avoid the ﬂuid leakage if the camera is not going to be used for an extended time. If the battery is crushed or damaged, remove it immediately to avoid battery ﬂuid leakage and abnormal expansion. The camera may feel warm after long periods of continuous use which is normal and not a malfunction. Battery will be in high temperature after long time using (about 1hr), Please be careful while taking out the battery. Please be careful if you may need to take out the battery by ﬁnger nail. 2 EN

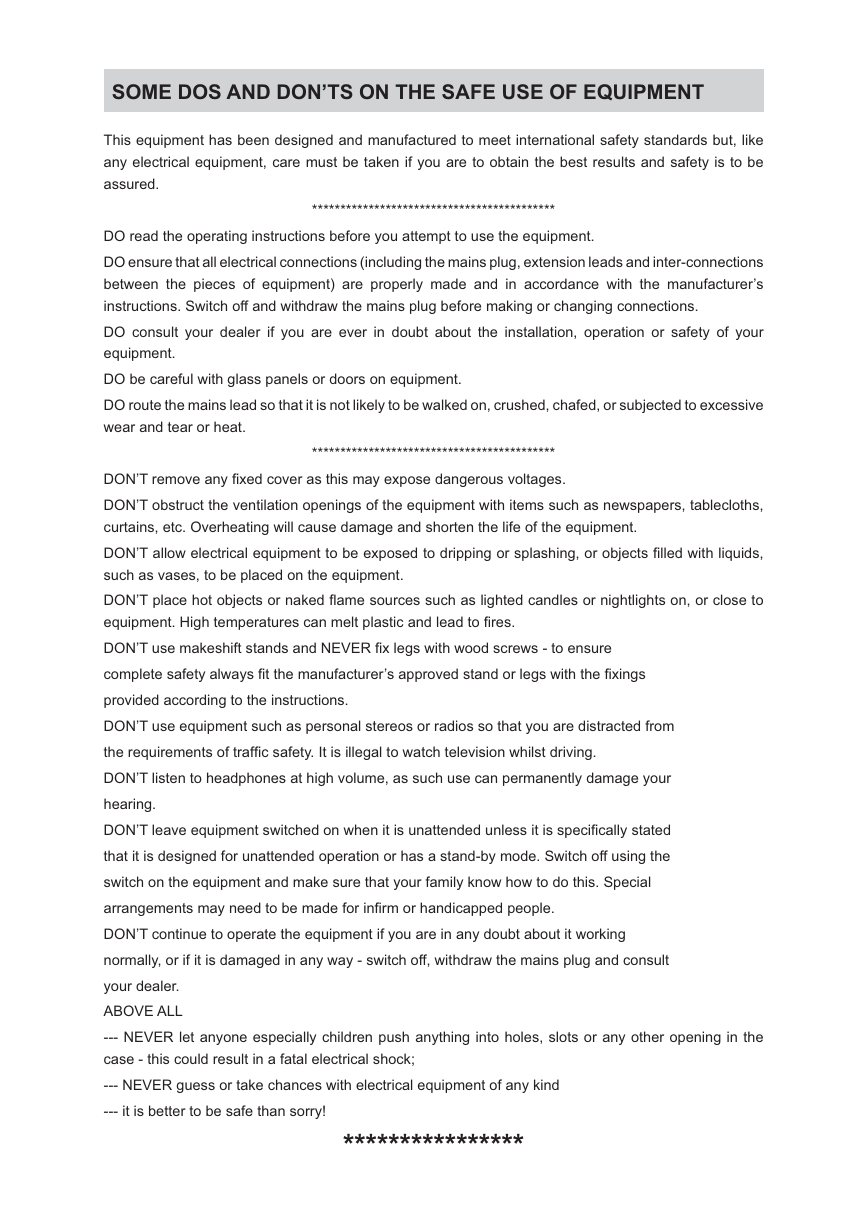

SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. ******************************************* DO read the operating instructions before you attempt to use the equipment. DO ensure that all electrical connections (including the mains plug, extension leads and inter-connections between the pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug before making or changing connections. DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment. DO be careful with glass panels or doors on equipment. DO route the mains lead so that it is not likely to be walked on, crushed, chafed, or subjected to excessive wear and tear or heat. ******************************************* DON’T remove any ﬁxed cover as this may expose dangerous voltages. DON’T obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment. DON’T allow electrical equipment to be exposed to dripping or splashing, or objects ﬁlled with liquids, such as vases, to be placed on the equipment. DON’T place hot objects or naked ﬂame sources such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to ﬁres. DON’T use makeshift stands and NEVER ﬁx legs with wood screws - to ensure complete safety always ﬁt the manufacturer’s approved stand or legs with the ﬁxings provided according to the instructions. DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of trafﬁc safety. It is illegal to watch television whilst driving. DON’T listen to headphones at high volume, as such use can permanently damage your hearing. DON’T leave equipment switched on when it is unattended unless it is speciﬁcally stated that it is designed for unattended operation or has a stand-by mode. Switch off using the switch on the equipment and make sure that your family know how to do this. Special arrangements may need to be made for inﬁrm or handicapped people. DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer. ABOVE ALL --- NEVER let anyone especially children push anything into holes, slots or any other opening in the case - this could result in a fatal electrical shock; --- NEVER guess or take chances with electrical equipment of any kind --- it is better to be safe than sorry! ****************

Contents Section 1 Getting to Know Your Camera ........................................... 5 Section 2 Getting Started .................................................................... 9 Section 3 Enjoying the Record Mode .............................................. 11 Section 4 Enjoying the Playback Mode ........................................... 22 Section 5 Setting Your Camera ....................................................... 27 Section 6 Viewing Photos and Videos on TV .................................. 31 Section 7 Viewing Video & Photo on PC ......................................... 32 Section 8 Uploading Files to Internet .............................................. 33 Section 9 Speciﬁcations and System Requirements ..................... 36 Section 10 Troubleshooting ............................................................... 38 Section 11 Additional Information ..................................................... 39

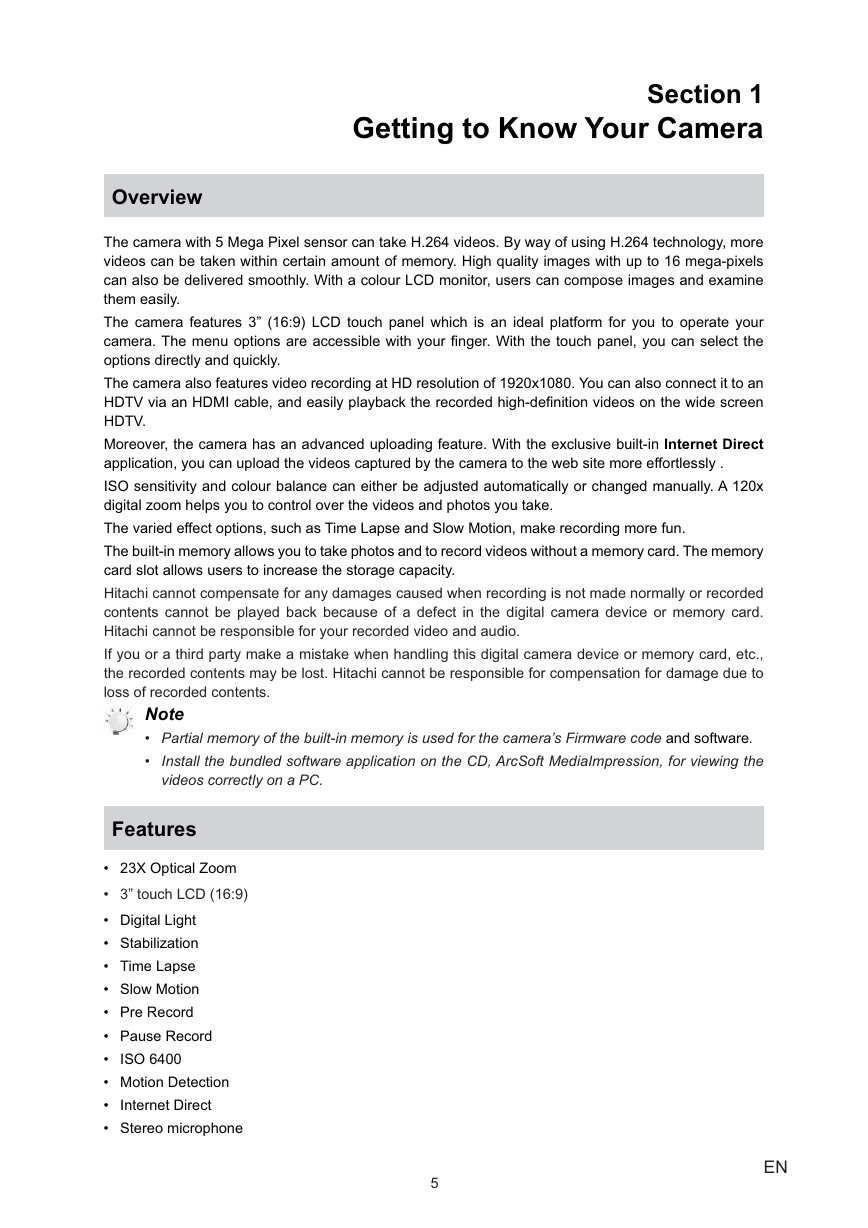

Section 1 Getting to Know Your Camera Overview The camera with 5 Mega Pixel sensor can take H.264 videos. By way of using H.264 technology, more videos can be taken within certain amount of memory. High quality images with up to 16 mega-pixels can also be delivered smoothly. With a colour LCD monitor, users can compose images and examine them easily. The camera features 3” (16:9) LCD touch panel which is an ideal platform for you to operate your camera. The menu options are accessible with your ﬁnger. With the touch panel, you can select the options directly and quickly. The camera also features video recording at HD resolution of 1920x1080. You can also connect it to an HDTV via an HDMI cable, and easily playback the recorded high-deﬁnition videos on the wide screen HDTV. Moreover, the camera has an advanced uploading feature. With the exclusive built-in Internet Direct application, you can upload the videos captured by the camera to the web site more effortlessly . ISO sensitivity and colour balance can either be adjusted automatically or changed manually. A 120x digital zoom helps you to control over the videos and photos you take. The varied effect options, such as Time Lapse and Slow Motion, make recording more fun. The built-in memory allows you to take photos and to record videos without a memory card. The memory card slot allows users to increase the storage capacity. Hitachi cannot compensate for any damages caused when recording is not made normally or recorded contents cannot be played back because of a defect in the digital camera device or memory card. Hitachi cannot be responsible for your recorded video and audio. If you or a third party make a mistake when handling this digital camera device or memory card, etc., the recorded contents may be lost. Hitachi cannot be responsible for compensation for damage due to loss of recorded contents. Note • • Partial memory of the built-in memory is used for the camera’s Firmware code Install the bundled software application on the CD, ArcSoft MediaImpression, for viewing the videos correctly on a PC. and software. Features • • • • • • • • • • • • 23X Optical Zoom 3” touch LCD (16:9) Digital Light Stabilization Time Lapse Slow Motion Pre Record Pause Record ISO 6400 Motion Detection Internet Direct Stereo microphone 5 EN

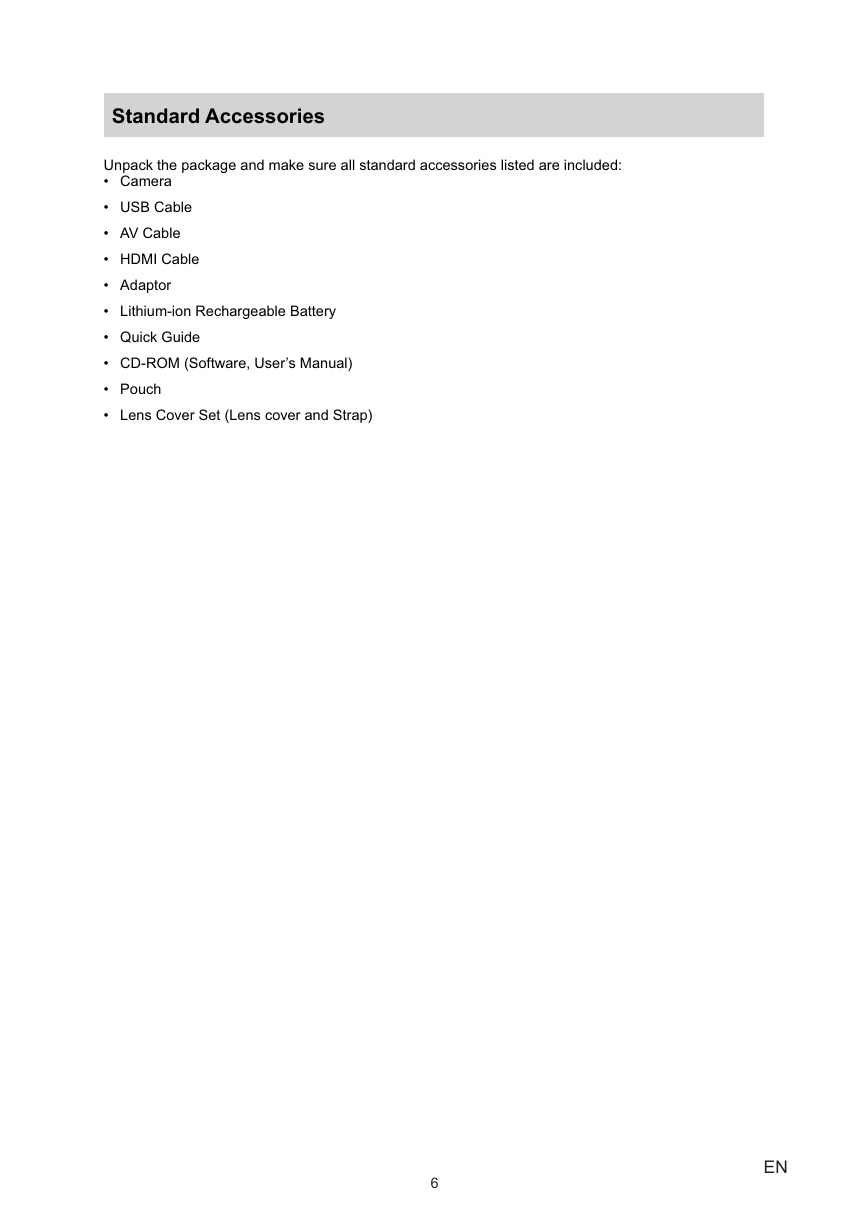

Standard Accessories Unpack the package and make sure all standard accessories listed are included: • • • • • • • • • • Camera USB Cable AV Cable HDMI Cable Adaptor Lithium-ion Rechargeable Battery Quick Guide CD-ROM (Software, User’s Manual) Pouch Lens Cover Set (Lens cover and Strap) 6 EN

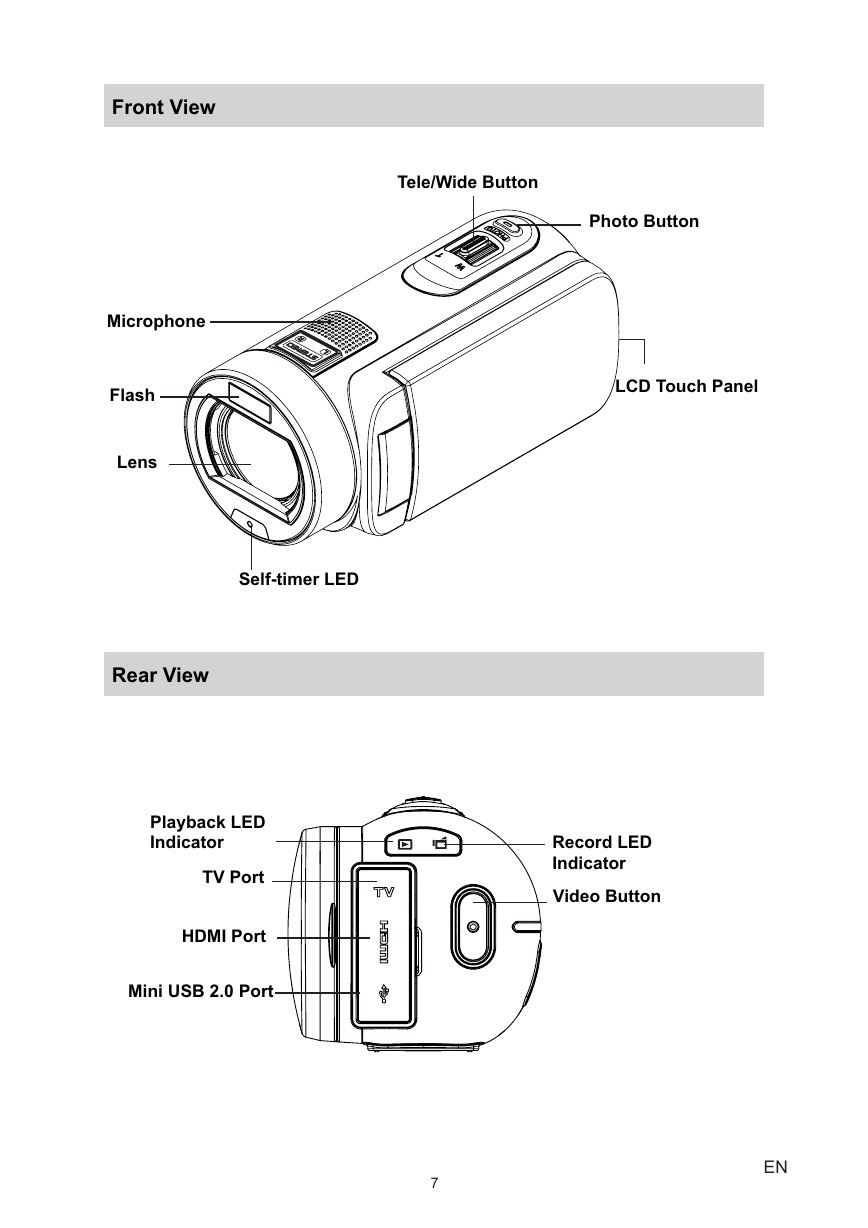

Tele/Wide Button Photo Button LCD Touch Panel Front View Microphone Flash Lens Rear View Self-timer LED Playback LED Indicator TV Port HDMI Port Mini USB 2.0 Port Record LED Indicator Video Button 7 EN

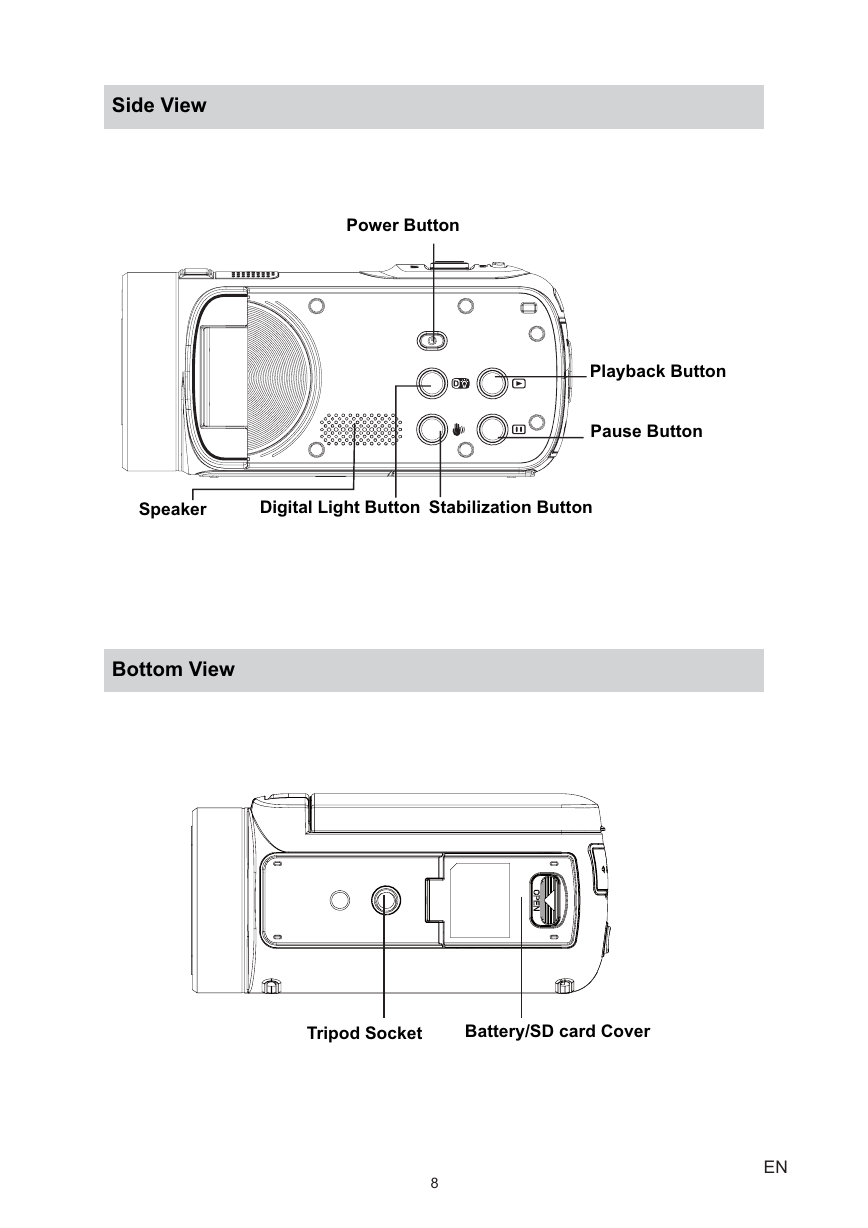

Side View Power Button Playback Button Pause Button Speaker Digital Light Button Stabilization Button Bottom View Tripod Socket Battery/SD card Cover 8 EN
