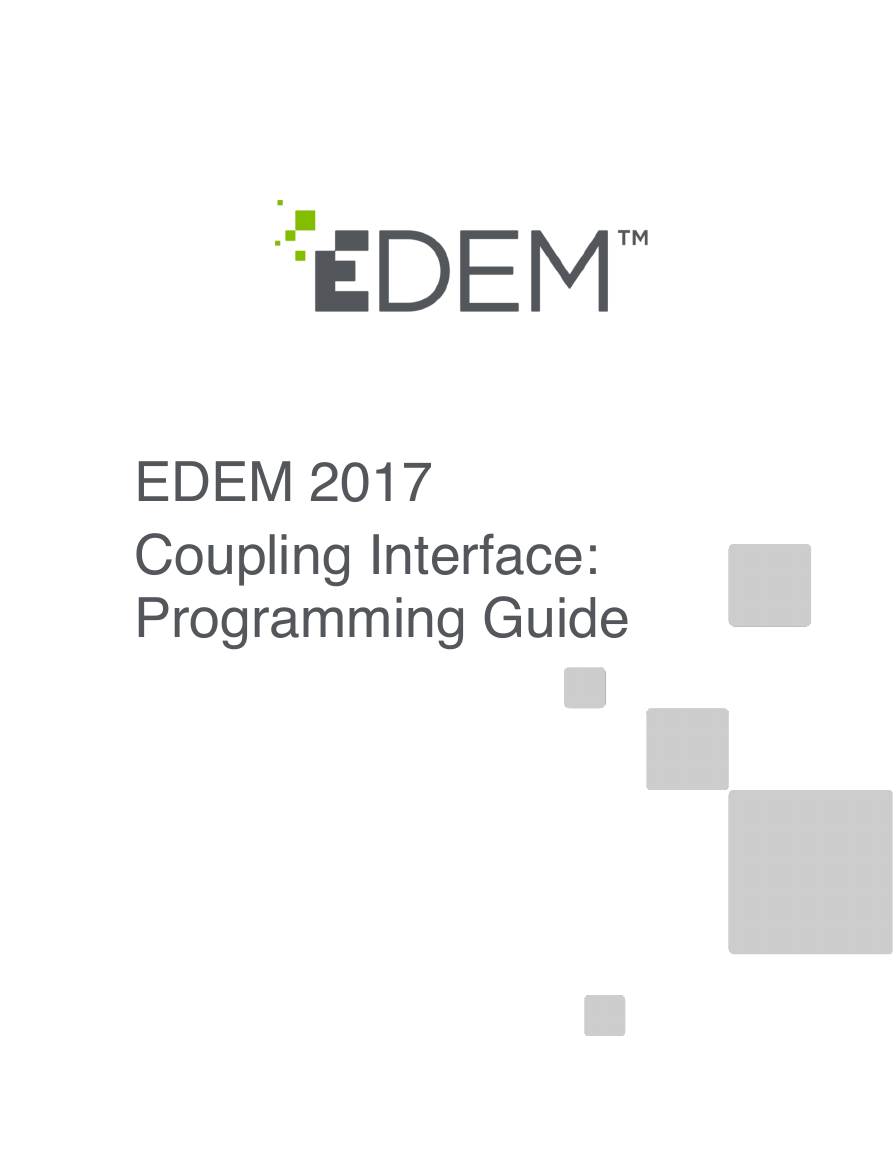

EDEM 2017 Coupling Interface: Programming Guide

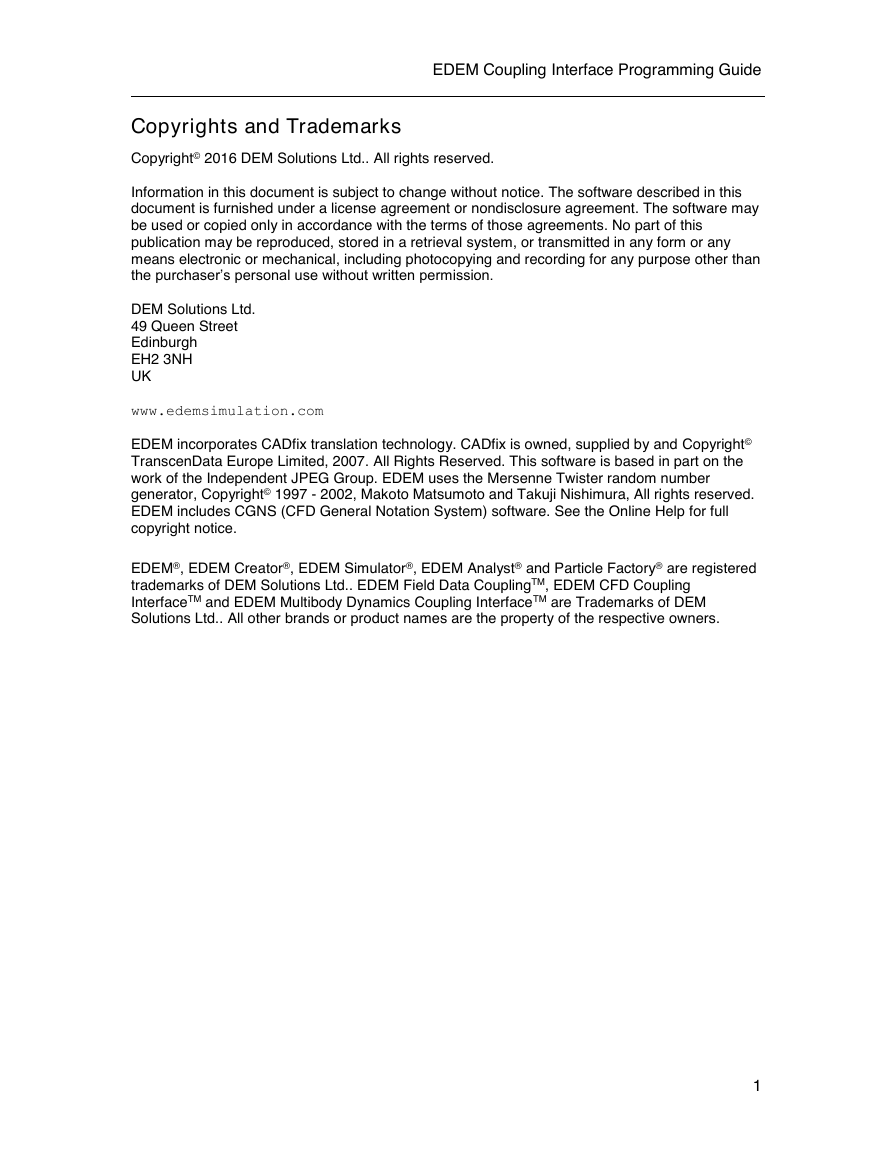

EDEM Coupling Interface Programming Guide Copyrights and Trademarks Copyright© 2016 DEM Solutions Ltd.. All rights reserved. Information in this document is subject to change without notice. The software described in this document is furnished under a license agreement or nondisclosure agreement. The software may be used or copied only in accordance with the terms of those agreements. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or any means electronic or mechanical, including photocopying and recording for any purpose other than the purchaser’s personal use without written permission. DEM Solutions Ltd. 49 Queen Street Edinburgh EH2 3NH UK www.edemsimulation.com EDEM incorporates CADfix translation technology. CADfix is owned, supplied by and Copyright© TranscenData Europe Limited, 2007. All Rights Reserved. This software is based in part on the work of the Independent JPEG Group. EDEM uses the Mersenne Twister random number generator, Copyright© 1997 - 2002, Makoto Matsumoto and Takuji Nishimura, All rights reserved. EDEM includes CGNS (CFD General Notation System) software. See the Online Help for full copyright notice. EDEM®, EDEM Creator®, EDEM Simulator®, EDEM Analyst® and Particle Factory® are registered trademarks of DEM Solutions Ltd.. EDEM Field Data CouplingTM, EDEM CFD Coupling InterfaceTM and EDEM Multibody Dynamics Coupling InterfaceTM are Trademarks of DEM Solutions Ltd.. All other brands or product names are the property of the respective owners. 1

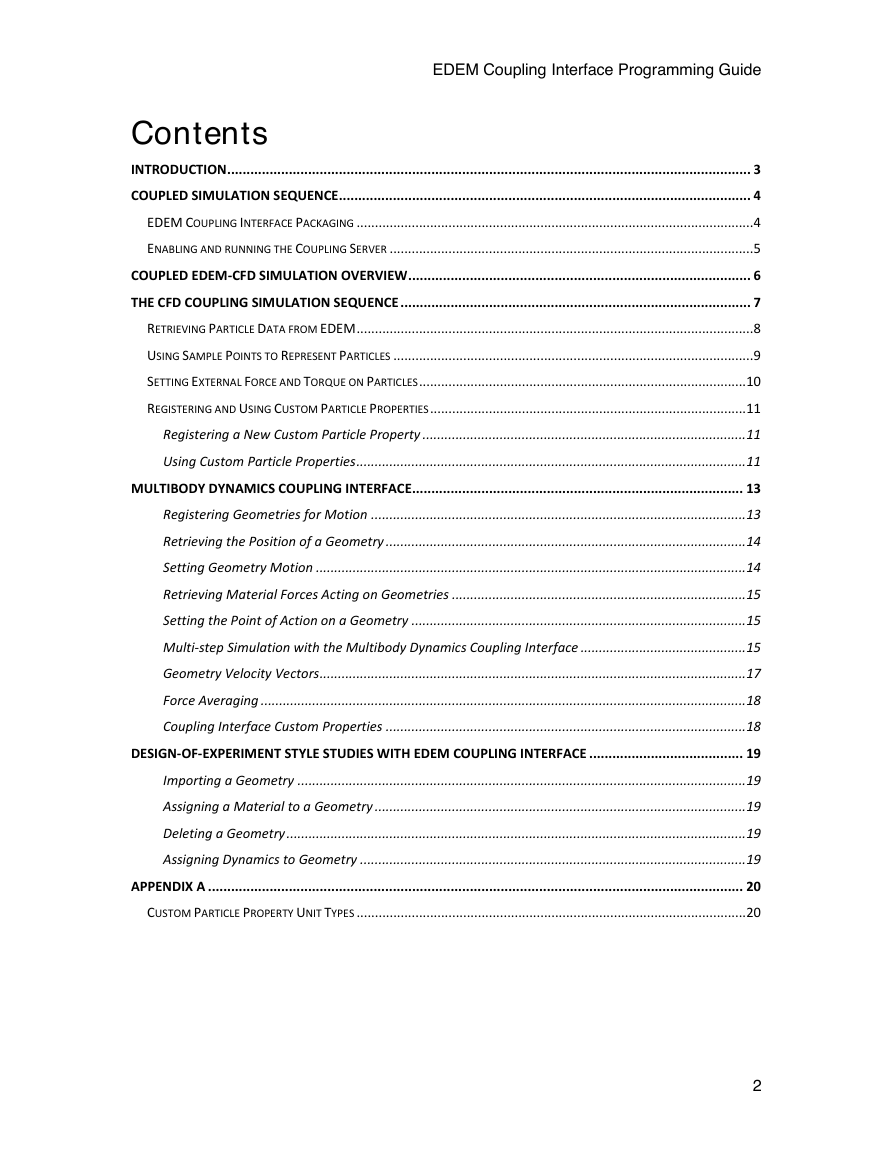

EDEM Coupling Interface Programming Guide Contents INTRODUCTION ........................................................................................................................................ 3 COUPLED SIMULATION SEQUENCE ........................................................................................................... 4 EDEM COUPLING INTERFACE PACKAGING ............................................................................................................ 4 ENABLING AND RUNNING THE COUPLING SERVER ................................................................................................... 5 COUPLED EDEM-CFD SIMULATION OVERVIEW ......................................................................................... 6 THE CFD COUPLING SIMULATION SEQUENCE ........................................................................................... 7 RETRIEVING PARTICLE DATA FROM EDEM ............................................................................................................ 8 USING SAMPLE POINTS TO REPRESENT PARTICLES .................................................................................................. 9 SETTING EXTERNAL FORCE AND TORQUE ON PARTICLES ......................................................................................... 10 REGISTERING AND USING CUSTOM PARTICLE PROPERTIES ...................................................................................... 11 Registering a New Custom Particle Property ........................................................................................ 11 Using Custom Particle Properties .......................................................................................................... 11 MULTIBODY DYNAMICS COUPLING INTERFACE...................................................................................... 13 Registering Geometries for Motion ...................................................................................................... 13 Retrieving the Position of a Geometry .................................................................................................. 14 Setting Geometry Motion ..................................................................................................................... 14 Retrieving Material Forces Acting on Geometries ................................................................................ 15 Setting the Point of Action on a Geometry ........................................................................................... 15 Multi-step Simulation with the Multibody Dynamics Coupling Interface ............................................. 15 Geometry Velocity Vectors .................................................................................................................... 17 Force Averaging .................................................................................................................................... 18 Coupling Interface Custom Properties .................................................................................................. 18 DESIGN-OF-EXPERIMENT STYLE STUDIES WITH EDEM COUPLING INTERFACE ........................................ 19 Importing a Geometry .......................................................................................................................... 19 Assigning a Material to a Geometry ..................................................................................................... 19 Deleting a Geometry ............................................................................................................................. 19 Assigning Dynamics to Geometry ......................................................................................................... 19 APPENDIX A ........................................................................................................................................... 20 CUSTOM PARTICLE PROPERTY UNIT TYPES .......................................................................................................... 20 2

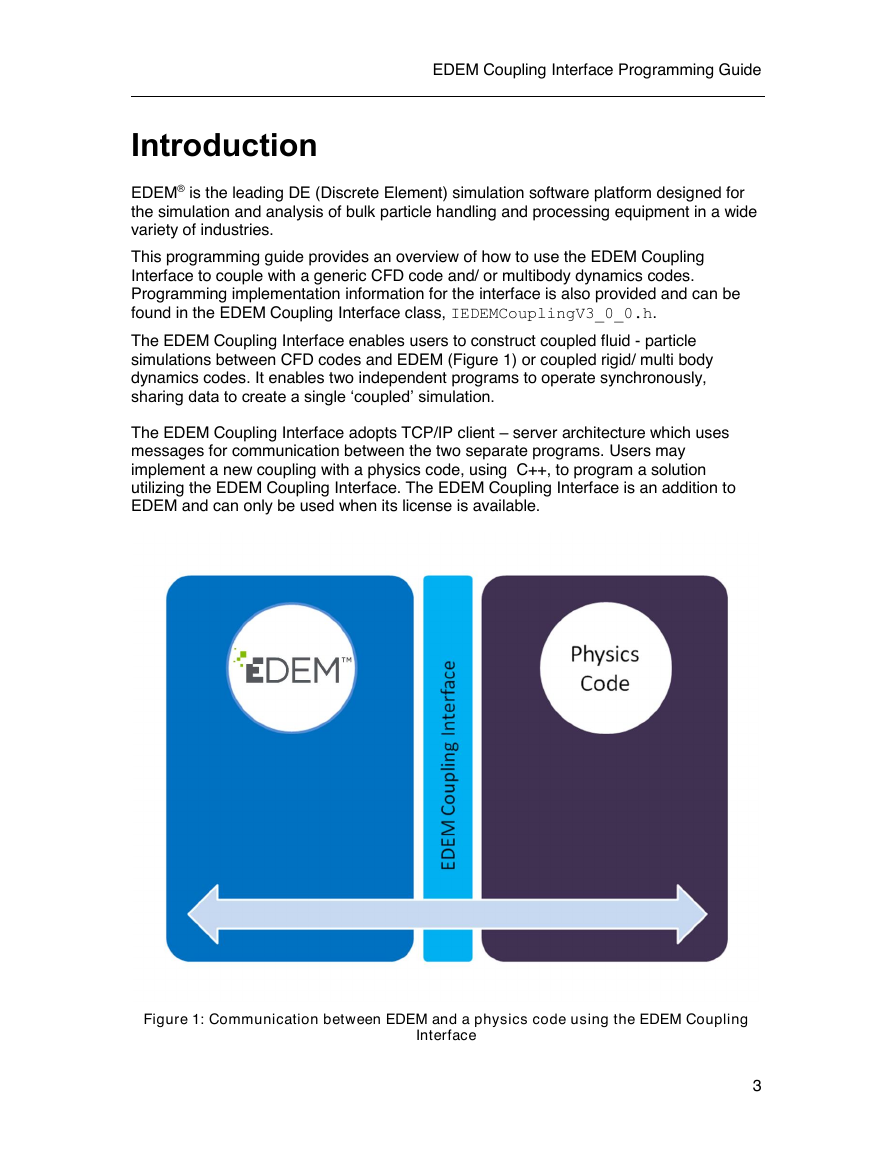

EDEM Coupling Interface Programming Guide Introduction EDEM® is the leading DE (Discrete Element) simulation software platform designed for the simulation and analysis of bulk particle handling and processing equipment in a wide variety of industries. This programming guide provides an overview of how to use the EDEM Coupling Interface to couple with a generic CFD code and/ or multibody dynamics codes. Programming implementation information for the interface is also provided and can be found in the EDEM Coupling Interface class, IEDEMCouplingV3_0_0.h. The EDEM Coupling Interface enables users to construct coupled fluid - particle simulations between CFD codes and EDEM (Figure 1) or coupled rigid/ multi body dynamics codes. It enables two independent programs to operate synchronously, sharing data to create a single ‘coupled’ simulation. The EDEM Coupling Interface adopts TCP/IP client – server architecture which uses messages for communication between the two separate programs. Users may implement a new coupling with a physics code, using C++, to program a solution utilizing the EDEM Coupling Interface. The EDEM Coupling Interface is an addition to EDEM and can only be used when its license is available. Figure 1: Communication between EDEM and a physics code using the EDEM Coupling Interface 3

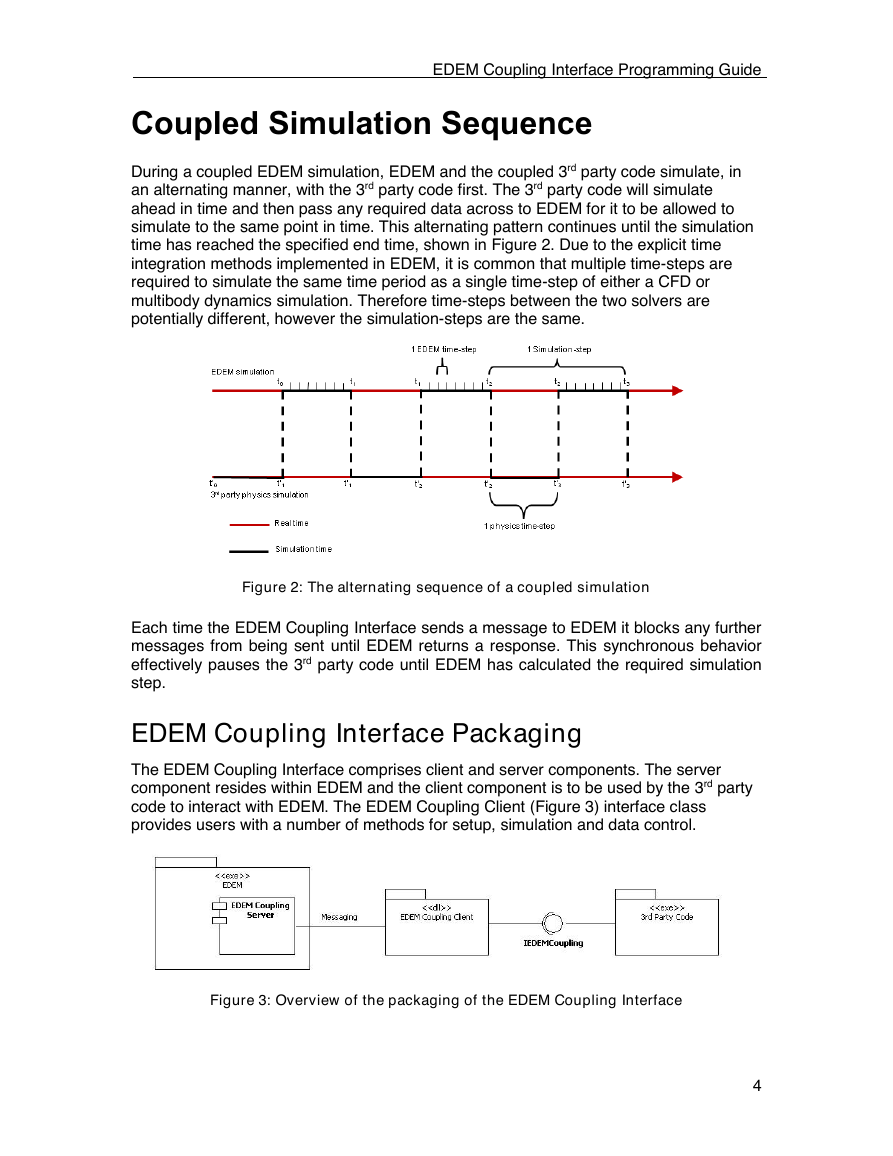

EDEM Coupling Interface Programming Guide Coupled Simulation Sequence During a coupled EDEM simulation, EDEM and the coupled 3rd party code simulate, in an alternating manner, with the 3rd party code first. The 3rd party code will simulate ahead in time and then pass any required data across to EDEM for it to be allowed to simulate to the same point in time. This alternating pattern continues until the simulation time has reached the specified end time, shown in Figure 2. Due to the explicit time integration methods implemented in EDEM, it is common that multiple time-steps are required to simulate the same time period as a single time-step of either a CFD or multibody dynamics simulation. Therefore time-steps between the two solvers are potentially different, however the simulation-steps are the same. Figure 2: The alternating sequence of a coupled simulation Each time the EDEM Coupling Interface sends a message to EDEM it blocks any further messages from being sent until EDEM returns a response. This synchronous behavior effectively pauses the 3rd party code until EDEM has calculated the required simulation step. EDEM Coupling Interface Packaging The EDEM Coupling Interface comprises client and server components. The server component resides within EDEM and the client component is to be used by the 3rd party code to interact with EDEM. The EDEM Coupling Client (Figure 3) interface class provides users with a number of methods for setup, simulation and data control. Figure 3: Overview of the packaging of the EDEM Coupling Interface 4

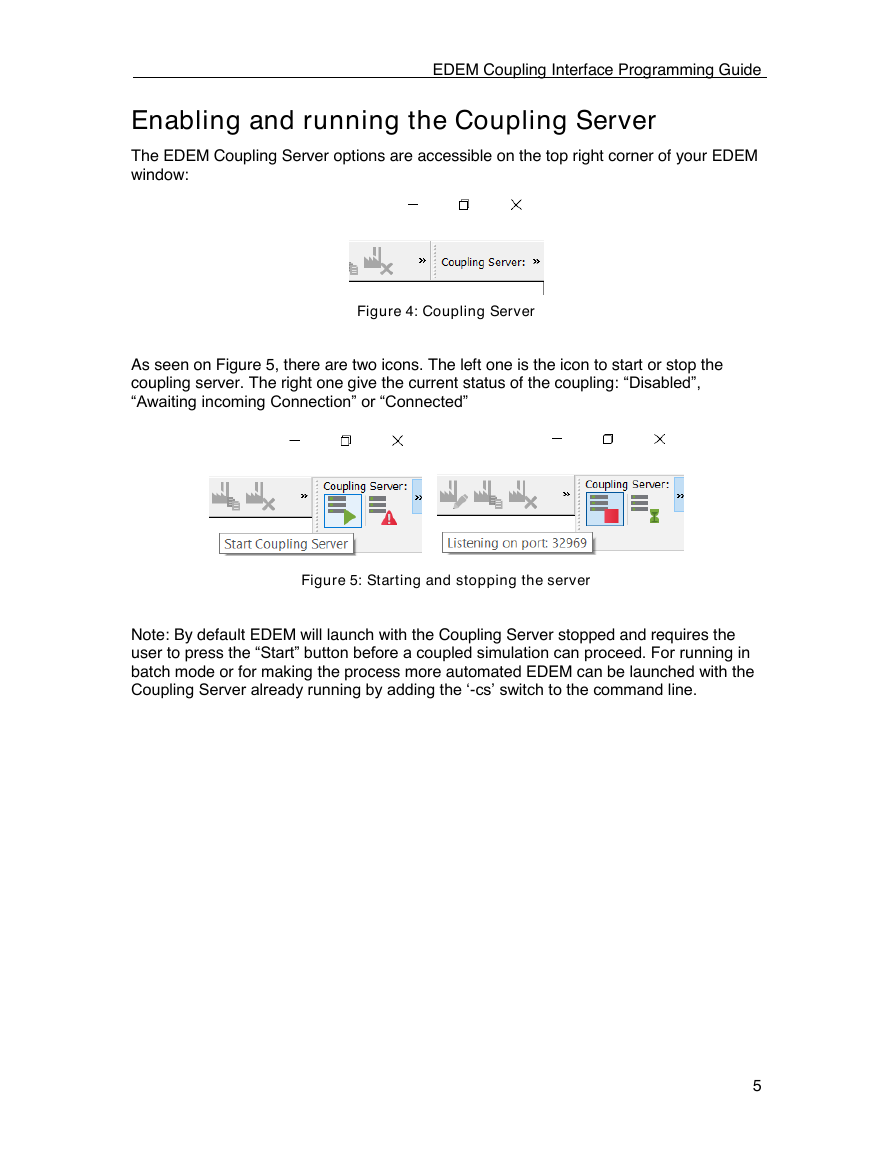

EDEM Coupling Interface Programming Guide Enabling and running the Coupling Server The EDEM Coupling Server options are accessible on the top right corner of your EDEM window: Figure 4: Coupling Server As seen on Figure 5, there are two icons. The left one is the icon to start or stop the coupling server. The right one give the current status of the coupling: “Disabled”, “Awaiting incoming Connection” or “Connected” Figure 5: Starting and stopping the server Note: By default EDEM will launch with the Coupling Server stopped and requires the user to press the “Start” button before a coupled simulation can proceed. For running in batch mode or for making the process more automated EDEM can be launched with the Coupling Server already running by adding the ‘-cs’ switch to the command line. 5

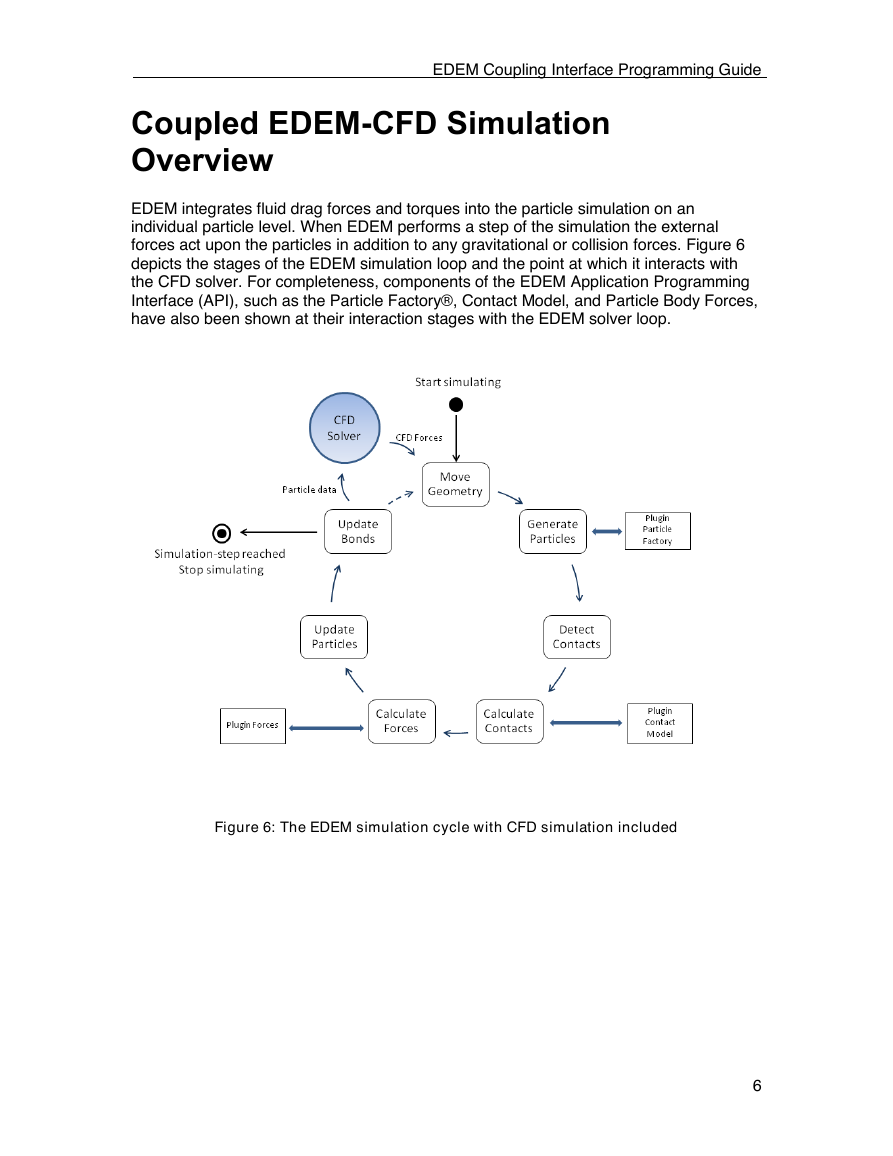

EDEM Coupling Interface Programming Guide Coupled EDEM-CFD Simulation Overview EDEM integrates fluid drag forces and torques into the particle simulation on an individual particle level. When EDEM performs a step of the simulation the external forces act upon the particles in addition to any gravitational or collision forces. Figure 6 depicts the stages of the EDEM simulation loop and the point at which it interacts with the CFD solver. For completeness, components of the EDEM Application Programming Interface (API), such as the Particle Factory®, Contact Model, and Particle Body Forces, have also been shown at their interaction stages with the EDEM solver loop. Figure 6: The EDEM simulation cycle with CFD simulation included 6

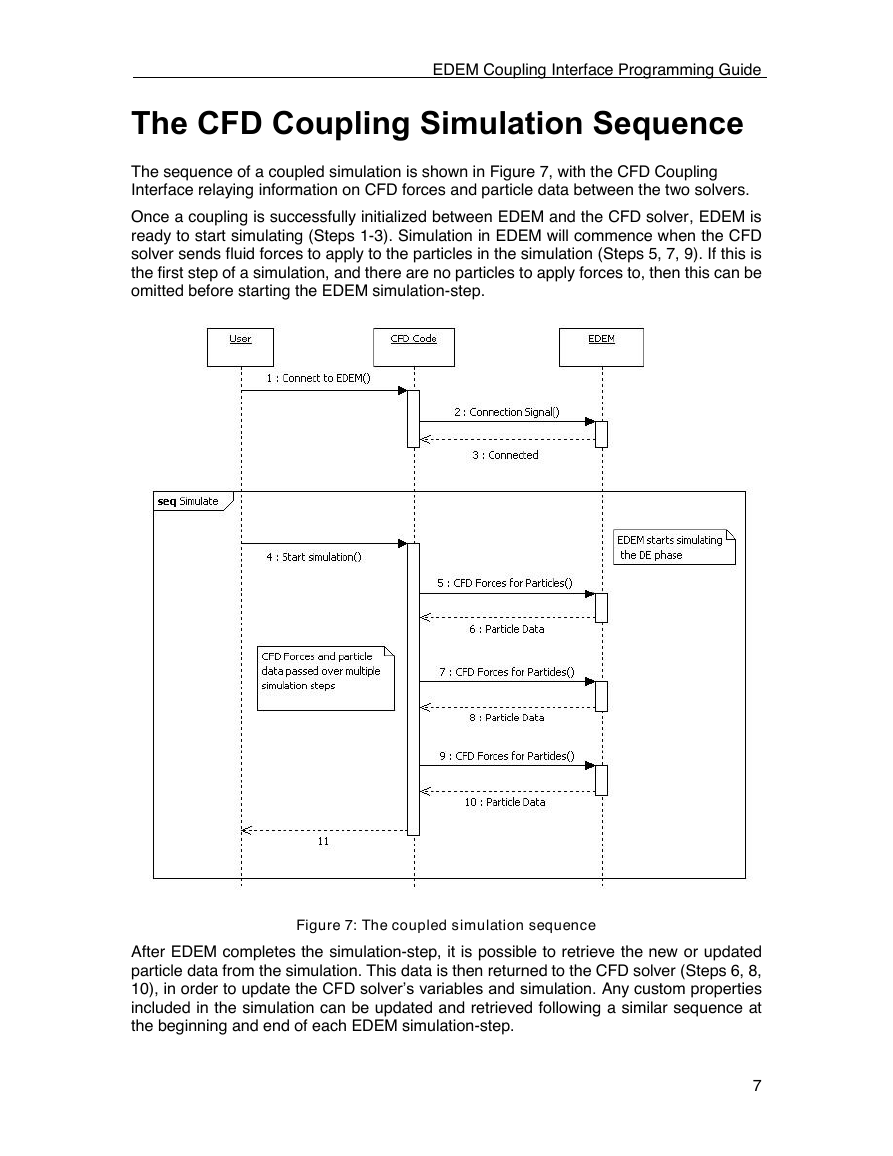

EDEM Coupling Interface Programming Guide The CFD Coupling Simulation Sequence The sequence of a coupled simulation is shown in Figure 7, with the CFD Coupling Interface relaying information on CFD forces and particle data between the two solvers. Once a coupling is successfully initialized between EDEM and the CFD solver, EDEM is ready to start simulating (Steps 1-3). Simulation in EDEM will commence when the CFD solver sends fluid forces to apply to the particles in the simulation (Steps 5, 7, 9). If this is the first step of a simulation, and there are no particles to apply forces to, then this can be omitted before starting the EDEM simulation-step. Figure 7: The coupled simulation sequence After EDEM completes the simulation-step, it is possible to retrieve the new or updated particle data from the simulation. This data is then returned to the CFD solver (Steps 6, 8, 10), in order to update the CFD solver’s variables and simulation. Any custom properties included in the simulation can be updated and retrieved following a similar sequence at the beginning and end of each EDEM simulation-step. 7
