DIGITAL VIDEO CAMERA GR-DV3000 Please visit our Homepage on the World Wide Web and answer our Consumer Survey (in English only): http://www.jvc-victor.co.jp/english/index-e.html For Accessories: http://www.jvc-victor.co.jp/english/accessory/ ENGLISH CONTENTS AUTOMATIC DEMONSTRATION 7 GETTING STARTED 8 – 17 BASIC RECORDING 18 – 24 Recording On Tape ............................... 18 Recording On Memory Card ................... 21 Recording On Tape And Memory Card ...... 22 BASIC PLAYBACK 25 – 27 Playback From Tape .............................. 25 Playback From Memory Card .................. 26 USING MENUS FOR DETAILED ADJUSTMENT 28 – 33 ADVANCED FEATURES 34 – 53 CONNECTIONS 54 – 57 Basic Connections ................................ 54 Advanced Connections .......................... 56 DUBBING 58 – 61 Dubbing To A VCR ................................ 58 Dubbing From A VCR ............................ 59 Dubbing To Or From A Video Unit Equipped With A DV Connector ............. 60 Dubbing Still Images Recorded On A Tape To A Memory Card ............... 61 USING THE REMOTE CONTROL UNIT Slow-Motion Playback, Frame-By-Frame 62 – 73 Playback and Playback Zoom ............... 64 Playback Special Effects ........................ 65 Random Assemble Editing ..................... 66 For More Accurate Editing ...................... 70 Insert Editing ....................................... 71 Audio Dubbing ..................................... 72 TROUBLESHOOTING 74 – 79 USER MAINTENANCE 80 INDEX 81 – 88 Jack Box ............................................ 81 Controls, Connectors And Indicators ....... 82 Indications ......................................... 84 CAUTIONS TERMS SPECIFICATIONS 89 – 91 92 – 93 94 – 95 LYT0972-001A EN INSTRUCTIONS

2 EN Dear Customer, Thank you for purchasing this digital video camera. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of this product. Using This Instruction Manual • All major sections and subsections are listed in the Table Of Contents on the cover page. • Notes appear after most subsections. Be sure to read these as well. • Basic and advanced features/operation are separated for easier reference. It is recommended that you . . . ..... refer to the Index (墌 pgs. 81 – 88) and familiarize yourself with button locations, etc. before use. ..... read thoroughly the Safety Precautions. They contain extremely important information regarding the safe use of this product. You are recommended to carefully read the cautions on pages 89 through 91 before use. SAFETY PRECAUTIONS WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. Caution: (applies to Jack Box) To reduce the risk of fire, do not remove cover. No user-serviceable parts inside. Refer servicing to qualified service person. CAUTIONS: 䡲 If you notice smoke or a peculiar smell coming from the camcorder or AC adapter/charger, shut it down and unplug it immediately. Continue using the camcorder or AC adapter/charger under these conditions could lead to fire or electric shock. Contact your JVC dealer. Do not attempt to repair the malfunction yourself. 䡲 To prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified personnel. 䡲 When you are not using the AC Power Adapter/Charger for a long period of time, it is recommended that you disconnect the power cord from AC outlet. NOTES: ● The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit. ● The rating plate (serial number plate) of the AC Power Adapter/Charger is on its bottom. This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for playback with a television of a different standard. However, live recording and LCD monitor/ viewfinder playback are possible anywhere. Use the JVC BN-V408U/V416U/V428U battery packs and, to recharge them, the provided multi-voltage AC Power Adapter/Charger. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)

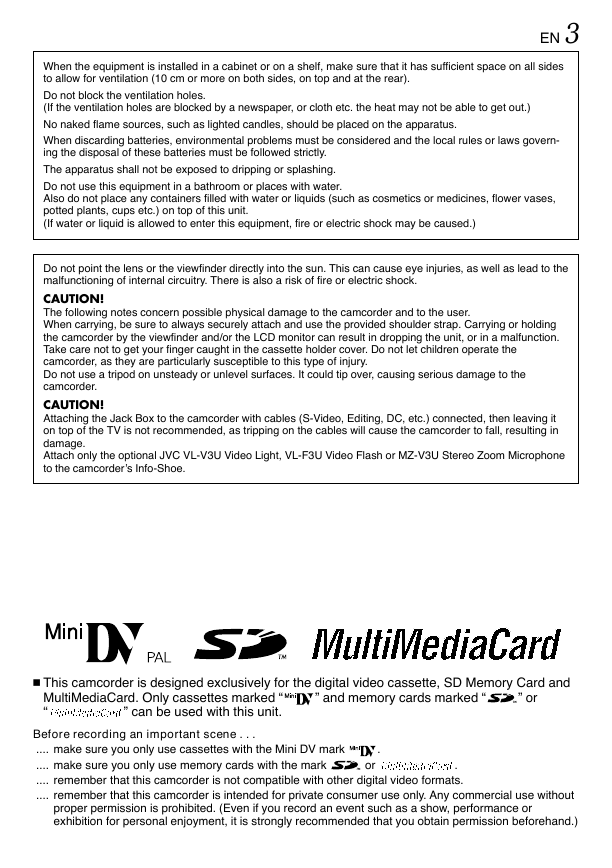

EN 3 When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear). Do not block the ventilation holes. (If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.) No naked flame sources, such as lighted candles, should be placed on the apparatus. When discarding batteries, environmental problems must be considered and the local rules or laws govern- ing the disposal of these batteries must be followed strictly. The apparatus shall not be exposed to dripping or splashing. Do not use this equipment in a bathroom or places with water. Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.) Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock. CAUTION! The following notes concern possible physical damage to the camcorder and to the user. When carrying, be sure to always securely attach and use the provided shoulder strap. Carrying or holding the camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a malfunction. Take care not to get your finger caught in the cassette holder cover. Do not let children operate the camcorder, as they are particularly susceptible to this type of injury. Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder. CAUTION! Attaching the Jack Box to the camcorder with cables (S-Video, Editing, DC, etc.) connected, then leaving it on top of the TV is not recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage. Attach only the optional JVC VL-V3U Video Light, VL-F3U Video Flash or MZ-V3U Stereo Zoom Microphone to the camcorder’s Info-Shoe. 䡲 This camcorder is designed exclusively for the digital video cassette, SD Memory Card and MultiMediaCard. Only cassettes marked “ “ ” can be used with this unit. ” and memory cards marked “ ” or Before recording an important scene . . . .... make sure you only use cassettes with the Mini DV mark .... make sure you only use memory cards with the mark . .... remember that this camcorder is not compatible with other digital video formats. .... remember that this camcorder is intended for private consumer use only. Any commercial use without . or proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.)

4 EN PROVIDED ACCESSORIES AC Power Adapter/Charger AA-V40EA, AA-V40A, AA-V40SH or AA-V40ED Remote Control Unit RM-V717U Jack Box CU-V504U Battery Pack BN-V408U S-Video cable DC Cord Editing Cable Audio/Video Cable (ø3.5 mini-plug to RCA plug) Audio Cable (for connection of optional headphones) Lens Hood (Already attached to the camcorder 墌 pg. 5) Lens Cap (墌 pg. 5 for attachment) USB Cable Shoulder Strap CD-ROM AAA (R03) Battery x 2 (for remote control unit) Memory Card (8 MB) (Already inserted in the camcorder) NOTE: In order to maintain optimum performance of the camcorder, provided cables may be equipped with one or more core filter. If a cable has only one core filter, the end that is closest to the filter should be connected to the camcorder.

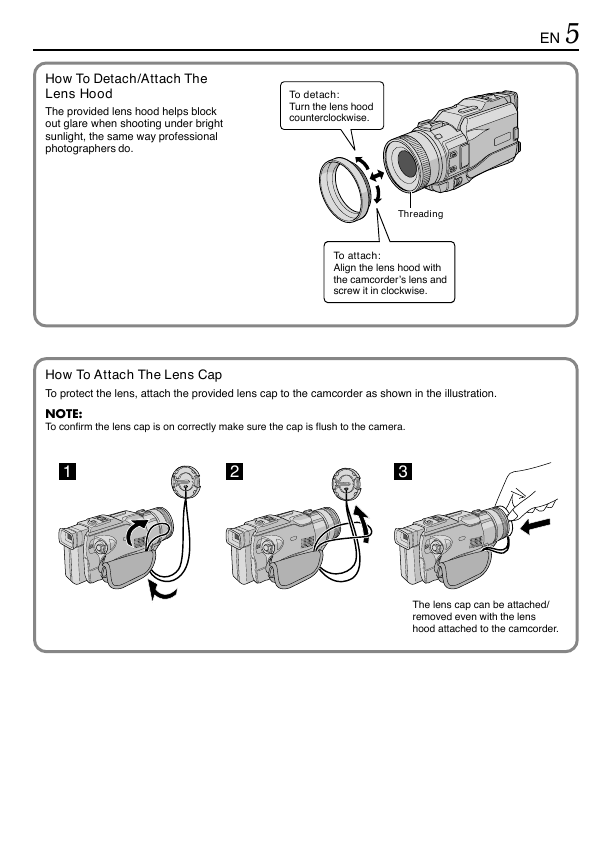

How To Detach/Attach The Lens Hood The provided lens hood helps block out glare when shooting under bright sunlight, the same way professional photographers do. To detach: Turn the lens hood counterclockwise. EN 5 Threading To attach: Align the lens hood with the camcorder’s lens and screw it in clockwise. How To Attach The Lens Cap To protect the lens, attach the provided lens cap to the camcorder as shown in the illustration. NOTE: To confirm the lens cap is on correctly make sure the cap is flush to the camera. 1 2 3 The lens cap can be attached/ removed even with the lens hood attached to the camcorder.

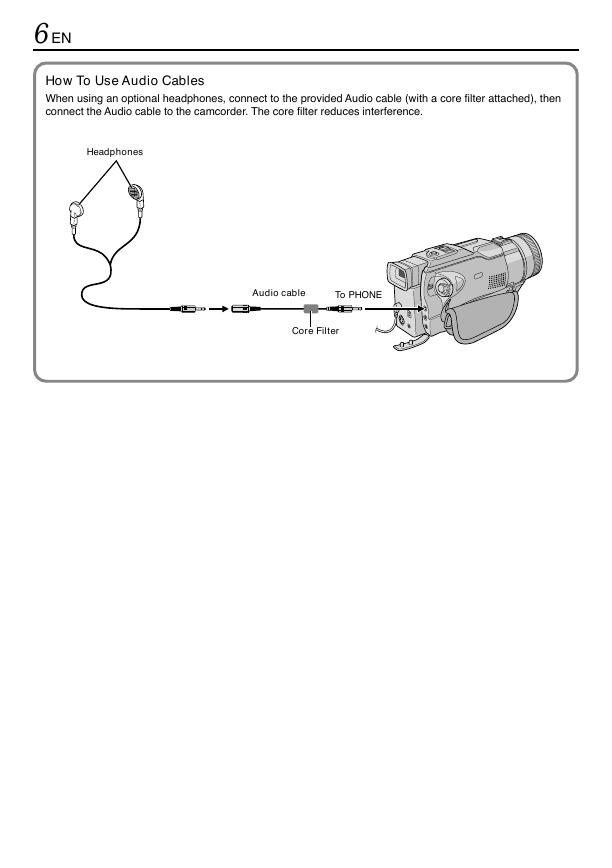

6 EN How To Use Audio Cables When using an optional headphones, connect to the provided Audio cable (with a core filter attached), then connect the Audio cable to the camcorder. The core filter reduces interference. Headphones Audio cable To PHONE Core Filter

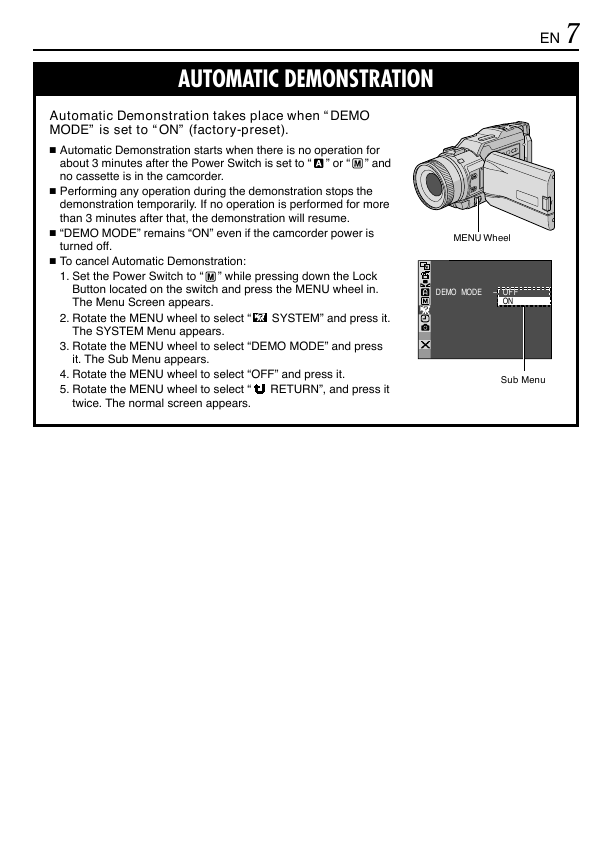

AUTOMATIC DEMONSTRATION EN 7 Automatic Demonstration takes place when “DEMO MODE” is set to “ON” (factory-preset). 䡲 Automatic Demonstration starts when there is no operation for about 3 minutes after the Power Switch is set to “ no cassette is in the camcorder. ” or “ ” and 䡲 Performing any operation during the demonstration stops the demonstration temporarily. If no operation is performed for more than 3 minutes after that, the demonstration will resume. 䡲 “DEMO MODE” remains “ON” even if the camcorder power is turned off. 䡲 To cancel Automatic Demonstration: 1. Set the Power Switch to “ ” while pressing down the Lock Button located on the switch and press the MENU wheel in. The Menu Screen appears. 2. Rotate the MENU wheel to select “ The SYSTEM Menu appears. SYSTEM” and press it. 3. Rotate the MENU wheel to select “DEMO MODE” and press it. The Sub Menu appears. 4. Rotate the MENU wheel to select “OFF” and press it. 5. Rotate the MENU wheel to select “ twice. The normal screen appears. RETURN”, and press it MENU Wheel DEMO MODE – OFF ON Sub Menu

8 EN Battery pack BN-V408U, BN-V416U or BN-V428U To AC outlet AC Power Adapter/ Charger POWER indicator DC OUT connector CHARGE indicator Battery pack BN-V408U BN-V416U (optional) BN-V428U (optional) Fully charging time approx. 1 hr. 30 min. approx. 2 hrs. approx. 3 hrs. 20 min. GETTING STARTED Power This camcorder’s 2-way power supply system lets you choose the most appropriate source of power. Do not use provided power supply units with other equipment. CHARGING THE BATTERY PACK 1 Make sure you unplug the camcorder’s DC cord from the AC Power Adapter/Charger. Plug the AC Adapter/Charger’s power cord into an AC outlet. The POWER indicator lights. 2 Attach the battery pack with the mark aligned with the corresponding marks on the AC Power Adapter/Charger. The CHARGE indicator begins blinking to indicate charging has started. 3 When the CHARGE indicator stops blinking but stays lit, charging is finished. Slide the battery and lift off. Remember to unplug the AC Adapter/Charger’s power cord from the AC outlet. NOTES: ● If the protective cap is attached to the battery pack, remove it first. ● Perform charging where the temperature is between 10°C and 35°C. 20°C to 25°C is the ideal temperature range for charging. If the environment is too cold, charging may be incomplete. ● Charging times noted above are for a fully discharged battery pack. ● Charging time varies according to the ambient temperature and the status of the battery pack. ● To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio. ● If you connect the camcorder’s DC cord to the adapter during battery charging, power is supplied to the camcorder and charging stops. only in well-ventilated areas. ● Since the AC Power Adapter/Charger processes electricity internally, it becomes warm during use. Be sure to use it ● When charging the battery pack for the first time or after a long storage period, the CHARGE indicator may not light. In this case, remove the battery pack from the AC Power Adapter/Charger, then try charging again. ● If the battery operation time remains extremely short even after having been fully charged, the battery is worn out and needs to be replaced. Please purchase a new one. Lithium-ion is vulnerable in colder temperatures. About Batteries DANGER! Do not attempt to take the batteries apart, or expose them to flame or excessive heat, as it may cause a fire or explosion. WARNING! Do not allow the battery or its terminals to come in contact with metals, as this can result in a short circuit and possibly start a fire. The Benefits Of Lithium-Ion Batteries Lithium-ion battery packs are small but have a large power capacity. However, when one is exposed to cold temperatures (below 10°C), its usage time becomes shorter and it may cease to function. If this happens, place the battery pack in your pocket or other warm, protected place for a short time, then re- attach it to the camcorder. As long as the battery pack itself is not cold, it should not affect performance. (If you’re using a heating pad, make sure the battery pack does not come in direct contact with it.)
