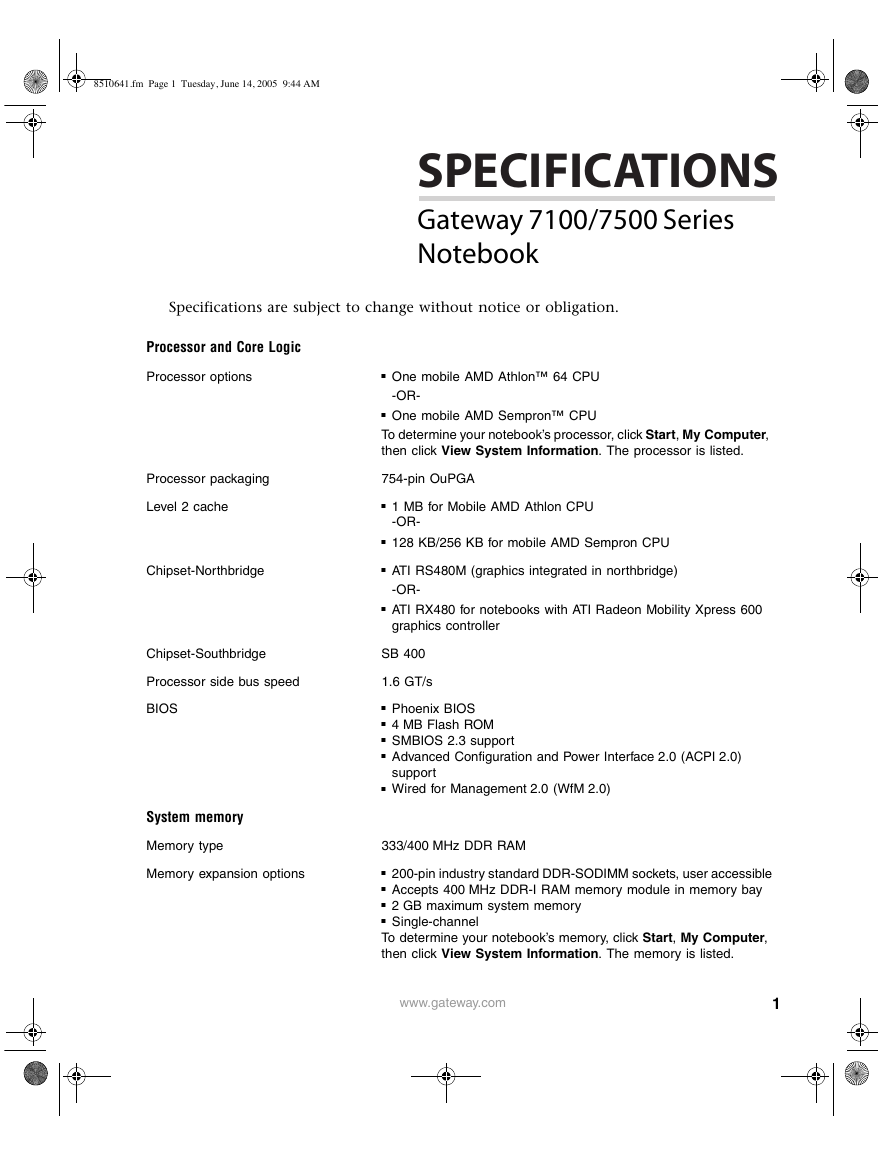

8510641.fm Page 1 Tuesday, June 14, 2005 9:44 AM SPECIFICATIONS Gateway 7100/7500 Series Notebook Specifications are subject to change without notice or obligation. Processor and Core Logic Processor options ■ One mobile AMD Athlon™ 64 CPU -OR- ■ One mobile AMD Sempron™ CPU To determine your notebook’s processor, click Start, My Computer, then click View System Information. The processor is listed. Processor packaging 754-pin OuPGA Level 2 cache ■ 1 MB for Mobile AMD Athlon CPU -OR- ■ 128 KB/256 KB for mobile AMD Sempron CPU Chipset-Northbridge ■ ATI RS480M (graphics integrated in northbridge) -OR- ■ ATI RX480 for notebooks with ATI Radeon Mobility Xpress 600 graphics controller Chipset-Southbridge Processor side bus speed SB 400 1.6 GT/s BIOS System memory Memory type Memory expansion options ■ Phoenix BIOS ■ 4 MB Flash ROM ■ SMBIOS 2.3 support ■ Advanced Configuration and Power Interface 2.0 (ACPI 2.0) support ■ Wired for Management 2.0 (WfM 2.0) 333/400 MHz DDR RAM ■ 200-pin industry standard DDR-SODIMM sockets, user accessible ■ Accepts 400 MHz DDR-I RAM memory module in memory bay ■ 2 GB maximum system memory ■ Single-channel To determine your notebook’s memory, click Start, My Computer, then click View System Information. The memory is listed. www.gateway.com 1

8510641.fm Page 2 Tuesday, June 14, 2005 9:44 AM Video Graphics controller ■ ATI Radeon Xpress 200M (integrated in northbridge) -OR- ■ ATI Radeon Mobility Xpress 600 ■ 2D hardware acceleration ■ 3D rendering acceleration Video memory ■ Shares system memory: 32, 64, or 128 MB Video bus LCD display panel -OR- ■ 32, 64, or 128 MB for ATI X600 PCI Express for ATI X600 15.0-inch or 15.4-inch active matrix (TFT) LCD color display Maximum panel resolution (15.0-inch): 1024 × 768 Maximum panel resolution (15.4-inch): 1280 × 800 Maximum color depth: 32-bit (16.7 million colors) LCD supported video modes WXGA (15.4-inch) XGA (15.0-inch) LCD maximum refresh rate 60 Hz Controls ■ Brightness level selectable through FN keys (up, down) ■ Auto dim on battery and auto bright on AC power (selectable in BIOS) External video Supports dual display and dual view External CRT resolutions External CRT maximum refresh rate TV out (S-Video) jack (Factory installed option) Supports standard IBM VGA compatible modes Maximum resolution: 2048 × 1536 Maximum color depth: 32-bit colors 85 Hz at 1600 × 1200 75 Hz at 2048 × 1536 Supports NTSC/PAL connection to standard TV monitors. 2 www.gateway.com

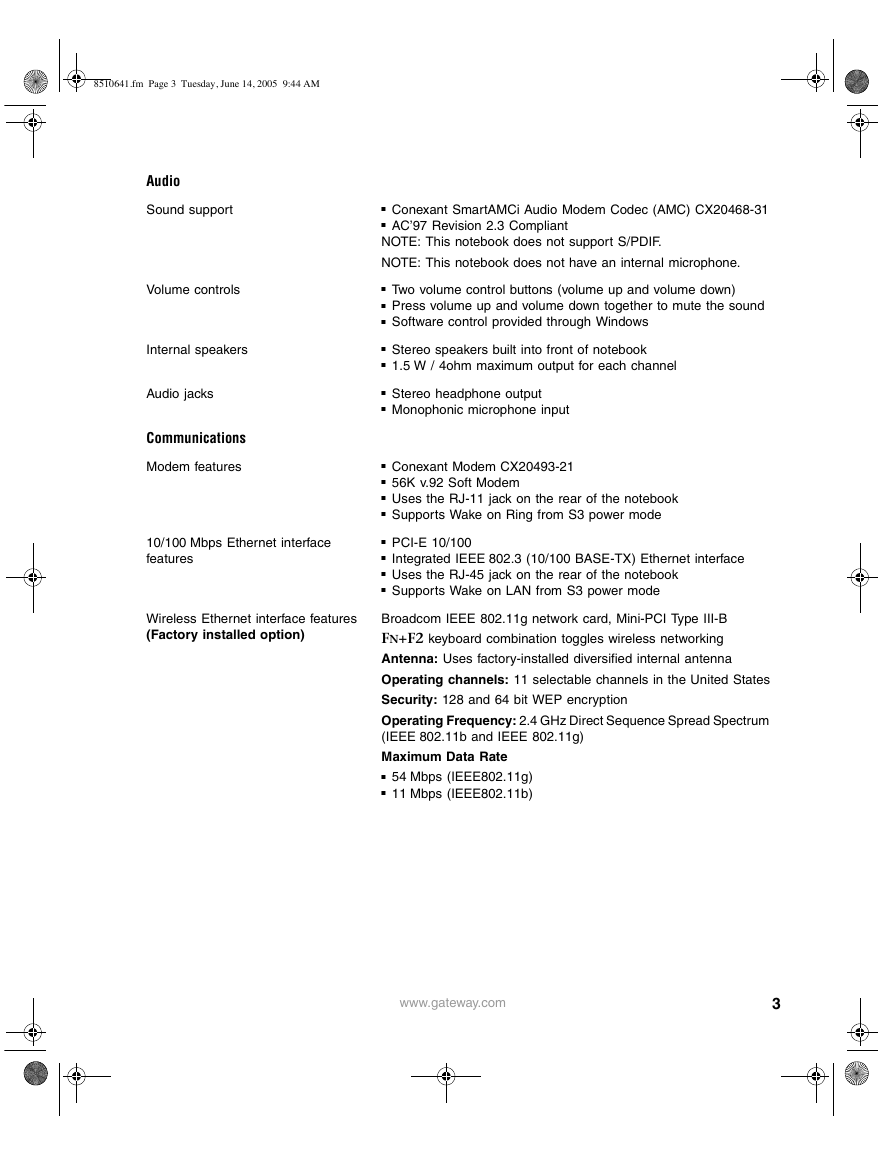

8510641.fm Page 3 Tuesday, June 14, 2005 9:44 AM Audio Sound support Volume controls Internal speakers Audio jacks Communications Modem features 10/100 Mbps Ethernet interface features Wireless Ethernet interface features (Factory installed option) ■ Conexant SmartAMCi Audio Modem Codec (AMC) CX20468-31 ■ AC’97 Revision 2.3 Compliant NOTE: This notebook does not support S/PDIF. NOTE: This notebook does not have an internal microphone. ■ Two volume control buttons (volume up and volume down) ■ Press volume up and volume down together to mute the sound ■ Software control provided through Windows ■ Stereo speakers built into front of notebook ■ 1.5 W / 4ohm maximum output for each channel ■ Stereo headphone output ■ Monophonic microphone input ■ Conexant Modem CX20493-21 ■ 56K v.92 Soft Modem ■ Uses the RJ-11 jack on the rear of the notebook ■ Supports Wake on Ring from S3 power mode ■ PCI-E 10/100 ■ Integrated IEEE 802.3 (10/100 BASE-TX) Ethernet interface ■ Uses the RJ-45 jack on the rear of the notebook ■ Supports Wake on LAN from S3 power mode Broadcom IEEE 802.11g network card, Mini-PCI Type III-B FN+F2 keyboard combination toggles wireless networking Antenna: Uses factory-installed diversified internal antenna Operating channels: 11 selectable channels in the United States Security: 128 and 64 bit WEP encryption Operating Frequency: 2.4 GHz Direct Sequence Spread Spectrum (IEEE 802.11b and IEEE 802.11g) Maximum Data Rate ■ 54 Mbps (IEEE802.11g) ■ 11 Mbps (IEEE802.11b) www.gateway.com 3

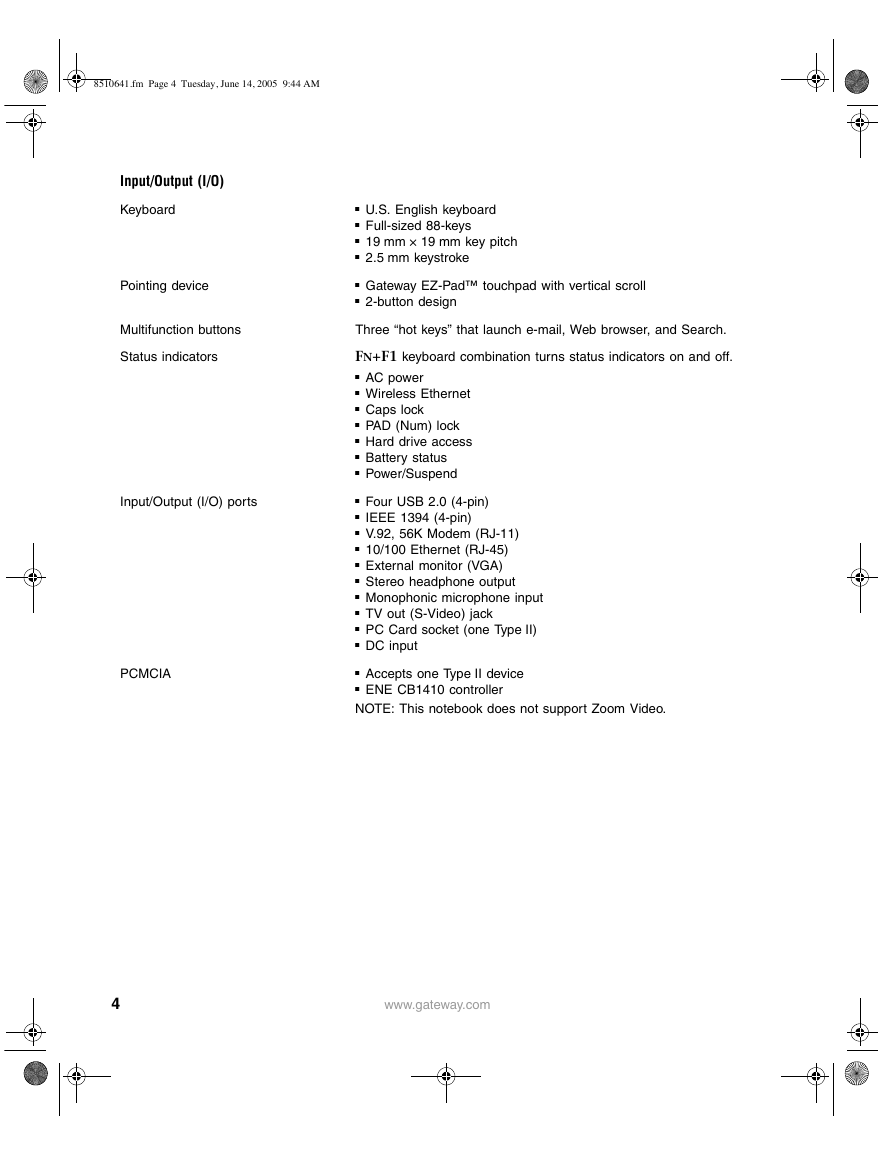

8510641.fm Page 4 Tuesday, June 14, 2005 9:44 AM Input/Output (I/O) Keyboard ■ U.S. English keyboard ■ Full-sized 88-keys ■ 19 mm × 19 mm key pitch ■ 2.5 mm keystroke Pointing device ■ Gateway EZ-Pad™ touchpad with vertical scroll ■ 2-button design Multifunction buttons Three “hot keys” that launch e-mail, Web browser, and Search. Status indicators Input/Output (I/O) ports FN+F1 keyboard combination turns status indicators on and off. ■ AC power ■ Wireless Ethernet ■ Caps lock ■ PAD (Num) lock ■ Hard drive access ■ Battery status ■ Power/Suspend ■ Four USB 2.0 (4-pin) ■ IEEE 1394 (4-pin) ■ V.92, 56K Modem (RJ-11) ■ 10/100 Ethernet (RJ-45) ■ External monitor (VGA) ■ Stereo headphone output ■ Monophonic microphone input ■ TV out (S-Video) jack ■ PC Card socket (one Type II) ■ DC input PCMCIA ■ Accepts one Type II device ■ ENE CB1410 controller NOTE: This notebook does not support Zoom Video. 4 www.gateway.com

8510641.fm Page 5 Tuesday, June 14, 2005 9:44 AM Storage Hard drive Memory card reader (factory installed option) Optical drive (factory installed) Power AC adapter Battery type Battery capacity ■ User removable ■ 2.5-inch diameter ■ 9.5 mm height To find the hard drive capacity, click Start, then click My Computer. Right-click the drive letter, then click Properties. The drive’s capacity and available space appears. If the drive has multiple partitions (for example, C: and D:), add the capacities of each partition to determine the drive’s total capacity. Supports the following card types: ■ CompactFlash® ■ IBM Microdrive™ ■ Memory Stick® ■ Memory Stick Pro® ■ MultiMediaCard™ ■ Secure Digital™ Available drives include: ■ Combination DVD/CD-RW ■ Combination DVD±RW/CD-RW To determine the type of optical drive in your system, examine the drive tray’s plastic cover. A DVD logo in combination with a CD-R/RW logo indicates a DVD drive that also is a recordable/rewritable CD drive, and a DVD+ReWritable logo in combination with a CD-R/RW logo indicates a recordable/rewritable DVD drive that also is a recordable/rewritable CD drive. ■ 18.5 VDC, 4.9 A, 90 W output ■ Automatically adjusts for 100 to 240 VAC, 50 to 60 Hz power sources ■ Two-wire design ■ Removable Lithium Ion battery pack ■ Embedded controller inside to support SBS 1.1 8-cell Li-Ion ■ 4.4 Ah ■ 14.8 V nominal ■ 53.2 Whr Battery life varies depending on configuration, programs, power management settings, and features used. Recharge time varies, depending on usage. www.gateway.com 5

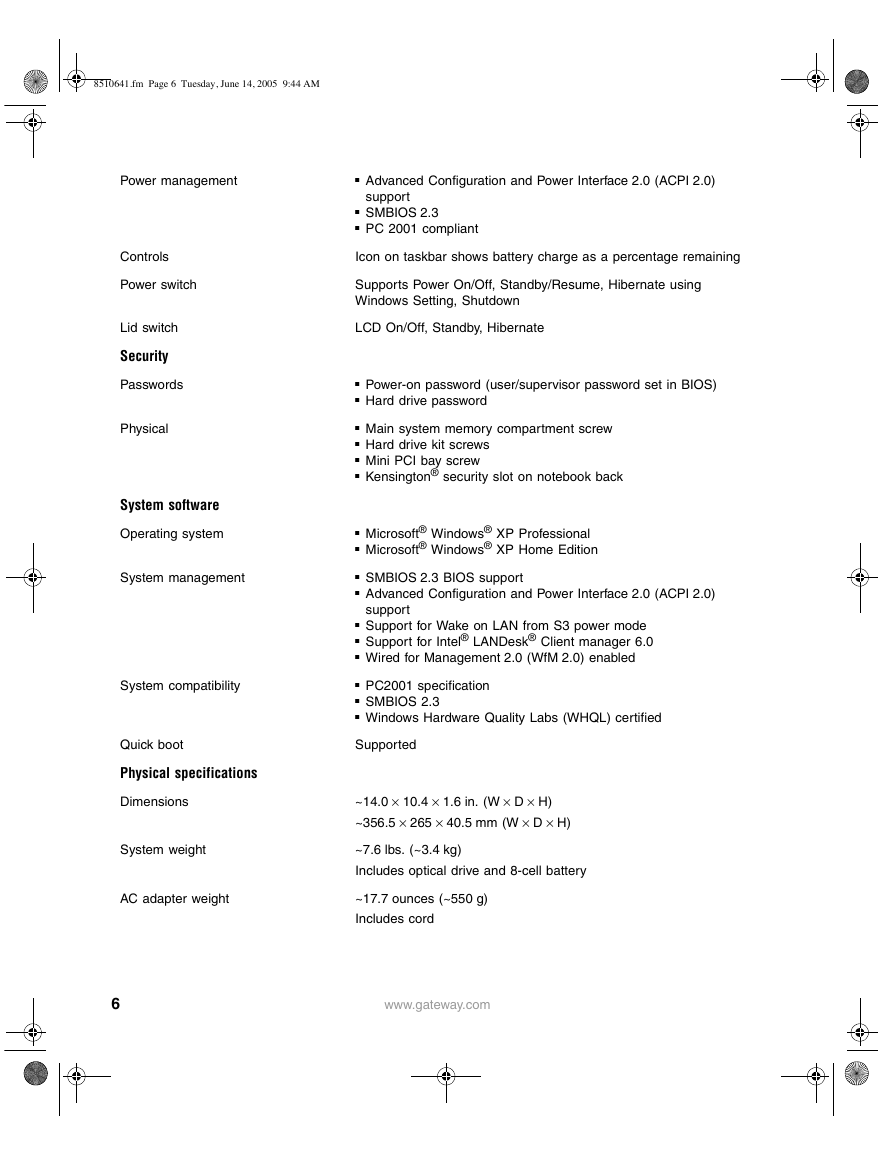

8510641.fm Page 6 Tuesday, June 14, 2005 9:44 AM Power management ■ Advanced Configuration and Power Interface 2.0 (ACPI 2.0) Controls Power switch Lid switch Security Passwords Physical System software Operating system System management System compatibility Quick boot Physical specifications Dimensions System weight AC adapter weight support ■ SMBIOS 2.3 ■ PC 2001 compliant Icon on taskbar shows battery charge as a percentage remaining Supports Power On/Off, Standby/Resume, Hibernate using Windows Setting, Shutdown LCD On/Off, Standby, Hibernate ■ Power-on password (user/supervisor password set in BIOS) ■ Hard drive password ■ Main system memory compartment screw ■ Hard drive kit screws ■ Mini PCI bay screw ■ Kensington® security slot on notebook back ■ Microsoft® Windows® XP Professional ■ Microsoft® Windows® XP Home Edition ■ SMBIOS 2.3 BIOS support ■ Advanced Configuration and Power Interface 2.0 (ACPI 2.0) support ■ Support for Wake on LAN from S3 power mode ■ Support for Intel® LANDesk® Client manager 6.0 ■ Wired for Management 2.0 (WfM 2.0) enabled ■ PC2001 specification ■ SMBIOS 2.3 ■ Windows Hardware Quality Labs (WHQL) certified Supported ~14.0 × 10.4 × 1.6 in. (W × D × H) ~356.5 × 265 × 40.5 mm (W × D × H) ~7.6 lbs. (~3.4 kg) Includes optical drive and 8-cell battery ~17.7 ounces (~550 g) Includes cord 6 www.gateway.com

8510641.fm Page 7 Tuesday, June 14, 2005 9:44 AM Environment Operating temperature Storage temperature Operating humidity 50°F to 90°F (10°C to 32°C) 4°F to 140°F (-15°C to 60°C) 20% to 80% relative humidity; no condensation MAN 7100/7500 SPEC R0 6/05 www.gateway.com 7
