Table of contents

1 Introduction

1.1 About this manual

1.1.1 Conventions

1.1.2 Symbols

1.2 Legal notice

1.2.1 Liability

1.2.2 Trademarks

1.3 Questions about the product

2 Before you begin

2.1 Scope of Delivery

2.2 Description of the NAVIGON 12xx | 22xx

2.3 Important safety information

2.3.1 Navigation safety information

2.3.2 Safety information for the navigation device

2.3.3 Safety guidelines when installing the device in your car

2.4 Preparing the NAVIGON 12xx | 22xx for use

2.4.1 Installing the navigation system in the vehicle

2.4.2 TMC antenna

2.4.3 Memory card

2.4.4 Connecting the navigation device to a PC

2.5 Navigating with GPS

3 Switching on the NAVIGON 12xx | 22xx

3.1 Options

4 Operating the NAVIGON 12xx | 22xx

4.1 Information

4.2 Software keyboard

4.2.1 Special keys

4.2.2 Entering data

4.3 Options

4.4 Menus

5 Navigation

5.1 Starting the navigation application

5.2 Specifying a destination

5.2.1 Specifying the country in which the destination is situated

5.2.2 Entering a destination address

5.2.3 Points of interest

5.2.4 Information about the destination

5.2.5 Last Destinations

5.2.6 Favourites

5.2.7 Navigating home

5.2.8 Selecting destinations on the map

5.2.9 Starting navigation

5.3 Managing destinations

5.3.1 Saving destinations

5.3.2 Defining a destination as home address

5.4 Multi-leg routes

5.4.1 Entering the starting point

5.4.2 Entering route points

5.4.3 Editing route points

5.4.4 Managing routes

5.4.5 Calculating and displaying routes

5.4.6 Simulating routes

5.4.7 Starting navigation

5.5 Options

5.6 Working with the map

5.6.1 Selecting the navigation map

5.6.2 Map in Preview mode

5.6.3 Map in Navigation mode

5.6.4 Reality View

5.6.5 Map in Destination search mode

5.7 Useful functions

5.7.1 Direct Help

5.7.2 GPS Status, saving the current location

5.7.3 Block

5.7.4 Turn-by-Turn List

5.7.5 TMC (Traffic Information (only NAVIGON 22xx)

6 Configuring the NAVIGON 12xx | 22xx

7 Appendix

7.1 Technical data

7.2 Declaration of conformity

8 Troubleshooting

9 Index

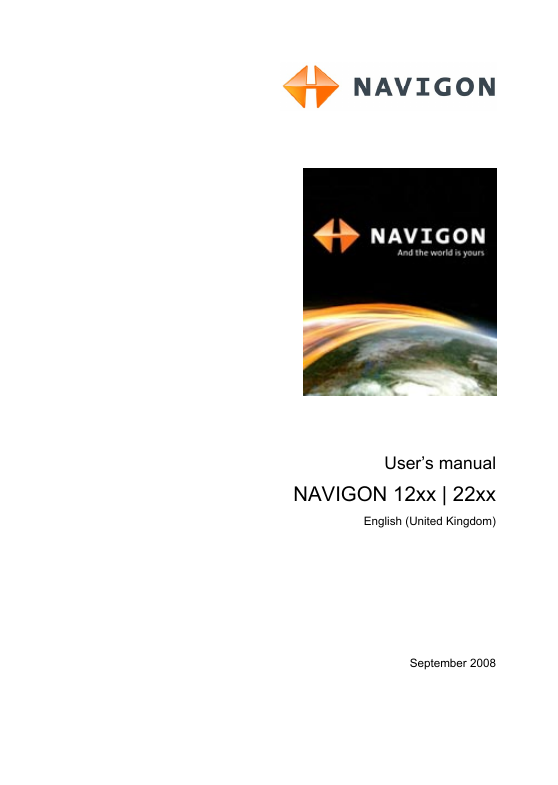

User’s manual NAVIGON 12xx | 22xx English (United Kingdom) September 2008

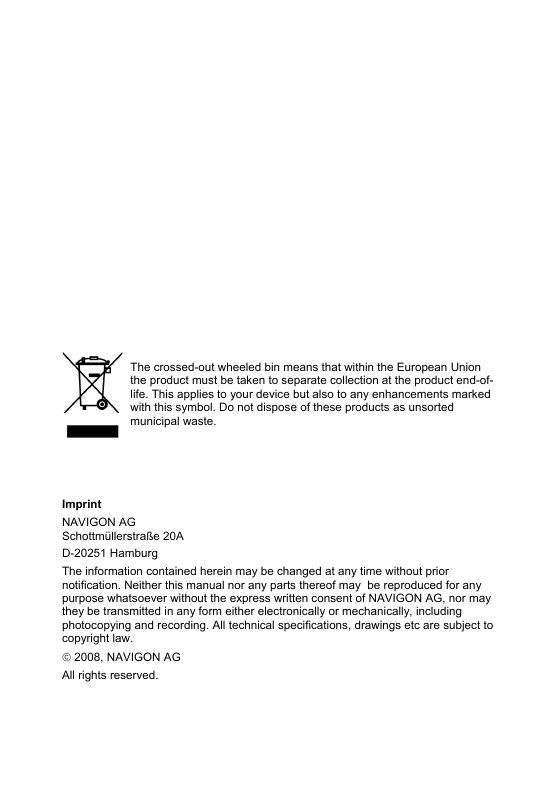

The crossed-out wheeled bin means that within the European Union the product must be taken to separate collection at the product end-of- life. This applies to your device but also to any enhancements marked with this symbol. Do not dispose of these products as unsorted municipal waste. Imprint NAVIGON AG Schottmüllerstraße 20A D-20251 Hamburg The information contained herein may be changed at any time without prior notification. Neither this manual nor any parts thereof may be reproduced for any purpose whatsoever without the express written consent of NAVIGON AG, nor may they be transmitted in any form either electronically or mechanically, including photocopying and recording. All technical specifications, drawings etc are subject to copyright law. © 2008, NAVIGON AG All rights reserved.

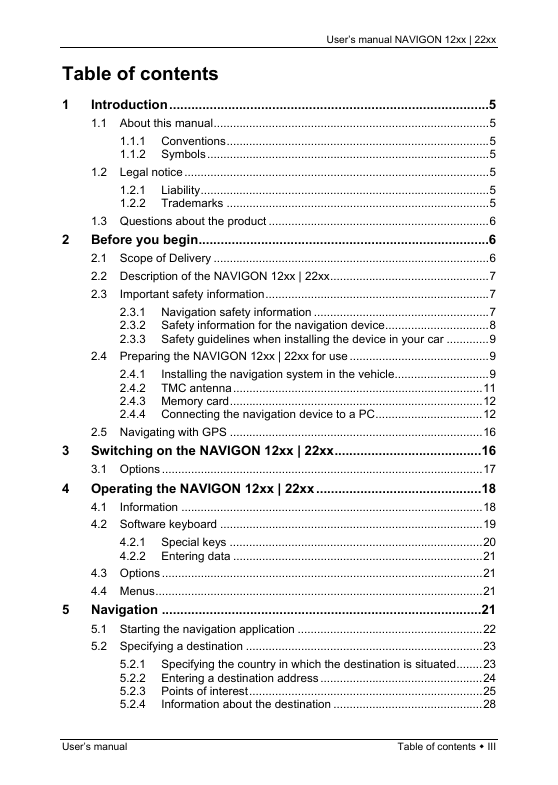

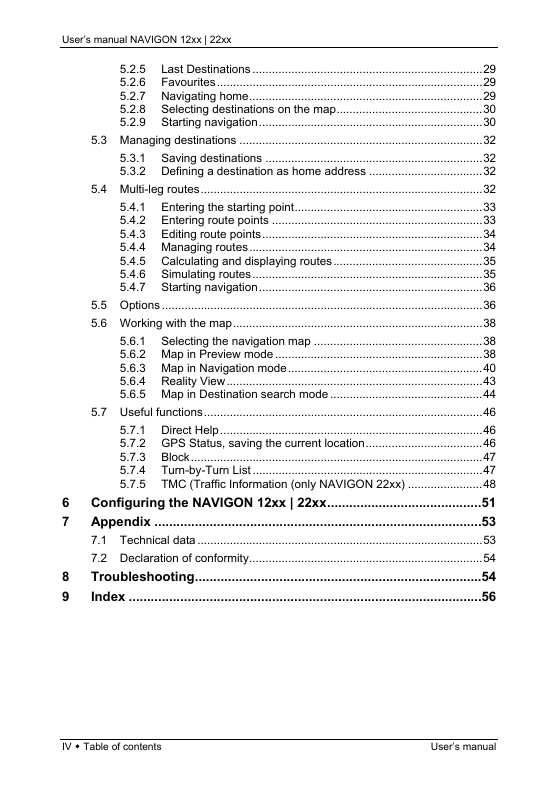

User’s manual NAVIGON 12xx | 22xx Table of contents 1 Introduction.......................................................................................5 1.1 About this manual.....................................................................................5 1.1.1 Conventions.................................................................................5 1.1.2 Symbols.......................................................................................5 1.2 Legal notice ..............................................................................................5 1.2.1 Liability.........................................................................................5 1.2.2 Trademarks .................................................................................5 1.3 Questions about the product ....................................................................6 2 Before you begin...............................................................................6 2.1 Scope of Delivery .....................................................................................6 2.2 Description of the NAVIGON 12xx | 22xx.................................................7 2.3 Important safety information.....................................................................7 2.3.1 Navigation safety information ......................................................7 2.3.2 Safety information for the navigation device................................8 2.3.3 Safety guidelines when installing the device in your car .............9 2.4 Preparing the NAVIGON 12xx | 22xx for use ...........................................9 2.4.1 Installing the navigation system in the vehicle.............................9 2.4.2 TMC antenna.............................................................................11 2.4.3 Memory card..............................................................................12 2.4.4 Connecting the navigation device to a PC.................................12 2.5 Navigating with GPS ..............................................................................16 3 Switching on the NAVIGON 12xx | 22xx........................................16 3.1 Options ...................................................................................................17 4 Operating the NAVIGON 12xx | 22xx .............................................18 4.1 Information .............................................................................................18 4.2 Software keyboard .................................................................................19 4.2.1 Special keys ..............................................................................20 4.2.2 Entering data .............................................................................21 4.3 Options ...................................................................................................21 4.4 Menus.....................................................................................................21 5 Navigation .......................................................................................21 5.1 Starting the navigation application .........................................................22 5.2 Specifying a destination .........................................................................23 5.2.1 Specifying the country in which the destination is situated........23 5.2.2 Entering a destination address ..................................................24 5.2.3 Points of interest........................................................................25 Information about the destination ..............................................28 5.2.4 User’s manual Table of contents III

User’s manual NAVIGON 12xx | 22xx 5.2.5 Last Destinations .......................................................................29 5.2.6 Favourites..................................................................................29 5.2.7 Navigating home........................................................................29 5.2.8 Selecting destinations on the map.............................................30 5.2.9 Starting navigation.....................................................................30 5.3 Managing destinations ...........................................................................32 5.3.1 Saving destinations ...................................................................32 5.3.2 Defining a destination as home address ...................................32 5.4 Multi-leg routes.......................................................................................32 5.4.1 Entering the starting point..........................................................33 5.4.2 Entering route points .................................................................33 5.4.3 Editing route points....................................................................34 5.4.4 Managing routes........................................................................34 5.4.5 Calculating and displaying routes..............................................35 5.4.6 Simulating routes.......................................................................35 5.4.7 Starting navigation.....................................................................36 5.5 Options ...................................................................................................36 5.6 Working with the map.............................................................................38 5.6.1 Selecting the navigation map ....................................................38 5.6.2 Map in Preview mode ................................................................38 5.6.3 Map in Navigation mode............................................................40 5.6.4 Reality View...............................................................................43 5.6.5 Map in Destination search mode ...............................................44 5.7 Useful functions......................................................................................46 5.7.1 Direct Help.................................................................................46 5.7.2 GPS Status, saving the current location....................................46 5.7.3 Block..........................................................................................47 5.7.4 Turn-by-Turn List .......................................................................47 5.7.5 TMC (Traffic Information (only NAVIGON 22xx) .......................48 6 Configuring the NAVIGON 12xx | 22xx..........................................51 7 Appendix .........................................................................................53 7.1 Technical data ........................................................................................53 7.2 Declaration of conformity........................................................................54 Troubleshooting..............................................................................54 Index ................................................................................................56 8 9 IV Table of contents User’s manual

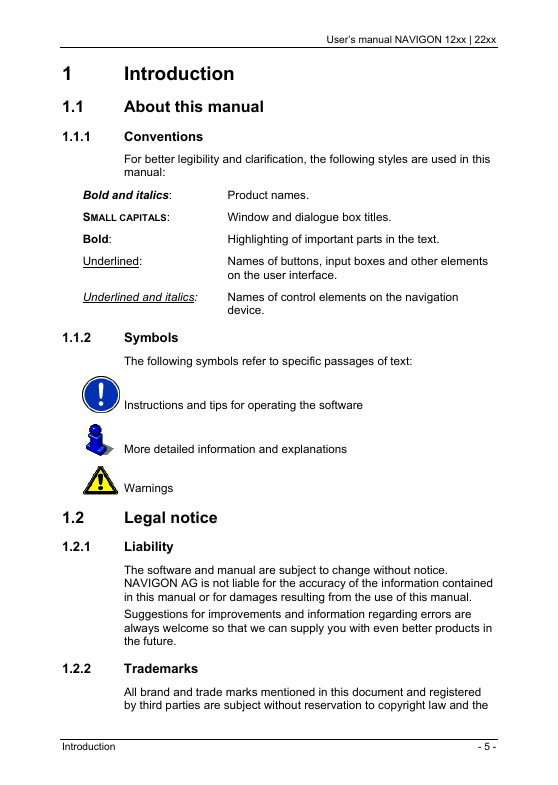

User’s manual NAVIGON 12xx | 22xx 1 1.1 1.1.1 Introduction About this manual Conventions For better legibility and clarification, the following styles are used in this manual: Bold and italics: SMALL CAPITALS: Bold: Underlined: Product names. Window and dialogue box titles. Highlighting of important parts in the text. Names of buttons, input boxes and other elements on the user interface. Names of control elements on the navigation device. Underlined and italics: 1.1.2 Symbols The following symbols refer to specific passages of text: Instructions and tips for operating the software More detailed information and explanations 1.2 1.2.1 Warnings Legal notice Liability The software and manual are subject to change without notice. NAVIGON AG is not liable for the accuracy of the information contained in this manual or for damages resulting from the use of this manual. Suggestions for improvements and information regarding errors are always welcome so that we can supply you with even better products in the future. 1.2.2 Trademarks All brand and trade marks mentioned in this document and registered by third parties are subject without reservation to copyright law and the Introduction - 5 -

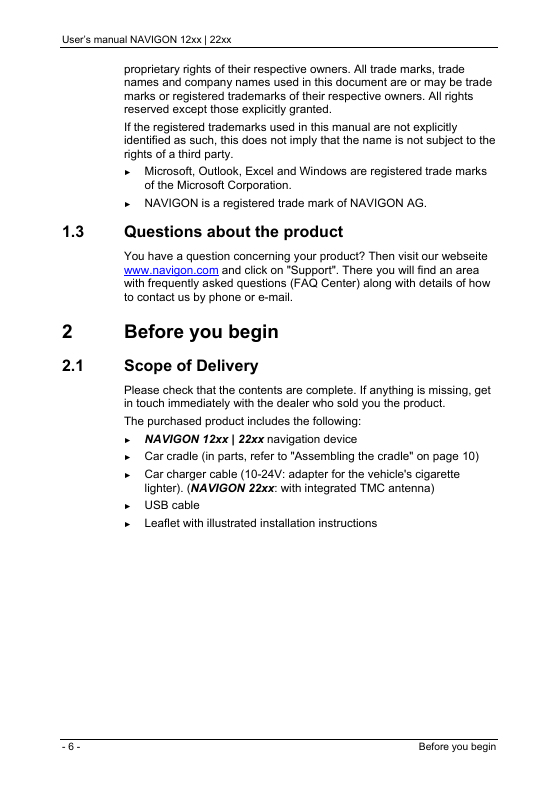

User’s manual NAVIGON 12xx | 22xx 1.3 2 2.1 proprietary rights of their respective owners. All trade marks, trade names and company names used in this document are or may be trade marks or registered trademarks of their respective owners. All rights reserved except those explicitly granted. If the registered trademarks used in this manual are not explicitly identified as such, this does not imply that the name is not subject to the rights of a third party. ► Microsoft, Outlook, Excel and Windows are registered trade marks of the Microsoft Corporation. ► NAVIGON is a registered trade mark of NAVIGON AG. Questions about the product You have a question concerning your product? Then visit our webseite www.navigon.com and click on "Support". There you will find an area with frequently asked questions (FAQ Center) along with details of how to contact us by phone or e-mail. Before you begin Scope of Delivery Please check that the contents are complete. If anything is missing, get in touch immediately with the dealer who sold you the product. The purchased product includes the following: ► NAVIGON 12xx | 22xx navigation device ► Car cradle (in parts, refer to "Assembling the cradle" on page 10) ► Car charger cable (10-24V: adapter for the vehicle's cigarette lighter). (NAVIGON 22xx: with integrated TMC antenna) ► USB cable ► Leaflet with illustrated installation instructions - 6 - Before you begin

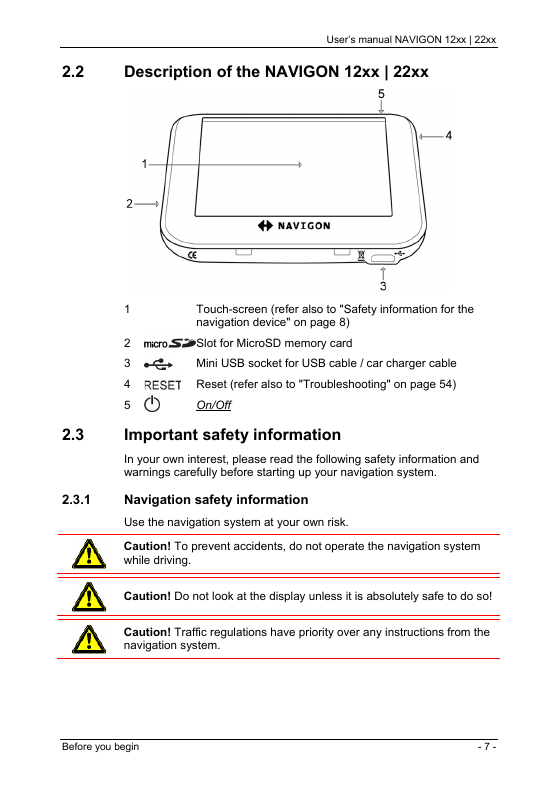

2.2 Description of the NAVIGON 12xx | 22xx User’s manual NAVIGON 12xx | 22xx 1 Touch-screen (refer also to "Safety information for the navigation device" on page 8) Slot for MicroSD memory card Mini USB socket for USB cable / car charger cable Reset (refer also to "Troubleshooting" on page 54) 2 3 4 5 Important safety information In your own interest, please read the following safety information and warnings carefully before starting up your navigation system. On/Off 2.3 2.3.1 Navigation safety information Use the navigation system at your own risk. Caution! To prevent accidents, do not operate the navigation system while driving. Caution! Do not look at the display unless it is absolutely safe to do so! Caution! Traffic regulations have priority over any instructions from the navigation system. Before you begin - 7 -

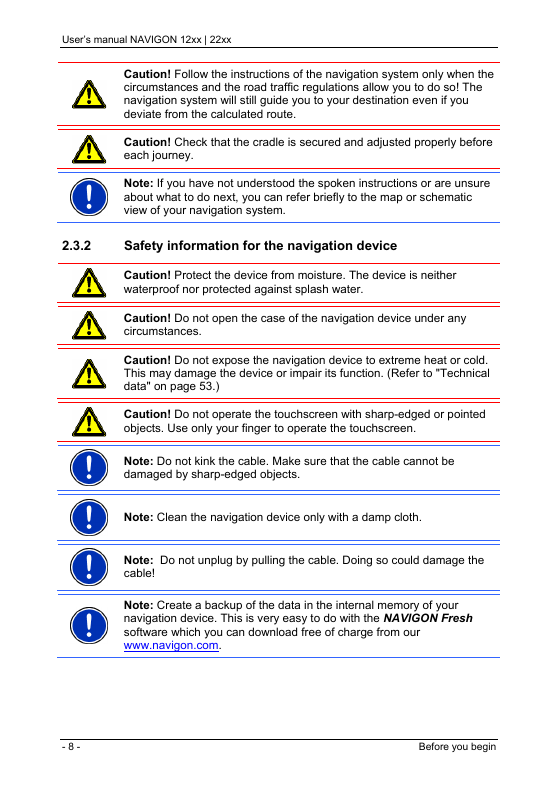

User’s manual NAVIGON 12xx | 22xx 2.3.2 Caution! Follow the instructions of the navigation system only when the circumstances and the road traffic regulations allow you to do so! The navigation system will still guide you to your destination even if you deviate from the calculated route. Caution! Check that the cradle is secured and adjusted properly before each journey. Note: If you have not understood the spoken instructions or are unsure about what to do next, you can refer briefly to the map or schematic view of your navigation system. Safety information for the navigation device Caution! Protect the device from moisture. The device is neither waterproof nor protected against splash water. Caution! Do not open the case of the navigation device under any circumstances. Caution! Do not expose the navigation device to extreme heat or cold. This may damage the device or impair its function. (Refer to "Technical data" on page 53.) Caution! Do not operate the touchscreen with sharp-edged or pointed objects. Use only your finger to operate the touchscreen. Note: Do not kink the cable. Make sure that the cable cannot be damaged by sharp-edged objects. Note: Clean the navigation device only with a damp cloth. Note: Do not unplug by pulling the cable. Doing so could damage the cable! Note: Create a backup of the data in the internal memory of your navigation device. This is very easy to do with the NAVIGON Fresh software which you can download free of charge from our 7www.navigon.com. - 8 - Before you begin
