PARTS GUIDE MANUAL DECEMBER 2012 bizhub 195/bizhub 215/bizhub 235/bizhub 7719/bizhub 7721/bizhub 7723 A3PE

INFORMATION FOR PARTS GUIDE MANUAL パーツガイドマニュアルのご案内 To find correct Parts No., refer to the “HOW TO MAKE THE BEST USE OF THIS MANUAL” in the following page. サービス部品をご発注の際には、下記に示す “パーツガイドマニュアルの活用にあたって” をご参照の上、正しい部品番号にてお願い致します。 HOW TO MAKE THE BEST USE OF THIS MANUAL パーツガイドマニュアルの活用にあたって 1 When you order, please check the proper figures beforehand that are on Our Parts Guide Manual, and order with the appropriate figures. 1 部品発注の際には、掲載されている部品番号の桁数を確認し、掲載されている桁数で発注願います。 2 For screws, Nuts, Washers, retaining rings and Pins which are used in this model, one letter is shown on the Standard parts column of Parts list and exploded diagrams. 2 この製品に使用されているネジ、ナット、ワッシャー、止め輪、ピンなどは、リストの右側の Standard parts 欄に a,b,c,……で表示し、イラストにも a,b,c,……表示してあります。 3 In order to maintain safety of the product, some specific parts composed of this product are set up as "essential safety parts". 3 製品の安全性を維持する為に、製品に使用される特定の部品を「重要保安部品」として設定しています。 4 The assigned parts number for the "essential safety parts" is indicated as "SP00-****". When replacing these parts, follow precautions for disassembling and installing which are listed in the Service Manual. Do not use any parts that are not set up as 4 重要保安部品の部品番号は、"SP00-****" と記載されていますので、部品交換時は、サービスマニュアル記載の分解・組み立ての注意事項に従って作業をして下さい。また、指定以外の部品は一切使用しないで下さい。 5 means that there are exclusive parts for each destination. Please check the appropriate destination when you order. 5 本文にが表示されている部品は、仕向け地毎に専用部品がある事を意味しています。オーダーされる時は、仕向け地を確認して下さい。 6 Revision Mark 6 改訂記号について Marked as on the illustration shows that the revision has been made. イラスト上に印が表示されている部分は、改訂された事を表します。 7 All rights reserved. (any reprints or quotations are prohibited.) Use of this parts guide manual should be strictly supervised to avoid dis- closure of confidential information. 7 版権所有　（無断転載及び無断引用の禁止）本パーツガイドマニュアルについては、機密保持等その扱いには十分注意して下さい。万一取り扱いを誤った場合には、法律で処罰されることがあります。 01/07/2012

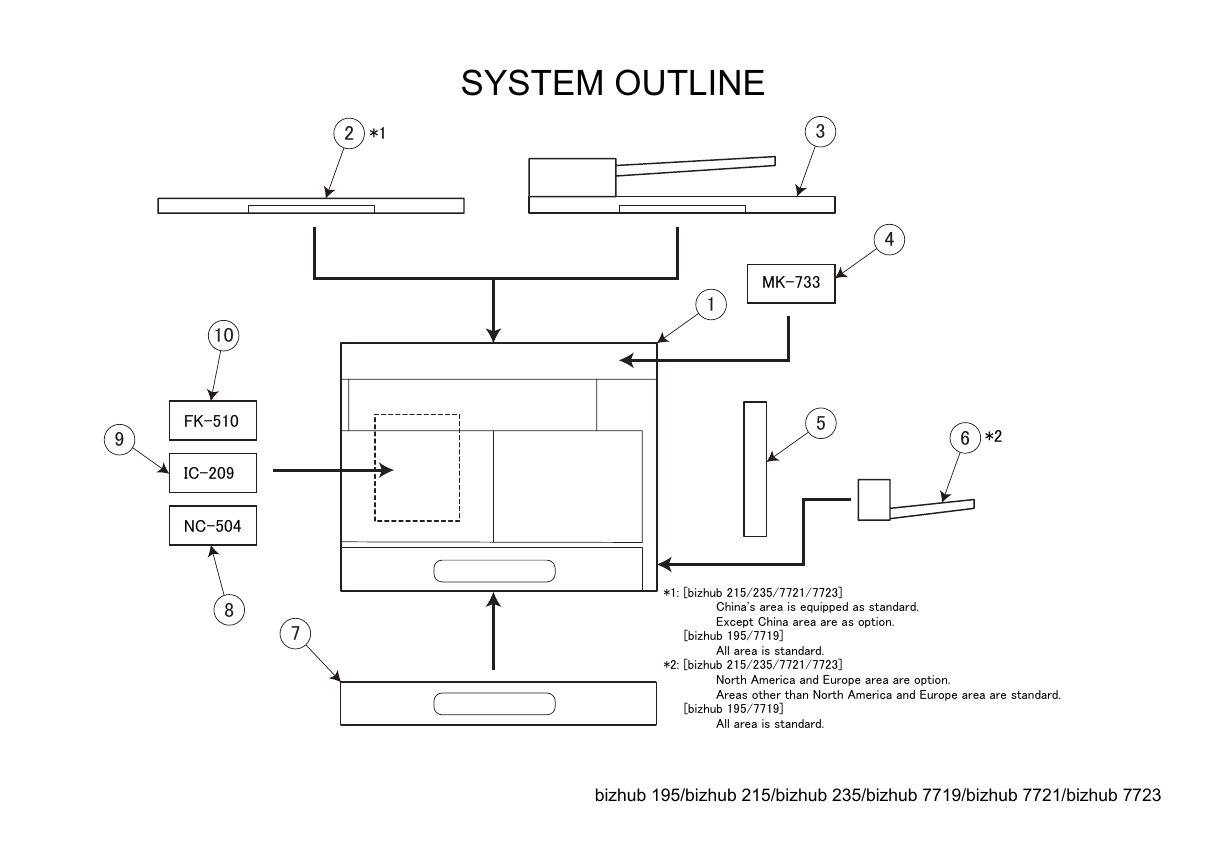

SYSTEM OUTLINE bizhub 195/bizhub 215/bizhub 235/bizhub 7719/bizhub 7721/bizhub 7723

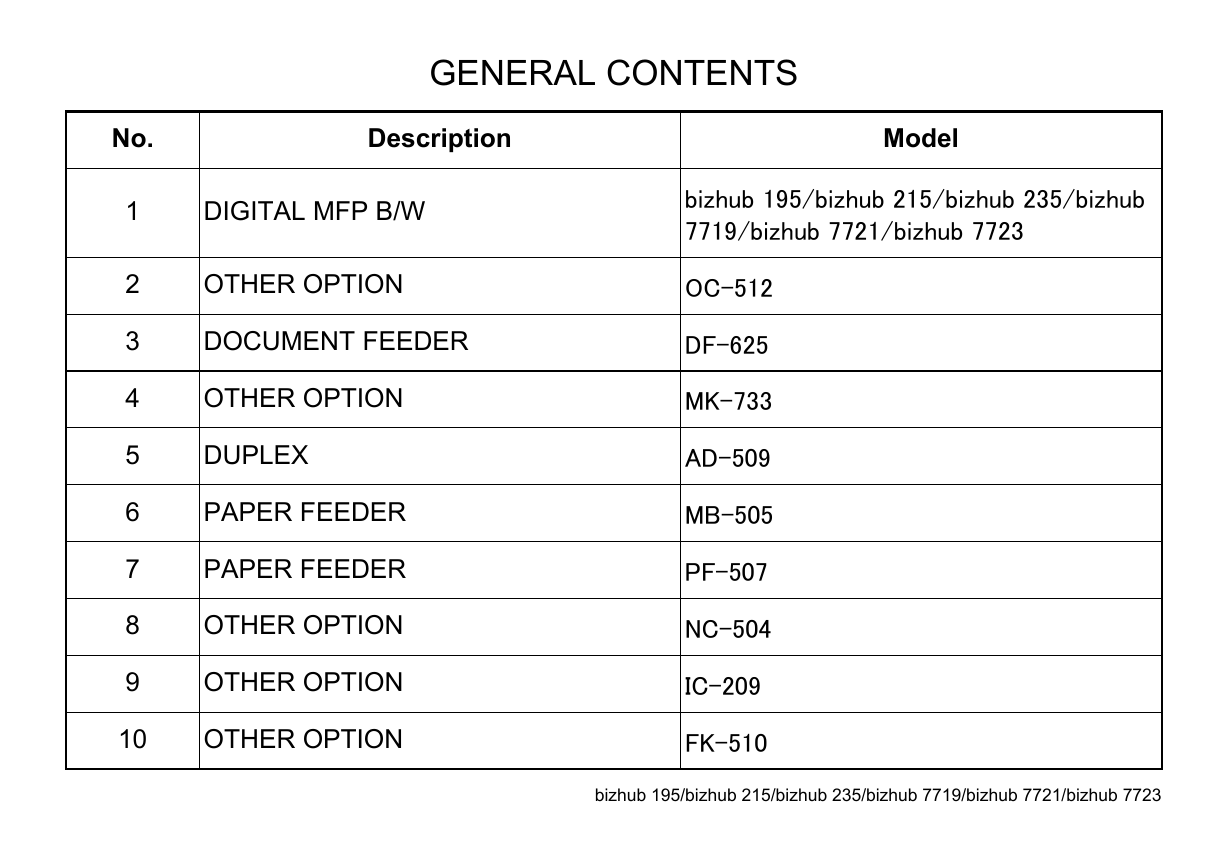

GENERAL CONTENTS No. Description Model 1 2 3 4 5 6 7 8 9 DIGITAL MFP B/W OTHER OPTION DOCUMENT FEEDER OTHER OPTION DUPLEX PAPER FEEDER PAPER FEEDER OTHER OPTION OTHER OPTION 10 OTHER OPTION bizhub 195/bizhub 215/bizhub 235/bizhub 7719/bizhub 7721/bizhub 7723 OC-512 DF-625 MK-733 AD-509 MB-505 PF-507 NC-504 IC-209 FK-510 bizhub 195/bizhub 215/bizhub 235/bizhub 7719/bizhub 7721/bizhub 7723

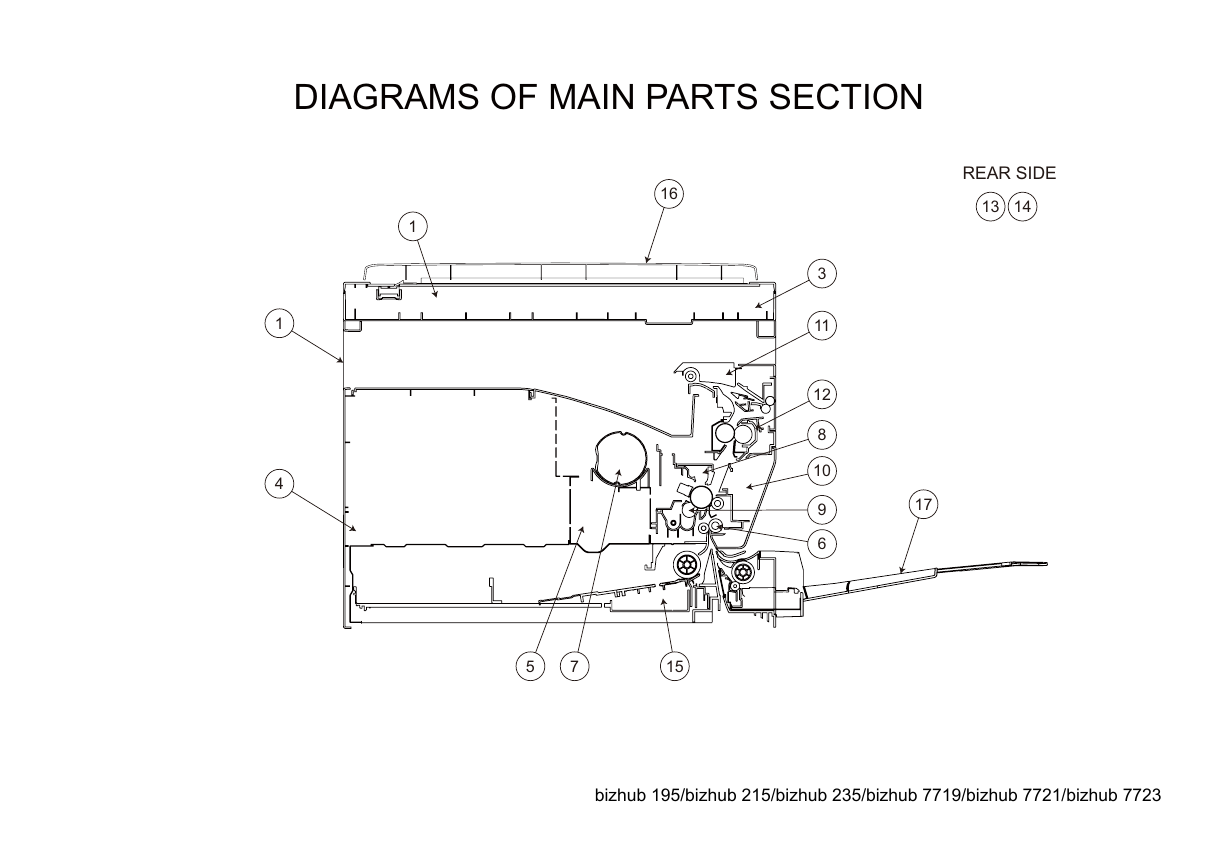

DIAGRAMS OF MAIN PARTS SECTION 1 16 REAR SIDE 13 14 1 4 3 11 12 8 10 9 6 17 5 7 15 bizhub 195/bizhub 215/bizhub 235/bizhub 7719/bizhub 7721/bizhub 7723

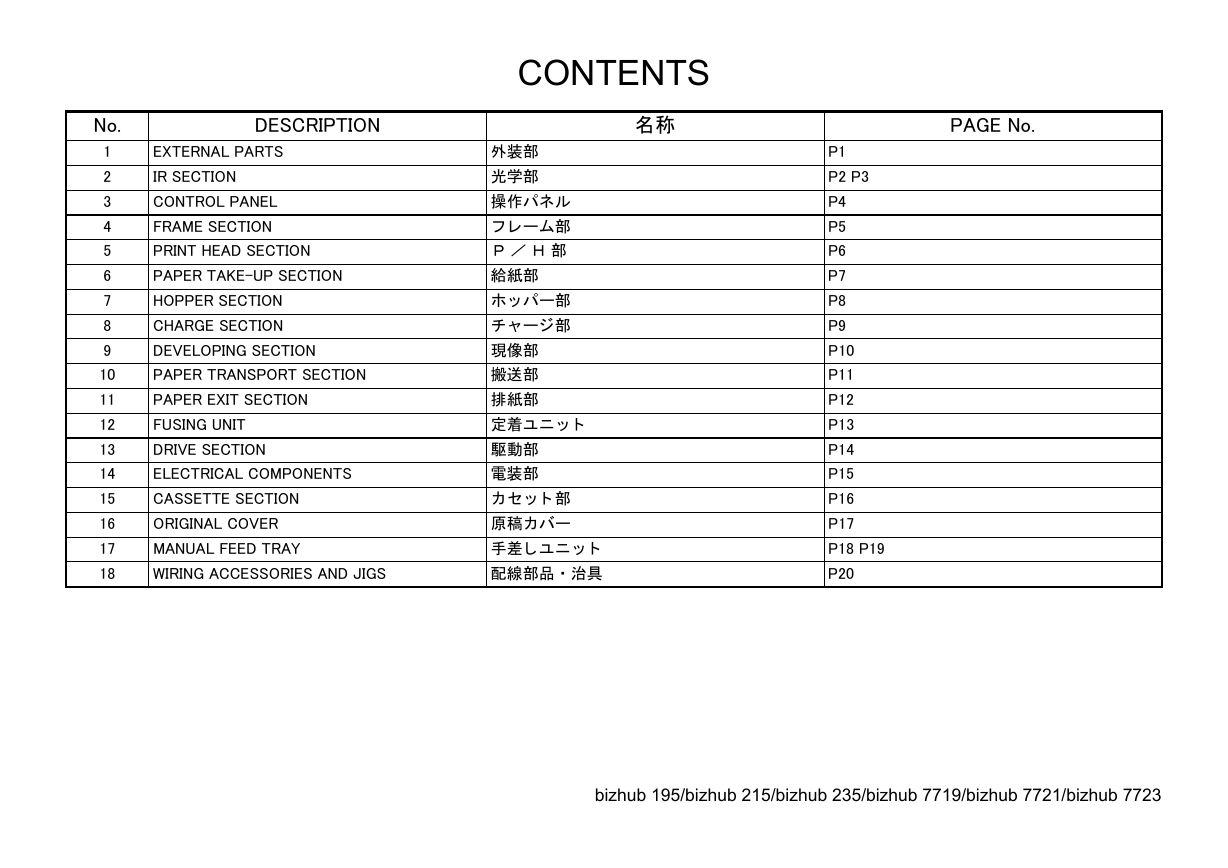

CONTENTS DESCRIPTION 名称 PAGE No. EXTERNAL PARTS IR SECTION CONTROL PANEL FRAME SECTION PRINT HEAD SECTION PAPER TAKE-UP SECTION HOPPER SECTION CHARGE SECTION DEVELOPING SECTION PAPER TRANSPORT SECTION PAPER EXIT SECTION FUSING UNIT DRIVE SECTION ELECTRICAL COMPONENTS CASSETTE SECTION ORIGINAL COVER MANUAL FEED TRAY WIRING ACCESSORIES AND JIGS 外装部光学部操作パネルフレーム部Ｐ／Ｈ部給紙部ホッパー部チャージ部現像部搬送部排紙部定着ユニット駆動部電装部カセット部原稿カバー手差しユニット配線部品・治具 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 bizhub 195/bizhub 215/bizhub 235/bizhub 7719/bizhub 7721/bizhub 7723

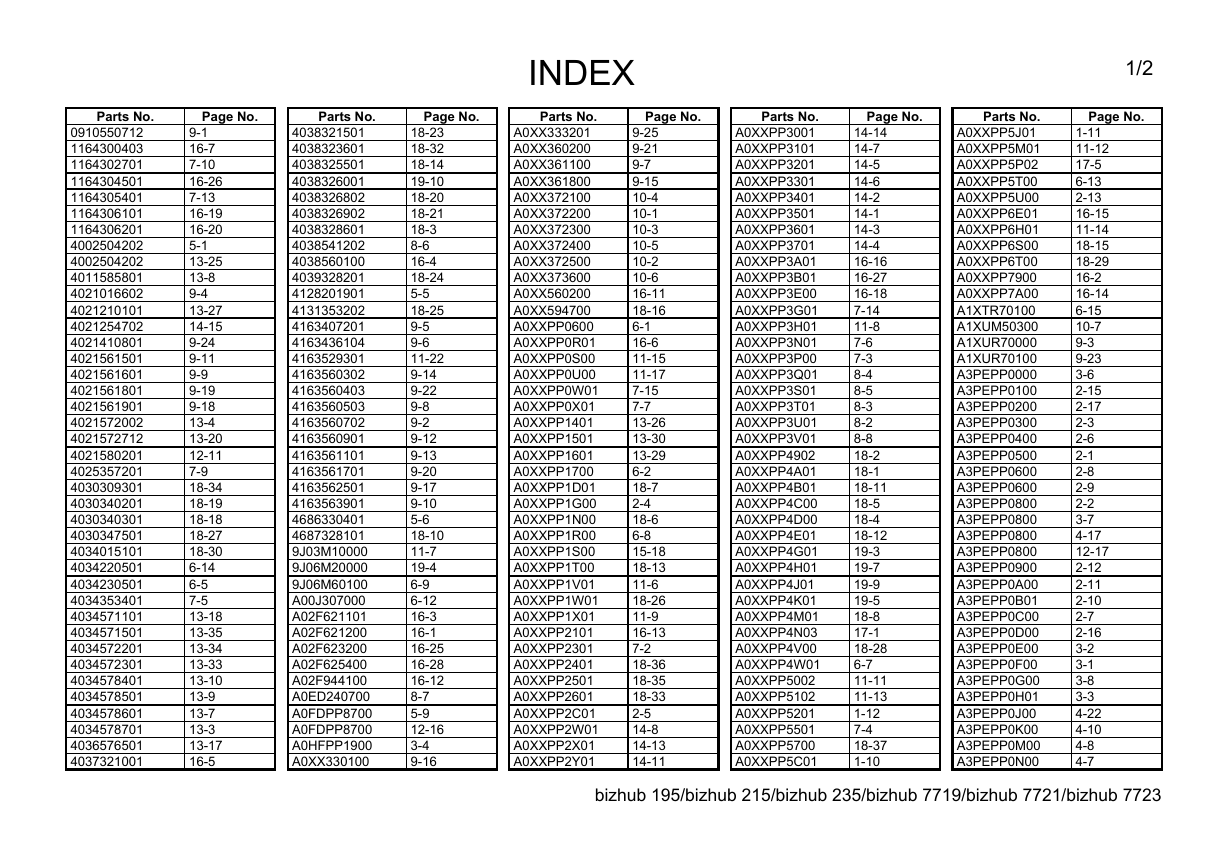

Parts No. 0910550712 1164300403 1164302701 1164304501 1164305401 1164306101 1164306201 4002504202 4002504202 4011585801 4021016602 4021210101 4021254702 4021410801 4021561501 4021561601 4021561801 4021561901 4021572002 4021572712 4021580201 4025357201 4030309301 4030340201 4030340301 4030347501 4034015101 4034220501 4034230501 4034353401 4034571101 4034571501 4034572201 4034572301 4034578401 4034578501 4034578601 4034578701 4036576501 4037321001 Page No. 9-1 16-7 7-10 16-26 7-13 16-19 16-20 5-1 13-25 13-8 9-4 13-27 14-15 9-24 9-11 9-9 9-19 9-18 13-4 13-20 12-11 7-9 18-34 18-19 18-18 18-27 18-30 6-14 6-5 7-5 13-18 13-35 13-34 13-33 13-10 13-9 13-7 13-3 13-17 16-5 Parts No. 4038321501 4038323601 4038325501 4038326001 4038326802 4038326902 4038328601 4038541202 4038560100 4039328201 4128201901 4131353202 4163407201 4163436104 4163529301 4163560302 4163560403 4163560503 4163560702 4163560901 4163561101 4163561701 4163562501 4163563901 4686330401 4687328101 9J03M10000 9J06M20000 9J06M60100 A00J307000 A02F621101 A02F621200 A02F623200 A02F625400 A02F944100 A0ED240700 A0FDPP8700 A0FDPP8700 A0HFPP1900 A0XX330100 Page No. 18-23 18-32 18-14 19-10 18-20 18-21 18-3 8-6 16-4 18-24 5-5 18-25 9-5 9-6 11-22 9-14 9-22 9-8 9-2 9-12 9-13 9-20 9-17 9-10 5-6 18-10 11-7 19-4 6-9 6-12 16-3 16-1 16-25 16-28 16-12 8-7 5-9 12-16 3-4 9-16 INDEX Parts No. A0XX333201 A0XX360200 A0XX361100 A0XX361800 A0XX372100 A0XX372200 A0XX372300 A0XX372400 A0XX372500 A0XX373600 A0XX560200 A0XX594700 A0XXPP0600 A0XXPP0R01 A0XXPP0S00 A0XXPP0U00 A0XXPP0W01 A0XXPP0X01 A0XXPP1401 A0XXPP1501 A0XXPP1601 A0XXPP1700 A0XXPP1D01 A0XXPP1G00 A0XXPP1N00 A0XXPP1R00 A0XXPP1S00 A0XXPP1T00 A0XXPP1V01 A0XXPP1W01 A0XXPP1X01 A0XXPP2101 A0XXPP2301 A0XXPP2401 A0XXPP2501 A0XXPP2601 A0XXPP2C01 A0XXPP2W01 A0XXPP2X01 A0XXPP2Y01 Page No. 9-25 9-21 9-7 9-15 10-4 10-1 10-3 10-5 10-2 10-6 16-11 18-16 6-1 16-6 11-15 11-17 7-15 7-7 13-26 13-30 13-29 6-2 18-7 2-4 18-6 6-8 15-18 18-13 11-6 18-26 11-9 16-13 7-2 18-36 18-35 18-33 2-5 14-8 14-13 14-11 Parts No. A0XXPP3001 A0XXPP3101 A0XXPP3201 A0XXPP3301 A0XXPP3401 A0XXPP3501 A0XXPP3601 A0XXPP3701 A0XXPP3A01 A0XXPP3B01 A0XXPP3E00 A0XXPP3G01 A0XXPP3H01 A0XXPP3N01 A0XXPP3P00 A0XXPP3Q01 A0XXPP3S01 A0XXPP3T01 A0XXPP3U01 A0XXPP3V01 A0XXPP4902 A0XXPP4A01 A0XXPP4B01 A0XXPP4C00 A0XXPP4D00 A0XXPP4E01 A0XXPP4G01 A0XXPP4H01 A0XXPP4J01 A0XXPP4K01 A0XXPP4M01 A0XXPP4N03 A0XXPP4V00 A0XXPP4W01 A0XXPP5002 A0XXPP5102 A0XXPP5201 A0XXPP5501 A0XXPP5700 A0XXPP5C01 Page No. 14-14 14-7 14-5 14-6 14-2 14-1 14-3 14-4 16-16 16-27 16-18 7-14 11-8 7-6 7-3 8-4 8-5 8-3 8-2 8-8 18-2 18-1 18-11 18-5 18-4 18-12 19-3 19-7 19-9 19-5 18-8 17-1 18-28 6-7 11-11 11-13 1-12 7-4 18-37 1-10 Parts No. A0XXPP5J01 A0XXPP5M01 A0XXPP5P02 A0XXPP5T00 A0XXPP5U00 A0XXPP6E01 A0XXPP6H01 A0XXPP6S00 A0XXPP6T00 A0XXPP7900 A0XXPP7A00 A1XTR70100 A1XUM50300 A1XUR70000 A1XUR70100 A3PEPP0000 A3PEPP0100 A3PEPP0200 A3PEPP0300 A3PEPP0400 A3PEPP0500 A3PEPP0600 A3PEPP0600 A3PEPP0800 A3PEPP0800 A3PEPP0800 A3PEPP0800 A3PEPP0900 A3PEPP0A00 A3PEPP0B01 A3PEPP0C00 A3PEPP0D00 A3PEPP0E00 A3PEPP0F00 A3PEPP0G00 A3PEPP0H01 A3PEPP0J00 A3PEPP0K00 A3PEPP0M00 A3PEPP0N00 1/2 Page No. 1-11 11-12 17-5 6-13 2-13 16-15 11-14 18-15 18-29 16-2 16-14 6-15 10-7 9-3 9-23 3-6 2-15 2-17 2-3 2-6 2-1 2-8 2-9 2-2 3-7 4-17 12-17 2-12 2-11 2-10 2-7 2-16 3-2 3-1 3-8 3-3 4-22 4-10 4-8 4-7 bizhub 195/bizhub 215/bizhub 235/bizhub 7719/bizhub 7721/bizhub 7723

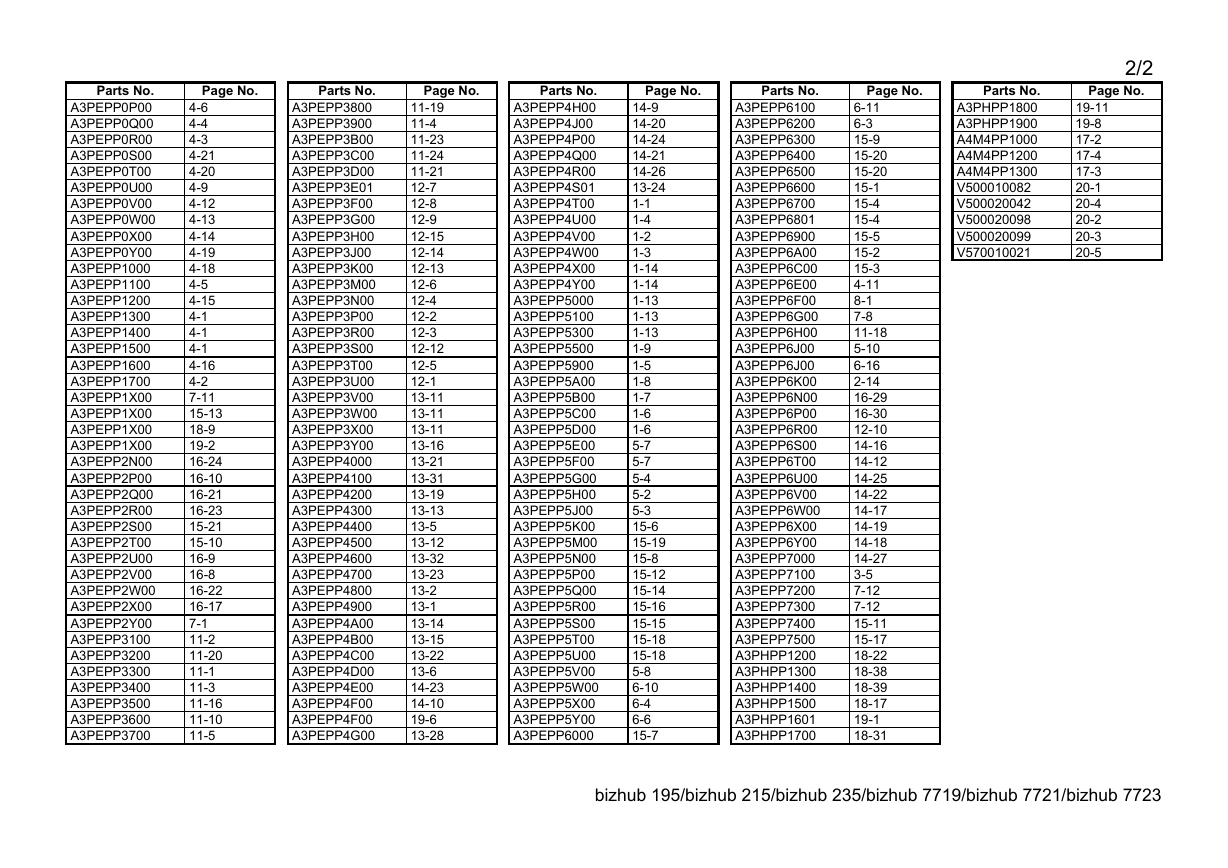

Parts No. A3PHPP1800 A3PHPP1900 A4M4PP1000 A4M4PP1200 A4M4PP1300 V500010082 V500020042 V500020098 V500020099 V570010021 2/2 Page No. 19-11 19-8 17-2 17-4 17-3 20-1 20-4 20-2 20-3 20-5 Parts No. A3PEPP0P00 A3PEPP0Q00 A3PEPP0R00 A3PEPP0S00 A3PEPP0T00 A3PEPP0U00 A3PEPP0V00 A3PEPP0W00 A3PEPP0X00 A3PEPP0Y00 A3PEPP1000 A3PEPP1100 A3PEPP1200 A3PEPP1300 A3PEPP1400 A3PEPP1500 A3PEPP1600 A3PEPP1700 A3PEPP1X00 A3PEPP1X00 A3PEPP1X00 A3PEPP1X00 A3PEPP2N00 A3PEPP2P00 A3PEPP2Q00 A3PEPP2R00 A3PEPP2S00 A3PEPP2T00 A3PEPP2U00 A3PEPP2V00 A3PEPP2W00 A3PEPP2X00 A3PEPP2Y00 A3PEPP3100 A3PEPP3200 A3PEPP3300 A3PEPP3400 A3PEPP3500 A3PEPP3600 A3PEPP3700 Page No. 4-6 4-4 4-3 4-21 4-20 4-9 4-12 4-13 4-14 4-19 4-18 4-5 4-15 4-1 4-1 4-1 4-16 4-2 7-11 15-13 18-9 19-2 16-24 16-10 16-21 16-23 15-21 15-10 16-9 16-8 16-22 16-17 7-1 11-2 11-20 11-1 11-3 11-16 11-10 11-5 Parts No. A3PEPP3800 A3PEPP3900 A3PEPP3B00 A3PEPP3C00 A3PEPP3D00 A3PEPP3E01 A3PEPP3F00 A3PEPP3G00 A3PEPP3H00 A3PEPP3J00 A3PEPP3K00 A3PEPP3M00 A3PEPP3N00 A3PEPP3P00 A3PEPP3R00 A3PEPP3S00 A3PEPP3T00 A3PEPP3U00 A3PEPP3V00 A3PEPP3W00 A3PEPP3X00 A3PEPP3Y00 A3PEPP4000 A3PEPP4100 A3PEPP4200 A3PEPP4300 A3PEPP4400 A3PEPP4500 A3PEPP4600 A3PEPP4700 A3PEPP4800 A3PEPP4900 A3PEPP4A00 A3PEPP4B00 A3PEPP4C00 A3PEPP4D00 A3PEPP4E00 A3PEPP4F00 A3PEPP4F00 A3PEPP4G00 Page No. 11-19 11-4 11-23 11-24 11-21 12-7 12-8 12-9 12-15 12-14 12-13 12-6 12-4 12-2 12-3 12-12 12-5 12-1 13-11 13-11 13-11 13-16 13-21 13-31 13-19 13-13 13-5 13-12 13-32 13-23 13-2 13-1 13-14 13-15 13-22 13-6 14-23 14-10 19-6 13-28 Parts No. A3PEPP4H00 A3PEPP4J00 A3PEPP4P00 A3PEPP4Q00 A3PEPP4R00 A3PEPP4S01 A3PEPP4T00 A3PEPP4U00 A3PEPP4V00 A3PEPP4W00 A3PEPP4X00 A3PEPP4Y00 A3PEPP5000 A3PEPP5100 A3PEPP5300 A3PEPP5500 A3PEPP5900 A3PEPP5A00 A3PEPP5B00 A3PEPP5C00 A3PEPP5D00 A3PEPP5E00 A3PEPP5F00 A3PEPP5G00 A3PEPP5H00 A3PEPP5J00 A3PEPP5K00 A3PEPP5M00 A3PEPP5N00 A3PEPP5P00 A3PEPP5Q00 A3PEPP5R00 A3PEPP5S00 A3PEPP5T00 A3PEPP5U00 A3PEPP5V00 A3PEPP5W00 A3PEPP5X00 A3PEPP5Y00 A3PEPP6000 Page No. 14-9 14-20 14-24 14-21 14-26 13-24 1-1 1-4 1-2 1-3 1-14 1-14 1-13 1-13 1-13 1-9 1-5 1-8 1-7 1-6 1-6 5-7 5-7 5-4 5-2 5-3 15-6 15-19 15-8 15-12 15-14 15-16 15-15 15-18 15-18 5-8 6-10 6-4 6-6 15-7 Parts No. A3PEPP6100 A3PEPP6200 A3PEPP6300 A3PEPP6400 A3PEPP6500 A3PEPP6600 A3PEPP6700 A3PEPP6801 A3PEPP6900 A3PEPP6A00 A3PEPP6C00 A3PEPP6E00 A3PEPP6F00 A3PEPP6G00 A3PEPP6H00 A3PEPP6J00 A3PEPP6J00 A3PEPP6K00 A3PEPP6N00 A3PEPP6P00 A3PEPP6R00 A3PEPP6S00 A3PEPP6T00 A3PEPP6U00 A3PEPP6V00 A3PEPP6W00 A3PEPP6X00 A3PEPP6Y00 A3PEPP7000 A3PEPP7100 A3PEPP7200 A3PEPP7300 A3PEPP7400 A3PEPP7500 A3PHPP1200 A3PHPP1300 A3PHPP1400 A3PHPP1500 A3PHPP1601 A3PHPP1700 Page No. 6-11 6-3 15-9 15-20 15-20 15-1 15-4 15-4 15-5 15-2 15-3 4-11 8-1 7-8 11-18 5-10 6-16 2-14 16-29 16-30 12-10 14-16 14-12 14-25 14-22 14-17 14-19 14-18 14-27 3-5 7-12 7-12 15-11 15-17 18-22 18-38 18-39 18-17 19-1 18-31 bizhub 195/bizhub 215/bizhub 235/bizhub 7719/bizhub 7721/bizhub 7723
