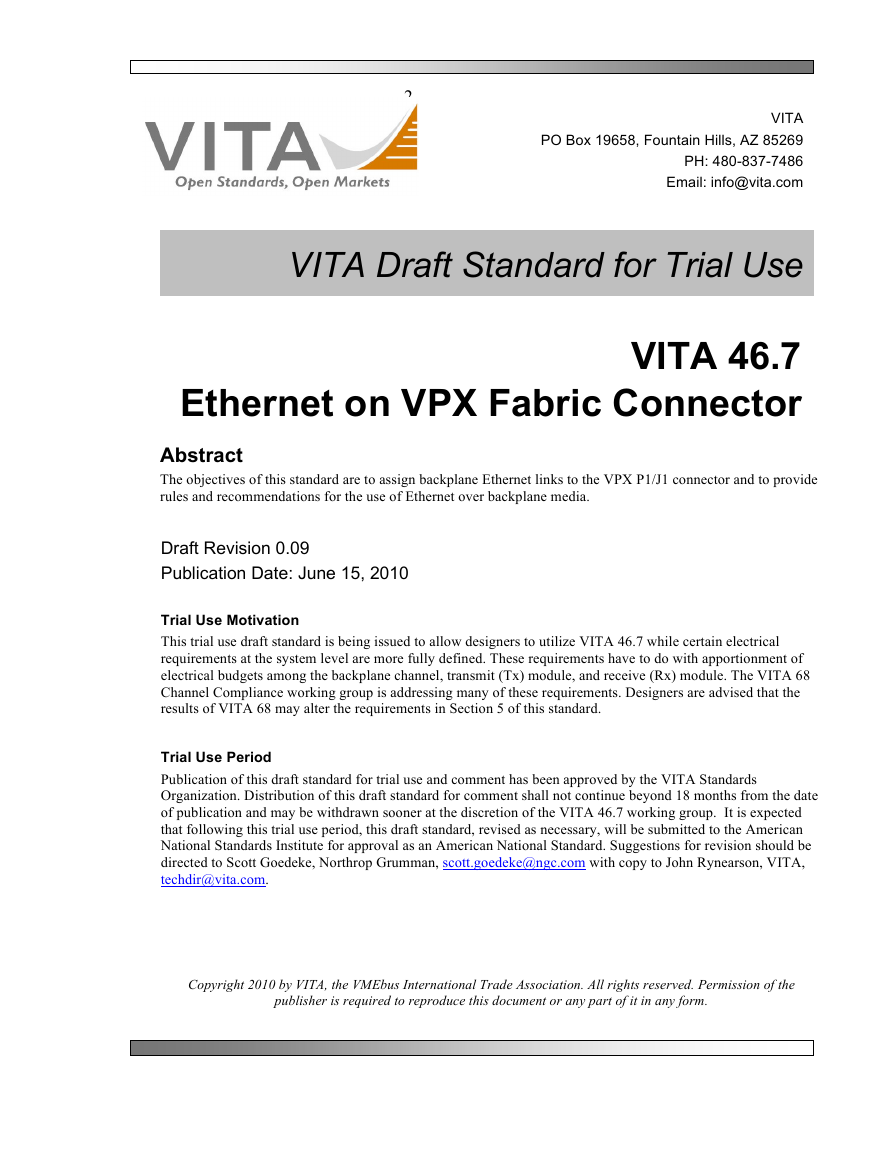

ANSI/VITA 58.0 2 4 VITA PO Box 19658, Fountain Hills, AZ 85269 PH: 480-837-7486 Email: info@vita.com URL: http://www.vita.com VITA Draft Standard for Trial Use VITA 46.7 Ethernet on VPX Fabric Connector Abstract The objectives of this standard are to assign backplane Ethernet links to the VPX P1/J1 connector and to provide rules and recommendations for the use of Ethernet over backplane media. Draft Revision 0.09 Publication Date: June 15, 2010 Trial Use Motivation This trial use draft standard is being issued to allow designers to utilize VITA 46.7 while certain electrical requirements at the system level are more fully defined. These requirements have to do with apportionment of electrical budgets among the backplane channel, transmit (Tx) module, and receive (Rx) module. The VITA 68 Channel Compliance working group is addressing many of these requirements. Designers are advised that the results of VITA 68 may alter the requirements in Section 5 of this standard. Trial Use Period Publication of this draft standard for trial use and comment has been approved by the VITA Standards Organization. Distribution of this draft standard for comment shall not continue beyond 18 months from the date of publication and may be withdrawn sooner at the discretion of the VITA 46.7 working group. It is expected that following this trial use period, this draft standard, revised as necessary, will be submitted to the American National Standards Institute for approval as an American National Standard. Suggestions for revision should be directed to Scott Goedeke, Northrop Grumman, scott.goedeke@ngc.com with copy to John Rynearson, VITA, techdir@vita.com. Copyright 2010 by VITA, the VMEbus International Trade Association. All rights reserved. Permission of the publisher is required to reproduce this document or any part of it in any form. Copyright 2010 by VITA, the VMEbus International Trade Association. All rights reserved. Permission of the publisher is required to reproduce this document or any part of it in any form.

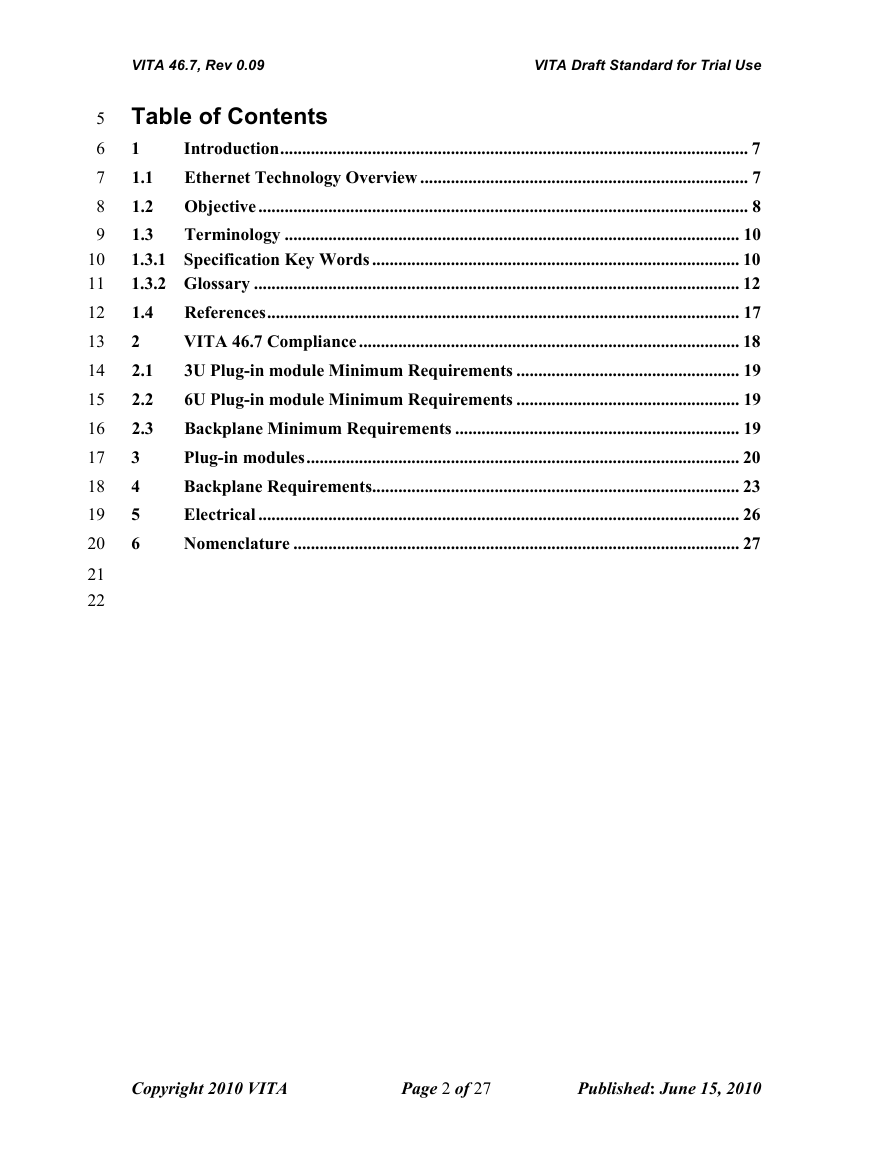

VITA Draft Standard for Trial Use VITA 46.7, Rev 0.09 Table of Contents Introduction........................................................................................................... 7 1 Ethernet Technology Overview ........................................................................... 7 1.1 1.2 Objective................................................................................................................ 8 1.3 Terminology ........................................................................................................ 10 1.3.1 Specification Key Words .................................................................................... 10 1.3.2 Glossary ............................................................................................................... 12 References............................................................................................................ 17 1.4 2 VITA 46.7 Compliance ....................................................................................... 18 3U Plug-in module Minimum Requirements ................................................... 19 2.1 2.2 6U Plug-in module Minimum Requirements ................................................... 19 Backplane Minimum Requirements ................................................................. 19 2.3 Plug-in modules................................................................................................... 20 3 4 Backplane Requirements.................................................................................... 23 Electrical .............................................................................................................. 26 5 6 Nomenclature ...................................................................................................... 27 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 Copyright 2010 VITA Page 2 of 27 Published: June 15, 2010

VITA Draft Standard for Trial Use VITA 46.7, Rev 0.09 Tables Table 1: Glossary .............................................................................................................. 12 Table 2: Plug-in module P1 Connector Pin Assignments................................................ 21 Table 3: Plug-in module P1 Connector Signal Definitions ............................................. 21 Table 4: P1 Connector Port/Link Assignments ............................................................... 22 Table 5: Backplane Slot J1 Connector Pin Assignments................................................. 24 Table 6: Backplane J1 Signal Definitions........................................................................ 25 Table 7: VITA 46.7 Port Capability Nomenclature......................................................... 27 22 23 24 25 26 27 28 29 30 31 Copyright 2010 VITA Page 3 of 27 Published: June 15, 2010

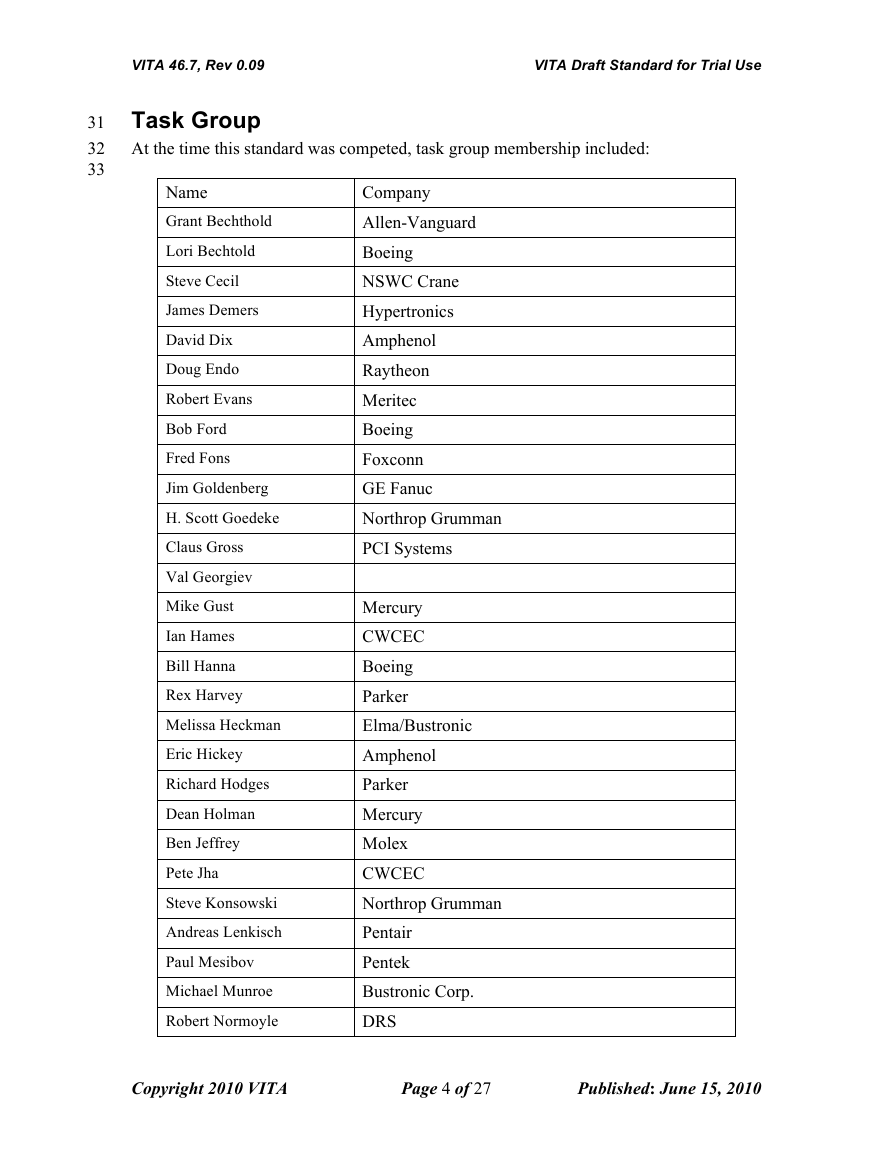

31 32 33 VITA 46.7, Rev 0.09 Task Group At the time this standard was competed, task group membership included: VITA Draft Standard for Trial Use Name Grant Bechthold Lori Bechtold Steve Cecil James Demers David Dix Doug Endo Robert Evans Bob Ford Fred Fons Jim Goldenberg H. Scott Goedeke Claus Gross Val Georgiev Mike Gust Ian Hames Bill Hanna Rex Harvey Melissa Heckman Eric Hickey Richard Hodges Dean Holman Ben Jeffrey Pete Jha Steve Konsowski Andreas Lenkisch Paul Mesibov Michael Munroe Robert Normoyle Company Allen-Vanguard Boeing NSWC Crane Hypertronics Amphenol Raytheon Meritec Boeing Foxconn GE Fanuc Northrop Grumman PCI Systems Mercury CWCEC Boeing Parker Elma/Bustronic Amphenol Parker Mercury Molex CWCEC Northrop Grumman Pentair Pentek Bustronic Corp. DRS Copyright 2010 VITA Page 4 of 27 Published: June 15, 2010

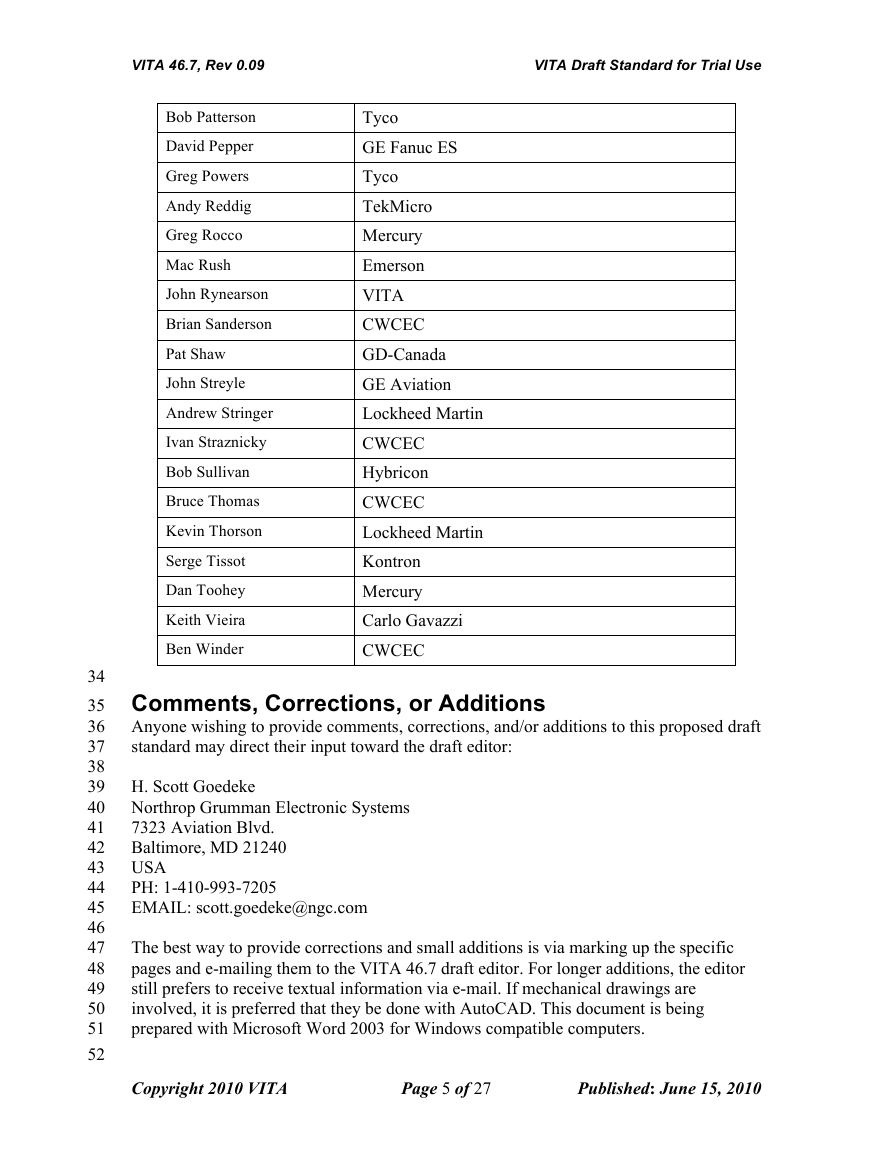

VITA 46.7, Rev 0.09 VITA Draft Standard for Trial Use Bob Patterson David Pepper Greg Powers Andy Reddig Greg Rocco Mac Rush John Rynearson Brian Sanderson Pat Shaw John Streyle Andrew Stringer Ivan Straznicky Bob Sullivan Bruce Thomas Kevin Thorson Serge Tissot Dan Toohey Keith Vieira Ben Winder Tyco GE Fanuc ES Tyco TekMicro Mercury Emerson VITA CWCEC GD-Canada GE Aviation Lockheed Martin CWCEC Hybricon CWCEC Lockheed Martin Kontron Mercury Carlo Gavazzi CWCEC 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 Comments, Corrections, or Additions Anyone wishing to provide comments, corrections, and/or additions to this proposed draft standard may direct their input toward the draft editor: H. Scott Goedeke Northrop Grumman Electronic Systems 7323 Aviation Blvd. Baltimore, MD 21240 USA PH: 1-410-993-7205 EMAIL: scott.goedeke@ngc.com The best way to provide corrections and small additions is via marking up the specific pages and e-mailing them to the VITA 46.7 draft editor. For longer additions, the editor still prefers to receive textual information via e-mail. If mechanical drawings are involved, it is preferred that they be done with AutoCAD. This document is being prepared with Microsoft Word 2003 for Windows compatible computers. Copyright 2010 VITA Page 5 of 27 Published: June 15, 2010

VITA Draft Standard for Trial Use 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 VITA 46.7, Rev 0.09 VSO and Other Standards Information on other standards being developed by the VSO, VME Product Directories, VME Handbooks, and general information on the VME market is available from the VITA office at the address and telephone number listed on the front cover of this document. Change Bars Once released, change bars will be used in each revision to indicate modifications from the immediately previous revision. Draft Summary This is the preliminary draft of this standard. The original content of this draft standard was presented and agreed upon at the March 17th, 2010 VSO meeting. See the draft history for a summary list of the major changes made to each draft. Draft History Draft No. Date 0.01 0.02 0.03 0.04 0.05 0.06 December 3, 2007 January 25, 2008 July 21, 2008 August 19, 2008 October 6, 2008 March 5, 2009 Comments & Major Changes/Updates Initial Draft Updated title page Updated references to IEEE 802.3-2008 Updated Table of Contents, eliminated glyphs Changes resulting from WG ballot Added nomenclature paragraph; added KR; added ability to claim pin mapping compliance with Ethernet standards other than KX, KX4 and KR; Reversed all but editorial changes made in revision 0.06. The 0.06 additions will be addressed by VITA 65. Add 10GBASE-BX4 as voted by the Working Group at the 11-19-2010 VSO meeting. Add reference to VITA 68. Addressed ballot comments provided at 3-17- 2010 VSO meeting. 0.07 May 11, 2009 0.08 November 19, 2009 0.09 April 27, 2010 68 69 Copyright 2010 VITA Page 6 of 27 Published: June 15, 2010

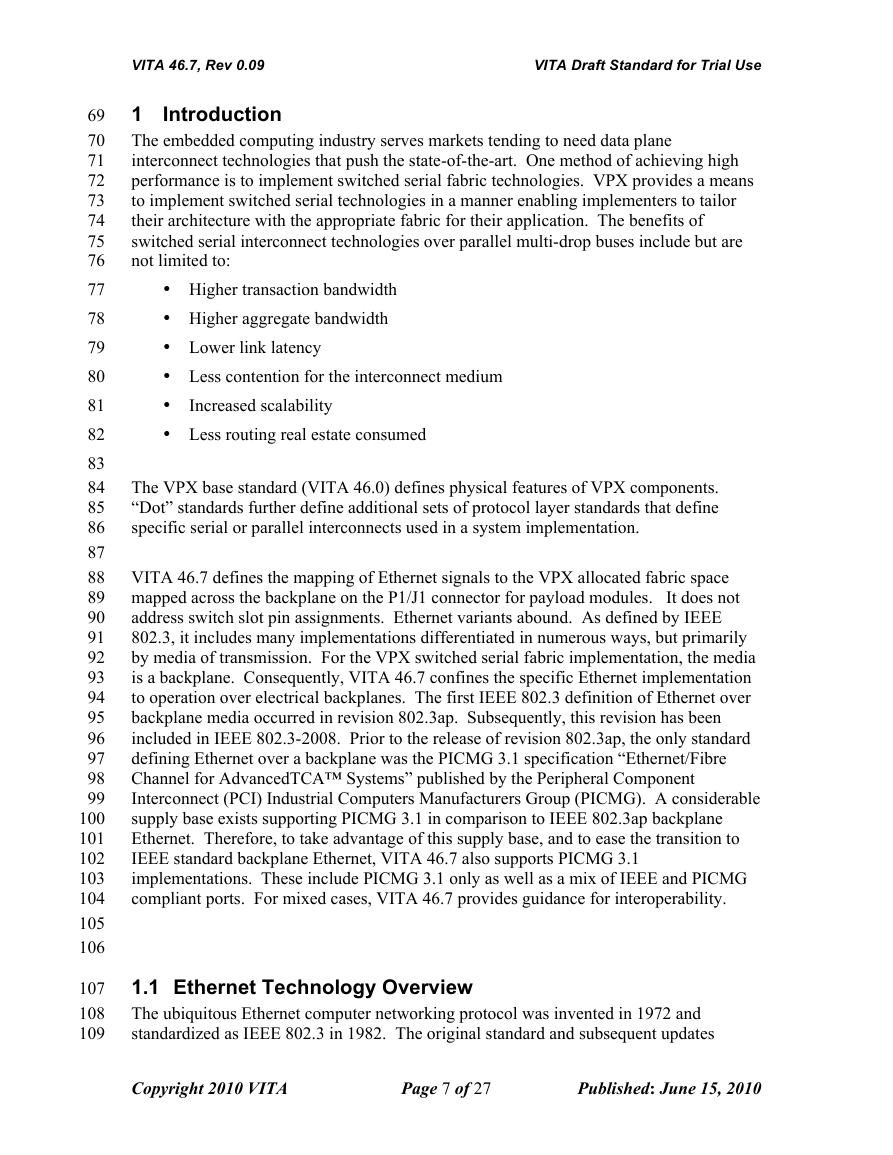

69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 VITA Draft Standard for Trial Use Introduction VITA 46.7, Rev 0.09 1 The embedded computing industry serves markets tending to need data plane interconnect technologies that push the state-of-the-art. One method of achieving high performance is to implement switched serial fabric technologies. VPX provides a means to implement switched serial technologies in a manner enabling implementers to tailor their architecture with the appropriate fabric for their application. The benefits of switched serial interconnect technologies over parallel multi-drop buses include but are not limited to: • Higher transaction bandwidth • Higher aggregate bandwidth • Lower link latency • Less contention for the interconnect medium • • Less routing real estate consumed Increased scalability The VPX base standard (VITA 46.0) defines physical features of VPX components. “Dot” standards further define additional sets of protocol layer standards that define specific serial or parallel interconnects used in a system implementation. VITA 46.7 defines the mapping of Ethernet signals to the VPX allocated fabric space mapped across the backplane on the P1/J1 connector for payload modules. It does not address switch slot pin assignments. Ethernet variants abound. As defined by IEEE 802.3, it includes many implementations differentiated in numerous ways, but primarily by media of transmission. For the VPX switched serial fabric implementation, the media is a backplane. Consequently, VITA 46.7 confines the specific Ethernet implementation to operation over electrical backplanes. The first IEEE 802.3 definition of Ethernet over backplane media occurred in revision 802.3ap. Subsequently, this revision has been included in IEEE 802.3-2008. Prior to the release of revision 802.3ap, the only standard defining Ethernet over a backplane was the PICMG 3.1 specification “Ethernet/Fibre Channel for AdvancedTCA™ Systems” published by the Peripheral Component Interconnect (PCI) Industrial Computers Manufacturers Group (PICMG). A considerable supply base exists supporting PICMG 3.1 in comparison to IEEE 802.3ap backplane Ethernet. Therefore, to take advantage of this supply base, and to ease the transition to IEEE standard backplane Ethernet, VITA 46.7 also supports PICMG 3.1 implementations. These include PICMG 3.1 only as well as a mix of IEEE and PICMG compliant ports. For mixed cases, VITA 46.7 provides guidance for interoperability. 1.1 Ethernet Technology Overview The ubiquitous Ethernet computer networking protocol was invented in 1972 and standardized as IEEE 802.3 in 1982. The original standard and subsequent updates Copyright 2010 VITA Page 7 of 27 Published: June 15, 2010

VITA Draft Standard for Trial Use VITA 46.7, Rev 0.09 specified Ethernet protocol over cables up until the release of IEEE 802.3-2008 which defined Ethernet over a backplane. An Ethernet network may be constructed in several different ways within the confines of the IEEE 802.3 standard. The choice of specific architectures is beyond the scope of this standard. The Ethernet Fat Pipe consists of four transmit and four receive serial differential signal pairs. Each transmit and receive pair is also known as a logical lane. Therefore, the Fat Pipe is a four lane (x4 logical lane) physical interface. This is the configuration defined for 10GBASE-KX4 in IEEE 802.3-2008 Clause 71. The same configuration is used for XAUI defined by Clause 47 and 10GBASE-BX4 defined by PICMG 3.1. The PICMG specification borrows significant content from XAUI to define the electrical requirements. The most ubiquitous Ethernet version to date, 1000BASE-T, uses a Thin Pipe consisting of four bi-directional serial differential signal pairs instead of eight uni-directional pairs as in KX4 and BX4. It encodes information using four level pulse-amplitude modulation (PAM5) instead of a binary bitstream. 1000BASE-T is defined by IEEE 802.3-2005 Clause 40 and the 10 Gbps version, 10GBASE-T, is defined by IEEE 802.3an-2006 Clause 55. 1000BASE-T and 10GBASE-T implementations are intended for cable media. Although backplane channels could be designed to reliably carry them, there are no industry standards defining their use in backplanes. Therefore, VITA 46.7 does not include 1000BASE-T or 10GBASE-T. Another type of Thin Pipe for Ethernet is reduced XAUI, known as RXAUI. It was originated by Dune Networks, now part of Broadcom. RXAUI consists of four uni- directional serial differential signal pairs; two transmit and two receive. It uses OIF CEI- 6G-SR which defines the interface as 6.25 Gbps over up to 20 cm of printed circuit board and one connector. This is unsuitable for a VPX backplane which could be as long 50 cm and have two connectors. Therefore, it was not included in VITA 46.7. The Ultra-thin Pipe consists of one transmit and one receive serial differential signal pair (1x logical lane) over printed circuit board. This is the configuration defined for 1000BASE-KX in IEEE 802.3-2008 Clause 70 and 1000BASE-BX in PICMG 3.1. Another type of Ultra Thin Pipe for Ethernet is 1000BASE-CX defined by IEEE 802.3- 2005 Clause 39. However, it is defined for InfiniBand® twin-axial cable, not backplanes, so it is not suitable for VITA 46.7i. 1.2 Objective The objectives of this standard are: 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 Copyright 2010 VITA Page 8 of 27 Published: June 15, 2010
