    DSP Tools, System Generator for DSP / AccelDSP - W
    Solution
    Applies To
    Design Tools

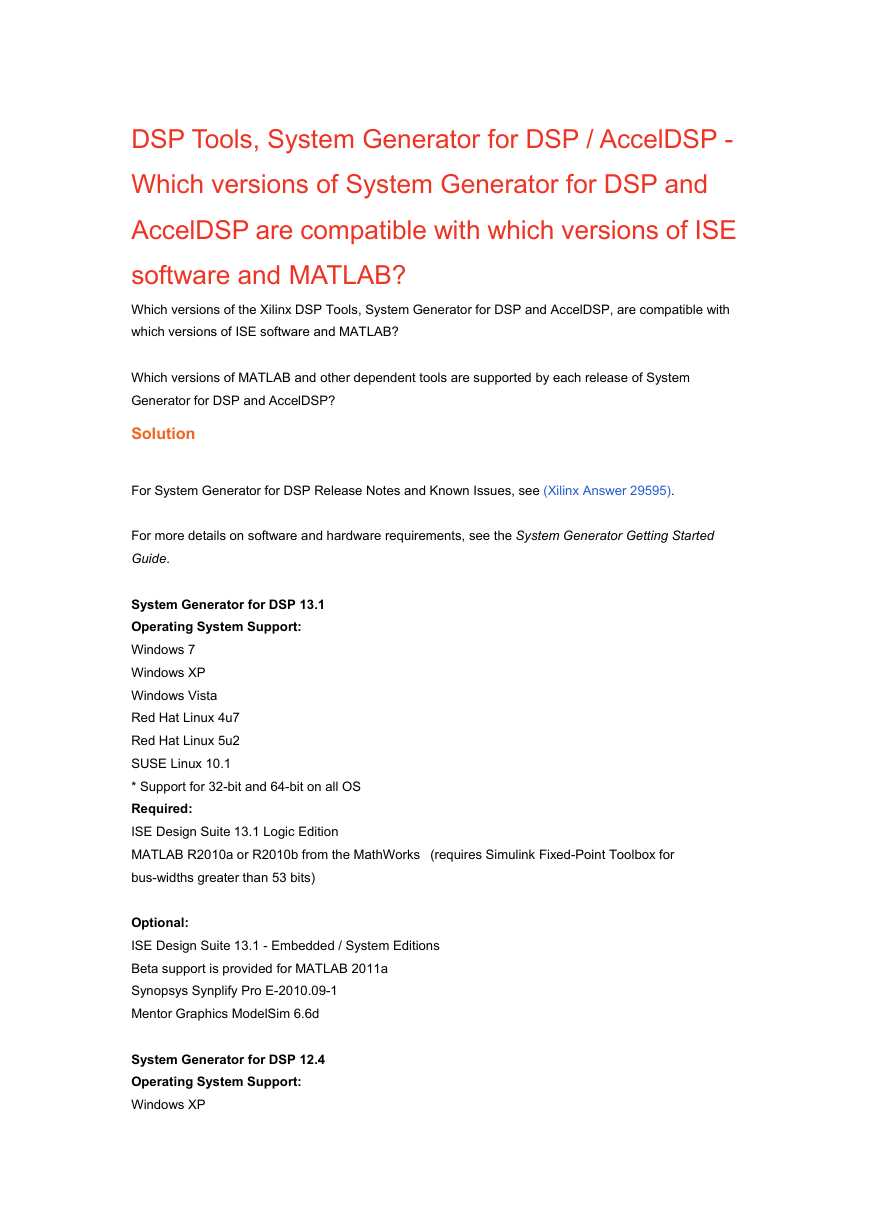

    DSP Tools, System Generator for DSP / AccelDSP - Which versions of System Generator for DSP and AccelDSP are compatible with which versions of ISE software and MATLAB? Which versions of the Xilinx DSP Tools, System Generator for DSP and AccelDSP, are compatible with which versions of ISE software and MATLAB? Which versions of MATLAB and other dependent tools are supported by each release of System Generator for DSP and AccelDSP? Solution For System Generator for DSP Release Notes and Known Issues, see (Xilinx Answer 29595). For more details on software and hardware requirements, see the System Generator Getting Started Guide. System Generator for DSP 13.1 Operating System Support: Windows 7 Windows XP Windows Vista Red Hat Linux 4u7 Red Hat Linux 5u2 SUSE Linux 10.1 * Support for 32-bit and 64-bit on all OS Required: ISE Design Suite 13.1 Logic Edition MATLAB R2010a or R2010b from the MathWorks (requires Simulink Fixed-Point Toolbox for bus-widths greater than 53 bits) Optional: ISE Design Suite 13.1 - Embedded / System Editions Beta support is provided for MATLAB 2011a Synopsys Synplify Pro E-2010.09-1 Mentor Graphics ModelSim 6.6d System Generator for DSP 12.4 Operating System Support: Windows XP
    Windows Vista Red Hat Linux 4u7 Red Hat Linux 5u2 SUSE Linux 10.1 * Support for 32-bit and 64-bit on all OS Required: ISE Design Suite 12.4 Logic Edition MATLAB R2010a or R2010b from the MathWorks (requires Simulink Fixed-Point Toolbox for bus-widths greater than 53 bits) Optional: ISE Design Suite 12.4 - Embedded / System Editions Synopsys Synplify Pro E-2010.09-1 Mentor Graphics ModelSim 6.5c System Generator for DSP 12.3 Operating System Support: Windows XP Windows Vista Red Hat Linux 4u7 Red Hat Linux 5u2 SUSE Linux 10.1 * Support for 32-bit and 64-bit on all OS Required: ISE Design Suite 12.3 Logic Edition MATLAB R2009b or R2010a from the MathWorks (requires Simulink Fixed-Point Toolbox for bus-widths greater than 53 bits) Beta support for MATLAB 2010b Optional: ISE Design Suite 12.3 - Embedded / System Editions Synopsys Synplify Pro E-2010.09-1 Mentor Graphics ModelSim 6.5c System Generator for DSP 12.2 Operating System Support: Windows XP Windows Vista Red Hat Linux 4u7 Red Hat Linux 5u2 SUSE Linux 10.1 * Support for 32 bit and 64 bit on all OS Required: ISE Design Suite 12.2 Logic Edition

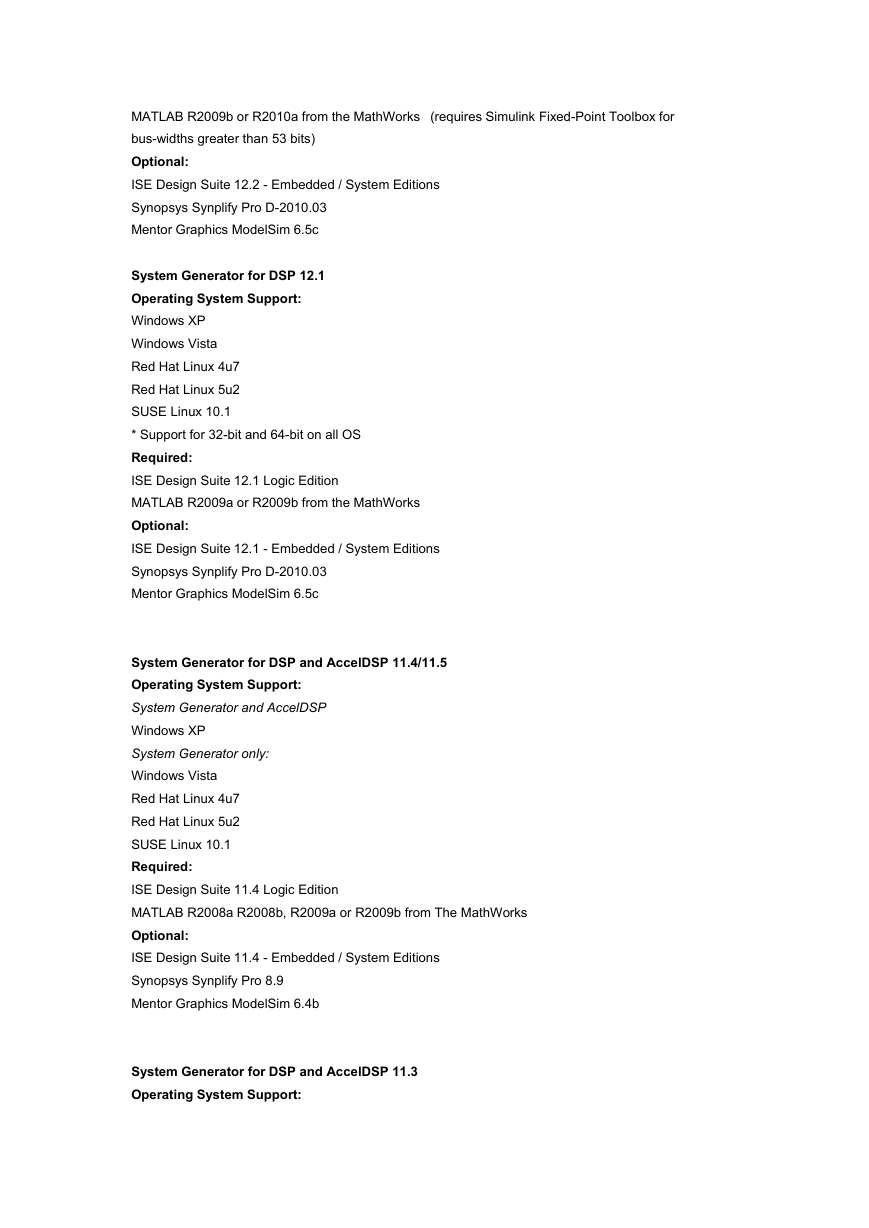

    MATLAB R2009b or R2010a from the MathWorks (requires Simulink Fixed-Point Toolbox for bus-widths greater than 53 bits) Optional: ISE Design Suite 12.2 - Embedded / System Editions Synopsys Synplify Pro D-2010.03 Mentor Graphics ModelSim 6.5c System Generator for DSP 12.1 Operating System Support: Windows XP Windows Vista Red Hat Linux 4u7 Red Hat Linux 5u2 SUSE Linux 10.1 * Support for 32-bit and 64-bit on all OS Required: ISE Design Suite 12.1 Logic Edition MATLAB R2009a or R2009b from the MathWorks Optional: ISE Design Suite 12.1 - Embedded / System Editions Synopsys Synplify Pro D-2010.03 Mentor Graphics ModelSim 6.5c System Generator for DSP and AccelDSP 11.4/11.5 Operating System Support: System Generator and AccelDSP Windows XP System Generator only: Windows Vista Red Hat Linux 4u7 Red Hat Linux 5u2 SUSE Linux 10.1 Required: ISE Design Suite 11.4 Logic Edition MATLAB R2008a R2008b, R2009a or R2009b from The MathWorks Optional: ISE Design Suite 11.4 - Embedded / System Editions Synopsys Synplify Pro 8.9 Mentor Graphics ModelSim 6.4b System Generator for DSP and AccelDSP 11.3 Operating System Support:

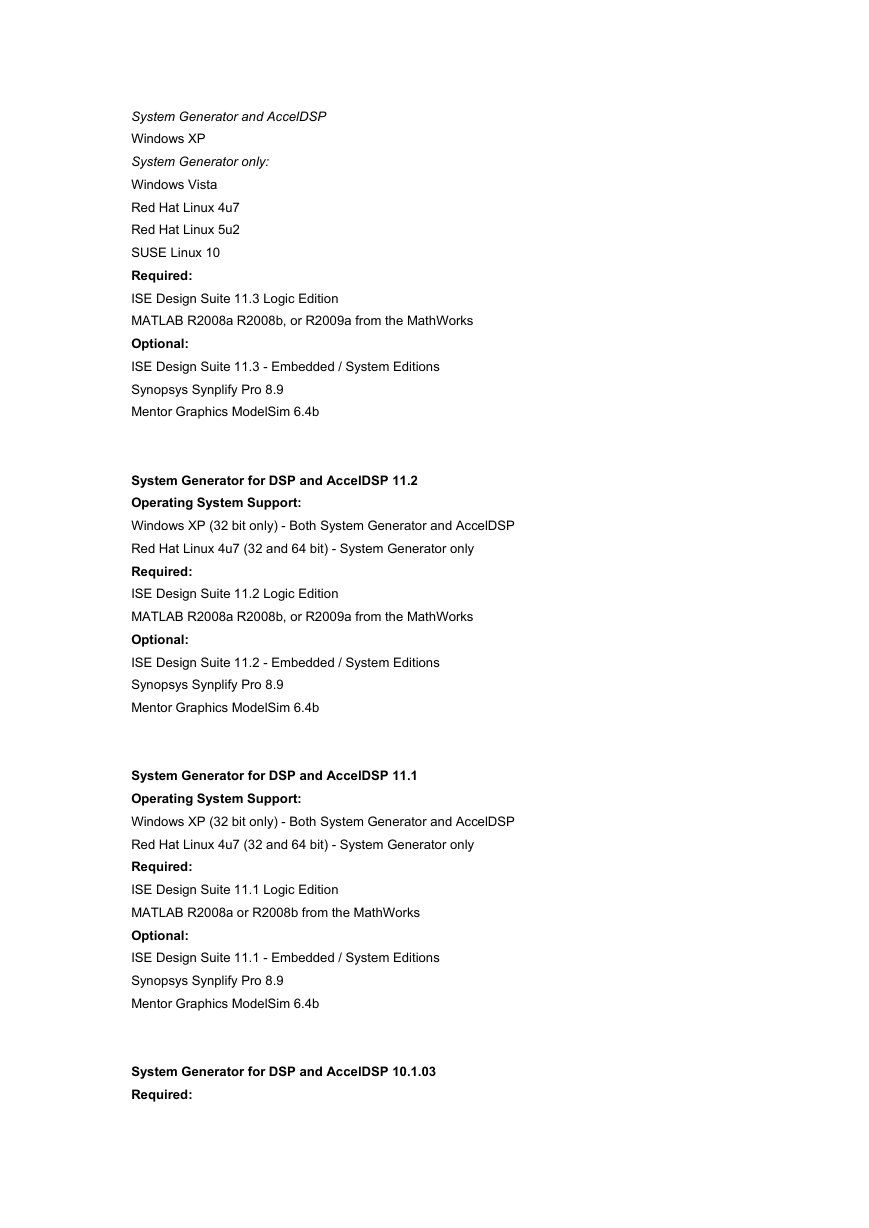

    System Generator and AccelDSP Windows XP System Generator only: Windows Vista Red Hat Linux 4u7 Red Hat Linux 5u2 SUSE Linux 10 Required: ISE Design Suite 11.3 Logic Edition MATLAB R2008a R2008b, or R2009a from the MathWorks Optional: ISE Design Suite 11.3 - Embedded / System Editions Synopsys Synplify Pro 8.9 Mentor Graphics ModelSim 6.4b System Generator for DSP and AccelDSP 11.2 Operating System Support: Windows XP (32 bit only) - Both System Generator and AccelDSP Red Hat Linux 4u7 (32 and 64 bit) - System Generator only Required: ISE Design Suite 11.2 Logic Edition MATLAB R2008a R2008b, or R2009a from the MathWorks Optional: ISE Design Suite 11.2 - Embedded / System Editions Synopsys Synplify Pro 8.9 Mentor Graphics ModelSim 6.4b System Generator for DSP and AccelDSP 11.1 Operating System Support: Windows XP (32 bit only) - Both System Generator and AccelDSP Red Hat Linux 4u7 (32 and 64 bit) - System Generator only Required: ISE Design Suite 11.1 Logic Edition MATLAB R2008a or R2008b from the MathWorks Optional: ISE Design Suite 11.1 - Embedded / System Editions Synopsys Synplify Pro 8.9 Mentor Graphics ModelSim 6.4b System Generator for DSP and AccelDSP 10.1.03 Required:
    Windows XP (32 bit only) ISE 10.1.03 ISE 10.1 IP Update 3 MATLAB R2007a, R2007b or R2008a from the MathWorks Optional: EDK 10.1.03 ChipScope 10.1.03 Synplicity Synplify Pro 8.8.0.4 Model Technology ModelSim 6.3c System Generator for DSP and AccelDSP 10.1.02 Required: Windows XP (32 bit only) ISE 10.1.02 ISE 10.1 IP Update 2 MATLAB R2007a, R2007b or R2008a from the MathWorks Optional: EDK 10.1.02 ChipScope 10.1.02 Synplicity Synplify Pro 8.8.0.4 Model Technology ModelSim 6.3c System Generator for DSP and AccelDSP 10.1.01 Required: Windows XP (32 bit only) ISE 10.1.01 ISE 10.1 IP Update 1 MATLAB R2007a or R2007b from the MathWorks Optional: EDK 10.1.01 ChipScope 10.1.01 Synplicity Synplify Pro 8.8.0.4 Model Technology ModelSim 6.3c System Generator for DSP and AccelDSP 10.1.00.1134 Required: Windows XP (32 bit only) ISE 10.1 ISE 10.1 IP Update 0 MATLAB R2007a or R2007b from MathWorks Optional:
    EDK 10.1 ChipScope 10.1 Synplicity Synplify Pro 8.8.0.4 Model Technology ModelSim 6.3c System Generator for DSP 9.2.01.1028 Required: Windows XP ISE 9.2i Service Pack 3 or later ISE 9.2i IP Update 2 or later MATLAB R2006b or R2007a from MathWorks Optional: AccelDSP 9.2i ISE 9.2i Service Pack 3 Virtex-5 LX220T/SXT Installer EDK 9.2i ChipScope 9.2i Synplicity Synplify Pro 8.8.0.4 Model Technology ModelSim 6.1f System Generator for DSP 9.2.00.967 Required: Windows XP ISE 9.2i Service Pack 2 or later ISE 9.2i IP Update 1 or later MATLAB R2006b or R2007a from MathWorks Optional: ISE 9.2i Service Pack 2 Virtex-5 LX220T/SXT Installer ChipScope 9.2i Synplicity Synplify Pro 8.8.0.4 Model Technology ModelSim 6.1f System Generator for DSP 9.1.01 Required: Windows XP ISE 9.1i Service Pack 3 or later ISE 9.1i IP Update 2 or later MATLAB R2006a or R2006b from MathWorks; see (Xilinx Answer 23145) for the required MATLAB 2006a patch. Optional: ISE 9.1i Service Pack 3 Virtex-5 LX220T/SXT Installer ChipScope 9.1i EDK 9.1i

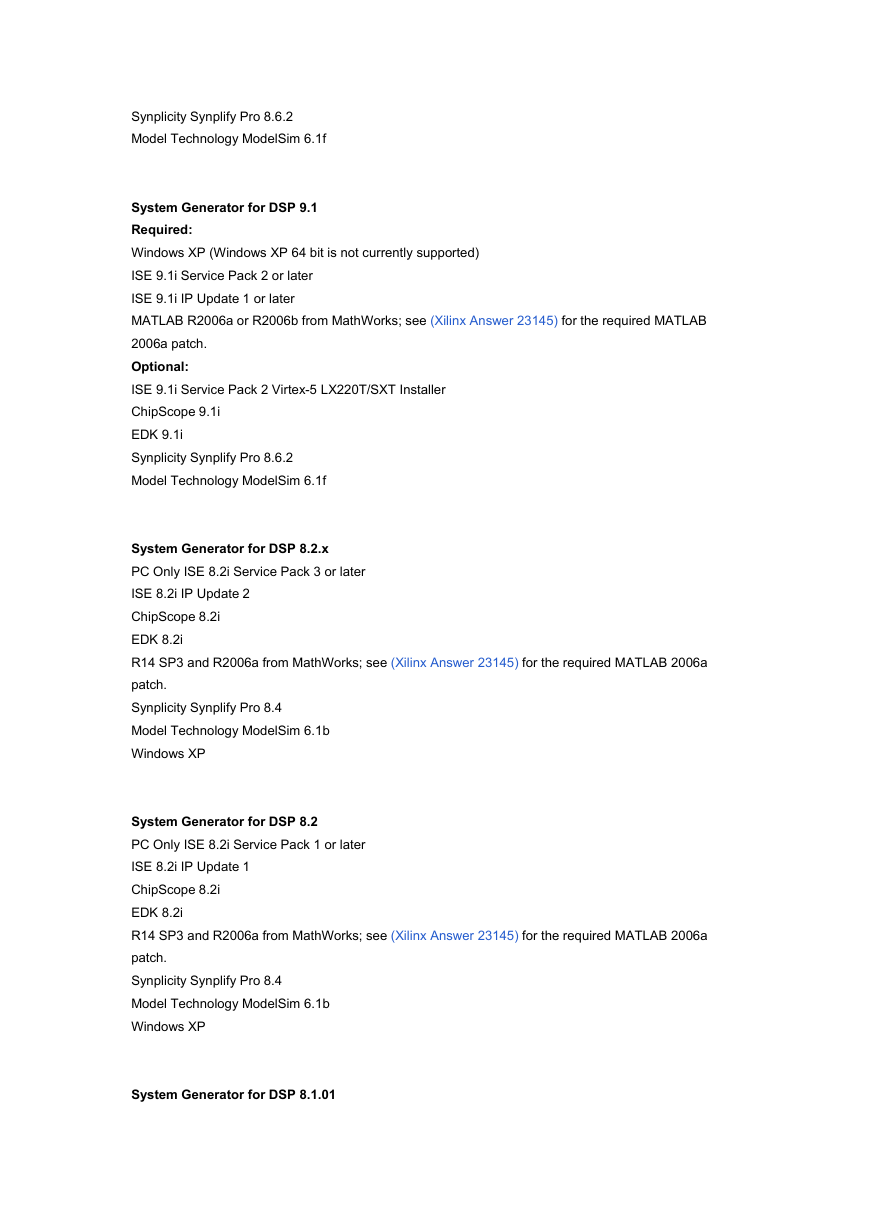

    Synplicity Synplify Pro 8.6.2 Model Technology ModelSim 6.1f System Generator for DSP 9.1 Required: Windows XP (Windows XP 64 bit is not currently supported) ISE 9.1i Service Pack 2 or later ISE 9.1i IP Update 1 or later MATLAB R2006a or R2006b from MathWorks; see (Xilinx Answer 23145) for the required MATLAB 2006a patch. Optional: ISE 9.1i Service Pack 2 Virtex-5 LX220T/SXT Installer ChipScope 9.1i EDK 9.1i Synplicity Synplify Pro 8.6.2 Model Technology ModelSim 6.1f System Generator for DSP 8.2.x PC Only ISE 8.2i Service Pack 3 or later ISE 8.2i IP Update 2 ChipScope 8.2i EDK 8.2i R14 SP3 and R2006a from MathWorks; see (Xilinx Answer 23145) for the required MATLAB 2006a patch. Synplicity Synplify Pro 8.4 Model Technology ModelSim 6.1b Windows XP System Generator for DSP 8.2 PC Only ISE 8.2i Service Pack 1 or later ISE 8.2i IP Update 1 ChipScope 8.2i EDK 8.2i R14 SP3 and R2006a from MathWorks; see (Xilinx Answer 23145) for the required MATLAB 2006a patch. Synplicity Synplify Pro 8.4 Model Technology ModelSim 6.1b Windows XP System Generator for DSP 8.1.01

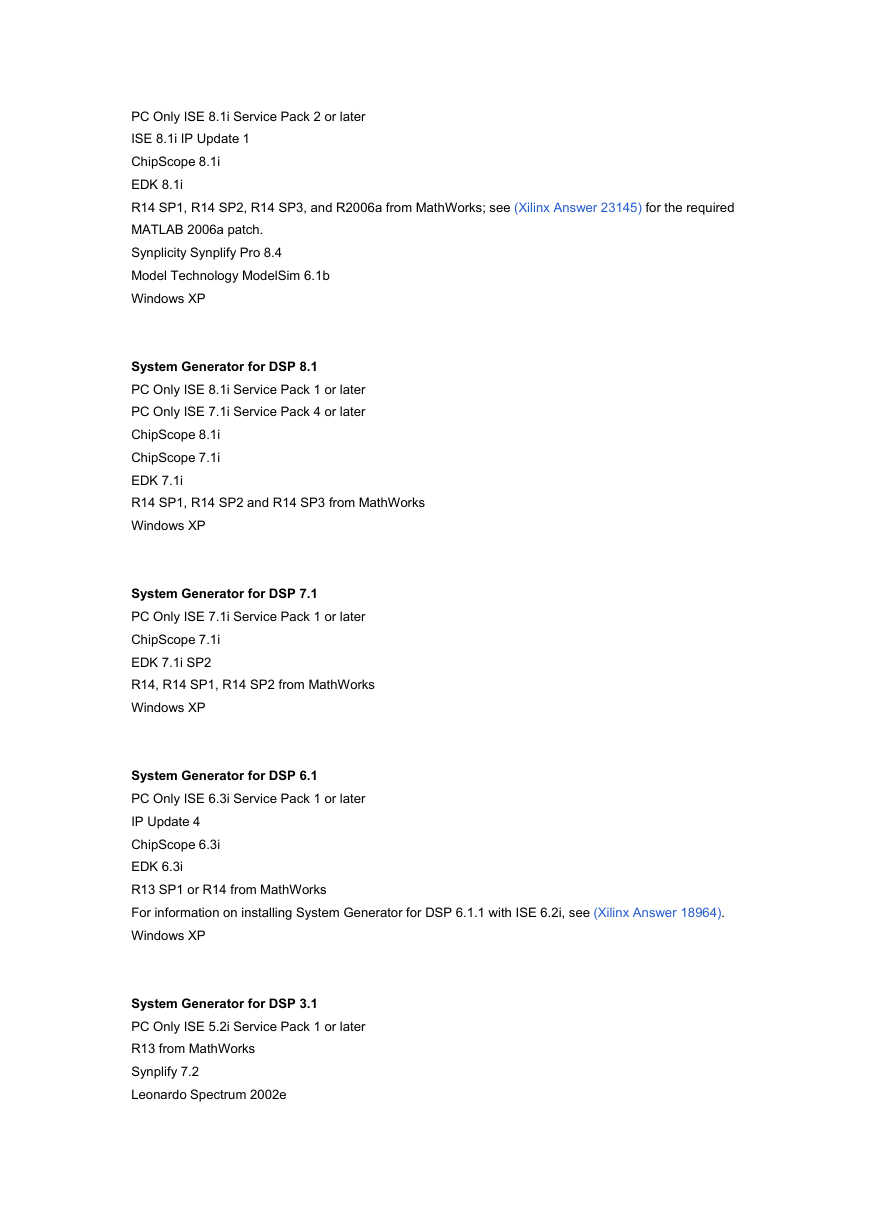

    PC Only ISE 8.1i Service Pack 2 or later ISE 8.1i IP Update 1 ChipScope 8.1i EDK 8.1i R14 SP1, R14 SP2, R14 SP3, and R2006a from MathWorks; see (Xilinx Answer 23145) for the required MATLAB 2006a patch. Synplicity Synplify Pro 8.4 Model Technology ModelSim 6.1b Windows XP System Generator for DSP 8.1 PC Only ISE 8.1i Service Pack 1 or later PC Only ISE 7.1i Service Pack 4 or later ChipScope 8.1i ChipScope 7.1i EDK 7.1i R14 SP1, R14 SP2 and R14 SP3 from MathWorks Windows XP System Generator for DSP 7.1 PC Only ISE 7.1i Service Pack 1 or later ChipScope 7.1i EDK 7.1i SP2 R14, R14 SP1, R14 SP2 from MathWorks Windows XP System Generator for DSP 6.1 PC Only ISE 6.3i Service Pack 1 or later IP Update 4 ChipScope 6.3i EDK 6.3i R13 SP1 or R14 from MathWorks For information on installing System Generator for DSP 6.1.1 with ISE 6.2i, see (Xilinx Answer 18964). Windows XP System Generator for DSP 3.1 PC Only ISE 5.2i Service Pack 1 or later R13 from MathWorks Synplify 7.2 Leonardo Spectrum 2002e
