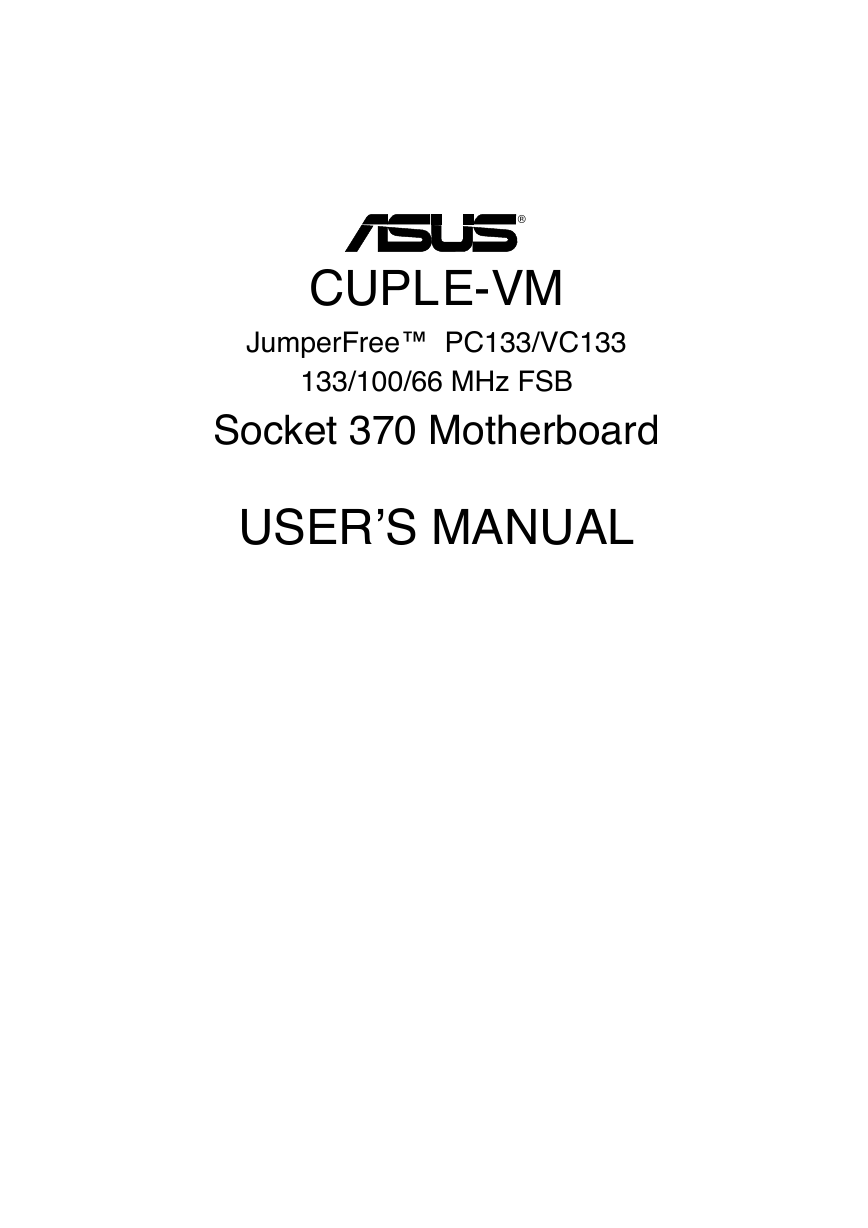

® CUPLE-VM JumperFree™ PC133/VC133 133/100/66 MHz FSB Socket 370 Motherboard USER’S MANUAL

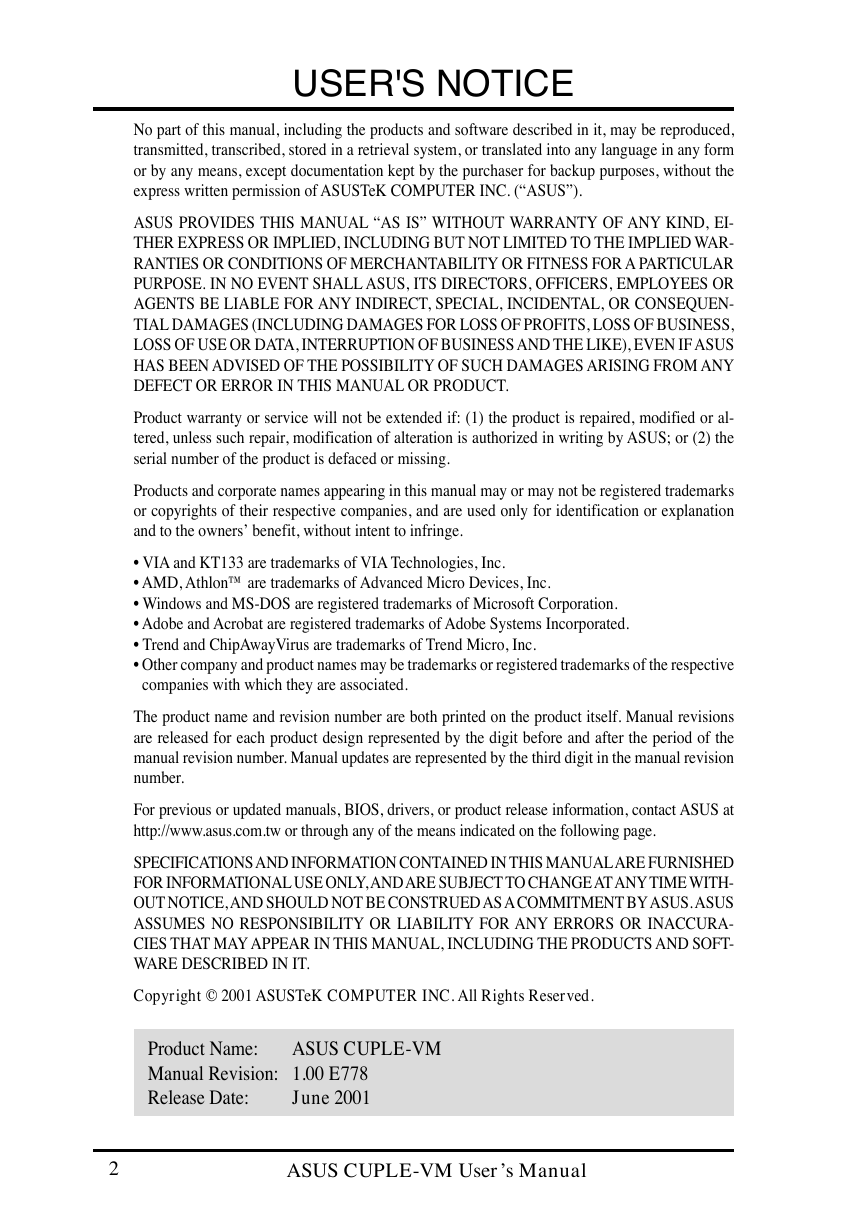

USER'S NOTICE No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EI- THER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WAR- RANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUEN- TIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Product warranty or service will not be extended if: (1) the product is repaired, modified or al- tered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. • VIA and KT133 are trademarks of VIA Technologies, Inc. • AMD, Athlon™ are trademarks of Advanced Micro Devices, Inc. • Windows and MS-DOS are registered trademarks of Microsoft Corporation. • Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated. • Trend and ChipAwayVirus are trademarks of Trend Micro, Inc. • Other company and product names may be trademarks or registered trademarks of the respective companies with which they are associated. The product name and revision number are both printed on the product itself. Manual revisions are released for each product design represented by the digit before and after the period of the manual revision number. Manual updates are represented by the third digit in the manual revision number. For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS at http://www.asus.com.tw or through any of the means indicated on the following page. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITH- OUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURA- CIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFT- WARE DESCRIBED IN IT. Copyright © 2001 ASUSTeK COMPUTER INC. All Rights Reserved. ASUS CUPLE-VM Product Name: Manual Revision: 1.00 E778 June 2001 Release Date: 2 ASUS CUPLE-VM User’s Manual

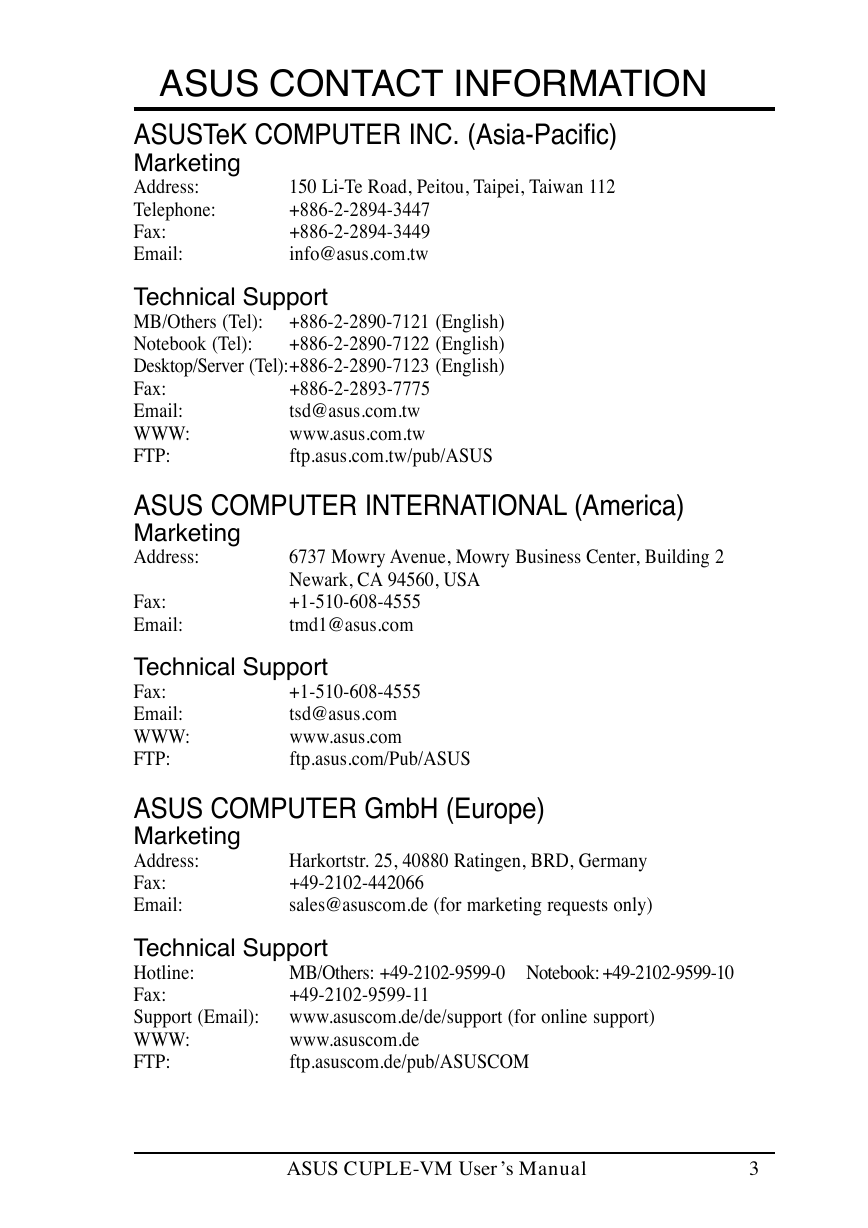

ASUS CONTACT INFORMATION ASUSTeK COMPUTER INC. (Asia-Pacific) Marketing Address: Telephone: Fax: Email: 150 Li-Te Road, Peitou, Taipei, Taiwan 112 +886-2-2894-3447 +886-2-2894-3449 info@asus.com.tw Technical Support +886-2-2890-7121 (English) MB/Others (Tel): Notebook (Tel): +886-2-2890-7122 (English) Desktop/Server (Tel):+886-2-2890-7123 (English) Fax: Email: WWW: FTP: +886-2-2893-7775 tsd@asus.com.tw www.asus.com.tw ftp.asus.com.tw/pub/ASUS ASUS COMPUTER INTERNATIONAL (America) Marketing Address: 6737 Mowry Avenue, Mowry Business Center, Building 2 Newark, CA 94560, USA +1-510-608-4555 tmd1@asus.com Fax: Email: Technical Support Fax: Email: WWW: FTP: +1-510-608-4555 tsd@asus.com www.asus.com ftp.asus.com/Pub/ASUS ASUS COMPUTER GmbH (Europe) Marketing Address: Fax: Email: Harkortstr. 25, 40880 Ratingen, BRD, Germany +49-2102-442066 sales@asuscom.de (for marketing requests only) Technical Support Hotline: Fax: Support (Email): WWW: FTP: MB/Others: +49-2102-9599-0 Notebook: +49-2102-9599-10 +49-2102-9599-11 www.asuscom.de/de/support (for online support) www.asuscom.de ftp.asuscom.de/pub/ASUSCOM ASUS CUPLE-VM User’s Manual 3

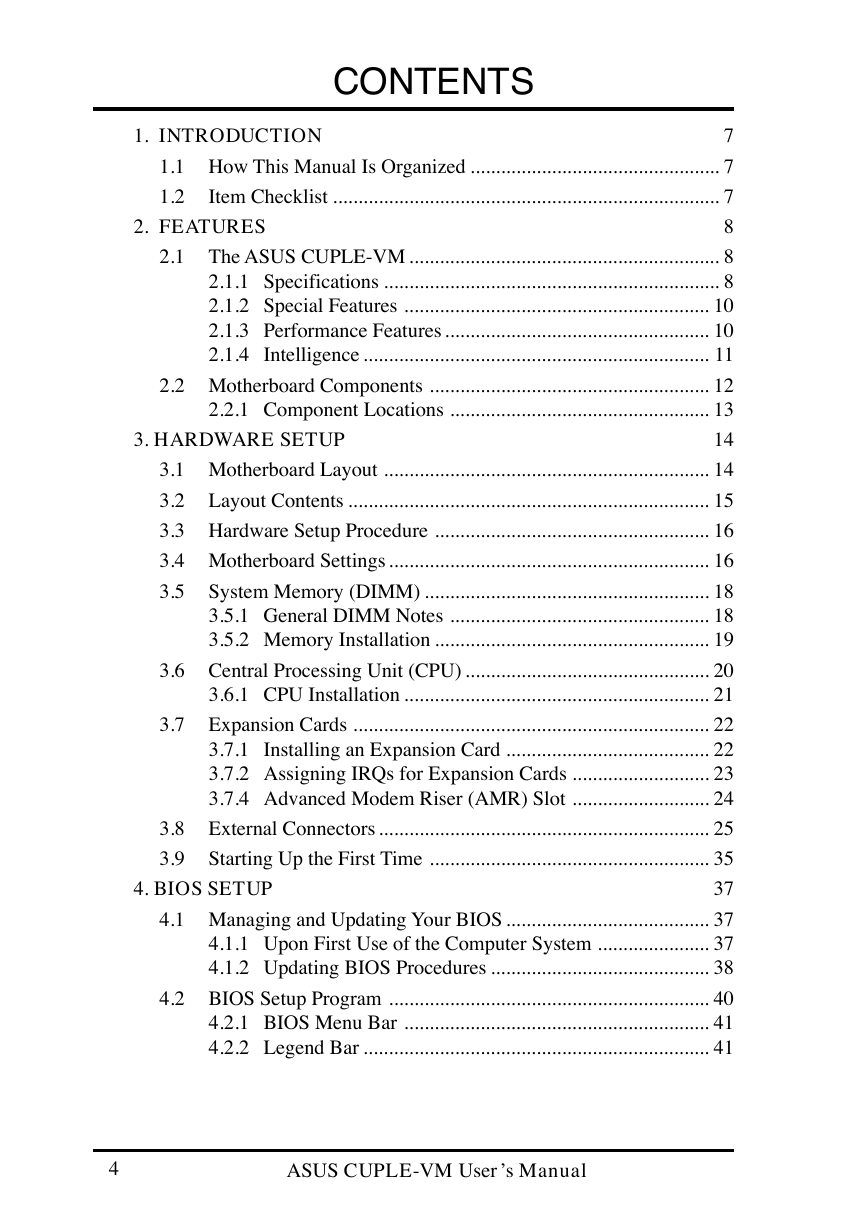

CONTENTS 1. INTRODUCTION 2. FEATURES 3. HARDWARE SETUP 7 1.1 How This Manual Is Organized ................................................. 7 Item Checklist ............................................................................ 7 1.2 8 2.1 The ASUS CUPLE-VM ............................................................. 8 2.1.1 Specifications .................................................................. 8 2.1.2 Special Features ............................................................ 10 2.1.3 Performance Features .................................................... 10 2.1.4 Intelligence .................................................................... 11 2.2 Motherboard Components ....................................................... 12 2.2.1 Component Locations ................................................... 13 14 3.1 Motherboard Layout ................................................................ 14 3.2 Layout Contents ....................................................................... 15 3.3 Hardware Setup Procedure ...................................................... 16 3.4 Motherboard Settings ............................................................... 16 System Memory (DIMM) ........................................................ 18 3.5 3.5.1 General DIMM Notes ................................................... 18 3.5.2 Memory Installation ...................................................... 19 3.6 Central Processing Unit (CPU) ................................................ 20 3.6.1 CPU Installation ............................................................ 21 3.7 Expansion Cards ...................................................................... 22 3.7.1 Installing an Expansion Card ........................................ 22 3.7.2 Assigning IRQs for Expansion Cards ........................... 23 3.7.4 Advanced Modem Riser (AMR) Slot ........................... 24 3.8 External Connectors ................................................................. 25 Starting Up the First Time ....................................................... 35 3.9 37 4.1 Managing and Updating Your BIOS ........................................ 37 4.1.1 Upon First Use of the Computer System ...................... 37 4.1.2 Updating BIOS Procedures ........................................... 38 4.2 BIOS Setup Program ............................................................... 40 4.2.1 BIOS Menu Bar ............................................................ 41 4.2.2 Legend Bar .................................................................... 41 4. BIOS SETUP 4 ASUS CUPLE-VM User’s Manual

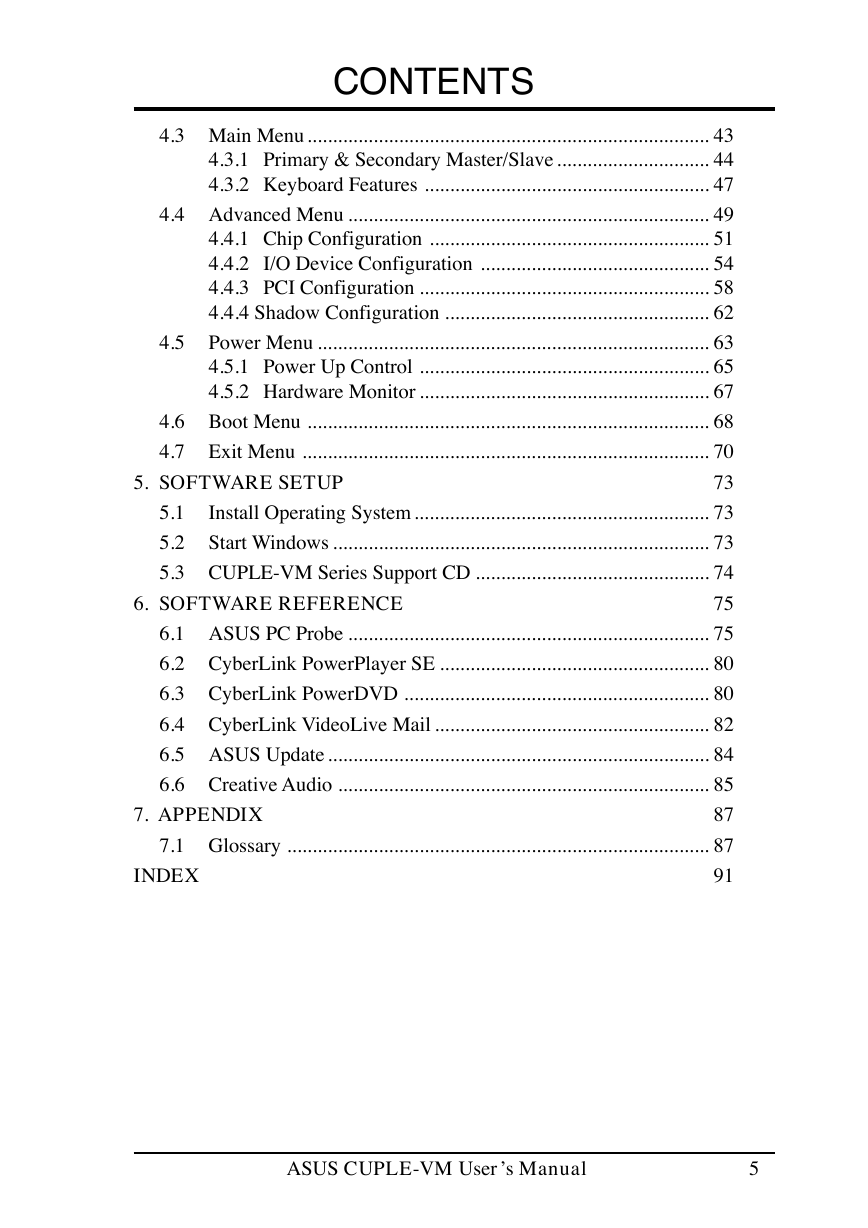

CONTENTS 4.5 4.3 Main Menu ............................................................................... 43 4.3.1 Primary & Secondary Master/Slave .............................. 44 4.3.2 Keyboard Features ........................................................ 47 4.4 Advanced Menu ....................................................................... 49 4.4.1 Chip Configuration ....................................................... 51 4.4.2 I/O Device Configuration ............................................. 54 4.4.3 PCI Configuration ......................................................... 58 4.4.4 Shadow Configuration .................................................... 62 Power Menu ............................................................................. 63 4.5.1 Power Up Control ......................................................... 65 4.5.2 Hardware Monitor ......................................................... 67 4.6 Boot Menu ............................................................................... 68 4.7 Exit Menu ................................................................................ 70 73 Install Operating System .......................................................... 73 5.1 Start Windows .......................................................................... 73 5.2 5.3 CUPLE-VM Series Support CD .............................................. 74 75 6.1 ASUS PC Probe ....................................................................... 75 6.2 CyberLink PowerPlayer SE ..................................................... 80 6.3 CyberLink PowerDVD ............................................................ 80 6.4 CyberLink VideoLive Mail ...................................................... 82 6.5 ASUS Update ........................................................................... 84 6.6 Creative Audio ......................................................................... 85 87 7.1 Glossary ................................................................................... 87 91 6. SOFTWARE REFERENCE 5. SOFTWARE SETUP 7. APPENDIX INDEX ASUS CUPLE-VM User’s Manual 5

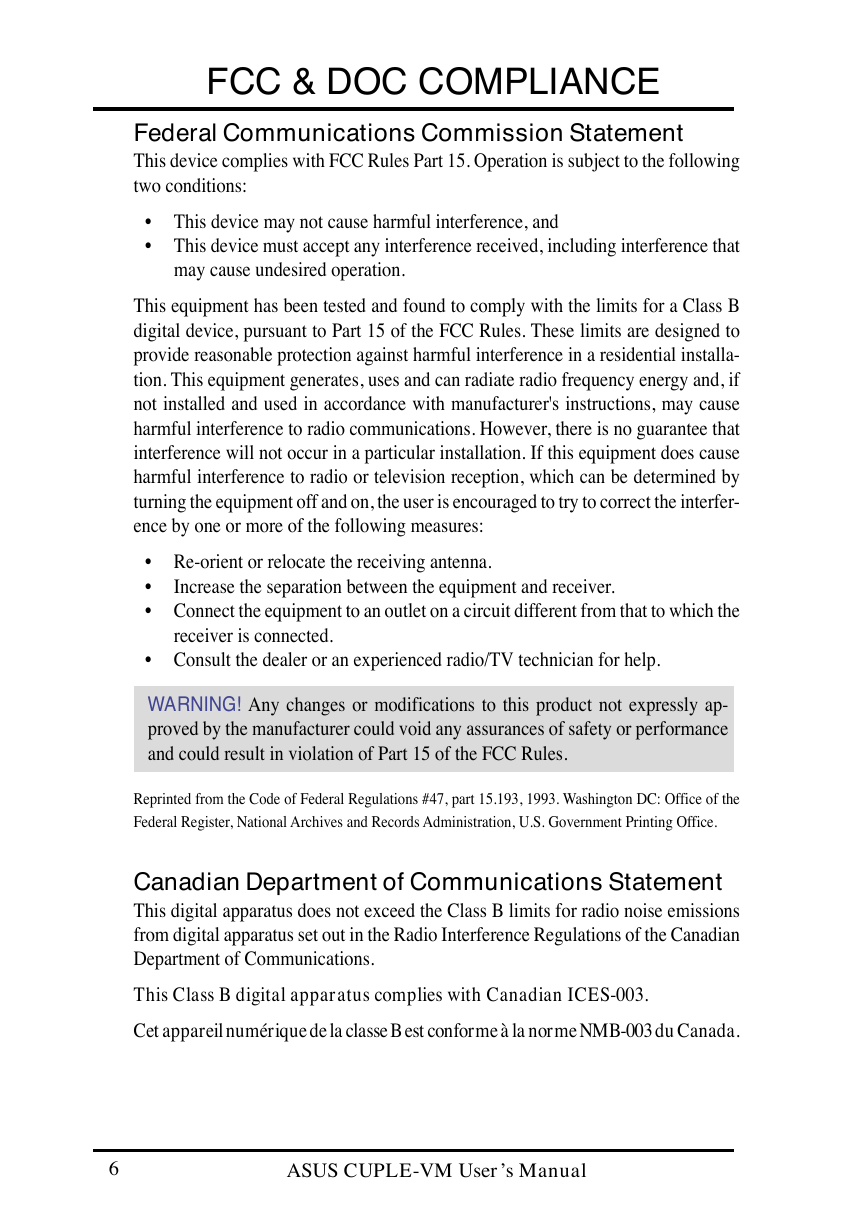

FCC & DOC COMPLIANCE Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • • This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interfer- ence by one or more of the following measures: • Re-orient or relocate the receiving antenna. • • Connect the equipment to an outlet on a circuit different from that to which the Increase the separation between the equipment and receiver. receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING! Any changes or modifications to this product not expressly ap- proved by the manufacturer could void any assurances of safety or performance and could result in violation of Part 15 of the FCC Rules. Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal Register, National Archives and Records Administration, U.S. Government Printing Office. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 6 ASUS CUPLE-VM User’s Manual

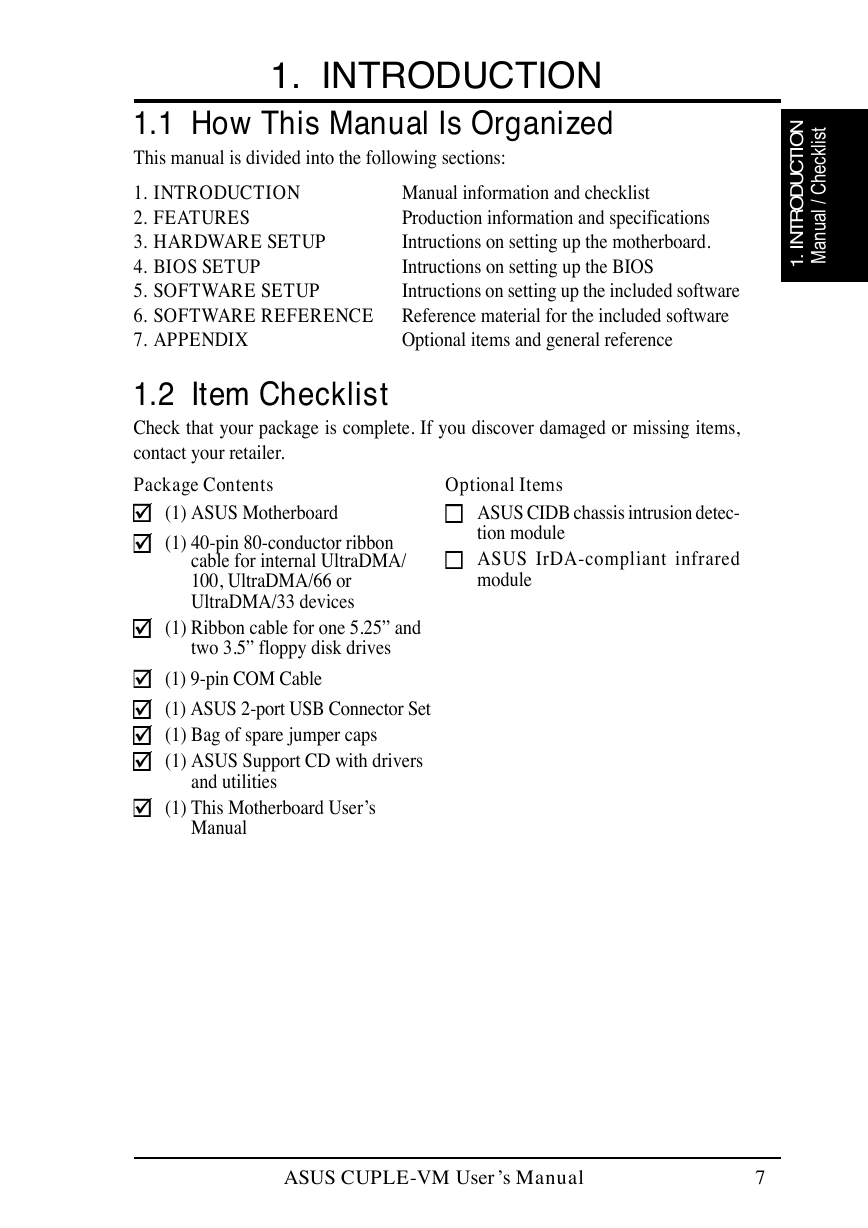

I N O T C U D O R T N I . 1 t s i l k c e h C / l a u n a M 1. INTRODUCTION 1.1 How This Manual Is Organized This manual is divided into the following sections: 1. INTRODUCTION 2. FEATURES 3. HARDWARE SETUP 4. BIOS SETUP 5. SOFTWARE SETUP 6. SOFTWARE REFERENCE 7. APPENDIX Manual information and checklist Production information and specifications Intructions on setting up the motherboard. Intructions on setting up the BIOS Intructions on setting up the included software Reference material for the included software Optional items and general reference 1.2 Item Checklist Check that your package is complete. If you discover damaged or missing items, contact your retailer. Package Contents Optional Items ASUS CIDB chassis intrusion detec- tion module ASUS IrDA-compliant infrared module (1) ASUS Motherboard (1) 40-pin 80-conductor ribbon cable for internal UltraDMA/ 100, UltraDMA/66 or UltraDMA/33 devices (1) Ribbon cable for one 5.25” and two 3.5” floppy disk drives (1) 9-pin COM Cable (1) ASUS 2-port USB Connector Set (1) Bag of spare jumper caps (1) ASUS Support CD with drivers and utilities (1) This Motherboard User’s Manual ASUS CUPLE-VM User’s Manual 7

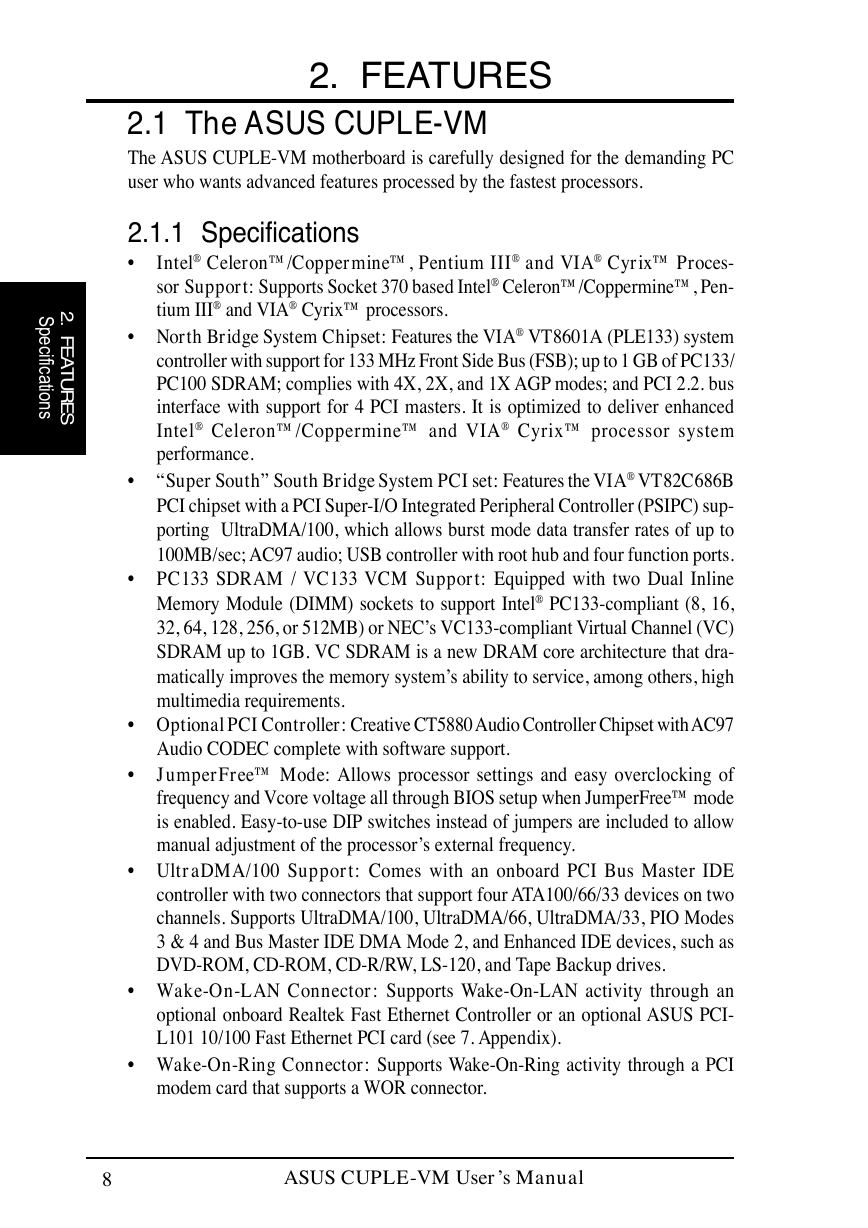

S p e c i f i c a t i o n s 2 . F E A T U R E S 2. FEATURES 2.1 The ASUS CUPLE-VM The ASUS CUPLE-VM motherboard is carefully designed for the demanding PC user who wants advanced features processed by the fastest processors. 2.1.1 Specifications • Intel® Celeron™/Coppermine™, Pentium III® and VIA® Cyrix™ Proces- sor Support: Supports Socket 370 based Intel® Celeron™/Coppermine™, Pen- tium III® and VIA® Cyrix™ processors. • • North Bridge System Chipset: Features the VIA® VT8601A (PLE133) system controller with support for 133 MHz Front Side Bus (FSB); up to 1 GB of PC133/ PC100 SDRAM; complies with 4X, 2X, and 1X AGP modes; and PCI 2.2. bus interface with support for 4 PCI masters. It is optimized to deliver enhanced Intel® Celeron™/Coppermine™ and VIA® Cyrix™ processor system performance. “Super South” South Bridge System PCI set: Features the VIA® VT82C686B PCI chipset with a PCI Super-I/O Integrated Peripheral Controller (PSIPC) sup- porting UltraDMA/100, which allows burst mode data transfer rates of up to 100MB/sec; AC97 audio; USB controller with root hub and four function ports. PC133 SDRAM / VC133 VCM Support: Equipped with two Dual Inline Memory Module (DIMM) sockets to support Intel® PC133-compliant (8, 16, 32, 64, 128, 256, or 512MB) or NEC’s VC133-compliant Virtual Channel (VC) SDRAM up to 1GB. VC SDRAM is a new DRAM core architecture that dra- matically improves the memory system’s ability to service, among others, high multimedia requirements. • • Optional PCI Controller: Creative CT5880 Audio Controller Chipset with AC97 • Audio CODEC complete with software support. JumperFree™ Mode: Allows processor settings and easy overclocking of frequency and Vcore voltage all through BIOS setup when JumperFree™ mode is enabled. Easy-to-use DIP switches instead of jumpers are included to allow manual adjustment of the processor’s external frequency. • UltraDMA/100 Support: Comes with an onboard PCI Bus Master IDE controller with two connectors that support four ATA100/66/33 devices on two channels. Supports UltraDMA/100, UltraDMA/66, UltraDMA/33, PIO Modes 3 & 4 and Bus Master IDE DMA Mode 2, and Enhanced IDE devices, such as DVD-ROM, CD-ROM, CD-R/RW, LS-120, and Tape Backup drives. • Wake-On-LAN Connector: Supports Wake-On-LAN activity through an optional onboard Realtek Fast Ethernet Controller or an optional ASUS PCI- L101 10/100 Fast Ethernet PCI card (see 7. Appendix). • Wake-On-Ring Connector: Supports Wake-On-Ring activity through a PCI modem card that supports a WOR connector. 8 ASUS CUPLE-VM User’s Manual
