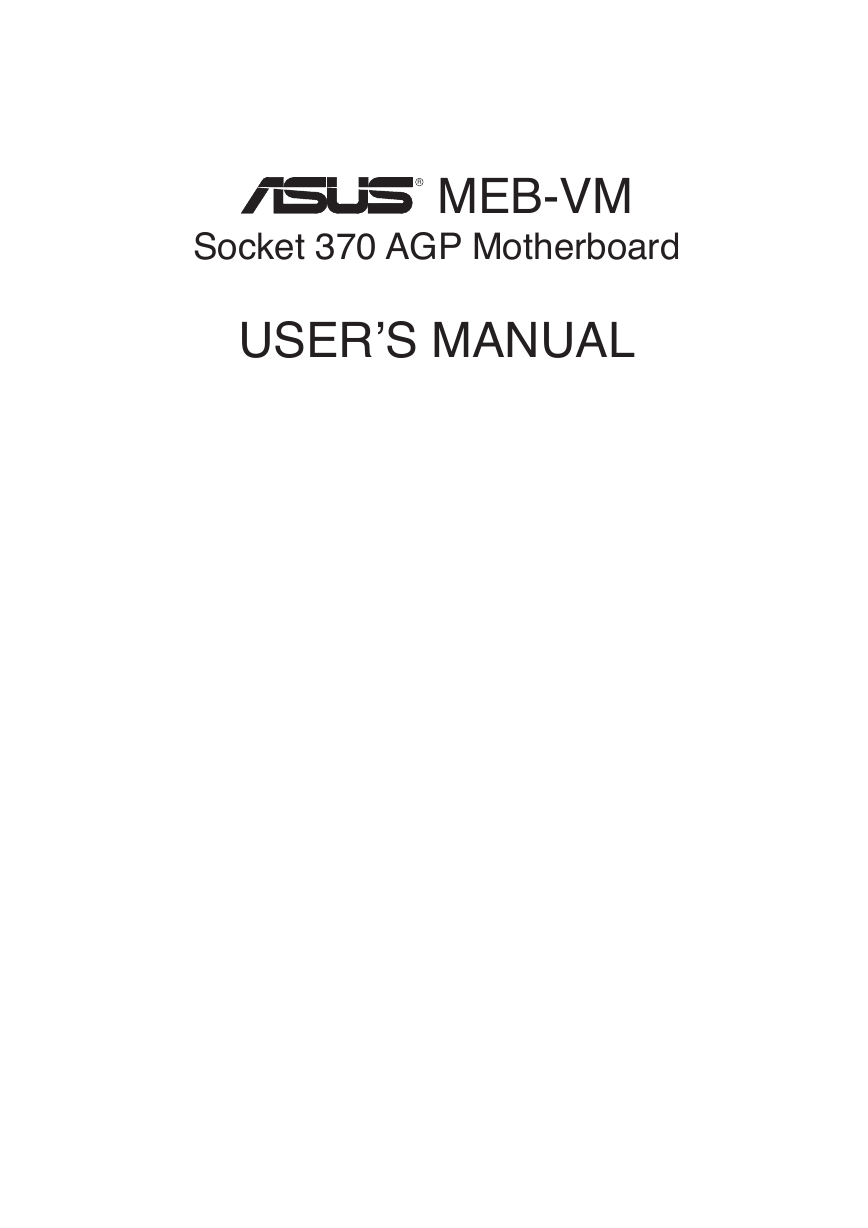

R MEB-VM Socket 370 AGP Motherboard USER’S MANUAL

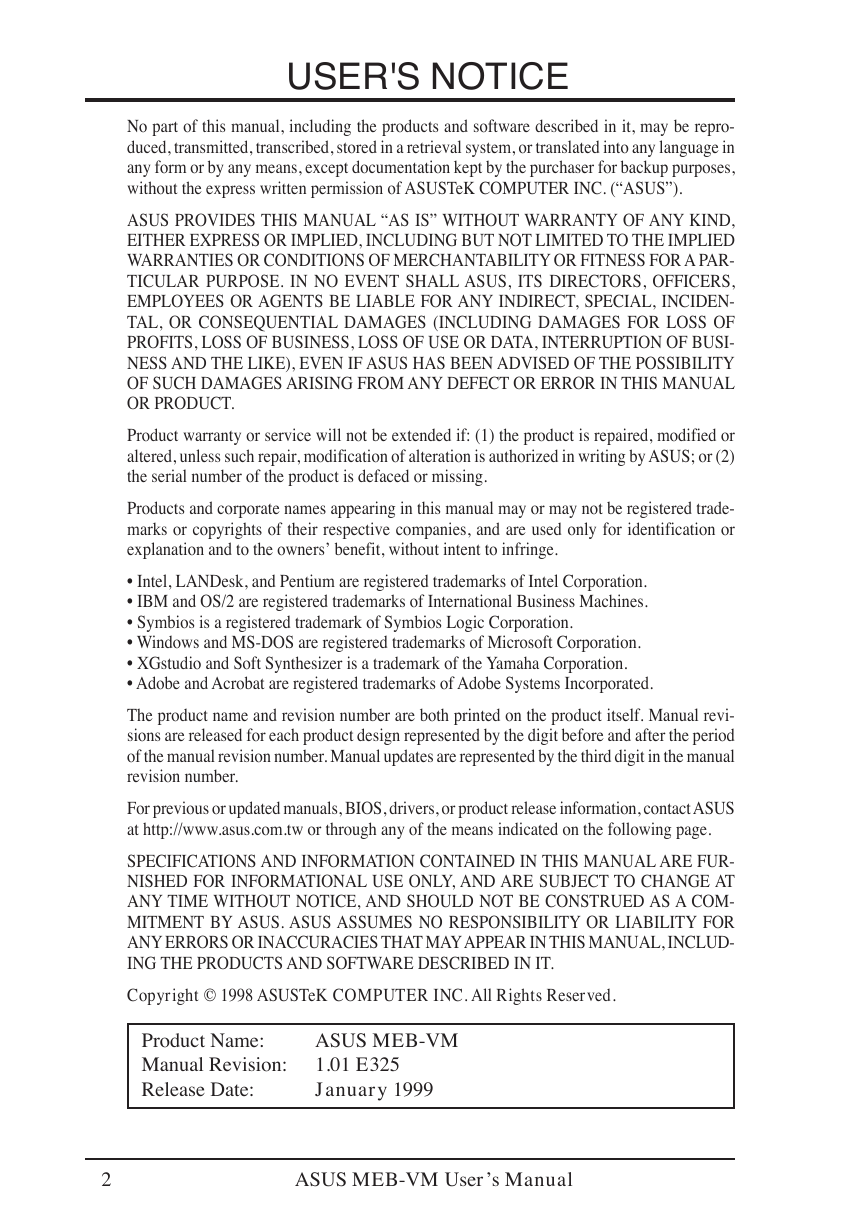

USER'S NOTICE No part of this manual, including the products and software described in it, may be repro- duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PAR- TICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDEN- TAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSI- NESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. Products and corporate names appearing in this manual may or may not be registered trade- marks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. • Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation. • IBM and OS/2 are registered trademarks of International Business Machines. • Symbios is a registered trademark of Symbios Logic Corporation. • Windows and MS-DOS are registered trademarks of Microsoft Corporation. • XGstudio and Soft Synthesizer is a trademark of the Yamaha Corporation. • Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated. The product name and revision number are both printed on the product itself. Manual revi- sions are released for each product design represented by the digit before and after the period of the manual revision number. Manual updates are represented by the third digit in the manual revision number. For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS at http://www.asus.com.tw or through any of the means indicated on the following page. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR- NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM- MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUD- ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 1998 ASUSTeK COMPUTER INC. All Rights Reserved. Product Name: Manual Revision: Release Date: ASUS MEB-VM 1.01 E325 January 1999 2 ASUS MEB-VM User’s Manual

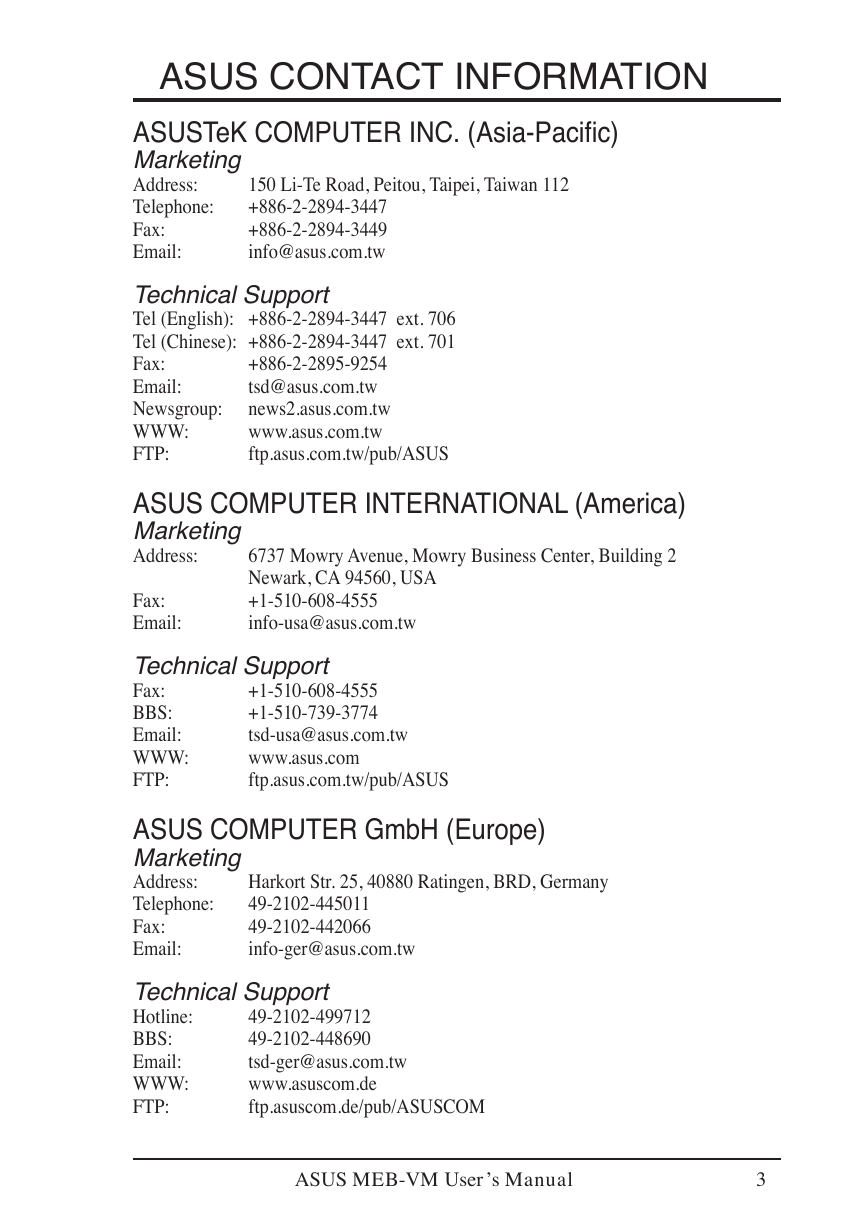

ASUS CONTACT INFORMATION ASUSTeK COMPUTER INC. (Asia-Pacific) Marketing Address: Telephone: Fax: Email: 150 Li-Te Road, Peitou, Taipei, Taiwan 112 +886-2-2894-3447 +886-2-2894-3449 info@asus.com.tw Technical Support Tel (English): +886-2-2894-3447 ext. 706 Tel (Chinese): +886-2-2894-3447 ext. 701 Fax: Email: Newsgroup: WWW: FTP: +886-2-2895-9254 tsd@asus.com.tw news2.asus.com.tw www.asus.com.tw ftp.asus.com.tw/pub/ASUS ASUS COMPUTER INTERNATIONAL (America) Marketing Address: 6737 Mowry Avenue, Mowry Business Center, Building 2 Newark, CA 94560, USA +1-510-608-4555 info-usa@asus.com.tw Fax: Email: Technical Support Fax: BBS: Email: WWW: FTP: +1-510-608-4555 +1-510-739-3774 tsd-usa@asus.com.tw www.asus.com ftp.asus.com.tw/pub/ASUS ASUS COMPUTER GmbH (Europe) Marketing Address: Telephone: Fax: Email: Harkort Str. 25, 40880 Ratingen, BRD, Germany 49-2102-445011 49-2102-442066 info-ger@asus.com.tw Technical Support Hotline: BBS: Email: WWW: FTP: 49-2102-499712 49-2102-448690 tsd-ger@asus.com.tw www.asuscom.de ftp.asuscom.de/pub/ASUSCOM ASUS MEB-VM User’s Manual 3

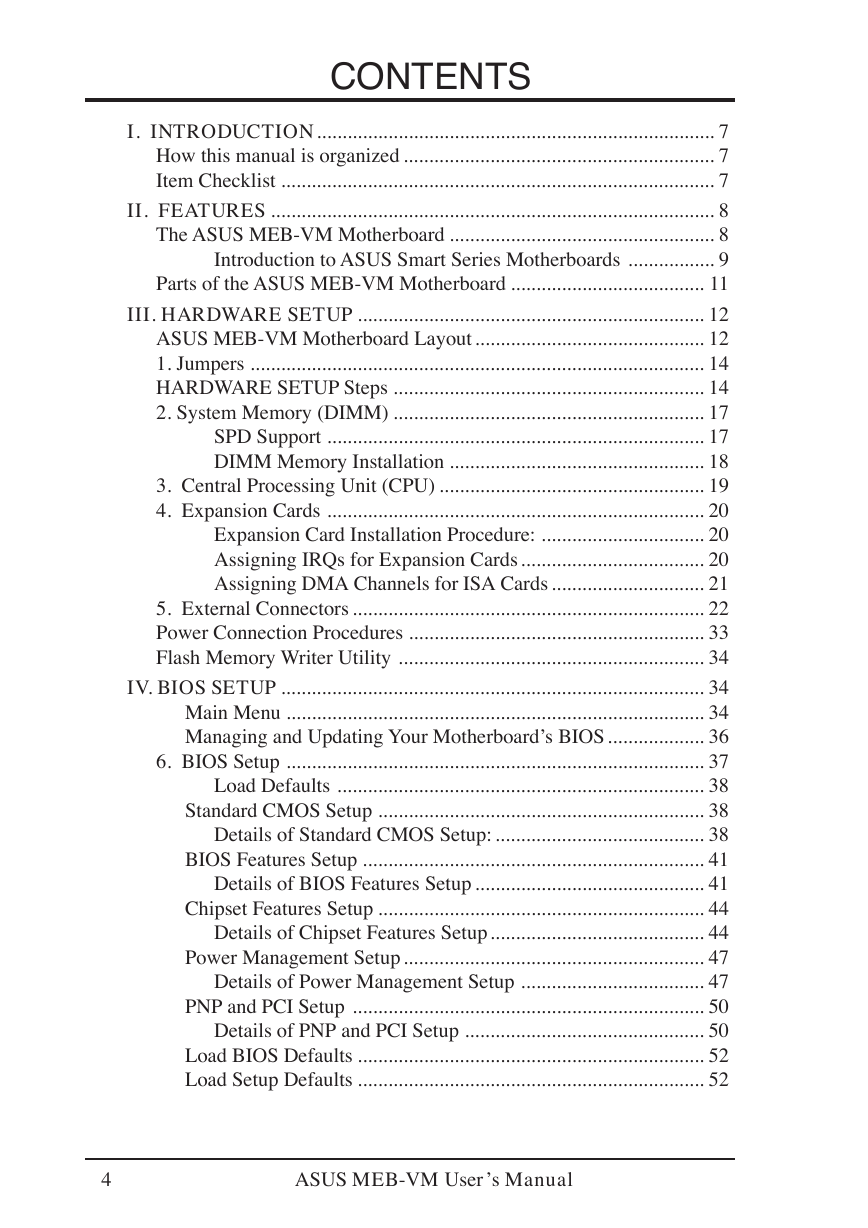

CONTENTS I. INTRODUCTION .............................................................................. 7 How this manual is organized ............................................................. 7 Item Checklist ..................................................................................... 7 II. FEATURES ....................................................................................... 8 The ASUS MEB-VM Motherboard .................................................... 8 Introduction to ASUS Smart Series Motherboards ................. 9 Parts of the ASUS MEB-VM Motherboard ...................................... 11 III. HARDWARE SETUP .................................................................... 12 ASUS MEB-VM Motherboard Layout............................................. 12 1. Jumpers ......................................................................................... 14 HARDWARE SETUP Steps ............................................................. 14 2. System Memory (DIMM) ............................................................. 17 SPD Support .......................................................................... 17 DIMM Memory Installation .................................................. 18 3. Central Processing Unit (CPU) .................................................... 19 4. Expansion Cards .......................................................................... 20 Expansion Card Installation Procedure: ................................ 20 Assigning IRQs for Expansion Cards.................................... 20 Assigning DMA Channels for ISA Cards .............................. 21 5. External Connectors ..................................................................... 22 Power Connection Procedures .......................................................... 33 Flash Memory Writer Utility ............................................................ 34 IV. BIOS SETUP ................................................................................... 34 Main Menu .................................................................................. 34 Managing and Updating Your Motherboard’s BIOS................... 36 6. BIOS Setup .................................................................................. 37 Load Defaults ........................................................................ 38 Standard CMOS Setup ................................................................ 38 Details of Standard CMOS Setup: ......................................... 38 BIOS Features Setup ................................................................... 41 Details of BIOS Features Setup ............................................. 41 Chipset Features Setup ................................................................ 44 Details of Chipset Features Setup.......................................... 44 Power Management Setup........................................................... 47 Details of Power Management Setup .................................... 47 PNP and PCI Setup ..................................................................... 50 Details of PNP and PCI Setup ............................................... 50 Load BIOS Defaults .................................................................... 52 Load Setup Defaults .................................................................... 52 4 ASUS MEB-VM User’s Manual

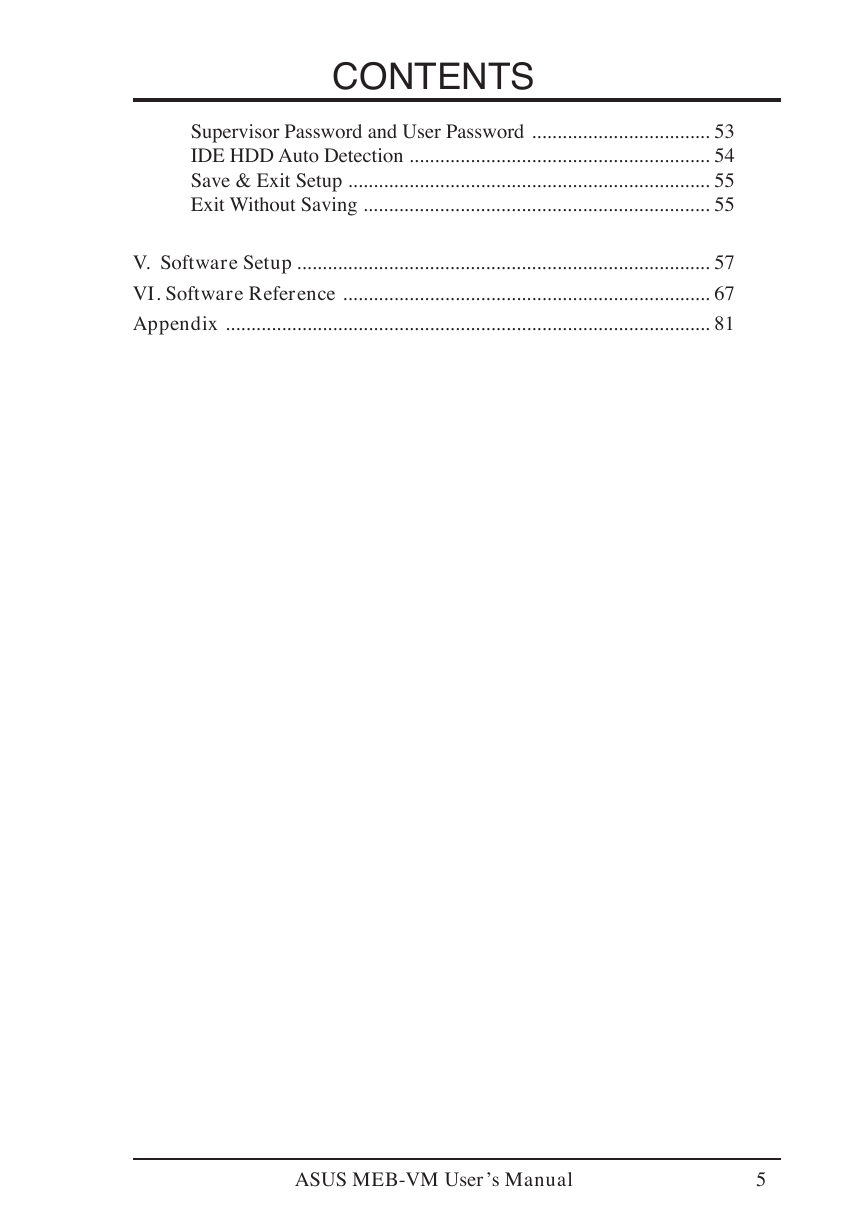

CONTENTS Supervisor Password and User Password ................................... 53 IDE HDD Auto Detection ........................................................... 54 Save & Exit Setup ....................................................................... 55 Exit Without Saving .................................................................... 55 V. Software Setup ................................................................................. 57 VI. Software Reference ........................................................................ 67 Appendix ............................................................................................... 81 ASUS MEB-VM User’s Manual 5

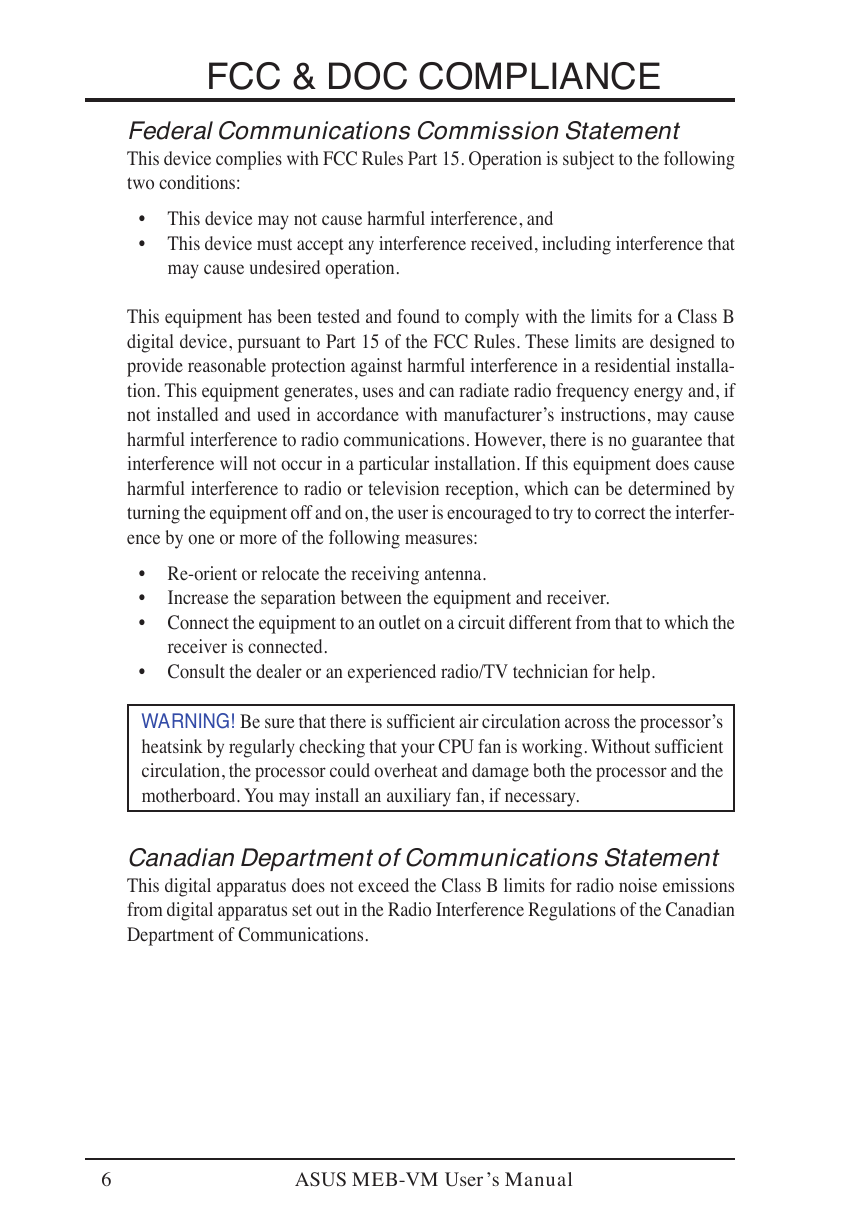

FCC & DOC COMPLIANCE Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interfer- ence by one or more of the following measures: • Re-orient or relocate the receiving antenna. • • Connect the equipment to an outlet on a circuit different from that to which the Increase the separation between the equipment and receiver. receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING! Be sure that there is sufficient air circulation across the processor’s heatsink by regularly checking that your CPU fan is working. Without sufficient circulation, the processor could overheat and damage both the processor and the motherboard. You may install an auxiliary fan, if necessary. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. 6 ASUS MEB-VM User’s Manual

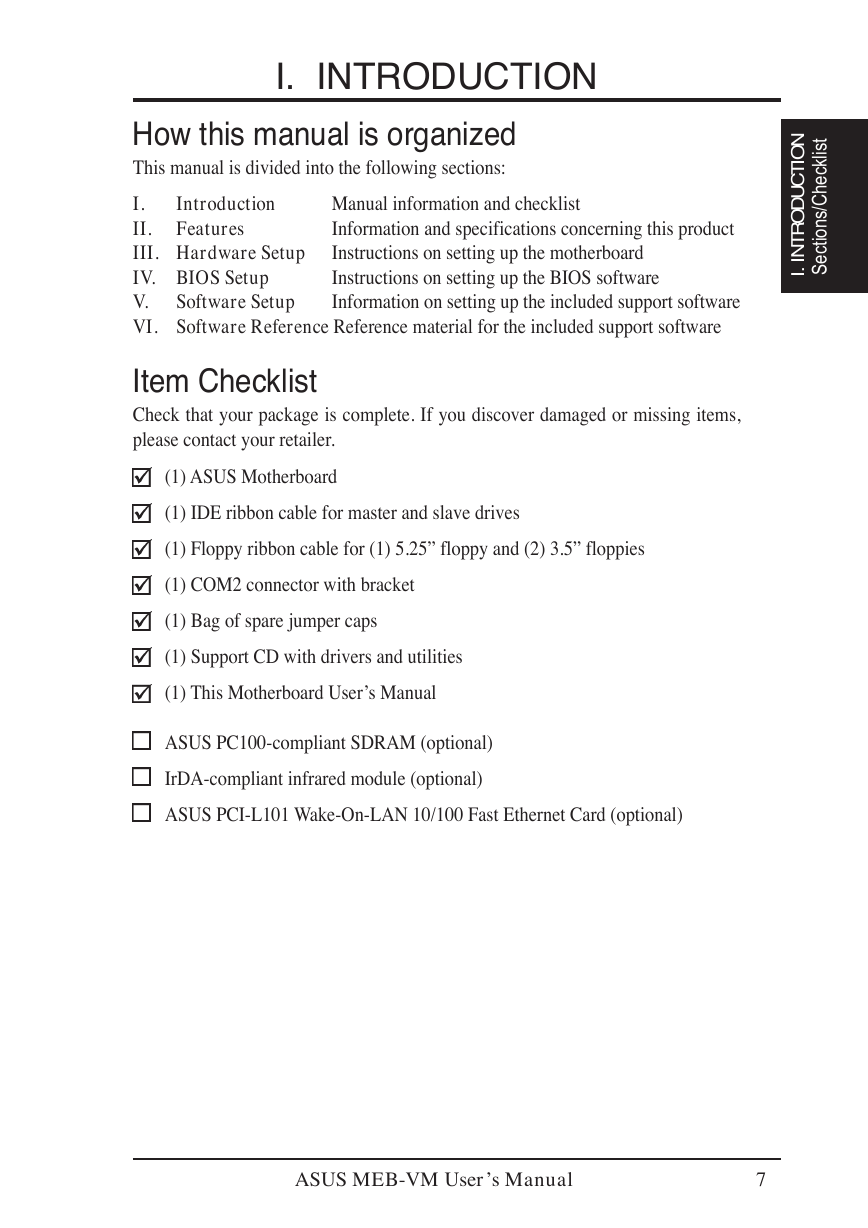

I N O T C U D O R T N I . I t s i l k c e h C / s n o i t c e S I. INTRODUCTION How this manual is organized This manual is divided into the following sections: Introduction Features I. II. III. Hardware Setup IV. BIOS Setup V. VI. Software Reference Reference material for the included support software Manual information and checklist Information and specifications concerning this product Instructions on setting up the motherboard Instructions on setting up the BIOS software Information on setting up the included support software Software Setup Item Checklist Check that your package is complete. If you discover damaged or missing items, please contact your retailer. (1) ASUS Motherboard (1) IDE ribbon cable for master and slave drives (1) Floppy ribbon cable for (1) 5.25” floppy and (2) 3.5” floppies (1) COM2 connector with bracket (1) Bag of spare jumper caps (1) Support CD with drivers and utilities (1) This Motherboard User’s Manual ASUS PC100-compliant SDRAM (optional) IrDA-compliant infrared module (optional) ASUS PCI-L101 Wake-On-LAN 10/100 Fast Ethernet Card (optional) ASUS MEB-VM User’s Manual 7

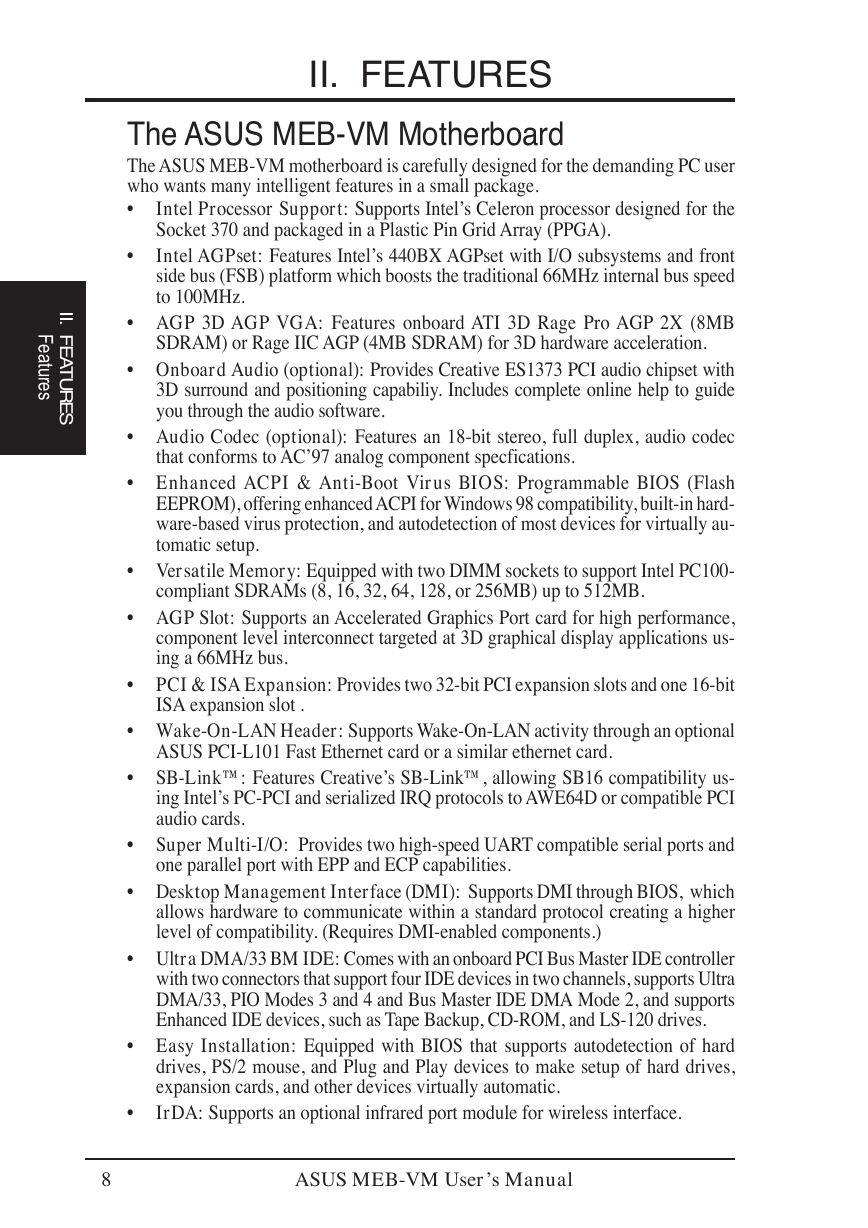

F e a t u r e s I I . F E A T U R E S II. FEATURES The ASUS MEB-VM Motherboard The ASUS MEB-VM motherboard is carefully designed for the demanding PC user who wants many intelligent features in a small package. • Intel Processor Support: Supports Intel’s Celeron processor designed for the Socket 370 and packaged in a Plastic Pin Grid Array (PPGA). Intel AGPset: Features Intel’s 440BX AGPset with I/O subsystems and front side bus (FSB) platform which boosts the traditional 66MHz internal bus speed to 100MHz. • • AGP 3D AGP VGA: Features onboard ATI 3D Rage Pro AGP 2X (8MB SDRAM) or Rage IIC AGP (4MB SDRAM) for 3D hardware acceleration. • Onboard Audio (optional): Provides Creative ES1373 PCI audio chipset with 3D surround and positioning capabiliy. Includes complete online help to guide you through the audio software. • Audio Codec (optional): Features an 18-bit stereo, full duplex, audio codec that conforms to AC’97 analog component specfications. • Enhanced ACPI & Anti-Boot Virus BIOS: Programmable BIOS (Flash EEPROM), offering enhanced ACPI for Windows 98 compatibility, built-in hard- ware-based virus protection, and autodetection of most devices for virtually au- tomatic setup. • Versatile Memory: Equipped with two DIMM sockets to support Intel PC100- compliant SDRAMs (8, 16, 32, 64, 128, or 256MB) up to 512MB. • AGP Slot: Supports an Accelerated Graphics Port card for high performance, component level interconnect targeted at 3D graphical display applications us- ing a 66MHz bus. PCI & ISA Expansion: Provides two 32-bit PCI expansion slots and one 16-bit ISA expansion slot . • • Wake-On-LAN Header: Supports Wake-On-LAN activity through an optional ASUS PCI-L101 Fast Ethernet card or a similar ethernet card. SB-Link™: Features Creative’s SB-Link™, allowing SB16 compatibility us- ing Intel’s PC-PCI and serialized IRQ protocols to AWE64D or compatible PCI audio cards. Super Multi-I/O: Provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. • • • Desktop Management Interface (DMI): Supports DMI through BIOS, which allows hardware to communicate within a standard protocol creating a higher level of compatibility. (Requires DMI-enabled components.) • Ultra DMA/33 BM IDE: Comes with an onboard PCI Bus Master IDE controller with two connectors that support four IDE devices in two channels, supports Ultra DMA/33, PIO Modes 3 and 4 and Bus Master IDE DMA Mode 2, and supports Enhanced IDE devices, such as Tape Backup, CD-ROM, and LS-120 drives. • Easy Installation: Equipped with BIOS that supports autodetection of hard drives, PS/2 mouse, and Plug and Play devices to make setup of hard drives, expansion cards, and other devices virtually automatic. IrDA: Supports an optional infrared port module for wireless interface. • 8 ASUS MEB-VM User’s Manual
