C 语言编程方针
4. MATLAB 建模编程指导方针
参考:MAAM_Style_Guideline_Version3p00.pdf
5.C 语言编程指导方针
5.1 通用规则
5.2 注释规则
编程风格应遵循《Misra C 2012》 。
: 1.0.0
:
Copyright 2017 NXP
All Rights Reserved.
Mcu_Cfg.c
AUTOSAR Mcu - Data structures for the Mcu driver.
5.2.1 注释数量不低于代码数量的 20%。
5.2.2 代码只能通过“/* */”注释。
5.2.3 在 C 文件或头文件,应增加版本标示区。
/**
* @file
* @version 1.0.0
*
* @brief
* @details Precompile structure configuration for the driver initialization.
*
* @addtogroup MCU
* @{
*/
/*================================================================
==================================
*
*
*
*
*
*
*
*
*
*
S32K14x_MCAL_1_0_0_RTM_ASR_REL_4_2_REV_0002_20170824
*
*
*
*
=================================================================
=================================*/
/*================================================================
Autosar Version
Autosar Revision
Autosar Conf.Variant :
SW Version
Build Version
: AUTOSAR 4.2 MCAL
: ARM
: MC
: none
Project
Platform
Peripheral
Dependencies
(c) Copyright 2006-2016 Freescale Semiconductor, Inc.
: 4.2.2
: ASR_REL_4_2_REV_0002
==================================
=================================================================
=================================*/

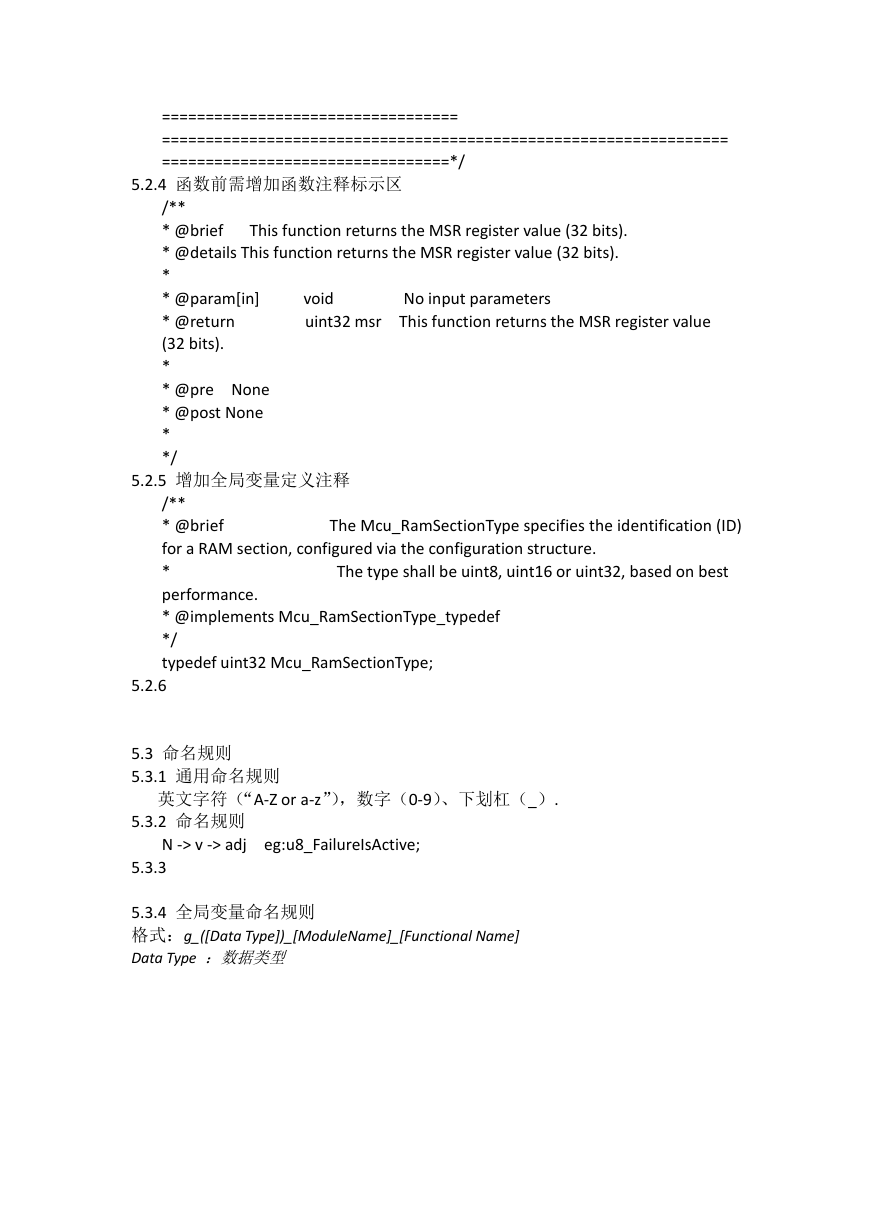

5.2.4 函数前需增加函数注释标示区
/**
* @brief
This function returns the MSR register value (32 bits).
* @details This function returns the MSR register value (32 bits).
*
* @param[in]
* @return
(32 bits).
*
* @pre None
* @post None
*
*/
void
uint32 msr
No input parameters
This function returns the MSR register value
5.2.5 增加全局变量定义注释
The Mcu_RamSectionType specifies the identification (ID)
The type shall be uint8, uint16 or uint32, based on best
/**
* @brief
for a RAM section, configured via the configuration structure.
*
performance.
* @implements Mcu_RamSectionType_typedef
*/
typedef uint32 Mcu_RamSectionType;
5.2.6
5.3.3
5.3 命名规则
5.3.1 通用命名规则
5.3.2 命名规则
英文字符(“A-Z or a-z”),数字(0-9)、下划杠(_).
N -> v -> adj eg:u8_FailureIsActive;
5.3.4 全局变量命名规则
格式:g_([Data Type])_[ModuleName]_[Functional Name]
Data Type :数据类型

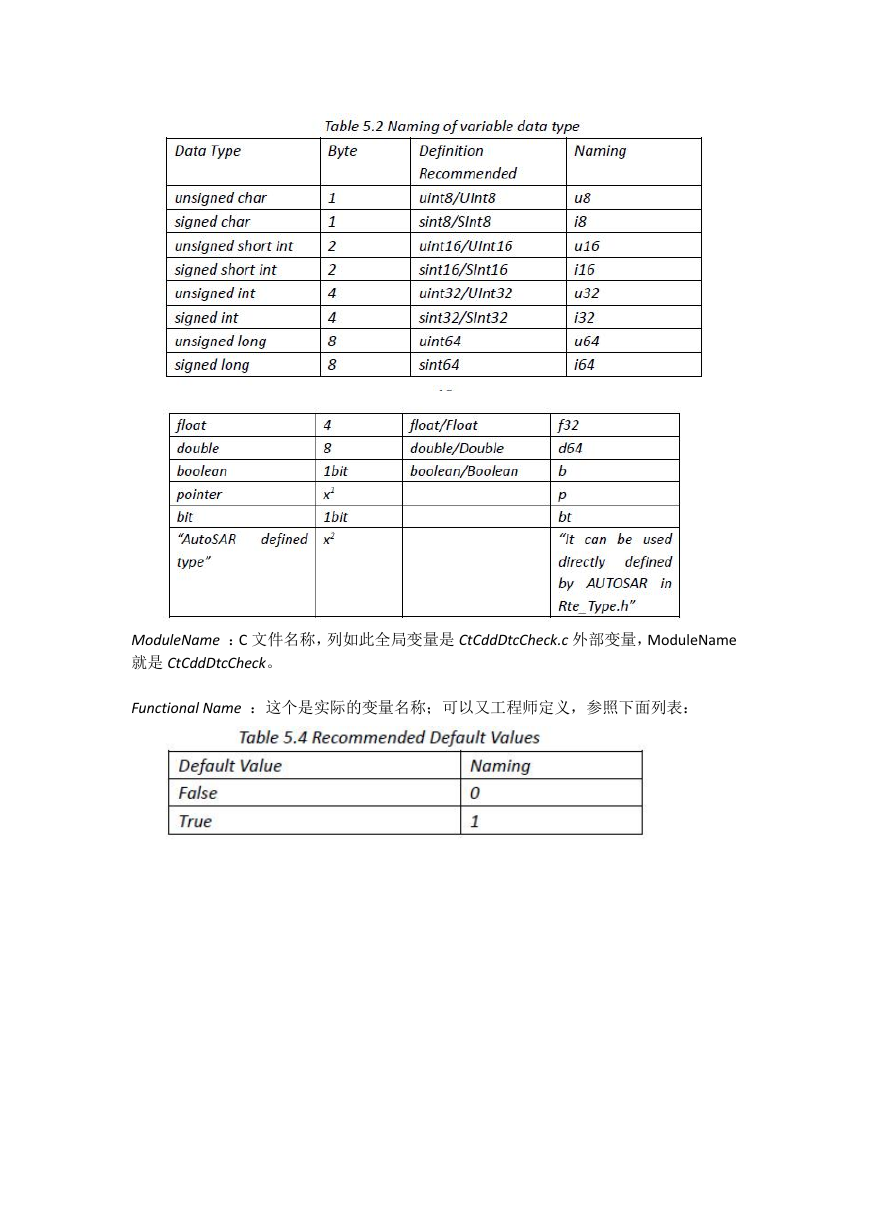

ModuleName :C 文件名称,列如此全局变量是 CtCddDtcCheck.c 外部变量,ModuleName
就是 CtCddDtcCheck。
Functional Name :这个是实际的变量名称;可以又工程师定义,参照下面列表:

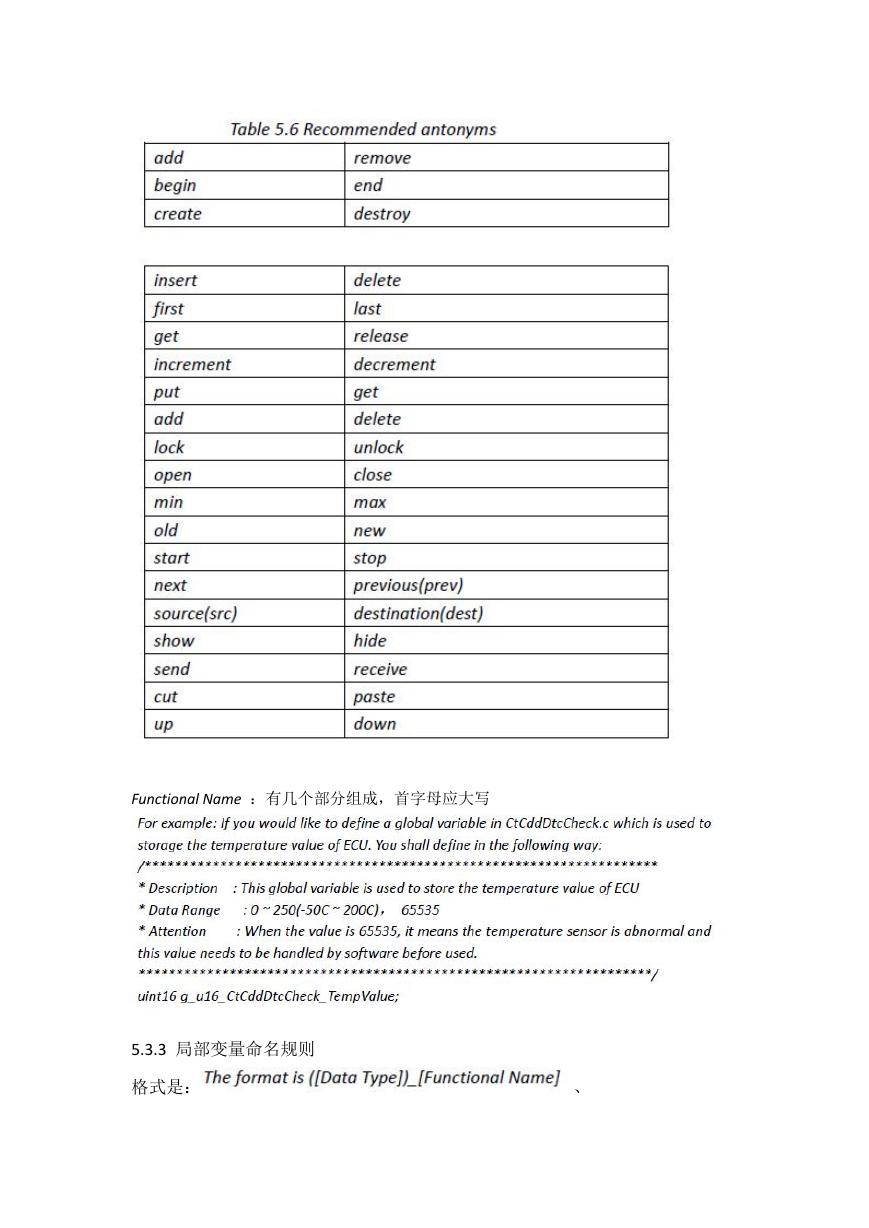

Functional Name :有几个部分组成,首字母应大写
5.3.3 局部变量命名规则
格式是:
、
Data Type ;Functional Name;参考 5.3.2

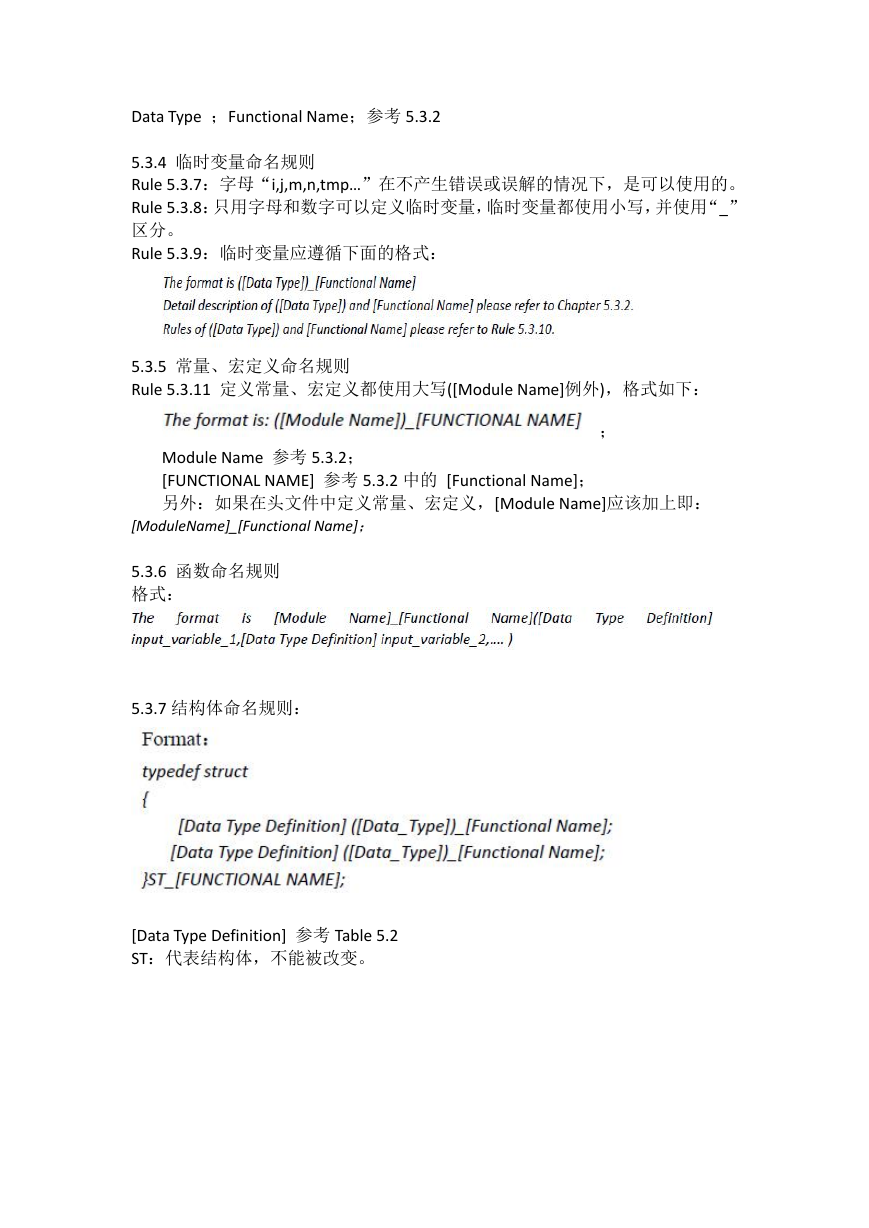

5.3.4 临时变量命名规则
Rule 5.3.7:字母“i,j,m,n,tmp…”在不产生错误或误解的情况下,是可以使用的。
Rule 5.3.8:只用字母和数字可以定义临时变量,临时变量都使用小写,并使用“_”
区分。
Rule 5.3.9:临时变量应遵循下面的格式:
5.3.5 常量、宏定义命名规则
Rule 5.3.11 定义常量、宏定义都使用大写([Module Name]例外),格式如下:
Module Name 参考 5.3.2;
[FUNCTIONAL NAME] 参考 5.3.2 中的 [Functional Name];
另外:如果在头文件中定义常量、宏定义,[Module Name]应该加上即:
[ModuleName]_[Functional Name];
;
5.3.6 函数命名规则
格式:
5.3.7 结构体命名规则:
[Data Type Definition] 参考 Table 5.2
ST:代表结构体,不能被改变。
Rule 5.3.15 全局结构体定义
Rule 5.3.16 定义局部结构体
格式如下:
Rule 5.3.17 枚举
格式如下:
