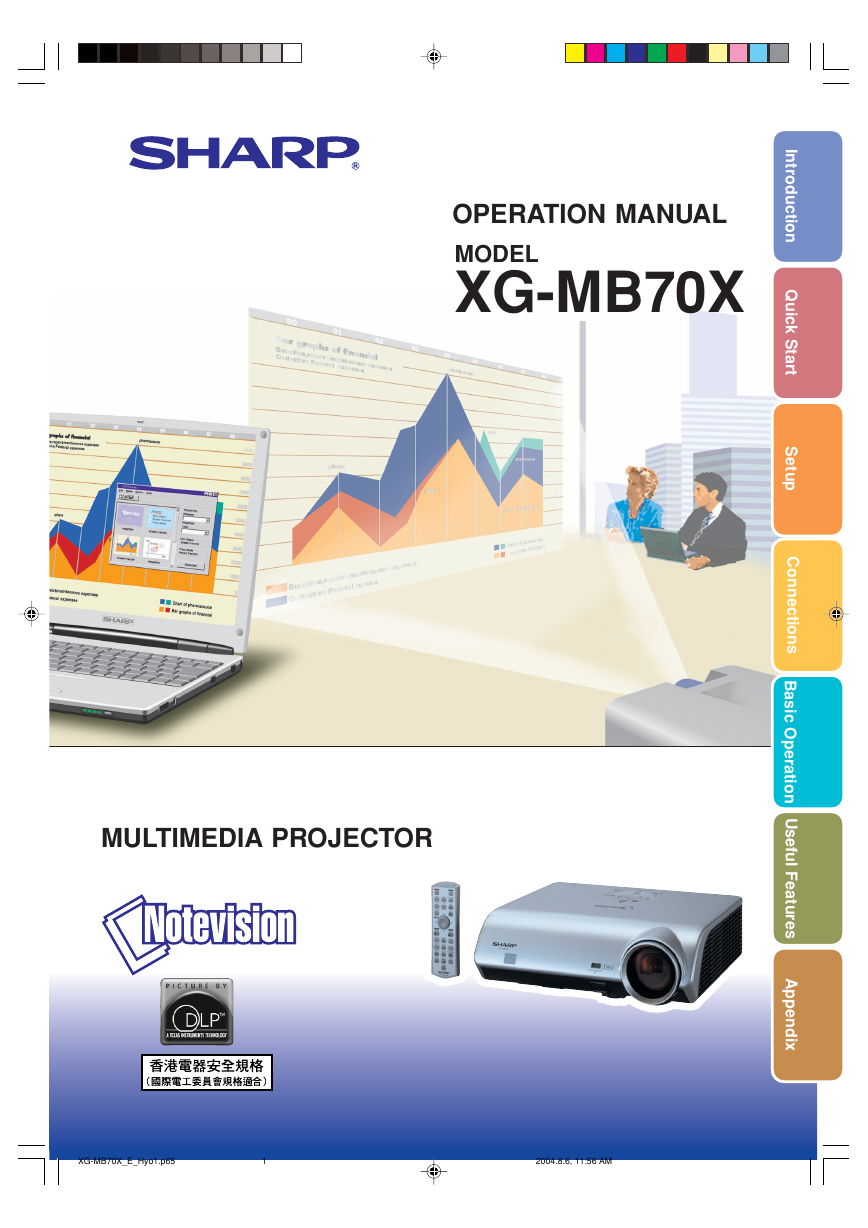

OPERATION MANUAL MODEL XG-MB70X I n t r o d u c t i o n i Q u c k S t a r t S e t u p C o n n e c t i o n s B a s i c O p e r a t i o n U s e f u l F e a t u r e s A p p e n d x i MULTIMEDIA PROJECTOR XG-MB70X_E_Hyo1.p65 1 2004.8.6, 11:56 AM

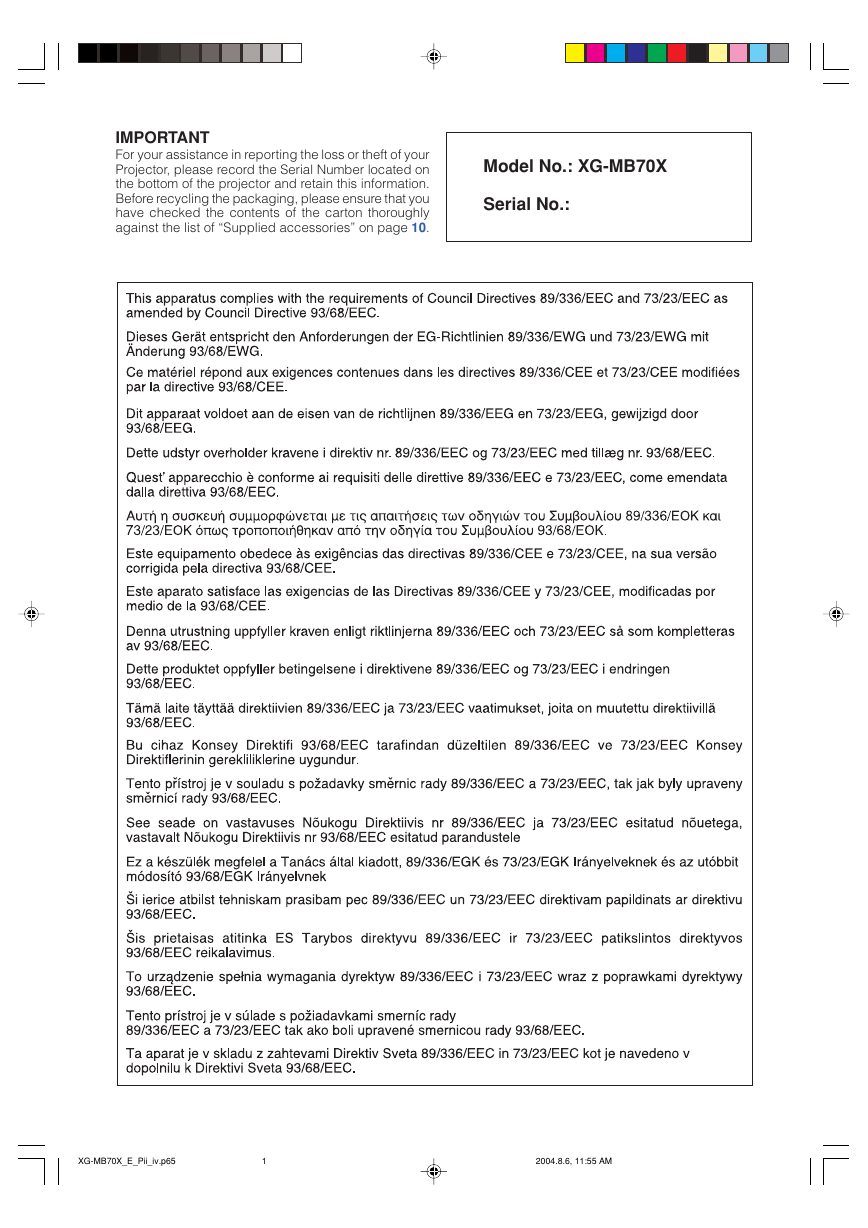

IMPORTANT For your assistance in reporting the loss or theft of your Projector, please record the Serial Number located on the bottom of the projector and retain this information. Before recycling the packaging, please ensure that you have checked the contents of the carton thoroughly against the list of “Supplied accessories” on page 10. Model No.: XG-MB70X Serial No.: XG-MB70X_E_Pii_iv.p65 1 2004.8.6, 11:55 AM

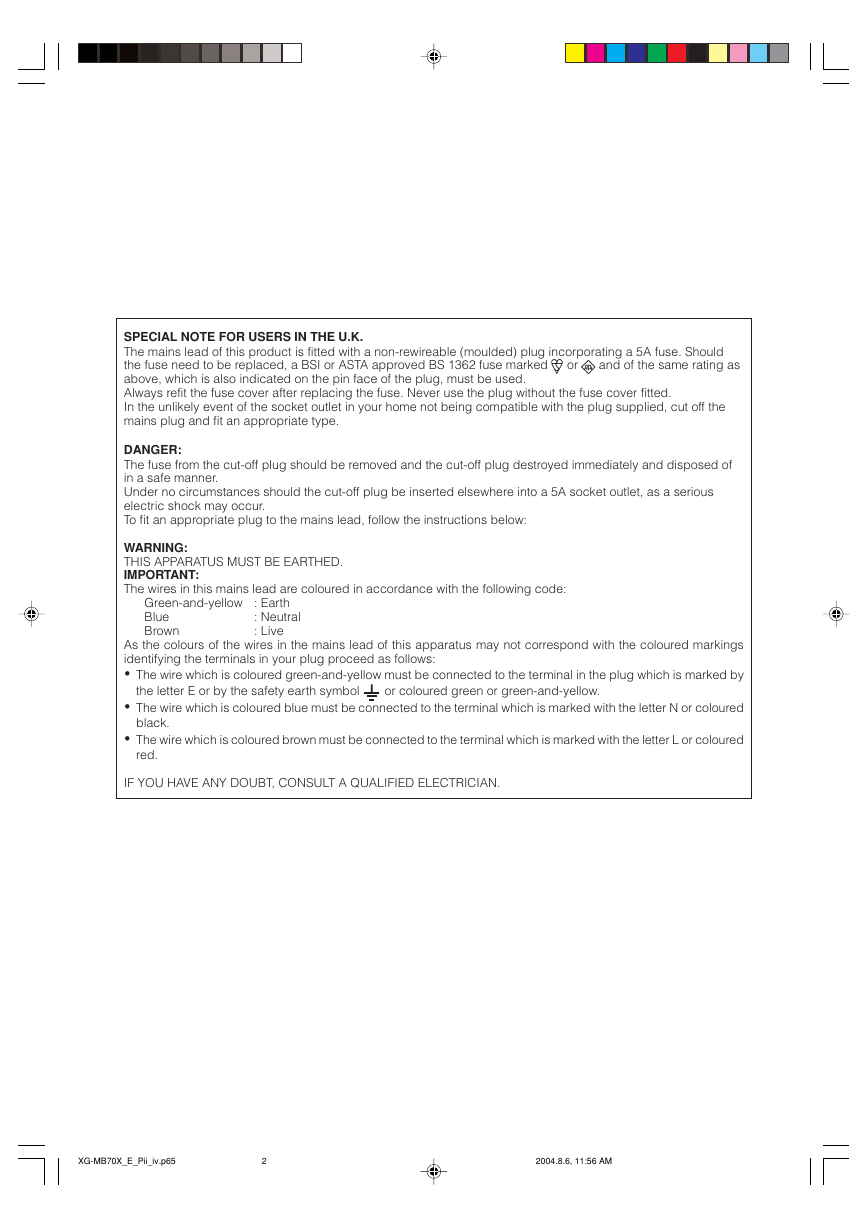

SPECIAL NOTE FOR USERS IN THE U.K. The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 5A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked above, which is also indicated on the pin face of the plug, must be used. Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted. In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the mains plug and fit an appropriate type. and of the same rating as or DANGER: The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner. Under no circumstances should the cut-off plug be inserted elsewhere into a 5A socket outlet, as a serious electric shock may occur. To fit an appropriate plug to the mains lead, follow the instructions below: WARNING: THIS APPARATUS MUST BE EARTHED. IMPORTANT: The wires in this mains lead are coloured in accordance with the following code: Green-and-yellow : Earth Blue Brown : Neutral : Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: • The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow. • The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. • The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN. XG-MB70X_E_Pii_iv.p65 2 2004.8.6, 11:56 AM

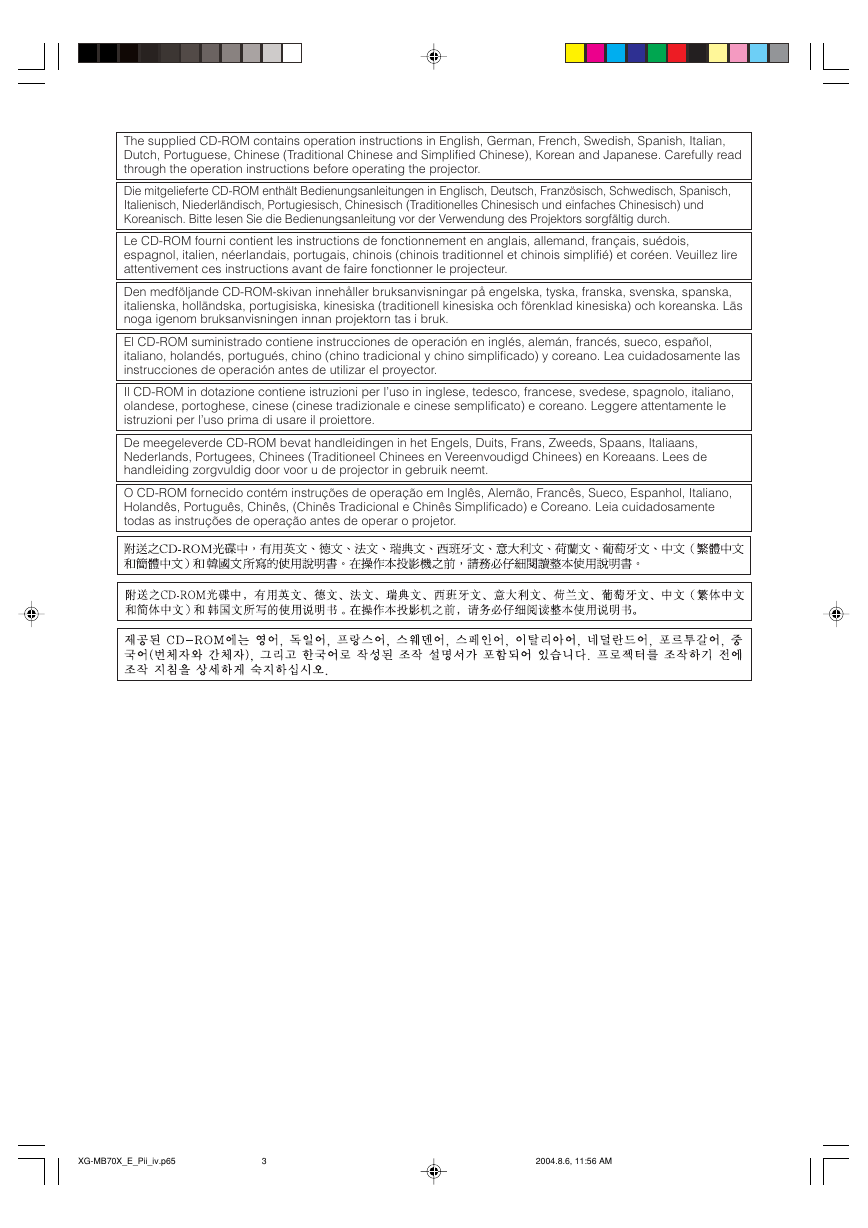

The supplied CD-ROM contains operation instructions in English, German, French, Swedish, Spanish, Italian, Dutch, Portuguese, Chinese (Traditional Chinese and Simplified Chinese), Korean and Japanese. Carefully read through the operation instructions before operating the projector. Die mitgelieferte CD-ROM enthält Bedienungsanleitungen in Englisch, Deutsch, Französisch, Schwedisch, Spanisch, Italienisch, Niederländisch, Portugiesisch, Chinesisch (Traditionelles Chinesisch und einfaches Chinesisch) und Koreanisch. Bitte lesen Sie die Bedienungsanleitung vor der Verwendung des Projektors sorgfältig durch. Le CD-ROM fourni contient les instructions de fonctionnement en anglais, allemand, français, suédois, espagnol, italien, néerlandais, portugais, chinois (chinois traditionnel et chinois simplifié) et coréen. Veuillez lire attentivement ces instructions avant de faire fonctionner le projecteur. Den medföljande CD-ROM-skivan innehåller bruksanvisningar på engelska, tyska, franska, svenska, spanska, italienska, holländska, portugisiska, kinesiska (traditionell kinesiska och förenklad kinesiska) och koreanska. Läs noga igenom bruksanvisningen innan projektorn tas i bruk. El CD-ROM suministrado contiene instrucciones de operación en inglés, alemán, francés, sueco, español, italiano, holandés, portugués, chino (chino tradicional y chino simplificado) y coreano. Lea cuidadosamente las instrucciones de operación antes de utilizar el proyector. Il CD-ROM in dotazione contiene istruzioni per l’uso in inglese, tedesco, francese, svedese, spagnolo, italiano, olandese, portoghese, cinese (cinese tradizionale e cinese semplificato) e coreano. Leggere attentamente le istruzioni per l’uso prima di usare il proiettore. De meegeleverde CD-ROM bevat handleidingen in het Engels, Duits, Frans, Zweeds, Spaans, Italiaans, Nederlands, Portugees, Chinees (Traditioneel Chinees en Vereenvoudigd Chinees) en Koreaans. Lees de handleiding zorgvuldig door voor u de projector in gebruik neemt. O CD-ROM fornecido contém instruções de operação em Inglês, Alemão, Francês, Sueco, Espanhol, Italiano, Holandês, Português, Chinês, (Chinês Tradicional e Chinês Simplificado) e Coreano. Leia cuidadosamente todas as instruções de operação antes de operar o projetor. XG-MB70X_E_Pii_iv.p65 3 2004.8.6, 11:56 AM

Before using the projector, please read this operation manual carefully. Introduction ENGLISH There are two important reasons for prompt warranty registration of your new SHARP Projector, using the REGISTRATION CARD packed with the projector. 1. WARRANTY This is to assure that you immediately receive the full benefit of the parts, service and labor warranty applicable to your purchase. 2. CONSUMER PRODUCT SAFETY ACT To ensure that you will promptly receive any safety notification of inspection, modification, or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE. U.S.A. ONLY WARNING: High brightness light source. Do not stare into the beam of light, or view directly. Be especially careful that children do not stare directly into the beam of light. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. I n t r o d u c t i o n See bottom of projector. CAUTION RISK OF ELECTRIC SHOCK. DO NOT REMOVE SCREWS EXCEPT SPECIFIED USER SERVICE SCREW. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk or electric shock to persons. The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equip- ment. U.S.A. ONLY INFORMATION This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the operation manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. U.S.A. ONLY The enclosed computer cable must be used with the device. The cable is provided to ensure that the device complies with FCC Class A verification. U.S.A. ONLY WARNING: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. XG-MB70X_E_P01_03.p65 1 2004.8.6, 11:56 AM -1

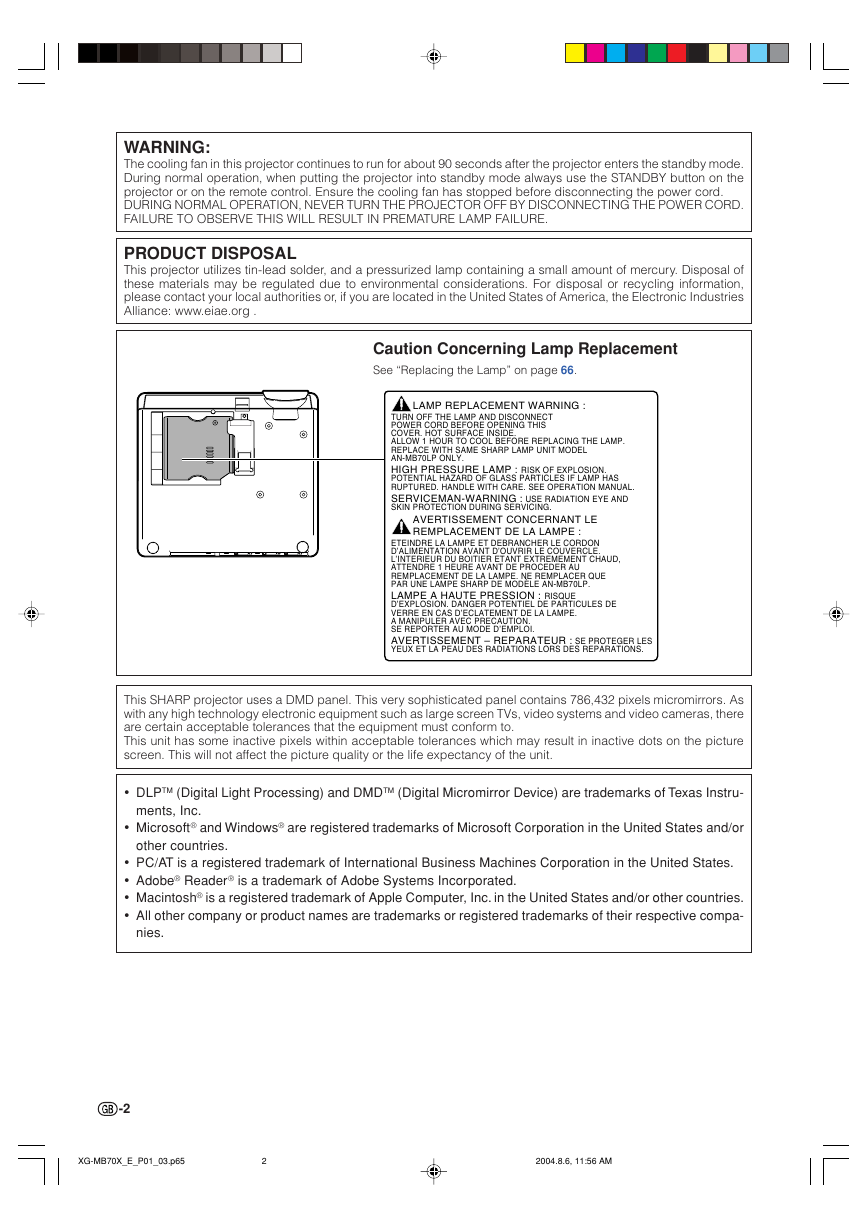

WARNING: The cooling fan in this projector continues to run for about 90 seconds after the projector enters the standby mode. During normal operation, when putting the projector into standby mode always use the STANDBY button on the projector or on the remote control. Ensure the cooling fan has stopped before disconnecting the power cord. DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING THE POWER CORD. FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE. PRODUCT DISPOSAL This projector utilizes tin-lead solder, and a pressurized lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or, if you are located in the United States of America, the Electronic Industries Alliance: www.eiae.org . Caution Concerning Lamp Replacement See “Replacing the Lamp” on page 66. LAMP REPLACEMENT WARNING : TURN OFF THE LAMP AND DISCONNECT POWER CORD BEFORE OPENING THIS COVER. HOT SURFACE INSIDE. ALLOW 1 HOUR TO COOL BEFORE REPLACING THE LAMP. REPLACE WITH SAME SHARP LAMP UNIT MODEL AN-MB70LP ONLY. HIGH PRESSURE LAMP : RISK OF EXPLOSION. POTENTIAL HAZARD OF GLASS PARTICLES IF LAMP HAS RUPTURED. HANDLE WITH CARE. SEE OPERATION MANUAL. SERVICEMAN-WARNING : USE RADIATION EYE AND SKIN PROTECTION DURING SERVICING. AVERTISSEMENT CONCERNANT LE REMPLACEMENT DE LA LAMPE : ETEINDRE LA LAMPE ET DEBRANCHER LE CORDON D’ALIMENTATION AVANT D’OUVRIR LE COUVERCLE. L’INTERIEUR DU BOITIER ETANT EXTREMEMENT CHAUD, ATTENDRE 1 HEURE AVANT DE PROCEDER AU REMPLACEMENT DE LA LAMPE. NE REMPLACER QUE PAR UNE LAMPE SHARP DE MODÈLE AN-MB70LP. LAMPE A HAUTE PRESSION : RISQUE D’EXPLOSION. DANGER POTENTIEL DE PARTICULES DE VERRE EN CAS D’ECLATEMENT DE LA LAMPE. A MANIPULER AVEC PRECAUTION. SE REPORTER AU MODE D’EMPLOI. AVERTISSEMENT – REPARATEUR : SE PROTEGER LES YEUX ET LA PEAU DES RADIATIONS LORS DES REPARATIONS. This SHARP projector uses a DMD panel. This very sophisticated panel contains 786,432 pixels micromirrors. As with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must conform to. This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture screen. This will not affect the picture quality or the life expectancy of the unit. • DLPTM (Digital Light Processing) and DMDTM (Digital Micromirror Device) are trademarks of Texas Instru- ments, Inc. • Microsoft® and Windows® are registered trademarks of Microsoft Corporation in the United States and/or other countries. • PC/AT is a registered trademark of International Business Machines Corporation in the United States. • Adobe® Reader® is a trademark of Adobe Systems Incorporated. • Macintosh® is a registered trademark of Apple Computer, Inc. in the United States and/or other countries. • All other company or product names are trademarks or registered trademarks of their respective compa- nies. -2 XG-MB70X_E_P01_03.p65 2 2004.8.6, 11:56 AM

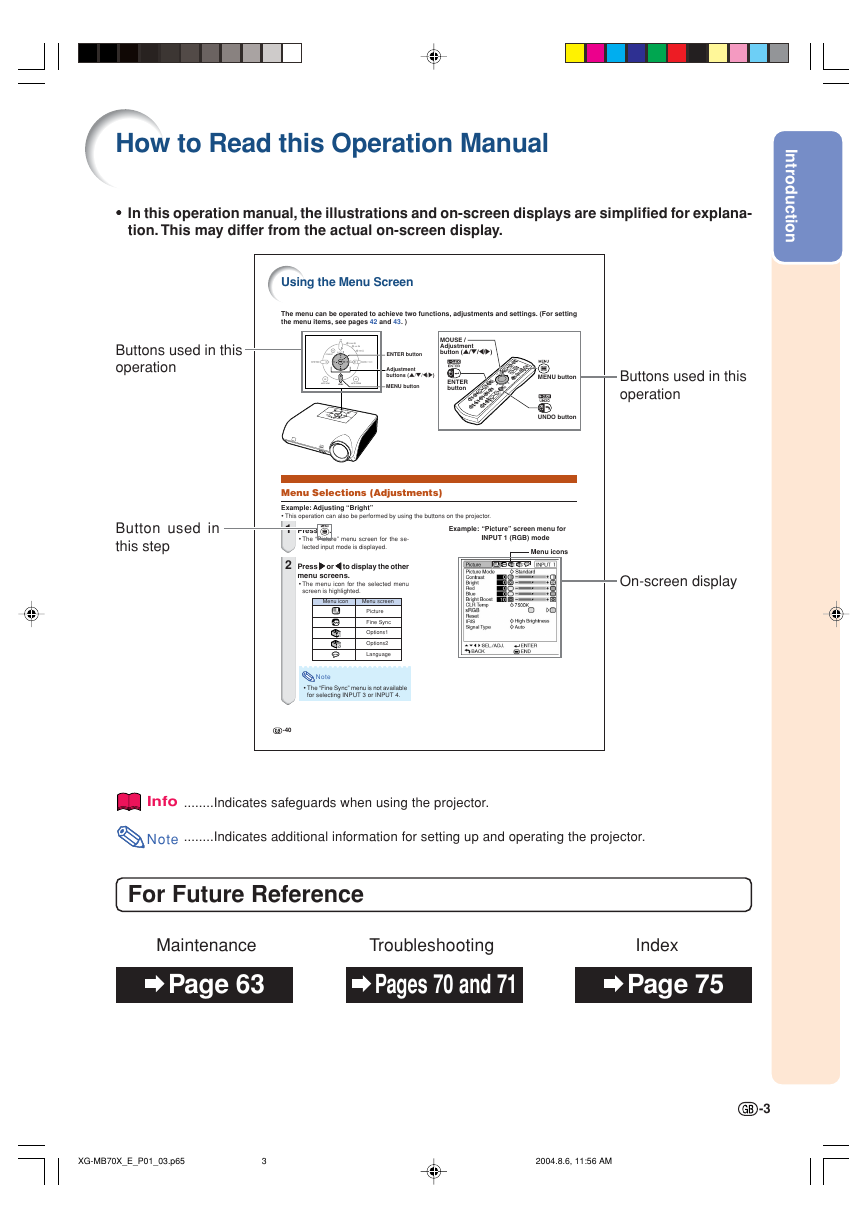

How to Read this Operation Manual ••••• In this operation manual, the illustrations and on-screen displays are simplified for explana- tion. This may differ from the actual on-screen display. Using the Menu Screen The menu can be operated to achieve two functions, adjustments and settings. (For setting the menu items, see pages 42 and 43. ) Buttons used in this operation ENTER button Adjustment buttons ('/"/\/|) MENU button MOUSE / Adjustment button ('/"/\/|) ENTER button MENU button UNDO button Buttons used in this operation I n t r o d u c t i o n Menu Selections (Adjustments) Button used in this step Example: Adjusting “Bright” • This operation can also be performed by using the buttons on the projector. 1 Press . Example: “Picture” screen menu for INPUT 1 (RGB) mode • The “Picture” menu screen for the se- lected input mode is displayed. 2 Press ||||| or \\\\\ to display the other menu screens. • The menu icon for the selected menu screen is highlighted. Menu icons On-screen display Menu icon Menu screen Picture Fine Sync Options1 Options2 Language Note • The “Fine Sync” menu is not available for selecting INPUT 3 or INPUT 4. -40 Info ........Indicates safeguards when using the projector. Note ........Indicates additional information for setting up and operating the projector. For Future Reference Maintenance Page 63 Troubleshooting Pages 70 and 71 Index Page 75 XG-MB70X_E_P01_03.p65 3 2004.8.6, 11:56 AM -3

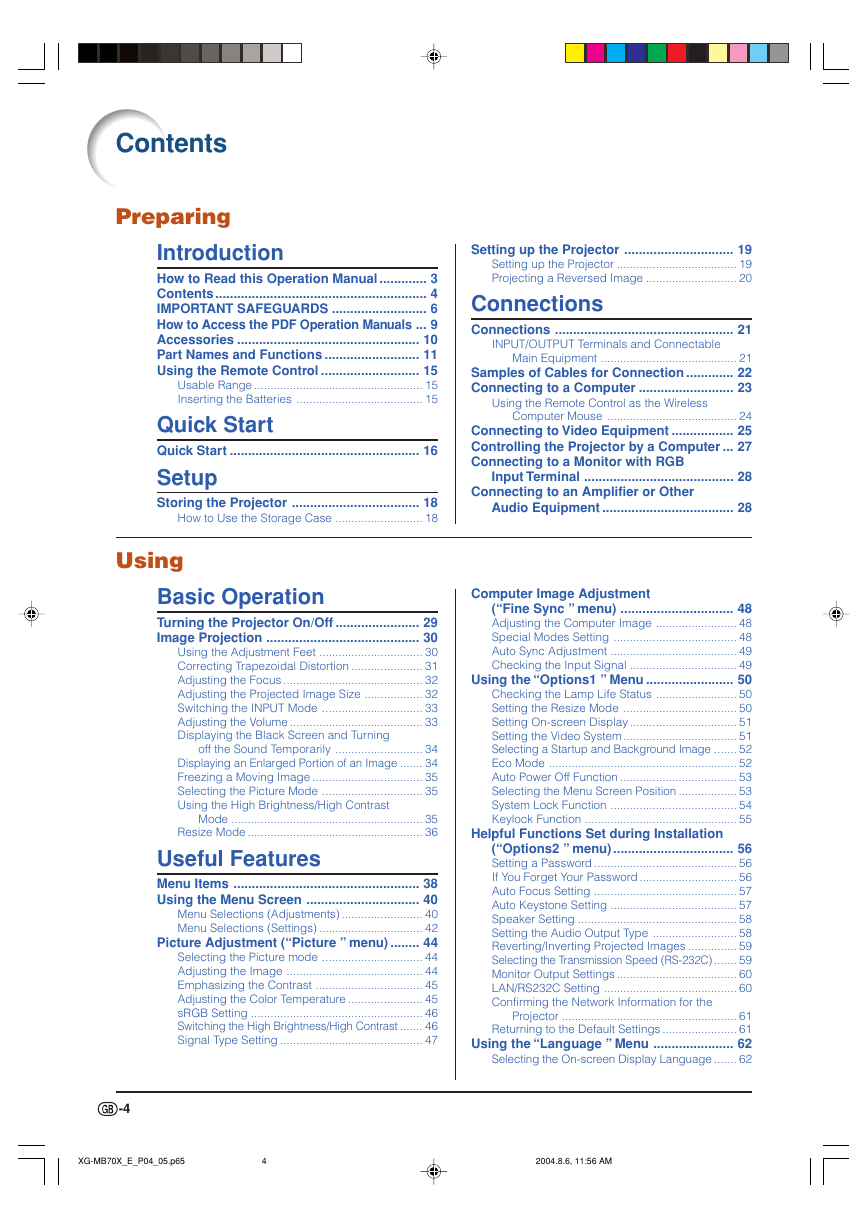

Contents Preparing Introduction How to Read this Operation Manual ............. 3 Contents.......................................................... 4 IMPORTANT SAFEGUARDS .......................... 6 How to Access the PDF Operation Manuals ... 9 Accessories .................................................. 10 Part Names and Functions .......................... 11 Using the Remote Control ........................... 15 Usable Range .................................................... 15 Inserting the Batteries ....................................... 15 Quick Start Quick Start .................................................... 16 Setup Storing the Projector ................................... 18 How to Use the Storage Case ........................... 18 Using Basic Operation Turning the Projector On/Off ....................... 29 Image Projection .......................................... 30 Using the Adjustment Feet ................................ 30 Correcting Trapezoidal Distortion ...................... 31 Adjusting the Focus ........................................... 32 Adjusting the Projected Image Size .................. 32 Switching the INPUT Mode ............................... 33 Adjusting the Volume ......................................... 33 Displaying the Black Screen and Turning off the Sound Temporarily ........................... 34 Displaying an Enlarged Portion of an Image ....... 34 Freezing a Moving Image .................................. 35 Selecting the Picture Mode ............................... 35 Using the High Brightness/High Contrast Mode ........................................................... 35 Resize Mode ...................................................... 36 Useful Features Menu Items ................................................... 38 Using the Menu Screen ............................... 40 Menu Selections (Adjustments) ......................... 40 Menu Selections (Settings) ................................ 42 Picture Adjustment (“Picture ” menu) ........ 44 Selecting the Picture mode ............................... 44 Adjusting the Image .......................................... 44 Emphasizing the Contrast ................................. 45 Adjusting the Color Temperature ....................... 45 sRGB Setting ..................................................... 46 Switching the High Brightness/High Contrast ....... 46 Signal Type Setting ............................................ 47 -4 Setting up the Projector .............................. 19 Setting up the Projector ..................................... 19 Projecting a Reversed Image ............................ 20 Connections Connections ................................................. 21 INPUT/OUTPUT Terminals and Connectable Main Equipment .......................................... 21 Samples of Cables for Connection ............. 22 Connecting to a Computer .......................... 23 Using the Remote Control as the Wireless Computer Mouse ........................................ 24 Connecting to Video Equipment ................. 25 Controlling the Projector by a Computer ... 27 Connecting to a Monitor with RGB Input Terminal ......................................... 28 Connecting to an Amplifier or Other Audio Equipment .................................... 28 Computer Image Adjustment (“Fine Sync ” menu) ............................... 48 Adjusting the Computer Image ......................... 48 Special Modes Setting ...................................... 48 Auto Sync Adjustment ....................................... 49 Checking the Input Signal ................................. 49 Using the “Options1 ” Menu ........................ 50 Checking the Lamp Life Status ......................... 50 Setting the Resize Mode ................................... 50 Setting On-screen Display ................................. 51 Setting the Video System ................................... 51 Selecting a Startup and Background Image ....... 52 Eco Mode .......................................................... 52 Auto Power Off Function .................................... 53 Selecting the Menu Screen Position .................. 53 System Lock Function ....................................... 54 Keylock Function ............................................... 55 Helpful Functions Set during Installation (“Options2 ” menu) ................................. 56 Setting a Password ............................................ 56 If You Forget Your Password .............................. 56 Auto Focus Setting ............................................ 57 Auto Keystone Setting ....................................... 57 Speaker Setting ................................................. 58 Setting the Audio Output Type .......................... 58 Reverting/Inverting Projected Images ............... 59 Selecting the Transmission Speed (RS-232C) ....... 59 Monitor Output Settings ..................................... 60 LAN/RS232C Setting ......................................... 60 Confirming the Network Information for the Projector ...................................................... 61 Returning to the Default Settings ....................... 61 Using the “Language ” Menu ...................... 62 Selecting the On-screen Display Language ....... 62 XG-MB70X_E_P04_05.p65 4 2004.8.6, 11:56 AM
