Contents

English

Introduction

Headset overview

Using the headset

Troubleshooting

Additional information

Deutsch

Einführung

Das Headset

Verwenden der Freisprecheinrichtung

Fehlerbehebung

Ergänzende Informationen

Español

Introducción

Visión general del auricular

Uso del auricular

Solución de problemas

Información adicional

Français

Introduction

Présentation du casque

Utilisation du casque

Résolution des problèmes

Informations supplémentaires

Italiano

Introduzione

Panoramica dell'auricolare

Utilizzo dell'auricolare

Risoluzione dei problemi

Informazioni aggiuntive

简体中文

简介

头戴耳机全视图

使用头戴耳机

故障排除

其它信息

Declaration of conformity

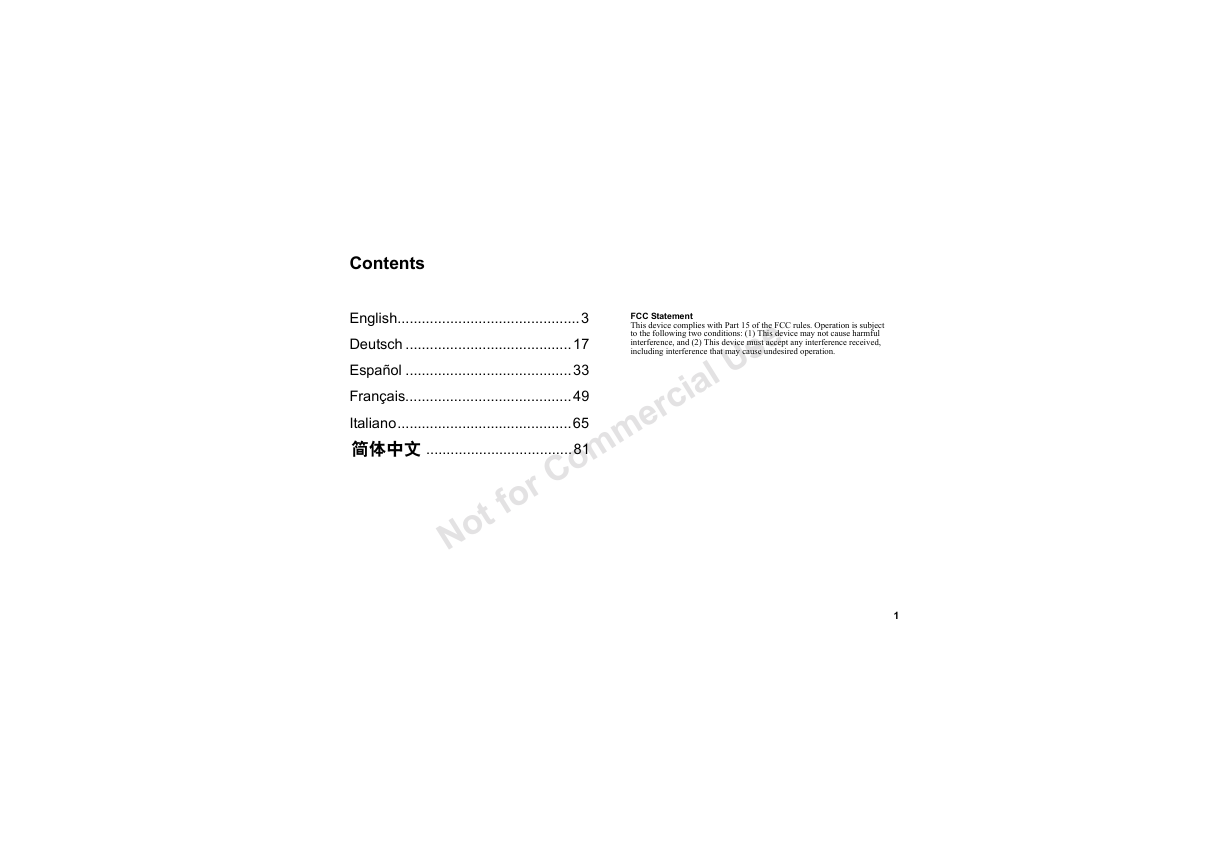

Contents FCC Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. e c i a l U s r English.............................................3 Deutsch .........................................17 Espaæol .........................................33 Franais.........................................49 Italiano...........................................65 ....................................81 r C o m m e o t f N o 1

e c i a l U s r r C o m m e o t f N o

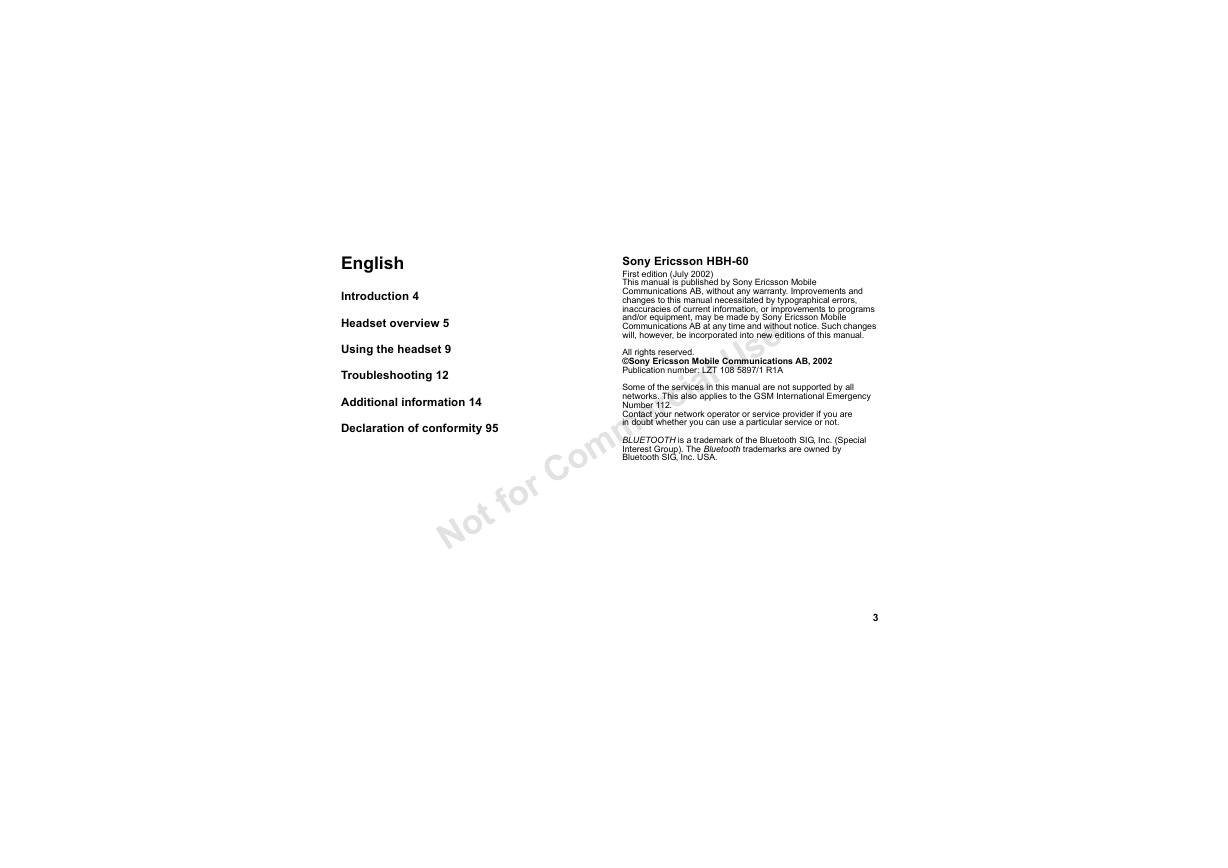

English Introduction 4 Headset overview 5 Using the headset 9 Troubleshooting 12 Additional information 14 Declaration of conformity 95 o t f N o Sony Ericsson HBH-60 First edition (July 2002) This manual is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this manual. All rights reserved. 'Sony Ericsson Mobile Communications AB, 2002 Publication number: LZT 108 5897/1 R1A Some of the services in this manual are not supported by all networks. This also applies to the GSM International Emergency Number 112. Contact your network operator or service provider if you are in doubt whether you can use a particular service or not. BLUETOOTH is a trademark of the Bluetooth SIG, Inc. (Special Interest Group). The Bluetooth trademarks are owned by Bluetooth SIG, Inc. USA. c i a l U s e r r C o m m e 3

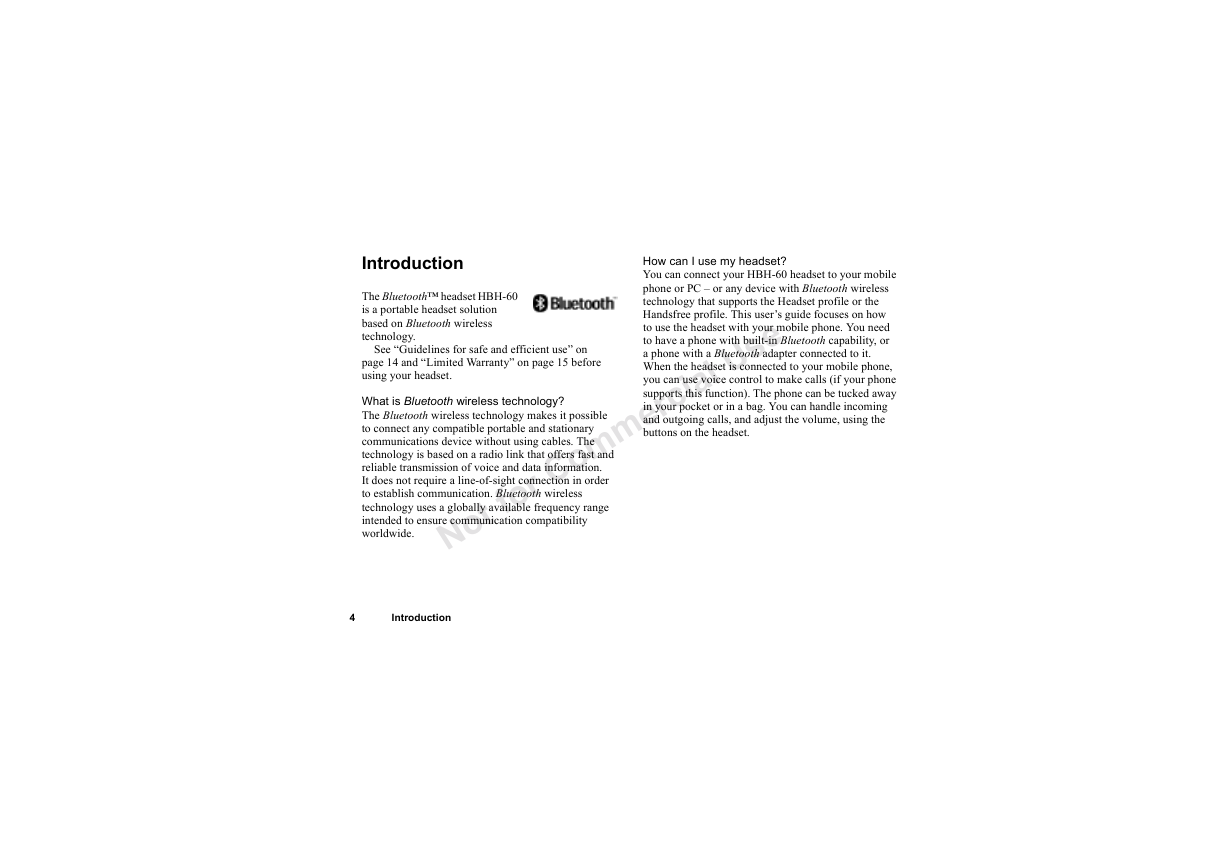

How can I use my headset? You can connect your HBH-60 headset to your mobile phone or PC or any device with Bluetooth wireless technology that supports the Headset profile or the Handsfree profile. This users guide focuses on how to use the headset with your mobile phone. You need to have a phone with built-in Bluetooth capability, or a phone with a Bluetooth adapter connected to it. When the headset is connected to your mobile phone, you can use voice control to make calls (if your phone supports this function). The phone can be tucked away in your pocket or in a bag. You can handle incoming and outgoing calls, and adjust the volume, using the buttons on the headset. c i a l U s e r Introduction The Bluetooth headset HBH-60 is a portable headset solution based on Bluetooth wireless technology. See Guidelines for safe and efficient use on page 14 and Limited Warranty on page 15 before using your headset. What is Bluetooth wireless technology? The Bluetooth wireless technology makes it possible to connect any compatible portable and stationary communications device without using cables. The technology is based on a radio link that offers fast and reliable transmission of voice and data information. It does not require a line-of-sight connection in order to establish communication. Bluetooth wireless technology uses a globally available frequency range intended to ensure communication compatibility worldwide. r C o m m e t f o N o 4 Introduction

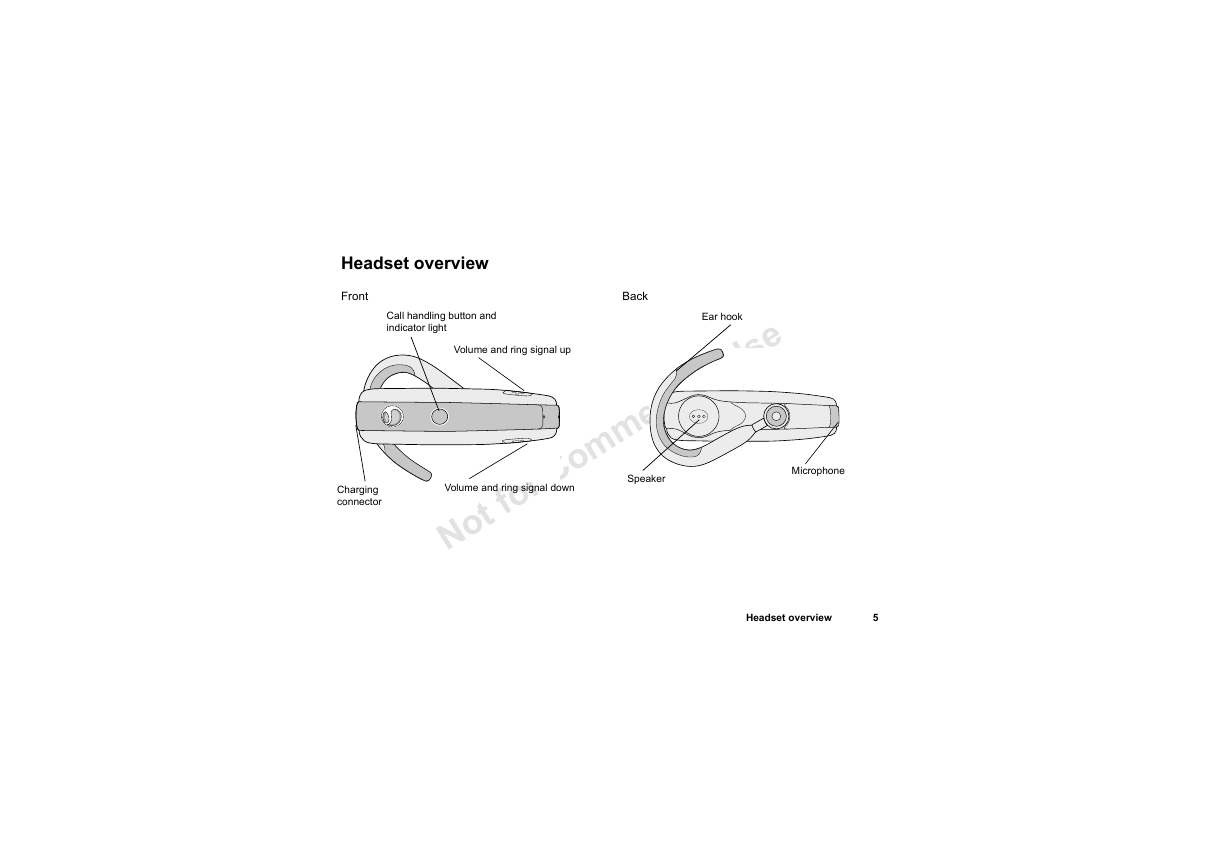

Headset overview Front Call handling button and indicator light Volume and ring signal up Back e Ear hook c i a l U s r Microphone Headset overview 5 r C o m m e Speaker o t f N o Charging connector Volume and ring signal down

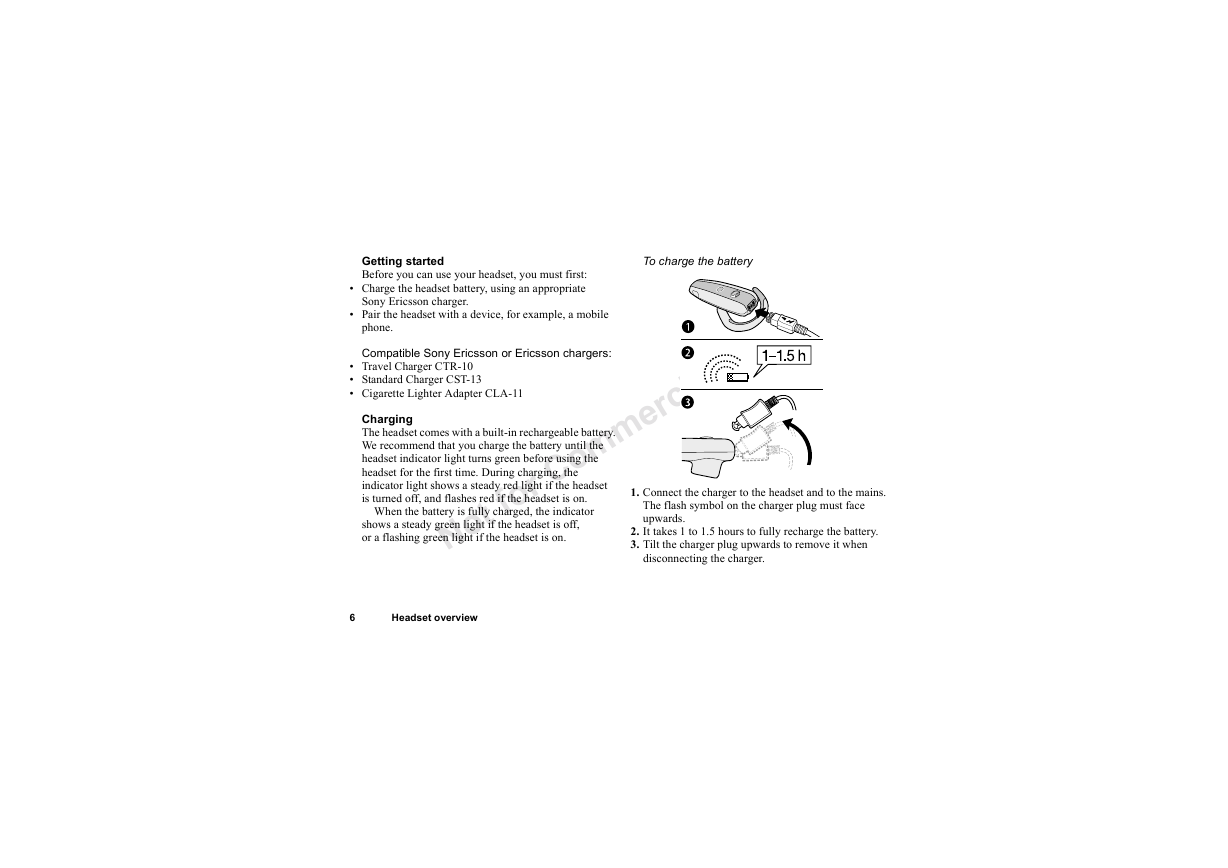

Getting started Before you can use your headset, you must first: Charge the headset battery, using an appropriate Sony Ericsson charger. Pair the headset with a device, for example, a mobile phone. Compatible Sony Ericsson or Ericsson chargers: Travel Charger CTR-10 Standard Charger CST-13 Cigarette Lighter Adapter CLA-11 Charging The headset comes with a built-in rechargeable battery. We recommend that you charge the battery until the headset indicator light turns green before using the headset for the first time. During charging, the indicator light shows a steady red light if the headset is turned off, and flashes red if the headset is on. r C o m m e When the battery is fully charged, the indicator shows a steady green light if the headset is off, or a flashing green light if the headset is on. N o o t f To charge the battery e c i a l U s r 1. Connect the charger to the headset and to the mains. The flash symbol on the charger plug must face upwards. 2. It takes 1 to 1.5 hours to fully recharge the battery. 3. Tilt the charger plug upwards to remove it when disconnecting the charger. 6 Headset overview

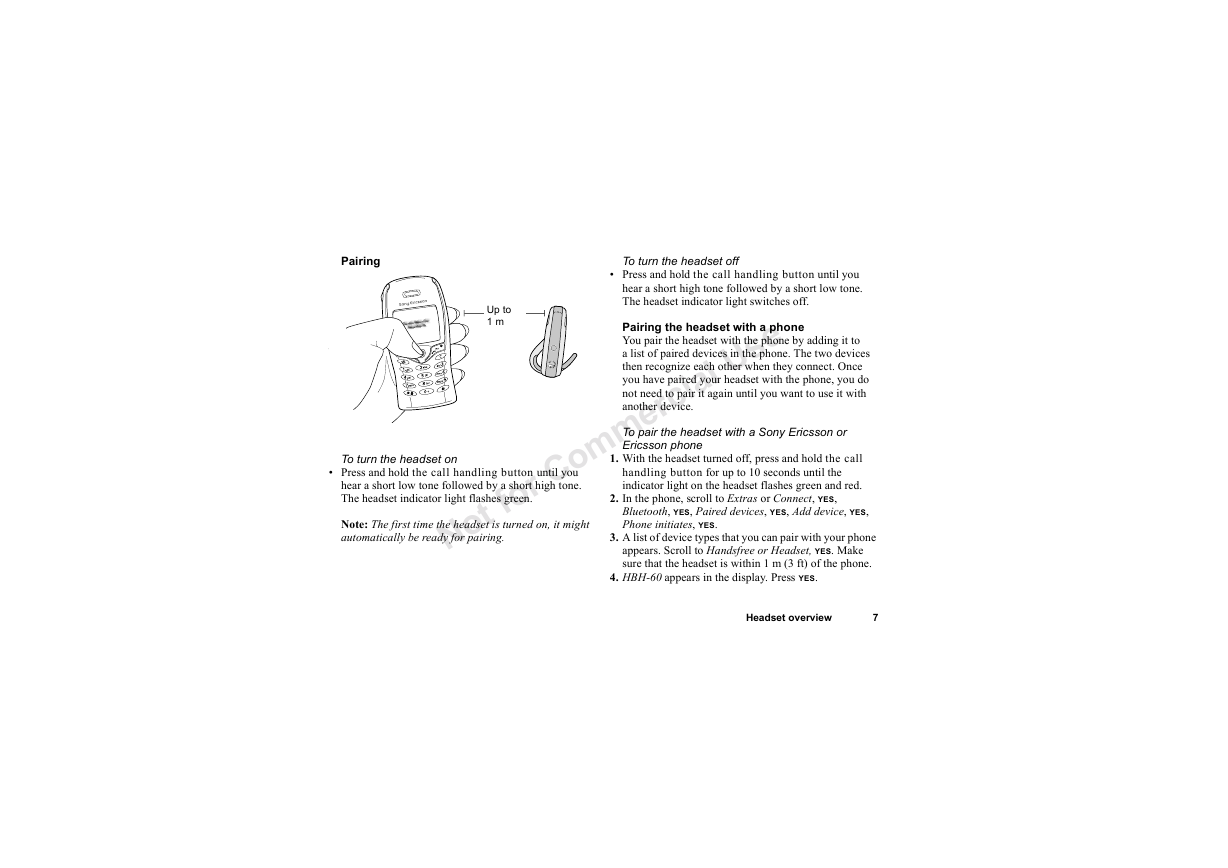

Pairing Up to 1 m To turn the headset off Press and hold the call handling button until you hear a short high tone followed by a short low tone. The headset indicator light switches off. e Pairing the headset with a phone You pair the headset with the phone by adding it to a list of paired devices in the phone. The two devices then recognize each other when they connect. Once you have paired your headset with the phone, you do not need to pair it again until you want to use it with another device. c i a l U s r To pair the headset with a Sony Ericsson or Ericsson phone 1. With the headset turned off, press and hold the call handling button for up to 10 seconds until the indicator light on the headset flashes green and red. 2. In the phone, scroll to Extras or Connect, YES, Bluetooth, YES, Paired devices, YES, Add device, YES, Phone initiates, YES. 3. A list of device types that you can pair with your phone appears. Scroll to Handsfree or Headset, YES. Make sure that the headset is within 1 m (3 ft) of the phone. 4. HBH-60 appears in the display. Press YES. Headset overview 7 r C o m m e To turn the headset on Press and hold the call handling button until you hear a short low tone followed by a short high tone. The headset indicator light flashes green. Note: The first time the headset is turned on, it might automatically be ready for pairing. o t f N o

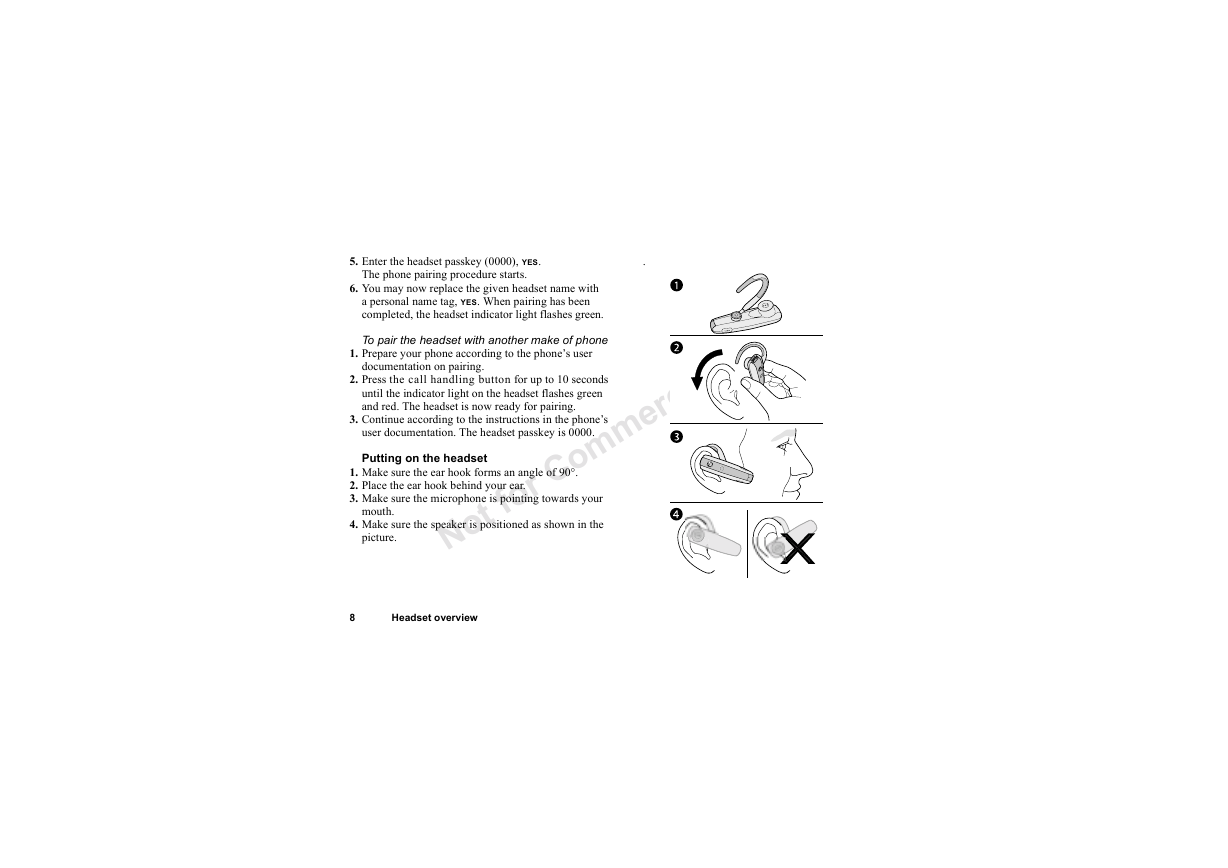

e c i a l U s r 5. Enter the headset passkey (0000), YES. The phone pairing procedure starts. 6. You may now replace the given headset name with a personal name tag, YES. When pairing has been completed, the headset indicator light flashes green. . To pair the headset with another make of phone 1. Prepare your phone according to the phones user documentation on pairing. 2. Press the call handling button for up to 10 seconds until the indicator light on the headset flashes green and red. The headset is now ready for pairing. 3. Continue according to the instructions in the phones user documentation. The headset passkey is 0000. Putting on the headset 1. Make sure the ear hook forms an angle of 90. 2. Place the ear hook behind your ear. 3. Make sure the microphone is pointing towards your 4. Make sure the speaker is positioned as shown in the r C o m m e mouth. picture. o t f N o 8 Headset overview
