Read this first

Quick Start Guide

Recording movies

Recording/Playing back with ease

Getting started

Step 1: Checking supplied items

Step 2: Charging the battery pack

Using an outside power source

Step 3: Turning the power on

Step 4: Adjusting the LCD panel and viewfinder

Adjusting the LCD panel

Adjusting the viewfinder

Step 5: Setting the date and time

Step 6: Inserting a cassette tape

Step 7: Setting the screen language

Recording

Recording movies

Recording for a longer time

Using zoom

Using the built-in light

Recording in mirror mode

Superimposing the date and time on pictures (TRV128/228/328 /428)

Recording still images – Tape photo recording (TRV260/265)

Recording with ease – Easy Handycam

Adjusting the exposure

Adjusting the exposure for backlit subjects

Adjusting the exposure manually

Recording in dark places – NightShot plus

Adjusting the focus manually

Recording a picture using various effects

Fading in and out of a scene – FADER

Superimposing a title

Searching for the last scene of the most recent recording – END SEARCH

Playback

Viewing pictures recorded on a tape

Playing back in various modes

Playing back with ease – Easy Handycam

Various playback functions

Displaying the screen indicators

Displaying the date/time and camera settings data – Data code (TRV260/265)

Playing the picture on a TV

Locating a scene on a tape for playback (TRV265)

Searching quickly for a desired scene – Zero set memory

Searching for a scene by date of recording – Date search

Searching for a still image – Photo search

Playing back still images in sequence – Photo scan

Advanced operations

Customizing Your Camcorder

Changing the menu settings

Using the (MANUAL SET) menu – PROGRAM AE/P EFFECT, etc.

Using the (CAMERA SET) menu – 16:9 WIDE/STEADYSHOT, etc.

Using the (PLAYER SET)/ (VCR SET) menu – HiFi SOUND/EDIT, etc.

Using the (LCD SET) menu – LCD B.L./LCD COLOR, etc.

Using the (TAPE SET) menu – FRAME REC/ INT.REC, etc.

Using the (SETUP MENU) – CLOCK SET/USB STREAM/ LANGUAGE, etc.

Using the (OTHERS) menu – WORLD TIME/VIDEO EDIT, etc.

Dubbing/Editing

Connecting to a VCR

Dubbing to another tape

Dubbing a tape easily – Easy Dubbing (TRV128/228/328/428)

Recording pictures from a VCR (TRV260/265)

Dubbing selected scenes from a tape – Digital program editing (TRV260/265)

Troubleshooting

Warning indicators and messages

Additional Information

Using your camcorder abroad

Usable cassette tapes

About the “InfoLITHIUM” battery pack

About i.LINK

Maintenance and precautions

Specification

Quick Reference

Identifying parts and controls

Index

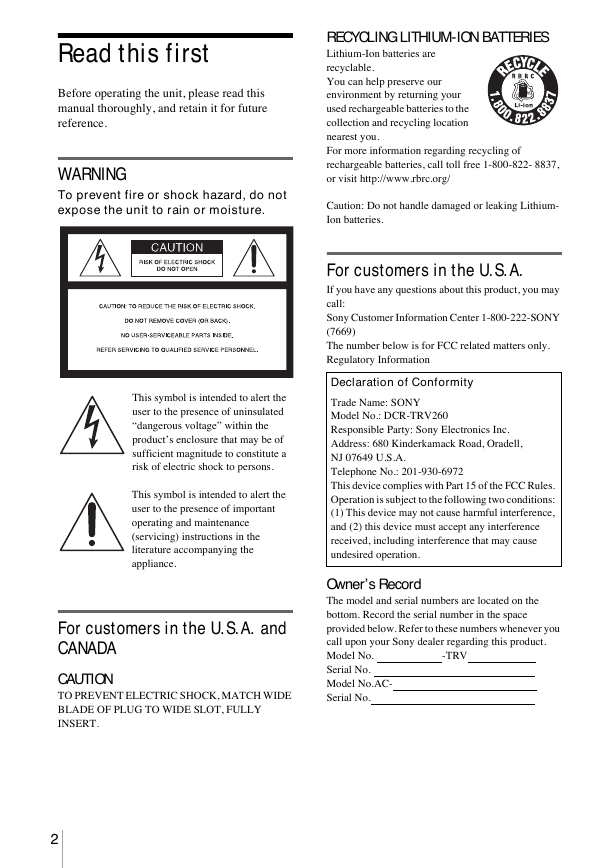

RECYCLING LITHIUM-ION BATTERIES Lithium-Ion batteries are recyclable. You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you. For more information regarding recycling of rechargeable batteries, call toll free 1-800-822- 8837, or visit http://www.rbrc.org/ Caution: Do not handle damaged or leaking Lithium- Ion batteries. For customers in the U.S.A. If you have any questions about this product, you may call: Sony Customer Information Center 1-800-222-SONY (7669) The number below is for FCC related matters only. Regulatory Information Declaration of Conformity Trade Name: SONY Model No.: DCR-TRV260 Responsible Party: Sony Electronics Inc. Address: 680 Kinderkamack Road, Oradell, NJ 07649 U.S.A. Telephone No.: 201-930-6972 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Owner’s Record The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. -TRV Serial No. Model No.AC- Serial No. Read this first Before operating the unit, please read this manual thoroughly, and retain it for future reference. WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. For customers in the U.S.A. and CANADA CAUTION TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. 2

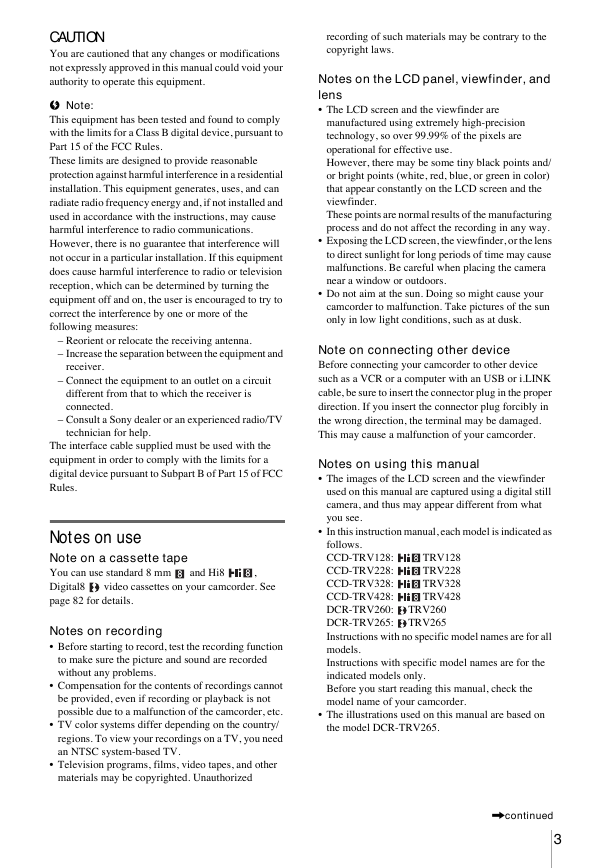

CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. b Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. – Consult a Sony dealer or an experienced radio/TV technician for help. The interface cable supplied must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules. Notes on use Note on a cassette tape You can use standard 8 mm Digital8 page 82 for details. video cassettes on your camcorder. See and Hi8 , Notes on recording Before starting to record, test the recording function to make sure the picture and sound are recorded without any problems. Compensation for the contents of recordings cannot be provided, even if recording or playback is not possible due to a malfunction of the camcorder, etc. TV color systems differ depending on the country/ regions. To view your recordings on a TV, you need an NTSC system-based TV. Television programs, films, video tapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the copyright laws. Notes on the LCD panel, viewfinder, and lens The LCD screen and the viewfinder are manufactured using extremely high-precision technology, so over 99.99% of the pixels are operational for effective use. However, there may be some tiny black points and/ or bright points (white, red, blue, or green in color) that appear constantly on the LCD screen and the viewfinder. These points are normal results of the manufacturing process and do not affect the recording in any way. Exposing the LCD screen, the viewfinder, or the lens to direct sunlight for long periods of time may cause malfunctions. Be careful when placing the camera near a window or outdoors. Do not aim at the sun. Doing so might cause your camcorder to malfunction. Take pictures of the sun only in low light conditions, such as at dusk. Note on connecting other device Before connecting your camcorder to other device such as a VCR or a computer with an USB or i.LINK cable, be sure to insert the connector plug in the proper direction. If you insert the connector plug forcibly in the wrong direction, the terminal may be damaged. This may cause a malfunction of your camcorder. Notes on using this manual The images of the LCD screen and the viewfinder used on this manual are captured using a digital still camera, and thus may appear different from what you see. In this instruction manual, each model is indicated as TRV128 TRV228 TRV328 TRV428 follows. CCD-TRV128: CCD-TRV228: CCD-TRV328: CCD-TRV428: DCR-TRV260: TRV260 DCR-TRV265: TRV265 Instructions with no specific model names are for all models. Instructions with specific model names are for the indicated models only. Before you start reading this manual, check the model name of your camcorder. The illustrations used on this manual are based on the model DCR-TRV265. ,continued 3

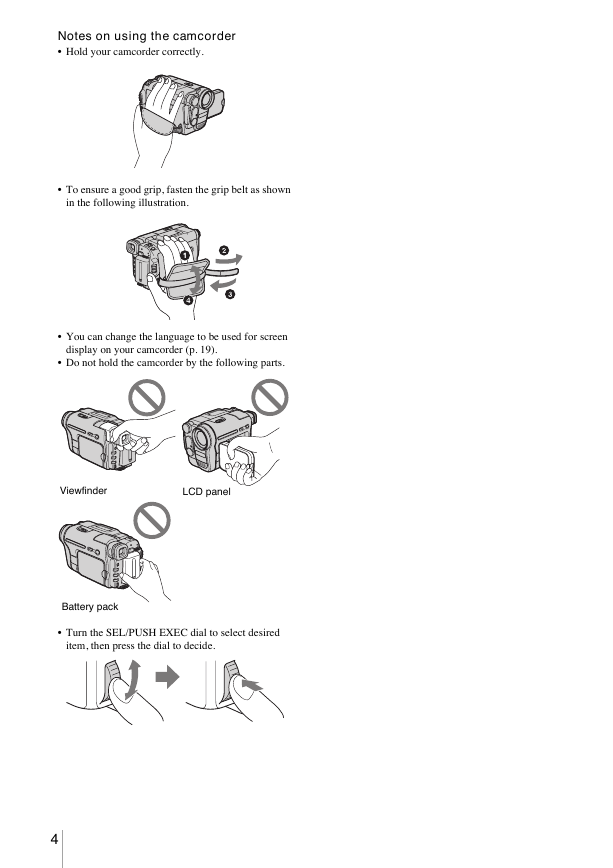

Notes on using the camcorder Hold your camcorder correctly. To ensure a good grip, fasten the grip belt as shown in the following illustration. You can change the language to be used for screen display on your camcorder (p. 19). Do not hold the camcorder by the following parts. Viewfinder LCD panel Battery pack Turn the SEL/PUSH EXEC dial to select desired item, then press the dial to decide. 4

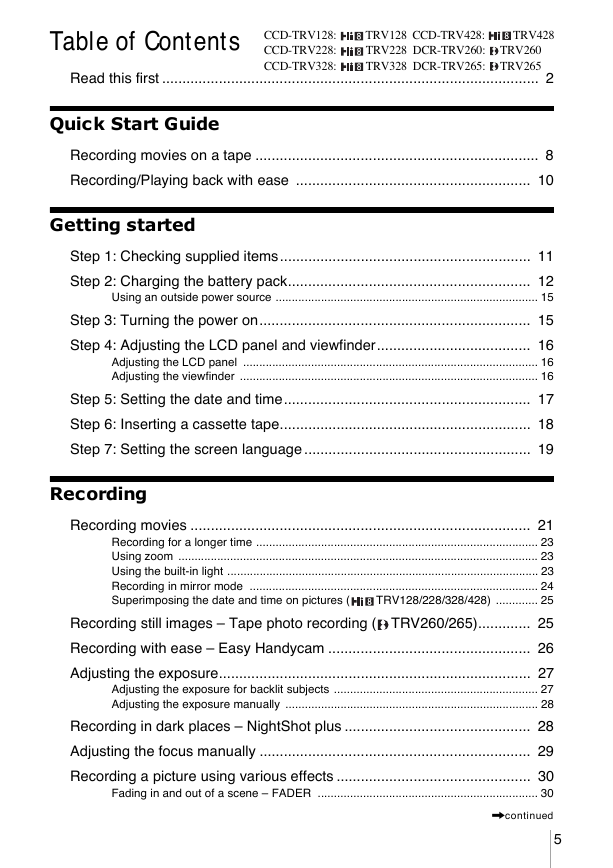

Table of Contents CCD-TRV128: CCD-TRV228: CCD-TRV328: Read this first ............................................................................................. 2 TRV128 CCD-TRV428: TRV228 DCR-TRV260: TRV260 TRV328 DCR-TRV265: TRV265 TRV428 Quick Start Guide Recording movies on a tape ...................................................................... 8 Recording/Playing back with ease .......................................................... 10 Getting started Step 1: Checking supplied items.............................................................. 11 Step 2: Charging the battery pack............................................................ 12 Using an outside power source ................................................................................. 15 Step 3: Turning the power on................................................................... 15 Step 4: Adjusting the LCD panel and viewfinder...................................... 16 Adjusting the LCD panel ........................................................................................... 16 Adjusting the viewfinder ............................................................................................ 16 Step 5: Setting the date and time............................................................. 17 Step 6: Inserting a cassette tape.............................................................. 18 Step 7: Setting the screen language ........................................................ 19 Recording Recording movies .................................................................................... 21 Recording for a longer time ....................................................................................... 23 Using zoom ............................................................................................................... 23 Using the built-in light ................................................................................................ 23 Recording in mirror mode ......................................................................................... 24 TRV128/228/328/428) ............. 25 Superimposing the date and time on pictures ( Recording still images – Tape photo recording ( TRV260/265)............. 25 Recording with ease – Easy Handycam .................................................. 26 Adjusting the exposure............................................................................. 27 Adjusting the exposure for backlit subjects ............................................................... 27 Adjusting the exposure manually .............................................................................. 28 Recording in dark places – NightShot plus .............................................. 28 Adjusting the focus manually ................................................................... 29 Recording a picture using various effects ................................................ 30 Fading in and out of a scene – FADER .................................................................... 30 ,continued 5

Superimposing a title................................................................................ 31 Searching for the last scene of the most recent recording – END SEARCH ................................................................................. 33 Playback Viewing pictures recorded on a tape........................................................ 34 Playing back in various modes .................................................................................. 35 Playing back with ease – Easy Handycam .............................................. 36 Various playback functions ...................................................................... 37 Displaying the screen indicators ................................................................................ 37 Displaying the date/time and camera settings data – Data code ( TRV260/265) .................................................................................................. 37 Playing the picture on a TV ...................................................................... 39 Locating a scene on a tape for playback ( TRV265) ............................. 40 Searching quickly for a desired scene – Zero set memory ........................................ 40 Searching for a scene by date of recording – Date search ....................................... 41 Searching for a still image – Photo search ................................................................ 41 Playing back still images in sequence – Photo scan ................................................. 42 6

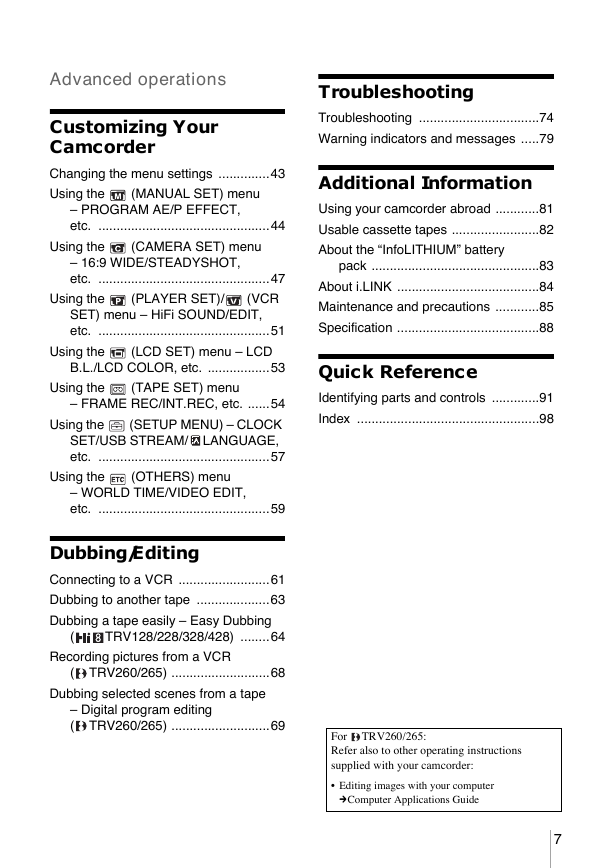

Advanced operations Customizing Your Camcorder Changing the menu settings ..............43 Using the (MANUAL SET) menu – PROGRAM AE/P EFFECT, etc. ...............................................44 Using the (CAMERA SET) menu – 16:9 WIDE/STEADYSHOT, etc. ...............................................47 (VCR (PLAYER SET)/ Using the SET) menu – HiFi SOUND/EDIT, etc. ...............................................51 Using the (LCD SET) menu – LCD B.L./LCD COLOR, etc. .................53 Using the (TAPE SET) menu Using the – FRAME REC/INT.REC, etc. ......54 (SETUP MENU) – CLOCK SET/USB STREAM/ LANGUAGE, etc. ...............................................57 Using the (OTHERS) menu – WORLD TIME/VIDEO EDIT, etc. ...............................................59 Dubbing/Editing Connecting to a VCR .........................61 Dubbing to another tape ....................63 Dubbing a tape easily – Easy Dubbing ( TRV128/228/328/428) ........64 Recording pictures from a VCR ( TRV260/265) ...........................68 Dubbing selected scenes from a tape – Digital program editing ( TRV260/265) ...........................69 Troubleshooting Troubleshooting .................................74 Warning indicators and messages .....79 Additional Information Using your camcorder abroad ............81 Usable cassette tapes ........................82 About the “InfoLITHIUM” battery pack ..............................................83 About i.LINK .......................................84 Maintenance and precautions ............85 Specification .......................................88 Quick Reference Identifying parts and controls .............91 Index ..................................................98 For TRV260/265: Refer also to other operating instructions supplied with your camcorder: Editing images with your computer cComputer Applications Guide 7

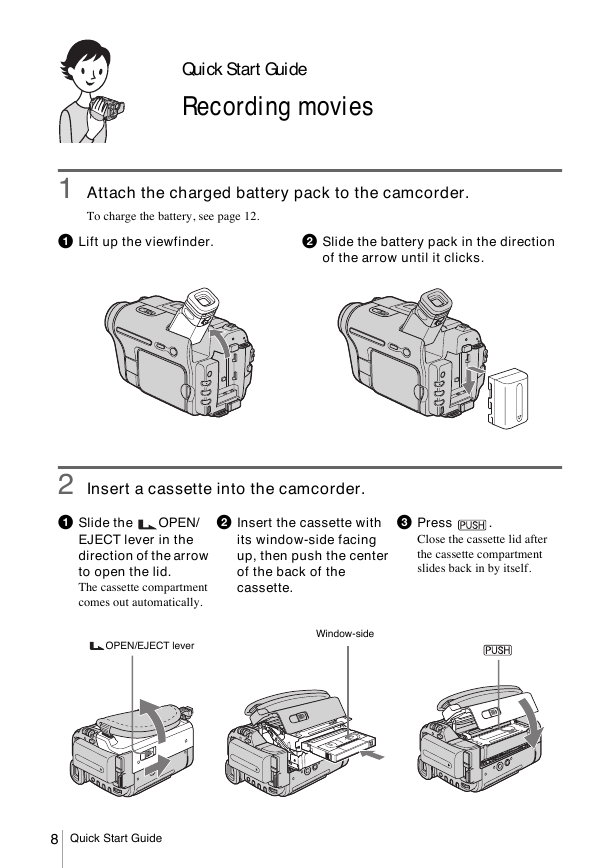

Quick Start Guide Recording movies 1 Attach the charged battery pack to the camcorder. To charge the battery, see page 12. a Lift up the viewfinder. b Slide the battery pack in the direction of the arrow until it clicks. 2 Insert a cassette into the camcorder. a Slide the OPEN/ EJECT lever in the direction of the arrow to open the lid. The cassette compartment comes out automatically. b Insert the cassette with its window-side facing up, then push the center of the back of the cassette. c Press . Close the cassette lid after the cassette compartment slides back in by itself. OPEN/EJECT lever Window-side 8 Quick Start Guide
