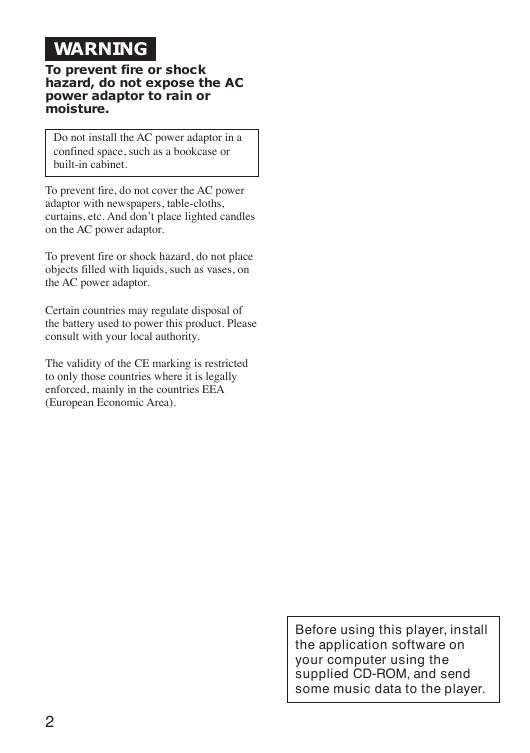

WARNING To prevent fire or shock hazard, do not expose the AC power adaptor to rain or moisture. Do not install the AC power adaptor in a confined space, such as a bookcase or built-in cabinet. To prevent fire, do not cover the AC power adaptor with newspapers, table-cloths, curtains, etc. And don’t place lighted candles on the AC power adaptor. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the AC power adaptor. Certain countries may regulate disposal of the battery used to power this product. Please consult with your local authority. The validity of the CE marking is restricted to only those countries where it is legally enforced, mainly in the countries EEA (European Economic Area). Before using this player, install the application software on your computer using the supplied CD-ROM, and send some music data to the player. 2

Table of Contents Overview What you can do with your player ............. 4 Main features .............................................. 6 Getting started Step 1: Check the package contents ........... 7 Step 2: Charge ............................................ 8 Locating controls ...................................... 10 Basic operations Listening to music .................................... 13 1. Connect the remote control and the headphones. .......................................... 13 2. Turn the power on. ................................ 13 3. Select a track. ....................................... 14 4. Start playback. ...................................... 15 Using the FAVORITE ............................... 18 Playing tracks in a Playlist ....................... 20 Protecting the hard disk drive during exercise (Music Charger) ..................... 20 Locking the controls (HOLD) .................. 21 Storing data other than audio files ............ 22 B Sound options Emphasizing the bass sound (Bass Boost) ......................................... 23 Changing the sound quality (Equalizer) ... 23 B Various playback Playing tracks repeatedly (Repeat play) ... 24 Playing tracks in random order (Shuffle play) ........................................ 24 Playing the first portion of tracks in order (Intro Scan play) ................................... 25 B Adjusting the settings of the player Changing the display pattern .................... 26 Changing the backlight setting ................. 27 Adjusting the display contrast .................. 27 Turning off the beep sound ....................... 28 Starting playback from the last stopped position (Resume) ............................... 28 Turning off the power automatically (Auto Power Off) .................................. 29 Turning off the power after a specified time (Sleep) .......................................... 29 Changing the display language ................. 30 Initializing all settings in the menu .......... 30 Checking the hard disk usage ................... 31 Checking the firmware version ................. 31 B Additional information Setup menu items ..................................... 32 Precautions ............................................... 34 Cleaning .................................................... 35 Notes on the power source ....................... 35 When disposing of the player ................... 36 Troubleshooting ........................................ 37 Messages .................................................. 40 Specifications ........................................... 41 Index ......................................................... 42 3

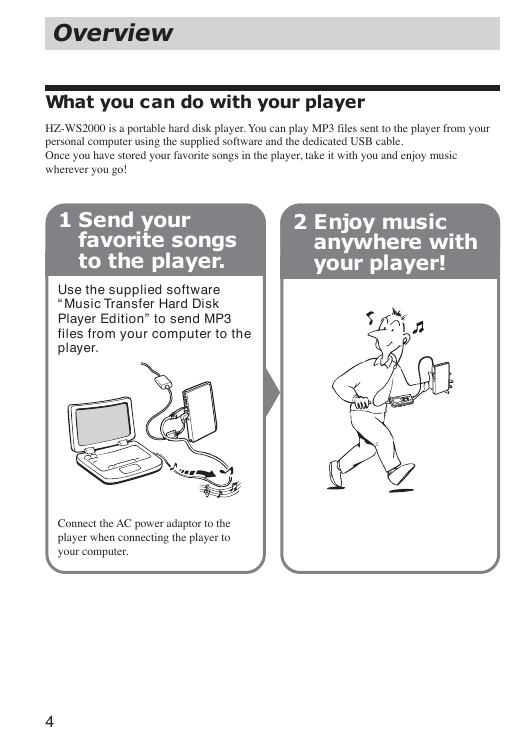

Overview What you can do with your player HZ-WS2000 is a portable hard disk player. You can play MP3 files sent to the player from your personal computer using the supplied software and the dedicated USB cable. Once you have stored your favorite songs in the player, take it with you and enjoy music wherever you go! 2 Enjoy music anywhere with your player! 1 Send your favorite songs to the player. Use the supplied software “Music Transfer Hard Disk Player Edition” to send MP3 files from your computer to the player. Connect the AC power adaptor to the player when connecting the player to your computer. 4

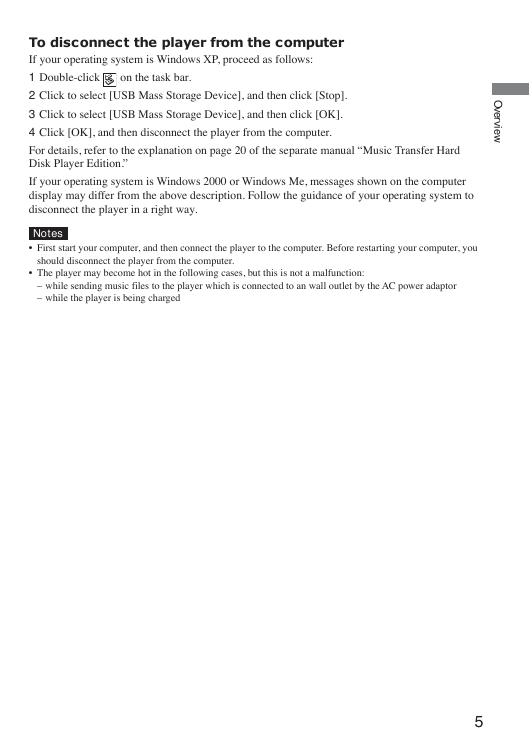

on the task bar. To disconnect the player from the computer If your operating system is Windows XP, proceed as follows: 1 Double-click 2 Click to select [USB Mass Storage Device], and then click [Stop]. 3 Click to select [USB Mass Storage Device], and then click [OK]. 4 Click [OK], and then disconnect the player from the computer. For details, refer to the explanation on page 20 of the separate manual “Music Transfer Hard Disk Player Edition.” If your operating system is Windows 2000 or Windows Me, messages shown on the computer display may differ from the above description. Follow the guidance of your operating system to disconnect the player in a right way. O v e r v i e w Notes • First start your computer, and then connect the player to the computer. Before restarting your computer, you should disconnect the player from the computer. • The player may become hot in the following cases, but this is not a malfunction: – while sending music files to the player which is connected to an wall outlet by the AC power adaptor – while the player is being charged 5

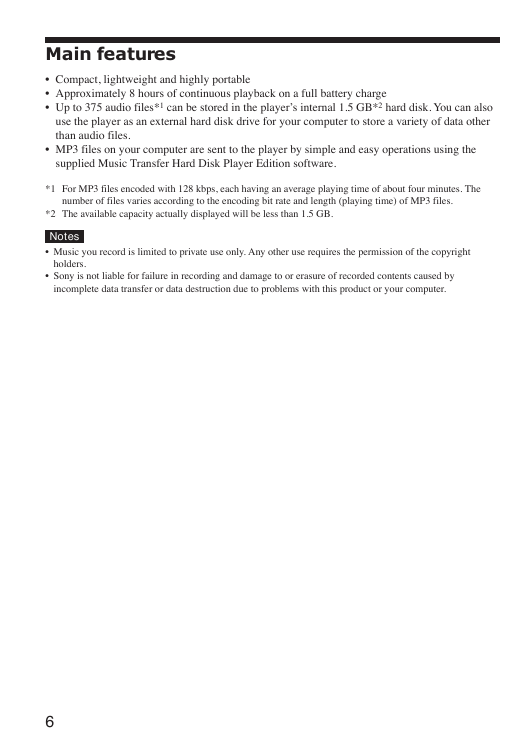

Main features • Compact, lightweight and highly portable • Approximately 8 hours of continuous playback on a full battery charge • Up to 375 audio files*1 can be stored in the player’s internal 1.5 GB*2 hard disk. You can also use the player as an external hard disk drive for your computer to store a variety of data other than audio files. • MP3 files on your computer are sent to the player by simple and easy operations using the supplied Music Transfer Hard Disk Player Edition software. *1 For MP3 files encoded with 128 kbps, each having an average playing time of about four minutes. The number of files varies according to the encoding bit rate and length (playing time) of MP3 files. *2 The available capacity actually displayed will be less than 1.5 GB. Notes • Music you record is limited to private use only. Any other use requires the permission of the copyright holders. • Sony is not liable for failure in recording and damage to or erasure of recorded contents caused by incomplete data transfer or data destruction due to problems with this product or your computer. 6

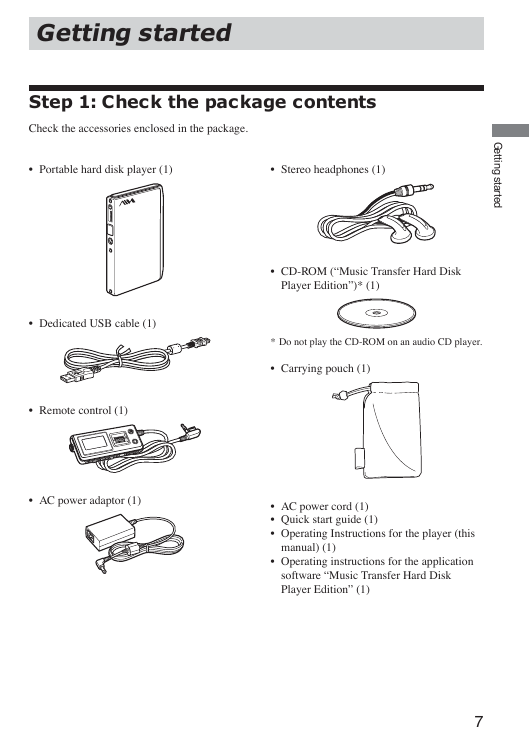

Getting started Step 1: Check the package contents Check the accessories enclosed in the package. • Portable hard disk player (1) • Stereo headphones (1) G e t t i n g s t a r t e d • Dedicated USB cable (1) • Remote control (1) • AC power adaptor (1) • CD-ROM (“Music Transfer Hard Disk Player Edition”)* (1) * Do not play the CD-ROM on an audio CD player. • Carrying pouch (1) • AC power cord (1) • Quick start guide (1) • Operating Instructions for the player (this manual) (1) • Operating instructions for the application software “Music Transfer Hard Disk Player Edition” (1) 7

Step 2: Charge First connect the AC power adaptor to the DC IN 5.2V jack on the player, and then connect to an wall outlet. You can start using the player while charging, with the AC power adaptor connected to the player and to an wall outlet. LED indicator to DC IN 5.2V jack to an wall outlet AC power adaptor As charging proceeds, the red LED indicator on the player lights up, and the battery level indication in the display changes as follows: It usually takes about 1.5 hours* to charge the completely drained battery to 80 percent capacity. At this point, “ After about 1.5 more hours*, the battery will be fully charged. ” appears in the display and the LED indicator goes off. * When charging at room temperature. It takes more time for charging if the surrounding temperature is low. When to charge the rechargeable battery Check the remaining power of the battery occasionally when using the player without connecting the AC power adaptor. The battery level indication in the display changes as follows: Charge the battery when the battery level indication becomes “ .” Battery duration Approximately 8 hours (fully charged) 8
