EIKI爱其投影机-EIP-UHS100说明书.pdf
Owner's Manual
PO WER
STATUS
LAMP 1
LAMP 2
TEMP.
SHUTTER
Multimedia Projector
Model EIP-UHS100
EIP-XHS100
(Projection lens is optional.)

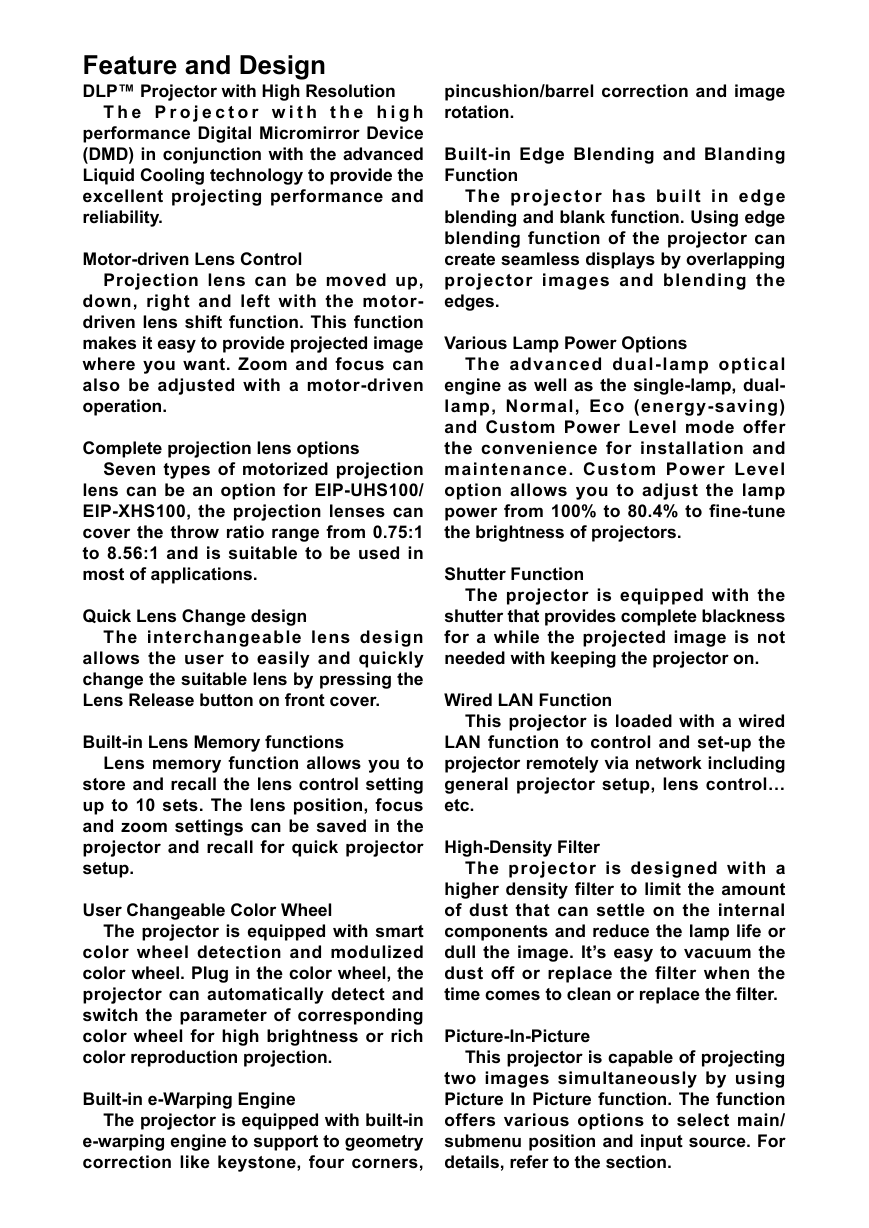

Feature and Design
DLP™ Projector with High Resolution
T h e P r o j e c t o r w i t h t h e h i g h
performance Digital Micromirror Device
(DMD) in conjunction with the advanced
Liquid Cooling technology to provide the
excellent projecting performance and
reliability.
Motor-driven Lens Control
Projection lens can be moved up,
down, right and left with the motor-
driven lens shift function. This function
makes it easy to provide projected image
where you want. Zoom and focus can
also be adjusted with a motor-driven
operation.
Complete projection lens options
Seven types of motorized projection
lens can be an option for EIP-UHS100/
EIP-XHS100, the projection lenses can
cover the throw ratio range from 0.75:1
to 8.56:1 and is suitable to be used in
most of applications.
Quick Lens Change design
The interchangeable lens design
allows the user to easily and quickly
change the suitable lens by pressing the
Lens Release button on front cover.
Built-in Lens Memory functions
Lens memory function allows you to
store and recall the lens control setting
up to 10 sets. The lens position, focus
and zoom settings can be saved in the
projector and recall for quick projector
setup.
User Changeable Color Wheel
The projector is equipped with smart
color wheel detection and modulized
color wheel. Plug in the color wheel, the
projector can automatically detect and
switch the parameter of corresponding
color wheel for high brightness or rich
color reproduction projection.
Built-in e-Warping Engine
The projector is equipped with built-in
e-warping engine to support to geometry
correction like keystone, four corners,
pincushion/barrel correction and image
rotation.
Built-in Edge Blending and Blanding
Function
The projector has built in edge
blending and blank function. Using edge
blending function of the projector can
create seamless displays by overlapping
projector images and blending the
edges.
Various Lamp Power Options
The advanced dual-lamp optical
engine as well as the single-lamp, dual-
lamp, Normal, Eco (energy-saving)
and Custom Power Level mode offer
the convenience for installation and
maintenance. Custom Power Level
option allows you to adjust the lamp
power from 100% to 80.4% to fine-tune
the brightness of projectors.
Shutter Function
The projector is equipped with the
shutter that provides complete blackness
for a while the projected image is not
needed with keeping the projector on.
Wired LAN Function
This projector is loaded with a wired
LAN function to control and set-up the
projector remotely via network including
general projector setup, lens control…
etc.
High-Density Filter
The projector is designed with a
higher density filter to limit the amount
of dust that can settle on the internal
components and reduce the lamp life or
dull the image. It’s easy to vacuum the
dust off or replace the filter when the
time comes to clean or replace the filter.
Picture-In-Picture
This projector is capable of projecting
two images simultaneously by using
Picture In Picture function. The function
offers various options to select main/
submenu position and input source. For
details, refer to the section.

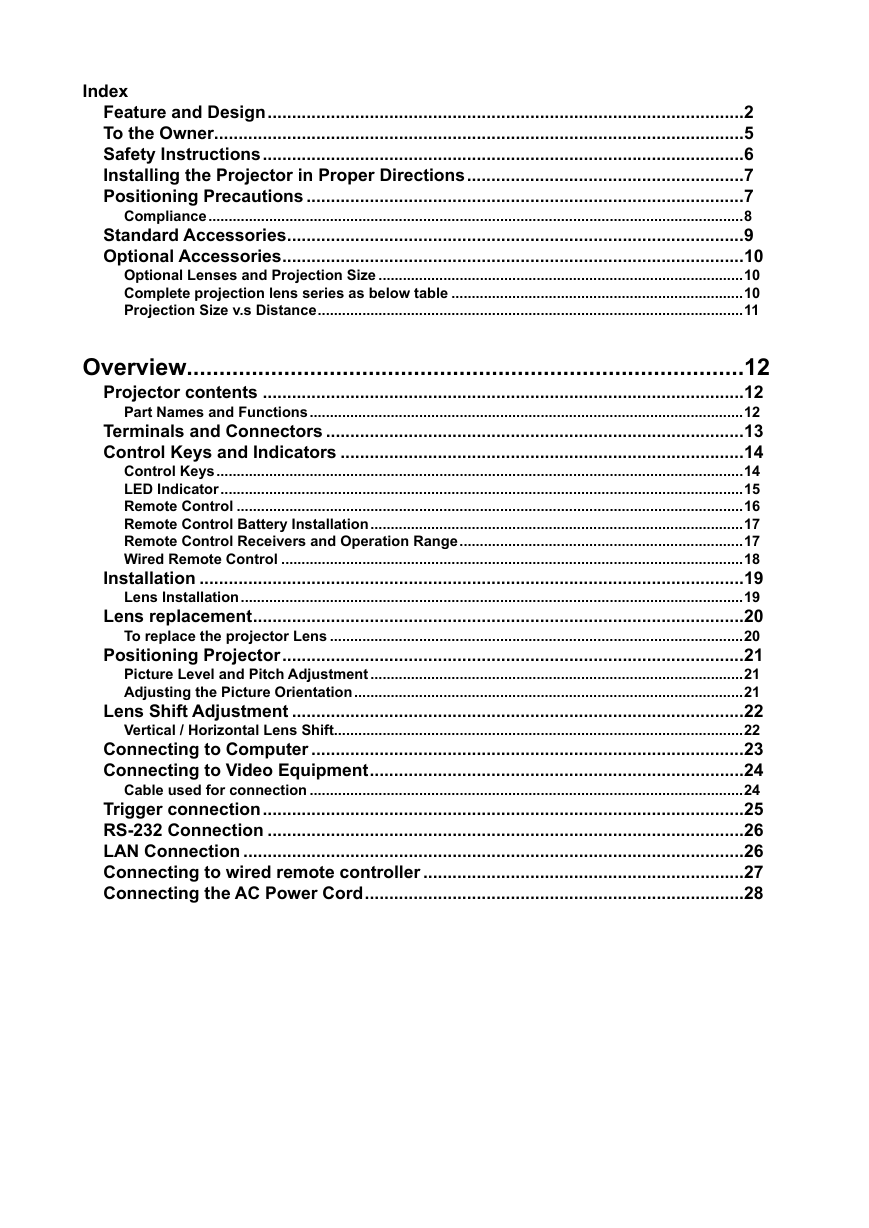

Index
Feature and Design ..................................................................................................2
To the Owner .............................................................................................................5
Safety Instructions ...................................................................................................6
Installing the Projector in Proper Directions .........................................................7
Positioning Precautions ..........................................................................................7

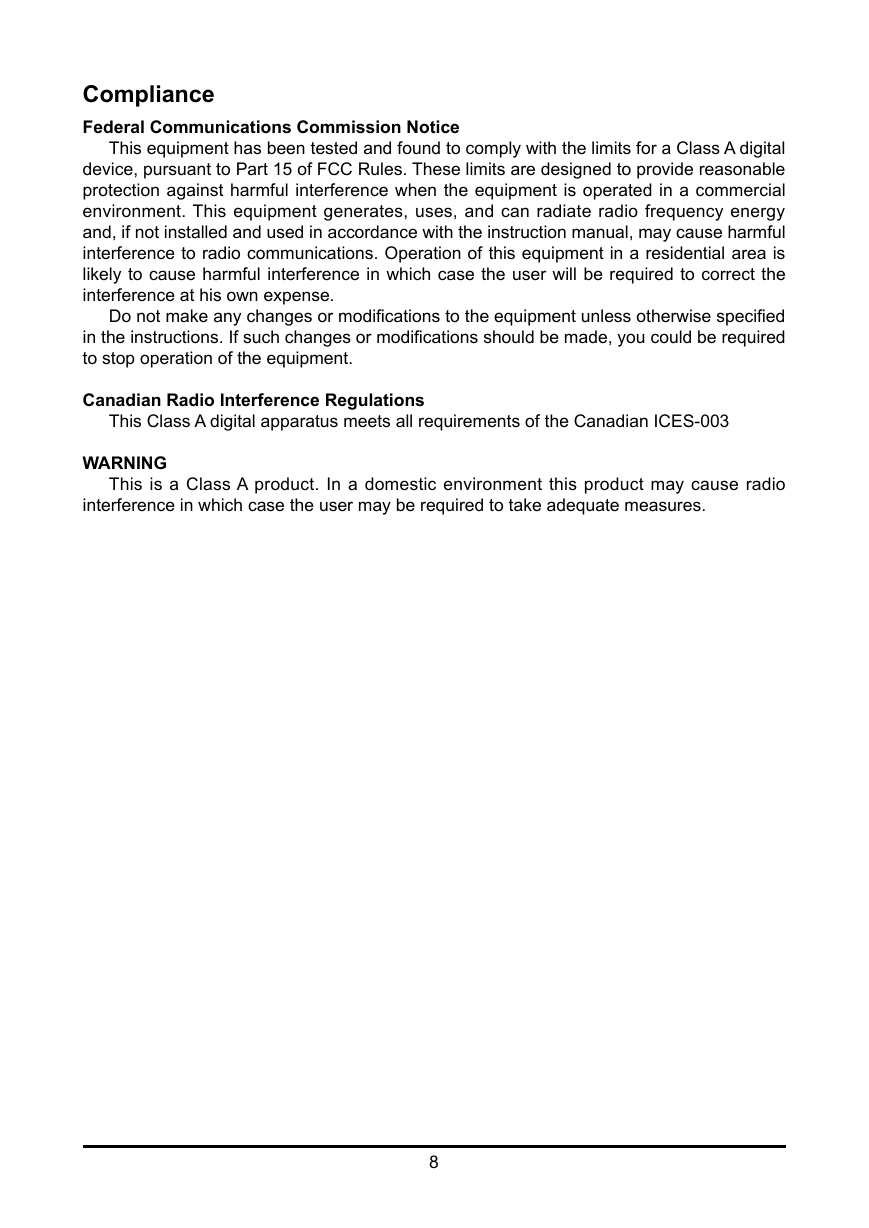

Compliance ....................................................................................................................................8
Standard Accessories ..............................................................................................9
Optional Accessories ...............................................................................................10
Optional Lenses and Projection Size ..........................................................................................10
Complete projection lens series as below table ........................................................................10
Projection Size v.s Distance .........................................................................................................11
Overview......................................................................................12
Projector contents ...................................................................................................12
Part Names and Functions ...........................................................................................................12
Terminals and Connectors ......................................................................................13
Control Keys and Indicators ...................................................................................14
Control Keys ..................................................................................................................................14
LED Indicator .................................................................................................................................15
Remote Control .............................................................................................................................16
Remote Control Battery Installation ............................................................................................17
Remote Control Receivers and Operation Range ......................................................................17
Wired Remote Control ..................................................................................................................18
Installation ................................................................................................................19
Lens Installation ............................................................................................................................19
Lens replacement .....................................................................................................20
To replace the projector Lens ......................................................................................................20
Positioning Projector ...............................................................................................21
Picture Level and Pitch Adjustment ............................................................................................21
Adjusting the Picture Orientation ................................................................................................21
Lens Shift Adjustment .............................................................................................22
Vertical / Horizontal Lens Shift.....................................................................................................22
Connecting to Computer .........................................................................................23
Connecting to Video Equipment .............................................................................24
Cable used for connection ...........................................................................................................24
Trigger connection ...................................................................................................25
RS-232 Connection ..................................................................................................26
LAN Connection .......................................................................................................26
Connecting to wired remote controller ..................................................................27
Connecting the AC Power Cord ..............................................................................28

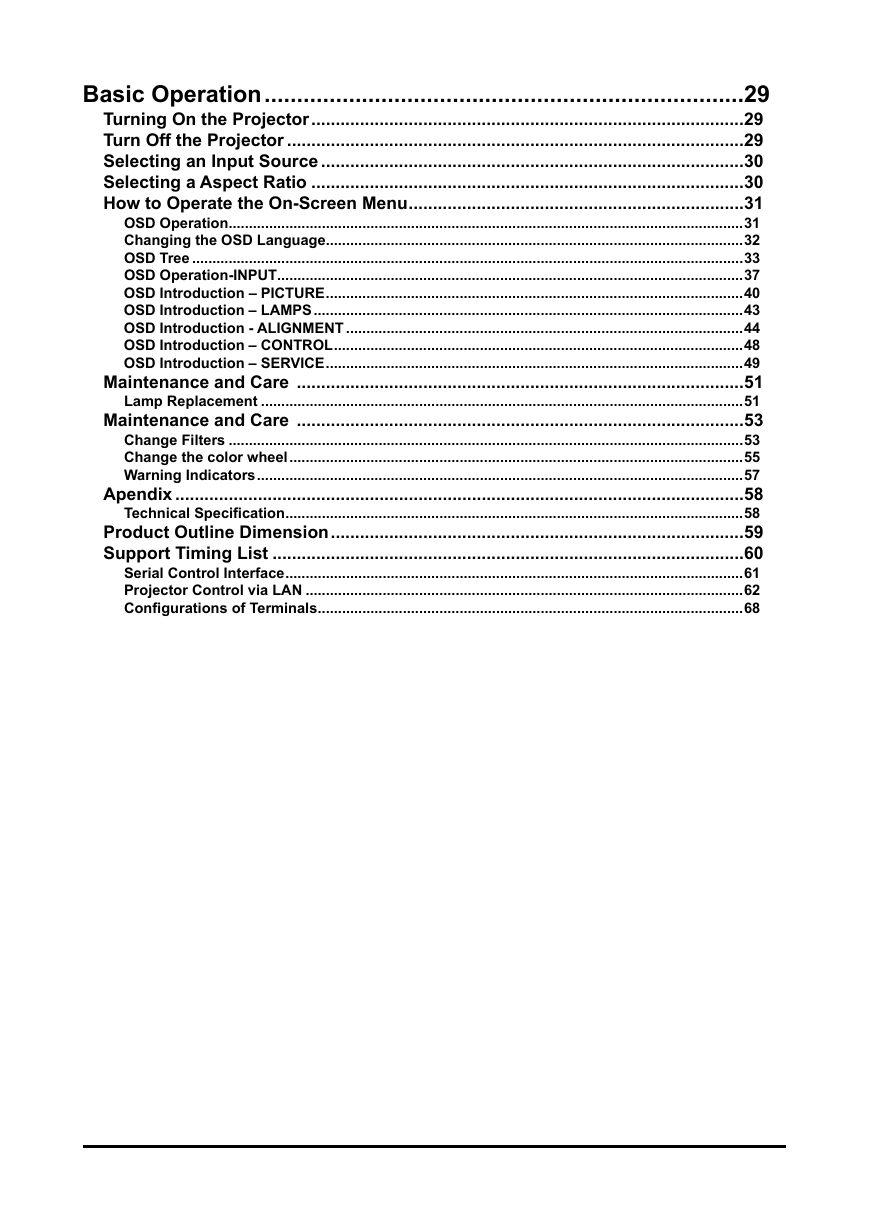

Basic Operation ..........................................................................29
Turning On the Projector .........................................................................................29
Turn Off the Projector ..............................................................................................29
Selecting an Input Source .......................................................................................30
Selecting a Aspect Ratio .........................................................................................30
How to Operate the On-Screen Menu .....................................................................31
OSD Operation...............................................................................................................................31
Changing the OSD Language .......................................................................................................32
OSD Tree ........................................................................................................................................33
OSD Operation-INPUT ...................................................................................................................37
OSD Introduction – PICTURE .......................................................................................................40
OSD Introduction – LAMPS ..........................................................................................................43
OSD Introduction - ALIGNMENT ..................................................................................................44
OSD Introduction – CONTROL .....................................................................................................48
OSD Introduction – SERVICE .......................................................................................................49
Maintenance and Care ............................................................................................51
Lamp Replacement .......................................................................................................................51
Maintenance and Care ............................................................................................53
Change Filters ...............................................................................................................................53
Change the color wheel ................................................................................................................55
Warning Indicators ........................................................................................................................57
Apendix .....................................................................................................................58
Technical Specification .................................................................................................................58
Product Outline Dimension .....................................................................................59
Support Timing List .................................................................................................60
Serial Control Interface .................................................................................................................61
Projector Control via LAN ............................................................................................................62
Configurations of Terminals .........................................................................................................68

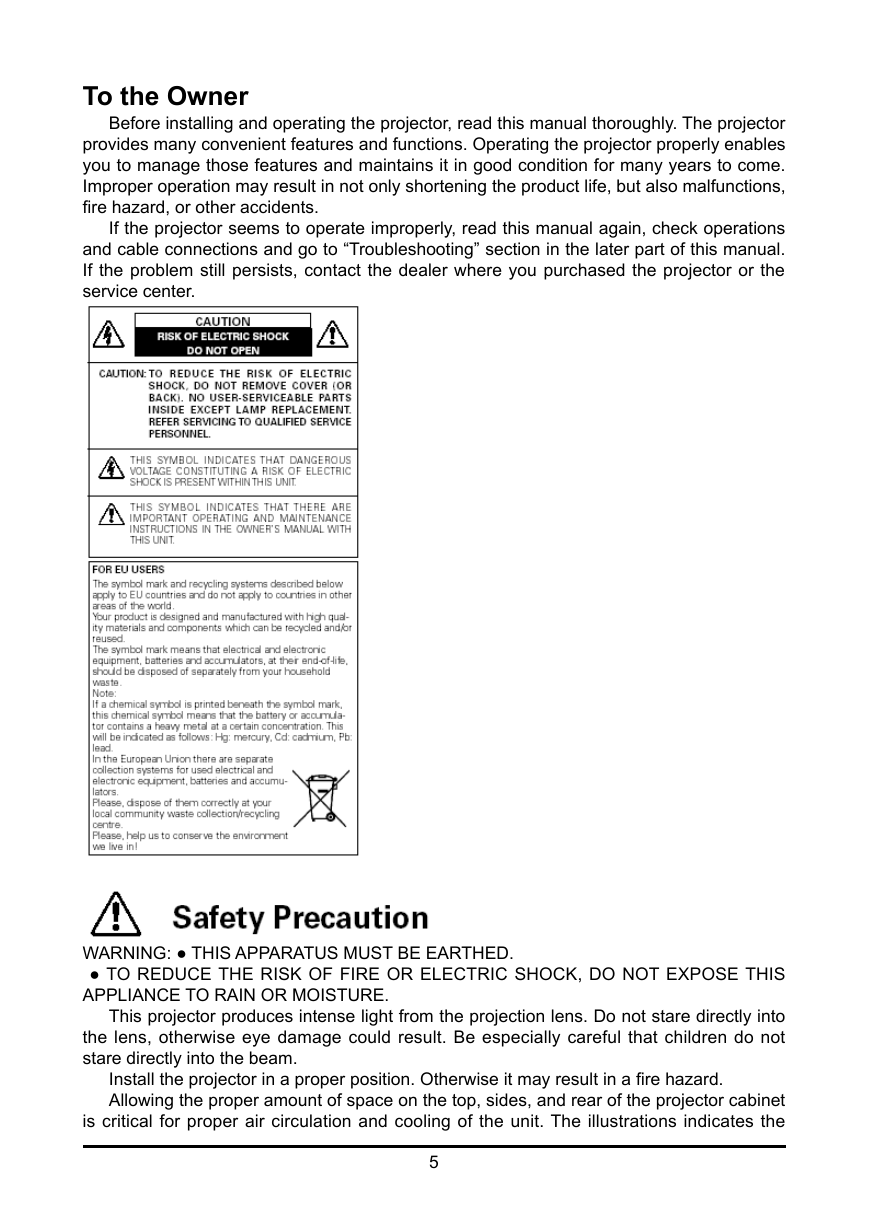

To the Owner
Before installing and operating the projector, read this manual thoroughly. The projector
provides many convenient features and functions. Operating the projector properly enables
you to manage those features and maintains it in good condition for many years to come.
Improper operation may result in not only shortening the product life, but also malfunctions,
fire hazard, or other accidents.
If the projector seems to operate improperly, read this manual again, check operations
and cable connections and go to “Troubleshooting” section in the later part of this manual.
If the problem still persists, contact the dealer where you purchased the projector or the
service center.
WARNING: ● THIS APPARATUS MUST BE EARTHED.
● TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
This projector produces intense light from the projection lens. Do not stare directly into
the lens, otherwise eye damage could result. Be especially careful that children do not
stare directly into the beam.
Allowing the proper amount of space on the top, sides, and rear of the projector cabinet
is critical for proper air circulation and cooling of the unit. The illustrations indicates the
Install the projector in a proper position. Otherwise it may result in a fire hazard.
5

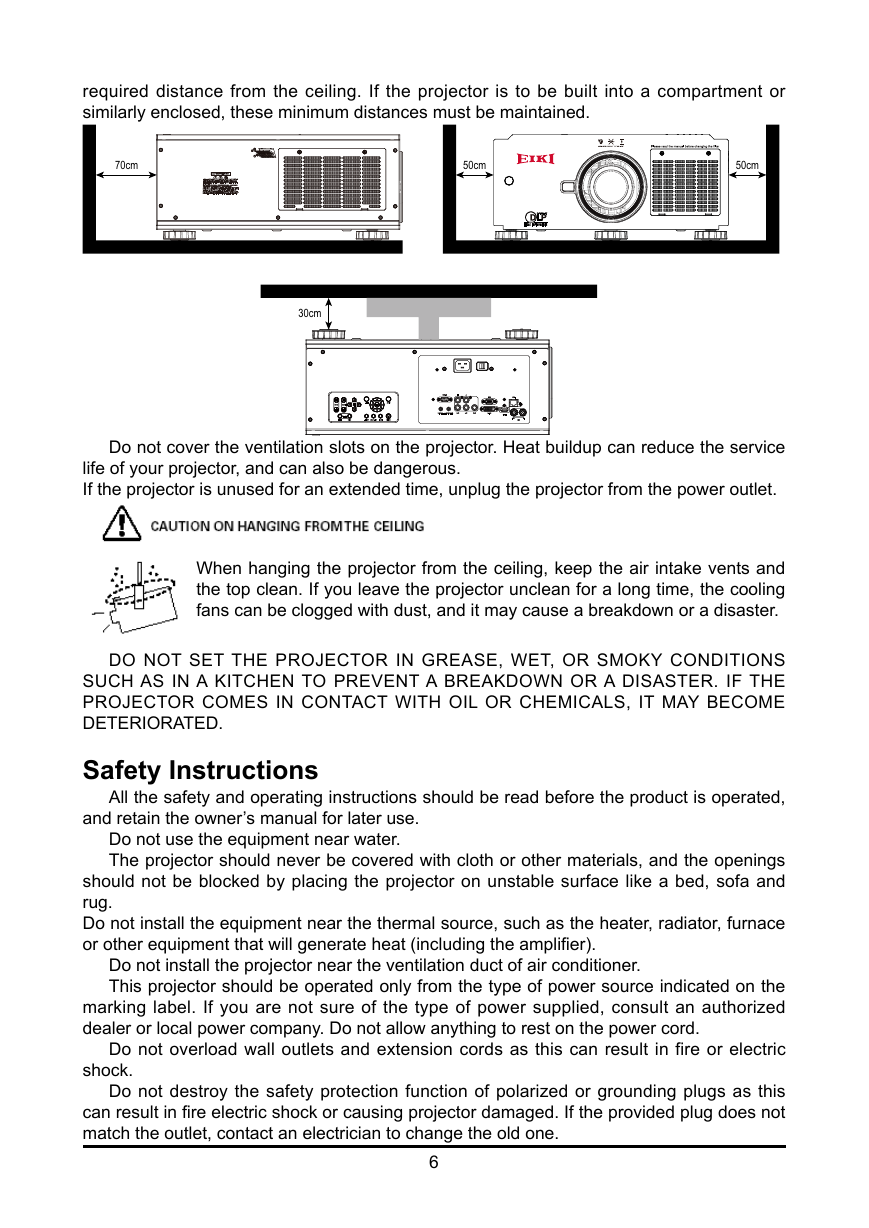

required distance from the ceiling. If the projector is to be built into a compartment or
similarly enclosed, these minimum distances must be maintained.
70cm
50cm
50cm
30cm
Do not cover the ventilation slots on the projector. Heat buildup can reduce the service
life of your projector, and can also be dangerous.
If the projector is unused for an extended time, unplug the projector from the power outlet.
When hanging the projector from the ceiling, keep the air intake vents and
the top clean. If you leave the projector unclean for a long time, the cooling
fans can be clogged with dust, and it may cause a breakdown or a disaster.
DO NOT SET THE PROJECTOR IN GREASE, WET, OR SMOKY CONDITIONS
SUCH AS IN A KITCHEN TO PREVENT A BREAKDOWN OR A DISASTER. IF THE
PROJECTOR COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAY BECOME
DETERIORATED.
Safety Instructions
All the safety and operating instructions should be read before the product is operated,
and retain the owner’s manual for later use.
Do not use the equipment near water.
The projector should never be covered with cloth or other materials, and the openings
should not be blocked by placing the projector on unstable surface like a bed, sofa and
rug.
Do not install the equipment near the thermal source, such as the heater, radiator, furnace
or other equipment that will generate heat (including the amplifier).
Do not install the projector near the ventilation duct of air conditioner.
This projector should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supplied, consult an authorized
dealer or local power company. Do not allow anything to rest on the power cord.
Do not overload wall outlets and extension cords as this can result in fire or electric
shock.
Do not destroy the safety protection function of polarized or grounding plugs as this
can result in fire electric shock or causing projector damaged. If the provided plug does not
match the outlet, contact an electrician to change the old one.
6

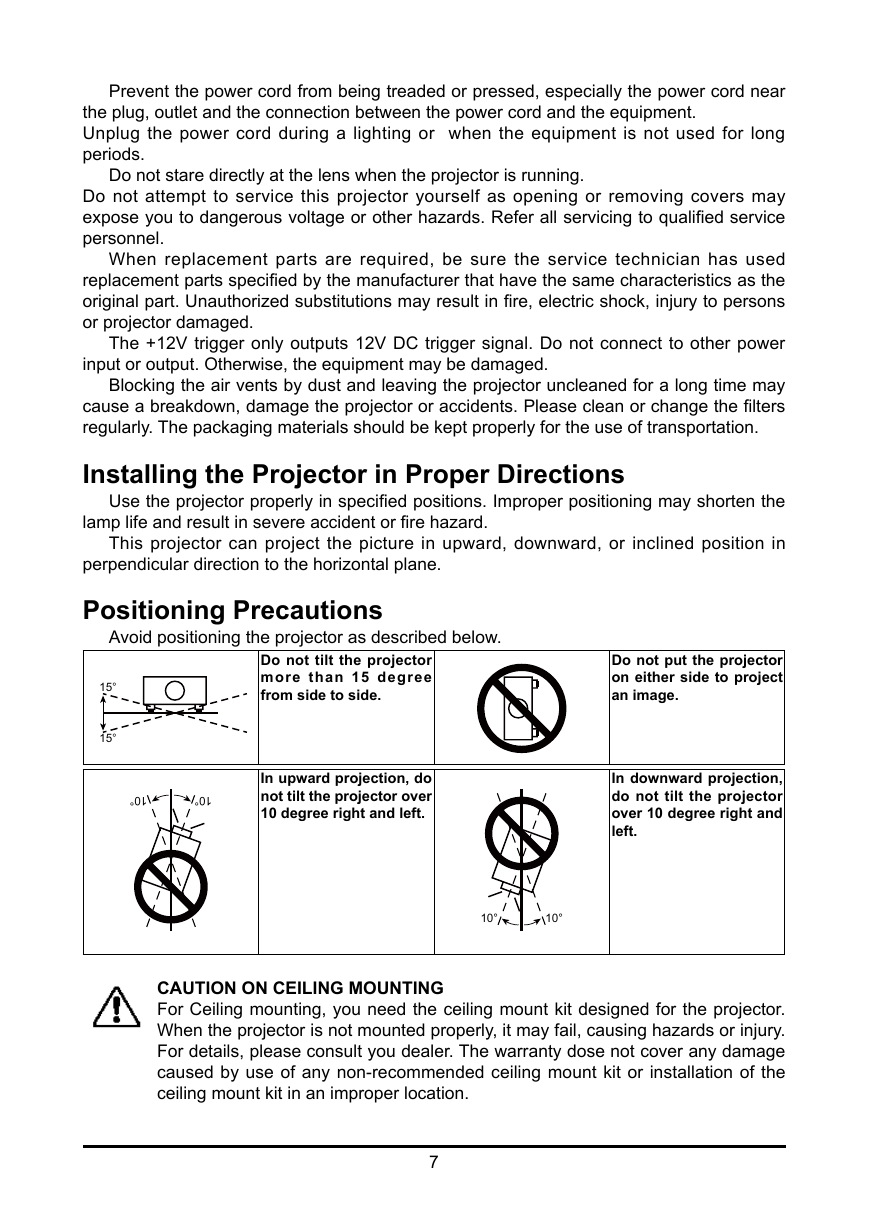

The +12V trigger only outputs 12V DC trigger signal. Do not connect to other power
Prevent the power cord from being treaded or pressed, especially the power cord near
the plug, outlet and the connection between the power cord and the equipment.
Unplug the power cord during a lighting or when the equipment is not used for long
periods.
Do not stare directly at the lens when the projector is running.
Do not attempt to service this projector yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire, electric shock, injury to persons
or projector damaged.
input or output. Otherwise, the equipment may be damaged.
Blocking the air vents by dust and leaving the projector uncleaned for a long time may
cause a breakdown, damage the projector or accidents. Please clean or change the filters
regularly. The packaging materials should be kept properly for the use of transportation.
Installing the Projector in Proper Directions
Use the projector properly in specified positions. Improper positioning may shorten the
lamp life and result in severe accident or fire hazard.
perpendicular direction to the horizontal plane.
Positioning Precautions
Avoid positioning the projector as described below.
This projector can project the picture in upward, downward, or inclined position in
Do not tilt the projector
more than 15 degree
from side to side.
Do not put the projector
on either side to project
an image.
15°
15°
10°
10°
In upward projection, do
not tilt the projector over
10 degree right and left.
In downward projection,
do not tilt the projector
over 10 degree right and
left.
10°
10°
CAUTION ON CEILING MOUNTING
For Ceiling mounting, you need the ceiling mount kit designed for the projector.
When the projector is not mounted properly, it may fail, causing hazards or injury.
For details, please consult you dealer. The warranty dose not cover any damage
caused by use of any non-recommended ceiling mount kit or installation of the
ceiling mount kit in an improper location.
7
Compliance
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Do not make any changes or modifications to the equipment unless otherwise specified
in the instructions. If such changes or modifications should be made, you could be required
to stop operation of the equipment.
Canadian Radio Interference Regulations
This Class A digital apparatus meets all requirements of the Canadian ICES-003
WARNING
interference in which case the user may be required to take adequate measures.
This is a Class A product. In a domestic environment this product may cause radio
8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
