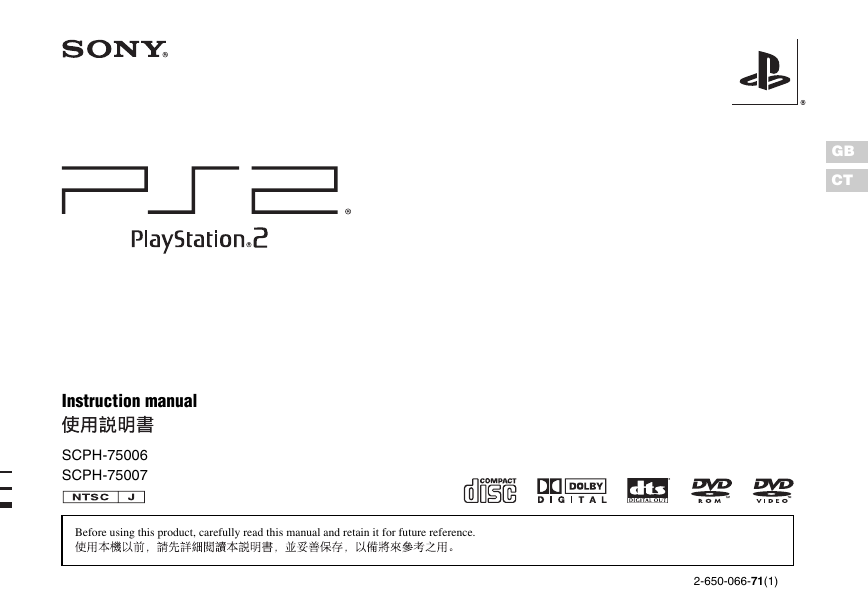

SONY索尼掌上无线-SONY PS2(SCPH-75006CB)说明书.pdf
GB
CT
Instruction manual
SCPH-75006
SCPH-75007
Before using this product, carefully read this manual and retain it for future reference.
2-650-066-71(1)
Some PlayStation® or PlayStation®2 format software titles may perform differently
on this console than they do on previous PlayStation®2 or PlayStation® consoles, or
may not perform properly on this console. For more information, call the
PlayStation® service line at the number listed on your warranty card for technical
assistance.

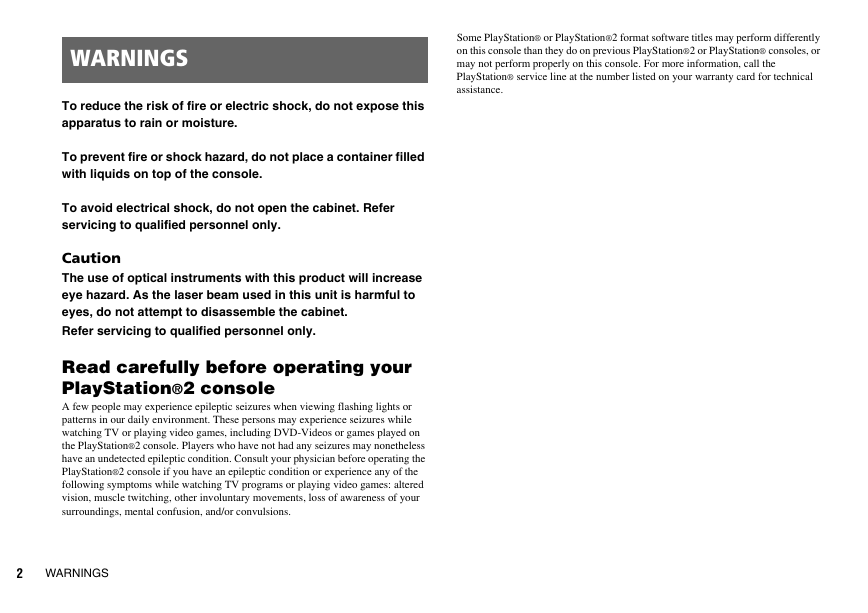

WARNINGS
To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.
To prevent fire or shock hazard, do not place a container filled
with liquids on top of the console.
To avoid electrical shock, do not open the cabinet. Refer
servicing to qualified personnel only.
Caution
The use of optical instruments with this product will increase
eye hazard. As the laser beam used in this unit is harmful to
eyes, do not attempt to disassemble the cabinet.
Refer servicing to qualified personnel only.
Read carefully before operating your
PlayStation®2 console
A few people may experience epileptic seizures when viewing flashing lights or
patterns in our daily environment. These persons may experience seizures while
watching TV or playing video games, including DVD-Videos or games played on
the PlayStation®2 console. Players who have not had any seizures may nonetheless
have an undetected epileptic condition. Consult your physician before operating the
PlayStation®2 console if you have an epileptic condition or experience any of the
following symptoms while watching TV programs or playing video games: altered
vision, muscle twitching, other involuntary movements, loss of awareness of your
surroundings, mental confusion, and/or convulsions.
2
WARNINGS
Main menu
Displaying the main menu............................................................34
Using the Browser screen.............................................................34
Using the System Configuration menu.........................................35
Using the Version Information screen..........................................38
Networking
Connecting to a network...............................................................41
Creating network settings .............................................................43
Additional information
Compatible software.....................................................................44
Accessories ...................................................................................45
WARRANTY ...............................................................................46
Specifications ...............................................................................46
Troubleshooting............................................................................48
GB
Table of contents
WARNINGS .................................................................................. 2
Precautions..................................................................................... 4
Preparation
Getting started................................................................................ 7
Part names...................................................................................... 8
Connecting to a TV........................................................................ 9
Connecting digital audio equipment ............................................ 11
Connecting the controller............................................................. 11
Connecting the AC adaptor and AC power cord ......................... 12
Turning the console on and off .................................................... 13
Games
Playing a game............................................................................. 14
Using memory cards .................................................................... 17
Audio CDs
Playing an audio CD .................................................................... 19
DVDs
Watching a DVD.......................................................................... 21
Using the playback modes ........................................................... 25
Adjusting DVD player settings.................................................... 27
Table of contents
3
Health
Stop using the console immediately if you experience any of the following
symptoms. If the condition persists, consult a doctor.
– Lightheadedness, nausea, or a sensation similar to motion sickness
– Tired, uncomfortable or aching hands or arms
– Tired, dry or aching eyes
When operating the unit, play in a well-lit room and keep a safe distance from the
TV screen.
Avoid prolonged use of the console. Take a break of about 15 minutes during every
hour of play.
Do not use the console when you are tired or short of sleep.
Listening to sound continuously for a long time with a high volume may adversely
affect the ears. Be careful especially when using headphones. Adjust the volume
so that surrounding sounds can be heard.

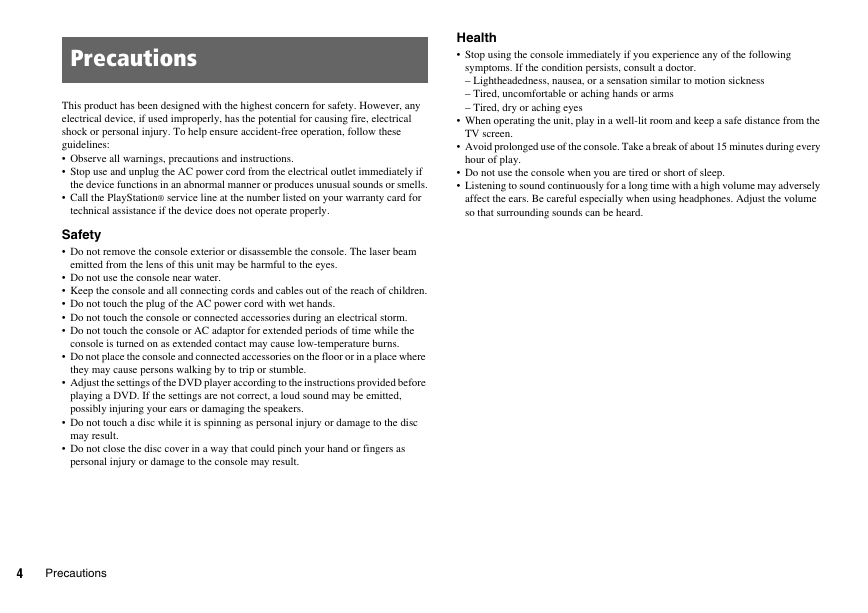

Precautions
This product has been designed with the highest concern for safety. However, any
electrical device, if used improperly, has the potential for causing fire, electrical
shock or personal injury. To help ensure accident-free operation, follow these
guidelines:
Observe all warnings, precautions and instructions.
Stop use and unplug the AC power cord from the electrical outlet immediately if
the device functions in an abnormal manner or produces unusual sounds or smells.
Call the PlayStation® service line at the number listed on your warranty card for
technical assistance if the device does not operate properly.
Safety
Do not remove the console exterior or disassemble the console. The laser beam
emitted from the lens of this unit may be harmful to the eyes.
Do not use the console near water.
Keep the console and all connecting cords and cables out of the reach of children.
Do not touch the plug of the AC power cord with wet hands.
Do not touch the console or connected accessories during an electrical storm.
Do not touch the console or AC adaptor for extended periods of time while the
console is turned on as extended contact may cause low-temperature burns.
Do not place the console and connected accessories on the floor or in a place where
they may cause persons walking by to trip or stumble.
Adjust the settings of the DVD player according to the instructions provided before
playing a DVD. If the settings are not correct, a loud sound may be emitted,
possibly injuring your ears or damaging the speakers.
Do not touch a disc while it is spinning as personal injury or damage to the disc
may result.
Do not close the disc cover in a way that could pinch your hand or fingers as
personal injury or damage to the console may result.
4
Precautions

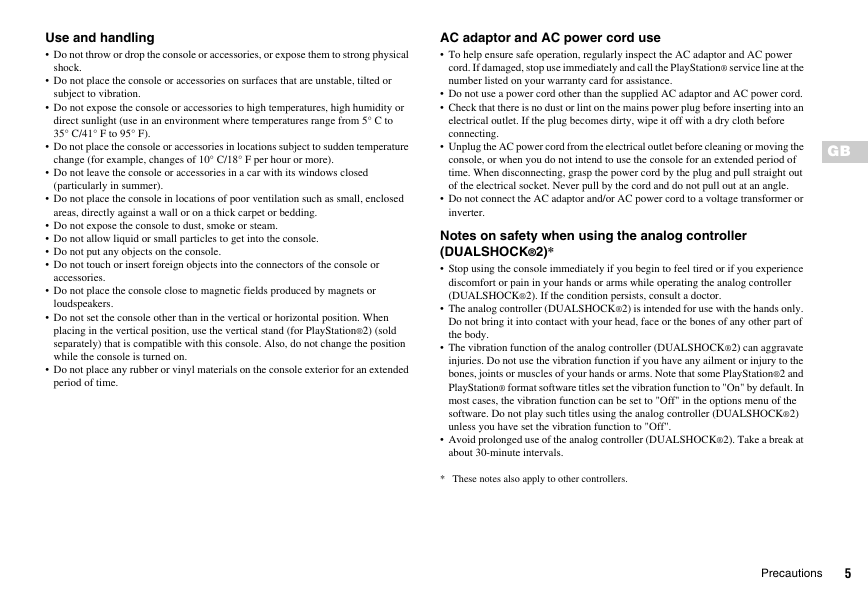

Use and handling
Do not throw or drop the console or accessories, or expose them to strong physical
shock.
Do not place the console or accessories on surfaces that are unstable, tilted or
subject to vibration.
Do not expose the console or accessories to high temperatures, high humidity or
direct sunlight (use in an environment where temperatures range from 5° C to
35° C/41° F to 95° F).
AC adaptor and AC power cord use
To help ensure safe operation, regularly inspect the AC adaptor and AC power
cord. If damaged, stop use immediately and call the PlayStation® service line at the
number listed on your warranty card for assistance.
Do not use a power cord other than the supplied AC adaptor and AC power cord.
Check that there is no dust or lint on the mains power plug before inserting into an
electrical outlet. If the plug becomes dirty, wipe it off with a dry cloth before
connecting.
Do not place the console or accessories in locations subject to sudden temperature
Unplug the AC power cord from the electrical outlet before cleaning or moving the
change (for example, changes of 10° C/18° F per hour or more).
Do not leave the console or accessories in a car with its windows closed
(particularly in summer).
console, or when you do not intend to use the console for an extended period of
time. When disconnecting, grasp the power cord by the plug and pull straight out
of the electrical socket. Never pull by the cord and do not pull out at an angle.
Do not place the console in locations of poor ventilation such as small, enclosed
Do not connect the AC adaptor and/or AC power cord to a voltage transformer or
GB
areas, directly against a wall or on a thick carpet or bedding.
Do not expose the console to dust, smoke or steam.
Do not allow liquid or small particles to get into the console.
Do not put any objects on the console.
Do not touch or insert foreign objects into the connectors of the console or
accessories.
Do not place the console close to magnetic fields produced by magnets or
loudspeakers.
Do not set the console other than in the vertical or horizontal position. When
placing in the vertical position, use the vertical stand (for PlayStation®2) (sold
separately) that is compatible with this console. Also, do not change the position
while the console is turned on.
Do not place any rubber or vinyl materials on the console exterior for an extended
period of time.
inverter.
Notes on safety when using the analog controller
(DUALSHOCK®2)*
Stop using the console immediately if you begin to feel tired or if you experience
discomfort or pain in your hands or arms while operating the analog controller
(DUALSHOCK®2). If the condition persists, consult a doctor.
The analog controller (DUALSHOCK®2) is intended for use with the hands only.
Do not bring it into contact with your head, face or the bones of any other part of
the body.
The vibration function of the analog controller (DUALSHOCK®2) can aggravate
injuries. Do not use the vibration function if you have any ailment or injury to the
bones, joints or muscles of your hands or arms. Note that some PlayStation®2 and
PlayStation® format software titles set the vibration function to "On" by default. In
most cases, the vibration function can be set to "Off" in the options menu of the
software. Do not play such titles using the analog controller (DUALSHOCK®2)
unless you have set the vibration function to "Off".
Avoid prolonged use of the analog controller (DUALSHOCK®2). Take a break at
about 30-minute intervals.
* These notes also apply to other controllers.
Precautions
5

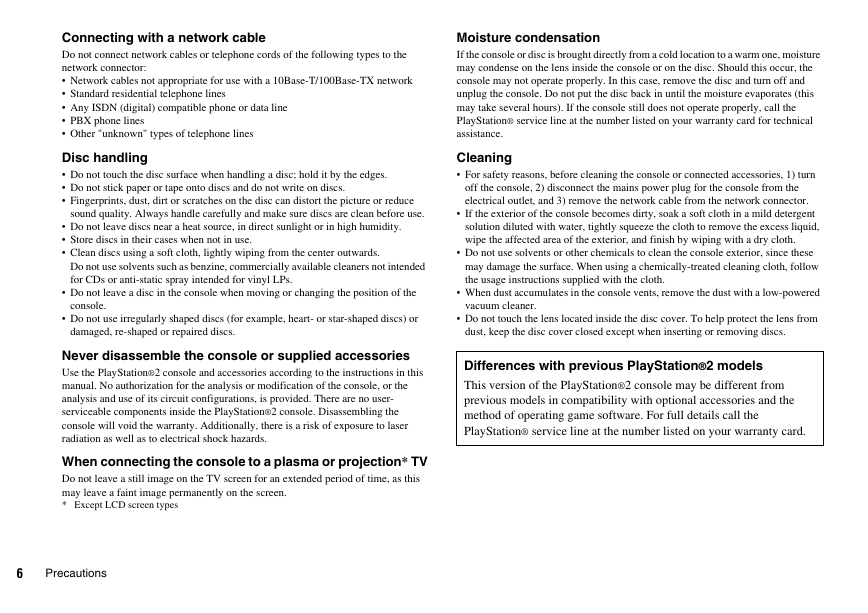

Connecting with a network cable
Do not connect network cables or telephone cords of the following types to the
network connector:
Network cables not appropriate for use with a 10Base-T/100Base-TX network
Standard residential telephone lines
Any ISDN (digital) compatible phone or data line
PBX phone lines
Other "unknown" types of telephone lines
Disc handling
Do not touch the disc surface when handling a disc; hold it by the edges.
Do not stick paper or tape onto discs and do not write on discs.
Fingerprints, dust, dirt or scratches on the disc can distort the picture or reduce
sound quality. Always handle carefully and make sure discs are clean before use.
Do not leave discs near a heat source, in direct sunlight or in high humidity.
Store discs in their cases when not in use.
Clean discs using a soft cloth, lightly wiping from the center outwards.
Do not use solvents such as benzine, commercially available cleaners not intended
for CDs or anti-static spray intended for vinyl LPs.
Do not leave a disc in the console when moving or changing the position of the
console.
Moisture condensation
If the console or disc is brought directly from a cold location to a warm one, moisture
may condense on the lens inside the console or on the disc. Should this occur, the
console may not operate properly. In this case, remove the disc and turn off and
unplug the console. Do not put the disc back in until the moisture evaporates (this
may take several hours). If the console still does not operate properly, call the
PlayStation® service line at the number listed on your warranty card for technical
assistance.
Cleaning
For safety reasons, before cleaning the console or connected accessories, 1) turn
off the console, 2) disconnect the mains power plug for the console from the
electrical outlet, and 3) remove the network cable from the network connector.
If the exterior of the console becomes dirty, soak a soft cloth in a mild detergent
solution diluted with water, tightly squeeze the cloth to remove the excess liquid,
wipe the affected area of the exterior, and finish by wiping with a dry cloth.
Do not use solvents or other chemicals to clean the console exterior, since these
may damage the surface. When using a chemically-treated cleaning cloth, follow
the usage instructions supplied with the cloth.
When dust accumulates in the console vents, remove the dust with a low-powered
vacuum cleaner.
Do not use irregularly shaped discs (for example, heart- or star-shaped discs) or
Do not touch the lens located inside the disc cover. To help protect the lens from
damaged, re-shaped or repaired discs.
dust, keep the disc cover closed except when inserting or removing discs.
Never disassemble the console or supplied accessories
Use the PlayStation®2 console and accessories according to the instructions in this
manual. No authorization for the analysis or modification of the console, or the
analysis and use of its circuit configurations, is provided. There are no user-
serviceable components inside the PlayStation®2 console. Disassembling the
console will void the warranty. Additionally, there is a risk of exposure to laser
radiation as well as to electrical shock hazards.
When connecting the console to a plasma or projection* TV
Do not leave a still image on the TV screen for an extended period of time, as this
may leave a faint image permanently on the screen.
* Except LCD screen types
Differences with previous PlayStation®2 models
This version of the PlayStation®2 console may be different from
previous models in compatibility with optional accessories and the
method of operating game software. For full details call the
PlayStation® service line at the number listed on your warranty card.
6
Precautions
Preparation
Getting started
Checking the package contents
Check that you have all of the following items. If any items are missing,
call the PlayStation®2 service line at the number listed on your warranty
card for assistance.
s PlayStation®2 console...1
s Analog controller
Removing the 3-pin converting adaptor (SCPH-70006 only)
Electrical outlet configuration may vary depending on the region of use. If
the plug on the supplied AC power cord does not match the electrical
outlet, loosen the screw and remove the converting adaptor.
3-pin converting adaptor
Mains power plug
Positioning the console
(DUALSHOCK®2)...1
You can place the console in either the horizontal or vertical position.
GB
P
r
e
p
a
r
a
t
i
o
n
s AC adaptor...1
s AV cable (integrated
audio/video)...1
s AC power cord (with 3-pin
converting adaptor attached)
(supplied with SCPH-70006)...1
s AC power cord (supplied with
SCPH-70007)...1
s Instruction manual...1
Horizontal position
Set the console horizontally.
Vertical position
When setting the console in the vertical
position, use the SCPH-70110 vertical stand
(for PlayStation®2) (sold separately).
Note
Some vertical stands (for PlayStation®2) cannot be used with this model of the
PlayStation®2 console (
vertical stand.
page 45). Choose the SCPH-70110 when purchasing a
Getting started
7
Caution
Do not place the console in locations where it may be exposed to the following
conditions:
Places subject to excessive cigarette smoke or dust. Cigarette smoke residue
or dust build-up on the internal components, such as the lens, may cause the
console to malfunction.
Places subject to extreme temperatures, in direct sunlight, near a heat source,
or in a car with its windows closed (particularly in summer). These conditions
may warp the exterior of the console or cause the console to malfunction.
Places close to magnetic fields, such as those produced by magnets or
loudspeakers.
Places subject to vibration.
Part names
PlayStation®2 console front
Disc cover
]/1 (on/standby) indicator
A (open) button
MEMORY CARD slot 2
MEMORY CARD slot 1
Controller port 1
Controller port 2
]/1 (on/standby)/RESET button
"
" product family logo*
RESET
IR receiver
Front vent
USB connector
* The "
" product family logo can be rotated to match the horizontal or vertical
positioning of the console.
Note
You can connect USB devices that are compatible with the PlayStation®2 console.
Note, however, that not all USB-compatible products work with the PlayStation®2
console. Refer to the instructions supplied with the device to be connected for more
information.
8
Part names
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
