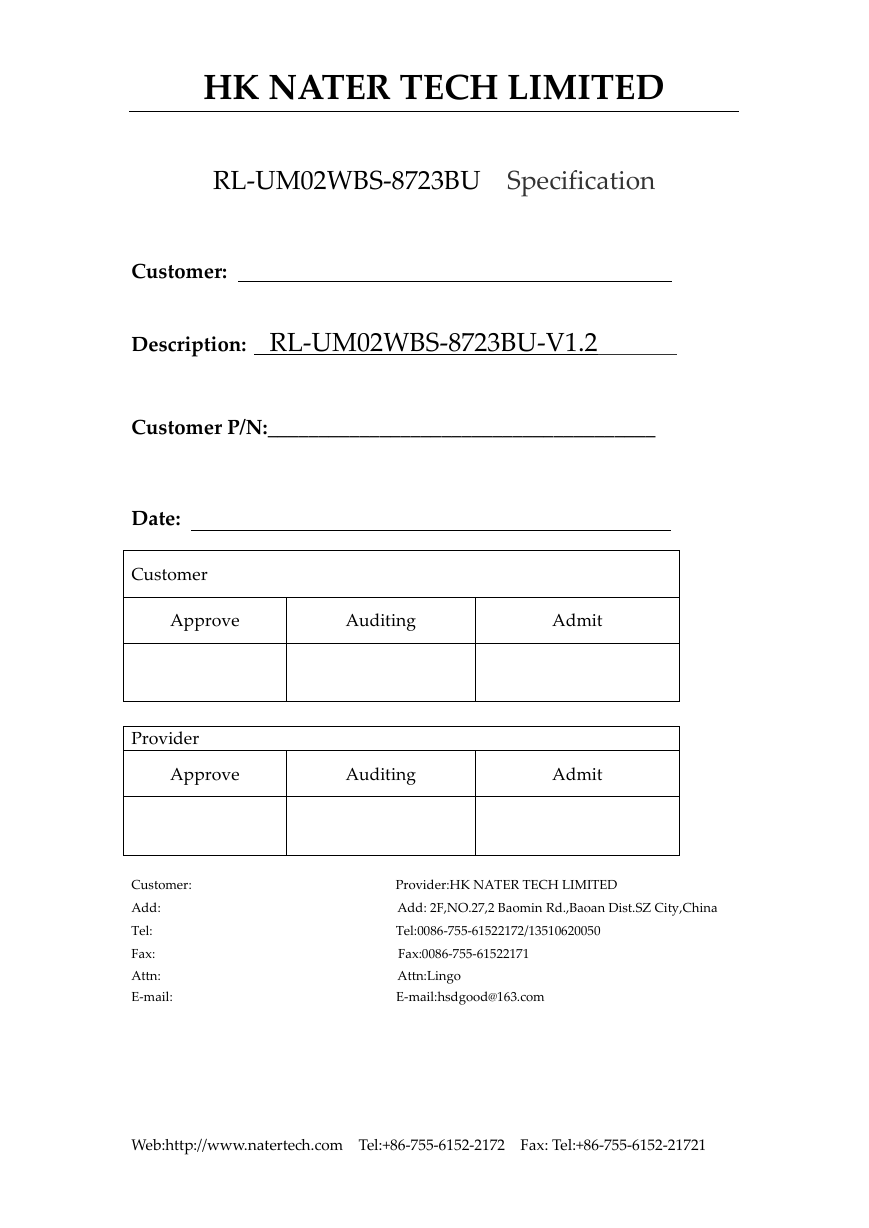

HK NATER TECH LIMITED RL-UM02WBS-8723BU Specification Customer: Description: RL-UM02WBS-8723BU-V1.2 Customer P/N:______________________________________ Date: Customer Approve Auditing Admit Provider Approve Auditing Admit Customer: Provider:HK NATER TECH LIMITED Add: Add: 2F,NO.27,2 Baomin Rd.,Baoan Dist.SZ City,China Tel: Tel:0086-755-61522172/13510620050 Fax: Fax:0086-755-61522171 Attn: Attn:Lingo E-mail: E-mail:hsdgood@163.com Web:http://www.natertech.com Tel:+86-755-6152-2172 Fax: Tel:+86-755-6152-21721

SPECIFICATIONS IEEE 802.11 b/g/n 2.4GHz BT V2.1/BT V3.0/BT V4.0 WiFi+BT 1T1R Module RL-UM02WBS-8723BU Version: V1.2

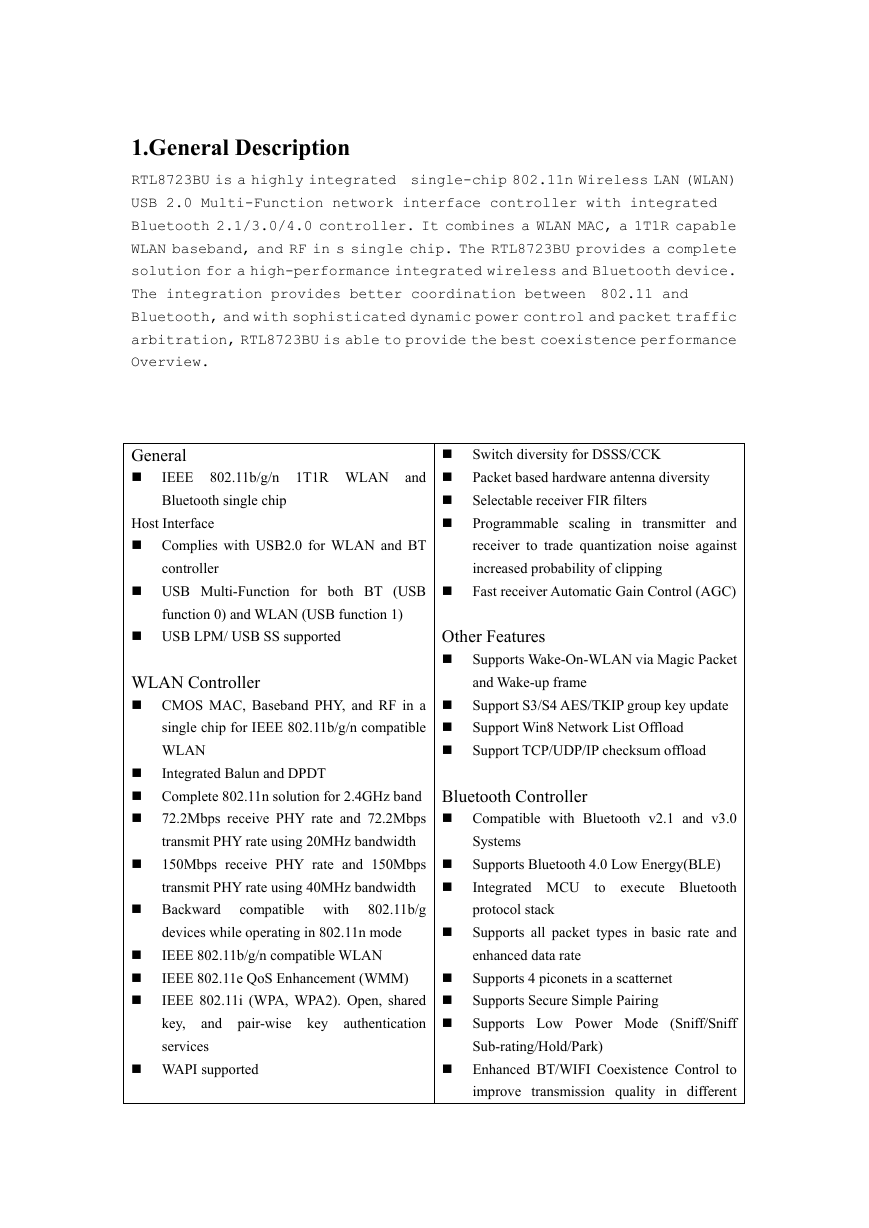

1.General Description RTL8723BU is a highly integrated single-chip 802.11n Wireless LAN (WLAN) USB 2.0 Multi-Function network interface controller with integrated Bluetooth 2.1/3.0/4.0 controller. It combines a WLAN MAC, a 1T1R capable WLAN baseband, and RF in s single chip. The RTL8723BU provides a complete solution for a high-performance integrated wireless and Bluetooth device. The integration provides better coordination between 802.11 and Bluetooth, and with sophisticated dynamic power control and packet traffic arbitration, RTL8723BU is able to provide the best coexistence performance Overview. General IEEE 802.11b/g/n 1T1R WLAN and Bluetooth single chip Host Interface Complies with USB2.0 for WLAN and BT controller USB Multi-Function for both BT (USB function 0) and WLAN (USB function 1) USB LPM/ USB SS supported WLAN Controller CMOS MAC, Baseband PHY, and RF in a single chip for IEEE 802.11b/g/n compatible WLAN Integrated Balun and DPDT Complete 802.11n solution for 2.4GHz band 72.2Mbps receive PHY rate and 72.2Mbps transmit PHY rate using 20MHz bandwidth 150Mbps receive PHY rate and 150Mbps transmit PHY rate using 40MHz bandwidth Backward compatible with 802.11b/g devices while operating in 802.11n mode IEEE 802.11b/g/n compatible WLAN IEEE 802.11e QoS Enhancement (WMM) IEEE 802.11i (WPA, WPA2). Open, shared key, and pair-wise key authentication services WAPI supported Switch diversity for DSSS/CCK Packet based hardware antenna diversity Selectable receiver FIR filters Programmable scaling in transmitter and receiver to trade quantization noise against increased probability of clipping Fast receiver Automatic Gain Control (AGC) Other Features Supports Wake-On-WLAN via Magic Packet and Wake-up frame Support S3/S4 AES/TKIP group key update Support Win8 Network List Offload Support TCP/UDP/IP checksum offload Bluetooth Controller Compatible with Bluetooth v2.1 and v3.0 Systems Supports Bluetooth 4.0 Low Energy(BLE) to execute Bluetooth Integrated MCU protocol stack Supports all packet types in basic rate and enhanced data rate Supports 4 piconets in a scatternet Supports Secure Simple Pairing Supports Low Power Mode (Sniff/Sniff Sub-rating/Hold/Park) Enhanced BT/WIFI Coexistence Control to improve transmission quality in different

WLAN MAC Features Frame aggregation for increased MAC Bluetooth 4.0 Dual Mode support: profiles efficiency (A-MSDU, A-MPDU) Simultaneous LE and BR/EDR Low latency immediate High-Throughput Block Acknowledgement (HT-BA) to enhance PHY-level spoofing legacy Supports multiple Low Energy states Support 3D Glasses application Support Intel Latency Tolerance Reporting compatibility (LTR) Multi MACID support with Fast Channel switch Channel management and co-existence Transmit Opportunity Short Inter-Frame Space (SIFS) bursting for higher multimedia bandwidth (TXOP) WiFi Direct supports wireless peer to peer applications Bluetooth Transceiver Fast AGC control to improve receiving dynamic range Supports AFH to dynamically detect channel quality to improve transmission quality Integrated internal Class 1, Class 2, and Class 3 PA Bluetooth 3.0+HS compliant Supports Enhanced Power Control Supports Bluetooth Low Energy Integrated 32K oscillator management for power 4-wire EEPROM control interface (93C46) Peripheral Interfaces General Purpose Input/Output (8 pins) Three configurable LED pins Flexible XTAL frequency selection(52, 48, 40, 38.4, 27, 26, 25, 24, 20, 19.2, 17.664, 16, 14.318, 13 and 12MHz) Support XTAL or external clock input WLAN PHY Features IEEE 802.11n OFDM One Transmit and one Receive path (1T1R) 20MHz and 40MHz bandwidth transmission Support 2.4GHz band channels Short Guard Interval (400ns) DSSS with DBPSK and DQPSK, short long and CCKmodulation with preamble OFDM with BPSK, QPSK, 16QAM, 64QAM modulation. Convolutional Coding Rate: 1/2, 2/3, 3/4, and 5/6 Maximum data rate 54Mbps in IEEE 802.11g; and 150Mbps in IEEE 802.11n

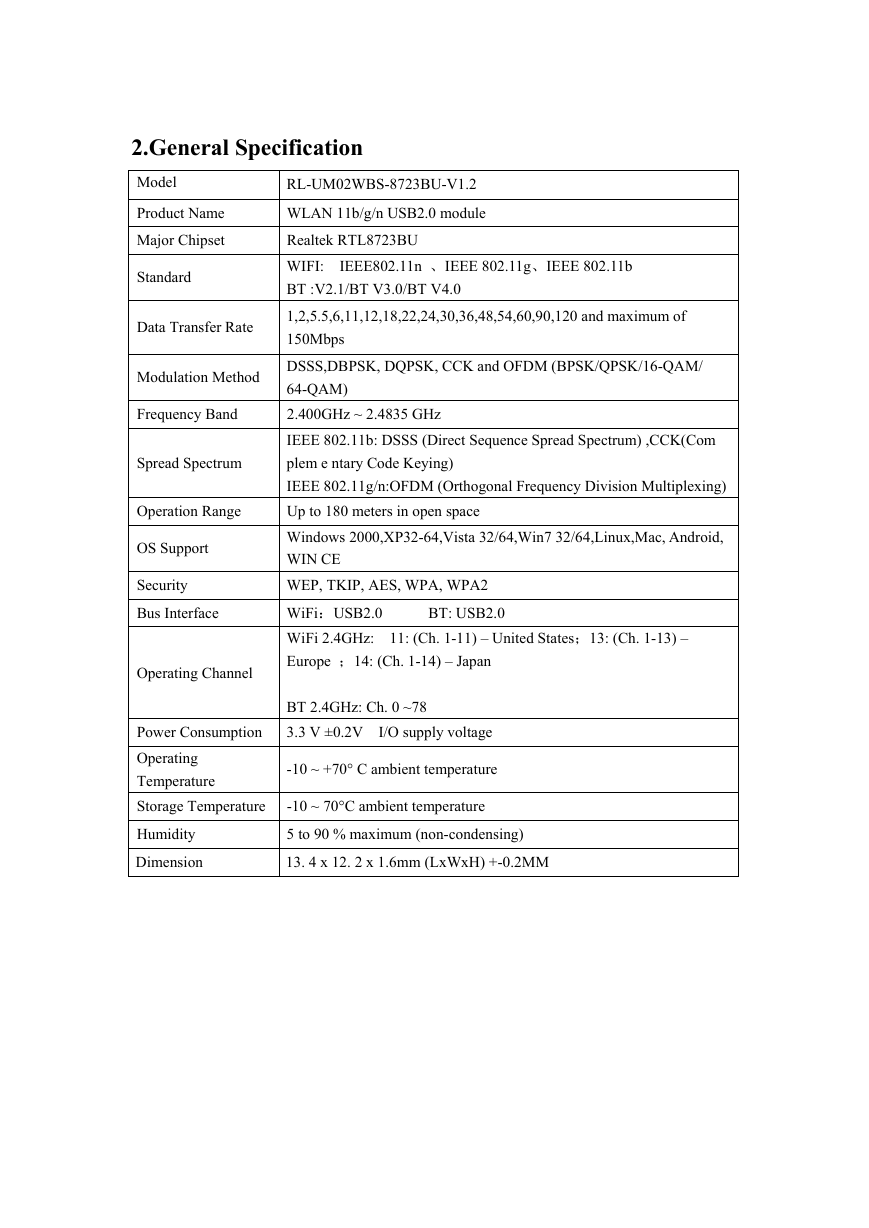

Product Name Major Chipset Standard Data Transfer Rate Modulation Method Frequency Band Spread Spectrum Operation Range OS Support Security Bus Interface Operating Channel RL-UM02WBS-8723BU-V1.2 WLAN 11b/g/n USB2.0 module Realtek RTL8723BU WIFI: IEEE802.11n 、IEEE 802.11g、IEEE 802.11b BT :V2.1/BT V3.0/BT V4.0 1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90,120 and maximum of 150Mbps DSSS,DBPSK, DQPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM) 2.400GHz ~ 2.4835 GHz IEEE 802.11b: DSSS (Direct Sequence Spread Spectrum) ,CCK(Com plem e ntary Code Keying) IEEE 802.11g/n:OFDM (Orthogonal Frequency Division Multiplexing) Up to 180 meters in open space Windows 2000,XP32-64,Vista 32/64,Win7 32/64,Linux,Mac, Android, WIN CE WEP, TKIP, AES, WPA, WPA2 WiFi：USB2.0 BT: USB2.0 WiFi 2.4GHz: 11: (Ch. 1-11) – United States；13: (Ch. 1-13) – Europe ；14: (Ch. 1-14) – Japan BT 2.4GHz: Ch. 0 ~78 3.3 V ±0.2V I/O supply voltage -10 ~ +70° C ambient temperature 2.General Specification Model Power Consumption Operating Temperature Storage Temperature -10 ~ 70°C ambient temperature Humidity Dimension 13. 4 x 12. 2 x 1.6mm (LxWxH) +-0.2MM 5 to 90 % maximum (non-condensing)

3.Block Diagram Single-Band 11n (1x1) Solution with Integrated Bluetooth Controller with Antenna Diversity Figure 1. Single-Band 11n (1x1) and Integrated Blue tooth Controller Solution with Antenna Diversity 4.Power Supply DC Characteristics Symbol Parameter Minimum Typical Maximum Units VA33, VA33_PAD_S0, VA33_PA_S0,VA33_PAD_S1 VA33_PA_S1,VA33_WLG_SY N,VA33_AFE,VD33IO,VDD_IO VA12,VA12_BT,VA12_BT_SY N,VA12_WLG,VA12_WLG_SY N, VA12_AFE, VD12D IDD33 DC Characteristics Module RL-UM02WBS-8723BU-V1.2 3.3V Supply Voltage 3.0 3.3 3.6 1.2V Core Supply Voltage 1.10 1.2 1.32 V V 3.3V Rating Current - - 600 mA Voltage 3.3V Current Consumption (linking) 160mA (上网或者看电影时的功耗)

5.Electrical Specifications 1) RF Characteristics for IEEE802.11b ( 11Mbps mode unless otherwise specified) Items Specification Mode Channel frequency RX (per≤85 dBm@8%) TX Characteristics Power Level (17±2 dBm) EVM (≤-18) Contents IEEE802.11b CCK 11 Mbps 2412 ~ 2484 MHz -85 dBm Min. Typ. 17 -18 Max. Unit dBm dB 2) RF Characteristics for IEEE802.11g ( 54Mbps mode unless otherwise specified) Items Specification Mode Channel frequency RX (per≤70 dBm@10%) TX Characteristics Power Level (14±2dBm) EVM (≤-28) Contents IEEE802.11g OFDM 54 Mbps 2412 ~ 2484 MHz -70 dBm Min. Typ. 14 -28 Max. Unit dBm dB 3) RF Characteristics for IEEE802.11n (BW20_MCS7) Items Specification Mode Channel frequency RX (per≤65 dBm@10%) TX Characteristics Power Level (13±2 dBm) EVM (≤-28) Contents IEEE802.11n (BW20_MCS7) OFDM 65 Mbps 2412 ~ 2484 MHz -65 dBm Min. Typ. 13 -28 4) RF Characteristics for IEEE802.11n (BW40_MCS7) Items Specification Mode Channel frequency RX (per≤65 dBm@10%) TX Characteristics Power Level (13±2 dBm) EVM (≤-28) Contents IEEE802.11n (BW40_MCS7) OFDM 135 Mbps 2412 ~ 2484 MHz -65 dBm Min. Typ. 13 -28 Max. Unit dBm dB Max. Unit dBm dB

6.Bluetooth Specification Feature General Specification Bluetooth Standard Host Interface Antenna Reference Frequency Band Number of Channels Modulation RF Specification Output Power (Class 1.5) Output Power (Class 2) Sensitivity @ BER=0.1% for GFSK (1Mbps) Sensitivity @ BER=0.01% for π/4-DQPSK (2Mbps) Sensitivity @ BER=0.01% for 8DPSK (3Mbps) Maximum Input Level Description Bluetooth V3.3 of 1, 2 and 3 Mbps. UART Small antennas with 0~2 dBi peak gain 2.400 GHz ~ 2483.5 GHz 79 channels FHSS, GFSK, DPSK, DQPSK Min Typical Max 10 2 -89 -85 -83 GFSK (1Mbps):-20dBm π/4-DQPSK (2Mbps) :-20dBm 8DPSK (3Mbps) :-20dBm 7.Mechanical Dimensions (mm) Length 13.4 Width 12.2 Height 1.6 (Tolerance:±0.2mm) (Tolerance:±0.2mm) (Tolerance:±0.2mm)
