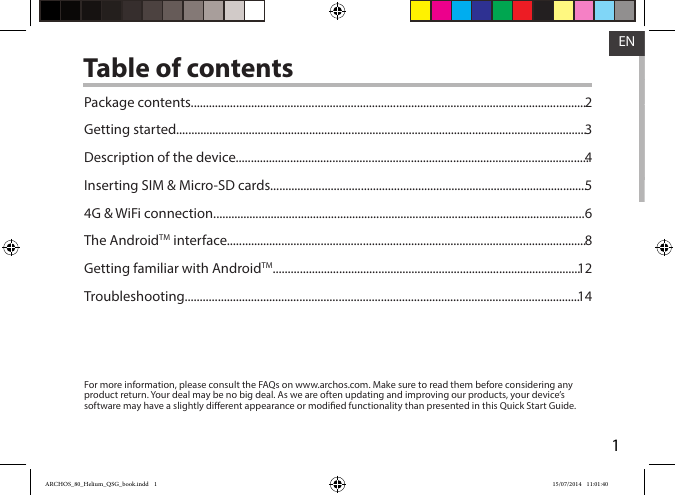

Table of contents Package contents................................................................................................................................... 2 Getting started........................................................................................................................................ 3 Description of the device..................................................................................................................... 4 Inserting SIM & Micro-SD cards......................................................................................................... 5 4G & WiFi connection........................................................................................................................... 6 The AndroidTM interface....................................................................................................................... 8 Getting familiar with AndroidTM...................................................................................................... 12 Troubleshooting................................................................................................................................... 14 For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. Your deal may be no big deal. As we are often updating and improving our products, your device’s software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide. ARCHOS_80_Helium_QSG_book.indd 1 1 15/07/2014 11:01:40 ENEN

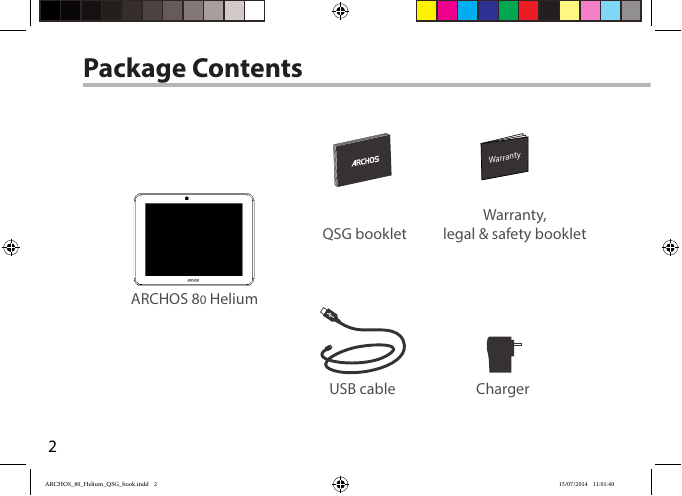

Package Contents QSG booklet Warranty, legal & safety booklet ARCHOS 80 Helium USB cable Charger 2 ARCHOS_80_Helium_QSG_book.indd 2 15/07/2014 11:01:40 WarrantyWarranty

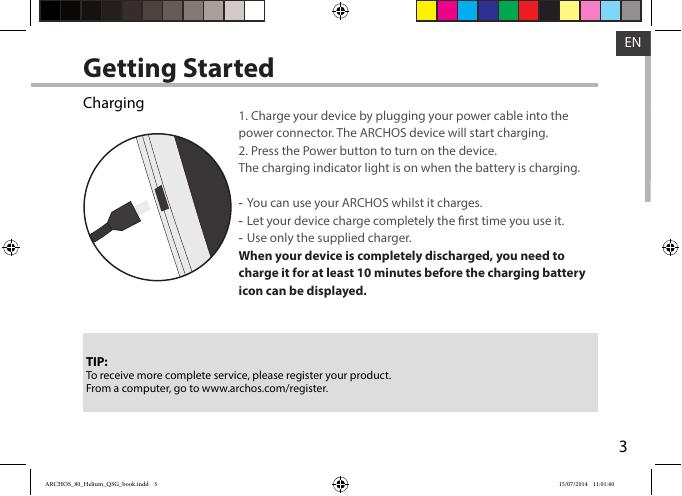

Getting Started Charging 1. Charge your device by plugging your power cable into the power connector. The ARCHOS device will start charging. 2. Press the Power button to turn on the device. The charging indicator light is on when the battery is charging. - You can use your ARCHOS whilst it charges. - Let your device charge completely the first time you use it. - Use only the supplied charger. When your device is completely discharged, you need to charge it for at least 10 minutes before the charging battery icon can be displayed. TIP: To receive more complete service, please register your product. From a computer, go to www.archos.com/register. ARCHOS_80_Helium_QSG_book.indd 3 3 15/07/2014 11:01:40 ENEN

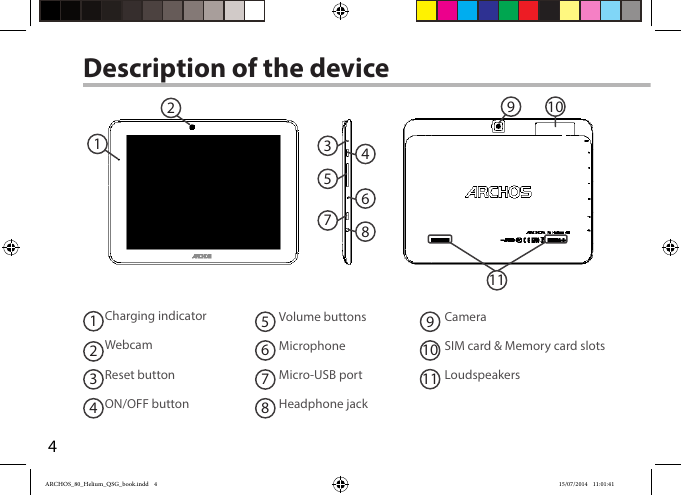

Description of the device Charging indicator Webcam Reset button ON/OFF button 1 2 3 4 Volume buttons Microphone Micro-USB port Headphone jack 5 6 7 8 Camera SIM card & Memory card slots Loudspeakers 9 10 11 4 ARCHOS_80_Helium_QSG_book.indd 4 15/07/2014 11:01:41 2119345678101

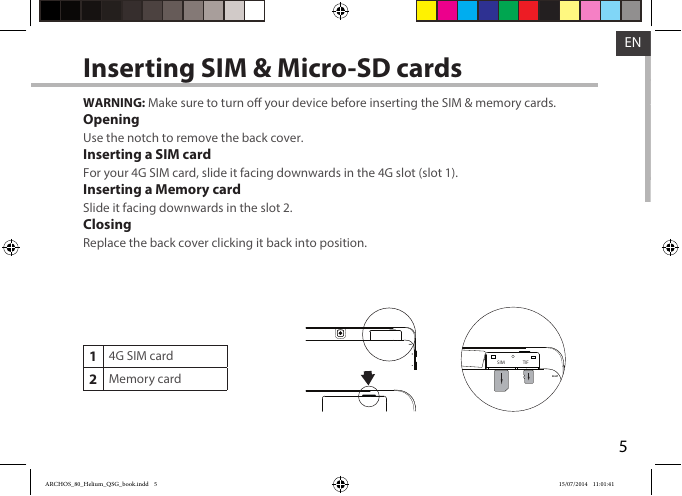

Inserting SIM & Micro-SD cards WARNING: Make sure to turn off your device before inserting the SIM & memory cards. Opening Use the notch to remove the back cover. Inserting a SIM card For your 4G SIM card, slide it facing downwards in the 4G slot (slot 1). Inserting a Memory card Slide it facing downwards in the slot 2. Closing Replace the back cover clicking it back into position. 1 4G SIM card 2 Memory card ARCHOS_80_Helium_QSG_book.indd 5 5 15/07/2014 11:01:41 SIMTIFSIMTIFSIMTIFENEN

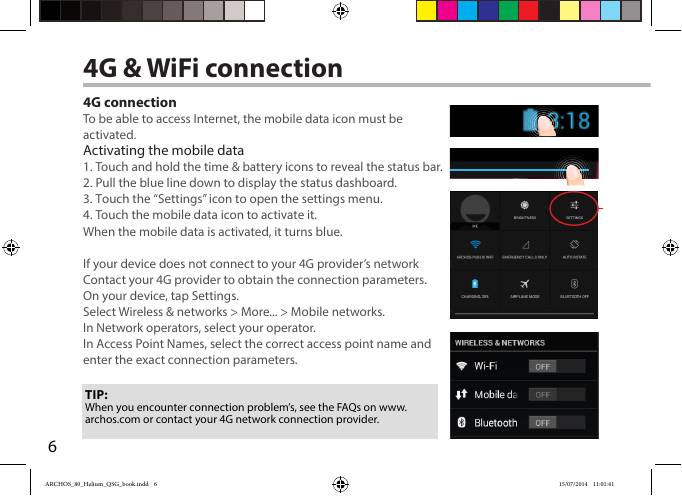

4G & WiFi connection 4G connection To be able to access Internet, the mobile data icon must be activated. Activating the mobile data 1. Touch and hold the time & battery icons to reveal the status bar. 2. Pull the blue line down to display the status dashboard. 3. Touch the “Settings” icon to open the settings menu. 4. Touch the mobile data icon to activate it. When the mobile data is activated, it turns blue. If your device does not connect to your 4G provider’s network Contact your 4G provider to obtain the connection parameters. On your device, tap Settings. Select Wireless & networks > More... > Mobile networks. In Network operators, select your operator. In Access Point Names, select the correct access point name and enter the exact connection parameters. TIP: When you encounter connection problem’s, see the FAQs on www. archos.com or contact your 4G network connection provider. 6 ARCHOS_80_Helium_QSG_book.indd 6 15/07/2014 11:01:41

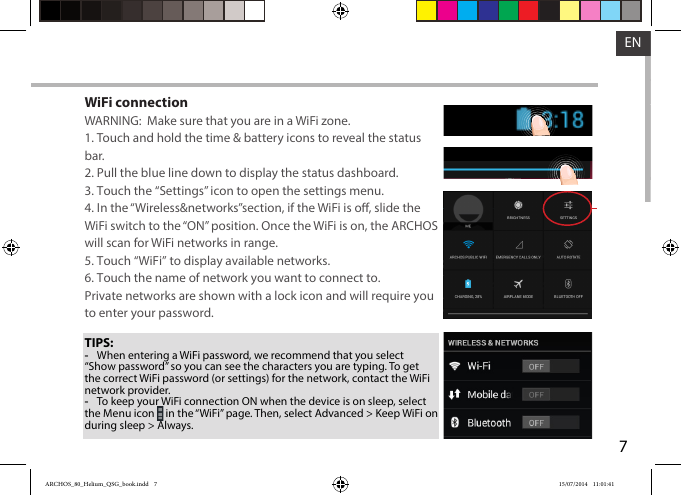

WiFi connection WARNING: Make sure that you are in a WiFi zone. 1. Touch and hold the time & battery icons to reveal the status bar. 2. Pull the blue line down to display the status dashboard. 3. Touch the “Settings” icon to open the settings menu. 4. In the “Wireless&networks”section, if the WiFi is off, slide the WiFi switch to the “ON” position. Once the WiFi is on, the ARCHOS will scan for WiFi networks in range. 5. Touch “WiFi” to display available networks. 6. Touch the name of network you want to connect to. Private networks are shown with a lock icon and will require you to enter your password. TIPS: - When entering a WiFi password, we recommend that you select “Show password” so you can see the characters you are typing. To get the correct WiFi password (or settings) for the network, contact the WiFi network provider. - To keep your WiFi connection ON when the device is on sleep, select the Menu icon during sleep > Always. in the “WiFi” page. Then, select Advanced > Keep WiFi on ARCHOS_80_Helium_QSG_book.indd 7 7 15/07/2014 11:01:41 ENEN

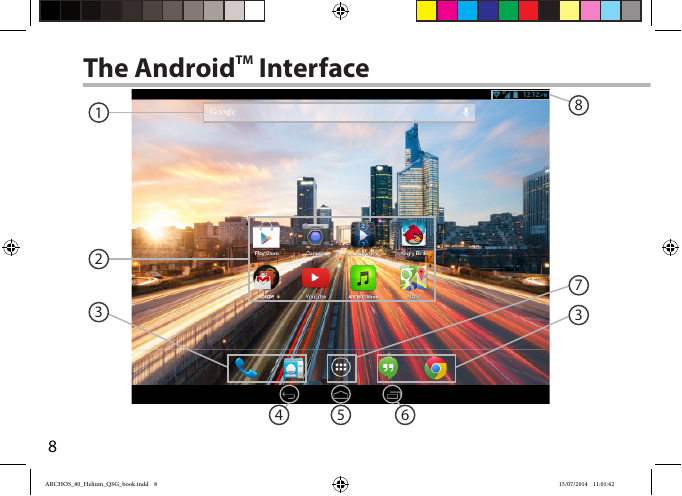

The AndroidTM Interface 8 ARCHOS_80_Helium_QSG_book.indd 8 15/07/2014 11:01:42 335217846
