Getting Started

Safety Precautions

Accessories/Optional Accessories

Check the Accessories

Optional Accessories

Controls and Features

Main Unit - Front

Main Unit - Bottom

Main Unit - Rear

Main Unit - Input Terminals

Remote control (sold separately, model no. RM-MH13G)

Loading Batteries into the Remote Control (Sold Separately)

Effective Range of Remote Control (Sold Separately)

Set up

Installing the Projector

Precautions during Installation

Precautions during Mounting

Adjusting the Position

Connecting the Projector

Connecting to the HDMI Input Terminal (Digital Input)

Connecting to the LAN Terminal

Connecting to the RS-232C Terminal

Connecting to the REMOTE Terminal

Connecting the Power Cord (Supplied Accessory)

Operate

Viewing Videos

Adjust/Set

Adjustments and Settings in the Menu

List of Menu Items

Picture Adjust

Input Signal

Installation

Display Setup

Function

Information

Maintenance

Replacing the Lamp

Lamp Replacement Procedure

Resetting the Lamp Time

Replacing the Attachment

Maintaining the Cabinet and Remote Control (Sold Separately)

Cleaning and Replacing the Filter

Troubleshooting

When the following messages appear...

Others

External Control

RS-232C Specifications

TCP/IP Connection

Command Format

Remote Control Code

Communications Example

Specifications

INSTRUCTIONS . D-ILA PROJECTOR DLA-VS2400ZG DLA-VS2400G . . LCT2727-002A G e t t i n g S t a r t e d S e t u p O p e r a t e j A d u s t / S e t i M a n t e n a n c e l T r o u b e s h o o t i n g O t h e r s For Customer use :Enter below the serial No. which islocated on the back of the cabinet.Retain this information for futurereference.DLA-VS2400ZGDLA-VS2400GModel No.Serial No.

Safety Precautions G e t t i n g S t a r t e d . 2 IMPORTANT INFORMATIONThis product has a High Intensity Dis-charge (HID) lamp that contains mercury.Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities or for USA, the Electronic Industries Alliance: http://www.eiae.org.WARNING:TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.WARNINGThis is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.In case where the strong electromagnetic waves or magnetism are near the signal cable, the picture will contain noise. In such cases, please keep the cable away from the sources of the disturbance.MACHINE NOISE INFORMATION (Germany only)Changes Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The sound pressure level at the operator position is equal or less than 40 dB (A) according to ISO 7779.About the installation placeDo not install the projector in a place that cannot support its weight securely.If the installation place is not sturdy enough, the projector could fall or overturn, possibly causing personal injury.WARNING:THIS APPARATUS MUST BE EARTHED.CAUTION:For the customers in Taiwan onlyTo reduce the risk of electric shock, do not remove cover. Refer servicing to qualified service personnel.This projector is equipped with a 3-blade grounding type plug to satisfy FCC rule. If you are unable to insert the plug into the outlet, contact your electrician.FCC INFORMATION (U.S.A. only)CAUTION:Changes or modification not approved by JVC could void the user’s authority to operate the equipment.NOTE:This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

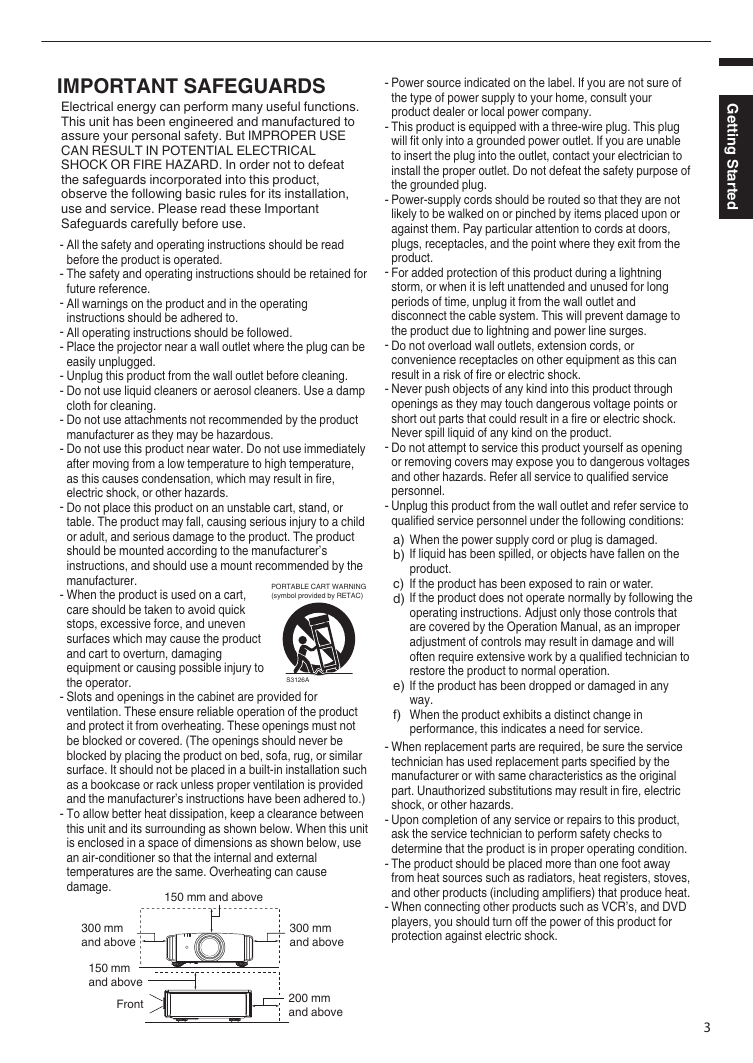

G e t t i n g S t a r t e d . 3 150 mm and above150 mm and above300 mm and above200 mm and above300 mm and abovePORTABLE CART WARNING(symbol provided by RETAC)S3126AFront-------------IMPORTANT SAFEGUARDSElectrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to defeat the safeguards incorporated into this product, observe the following basic rules for its installation, use and service. Please read these Important Safeguards carefully before use.All the safety and operating instructions should be read before the product is operated.The safety and operating instructions should be retained for future reference.All warnings on the product and in the operating instructions should be adhered to.All operating instructions should be followed.Place the projector near a wall outlet where the plug can be easily unplugged.Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.Do not use attachments not recommended by the product manufacturer as they may be hazardous.Do not use this product near water. Do not use immediately after moving from a low temperature to high temperature, as this causes condensation, which may result in fire, electric shock, or other hazards.Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. The product should be mounted according to the manufacturer’s instructions, and should use a mount recommended by the manufacturer.When the product is used on a cart, care should be taken to avoid quick stops, excessive force, and uneven surfaces which may cause the product and cart to overturn, damaging equipment or causing possible injury to the operator.Slots and openings in the cabinet are provided for ventilation. These ensure reliable operation of the product and protect it from overheating. These openings must not be blocked or covered. (The openings should never be blocked by placing the product on bed, sofa, rug, or similar surface. It should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the manufacturer’s instructions have been adhered to.)To allow better heat dissipation, keep a clearance between this unit and its surrounding as shown below. When this unit is enclosed in a space of dimensions as shown below, use an air-conditioner so that the internal and external temperatures are the same. Overheating can cause damage.------------a)b)c)d)e)f)When the power supply cord or plug is damaged.If liquid has been spilled, or objects have fallen on the product.If the product has been exposed to rain or water.If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the Operation Manual, as an improper adjustment of controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.If the product has been dropped or damaged in any way.When the product exhibits a distinct change in performance, this indicates a need for service.When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or with same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.The product should be placed more than one foot away from heat sources such as radiators, heat registers, stoves, and other products (including amplifiers) that produce heat.When connecting other products such as VCR’s, and DVD players, you should turn off the power of this product for protection against electric shock.Power source indicated on the label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.This product is equipped with a three-wire plug. This plug will fit only into a grounded power outlet. If you are unable to insert the plug into the outlet, contact your electrician to install the proper outlet. Do not defeat the safety purpose of the grounded plug.Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at doors, plugs, receptacles, and the point where they exit from the product.For added protection of this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power line surges.Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can result in a risk of fire or electric shock.Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltages and other hazards. Refer all service to qualified service personnel.Unplug this product from the wall outlet and refer service to qualified service personnel under the following conditions:

G e t t i n g S t a r t e d . 4 ----------Do not place combustibles behind the cooling fan. For example, cloth, paper, matches, aerosol cans or gas lighters that present special hazards when over heated.Do not look into the projection lens while the illumination lamp is turned on. Exposure of your eyes to the strong light can result in impaired eyesight.Do not look into the inside of this unit through vents (ventilation holes), etc. Do not look at the illumination lamp directly by opening the cabinet while the illumination lamp is turned on. The illumination lamp also contains ultraviolet rays and the light is so powerful that your eyesight can be impaired.Do not drop, hit, or damage the light-source lamp (lamp unit) in any way. It may cause the light-source lamp to break and lead to injuries. Do not use a damaged light source lamp. If the light-source lamp is broken, ask your dealer to repair it. Fragments from a broken light-source lamp may cause injuries.The light-source lamp used in this projector is a high pressure mercury lamp. Be careful when disposing of the light-source lamp. If anything is unclear, please consult your dealer.Do not ceiling-mount the projector to a place which tends to vibrate; otherwise, the attaching fixture of the projector could be broken by the vibration, possibly causing it to fall or overturn, which could lead to personal injury.Use only the accessory cord designed for this product to prevent shock.Once every three years, please perform an internal test. This unit is provided with replacement parts needed to maintain its function (such as cooling fans). Estimated replacement time of parts can vary greatly depending on frequency of use and the respective environment. For replacement, please consult your dealer, or the nearest authorized JVC service center.When fixing the unit to the ceiling, Please note that we do not take any responsibility, even during the warranty period, if the product is damaged due to use of metal fixtures used for fixation to the ceiling other than our own or if the installation environment of said metal fixtures is not appropriate. If the unit is suspended from the ceiling during use, please be careful in regard to the ambient temperature of the unit. If you use a central heating, the temperature close to the ceiling will be higher than normally expected.Video images can burn into the electronic component parts. Please do not display screens with still images of high brightness or high contrast, such as found in video games and computer programs. Over a long period of time it might stick to the picture element. There is no problem with the playback of moving images, e.g. normal video footage.-Please power it on and let it run occasionally. Please avoid using the unit in a room where cigarettes are smoked. It is impossible to clean optical component parts if they are contaminated by nicotine or tar. This might lead to performance degradation.* DO NOT allow any unqualified person to install the unit.Be sure to ask your dealer to install the unit (e.g. attaching it to the ceiling) since special technical knowledge and skills are required for installation. If installation is performed by an unqualified person, it may cause personal injury or electrical shock.

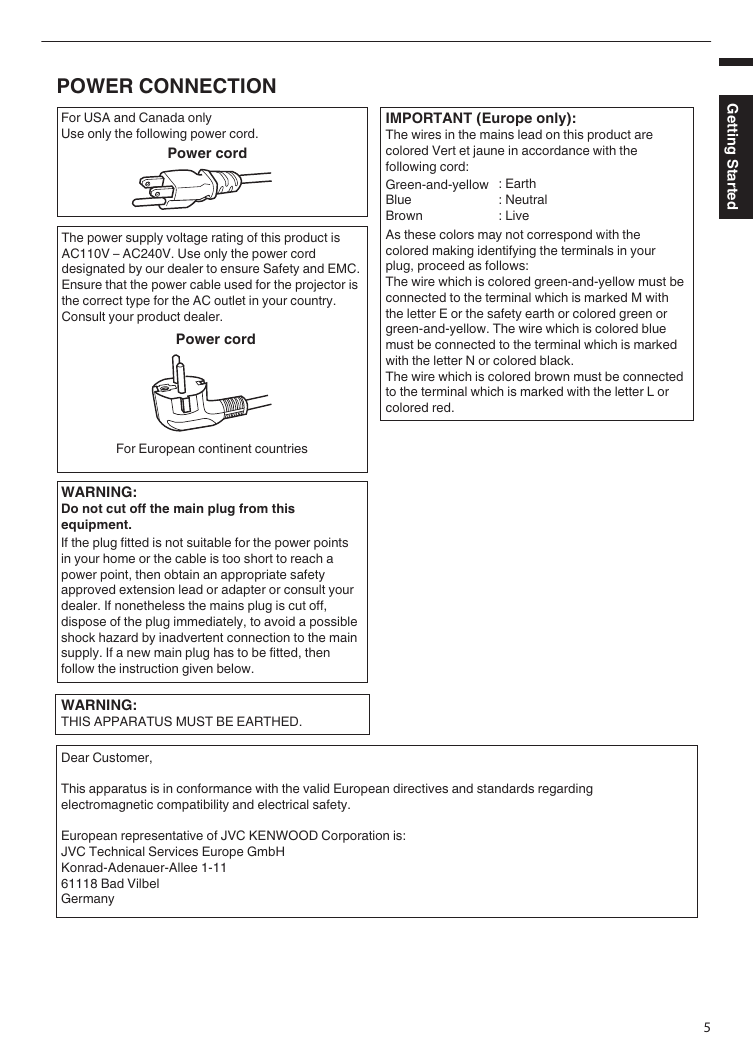

G e t t i n g S t a r t e d 5 . Power cord Power cordFor European continent countriesGreen-and-yellowBlueBrown: Earth: Neutral: LivePOWER CONNECTIONWARNING:WARNING:Do not cut off the main plug from this equipment.The power supply voltage rating of this product is AC110V – AC240V. Use only the power cord designated by our dealer to ensure Safety and EMC. Ensure that the power cable used for the projector is the correct type for the AC outlet in your country. Consult your product dealer.If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adapter or consult your dealer. If nonetheless the mains plug is cut off, dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the main supply. If a new main plug has to be fitted, then follow the instruction given below.Dear Customer,This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety.European representative of JVC KENWOOD Corporation is:JVC Technical Services Europe GmbHKonrad-Adenauer-Allee 1-1161118 Bad VilbelGermanyTHIS APPARATUS MUST BE EARTHED.IMPORTANT (Europe only):The wires in the mains lead on this product are colored Vert et jaune in accordance with the following cord:As these colors may not correspond with the colored making identifying the terminals in your plug, proceed as follows:The wire which is colored green-and-yellow must be connected to the terminal which is marked M with the letter E or the safety earth or colored green or green-and-yellow. The wire which is colored blue must be connected to the terminal which is marked with the letter N or colored black.The wire which is colored brown must be connected to the terminal which is marked with the letter L or colored red.For USA and Canada onlyUse only the following power cord.

G e t t i n g S t a r t e d . 6 ENGLISHInformation on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for countries that have adopted separate waste collection systems)Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste.Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts.Contact your local authority for details in locating a recycle facility nearest to you.Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.Notice: The sign “Pb” below the symbol for batteries indicates that this battery contains lead.DEUTSCHEntsorgung von gebrauchten elektrischen und elektronischen Geräten und Batterien (anzuwenden in Ländern mit einem separaten Sammelsystem für solche Geräte)Das Symbol (durchgestrichene Mülltonne) auf dem Produkt oder seiner Verpackung weist darauf hin, dass dieses Produkt nicht als normaler Haushaltsabfall behandelt werden darf.Die betreffenden Produkte müssen an einer Annahmestelle für das Recycling von elektrischen und elektronischen Geräten und Batterien abgegeben werden.Weitere Informationen über das Recycling dieses Produktes erhalten Sie von Ihrer Gemeinde oder den kommunalen Entsorgungsbetrieben.Unsachgemäße oder falsche Entsorgung gefährden Umwelt und Gesundheit.Zur Beachtung: Das Zeichen „Pb“ unter dem Symbol für Batterien zeigt an, dass diese Batterie Blei enthalt.FRANÇAISInformation sur l’élimination des anciens équipements électriques et électroniques et piles électriques (applicable dans les pays de qui ont adopté des systèmes de collecte sélective)Les produits et piles électriques sur lesquels le pictogramme (poubelle barrée) est apposé ne peuvent pas être éliminés comme ordures ménagères.Les anciens équipements électriques et électroniques et piles électriques doivent être recyclés sur des sites capables de traiter ces équipements et leurs déchets par produit.Contactez vos autorités locales pour connaître le site de recyclage le plus proche.Un recyclage adapté et l’élimination des déchets aideront à conserver les ressources et à nous préserver des leurs effets nocifs sur notre santé et sur l’environnement.Avis: Le symbole “Pb” ci-dessous sur des piles électrique indique que cette pile contient du plomb.NEDERLANDSInformatie over het weggooien van oude elektrische en elektronische apparaten en batterijen (voor landen die gescheiden afvalverzamelsystemen gebruiken)Producten en batterijen met het (afvalcontainer met x-teken) symbool mogen niet als normaal huisvuil worden weggegooid.Oude elektrische en elektronische apparaten en batterijen moeten worden gerecycled door een faciliteit die geschikt is voor het verwerken van dergelijke voorwerpen.Raadpleeg de betreffende lokale instantie voor details aangaande in de buurt zijnde recylingfaciliteiten.Het juist recyclen en weggooien van afval spaart natuurlijke bronnen en reduceert schadelijke invloed op uw gezondheid en het milieu.Opmerking: De ”Pb” aanduiding onder het batterijsymbool betekent dat deze batterij lood bevat.

. G e t t i n g S t a r t e d 7 ESPAÑOL / CASTELLANOInformación acerca de la eliminación de equipos eléctricos, electrónicos y baterías al final de la vida útil (aplicable a los países de la que hayan adoptado sistemas independientes de recogida de residuos)Los productos y las baterías con el símbolo (contenedor con ruedas tachado) no podrán ser desechados como residuos domésticos.Los equipos eléctricos, electrónicos y baterías al final de la vida útil, deberán ser reciclados en instalaciones que puedan dar el tratamiento adecuado a estos productos y a sus subproductos residuales correspondientes.Póngase en contacto con la autoridad local competente para obtener información sobre el centro de reciclaje más cercano.El reciclaje y la disposición adecuada de los desechos ayuda a conservar los recursos naturales y a reducir los efectos perjudiciales en la salud y el medio ambiente.Nota: El símbolo “Pb” debajo del símbolo en baterías indica que dicha batería contiene plomo.ITALIANOInformazioni sull’eliminazione dei prodotti elettrici ed elettronici e delle batterie (per i Paesi che adottano la raccolta differenziata dei rifiuti)I prodotti e le batterie recanti questa icona (bidone carrellato della spazzatura con il simbolo della croce) non devono essere eliminati come rifiuti solidi urbani.I prodotti elettrici ed elettronici e le batterie devono essere riciclati presso centri idonei alla loro gestione e a quella dei rispettivi sottoprodotti.Per informazioni sul centro di riciclaggio più vicino si suggerisce di rivolgersi alle autorità locali.Se eseguiti adeguatamente, l’eliminazione e il riciclaggio dei rifiuti aiutano a conservare le risorse e al contempo impedire gli effetti nocivi sulla salute e l’ambiente.Avviso: Il contrassegno “Pb” che appare sotto il simbolo delle batterie significa che contengono piombo.

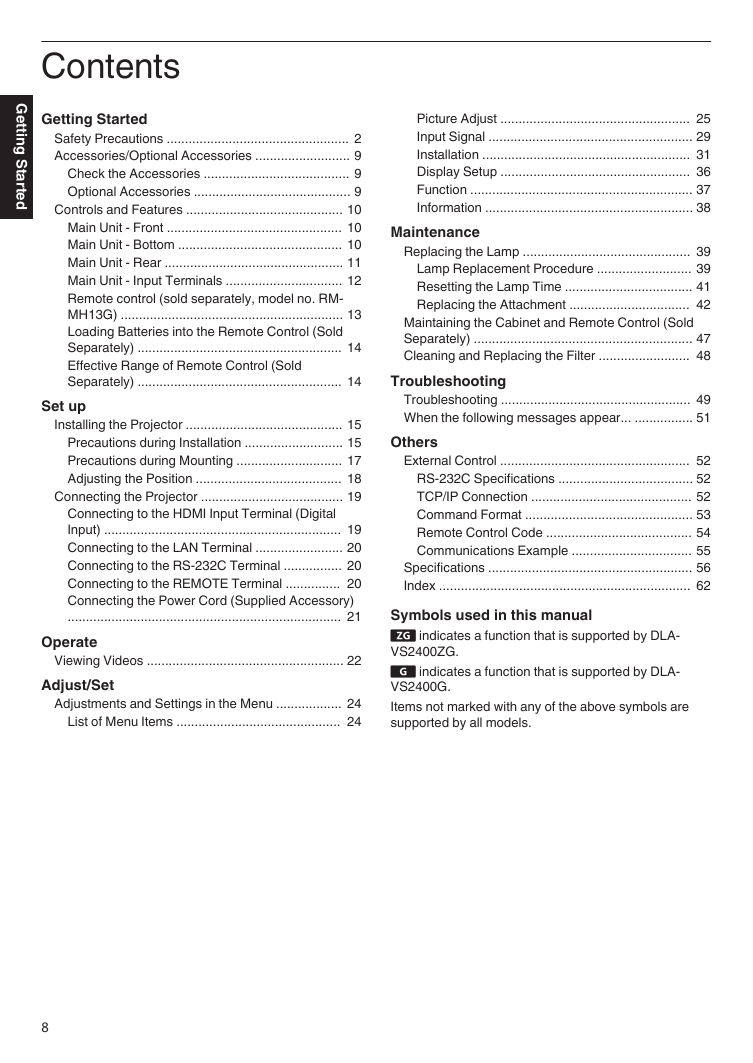

Contents Getting Started G e t t i n g S t a r t e d Safety Precautions .................................................. 2 Accessories/Optional Accessories .......................... 9 Check the Accessories ........................................ 9 Optional Accessories ........................................... 9 Controls and Features ........................................... 10 Main Unit - Front ................................................ 10 Main Unit - Bottom ............................................. 10 Main Unit - Rear ................................................. 11 Main Unit - Input Terminals ................................ 12 Remote control (sold separately, model no. RM- MH13G) ............................................................. 13 Loading Batteries into the Remote Control (Sold Separately) ........................................................ 14 Effective Range of Remote Control (Sold Separately) ........................................................ 14 Set up Installing the Projector ........................................... 15 Precautions during Installation ........................... 15 Precautions during Mounting ............................. 17 Adjusting the Position ........................................ 18 Connecting the Projector ....................................... 19 Connecting to the HDMI Input Terminal (Digital Input) ................................................................. 19 Connecting to the LAN Terminal ........................ 20 Connecting to the RS-232C Terminal ................ 20 Connecting to the REMOTE Terminal ............... 20 Connecting the Power Cord (Supplied Accessory) ........................................................................... 21 Viewing Videos ...................................................... 22 Adjustments and Settings in the Menu .................. 24 List of Menu Items ............................................. 24 Operate Adjust/Set Picture Adjust .................................................... 25 Input Signal ........................................................ 29 Installation ......................................................... 31 Display Setup .................................................... 36 Function ............................................................. 37 Information ......................................................... 38 Maintenance Replacing the Lamp .............................................. 39 Lamp Replacement Procedure .......................... 39 Resetting the Lamp Time ................................... 41 Replacing the Attachment ................................. 42 Maintaining the Cabinet and Remote Control (Sold Separately) ............................................................ 47 Cleaning and Replacing the Filter ......................... 48 Troubleshooting Troubleshooting .................................................... 49 When the following messages appear... ................ 51 Others External Control .................................................... 52 RS-232C Specifications ..................................... 52 TCP/IP Connection ............................................ 52 Command Format .............................................. 53 Remote Control Code ........................................ 54 Communications Example ................................. 55 Specifications ........................................................ 56 Index ..................................................................... 62 Symbols used in this manual P indicates a function that is supported by DLA- VS2400ZG. O indicates a function that is supported by DLA- VS2400G. Items not marked with any of the above symbols are supported by all models. 8
