EN Table of contents 2 Package contents.......................................................................................................... 3 Description of the phone........................................................................................... 6 Assembling...................................................................................................................... 8 Getting started............................................................................................................... 10 4G & WiFi connection................................................................................................... 12 Google account & Contacts........................................................................................ 14 Hints & tips with AndroidTM................................................................................ 16 Troubleshooting............................................................................................................. For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. As we are often updating and improving our products, your device’s software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

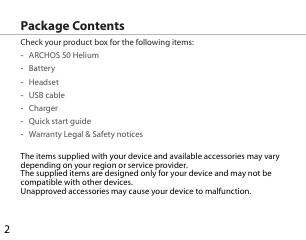

Package Contents Check your product box for the following items: - ARCHOS 50 Helium - Battery - Headset - USB cable - Charger - Quick start guide - Warranty Legal & Safety notices The items supplied with your device and available accessories may vary depending on your region or service provider. The supplied items are designed only for your device and may not be compatible with other devices. Unapproved accessories may cause your device to malfunction. 2

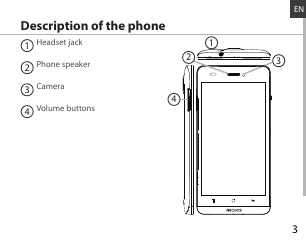

Description of the phone 1 Headset jack Phone speaker Camera Volume buttons 2 3 4 1 2 4 EN 3 3 27-11-2013Archos 50 Helium CONFIDENTIALDRAWINGRev1scale 1:1mmlast modification:27-11-2013Archos 50 Helium CONFIDENTIALDRAWINGRev1scale 1:1mmlast modification:27-11-2013Archos 50 Helium CONFIDENTIALDRAWINGRev1scale 1:1mmlast modification:

Description of the phone 5 ON/OFF button 5 Flash light Camera Loudspeaker Micro-USB port 6 7 8 9 Microphone 10 6 7 8 4 9 10 27-11-2013Archos 50 Helium CONFIDENTIALDRAWINGRev1scale 1:1mmlast modification:27-11-2013Archos 50 Helium CONFIDENTIALDRAWINGRev1scale 1:1mmlast modification:27-11-2013Archos 50 Helium CONFIDENTIALDRAWINGRev1scale 1:1mmlast modification:

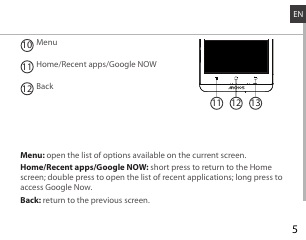

Menu Home/Recent apps/Google NOW Back 10 11 12 11 12 13 Menu: open the list of options available on the current screen. Home/Recent apps/Google NOW: short press to return to the Home screen; double press to open the list of recent applications; long press to access Google Now. Back: return to the previous screen. EN 5 27-11-2013Archos 50 Helium CONFIDENTIALDRAWINGRev1scale 1:1mmlast modification:

Assembling Opening 1. Use the notch to remove the back cover. Do not bend or twist the back cover excessively. Doing so may damage the cover. 2. Remove the battery. Inserting SIM cards For your micro-SIM card, slide it facing downwards in the slot 1. Inserting a Memory card For your Memory card, slide it facing downwards in the slot 2. Closing 1. Align the battery’s 4 contact points with those of the phone and gently press the battery down into place. 2. Replace the back cover clicking it back into position. Tip: Before using your device for the first time, charge completely its battery. 6

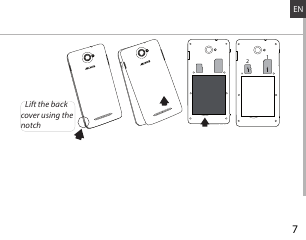

Lift the back cover using the notch EN 7 Picture to show how to removed the bottom casingPicture to show how to insert the battery packPicture to show the scards positionPicture to show how to removed the bottom casingPicture to show how to insert the battery packPicture to show the scards positionPicture to show how to removed the bottom casingPicture to show how to insert the battery packPicture to show the scards positionPicture to show how to removed the bottom casingPicture to show how to insert the battery packPicture to show the scards position21

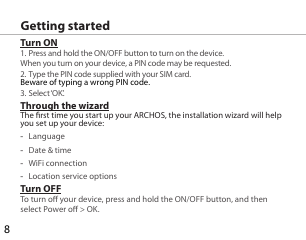

Getting started Turn ON 1. Press and hold the ON/OFF button to turn on the device. When you turn on your device, a PIN code may be requested. 2. Type the PIN code supplied with your SIM card. Beware of typing a wrong PIN code. 3. Select ‘OK’. Through the wizard The first time you start up your ARCHOS, the installation wizard will help you set up your device: - Language - Date & time - WiFi connection - Location service options Turn OFF To turn off your device, press and hold the ON/OFF button, and then select Power off > OK. 8
