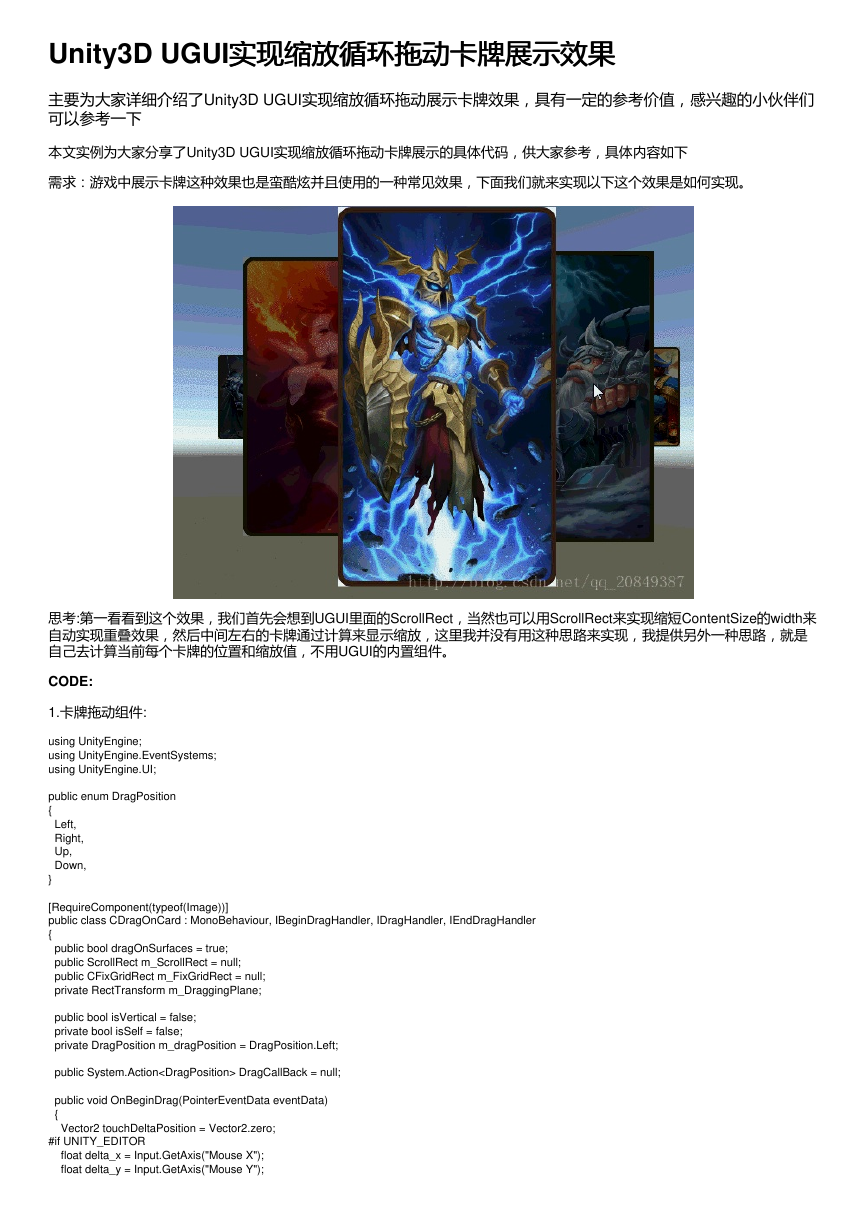

Unity3D UGUI实现缩放循环拖动卡牌展示效果实现缩放循环拖动卡牌展示效果主要为大家详细介绍了Unity3D UGUI实现缩放循环拖动展示卡牌效果，具有一定的参考价值，感兴趣的小伙伴们可以参考一下本文实例为大家分享了Unity3D UGUI实现缩放循环拖动卡牌展示的具体代码，供大家参考，具体内容如下需求：游戏中展示卡牌这种效果也是蛮酷炫并且使用的一种常见效果，下面我们就来实现以下这个效果是如何实现。思考:第一看看到这个效果，我们首先会想到UGUI里面的ScrollRect，当然也可以用ScrollRect来实现缩短ContentSize的width来自动实现重叠效果，然后中间左右的卡牌通过计算来显示缩放，这里我并没有用这种思路来实现，我提供另外一种思路，就是自己去计算当前每个卡牌的位置和缩放值，不用UGUI的内置组件。 CODE: 1.卡牌拖动组件: using UnityEngine; using UnityEngine.EventSystems; using UnityEngine.UI; public enum DragPosition { Left, Right, Up, Down, } [RequireComponent(typeof(Image))] public class CDragOnCard : MonoBehaviour, IBeginDragHandler, IDragHandler, IEndDragHandler { public bool dragOnSurfaces = true; public ScrollRect m_ScrollRect = null; public CFixGridRect m_FixGridRect = null; private RectTransform m_DraggingPlane; public bool isVertical = false; private bool isSelf = false; private DragPosition m_dragPosition = DragPosition.Left; public System.Action DragCallBack = null; public void OnBeginDrag(PointerEventData eventData) { Vector2 touchDeltaPosition = Vector2.zero; #if UNITY_EDITOR float delta_x = Input.GetAxis("Mouse X"); float delta_y = Input.GetAxis("Mouse Y");

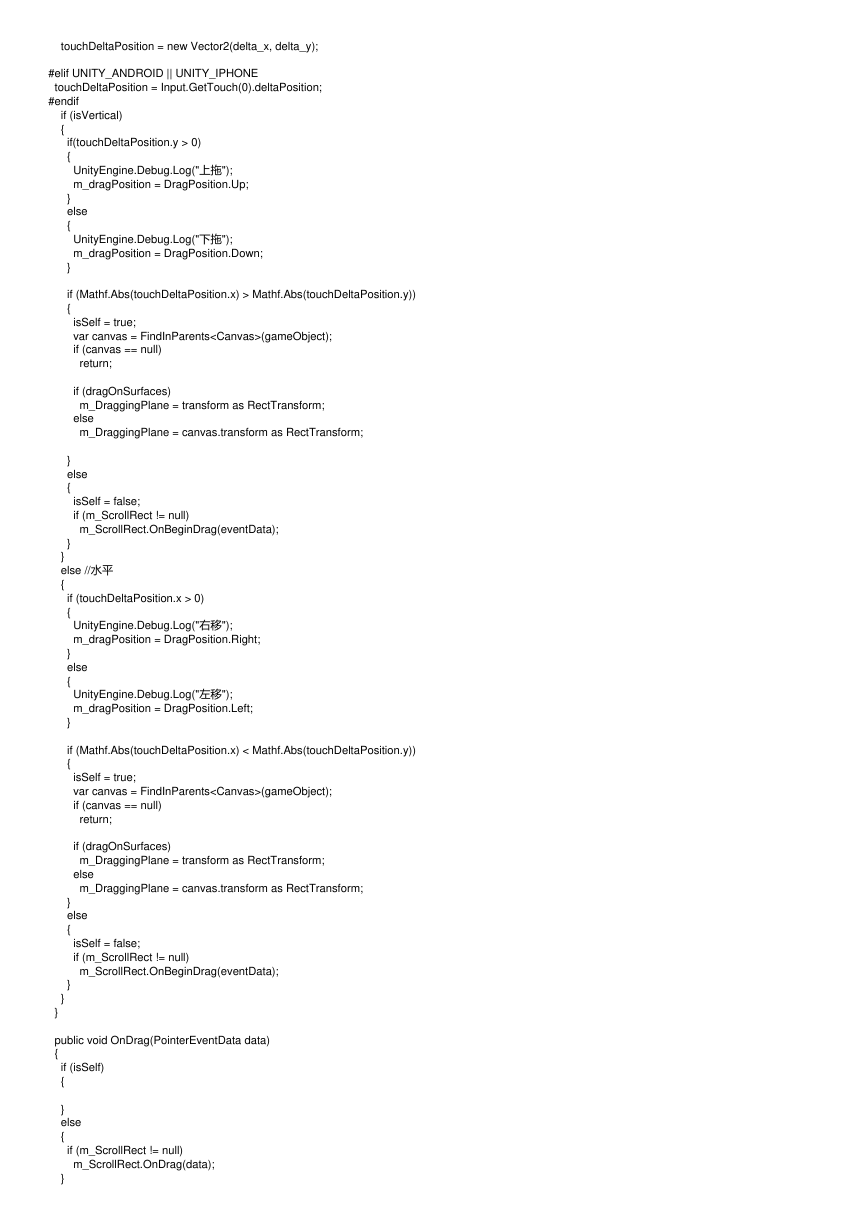

touchDeltaPosition = new Vector2(delta_x, delta_y); #elif UNITY_ANDROID || UNITY_IPHONE touchDeltaPosition = Input.GetTouch(0).deltaPosition; #endif if (isVertical) { if(touchDeltaPosition.y > 0) { UnityEngine.Debug.Log("上拖"); m_dragPosition = DragPosition.Up; } else { UnityEngine.Debug.Log("下拖"); m_dragPosition = DragPosition.Down; } if (Mathf.Abs(touchDeltaPosition.x) > Mathf.Abs(touchDeltaPosition.y)) { isSelf = true; var canvas = FindInParents

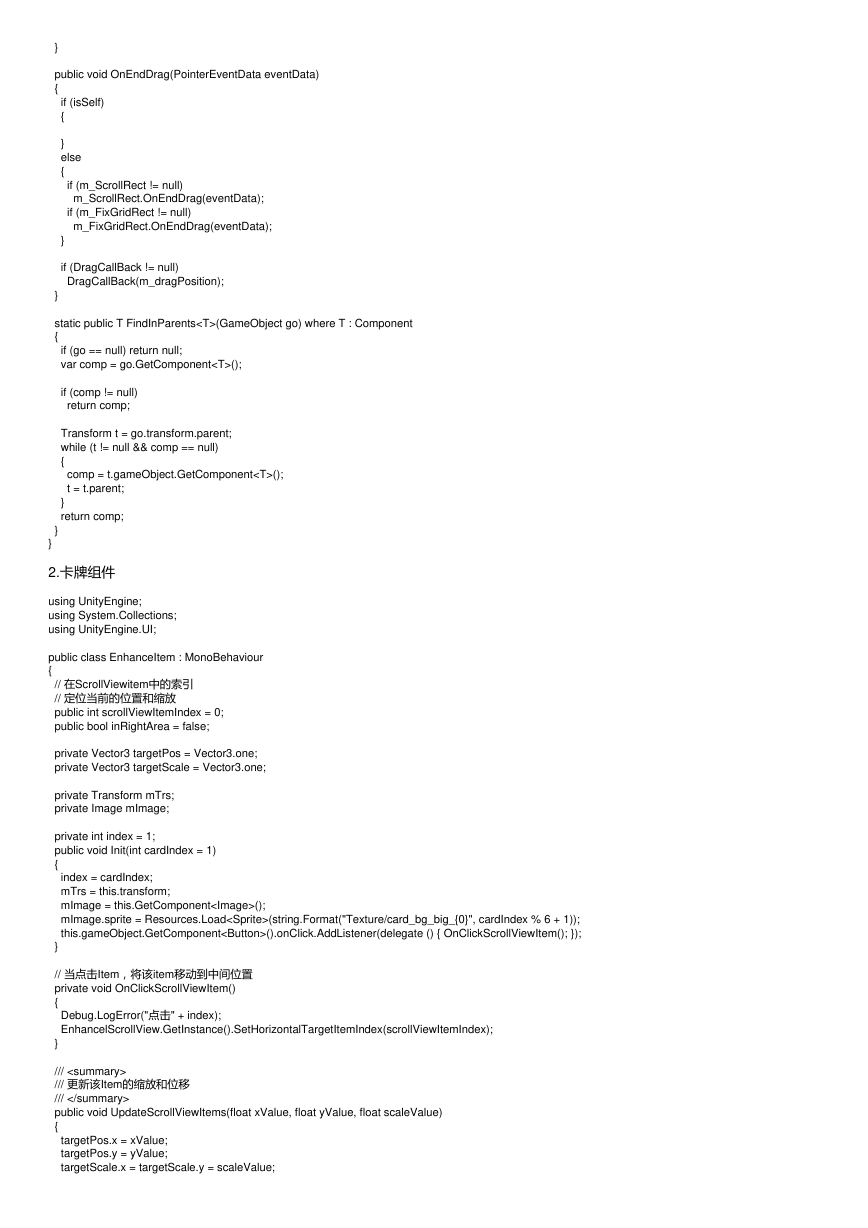

} public void OnEndDrag(PointerEventData eventData) { if (isSelf) { } else { if (m_ScrollRect != null) m_ScrollRect.OnEndDrag(eventData); if (m_FixGridRect != null) m_FixGridRect.OnEndDrag(eventData); } if (DragCallBack != null) DragCallBack(m_dragPosition); } static public T FindInParents(GameObject go) where T : Component { if (go == null) return null; var comp = go.GetComponent(); if (comp != null) return comp; Transform t = go.transform.parent; while (t != null && comp == null) { comp = t.gameObject.GetComponent(); t = t.parent; } return comp; } } 2.卡牌组件 using UnityEngine; using System.Collections; using UnityEngine.UI; public class EnhanceItem : MonoBehaviour { // 在ScrollViewitem中的索引 // 定位当前的位置和缩放 public int scrollViewItemIndex = 0; public bool inRightArea = false; private Vector3 targetPos = Vector3.one; private Vector3 targetScale = Vector3.one; private Transform mTrs; private Image mImage; private int index = 1; public void Init(int cardIndex = 1) { index = cardIndex; mTrs = this.transform; mImage = this.GetComponent(); mImage.sprite = Resources.Load(string.Format("Texture/card_bg_big_{0}", cardIndex % 6 + 1)); this.gameObject.GetComponent

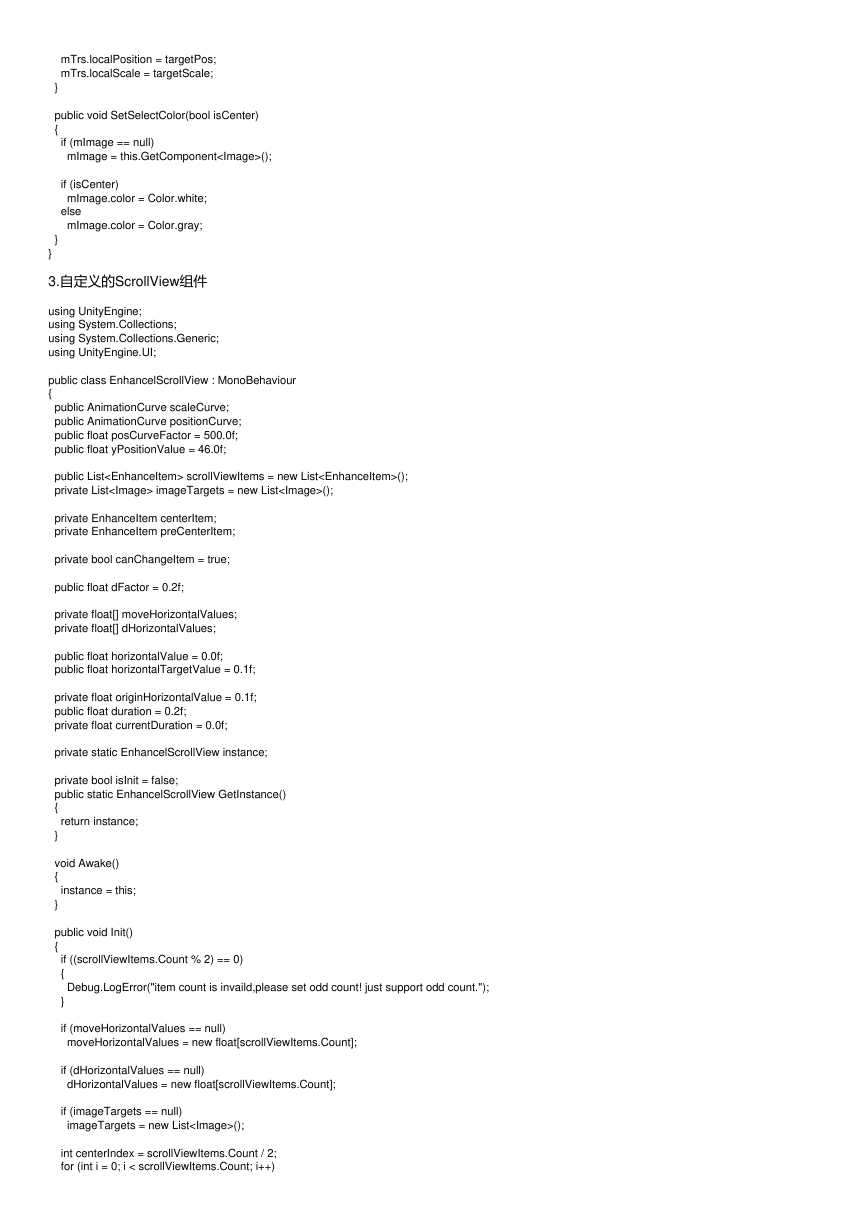

mTrs.localPosition = targetPos; mTrs.localScale = targetScale; } public void SetSelectColor(bool isCenter) { if (mImage == null) mImage = this.GetComponent(); if (isCenter) mImage.color = Color.white; else mImage.color = Color.gray; } } 3.自定义的ScrollView组件 using UnityEngine; using System.Collections; using System.Collections.Generic; using UnityEngine.UI; public class EnhancelScrollView : MonoBehaviour { public AnimationCurve scaleCurve; public AnimationCurve positionCurve; public float posCurveFactor = 500.0f; public float yPositionValue = 46.0f; public List scrollViewItems = new List(); private List imageTargets = new List(); private EnhanceItem centerItem; private EnhanceItem preCenterItem; private bool canChangeItem = true; public float dFactor = 0.2f; private float[] moveHorizontalValues; private float[] dHorizontalValues; public float horizontalValue = 0.0f; public float horizontalTargetValue = 0.1f; private float originHorizontalValue = 0.1f; public float duration = 0.2f; private float currentDuration = 0.0f; private static EnhancelScrollView instance; private bool isInit = false; public static EnhancelScrollView GetInstance() { return instance; } void Awake() { instance = this; } public void Init() { if ((scrollViewItems.Count % 2) == 0) { Debug.LogError("item count is invaild,please set odd count! just support odd count."); } if (moveHorizontalValues == null) moveHorizontalValues = new float[scrollViewItems.Count]; if (dHorizontalValues == null) dHorizontalValues = new float[scrollViewItems.Count]; if (imageTargets == null) imageTargets = new List(); int centerIndex = scrollViewItems.Count / 2; for (int i = 0; i < scrollViewItems.Count; i++)

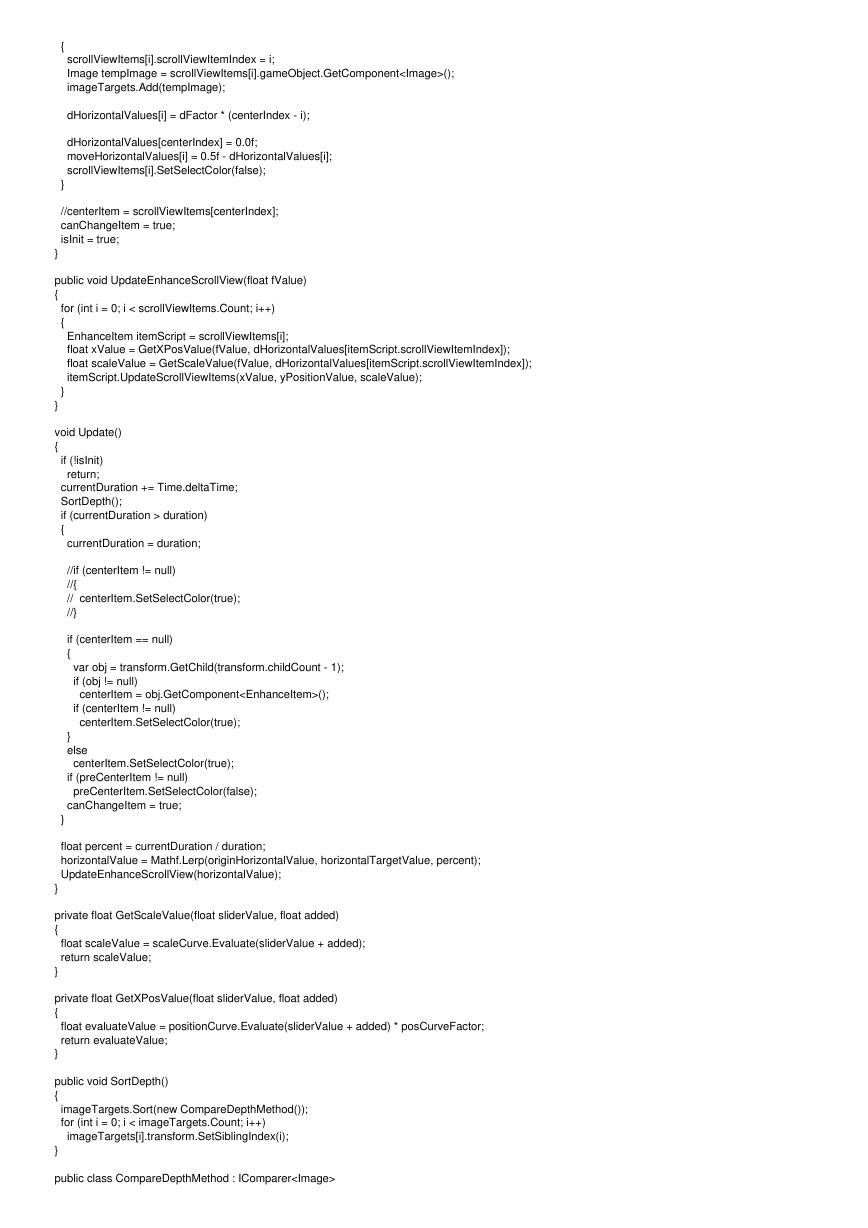

{ scrollViewItems[i].scrollViewItemIndex = i; Image tempImage = scrollViewItems[i].gameObject.GetComponent(); imageTargets.Add(tempImage); dHorizontalValues[i] = dFactor * (centerIndex - i); dHorizontalValues[centerIndex] = 0.0f; moveHorizontalValues[i] = 0.5f - dHorizontalValues[i]; scrollViewItems[i].SetSelectColor(false); } //centerItem = scrollViewItems[centerIndex]; canChangeItem = true; isInit = true; } public void UpdateEnhanceScrollView(float fValue) { for (int i = 0; i < scrollViewItems.Count; i++) { EnhanceItem itemScript = scrollViewItems[i]; float xValue = GetXPosValue(fValue, dHorizontalValues[itemScript.scrollViewItemIndex]); float scaleValue = GetScaleValue(fValue, dHorizontalValues[itemScript.scrollViewItemIndex]); itemScript.UpdateScrollViewItems(xValue, yPositionValue, scaleValue); } } void Update() { if (!isInit) return; currentDuration += Time.deltaTime; SortDepth(); if (currentDuration > duration) { currentDuration = duration; //if (centerItem != null) //{ // centerItem.SetSelectColor(true); //} if (centerItem == null) { var obj = transform.GetChild(transform.childCount - 1); if (obj != null) centerItem = obj.GetComponent(); if (centerItem != null) centerItem.SetSelectColor(true); } else centerItem.SetSelectColor(true); if (preCenterItem != null) preCenterItem.SetSelectColor(false); canChangeItem = true; } float percent = currentDuration / duration; horizontalValue = Mathf.Lerp(originHorizontalValue, horizontalTargetValue, percent); UpdateEnhanceScrollView(horizontalValue); } private float GetScaleValue(float sliderValue, float added) { float scaleValue = scaleCurve.Evaluate(sliderValue + added); return scaleValue; } private float GetXPosValue(float sliderValue, float added) { float evaluateValue = positionCurve.Evaluate(sliderValue + added) * posCurveFactor; return evaluateValue; } public void SortDepth() { imageTargets.Sort(new CompareDepthMethod()); for (int i = 0; i < imageTargets.Count; i++) imageTargets[i].transform.SetSiblingIndex(i); } public class CompareDepthMethod : IComparer

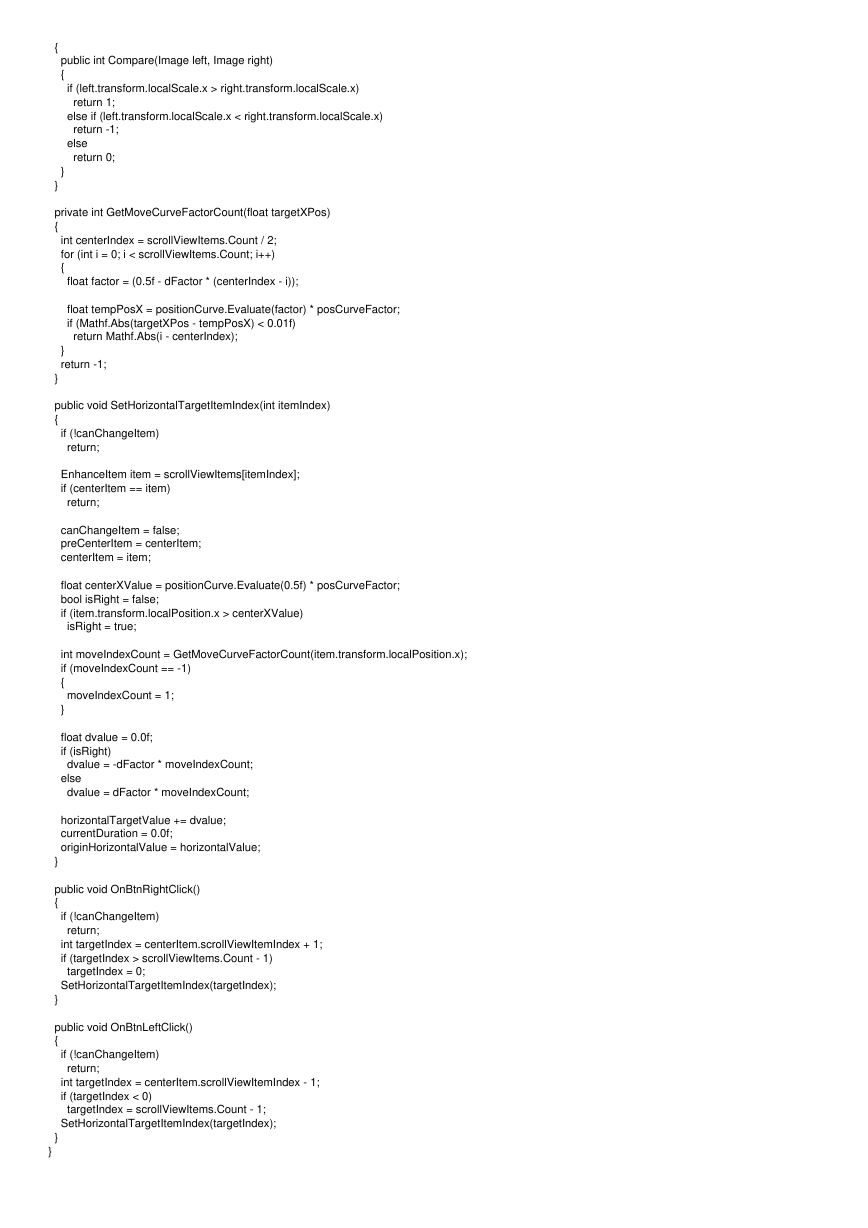

{ public int Compare(Image left, Image right) { if (left.transform.localScale.x > right.transform.localScale.x) return 1; else if (left.transform.localScale.x < right.transform.localScale.x) return -1; else return 0; } } private int GetMoveCurveFactorCount(float targetXPos) { int centerIndex = scrollViewItems.Count / 2; for (int i = 0; i < scrollViewItems.Count; i++) { float factor = (0.5f - dFactor * (centerIndex - i)); float tempPosX = positionCurve.Evaluate(factor) * posCurveFactor; if (Mathf.Abs(targetXPos - tempPosX) < 0.01f) return Mathf.Abs(i - centerIndex); } return -1; } public void SetHorizontalTargetItemIndex(int itemIndex) { if (!canChangeItem) return; EnhanceItem item = scrollViewItems[itemIndex]; if (centerItem == item) return; canChangeItem = false; preCenterItem = centerItem; centerItem = item; float centerXValue = positionCurve.Evaluate(0.5f) * posCurveFactor; bool isRight = false; if (item.transform.localPosition.x > centerXValue) isRight = true; int moveIndexCount = GetMoveCurveFactorCount(item.transform.localPosition.x); if (moveIndexCount == -1) { moveIndexCount = 1; } float dvalue = 0.0f; if (isRight) dvalue = -dFactor * moveIndexCount; else dvalue = dFactor * moveIndexCount; horizontalTargetValue += dvalue; currentDuration = 0.0f; originHorizontalValue = horizontalValue; } public void OnBtnRightClick() { if (!canChangeItem) return; int targetIndex = centerItem.scrollViewItemIndex + 1; if (targetIndex > scrollViewItems.Count - 1) targetIndex = 0; SetHorizontalTargetItemIndex(targetIndex); } public void OnBtnLeftClick() { if (!canChangeItem) return; int targetIndex = centerItem.scrollViewItemIndex - 1; if (targetIndex < 0) targetIndex = scrollViewItems.Count - 1; SetHorizontalTargetItemIndex(targetIndex); } }

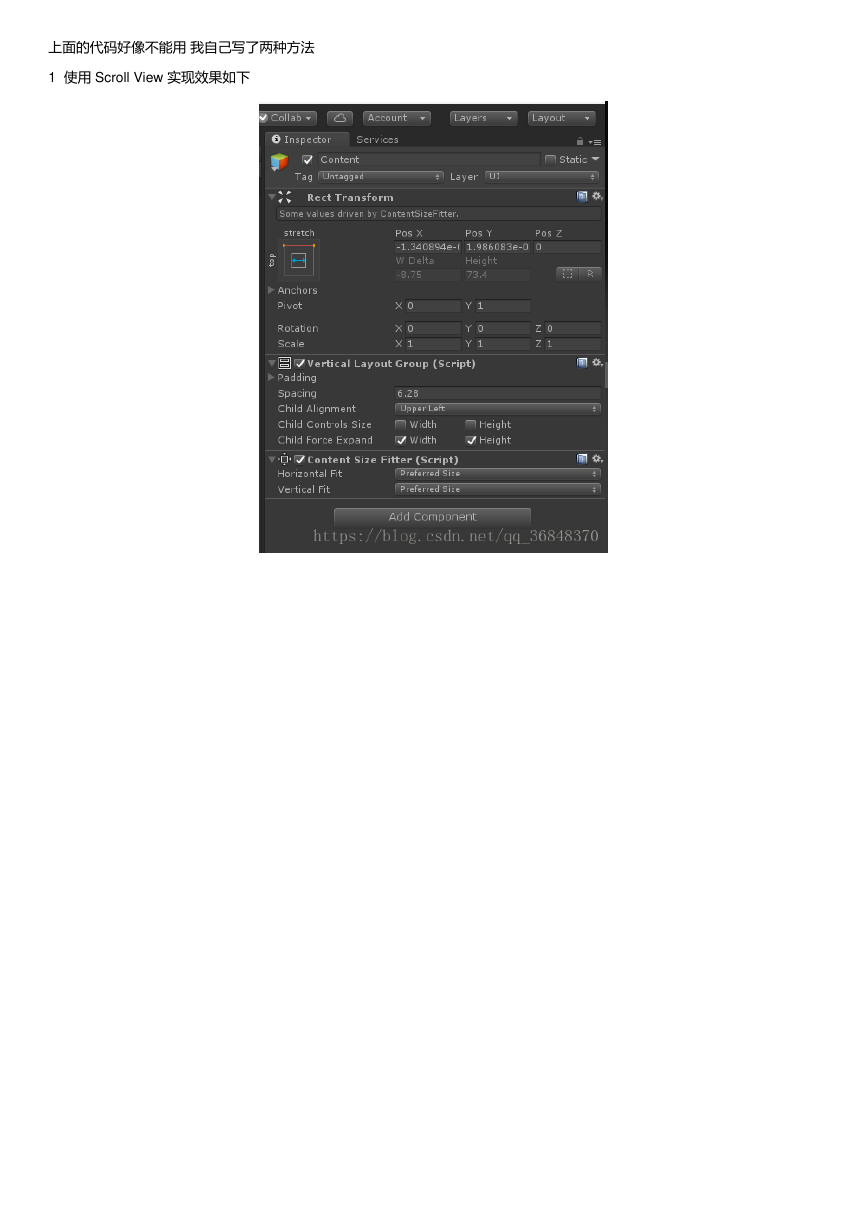

上面的代码好像不能用我自己写了两种方法 1 使用 Scroll View 实现效果如下

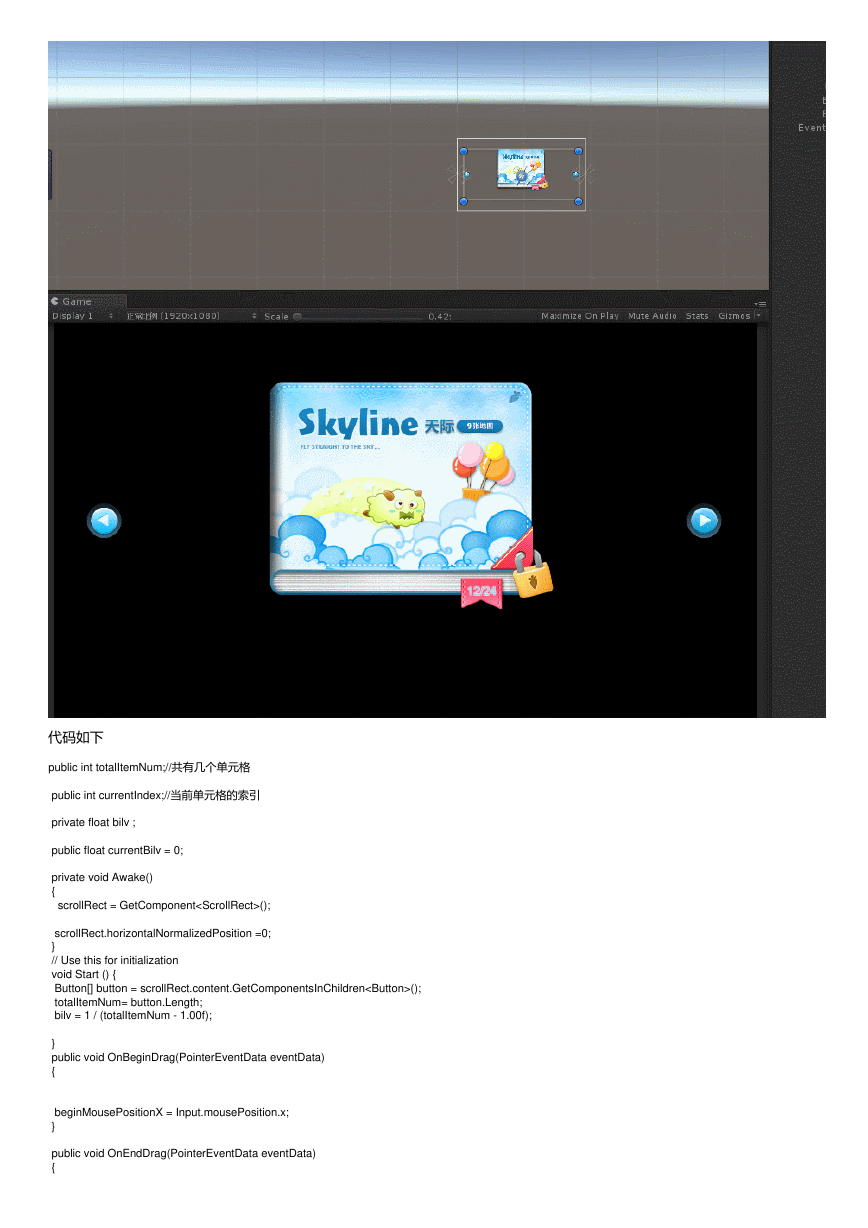

代码如下 public int totalItemNum;//共有几个单元格 public int currentIndex;//当前单元格的索引 private float bilv ; public float currentBilv = 0; private void Awake() { scrollRect = GetComponent(); scrollRect.horizontalNormalizedPosition =0; } // Use this for initialization void Start () { Button[] button = scrollRect.content.GetComponentsInChildren
