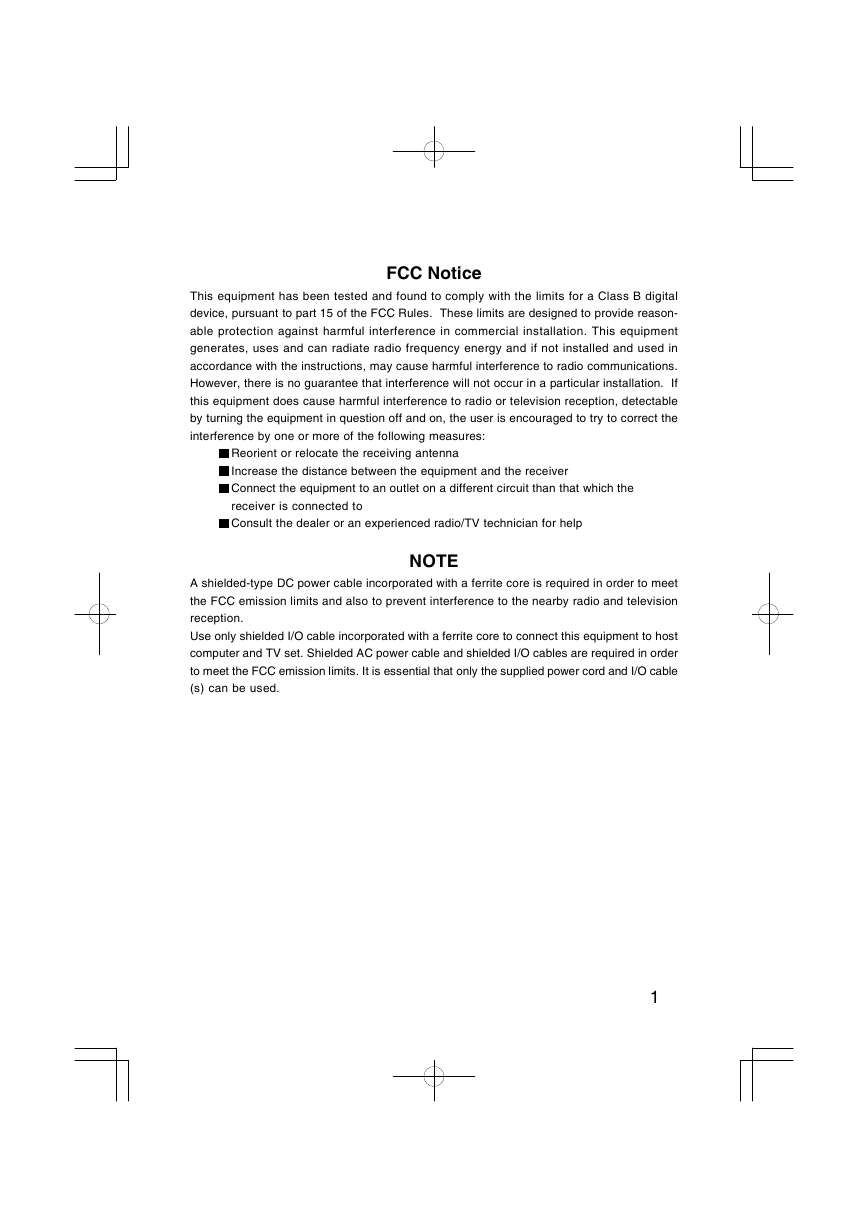

FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in commercial installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, detectable by turning the equipment in question off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna Increase the distance between the equipment and the receiver Connect the equipment to an outlet on a different circuit than that which the receiver is connected to Consult the dealer or an experienced radio/TV technician for help NOTE A shielded-type DC power cable incorporated with a ferrite core is required in order to meet the FCC emission limits and also to prevent interference to the nearby radio and television reception. Use only shielded I/O cable incorporated with a ferrite core to connect this equipment to host computer and TV set. Shielded AC power cable and shielded I/O cables are required in order to meet the FCC emission limits. It is essential that only the supplied power cord and I/O cable (s) can be used. 1

WARNING Do not use this camera if it is emitting smoke, becomes unusually hot to be touched, emitting any unusual odor or noise, or if it is in any other abnormal states. Operating the camera in any of these situations may cause a fire or an electrical shock. Stop using the camera immediately, turn the camera off, and then disconnect the power source (batteries or AC power adapter). (If you are using the AC power adapter, unplug the adapter from the AC power outlet after you have disconnected the camera.) After checking that smoke is no longer being emitted, contact your dealer or your local authorized service facility and request repairs. Never attempt to repair this camera by yourself as this is dangerous. Do not use the camera if any water has entered the camera. Turn the camera off, and then disconnect the power source (batteries or AC power adapter). (if you are using the AC power adapter, unplug the adapter from the AC power outlet after you have disconnected the camera.) Then contact your dealer or your local authorized service facility. Do not continue to use the camera as this may cause a fire or an electrical shock. Do not use the camera if any foreign objects have entered the camera. Turn the camera off, and then disconnect the power source (batteries or AC power adapter). (if you are using the AC power adapter, unplug the adapter from the AC power outlet after you have disconnected the camera.) Then contact your dealer or your local authorized service facility. Do not continue to use the camera as this may cause a fire or an electrical shock. If the camera has been dropped or if the camera case has been damaged, turn the camera off, and then disconnect the power source (batteries or AC power adapter). (if you are using the AC power adapter, unplug the adapter from the AC power outlet after you have disconnected the camera.) Then contact your dealer or your local authorized service facility. Do not continue to use the camera as this may cause a fire or an electrical shock. Do not place the camera in any unstable locations such as on a wobbly table or sloping surface where the camera may fall or tip over and cause injury. Do not expose the camera to moisture and make sure that there is no water getting into the camera. Take particular care when using the camera under extreme weather conditions such as rain or snow, or when operating the camera at the beach on near water. Water in the camera may cause a fire or an electrical shock. Do not insert or drop metallic or inflammable foreign objects into the camera through access points such as the memory card slot. This may cause a fire or an electrical shock. 2

WARNING Do not attempt to modify this camera. This may cause a fire or an electrical shock. Do not remove the camera casing. This may cause an electrical shock. Internal inspection, maintenance and repairs should only be carried out by your dealer or local authorized service facility. Avoid using this camera in the bathrooms. Exposure to excessive moisture may cause a fire or an electrical shock. Do not touch the power plug during a thunderstorm if you are using the AC power adapter. This may cause an electrical shock. Never operate this camera in any way while driving a vehicle. This may cause a traffic accident. 3

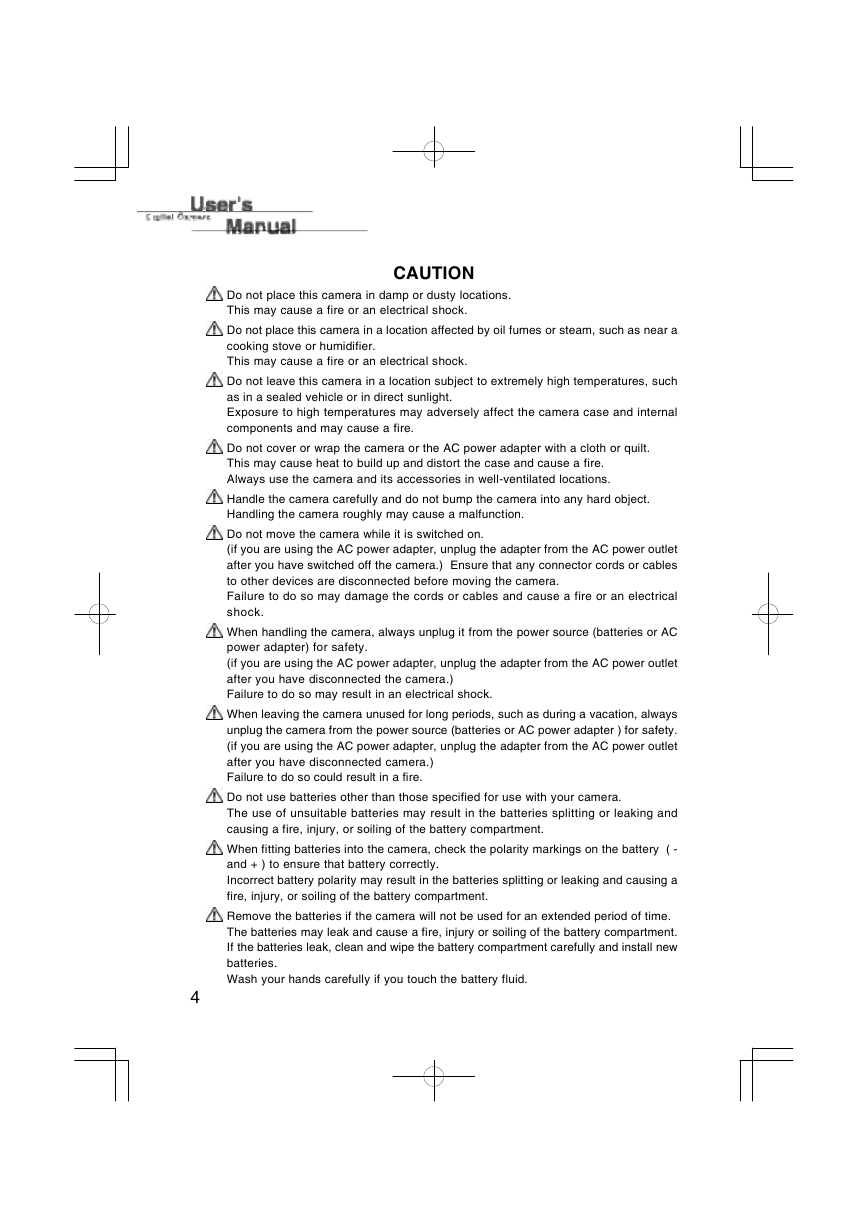

CAUTION Do not place this camera in damp or dusty locations. This may cause a fire or an electrical shock. Do not place this camera in a location affected by oil fumes or steam, such as near a cooking stove or humidifier. This may cause a fire or an electrical shock. Do not leave this camera in a location subject to extremely high temperatures, such as in a sealed vehicle or in direct sunlight. Exposure to high temperatures may adversely affect the camera case and internal components and may cause a fire. Do not cover or wrap the camera or the AC power adapter with a cloth or quilt. This may cause heat to build up and distort the case and cause a fire. Always use the camera and its accessories in well-ventilated locations. Handle the camera carefully and do not bump the camera into any hard object. Handling the camera roughly may cause a malfunction. Do not move the camera while it is switched on. (if you are using the AC power adapter, unplug the adapter from the AC power outlet after you have switched off the camera.) Ensure that any connector cords or cables to other devices are disconnected before moving the camera. Failure to do so may damage the cords or cables and cause a fire or an electrical shock. When handling the camera, always unplug it from the power source (batteries or AC power adapter) for safety. (if you are using the AC power adapter, unplug the adapter from the AC power outlet after you have disconnected the camera.) Failure to do so may result in an electrical shock. When leaving the camera unused for long periods, such as during a vacation, always unplug the camera from the power source (batteries or AC power adapter ) for safety. (if you are using the AC power adapter, unplug the adapter from the AC power outlet after you have disconnected camera.) Failure to do so could result in a fire. Do not use batteries other than those specified for use with your camera. The use of unsuitable batteries may result in the batteries splitting or leaking and causing a fire, injury, or soiling of the battery compartment. When fitting batteries into the camera, check the polarity markings on the battery ( - and + ) to ensure that battery correctly. Incorrect battery polarity may result in the batteries splitting or leaking and causing a fire, injury, or soiling of the battery compartment. Remove the batteries if the camera will not be used for an extended period of time. The batteries may leak and cause a fire, injury or soiling of the battery compartment. If the batteries leak, clean and wipe the battery compartment carefully and install new batteries. Wash your hands carefully if you touch the battery fluid. 4

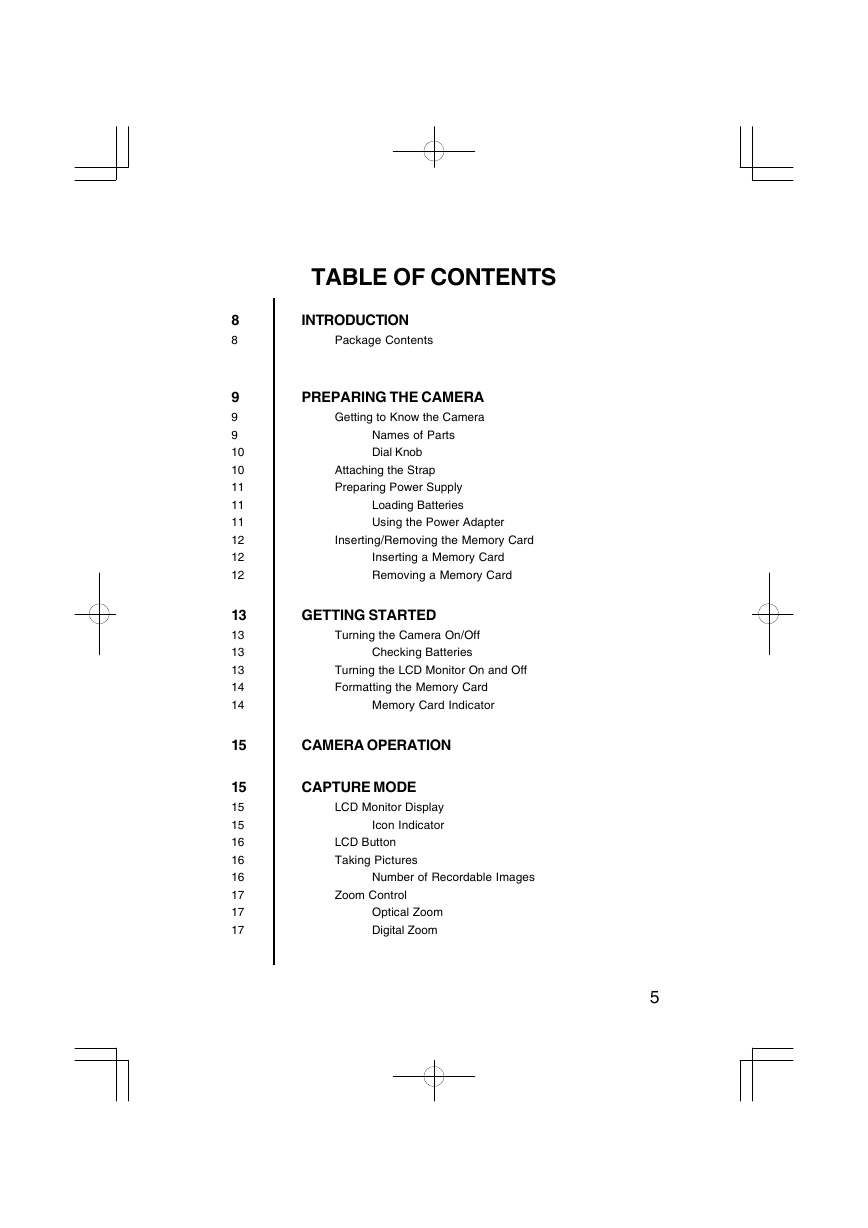

TABLE OF CONTENTS INTRODUCTION Package Contents PREPARING THE CAMERA Getting to Know the Camera Names of Parts Dial Knob Attaching the Strap Preparing Power Supply Loading Batteries Using the Power Adapter Inserting/Removing the Memory Card Inserting a Memory Card Removing a Memory Card GETTING STARTED Turning the Camera On/Off Checking Batteries Turning the LCD Monitor On and Off Formatting the Memory Card Memory Card Indicator CAMERA OPERATION CAPTURE MODE LCD Monitor Display Icon Indicator LCD Button Taking Pictures Number of Recordable Images Zoom Control Optical Zoom Digital Zoom 8 8 9 9 9 10 10 11 11 11 12 12 12 13 13 13 13 14 14 15 15 15 15 16 16 16 17 17 17 5

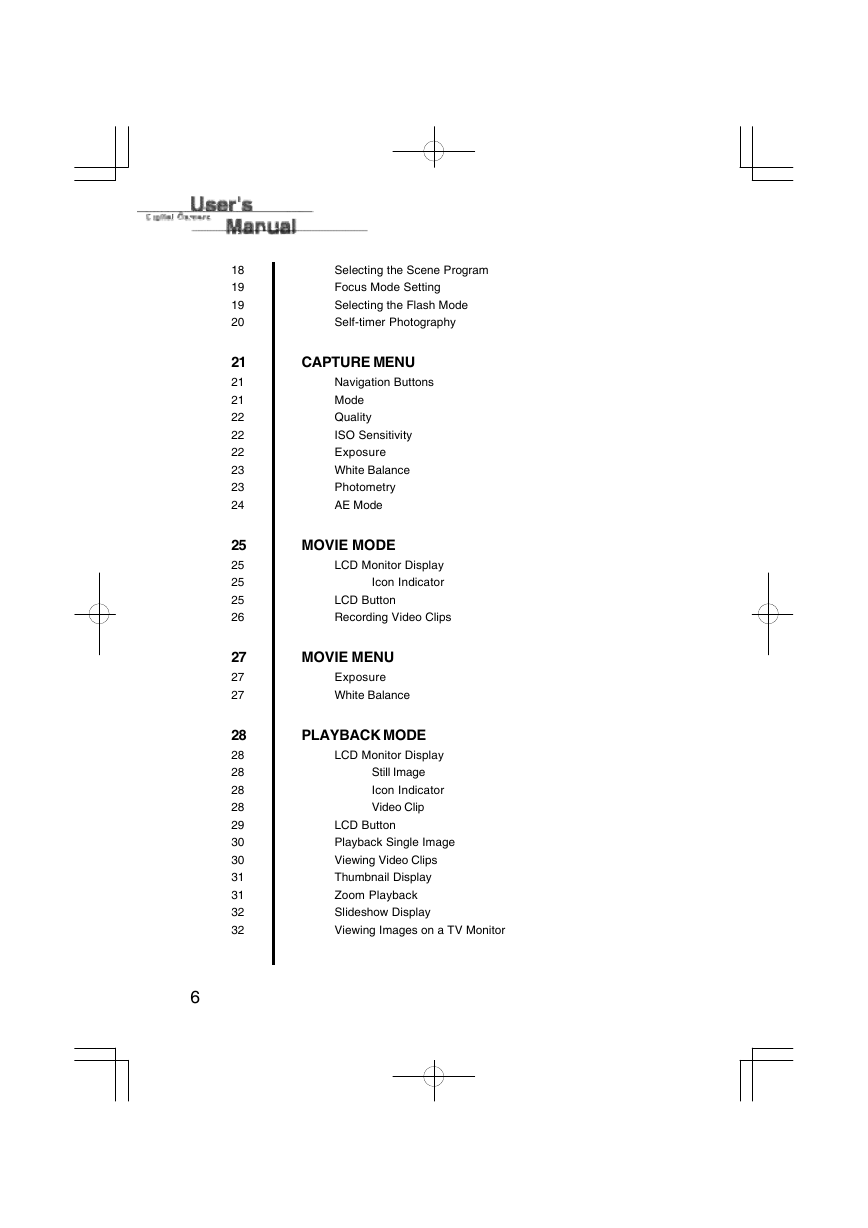

Selecting the Scene Program Focus Mode Setting Selecting the Flash Mode Self-timer Photography CAPTURE MENU Navigation Buttons Mode Quality ISO Sensitivity Exposure White Balance Photometry AE Mode MOVIE MODE LCD Monitor Display Icon Indicator LCD Button Recording Video Clips MOVIE MENU Exposure White Balance PLAYBACK MODE LCD Monitor Display Still Image Icon Indicator Video Clip LCD Button Playback Single Image Viewing Video Clips Thumbnail Display Zoom Playback Slideshow Display Viewing Images on a TV Monitor 18 19 19 20 21 21 21 22 22 22 23 23 24 25 25 25 25 26 27 27 27 28 28 28 28 28 29 30 30 31 31 32 32 6

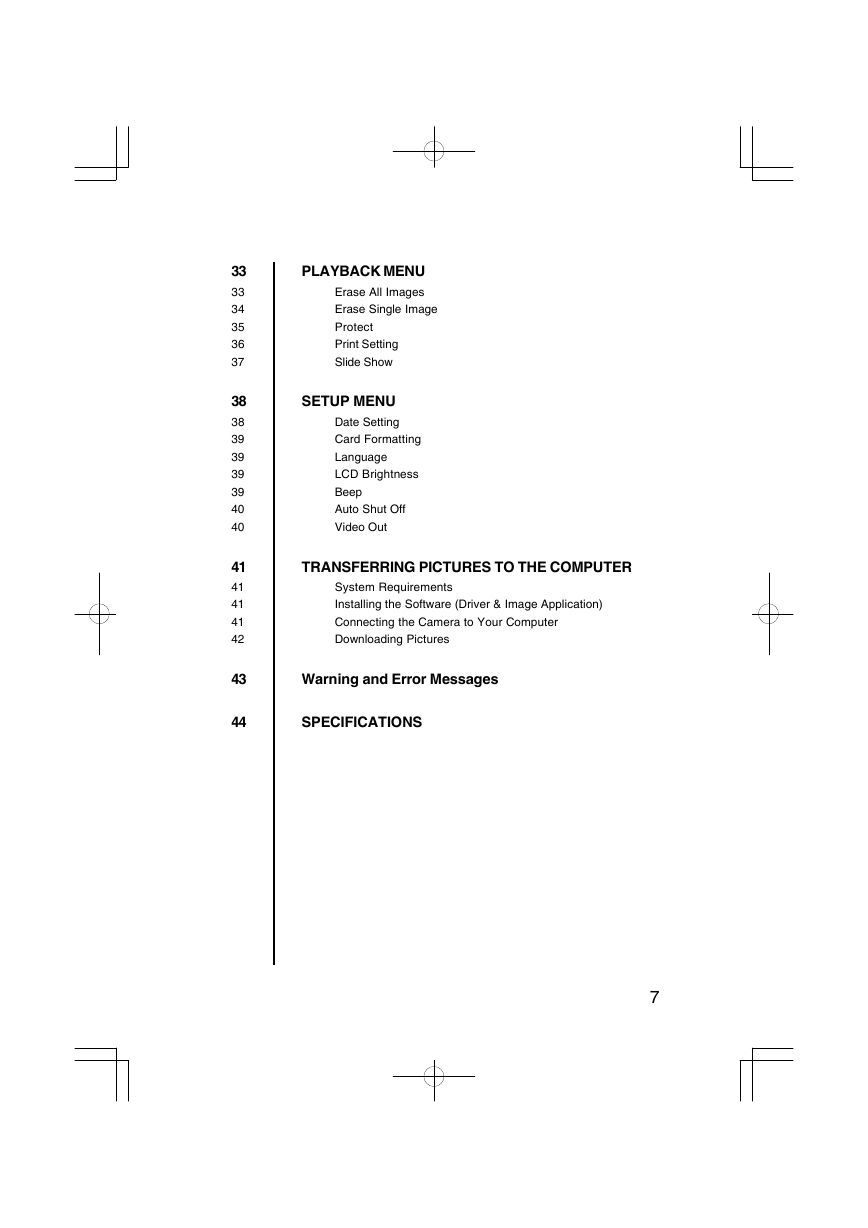

33 33 34 35 36 37 38 38 39 39 39 39 40 40 41 41 41 41 42 43 44 PLAYBACK MENU Erase All Images Erase Single Image Protect Print Setting Slide Show SETUP MENU Date Setting Card Formatting Language LCD Brightness Beep Auto Shut Off Video Out TRANSFERRING PICTURES TO THE COMPUTER System Requirements Installing the Software (Driver & Image Application) Connecting the Camera to Your Computer Downloading Pictures Warning and Error Messages SPECIFICATIONS 7

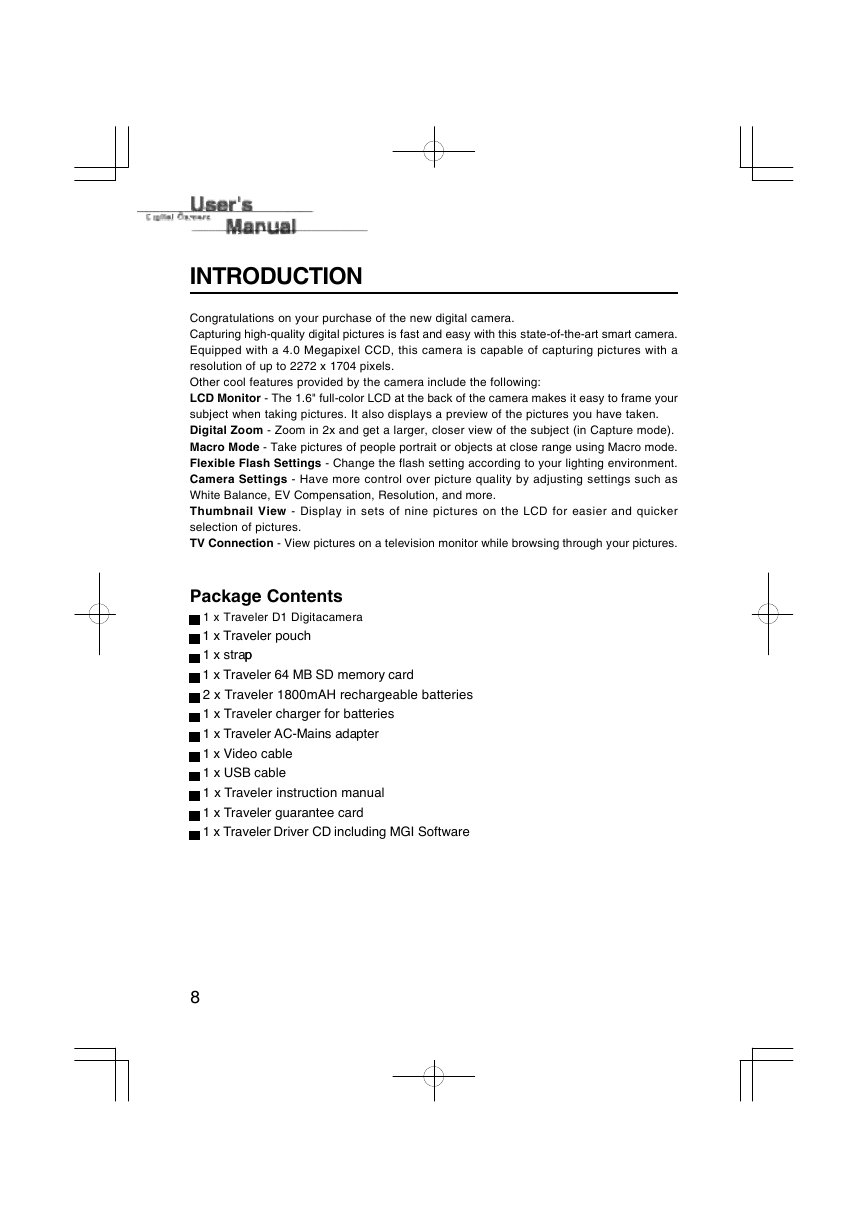

INTRODUCTION Congratulations on your purchase of the new digital camera. Capturing high-quality digital pictures is fast and easy with this state-of-the-art smart camera. Equipped with a 4.0 Megapixel CCD, this camera is capable of capturing pictures with a resolution of up to 2272 x 1704 pixels. Other cool features provided by the camera include the following: LCD Monitor - The 1.6" full-color LCD at the back of the camera makes it easy to frame your subject when taking pictures. It also displays a preview of the pictures you have taken. Digital Zoom - Zoom in 2x and get a larger, closer view of the subject (in Capture mode). Macro Mode - Take pictures of people portrait or objects at close range using Macro mode. Flexible Flash Settings - Change the flash setting according to your lighting environment. Camera Settings - Have more control over picture quality by adjusting settings such as White Balance, EV Compensation, Resolution, and more. Thumbnail View - Display in sets of nine pictures on the LCD for easier and quicker selection of pictures. TV Connection - View pictures on a television monitor while browsing through your pictures. Package Contents 1 x Traveler D1 Digitacamera 1 x Traveler pouch 1 x strapp 1 x Traveler 64 MB SD memory card 2 x Traveler 1800mAH rechargeable batteries 1 x Traveler charger for batteries 1 x Traveler AC-Mains adapter 1 x Video cable 1 x USB cable 1 x Traveler instruction manual 1 x Traveler guarantee card 1 x Traveler Driver CD including MGI Software 8
