机器人操作系统 ROS: 典型功能代码详解
李宝全

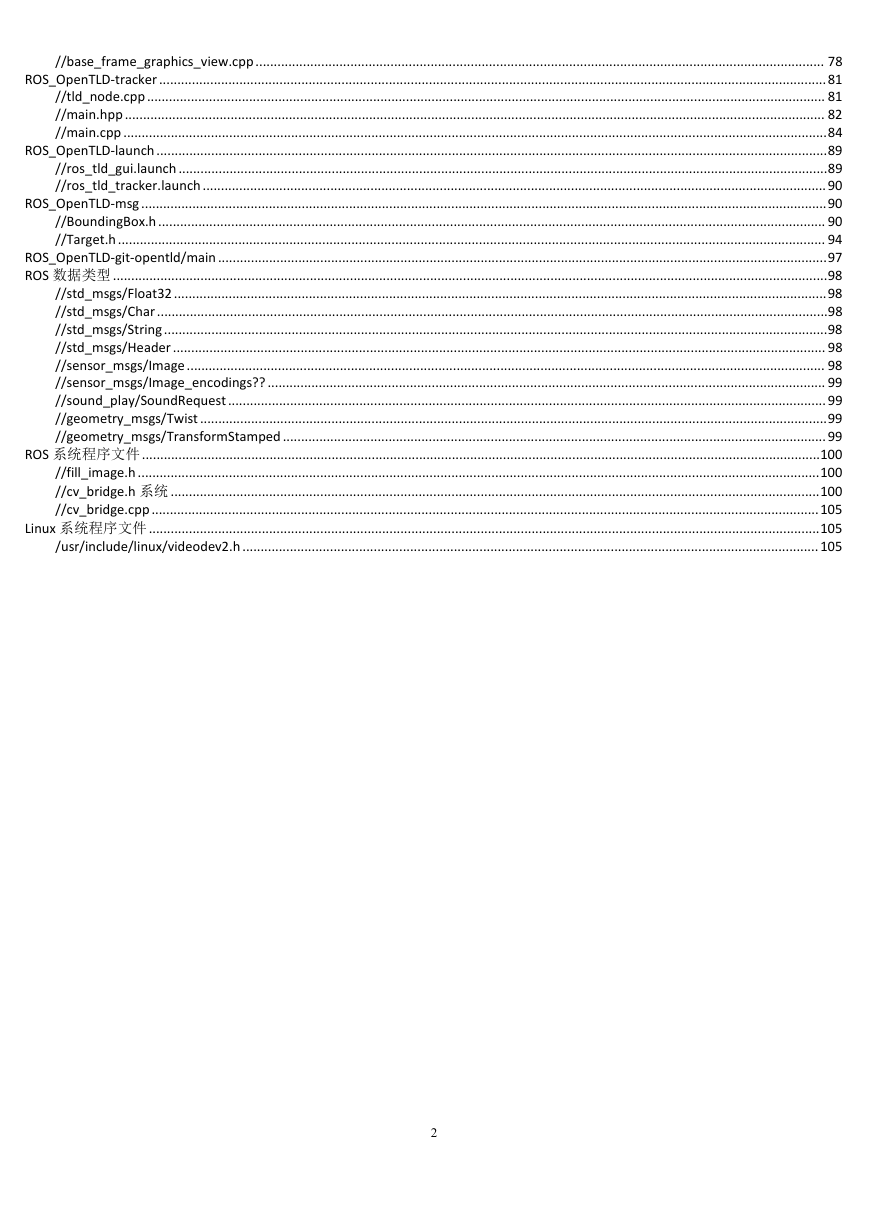

目录
目录..................................................................................................................................................................................................................... 1
ROS API 介绍 ...................................................................................................................................................................................................... 3
Demo ....................................................................................................................................................................................................................3
//talker.cpp..................................................................................................................................................................................................3
//listener.cpp ...............................................................................................................................................................................................4
//add_two_ints_server.cpp........................................................................................................................................................................ 4
//add_two_int_client.cpp........................................................................................................................................................................... 5
#CmakeList.txt.............................................................................................................................................................................................5
ROSARIA...............................................................................................................................................................................................................9
1//RosAria.cpp.............................................................................................................................................................................................9
#CmakeList.txt...........................................................................................................................................................................................20
2//rosaria_teleop_key.cpp ........................................................................................................................................................................20
3//rosaria_teleop_code.cpp..................................................................................................................................................................... 21
#CmakeList.txt...........................................................................................................................................................................................22
Images................................................................................................................................................................................................................26
//image_converter.cpp //包 cv_bridge 仅有的一个程序 ...................................................................................................................... 26
//hud_gui_simplified.cpp ..........................................................................................................................................................................27
//usb_cam.h .............................................................................................................................................................................................. 28
//usb_cam.cpp.......................................................................................................................................................................................... 29
//usb_cam_node.cpp................................................................................................................................................................................45
#usb_cam/CmakeList.txt ...........................................................................................................................................................................48
NiTE, Tf 的发布..................................................................................................................................................................................................49
//tf2_ros/transform_broadcaster.h 系统................................................................................................................................................49
//tf2_ros/transform_broadcaster.cpp 系统.............................................................................................................................................50
//tf/transform_broadcaster.h...................................................................................................................................................................50
//tf/transform_broadcaster.cpp...............................................................................................................................................................51
//tf2_ros/transform_listener.h.................................................................................................................................................................52
//tf/transform_listener.h .......................................................................................................................................................................... 53
//openni_tracker.cpp 节点 .......................................................................................................................................................................55
#CmakeList.txt...........................................................................................................................................................................................59
Tf 的接收, 并以控制 P3AT 做示范..................................................................................................................................................................60
//TfListnerAria.cpp.................................................................................................................................................................................... 60
#CmakeList.txt...........................................................................................................................................................................................61
语音发布........................................................................................................................................................................................................... 61
//sound_play.h..........................................................................................................................................................................................61
//SoundDemo.cpp.....................................................................................................................................................................................64
#CmakeList.txt...........................................................................................................................................................................................65
#test/CmakeList.txt................................................................................................................................................................................... 66
语言接收, 显示/再发声...................................................................................................................................................................................66
//VoiceBridgeNode.cpp.............................................................................................................................................................................66
#CMakeList.txt ...........................................................................................................................................................................................66
//RespondVoice.cpp ..................................................................................................................................................................................67
#test/CMakeList.txt ...................................................................................................................................................................................68
ROS_OpenTLD-GUI ............................................................................................................................................................................................ 68
//tld_gui_node.cpp................................................................................................................................................................................... 68
//base_frame.hpp..................................................................................................................................................................................... 68
//base_frame.cpp......................................................................................................................................................................................70
//ui_baseFrame.h......................................................................................................................................................................................74
//base_frame_graphics_view.hpp............................................................................................................................................................77
1
//base_frame_graphics_view.cpp............................................................................................................................................................ 78
ROS_OpenTLD-tracker .......................................................................................................................................................................................81
//tld_node.cpp.......................................................................................................................................................................................... 81
//main.hpp................................................................................................................................................................................................ 82
//main.cpp .................................................................................................................................................................................................84
ROS_OpenTLD-launch........................................................................................................................................................................................89
//ros_tld_gui.launch ..................................................................................................................................................................................89
//ros_tld_tracker.launch...........................................................................................................................................................................90
ROS_OpenTLD-msg............................................................................................................................................................................................90
//BoundingBox.h....................................................................................................................................................................................... 90
//Target.h.................................................................................................................................................................................................. 94
ROS_OpenTLD-git-opentld/main .......................................................................................................................................................................97
ROS 数据类型 ....................................................................................................................................................................................................98
//std_msgs/Float32...................................................................................................................................................................................98
//std_msgs/Char........................................................................................................................................................................................98
//std_msgs/String......................................................................................................................................................................................98
//std_msgs/Header ................................................................................................................................................................................... 98
//sensor_msgs/Image............................................................................................................................................................................... 98
//sensor_msgs/Image_encodings??......................................................................................................................................................... 99
//sound_play/SoundRequest.................................................................................................................................................................... 99
//geometry_msgs/Twist ............................................................................................................................................................................99
//geometry_msgs/TransformStamped .....................................................................................................................................................99
ROS 系统程序文件..........................................................................................................................................................................................100
//fill_image.h ...........................................................................................................................................................................................100
//cv_bridge.h 系统 ..................................................................................................................................................................................100
//cv_bridge.cpp.......................................................................................................................................................................................105
Linux 系统程序文件........................................................................................................................................................................................105
/usr/include/linux/videodev2.h.............................................................................................................................................................. 105
2
ROS API 介绍
关于 publisher
1.ros::Publisher chatter_pub = n.advertise("chatter", 1000);//创建了一个发布者
2. image_pub_ = it_.advertise("/image_converter/output_video", 1);
3. image_transport::CameraPublisher image_pub_ ;
image_pub_ = it.advertiseCamera("image_raw", 1);
image_pub_.publish((sensor_msgs::Image)img_, (sensor_msgs::CameraInfoPtr)*ci);
关于 advertise 的缓冲区数量, 对于摄像头而言, 缓冲 1 幅图像即可, 试想若缓冲 1000 的话, 当接收图像时接收的是历史图像.
(需要验证???)
但是对于第一行的缓冲区为 1000 的 BaseDemo，listener 还是从最新发布的信息开始读取啊？？？
关于 subscribe, 订阅者要有一个回调函数, 例如:
image_sub_ = it_.subscribe("/camera/image_raw", 1, &ImageConverter::imageCb, this); //关联了回调函数
// ImageConverter:: 是指该类中的一个函数
ros::Subscriber sub = n.subscribe("chatter", 1000, chatterCallback);//创建一个订阅者
// chatterCallback 只是外面的与 main 平级的一个函数
代码相关说明: 程序中含有中文注释时， 也能编译成功。 也能运行！
安装的 hydro，只有。h 文件，cpp 文件没有
Demo
//talker.cpp
#include "ros/ros.h"//ROS的头文件
#include "std_msgs/String.h"//ROS自定义的数据类型String所在的头文件
#include //字符串的输入输出流
int main(int argc, char **argv)
{
ros::init(argc, argv, "talker");//在名字空间”ros”中的函数init();
//初始化ROS, 是确切说明节点名字的地方, 节点的名字必须唯一, //它允许ROS通过命令行重新命名,
ros::NodeHandle n;//创建了该节点的一个句柄
ros::Publisher chatter_pub = n.advertise("chatter", 1000);//创建了一个发布者
//尖括号里为发布的数据类型, 即消息Message
//圆括号中”chatter”为发布的话题的名称, 即Topic
//这就使得主机告诉了所有订阅了”chatter”话题的节点, 我们将在这个话题上发布数据
//用到了std_msgs, 对应于在创建包时加入 “std_msgs” 一项////////////////////////////
//第二个参数是发布队列的大小, 它的作用是缓冲. 当我们发布消息很快的时候, 它将能缓冲 1000 条信息.
//NodeHandle::advertise()将会返回ros::Publisher对象
//也可以写成ros::Publisher chatter_pub; chatter_pub= n.advertise<...>...
ros::Rate loop_rate(10);//一个ros::Rate对象允许user制定循环的频率
//它将会记录从上次调用Rate::sleep()到现在为止的时间, 并且休眠正确的时间
int count = 0;
while (ros::ok())//默认情况下,roscpp将会安装一个SIGINT监听,它使当Ctrl-C按下时,ros::ok()将会返回 0.
{
std_msgs::String msg;
std::stringstream ss;
ss << "hello world " << count;
msg.data = ss.str();
3
ROS_INFO("%s", msg.data.c_str());//函数ROS_INFO()将相关数据输出到屏幕上
//输出结果为: hello world 1; hello world 2; hello world 3; ……
chatter_pub.publish(msg);//将该消息, 即字符串 “hello word xxx”, 发布到话题 “chatter”上
ros::spinOnce();//等待消息发布完成
loop_rate.sleep();//休眠一下, 使程序满足前面所设置的 10Hz的要求
++count;
}
return 0;
}
//listener.cpp
#include "ros/ros.h"
#include "std_msgs/String.h"
void chatterCallback(const std_msgs::String::ConstPtr& msg)
//该回调函数的输入参数为std_msgs::String msg, 与发布者中的数据类型保持一致/////////////////
//是否可以不用ConstPtr,因为talker中只是String msg的数据结构, 是不用也可以不用 &
//是不是凡是接受者, 都用ConstPtr??
ROS_INFO("I heard: [%s]", msg->data.c_str());//将msg中的信息输出到屏幕上
//输出结果为: I heard: [hello world 1]; I heard: [hello world 2]; I heard: [hello world 3];…
int main(int argc, char **argv)
{
ros::init(argc, argv, "listener");
ros::NodeHandle n;
ros::Subscriber sub = n.subscribe("chatter", 1000, chatterCallback);//创建一个订阅者
//第一个参数为Topic的名称 “chatter”
//第三个参数为回调函数的名称 //每当在话题上接受到数据, 即调用该回调函数一次
ros::spin();//等到该节点被关闭时,spin()才返回//类似于cvWaitKey()
return 0;
}
//add_two_ints_server.cpp
#include "ros/ros.h"
#include "beginner_tutorials/AddTwoInts.h"
{
}
{
}
bool add(beginner_tutorials::AddTwoInts::Request &req,
beginner_tutorials::AddTwoInts::Response &res)
res.sum = req.a + req.b;
ROS_INFO("request: x=%ld, y=%ld", (long int)req.a, (long int)req.b);
ROS_INFO("sending back response: [%ld]", (long int)res.sum);
return true;
4
int main(int argc, char **argv)
{
ros::init(argc, argv, "add_two_ints_server");
ros::NodeHandle n;
ros::ServiceServer service = n.advertiseService("add_two_ints", add);
ROS_INFO("Ready to add two ints.");
ros::spin();//程序一直停留在这,等待客户端的请求. 客户端请求一次,就运行一次add()
//等到该节点被关闭时,spin()才返回
return 0;
}
//add_two_int_client.cpp
#include "ros/ros.h"
#include "beginner_tutorials/AddTwoInts.h"
#include
int main(int argc, char **argv)
{
ros::init(argc, argv, "add_two_ints_client");
if (argc != 3)
{
ROS_INFO("usage: add_two_ints_client X Y");
return 1;
ROS_ERROR("Failed to call service add_two_ints");
return 1;
return 0;
}

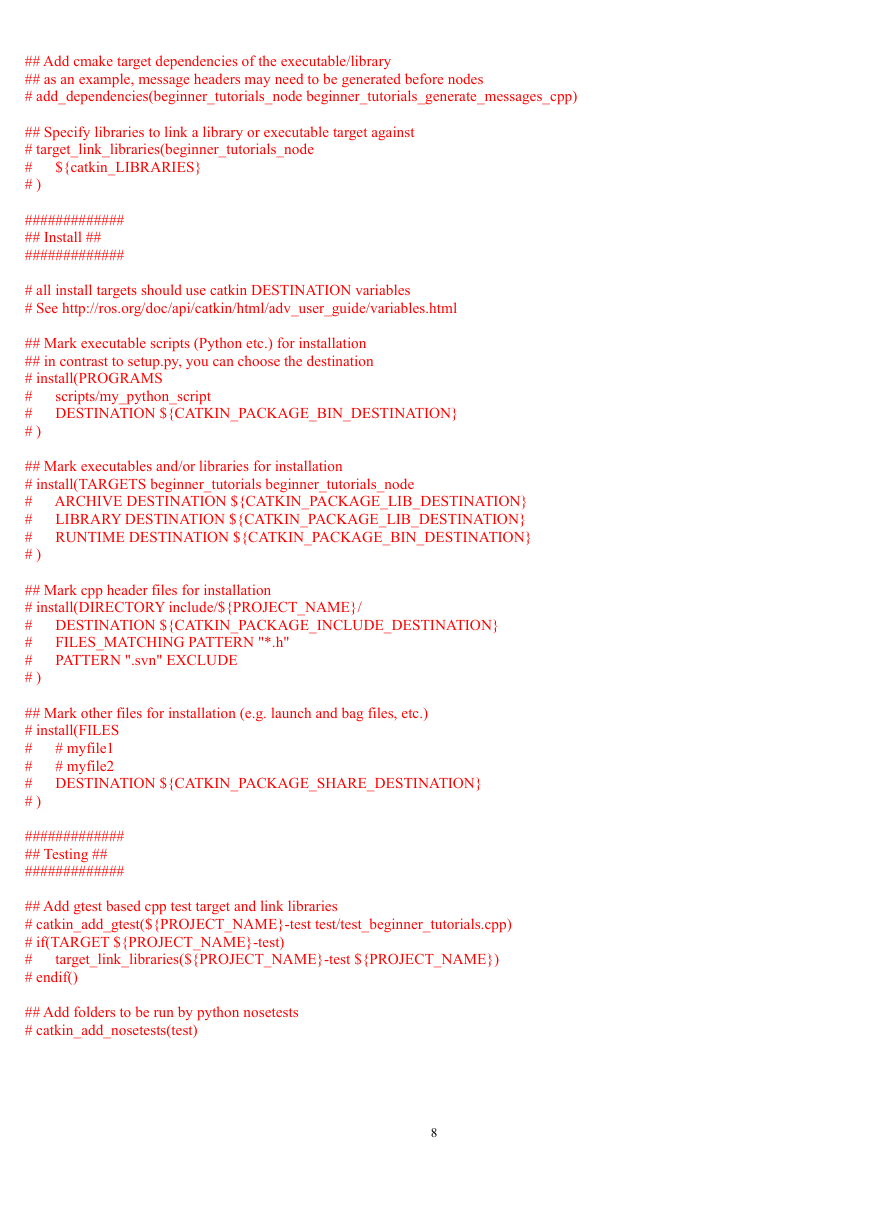

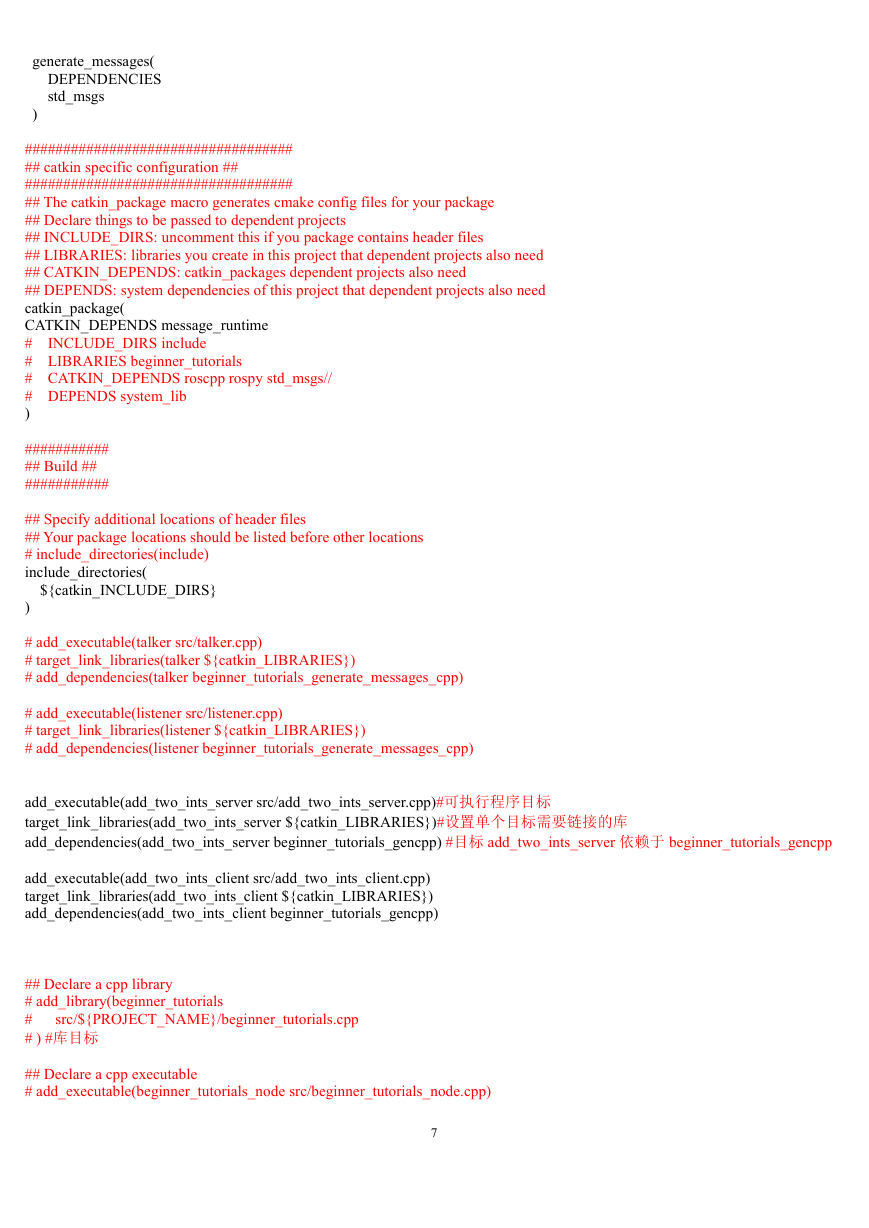

#CmakeList.txt
cmake_minimum_required(VERSION 2.8.3)
project(beginner_tutorials)
## Find catkin macros and libraries
## if COMPONENTS list like find_package(catkin REQUIRED COMPONENTS xyz)
## is used, also find other catkin packages
5
ros::NodeHandle n;//符号::是指名字空间下的一个数据类型
ros::ServiceClient client = n.serviceClient("add_two_ints");
//尖括号里面的, 是指消息的类型.
//Topic话题:圆括号里面的是Topic的名字(节点可以在一个话题上发布消息，同样也可以订阅一个话题来接收消息)
//Message消息: 在一个话题上，发布或订阅时所使用的ROS的数据类型.
beginner_tutorials::AddTwoInts srv;
srv.request.a = atoll(argv[1]);
srv.request.b = atoll(argv[2]);
//request的类型为Request,其下有两个量:a,b
//atoll功能: 把字符串转换成长长整型数
if (client.call(srv))
{
ROS_INFO("Sum: %ld", (long int)srv.response.sum);
}
}
else
{
}
find_package(catkin REQUIRED COMPONENTS
roscpp
rospy
std_msgs
message_generation
)
## System dependencies are found with CMake's conventions
# find_package(Boost REQUIRED COMPONENTS system)
## Uncomment this if the package has a setup.py. This macro ensures
## modules and global scripts declared therein get installed
## See http://ros.org/doc/api/catkin/html/user_guide/setup_dot_py.html
# catkin_python_setup()
################################################
## Declare ROS messages, services and actions ##
################################################
* add a build_depend and a run_depend tag for each package in MSG_DEP_SET
* If MSG_DEP_SET isn't empty the following dependencies might have been
your messages/services/actions (e.g. std_msgs, actionlib_msgs, ...).
pulled in transitively but can be declared for certainty nonetheless:
* add a build_depend tag for "message_generation"
* add a run_depend tag for "message_runtime"
## To declare and build messages, services or actions from within this
## package, follow these steps:
## * Let MSG_DEP_SET be the set of packages whose message types you use in
##
## * In the file package.xml:
##
##
##
##
##
## * In this file (CMakeLists.txt):
##
##
##
##
##
##
##
##
* add "message_generation" and every package in MSG_DEP_SET to
* uncomment the add_*_files sections below as needed
and list every .msg/.srv/.action file to be processed
find_package(catkin REQUIRED COMPONENTS ...)
* add "message_runtime" and every package in MSG_DEP_SET to
* uncomment the generate_messages entry below
* add every package in MSG_DEP_SET to generate_messages(DEPENDENCIES ...)
catkin_package(CATKIN_DEPENDS ...)
## Generate messages in the 'msg' folder
add_message_files(
FILES
Num.msg
## Generate services in the 'srv' folder
add_service_files(
FILES
AddTwoInts.srv
)
)
## Generate actions in the 'action' folder
# add_action_files(
#
#
#
# )
FILES
Action1.action
Action2.action
## Generate added messages and services with any dependencies listed here
6
generate_messages(
DEPENDENCIES
std_msgs
)
###################################
## catkin specific configuration ##
###################################
## The catkin_package macro generates cmake config files for your package
## Declare things to be passed to dependent projects
## INCLUDE_DIRS: uncomment this if you package contains header files
## LIBRARIES: libraries you create in this project that dependent projects also need
## CATKIN_DEPENDS: catkin_packages dependent projects also need
## DEPENDS: system dependencies of this project that dependent projects also need
catkin_package(
CATKIN_DEPENDS message_runtime
#
# LIBRARIES beginner_tutorials
# CATKIN_DEPENDS roscpp rospy std_msgs//
# DEPENDS system_lib
)
INCLUDE_DIRS include
###########
## Build ##
###########
## Specify additional locations of header files
## Your package locations should be listed before other locations
# include_directories(include)
include_directories(
${catkin_INCLUDE_DIRS}
)
# add_executable(talker src/talker.cpp)
# target_link_libraries(talker ${catkin_LIBRARIES})
# add_dependencies(talker beginner_tutorials_generate_messages_cpp)
# add_executable(listener src/listener.cpp)
# target_link_libraries(listener ${catkin_LIBRARIES})
# add_dependencies(listener beginner_tutorials_generate_messages_cpp)
add_executable(add_two_ints_server src/add_two_ints_server.cpp)#可执行程序目标
target_link_libraries(add_two_ints_server ${catkin_LIBRARIES})#设置单个目标需要链接的库
add_dependencies(add_two_ints_server beginner_tutorials_gencpp) #目标 add_two_ints_server 依赖于 beginner_tutorials_gencpp
add_executable(add_two_ints_client src/add_two_ints_client.cpp)
target_link_libraries(add_two_ints_client ${catkin_LIBRARIES})
add_dependencies(add_two_ints_client beginner_tutorials_gencpp)
## Declare a cpp library
# add_library(beginner_tutorials
#
# ) #库目标
src/${PROJECT_NAME}/beginner_tutorials.cpp
## Declare a cpp executable
# add_executable(beginner_tutorials_node src/beginner_tutorials_node.cpp)
7
## Add cmake target dependencies of the executable/library
## as an example, message headers may need to be generated before nodes
# add_dependencies(beginner_tutorials_node beginner_tutorials_generate_messages_cpp)
## Specify libraries to link a library or executable target against
# target_link_libraries(beginner_tutorials_node
#
# )
${catkin_LIBRARIES}
#############
## Install ##
#############
# all install targets should use catkin DESTINATION variables
# See http://ros.org/doc/api/catkin/html/adv_user_guide/variables.html
## Mark executable scripts (Python etc.) for installation
## in contrast to setup.py, you can choose the destination
# install(PROGRAMS
#
#
# )
scripts/my_python_script
DESTINATION ${CATKIN_PACKAGE_BIN_DESTINATION}
## Mark executables and/or libraries for installation
# install(TARGETS beginner_tutorials beginner_tutorials_node
#
#
#
# )
ARCHIVE DESTINATION ${CATKIN_PACKAGE_LIB_DESTINATION}
LIBRARY DESTINATION ${CATKIN_PACKAGE_LIB_DESTINATION}
RUNTIME DESTINATION ${CATKIN_PACKAGE_BIN_DESTINATION}
## Mark cpp header files for installation
# install(DIRECTORY include/${PROJECT_NAME}/
#
#
#
# )
DESTINATION ${CATKIN_PACKAGE_INCLUDE_DESTINATION}
FILES_MATCHING PATTERN "*.h"
PATTERN ".svn" EXCLUDE
## Mark other files for installation (e.g. launch and bag files, etc.)
# install(FILES
# myfile1
#
#
# myfile2
#
DESTINATION ${CATKIN_PACKAGE_SHARE_DESTINATION}
# )
#############
## Testing ##
#############
## Add gtest based cpp test target and link libraries
# catkin_add_gtest(${PROJECT_NAME}-test test/test_beginner_tutorials.cpp)
# if(TARGET ${PROJECT_NAME}-test)
#
# endif()
target_link_libraries(${PROJECT_NAME}-test ${PROJECT_NAME})
## Add folders to be run by python nosetests
# catkin_add_nosetests(test)
8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
