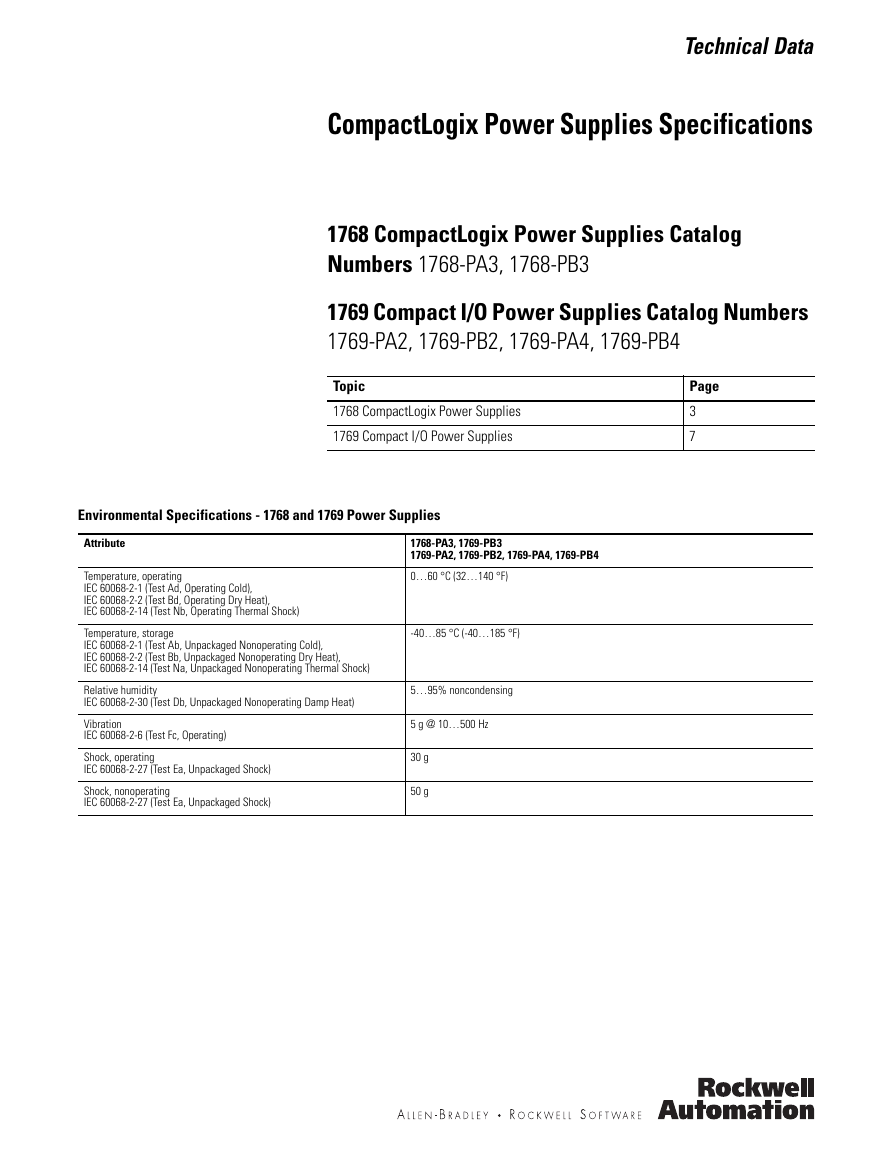

Technical Data CompactLogix Power Supplies Specifications 1768 CompactLogix Power Supplies Catalog Numbers 1768-PA3, 1768-PB3 1769 Compact I/O Power Supplies Catalog Numbers 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 Topic 1768 CompactLogix Power Supplies 1769 Compact I/O Power Supplies Page 3 7 Environmental Specifications - 1768 and 1769 Power Supplies Attribute Temperature, operating IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock) Temperature, storage IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock) Relative humidity IEC 60068-2-30 (Test Db, Unpackaged Nonoperating Damp Heat) Vibration IEC 60068-2-6 (Test Fc, Operating) Shock, operating IEC 60068-2-27 (Test Ea, Unpackaged Shock) Shock, nonoperating IEC 60068-2-27 (Test Ea, Unpackaged Shock) 1768-PA3, 1769-PB3 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 0…60 °C (32…140 °F) -40…85 °C (-40…185 °F) 5…95% noncondensing 5 g @ 10…500 Hz 30 g 50 g

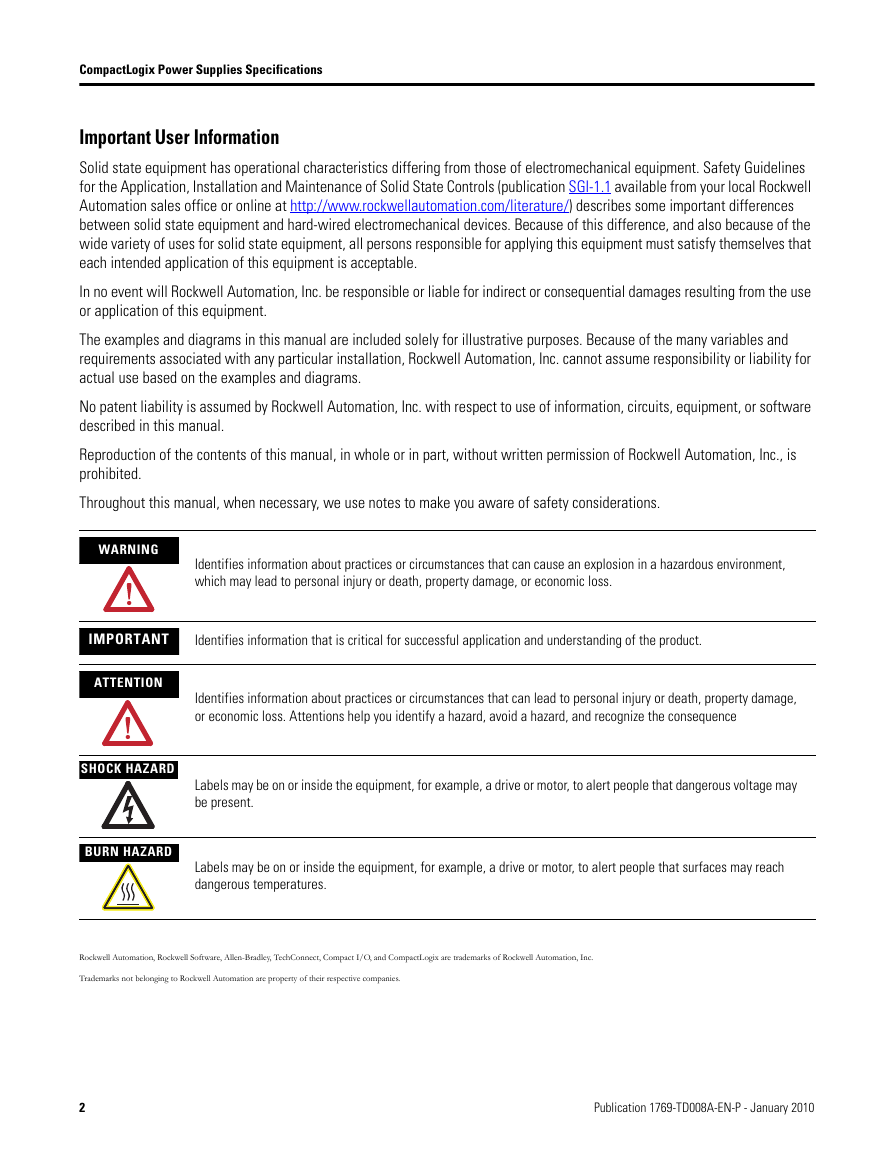

CompactLogix Power Supplies Specifications Important User Information Solid state equipment has operational characteristics differing from those of electromechanical equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls (publication SGI-1.1 available from your local Rockwell Automation sales office or online at http://www.rockwellautomation.com/literature/) describes some important differences between solid state equipment and hard-wired electromechanical devices. Because of this difference, and also because of the wide variety of uses for solid state equipment, all persons responsible for applying this equipment must satisfy themselves that each intended application of this equipment is acceptable. In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment. The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the examples and diagrams. No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual. Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is prohibited. Throughout this manual, when necessary, we use notes to make you aware of safety considerations. WARNING Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may lead to personal injury or death, property damage, or economic loss. IMPORTANT Identifies information that is critical for successful application and understanding of the product. ATTENTION SHOCK HAZARD BURN HAZARD Identifies information about practices or circumstances that can lead to personal injury or death, property damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous voltage may be present. Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may reach dangerous temperatures. Rockwell Automation, Rockwell Software, Allen-Bradley, TechConnect, Compact I/O, and CompactLogix are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies. 2 Publication 1769-TD008A-EN-P - January 2010

CompactLogix Power Supplies Specifications 1768 CompactLogix Power Supplies The 1768 backplane requires one 1768 power supply. The power supply is a dual input supply that operates in multiple ranges. The power supply also offers a 24V dc external power source. The power supply sends 24V dc to the controller in slot 0. • The controller converts the 24V dc to 5V dc and 24V dc and distributes it as needed. – 5V and 24V power to 1769 I/O modules on the right side of the controller – 24V power to 1768 modules on the left side of the controller Power supply sends 24V DC to the controller. Power Supply Communication or Motion Controller 1769 I/O Controller sends - 5V DC to 1768 modules - 5V and 24V DC to 1769 I/O modules The 1768 modules do not have a distance rating to the 1768 power supply. For the 1769 I/O modules in the 1768 system, the distance rating is from the controller and not the 1768 power supply. Technical Specifications - 1768 CompactLogix Power Supplies Attribute Input voltage range Input voltage, nom Input frequency range Input power, max Output power, max Output power, min Power dissipation Inrush current, max 1768-PA3 85…265V AC 108…132V DC 120V/220V AC 47…63 Hz 120VA/120 W 90 W 24V DC to backplane: 3.5 24V DC to user-accessible terminal block: 0.25 A 6 W 24V DC to backplane: 0.25 A 24V DC to user-accessible terminal block: 0.0 A 30 W 50 A @ 85…132V AC 80 A @ 195…265V AC 1768-PB3 16.8...31.2V DC 24V DC DC 112 W 22 W 50 A @ 16.8...31.2V DC(1) Publication 1769-TD008A-EN-P - January 2010 3

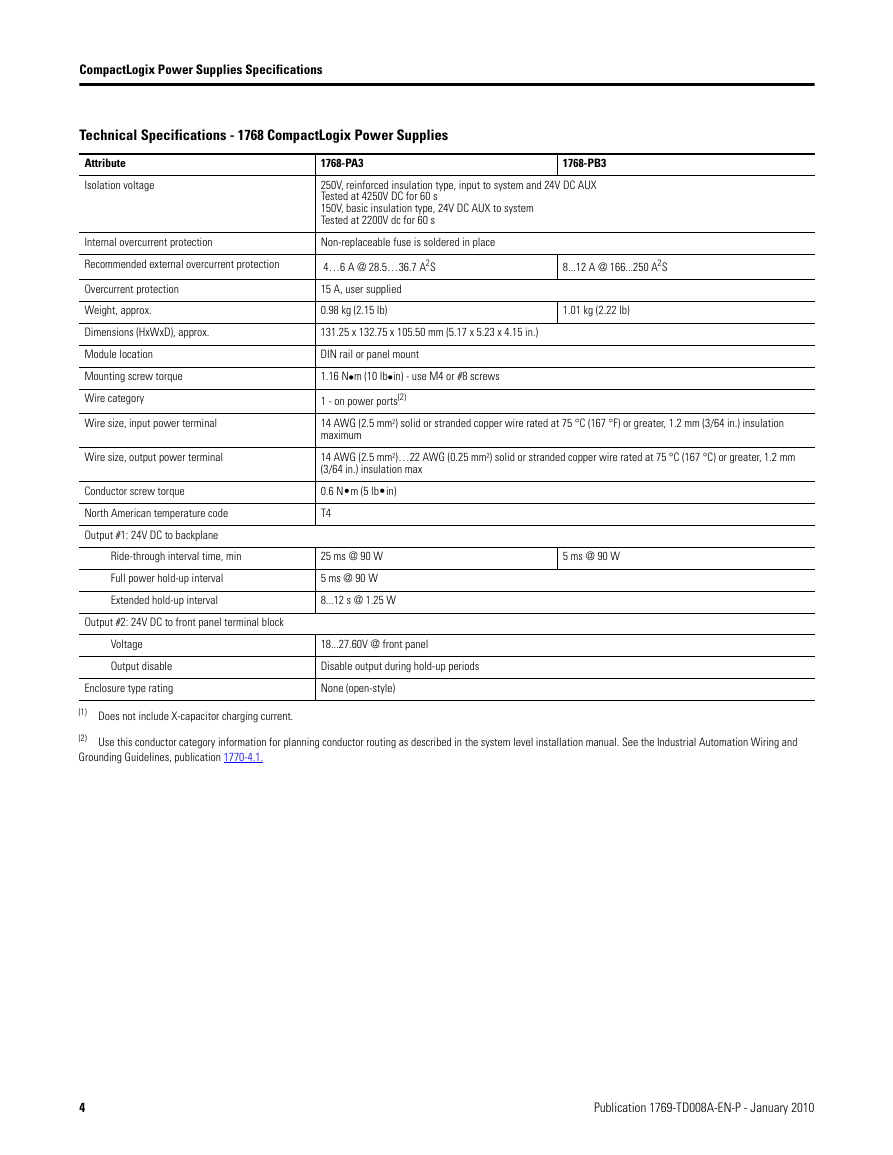

CompactLogix Power Supplies Specifications Technical Specifications - 1768 CompactLogix Power Supplies Attribute Isolation voltage 1768-PA3 1768-PB3 250V, reinforced insulation type, input to system and 24V DC AUX Tested at 4250V DC for 60 s 150V, basic insulation type, 24V DC AUX to system Tested at 2200V dc for 60 s Internal overcurrent protection Non-replaceable fuse is soldered in place Recommended external overcurrent protection Overcurrent protection Weight, approx. 4…6 A @ 28.5…36.7 A2S 15 A, user supplied 0.98 kg (2.15 lb) Dimensions (HxWxD), approx. 131.25 x 132.75 x 105.50 mm (5.17 x 5.23 x 4.15 in.) 8...12 A @ 166...250 A2S 1.01 kg (2.22 lb) Module location Mounting screw torque Wire category Wire size, input power terminal Wire size, output power terminal Conductor screw torque North American temperature code Output #1: 24V DC to backplane Ride-through interval time, min Full power hold-up interval Extended hold-up interval DIN rail or panel mount 1.16 Nm (10 lbin) - use M4 or #8 screws 1 - on power ports(2) 14 AWG (2.5 mm2) solid or stranded copper wire rated at 75 °C (167 °F) or greater, 1.2 mm (3/64 in.) insulation maximum 14 AWG (2.5 mm2)…22 AWG (0.25 mm2) solid or stranded copper wire rated at 75 °C (167 °C) or greater, 1.2 mm (3/64 in.) insulation max 0.6 Nm (5 lbin) T4 25 ms @ 90 W 5 ms @ 90 W 8...12 s @ 1.25 W 5 ms @ 90 W Output #2: 24V DC to front panel terminal block Voltage Output disable Enclosure type rating (1) Does not include X-capacitor charging current. 18...27.60V @ front panel Disable output during hold-up periods None (open-style) (2) Use this conductor category information for planning conductor routing as described in the system level installation manual. See the Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1. 4 Publication 1769-TD008A-EN-P - January 2010

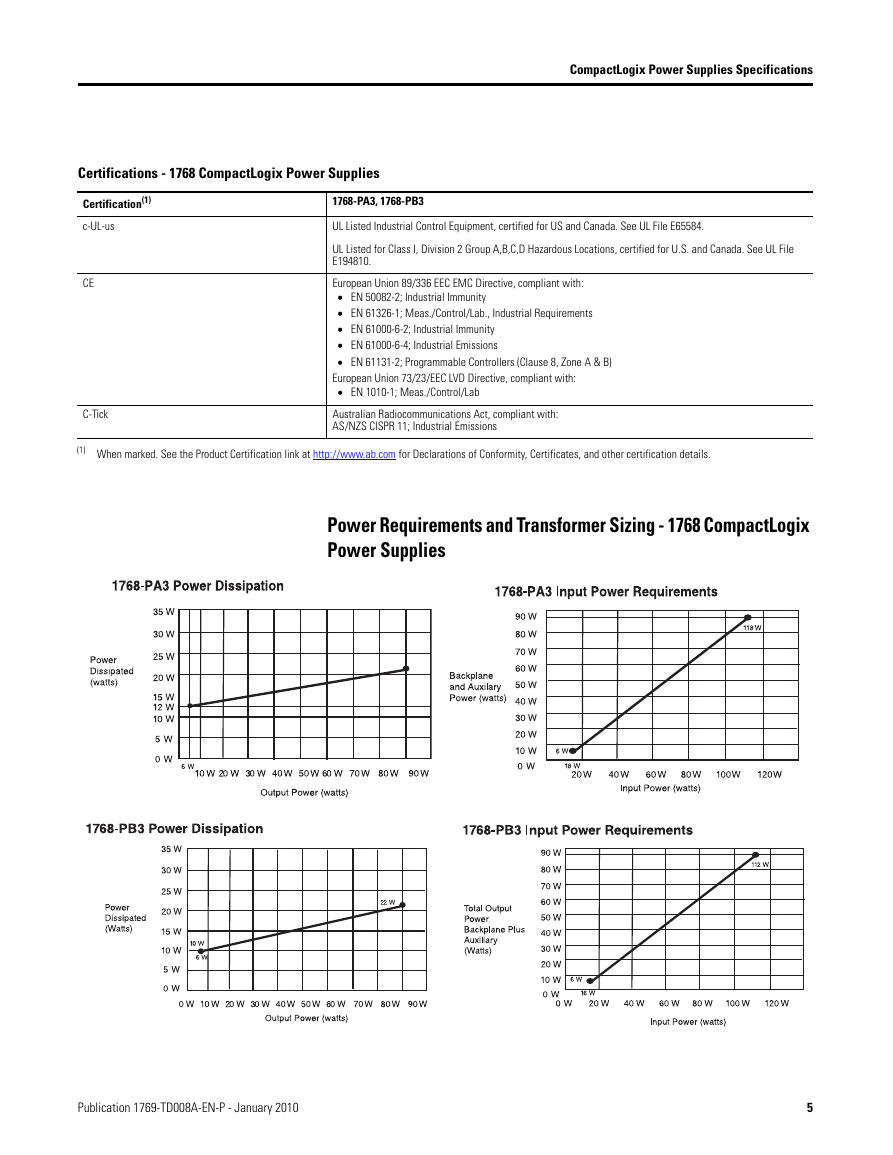

CompactLogix Power Supplies Specifications Certifications - 1768 CompactLogix Power Supplies Certification(1) c-UL-us CE C-Tick 1768-PA3, 1768-PB3 UL Listed Industrial Control Equipment, certified for US and Canada. See UL File E65584. UL Listed for Class I, Division 2 Group A,B,C,D Hazardous Locations, certified for U.S. and Canada. See UL File E194810. European Union 89/336 EEC EMC Directive, compliant with: • EN 50082-2; Industrial Immunity • EN 61326-1; Meas./Control/Lab., Industrial Requirements • EN 61000-6-2; Industrial Immunity • EN 61000-6-4; Industrial Emissions • EN 61131-2; Programmable Controllers (Clause 8, Zone A & B) European Union 73/23/EEC LVD Directive, compliant with: • EN 1010-1; Meas./Control/Lab Australian Radiocommunications Act, compliant with: AS/NZS CISPR 11; Industrial Emissions (1) When marked. See the Product Certification link at http://www.ab.com for Declarations of Conformity, Certificates, and other certification details. Power Requirements and Transformer Sizing - 1768 CompactLogix Power Supplies Publication 1769-TD008A-EN-P - January 2010 5

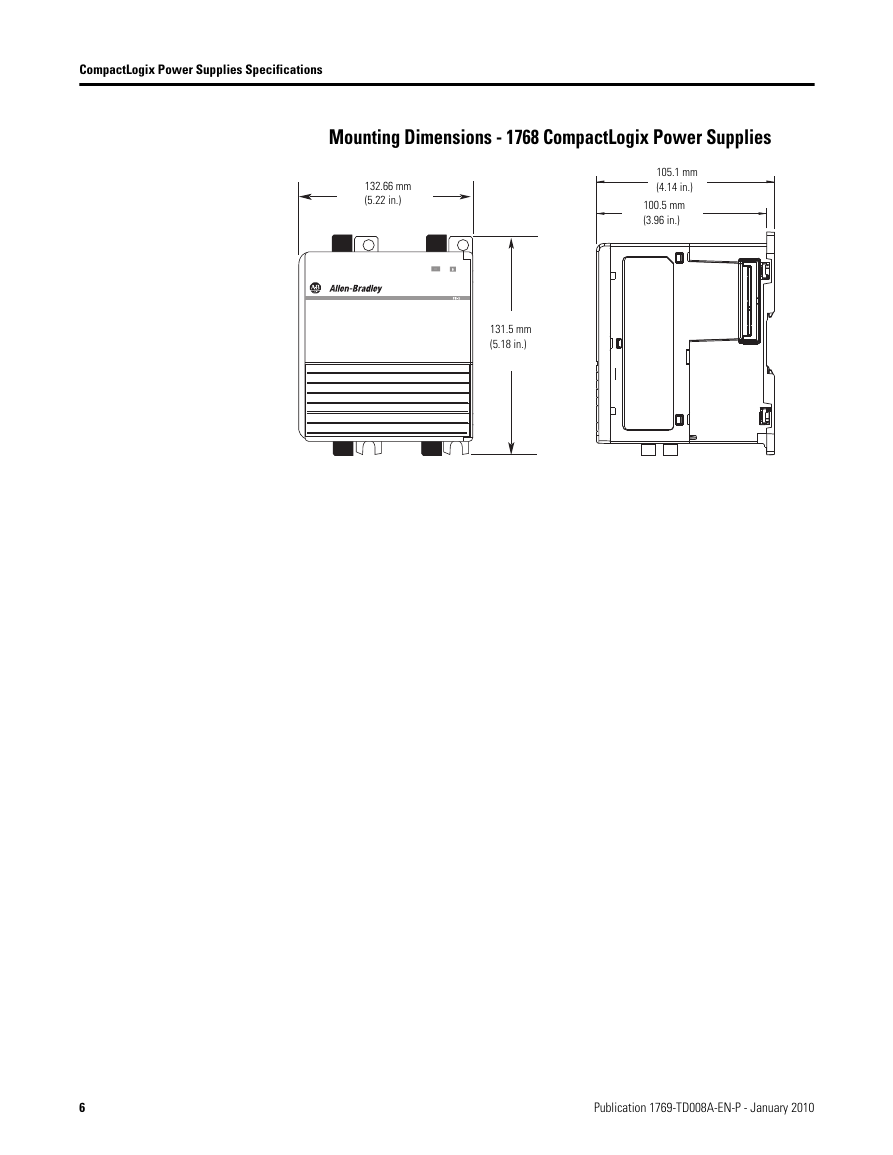

CompactLogix Power Supplies Specifications Mounting Dimensions - 1768 CompactLogix Power Supplies 132.66 mm (5.22 in.) 105.1 mm (4.14 in.) 100.5 mm (3.96 in.) 131.5 mm (5.18 in.) 6 Publication 1769-TD008A-EN-P - January 2010

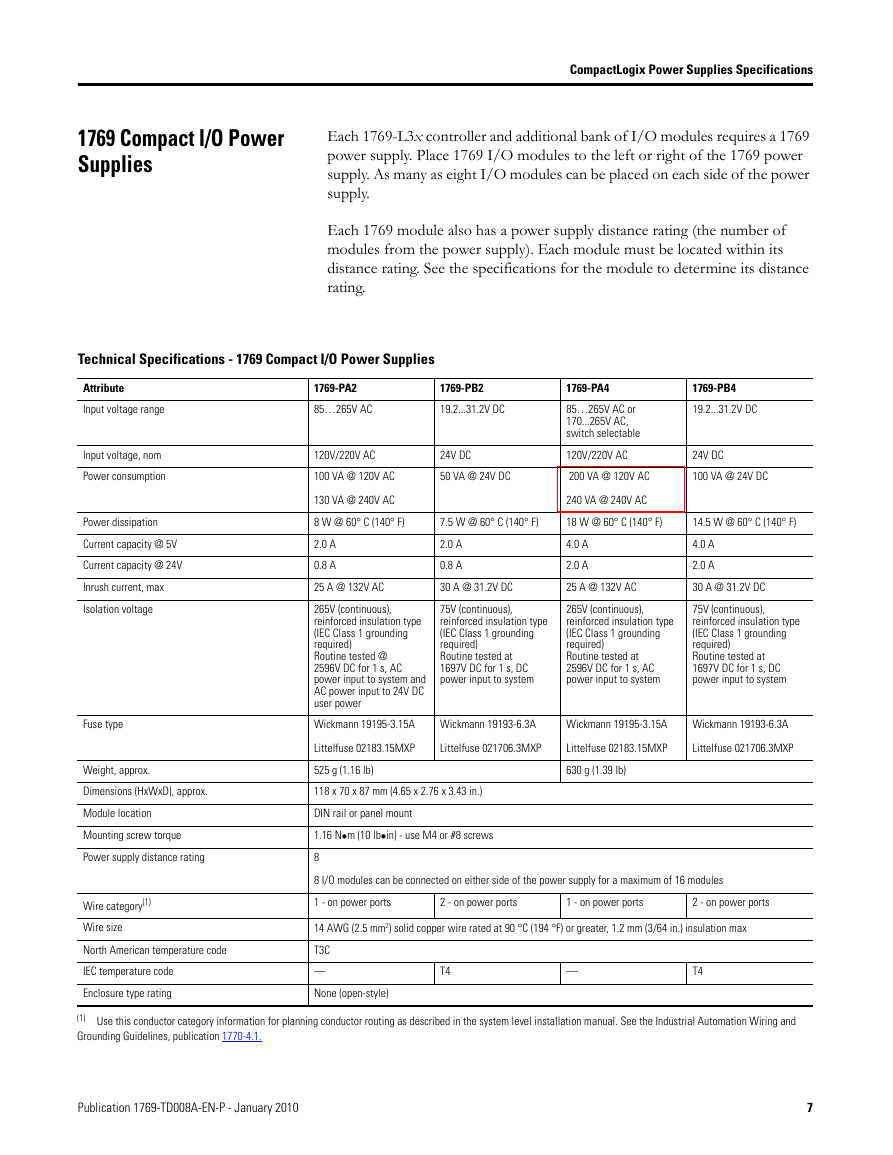

1769 Compact I/O Power Supplies CompactLogix Power Supplies Specifications Each 1769-L3x controller and additional bank of I/O modules requires a 1769 power supply. Place 1769 I/O modules to the left or right of the 1769 power supply. As many as eight I/O modules can be placed on each side of the power supply. Each 1769 module also has a power supply distance rating (the number of modules from the power supply). Each module must be located within its distance rating. See the specifications for the module to determine its distance rating. Technical Specifications - 1769 Compact I/O Power Supplies Attribute Input voltage range Input voltage, nom Power consumption Power dissipation Current capacity @ 5V Current capacity @ 24V Inrush current, max Isolation voltage 1769-PA2 85…265V AC 1769-PB2 19.2...31.2V DC 120V/220V AC 24V DC 1769-PA4 85…265V AC or 170...265V AC, switch selectable 120V/220V AC 1769-PB4 19.2...31.2V DC 24V DC 100 VA @ 120V AC 50 VA @ 24V DC 200 VA @ 120V AC 100 VA @ 24V DC 130 VA @ 240V AC 240 VA @ 240V AC 8 W @ 60° C (140° F) 7.5 W @ 60° C (140° F) 18 W @ 60° C (140° F) 14.5 W @ 60° C (140° F) 2.0 A 0.8 A 2.0 A 0.8 A 4.0 A 2.0 A 4.0 A 2.0 A 25 A @ 132V AC 30 A @ 31.2V DC 25 A @ 132V AC 30 A @ 31.2V DC 265V (continuous), reinforced insulation type (IEC Class 1 grounding required) Routine tested @ 2596V DC for 1 s, AC power input to system and AC power input to 24V DC user power 75V (continuous), reinforced insulation type (IEC Class 1 grounding required) Routine tested at 1697V DC for 1 s, DC power input to system 265V (continuous), reinforced insulation type (IEC Class 1 grounding required) Routine tested at 2596V DC for 1 s, AC power input to system 75V (continuous), reinforced insulation type (IEC Class 1 grounding required) Routine tested at 1697V DC for 1 s, DC power input to system Fuse type Wickmann 19195-3.15A Wickmann 19193-6.3A Wickmann 19195-3.15A Wickmann 19193-6.3A Littelfuse 02183.15MXP Littelfuse 021706.3MXP Littelfuse 02183.15MXP Littelfuse 021706.3MXP Weight, approx. 525 g (1.16 lb) 630 g (1.39 lb) Dimensions (HxWxD), approx. 118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.) Module location Mounting screw torque DIN rail or panel mount 1.16 Nm (10 lbin) - use M4 or #8 screws Power supply distance rating 8 Wire category(1) Wire size North American temperature code IEC temperature code Enclosure type rating 8 I/O modules can be connected on either side of the power supply for a maximum of 16 modules 1 - on power ports 2 - on power ports 1 - on power ports 2 - on power ports 14 AWG (2.5 mm2) solid copper wire rated at 90 °C (194 °F) or greater, 1.2 mm (3/64 in.) insulation max T3C — None (open-style) T4 — T4 (1) Use this conductor category information for planning conductor routing as described in the system level installation manual. See the Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1. Publication 1769-TD008A-EN-P - January 2010 7

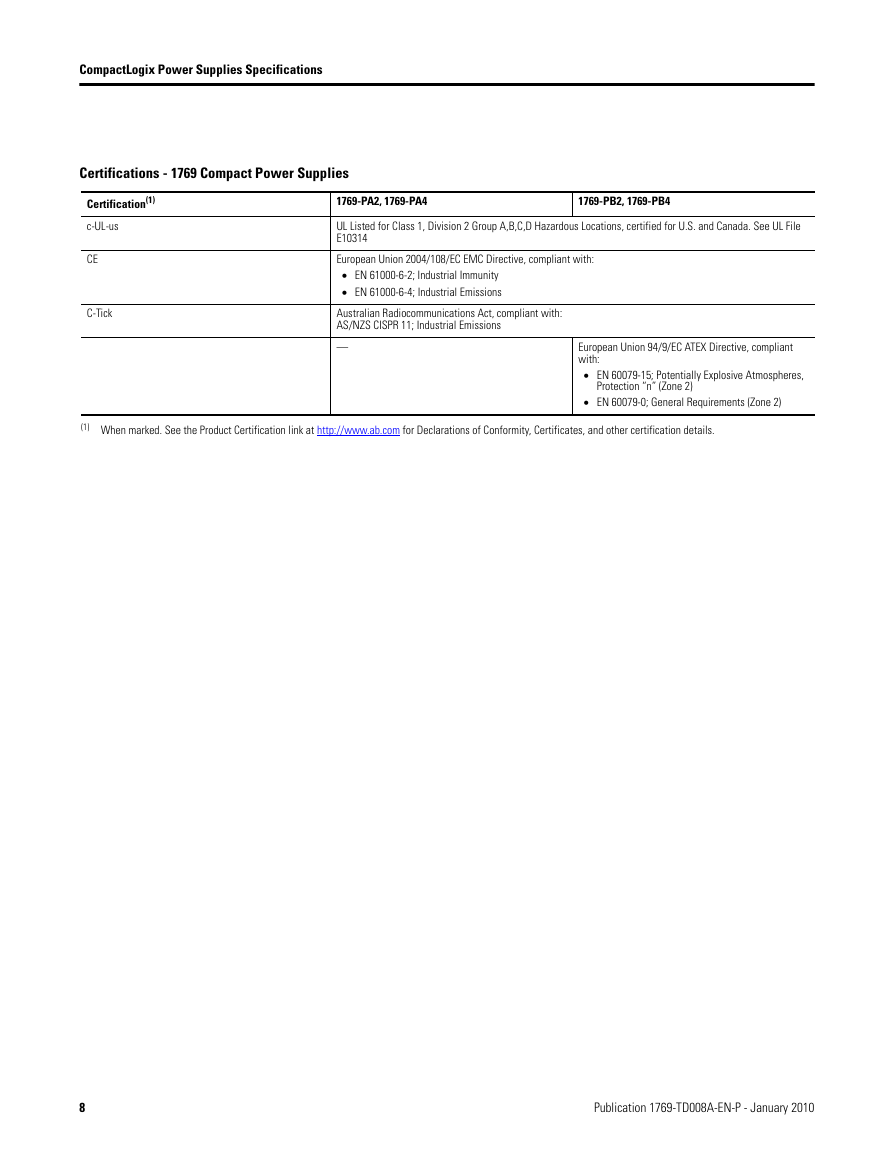

CompactLogix Power Supplies Specifications Certifications - 1769 Compact Power Supplies Certification(1) c-UL-us CE C-Tick 1769-PA2, 1769-PA4 1769-PB2, 1769-PB4 UL Listed for Class 1, Division 2 Group A,B,C,D Hazardous Locations, certified for U.S. and Canada. See UL File E10314 European Union 2004/108/EC EMC Directive, compliant with: • EN 61000-6-2; Industrial Immunity • EN 61000-6-4; Industrial Emissions Australian Radiocommunications Act, compliant with: AS/NZS CISPR 11; Industrial Emissions — European Union 94/9/EC ATEX Directive, compliant with: • EN 60079-15; Potentially Explosive Atmospheres, Protection “n” (Zone 2) • EN 60079-0; General Requirements (Zone 2) (1) When marked. See the Product Certification link at http://www.ab.com for Declarations of Conformity, Certificates, and other certification details. 8 Publication 1769-TD008A-EN-P - January 2010
