MODEL( ) UX-E800 OPERATION MANUAL 1. Installation 2. Sending and Receiving E-mail 3. Sending Faxes to Fax Machines 4. Receiving Faxes 5. Using Auto Dial Numbers 6. Making Copies 7. Making Telephone Calls 8. Answering Machine Hookup 9. Special Functions 10. Printing Lists 11. Maintenance 12. Troubleshooting RNET FAX INTE UX-E800 I N TERNET FAX

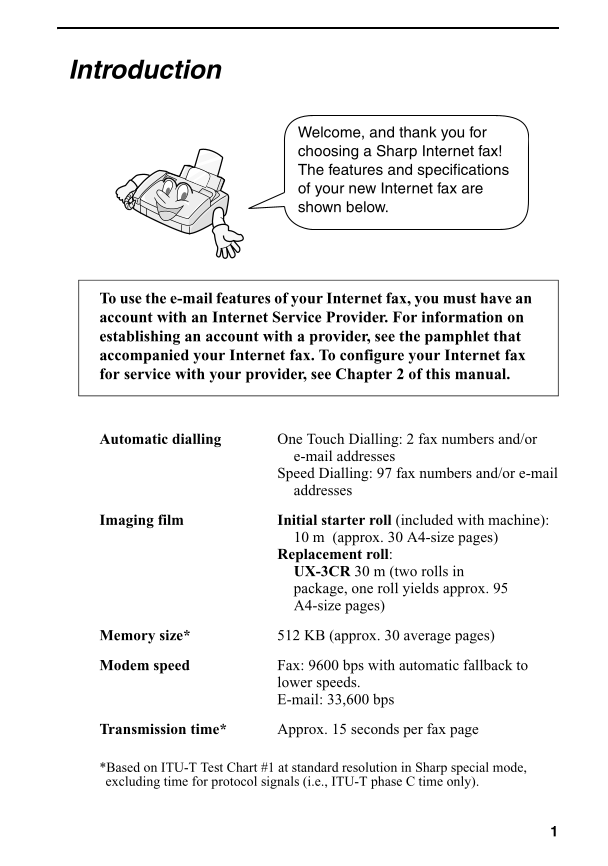

all.book Page 1 Monday, August 28, 2000 3:55 PM Introduction Welcome, and thank you for choosing a Sharp Internet fax! The features and specifications of your new Internet fax are shown below. To use the e-mail features of your Internet fax, you must have an account with an Internet Service Provider. For information on establishing an account with a provider, see the pamphlet that accompanied your Internet fax. To configure your Internet fax for service with your provider, see Chapter 2 of this manual. Automatic dialling One Touch Dialling: 2 fax numbers and/or e-mail addresses Speed Dialling: 97 fax numbers and/or e-mail addresses Imaging film Initial starter roll (included with machine): 10 m (approx. 30 A4-size pages) Replacement roll: UX-3CR 30 m (two rolls in package, one roll yields approx. 95 A4-size pages) Memory size* 512 KB (approx. 30 average pages) Modem speed Fax: 9600 bps with automatic fallback to lower speeds. E-mail: 33,600 bps Transmission time* Approx. 15 seconds per fax page *Based on ITU-T Test Chart #1 at standard resolution in Sharp special mode, excluding time for protocol signals (i.e., ITU-T phase C time only). 1

all.book Page 2 Monday, August 28, 2000 3:55 PM Resolution Horizontal: 8 pels/mm Vertical: Standard: 3.85 lines/mm Fine /Halftone: 7.7 lines/mm Super fine: 15.4 lines/mm Recording system Thermal transfer recording Automatic document 10 pages max. (80 g/m2 paper) feeder Halftone (greyscale) 64 levels Display 2-line LCD display, 16 digits per line Paper tray capacity A4 size: 60 sheets (60 to 75 g/m2 paper) Compression scheme MR, MH, Sharp (H2) Applicable telephone line Public switched telephone network Compatibility ITU-T (CCITT) G3 mode Input document size Automatic feeding: Width: 148 to 216 mm Length: 140 to 279 mm Manual feeding: Width: 148 to 216 mm Length: 140 to 600 mm Effective scanning width 210 mm max. Effective printing width 204 mm max. Contrast control Automatic/Dark selectable Fax reception modes TEL, FAX, TEL/FAX, A.M. (Note: A.M. mode is for connecting an answering machine) Copy function Single/Multi/Sort (99 copies/page) Telephone function Yes (cannot be used if power fails) 2

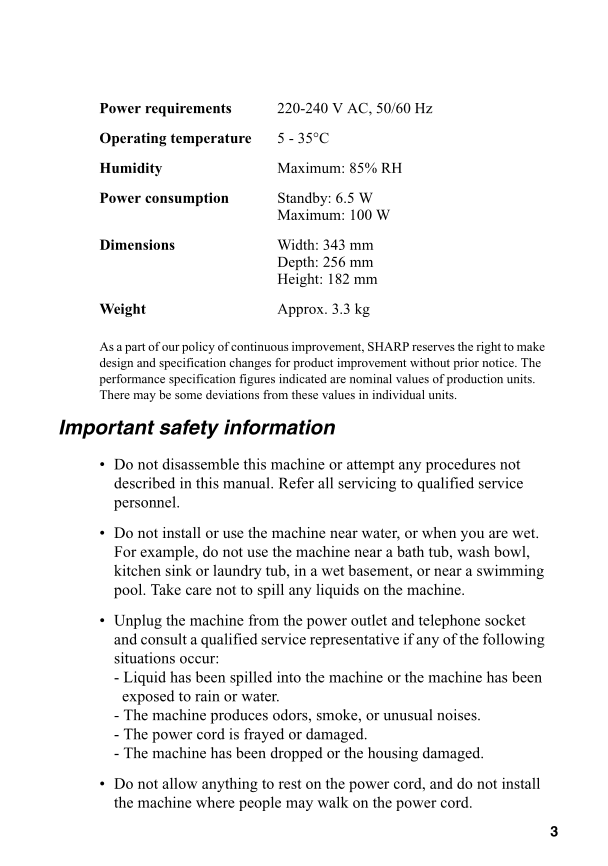

all.book Page 3 Monday, August 28, 2000 3:55 PM Power requirements 220-240 V AC, 50/60 Hz Operating temperature 5 - 35°C Humidity Maximum: 85% RH Power consumption Standby: 6.5 W Maximum: 100 W Dimensions Width: 343 mm Depth: 256 mm Height: 182 mm Weight Approx. 3.3 kg As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units. Important safety information • Do not disassemble this machine or attempt any procedures not described in this manual. Refer all servicing to qualified service personnel. • Do not install or use the machine near water, or when you are wet. For example, do not use the machine near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool. Take care not to spill any liquids on the machine. • Unplug the machine from the power outlet and telephone socket and consult a qualified service representative if any of the following situations occur: - Liquid has been spilled into the machine or the machine has been exposed to rain or water. - The machine produces odors, smoke, or unusual noises. - The power cord is frayed or damaged. - The machine has been dropped or the housing damaged. • Do not allow anything to rest on the power cord, and do not install the machine where people may walk on the power cord. 3

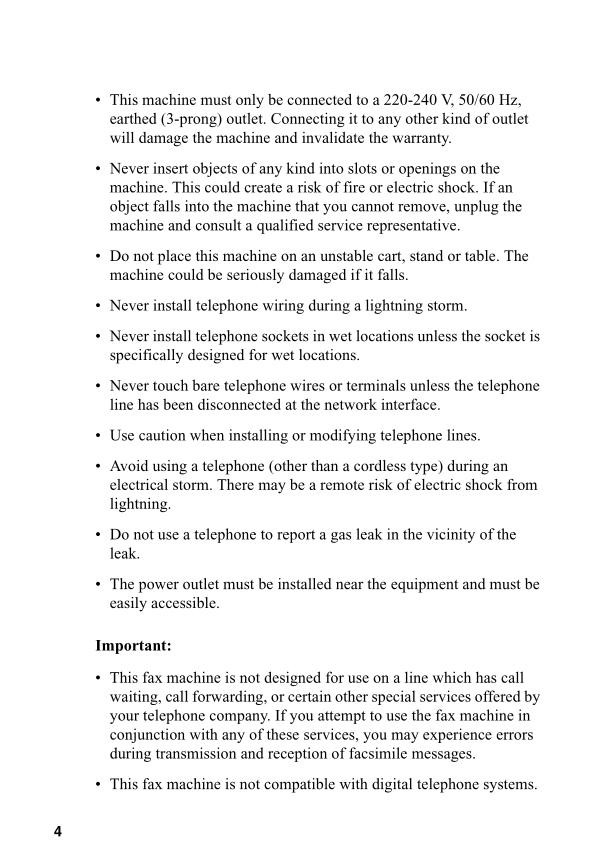

all.book Page 4 Monday, August 28, 2000 3:55 PM • This machine must only be connected to a 220-240 V, 50/60 Hz, earthed (3-prong) outlet. Connecting it to any other kind of outlet will damage the machine and invalidate the warranty. • Never insert objects of any kind into slots or openings on the machine. This could create a risk of fire or electric shock. If an object falls into the machine that you cannot remove, unplug the machine and consult a qualified service representative. • Do not place this machine on an unstable cart, stand or table. The machine could be seriously damaged if it falls. • Never install telephone wiring during a lightning storm. • Never install telephone sockets in wet locations unless the socket is specifically designed for wet locations. • Never touch bare telephone wires or terminals unless the telephone line has been disconnected at the network interface. • Use caution when installing or modifying telephone lines. • Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. • Do not use a telephone to report a gas leak in the vicinity of the leak. • The power outlet must be installed near the equipment and must be easily accessible. Important: • This fax machine is not designed for use on a line which has call waiting, call forwarding, or certain other special services offered by your telephone company. If you attempt to use the fax machine in conjunction with any of these services, you may experience errors during transmission and reception of facsimile messages. • This fax machine is not compatible with digital telephone systems. 4

all.book Page 5 Monday, August 28, 2000 3:55 PM Table of Contents A Look at the Operation Panel 7 1. Installation 10 Unpacking Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Loading the Imaging Film . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Loading Printing Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Entering Your Name and Fax Number . . . . . . . . . . . . . . . . . . . . . . . 26 Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Setting the Reception Mode for Incoming Calls . . . . . . . . . . . . . . . . 33 Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 2. Sending and Receiving E-mail 37 Configuring Your Internet Fax with Auto Setup . . . . . . . . . . . . . . . . 37 Manually Configuring Your Internet Fax . . . . . . . . . . . . . . . . . . . . . . 41 Other Internet Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Sending an E-mail Message or an Internet Fax . . . . . . . . . . . . . . . . 54 Receiving E-mail Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Searching for an E-mail Address . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 3. Sending Faxes to Fax Machines 77 Transmittable Documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 Loading the Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Adjusting the Resolution and Contrast . . . . . . . . . . . . . . . . . . . . . . . 82 Sending a Fax to a Traditional Fax Machine . . . . . . . . . . . . . . . . . . 85 4. Receiving Faxes 88 Using TEL/FAX Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88 Using FAX Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 Using A.M. Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 Using TEL Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 Substitute Reception to Memory . . . . . . . . . . . . . . . . . . . . . . . . . . 101 5. Using Auto Dial Numbers 102 Storing Fax Numbers and E-mail Addresses for Auto Dialling . . . . 102 5

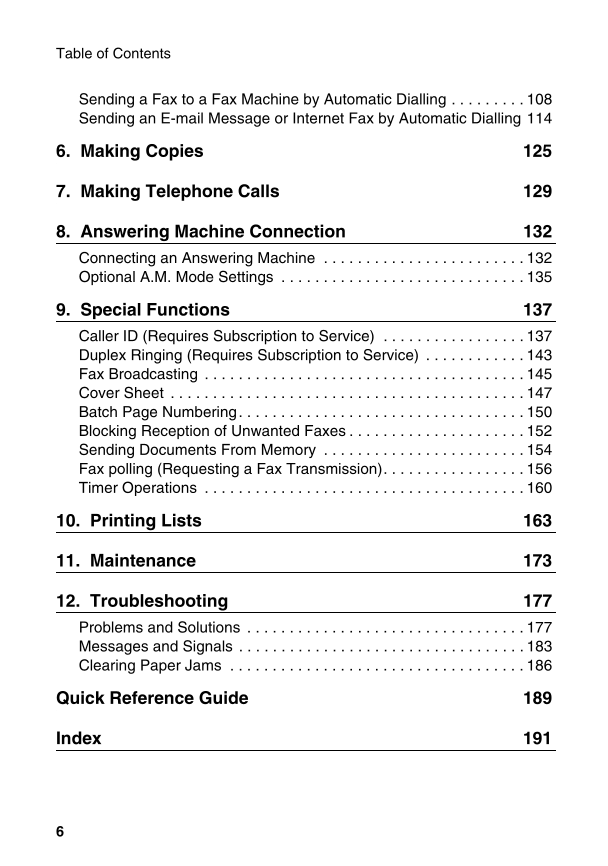

all.book Page 6 Monday, August 28, 2000 3:55 PM Table of Contents Sending a Fax to a Fax Machine by Automatic Dialling . . . . . . . . . 108 Sending an E-mail Message or Internet Fax by Automatic Dialling 114 6. Making Copies 125 7. Making Telephone Calls 129 8. Answering Machine Connection 132 Connecting an Answering Machine . . . . . . . . . . . . . . . . . . . . . . . . 132 Optional A.M. Mode Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135 9. Special Functions 137 Caller ID (Requires Subscription to Service) . . . . . . . . . . . . . . . . . 137 Duplex Ringing (Requires Subscription to Service) . . . . . . . . . . . . 143 Fax Broadcasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145 Cover Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147 Batch Page Numbering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 Blocking Reception of Unwanted Faxes . . . . . . . . . . . . . . . . . . . . . 152 Sending Documents From Memory . . . . . . . . . . . . . . . . . . . . . . . . 154 Fax polling (Requesting a Fax Transmission). . . . . . . . . . . . . . . . . 156 Timer Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160 10. Printing Lists 163 11. Maintenance 173 12. Troubleshooting 177 Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177 Messages and Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183 Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186 Quick Reference Guide 189 Index 191 6

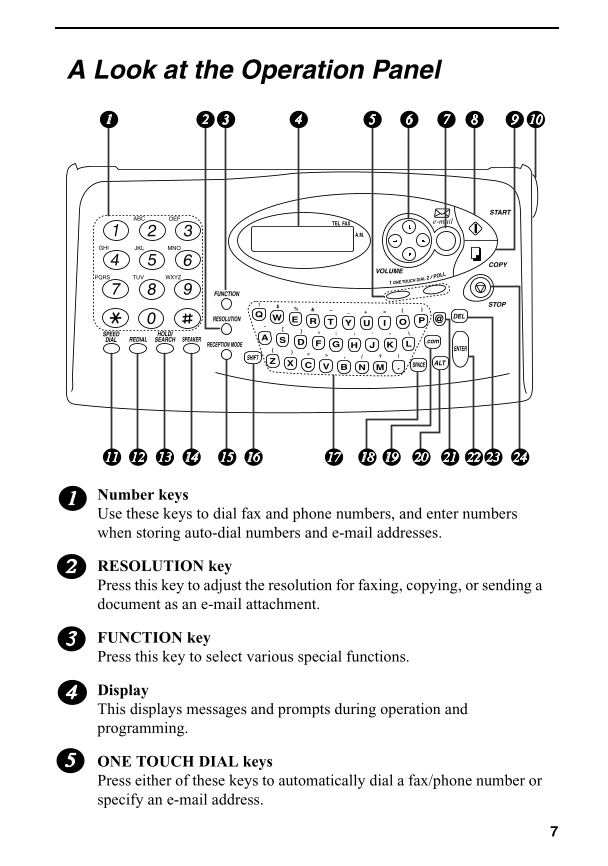

all.book Page 7 Monday, August 28, 2000 3:55 PM A Look at the Operation Panel 1 2 3 4 5 6 7 8 9 10 START ABC DEF TEL FAX 1 2 3 A.M. GHI JKL MNO 4 5 6 COPY VOLUME PQRS TUV WXYZ 7 8 9 FUNCTION ! $ STOP % & + = ( ) 0 Q RESOLUTION W E DEL R T O P @ ~ Y U I [ SPEED HOLD/ ] ^ ; : ' " \ DIAL REDIAL SEARCH SPEAKER A RECEPTION MODE S D F G J K L .com H { } ENTER < SHIFT > , / ? | Z X C V B N M . SPACE ALT 11 12 13 14 15 16 17 18 19 20 21 22 23 24 1 Number keys Use these keys to dial fax and phone numbers, and enter numbers when storing auto-dial numbers and e-mail addresses. 2 RESOLUTION key Press this key to adjust the resolution for faxing, copying, or sending a document as an e-mail attachment. 3 FUNCTION key Press this key to select various special functions. 4 Display This displays messages and prompts during operation and programming. 5 ONE TOUCH DIAL keys Press either of these keys to automatically dial a fax/phone number or specify an e-mail address. 7
