编译原理课程设计（LL(1),LR(1) 逆波兰 算符优先）.doc
1 正则表达式
1.1 正则表达式
1.2 确定化(化简)后的状态转换图
1.3 分析程序代码
1.4 程序运行截图
1.5 小结
2 LL(1)分析
2.1 LL(1)文法
2.2 LL(1)预测分析表
2.3 分析程序代码
2.4 程序运行截图
2.5 小结
3 算符优先分析
3.1 算符优先文法
3.2 算符优先关系表
3.3 分析程序代码
3.4 程序运行截图
3.5 小结
4 LR分析
4.1 LR文法
4.2 LR分析表
4.3 分析程序代码
4.4 程序运行截图
4.5 小结
5 转换成逆波兰表达式
5.1 分析程序代码
5.2 程序运行截图
5.3 小结
总结
参考文献：

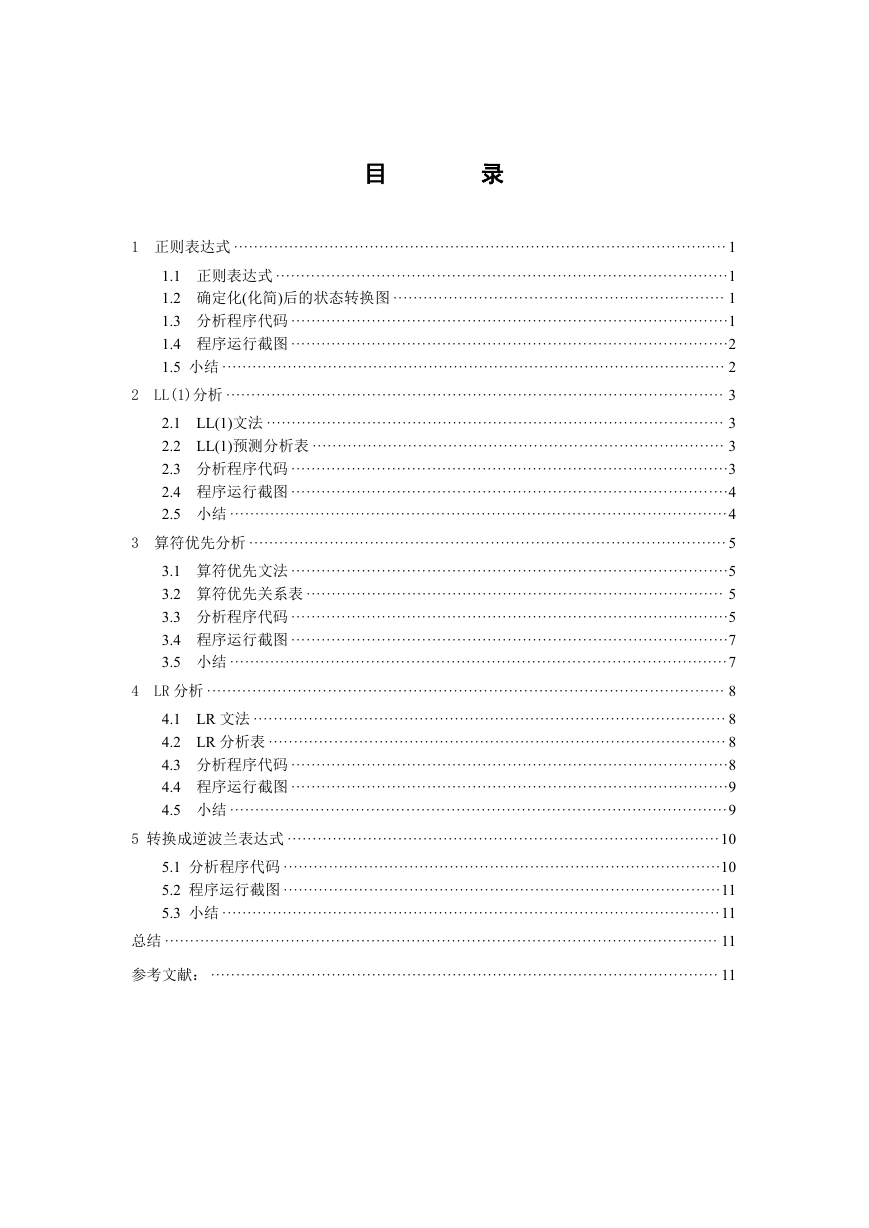

目
录
2
1 正则表达式 ·································································································· 1
1.1 正则表达式 ··························································································1
1.2 确定化(化简)后的状态转换图 ·································································· 1
1.3 分析程序代码 ·······················································································1
1.4 程序运行截图 ·······················································································2
1.5 小结 ···································································································· 2
LL(1)分析 ··································································································· 3
2.1 LL(1)文法 ··························································································· 3
2.2 LL(1)预测分析表 ·················································································· 3
2.3 分析程序代码 ·······················································································3
2.4 程序运行截图 ·······················································································4
2.5 小结 ···································································································4
3 算符优先分析 ·······························································································5
3.1 算符优先文法 ·······················································································5
3.2 算符优先关系表 ··················································································· 5
3.3 分析程序代码 ·······················································································5
3.4 程序运行截图 ·······················································································7
3.5 小结 ···································································································7
LR 分析 ······································································································· 8
4.1 LR 文法 ······························································································ 8
4.2 LR 分析表 ··························································································· 8
4.3 分析程序代码 ·······················································································8
4.4 程序运行截图 ·······················································································9
4.5 小结 ···································································································9
5 转换成逆波兰表达式 ······················································································10
5.1 分析程序代码 ·······················································································10
5.2 程序运行截图 ·······················································································11
5.3 小结 ···································································································11
总结 ·············································································································· 11
4
参考文献： ····································································································· 11

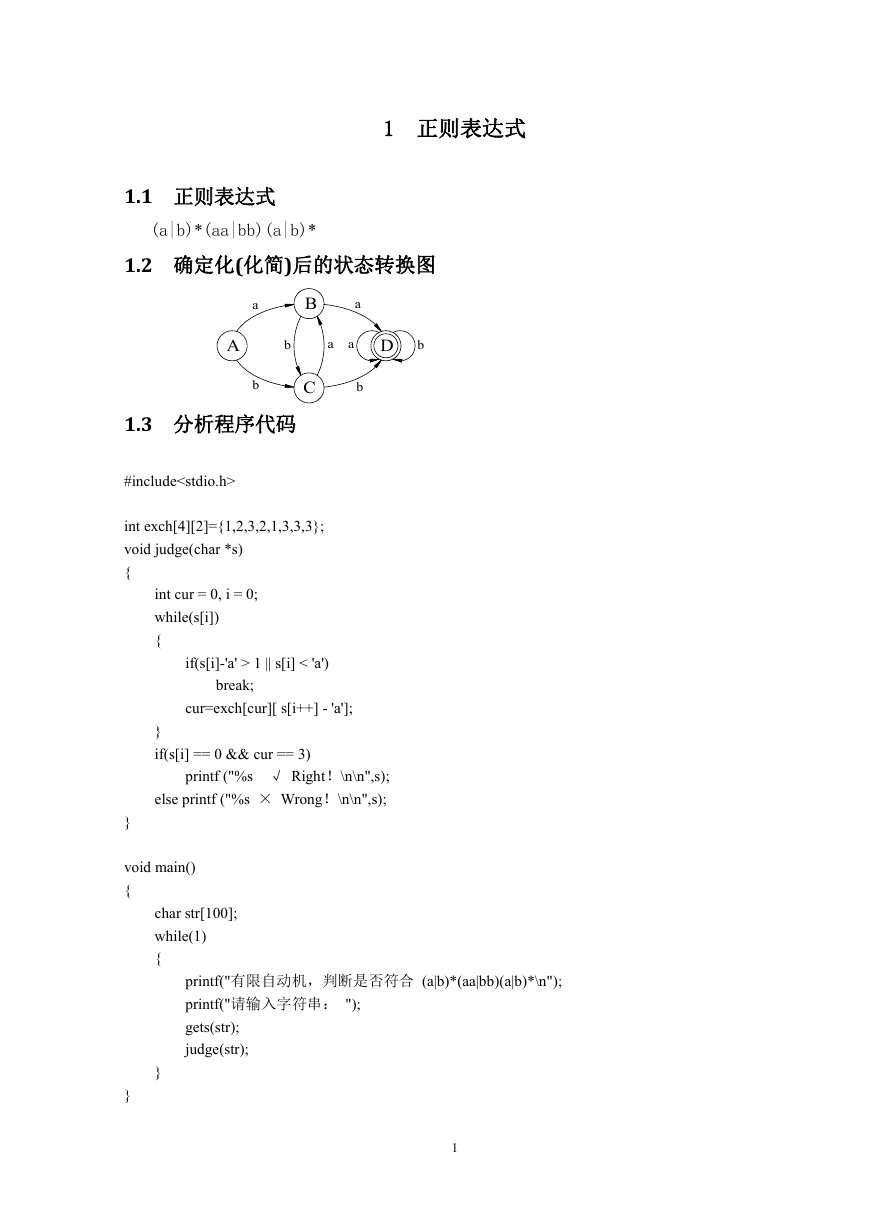

1 正则表达式
1.1 正则表达式
(a|b)*(aa|bb)(a|b)*
1.2 确定化(化简)后的状态转换图
A
a
b
B
b
a
a
C
a
b
D
b
1.3 分析程序代码
#include
int exch[4][2]={1,2,3,2,1,3,3,3};
void judge(char *s)
{
int cur = 0, i = 0;
while(s[i])
{
if(s[i]-'a' > 1 || s[i] < 'a')
break;
cur=exch[cur][ s[i++] - 'a'];
}
if(s[i] == 0 && cur == 3)
printf ("%s √ Right！\n\n",s);
else printf ("%s × Wrong！\n\n",s);
}
void main()
{
char str[100];
while(1)
{
printf("有限自动机，判断是否符合 (a|b)*(aa|bb)(a|b)*\n");
printf("请输入字符串： ");
gets(str);
judge(str);
}
}
1

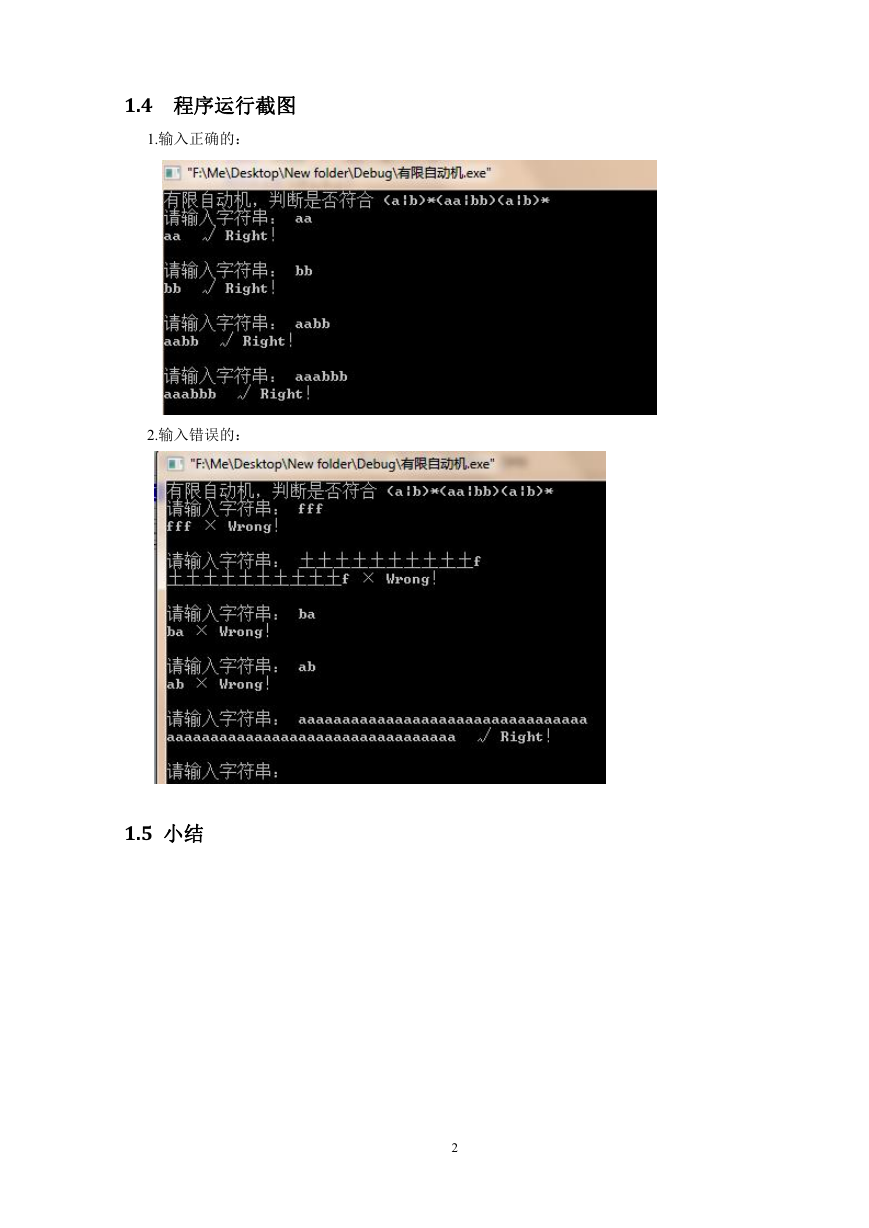

1.4 程序运行截图
1.输入正确的：
2.输入错误的：
1.5 小结
2
2

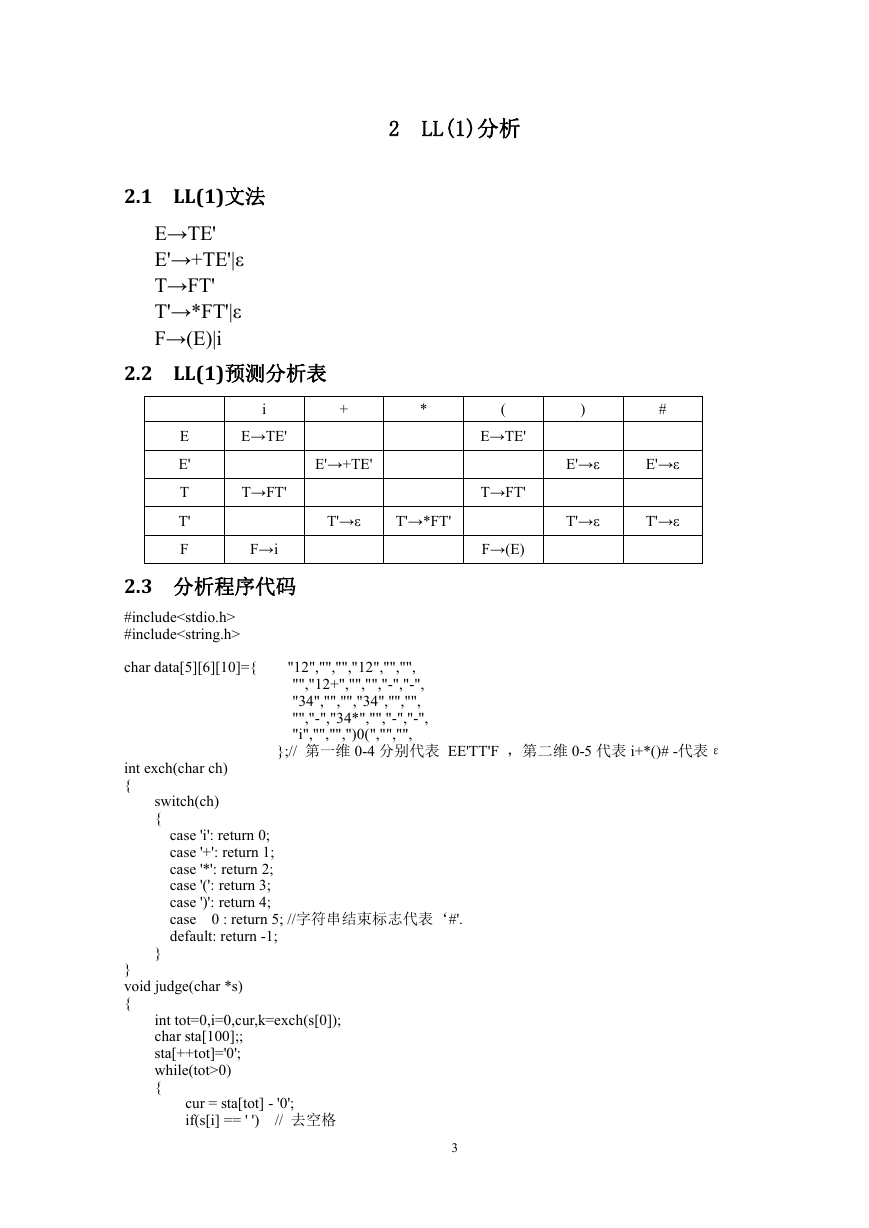

LL(1)分析
2.1 LL(1)文法
E→TE'
E'→+TE'|ε
T→FT'
T'→*FT'|ε
F→(E)|i
2.2 LL(1)预测分析表
+
*
E'→+TE'
T'→ε
T'→*FT'
i
E→TE'
T→FT'
F→i
(
E→TE'
T→FT'
F→(E)
E
E'
T
T'
F
)
#
E'→ε
E'→ε
T'→ε
T'→ε
2.3 分析程序代码
#include
#include
"12","","","12","","",
"","12+","","","-","-",
"34","","","34","","",
"","-","34*","","-","-",
"i","","",")0(","","",
};// 第一维 0-4 分别代表 EE'TT'F ，第二维 0-5 代表 i+*()# -代表ε
char data[5][6][10]={
int exch(char ch)
{
switch(ch)
{
case 'i': return 0;
case '+': return 1;
case '*': return 2;
case '(': return 3;
case ')': return 4;
case
default: return -1;
0 : return 5; //字符串结束标志代表‘#'.
}
}
void judge(char *s)
{
int tot=0,i=0,cur,k=exch(s[0]);
char sta[100];;
sta[++tot]='0';
while(tot>0)
{
cur = sta[tot] - '0';
if(s[i] == ' ')
// 去空格
3
// 推导出相同字符，出栈
else if(k < 0 || data[cur][k][0] == 0) // 踩空，或者出现非法字符
++tot,k=exch(s[++i]);
else if(cur+'0' == s[i])
k=exch(s[++i]);
break;
else if(data[cur][k][0] != '-')
{
strcpy(sta+tot,data[cur][k]);
tot+=strlen(data[cur][k]);
//不是ε，进栈继续推导
}
--tot;
}
if(tot==0)
printf("
printf("
else
}
int main()
{
judge(str);
return 0;
}

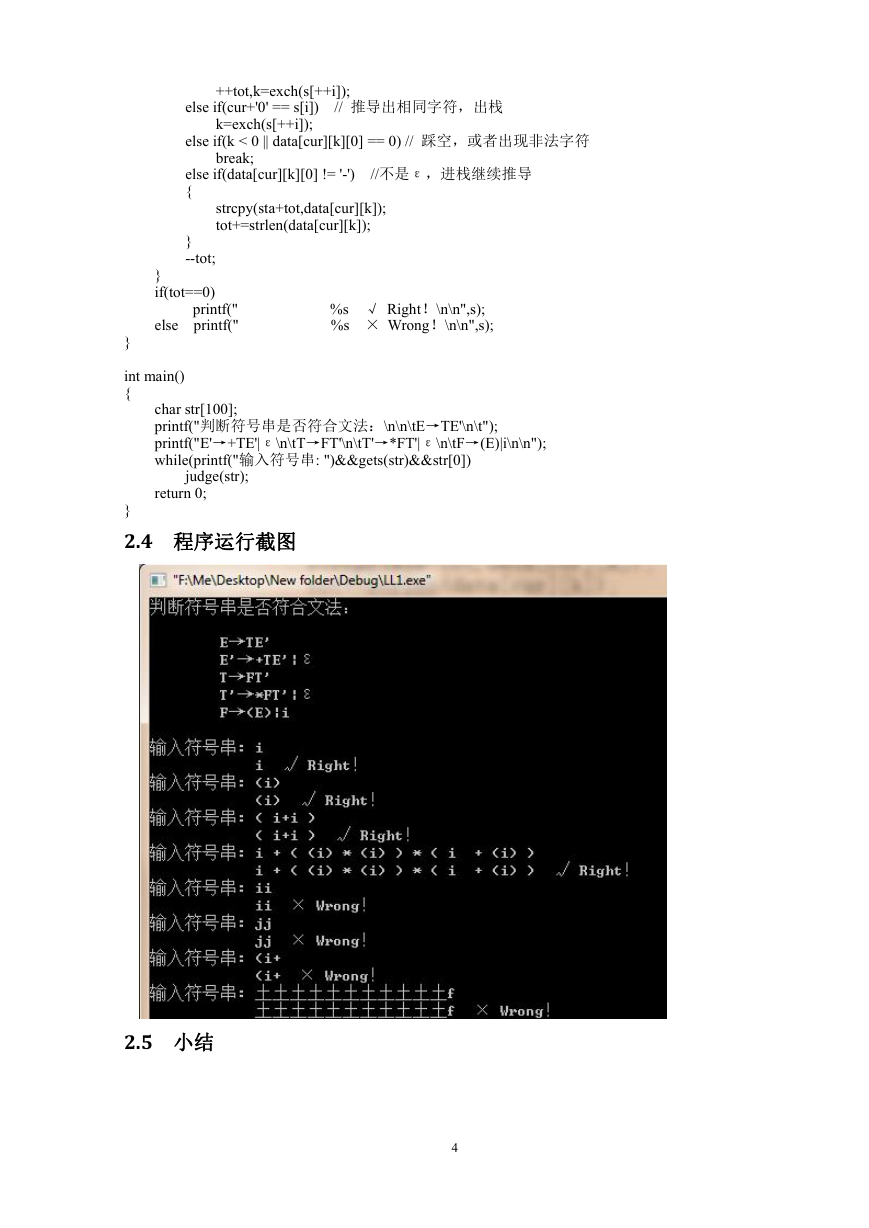

2.4 程序运行截图
%s √ Right！\n\n",s);
%s × Wrong！\n\n",s);
char str[100];
printf("判断符号串是否符合文法：\n\n\tE→TE'\n\t");
printf("E'→+TE'|ε\n\tT→FT'\n\tT'→*FT'|ε\n\tF→(E)|i\n\n");
while(printf("输入符号串: ")&&gets(str)&&str[0])
2.5 小结
4

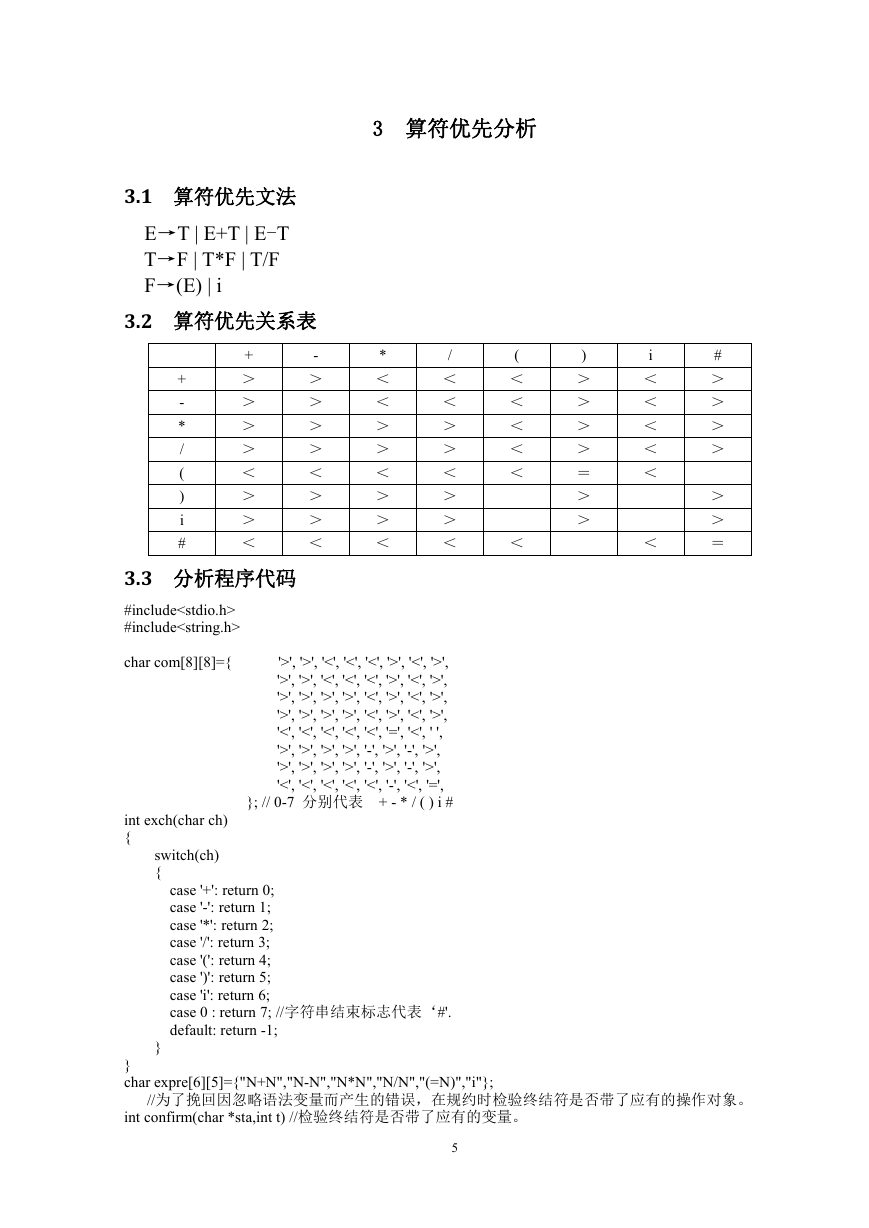

3 算符优先分析
3.1 算符优先文法
E→T | E+T | E-T
T→F | T*F | T/F
F→(E) | i
3.2 算符优先关系表
-
＞
+
＞
+
-
*
/
(
)
i
#
＞
＞
＞
＜
＞
＞
＜
＞
＞
＞
＜
＞
＞
＜
*
＜
＜
＞
＞
＜
＞
＞
＜
/
＜
＜
＞
＞
＜
＞
＞
＜
(
＜
＜
＜
＜
＜
＜
)
＞
＞
＞
＞
＝
＞
＞
i
＜
＜
＜
＜
＜
＜
#
＞
＞
＞
＞
＞
＞
＝
3.3 分析程序代码
#include
#include
char com[8][8]={
'>', '>', '<', '<', '<', '>', '<', '>',
'>', '>', '<', '<', '<', '>', '<', '>',
'>', '>', '>', '>', '<', '>', '<', '>',
'>', '>', '>', '>', '<', '>', '<', '>',
'<', '<', '<', '<', '<', '=', '<', ' ',
'>', '>', '>', '>', '-', '>', '-', '>',
'>', '>', '>', '>', '-', '>', '-', '>',
'<', '<', '<', '<', '<', '-', '<', '=',
}; // 0-7 分别代表 + - * / ( ) i #
int exch(char ch)
{
switch(ch)
{
case '+': return 0;
case '-': return 1;
case '*': return 2;
case '/': return 3;
case '(': return 4;
case ')': return 5;
case 'i': return 6;
case 0 : return 7; //字符串结束标志代表‘#'.
default: return -1;
}
}
char expre[6][5]={"N+N","N-N","N*N","N/N","(=N)","i"};
//为了挽回因忽略语法变量而产生的错误，在规约时检验终结符是否带了应有的操作对象。
int confirm(char *sta,int t) //检验终结符是否带了应有的变量。
5
if(memcmp(expre[i],sta+n+1,sizeof(char)*(t-n))==0)
{
// 说明是有应有的操作对象，所以进行规约。
sta[n] = 'N';
return n;
{
int i,n=t;
while( n>0&&sta[n]!='<')
n--;
if(n>0)
for(i=0;i<6;i++)
}
return 0;
}
void judge(char *s)
{
char sta[100];
int tot=0,cur,m,k,i=0;
sta[++tot]=0;
while(tot>0)
{
m=tot;
do {
cur=exch(sta[m--]);
}while(cur<0);
while(s[i] == ' ')
// 要忽略变量，直接对终结符进行比较优先级。
// 跳过空格
i++;
k = exch(s[i]);
if( cur==k&&cur==7)
tot = 0;
// 规约成功，结束标记。
else if( k<0 || com[cur][k] == '-' ) // 踩空或者输入非法符
tot = -1;
else if( com[cur][k] != '>' )
{
// 遇到‘>'，准备规约
if(sta[tot] == 'N')
// 这里一个小问题就是变量 N 是要在'<'左边还是右边呢，这要取决
//于终结符是什么，左右两边有几个变量，不过针对本程序方法，只需全部放在右边。
{
sta[tot] = com[cur][k];
sta[++tot] = 'N';
}
else
sta[++tot] = com[cur][k];
sta[++tot] =s[i++];
}
else if( (tot = confirm( sta,tot ))==0 ) //检验终结符是否带了应有的变量。没有，就规约失败
tot = -1;
}
if(tot==0)
printf("
else printf("
}
int main()
{
judge(str);
return 0;
}
%s √ Right！\n\n",s);
%s × Wrong！\n\n",s);
6
char str[100];
printf("判断符号串是否符合文法：\n\n\tE→T | E+T | E-T\n\tT→F | T*F | T/F\n\tF→(E) | i\n\n");
while(printf("输入符号串: ")&&gets(str)&&str[0])

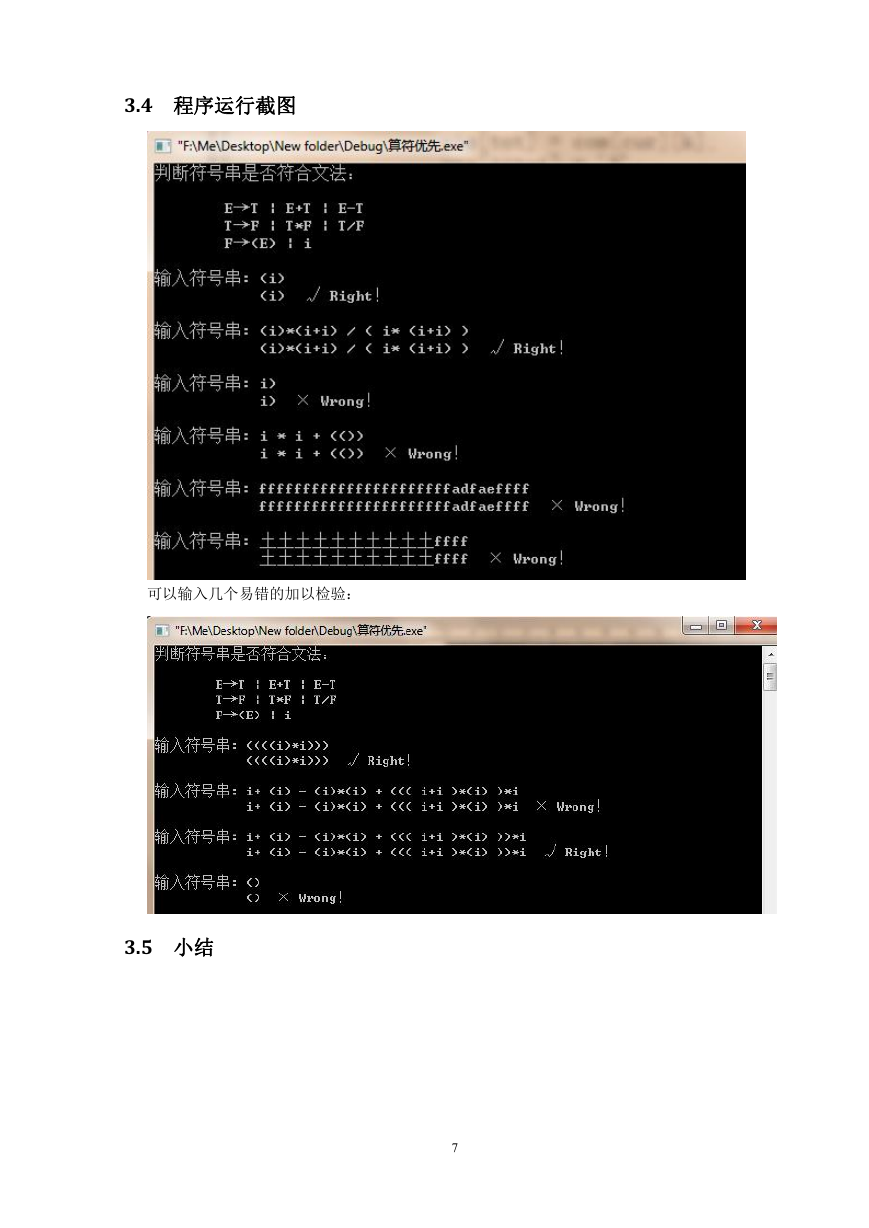

3.4 程序运行截图
可以输入几个易错的加以检验：
3.5 小结
7
