USER’S MANUAL C150 Thank you for choosing the Pantech C150, our latest tri- band GSM mobile phone. The C150 has many features that will enhance your mobile experience. From its light weight and reliability, to the built- in camera, we know you will enjoy all the features the C150 has to offer. The C150 user guide contains important information about using your handset. 070703_C150_EN(00)�‚�¬.indd 1 2007.7.3 4:35:25 PM 1

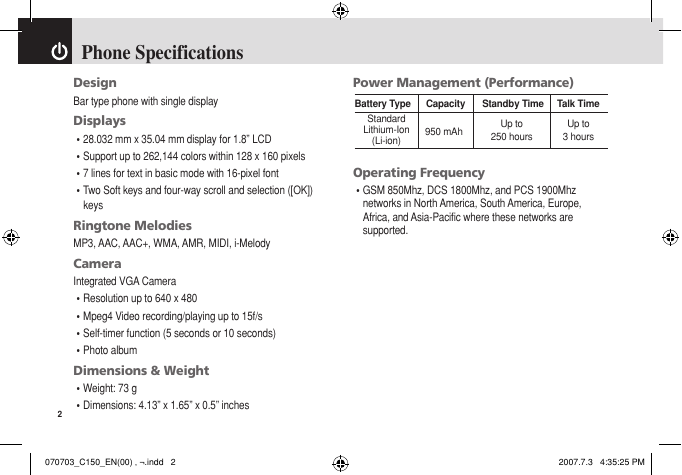

Power Management (Performance) Battery Type Capacity Standby Time Talk Time Standard Lithium-Ion (Li-ion) 950 mAh Up to 250 hours Up to 3 hours Selected Menu Item Operating Frequency • GSM 850Mhz, DCS 1800Mhz, and PCS 1900Mhz networks in North America, South America, Europe, Africa, and Asia-Pacific where these networks are supported. Phone Specifications Design Bar type phone with single display Displays • 28.032 mm x 35.04 mm display for 1.8” LCD • Support up to 262,144 colors within 128 x 160 pixels • 7 lines for text in basic mode with 16-pixel font • Two Soft keys and four-way scroll and selection ([OK]) keys Ringtone Melodies MP3, AAC, AAC+, WMA, AMR, MIDI, i-Melody Camera Integrated VGA Camera •Resolution up to 640 x 480 •Mpeg4 Video recording/playing up to 15f/s •Self-timer function (5 seconds or 10 seconds) •Photo album Dimensions & Weight •Weight: 73 g •Dimensions: 4.13” x 1.65” x 0.5” inches 2 070703_C150_EN(00)�‚�¬.indd 2 2007.7.3 4:35:25 PM

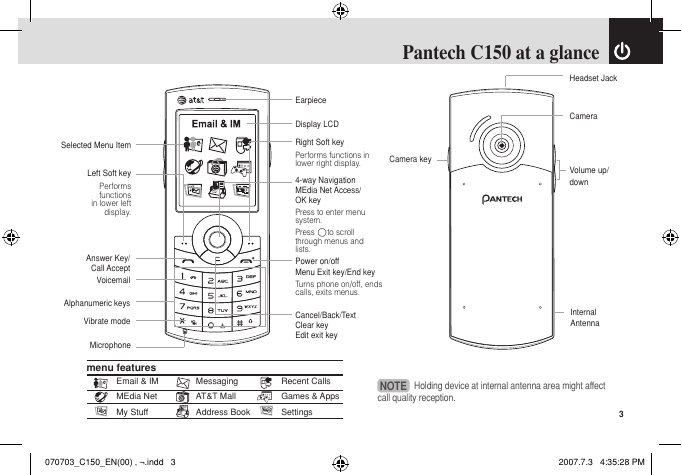

Pantech C150 at a glance Camera key Earpiece Display LCD Right Soft key Performs functions in lower right display. 4-way Navigation MEdia Net Access/ OK key Press to enter menu system. Press oto scroll through menus and lists. Power on/off Menu Exit key/End key Turns phone on/off, ends calls, exits menus. Cancel/Back/Text Clear key Edit exit key Headset Jack Camera Volume up/ down Internal Antenna Selected Menu Item Left Soft key Performs functions in lower left display. Answer Key/ Call Accept Voicemail Alphanumeric keys Vibrate mode Microphone menu features Email & IM MEdia Net My Stuff Messaging AT&T Mall Address Book Recent Calls Games & Apps Settings NOTE Holding device at internal antenna area might affect call quality reception. 3 070703_C150_EN(00)�‚�¬.indd 3 2007.7.3 4:35:28 PM

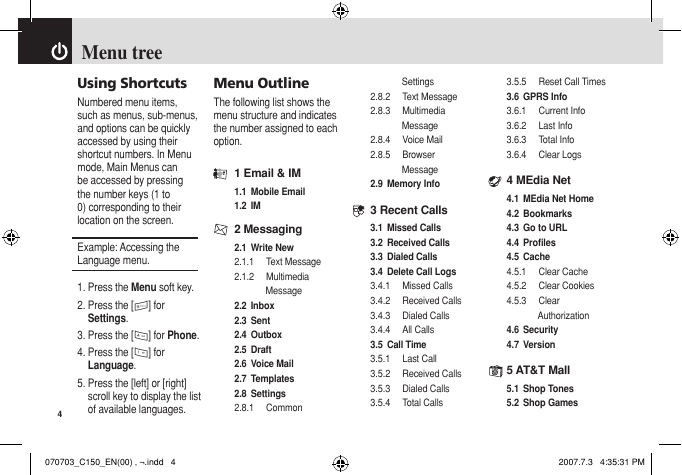

Menu tree Using Shortcuts Numbered menu items, such as menus, sub-menus, and options can be quickly accessed by using their shortcut numbers. In Menu mode, Main Menus can be accessed by pressing the number keys (1 to 0) corresponding to their location on the screen. Example: Accessing the Language menu. 1. Press the Menu soft key. 2. Press the [9] for Settings. 3. Press the [4] for Phone. 4. Press the [1] for Language. 5. Press the [left] or [right] scroll key to display the list of available languages. 4 Menu Outline The following list shows the menu structure and indicates the number assigned to each option. 1 Email & IM 1.1 Mobile Email 1.2 IM 2 Messaging 2.1 Write New 2.1.1 Text Message 2.1.2 Multimedia Message 2.2 Inbox 2.3 Sent 2.4 Outbox 2.5 Draft 2.6 Voice Mail 2.7 Templates 2.8 Settings 2.8.1 Common Settings 2.8.2 Text Message 2.8.3 Multimedia Message 2.8.4 Voice Mail 2.8.5 Browser Message 2.9 Memory Info 3 Recent Calls 3.1 Missed Calls 3.2 Received Calls 3.3 Dialed Calls 3.4 Delete Call Logs 3.4.1 Missed Calls 3.4.2 Received Calls 3.4.3 Dialed Calls 3.4.4 All Calls 3.5 Call Time 3.5.1 Last Call 3.5.2 Received Calls 3.5.3 Dialed Calls 3.5.4 Total Calls 3.5.5 Reset Call Times 3.6 GPRS Info 3.6.1 Current Info 3.6.2 Last Info 3.6.3 Total Info 3.6.4 Clear Logs 4 MEdia Net 4.1 MEdia Net Home 4.2 Bookmarks 4.3 Go to URL 4.4 Profiles 4.5 Cache 4.5.1 Clear Cache 4.5.2 Clear Cookies 4.5.3 Clear Authorization 4.6 Security 4.7 Version 5 AT&T Mall 5.1 Shop Tones 5.2 Shop Games 070703_C150_EN(00)�‚�¬.indd 4 2007.7.3 4:35:31 PM

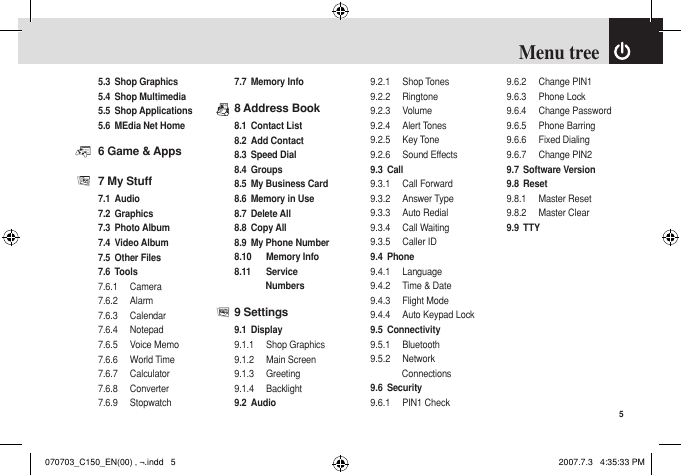

5.3 Shop Graphics 5.4 Shop Multimedia 5.5 Shop Applications 5.6 MEdia Net Home 6 Game & Apps 7 My Stuff 7.1 Audio 7.2 Graphics 7.3 Photo Album 7.4 Video Album 7.5 Other Files 7.6 Tools 7.6.1 Camera 7.6.2 Alarm 7.6.3 Calendar 7.6.4 Notepad 7.6.5 Voice Memo 7.6.6 World Time 7.6.7 Calculator 7.6.8 Converter 7.6.9 Stopwatch 7.7 Memory Info 8 Address Book 8.1 Contact List 8.2 Add Contact 8.3 Speed Dial 8.4 Groups 8.5 My Business Card 8.6 Memory in Use 8.7 Delete All 8.8 Copy All 8.9 My Phone Number 8.10 Memory Info 8.11 Service Numbers 9 Settings 9.1 Display 9.1.1 Shop Graphics 9.1.2 Main Screen 9.1.3 Greeting 9.1.4 Backlight 9.2 Audio 9.2.1 Shop Tones 9.2.2 Ringtone 9.2.3 Volume 9.2.4 Alert Tones 9.2.5 Key Tone 9.2.6 Sound Effects 9.3 Call 9.3.1 Call Forward 9.3.2 Answer Type 9.3.3 Auto Redial 9.3.4 Call Waiting 9.3.5 Caller ID 9.4 Phone 9.4.1 Language 9.4.2 Time & Date 9.4.3 Flight Mode 9.4.4 Auto Keypad Lock 9.5 Connectivity 9.5.1 Bluetooth 9.5.2 Network Connections 9.6 Security 9.6.1 PIN1 Check Menu tree 9.6.2 Change PIN1 9.6.3 Phone Lock 9.6.4 Change Password 9.6.5 Phone Barring 9.6.6 Fixed Dialing 9.6.7 Change PIN2 9.7 Software Version 9.8 Reset 9.8.1 Master Reset 9.8.2 Master Clear 9.9 TTY 5 070703_C150_EN(00)�‚�¬.indd 5 2007.7.3 4:35:33 PM

Quick & Easy Keys ( ) Perform the functions shown at the bottom line of the display by using these Soft keys. Functions Scroll through the menu options in Menu mode. In standby mode, Left Scroll: Access My Stuff menu Right Scroll: Access IM menu Up Scroll: Access Create Text Message menu Down Scroll: Access Contact list menu For details, see “Using the Shortcut Key in Standby Mode”. Select a menu function or store user-input information, such as names. Also use this key for conﬁrmation (as the [OK] key). Launch the MEdia Net directly if pressed in standby mode. Delete characters from the display, or return to previous menu. Open Calendar view if pressed shortly in standby mode. Make or receive a call. Show the recent call list in standby mode. Re-dial the last call number if pressed and held in standby mode. Complete the current call. Turn on/off the phone if pressed and held. Cancel user input and return to standby mode while in Menu mode. Quickly connect to the voice mail server if pressed and held in standby mode. o c s e 1 6 070703_C150_EN(00)�‚�¬.indd 6 2007.7.3 4:35:34 PM

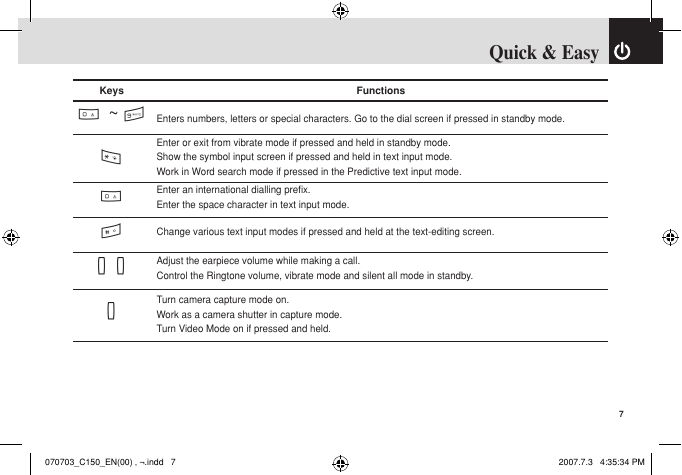

Quick & Easy Functions Enters numbers, letters or special characters. Go to the dial screen if pressed in standby mode. Enter or exit from vibrate mode if pressed and held in standby mode. Show the symbol input screen if pressed and held in text input mode. Work in Word search mode if pressed in the Predictive text input mode. Enter an international dialling preﬁx. Enter the space character in text input mode. Keys 0 ~ 9 * 0 # Change various text input modes if pressed and held at the text-editing screen. SS Adjust the earpiece volume while making a call. Control the Ringtone volume, vibrate mode and silent all mode in standby. S Turn camera capture mode on. Work as a camera shutter in capture mode. Turn Video Mode on if pressed and held. 070703_C150_EN(00)�‚�¬.indd 7 2007.7.3 4:35:34 PM 7
